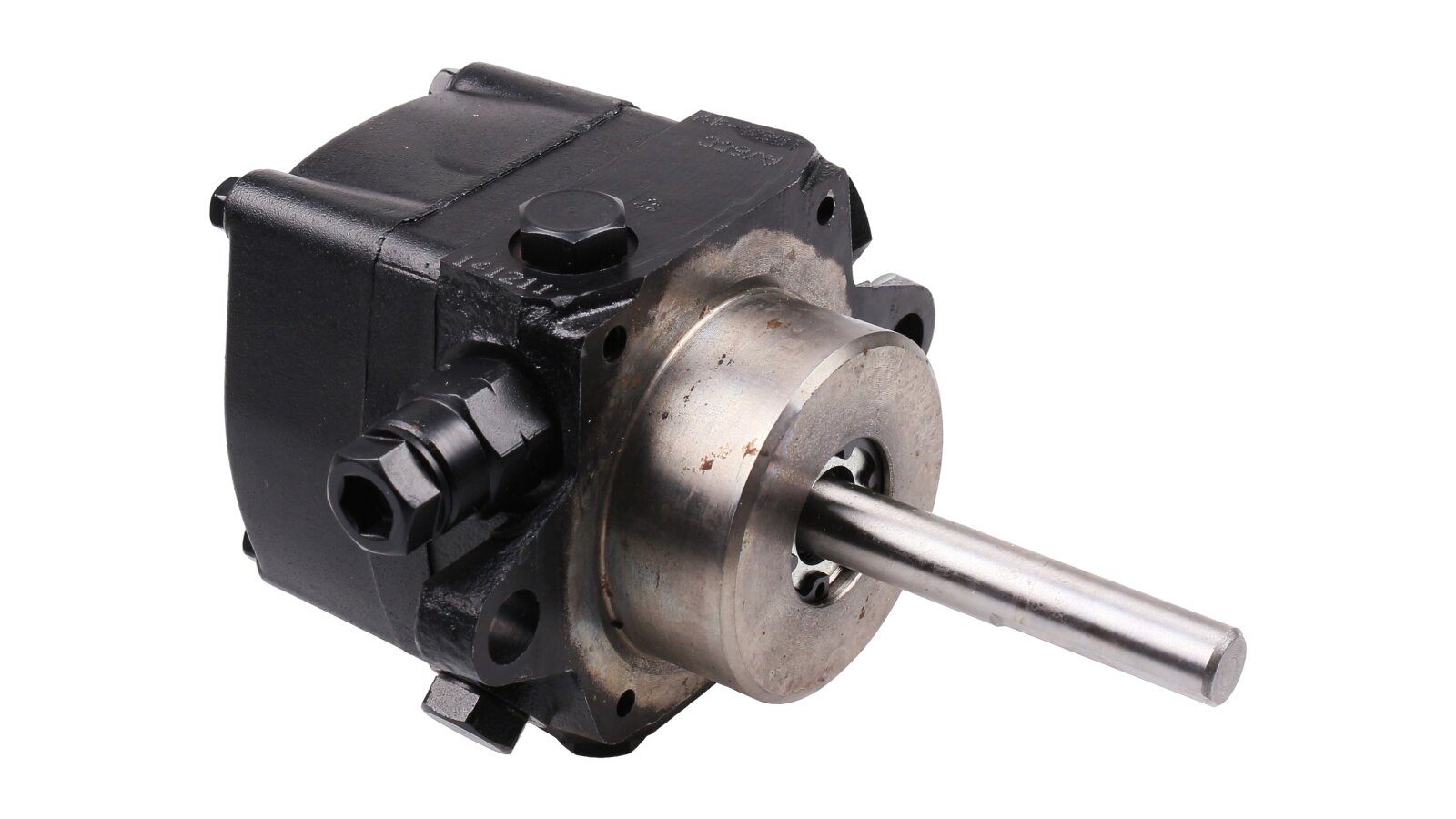

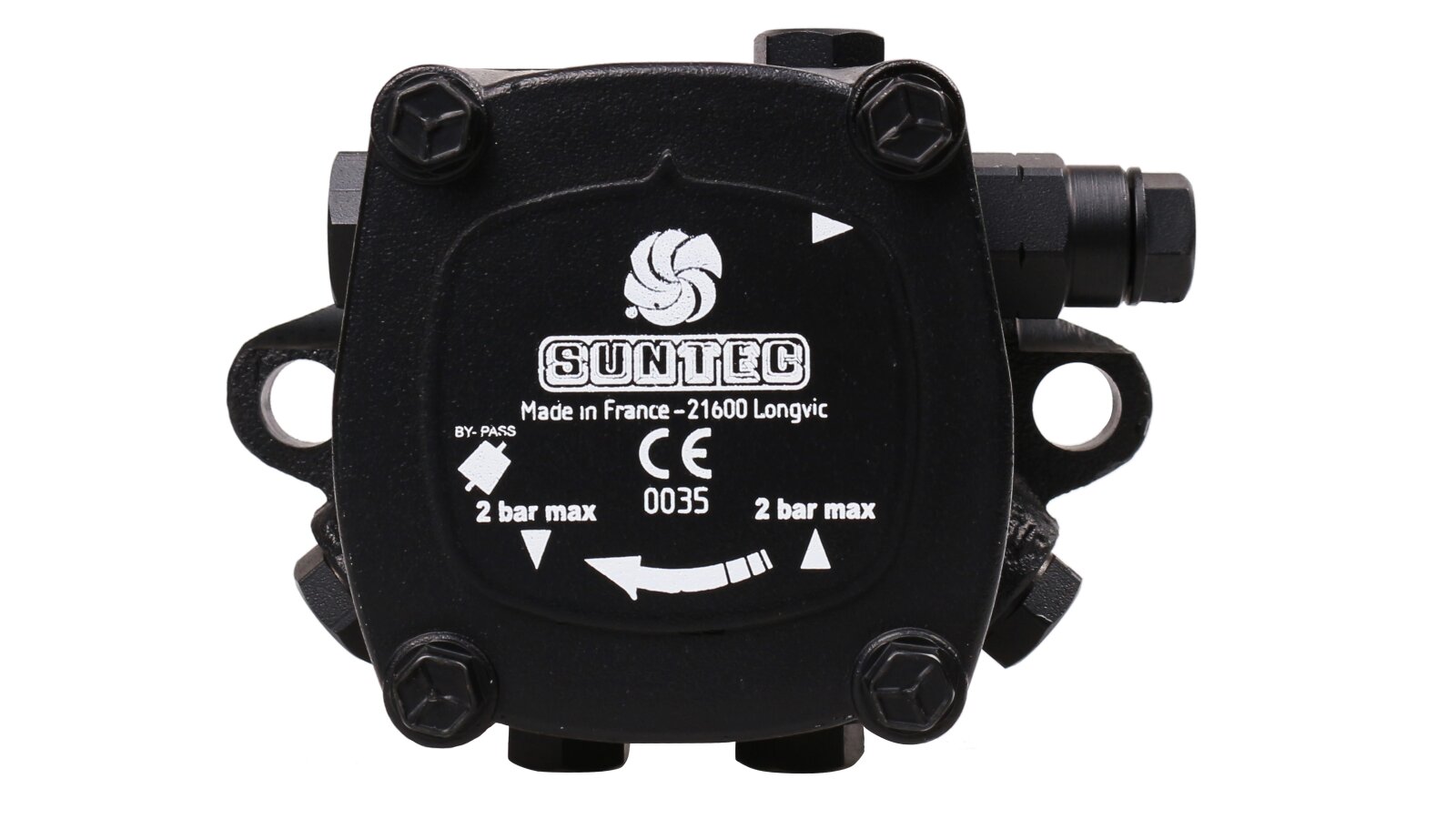

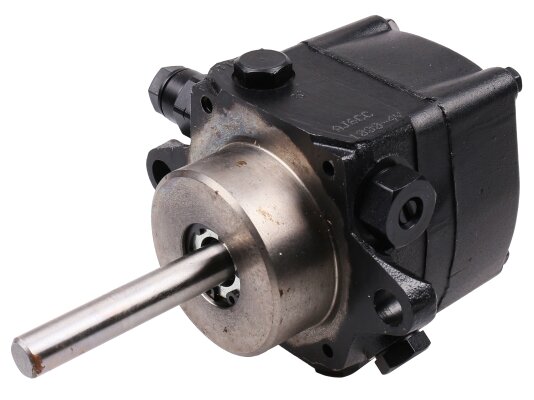

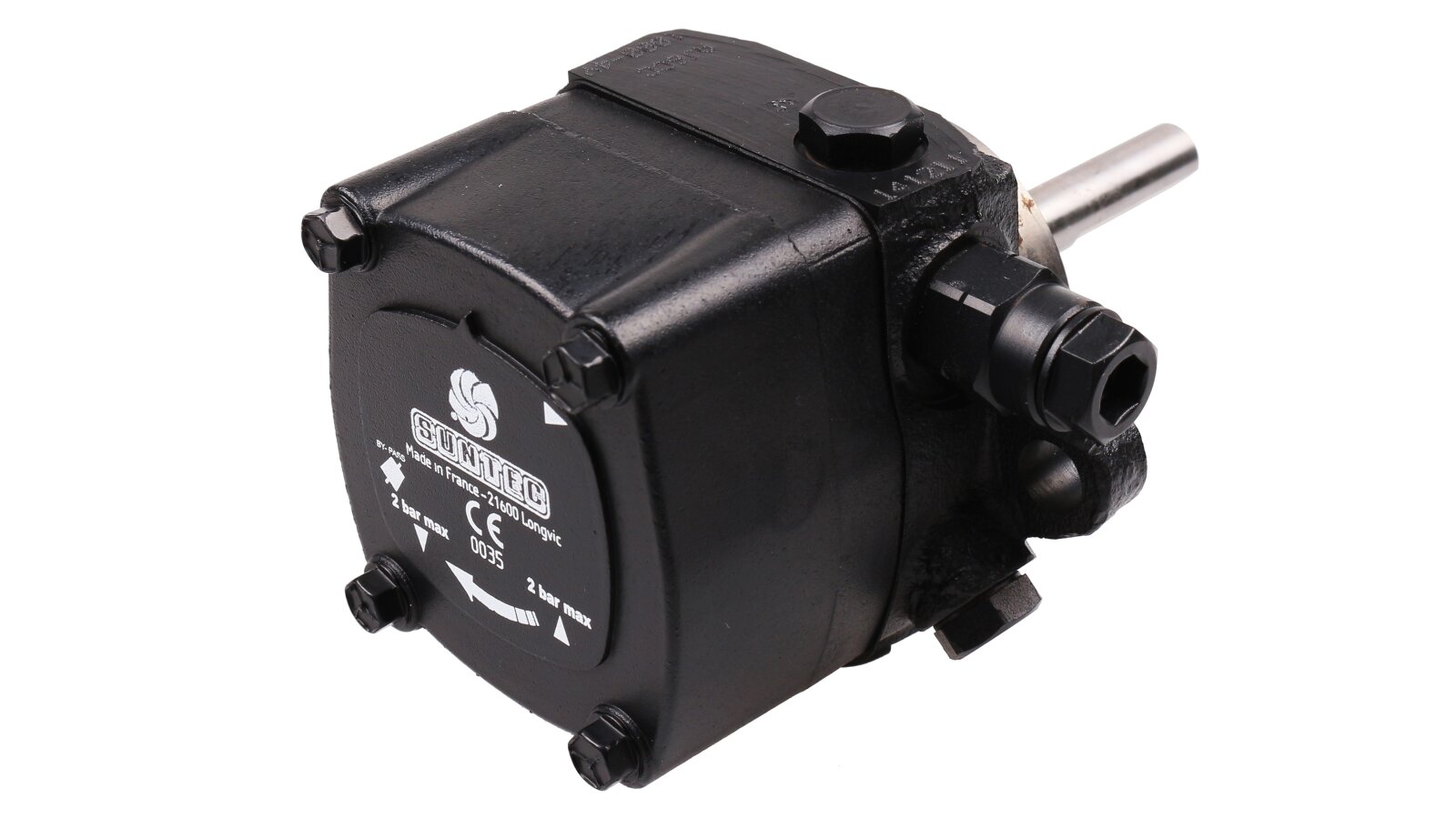

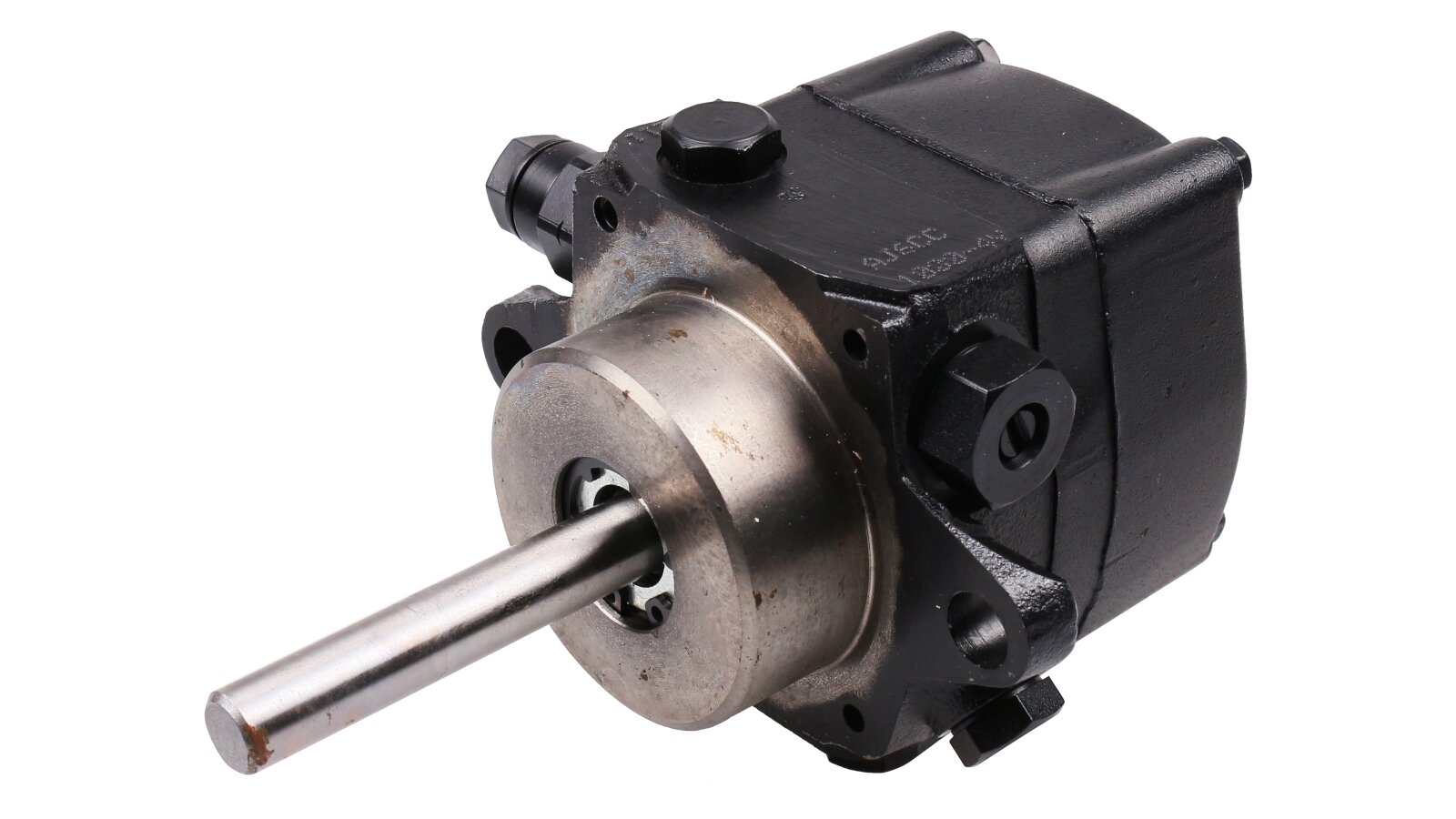

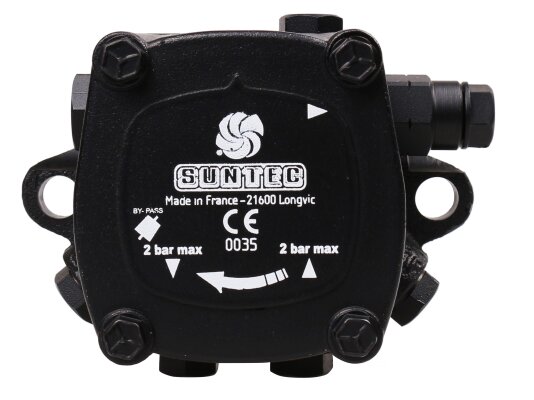

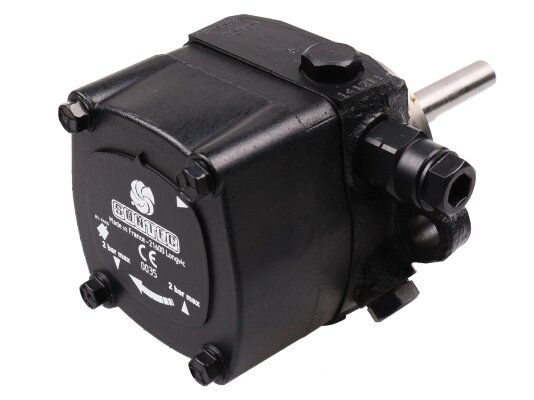

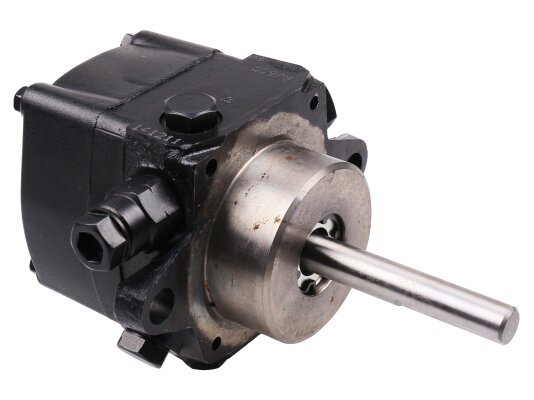

Burner Pump Suntec AJ V 6 CC 1000 4P

Suntec

AED 1,575

Oil Burner Pumps
Products code: 2353

Description

The Suntec AJ V 6 CC 1000 4P gear pump is designed for installation in medium-power burners running on diesel fuel and biodiesel. The model with a left-hand outlet to the nozzle is part of a series of devices equipped with a pressure regulating valve, which also performs the shut-off function. The capacity is 248 l/h at a pressure of 20 atm. and a viscosity of 5 cSt.

Features

  • The pump is configured by default for connection to a 2-pipe system. When used as part of a single-pipe installation, it is necessary to remove the bypass plug from the vacuum gauge port and close the return line with a steel plug and washer.

  • The regulating valve maintains the pressure at a given level, in the range of 10-20 atmospheres. Factory setting - 12 bar. To increase the feed pressure, turn the adjusting screw clockwise, to decrease - in the opposite direction. The valve also performs a shut-off function.

  • The design includes a filter with a working area of ​​30 cm². With its help, the fuel is cleaned of debris, sand and other mechanical impurities, extending the service life of the gears. The mesh insert cell size is 120x150 µm.

  • The pump is installed in the system using a flange connection with a diameter of 54 mm, in accordance with the EN225 standard.

  • When manufacturing the AJ V 6 CC 1000 4P pump, special shaft seals (material - Viton) are used, which allows pumping both diesel fuel and biodiesel.

Operating principle

The drive shaft with a nominal rotation speed of 2850 rpm transmits torque to the gear pair, which moves the fuel from the tank to the valve regulating the pressure and then to the injector line.

Excess fuel is sent back: to the tank in two-pipe systems or to the gear mechanism in single-pipe installations.

The advantages of the pump are:

  • pumping diesel fuel and biodiesel;

  • high performance (248 l/h);

  • protection of moving parts from wear thanks to the built-in filter;

  • use in systems of different configurations;

  • the ability to independently adjust the pressure taking into account current tasks;

  • standard outputs and ports for instrumentation, made according to ISO 228/1.

In the online store of the company "ANKAS", the official supplier of Suntec products, you can buy equipment for completing heating systems at the manufacturer's price.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 20 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.3 N·mSuction and return line: ¼ inch NPTF (taper thread)
