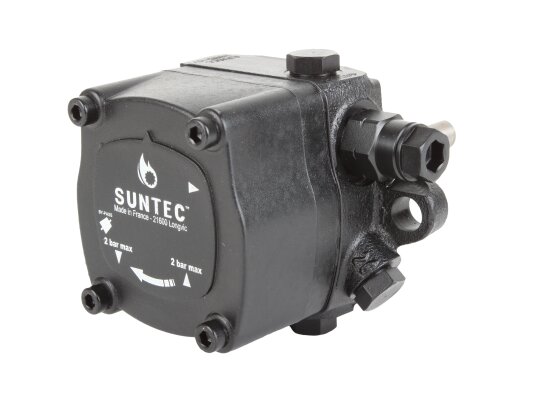

Burner Pump Suntec AJ V 6 CC 1005 4P

Suntec

AED 1,725

Oil Burner Pumps
Products code: 1254

Description

The Suntec AJ V 6 CC 1005 4P fuel pump is an excellent solution for equipping medium-power burners operating on diesel fuel and biodiesel. The productive equipment provides the supply of working fluid to the nozzle at a rate of 248 l/h under a pressure of 20 bar. The pressure parameters can be adjusted independently, the range is 10-20 atm.

Design features

The developers have achieved a reduction in internal pressure losses and used ring seals for connections to the suction line and "return". Also, for safe pumping of biofuel, Viton was chosen as the material for the shaft seal.

By default, the pump can be installed in systems with 2 pipes. For a single-pipe fuel line configuration, the bypass plug must be unscrewed and the drain channel must be carefully blocked.

The model belongs to the basic one, it includes a valve that regulates the pressure and locks the fuel. The speed of closing / opening the flow depends on the pressure parameters. With add. Equipped with an EM valve, the fuel supply mode is automated, which simplifies the operation of the equipment.

The standard shaft (8 mm) is made according to the EN-225 specification. This standard is used by many burner manufacturers, including Lamborghini, Baltur, Weishaupt.

How the pump works

The main functional unit - a gear pair is responsible for moving fuel from the tank to the valve (through the filter mesh), and then under pressure - to the nozzle. Excess diesel fuel / biodiesel is sent to the tank in systems with 2 pipes or moved back to the gears in installations with one pipe.

The advantages are:

  • high fuel supply efficiency;

  • universal use - for diesel fuel, biodiesel;

  • reduction of pressure losses;

  • fuel cleaning from abrasive inclusions;

  • pressure regulation on the nozzle;

  • standard connection to the engine (EN-225).

Reliability, trouble-free service for many years and affordable price are what users value Suntec equipment for. You can buy AJ V 6 CC 1005 4P and other devices for creating efficient heating systems of any purpose and performance from us.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 20 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.3 N·mSuction and return line: ¼ inch NPTF (taper thread)
