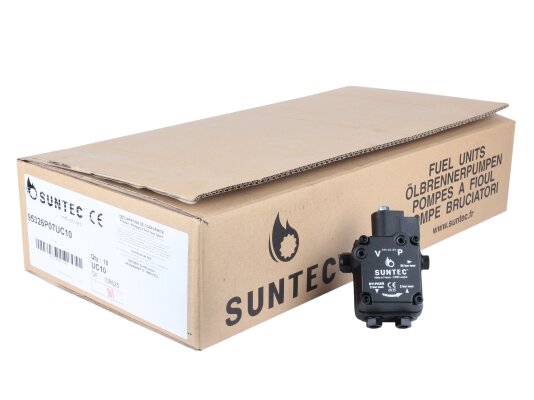

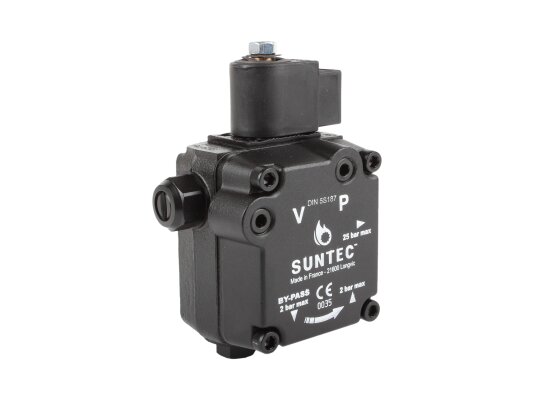

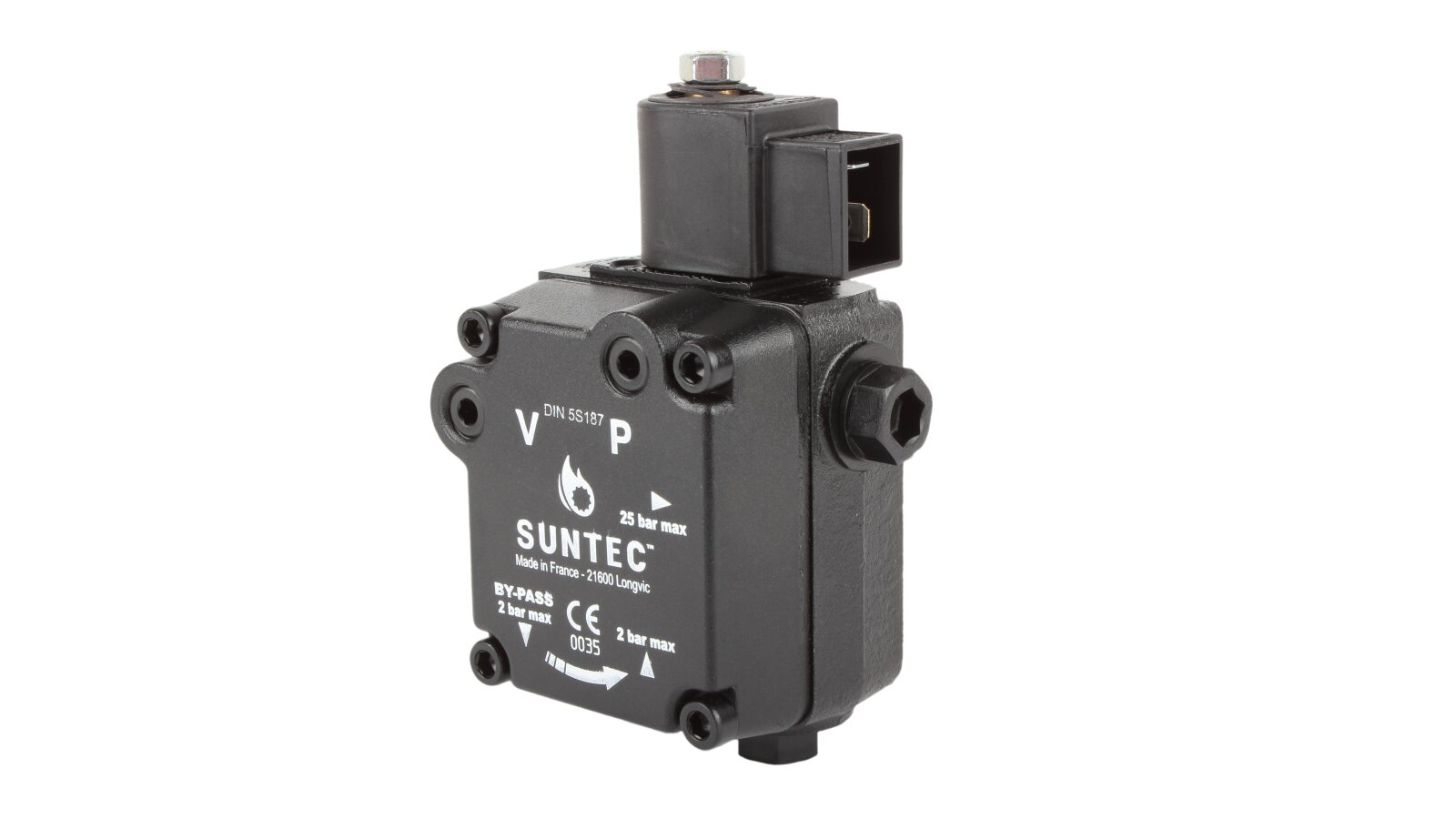

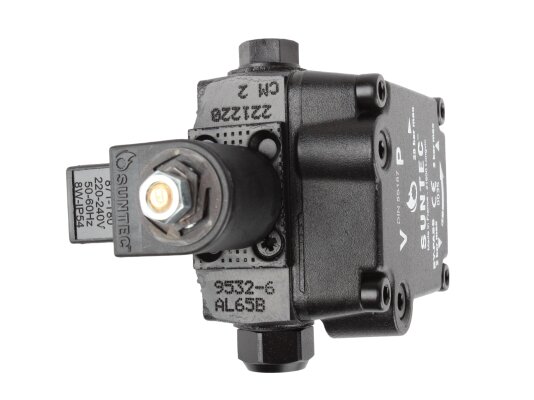

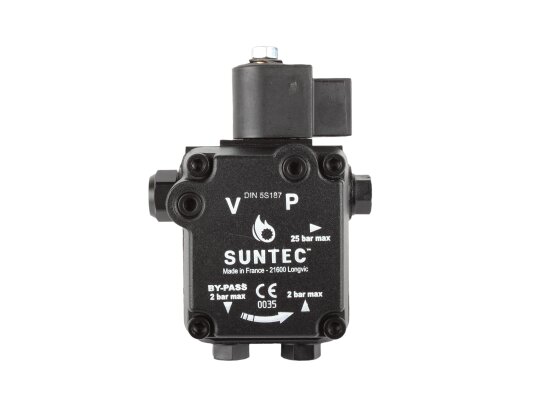

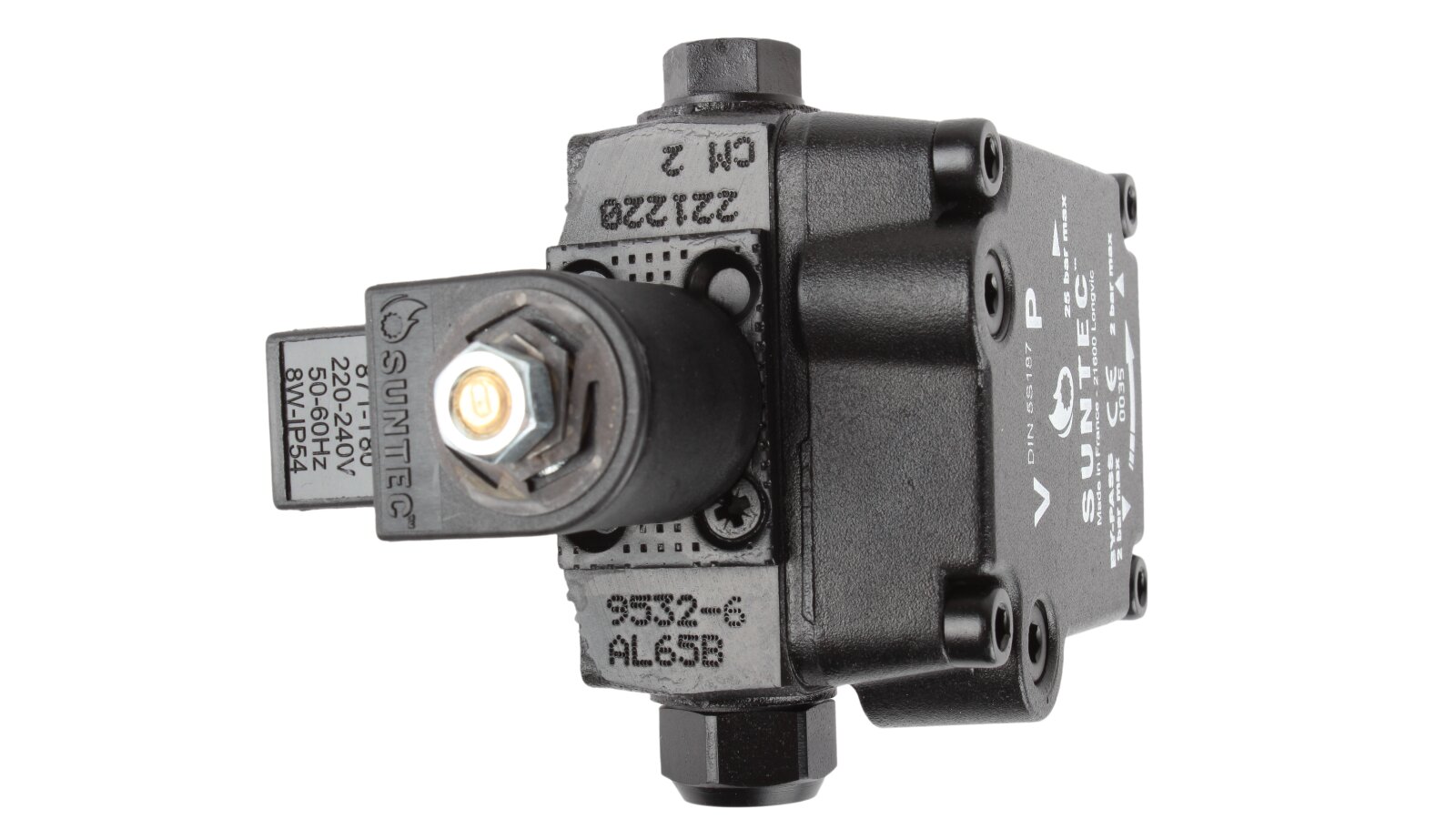

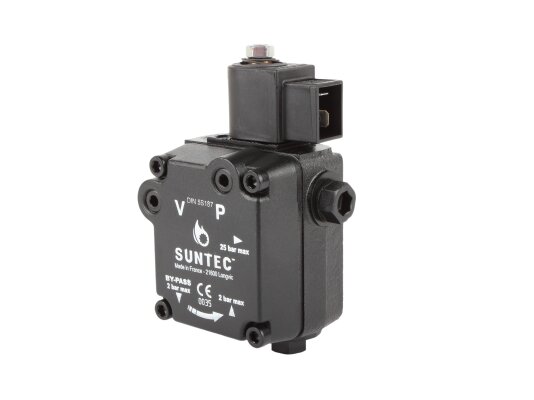

Burner Pump Suntec AL 65 B 9532 6P 0700

Suntec

AED 1,850

Oil Burner Pumps
Products code: 1177

Description

The French company Suntec has introduced the AL 55 A 9527 6P 0700 gear pump to the boiler equipment market, designed for liquid fuel burners. The model with a capacity of 58 l/h attracts the attention of buyers with its technical characteristics, compact size, and unpretentiousness to operating conditions.

The unit is equipped with an electromagnetic shut-off valve and can be connected to both a single-pipe and a two-pipe system, which determines its versatility. The liquid fuel pump is compatible with burners from such manufacturers as Lamborghini, Weishaupt, Elco and Baltur.

Technical data

  • In the single-stage pump "Suntek" the main functional unit is a gear pair. With its help, the combustible mixture is supplied from the fuel tank to the nozzles. The built-in dismountable filter with a capacity of 6 cm² is used for preliminary cleaning of the working mixture. The electromagnetic valve is required to maintain the pressure in the pressure line within the range of 8 to 15 atm or to stop the fuel supply when changing the operating mode of the heating burner.

  • In the inactive state, the valve is in the closed position, and the diesel fuel is directed to the suction line or to the tank, depending on the installed fuel line circuit.

  • Important recommendation: installing a fine filter in the fuel line will significantly extend the service life of the injectors and prevent their clogging.

Main advantages:

  • smooth pressure adjustment in the range of 8-15 bar using the regulating valve;

  • shut-off function of the blocking electromagnetic valve, used to instantly shut off the fuel line;

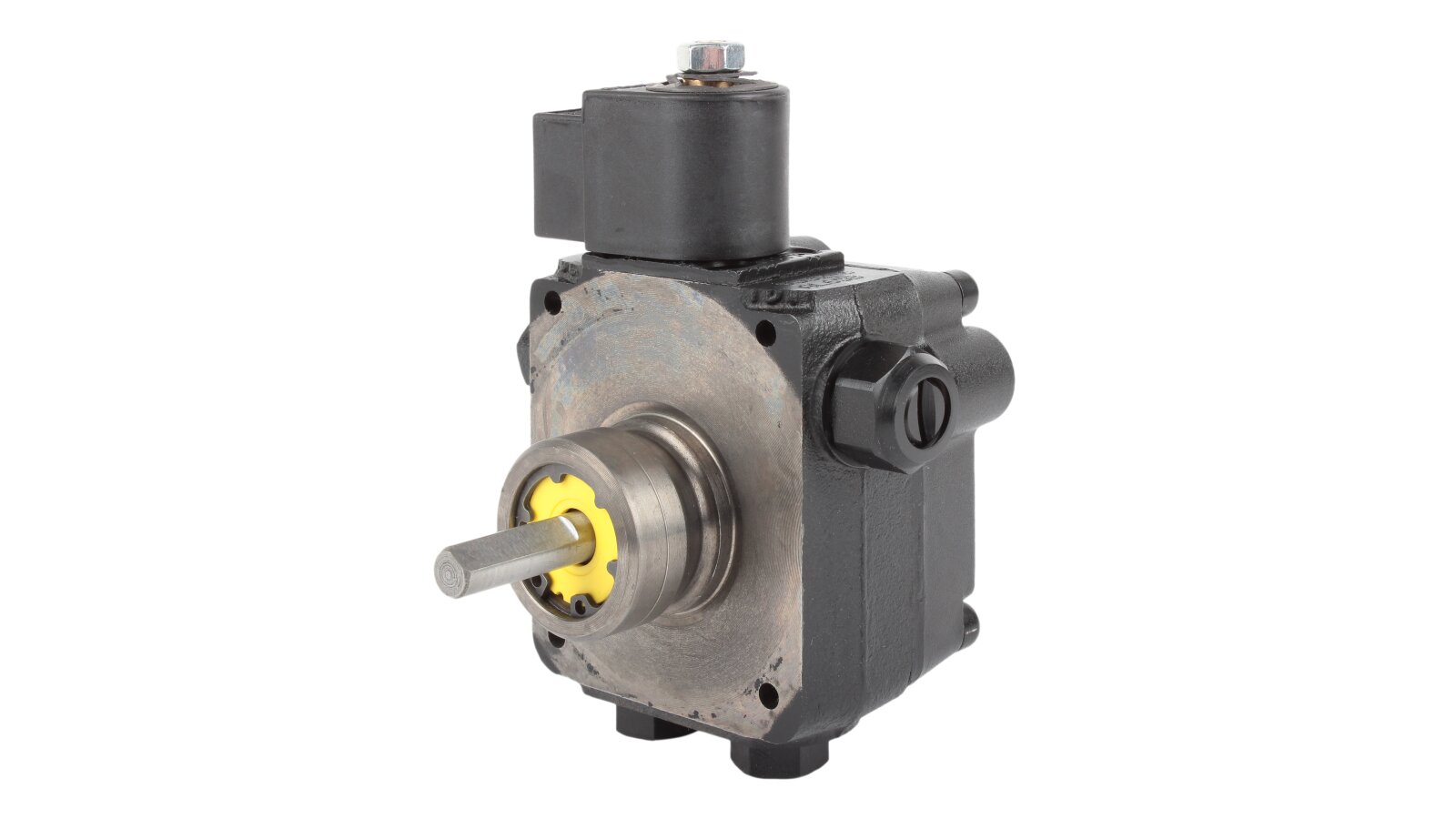

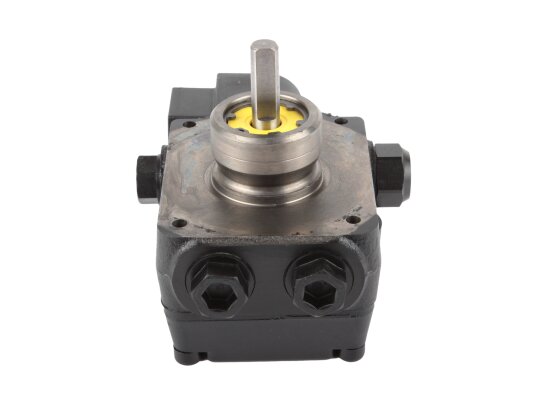

  • single-cavity shaft with a diameter of 8 mm standardized according to EN 225;

  • protection of internal parts from water and dust using a sealed housing with IP54;

  • optimal dimensions and weight not exceeding 1.1 kg.

You can buy Suntec pumps for AL 55 series burners at the manufacturer's price from the company "ANKAS". We always have a wide range of equipment for heating systems of various types in stock. You can place an order directly on the website. To select units and components, contact our specialists for advice at the phone numbers listed on the website.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.12 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
