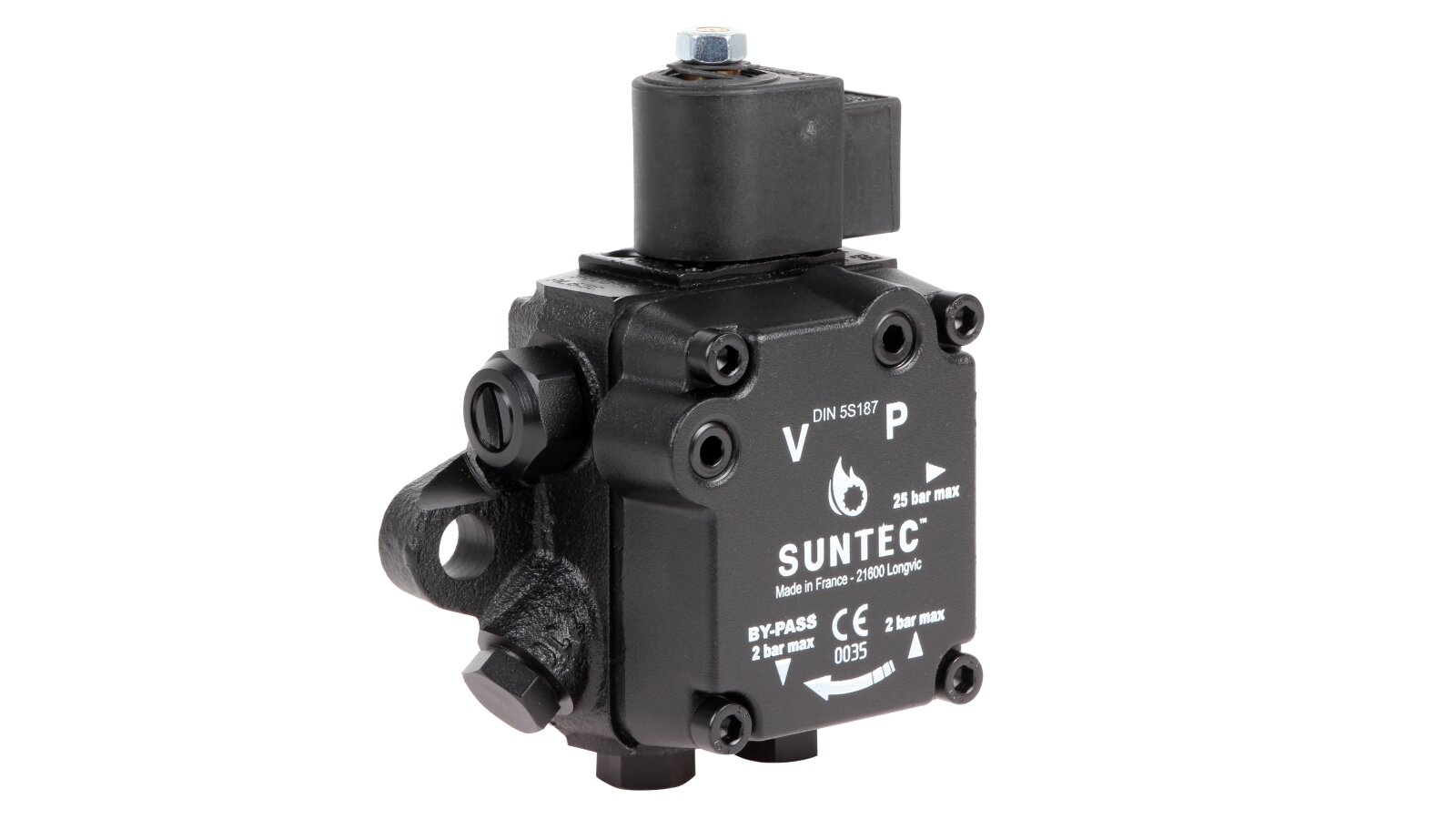

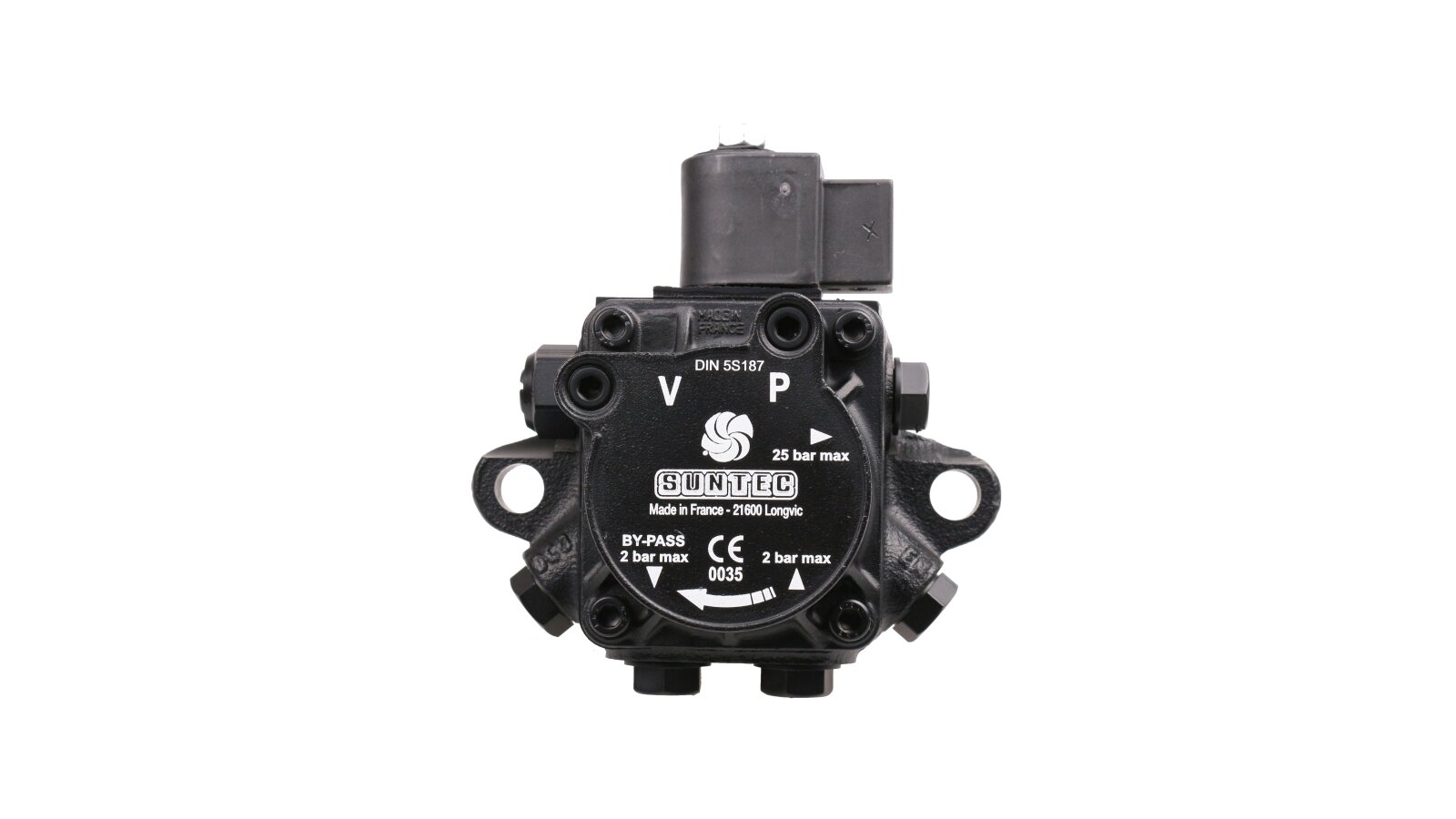

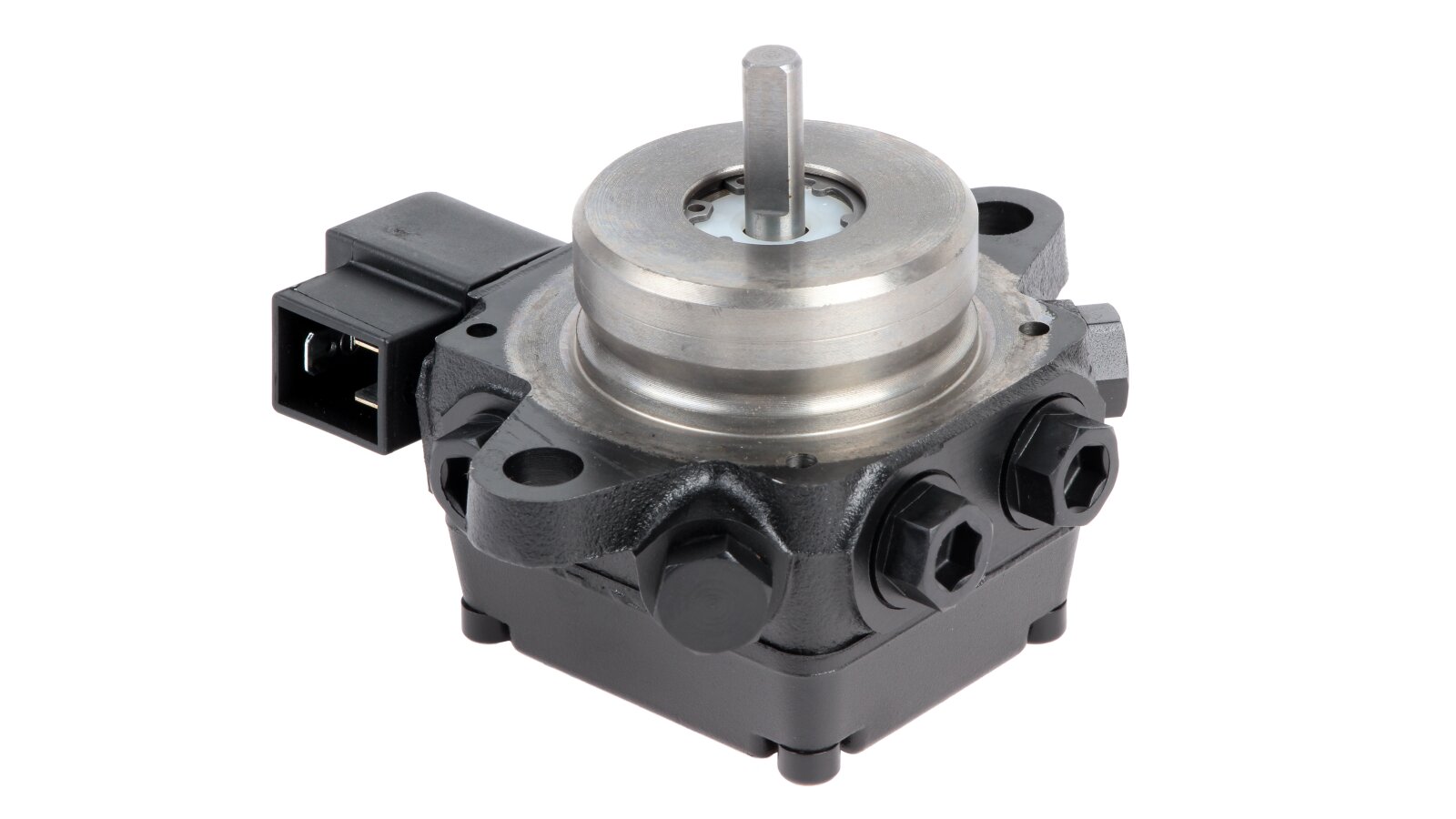

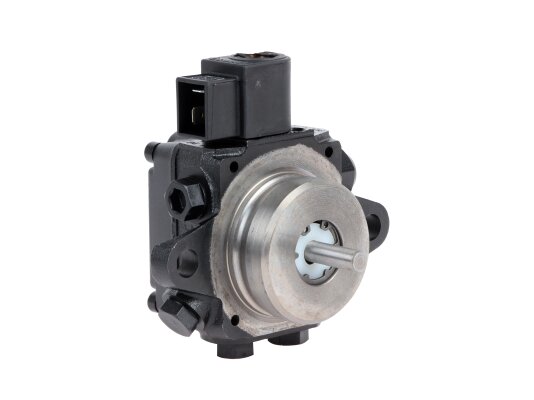

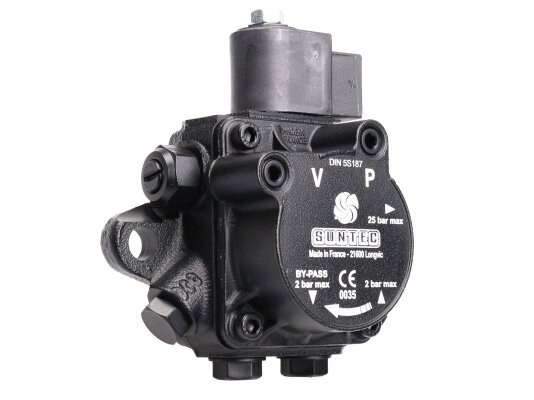

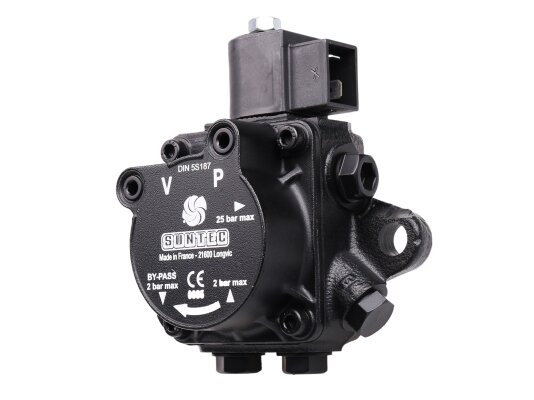

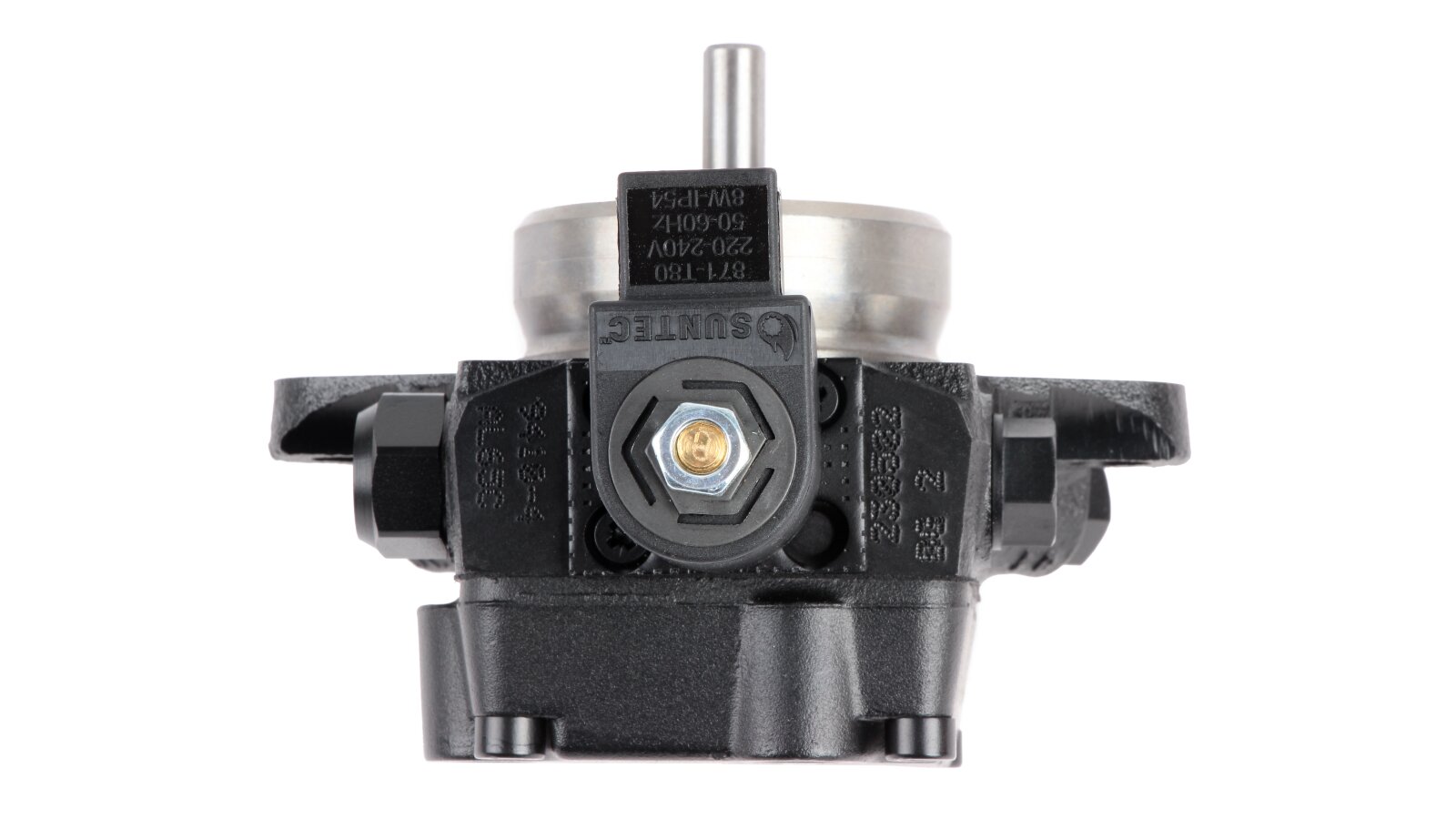

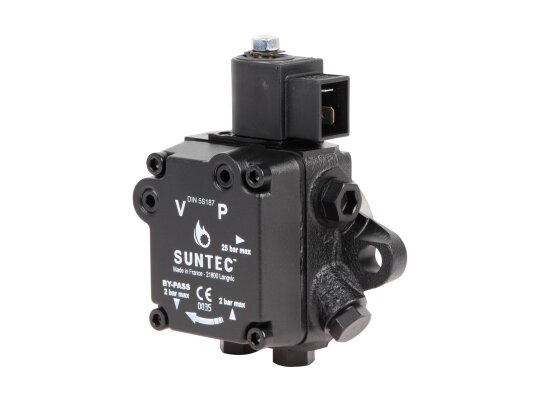

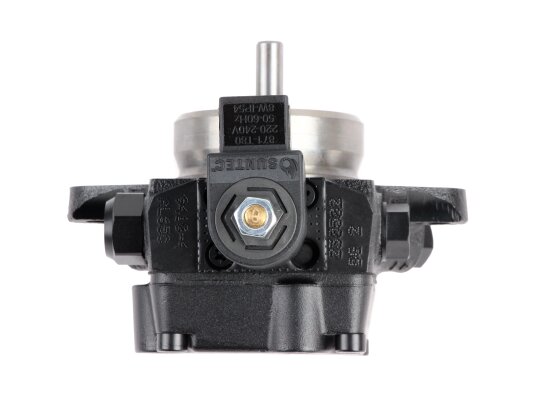

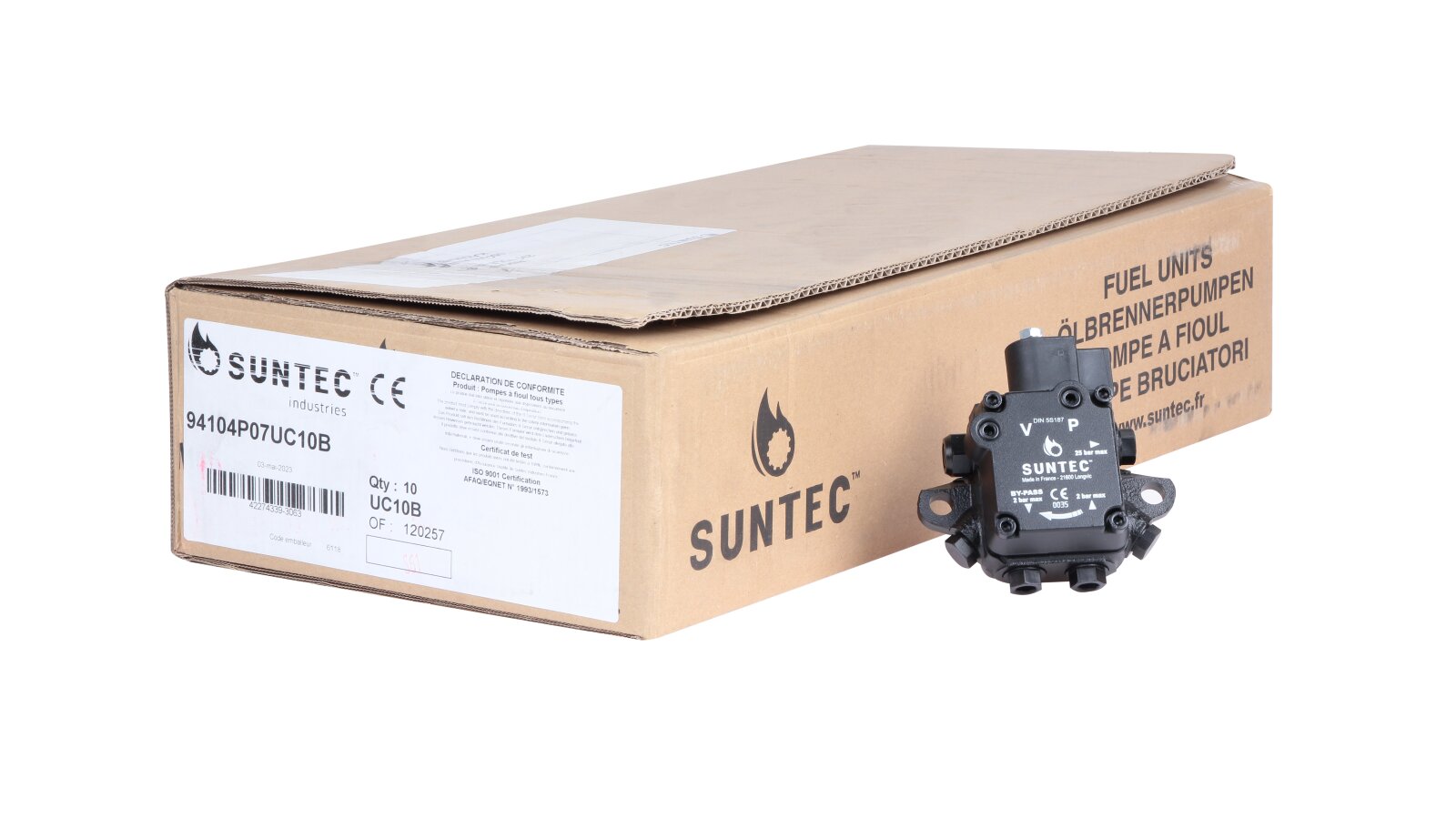

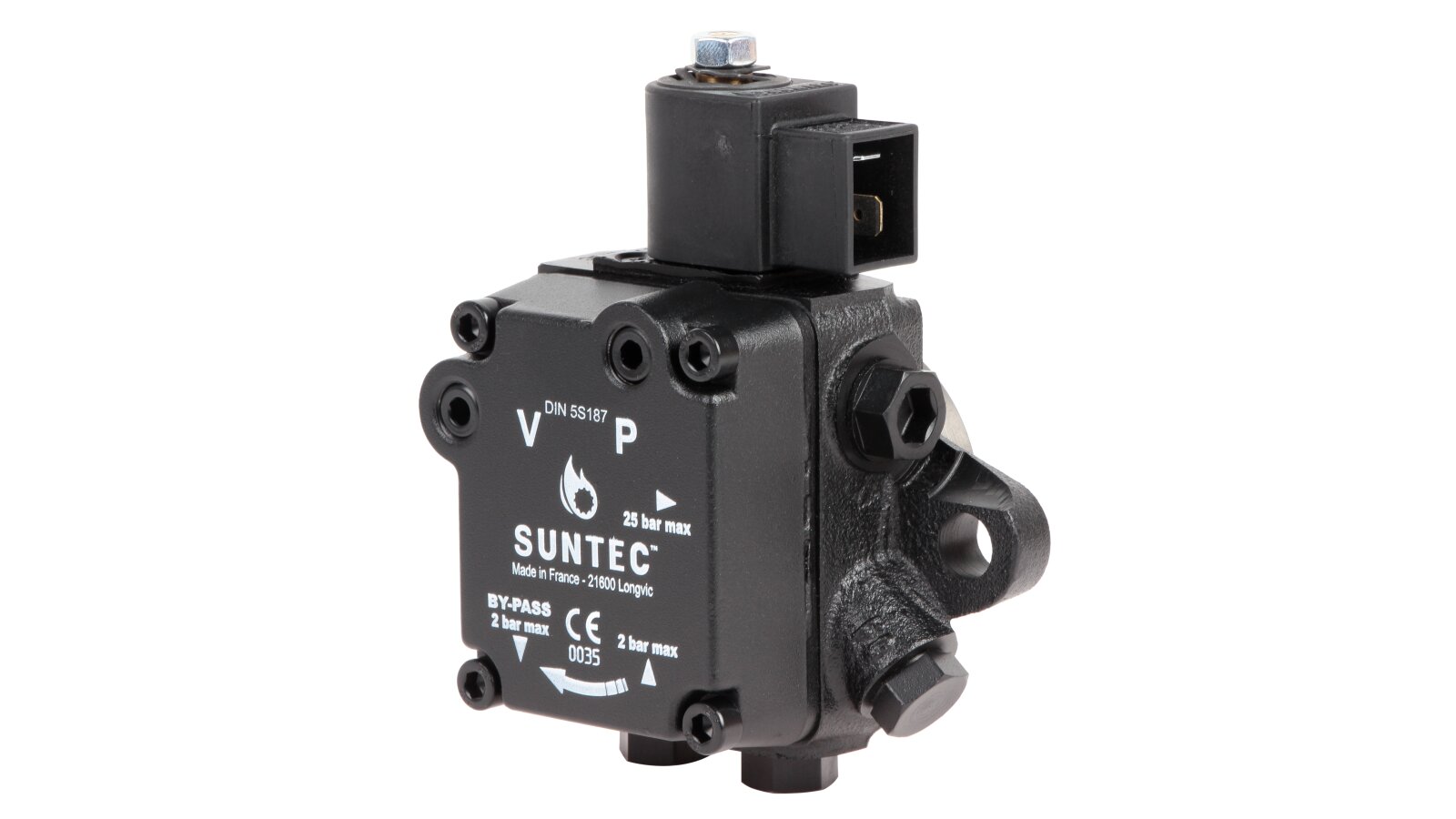

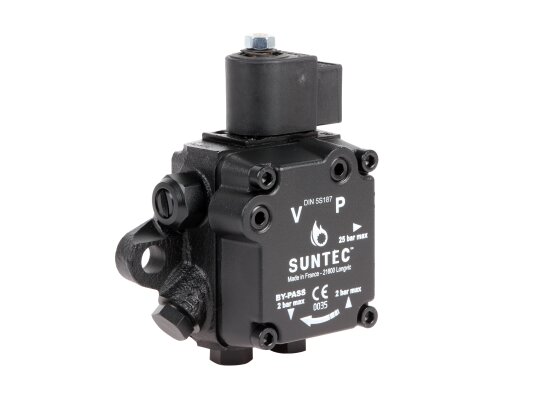

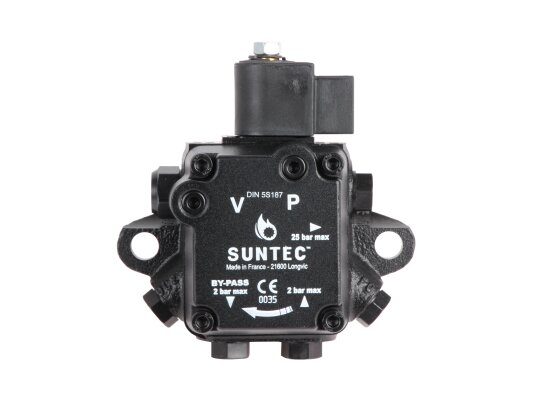

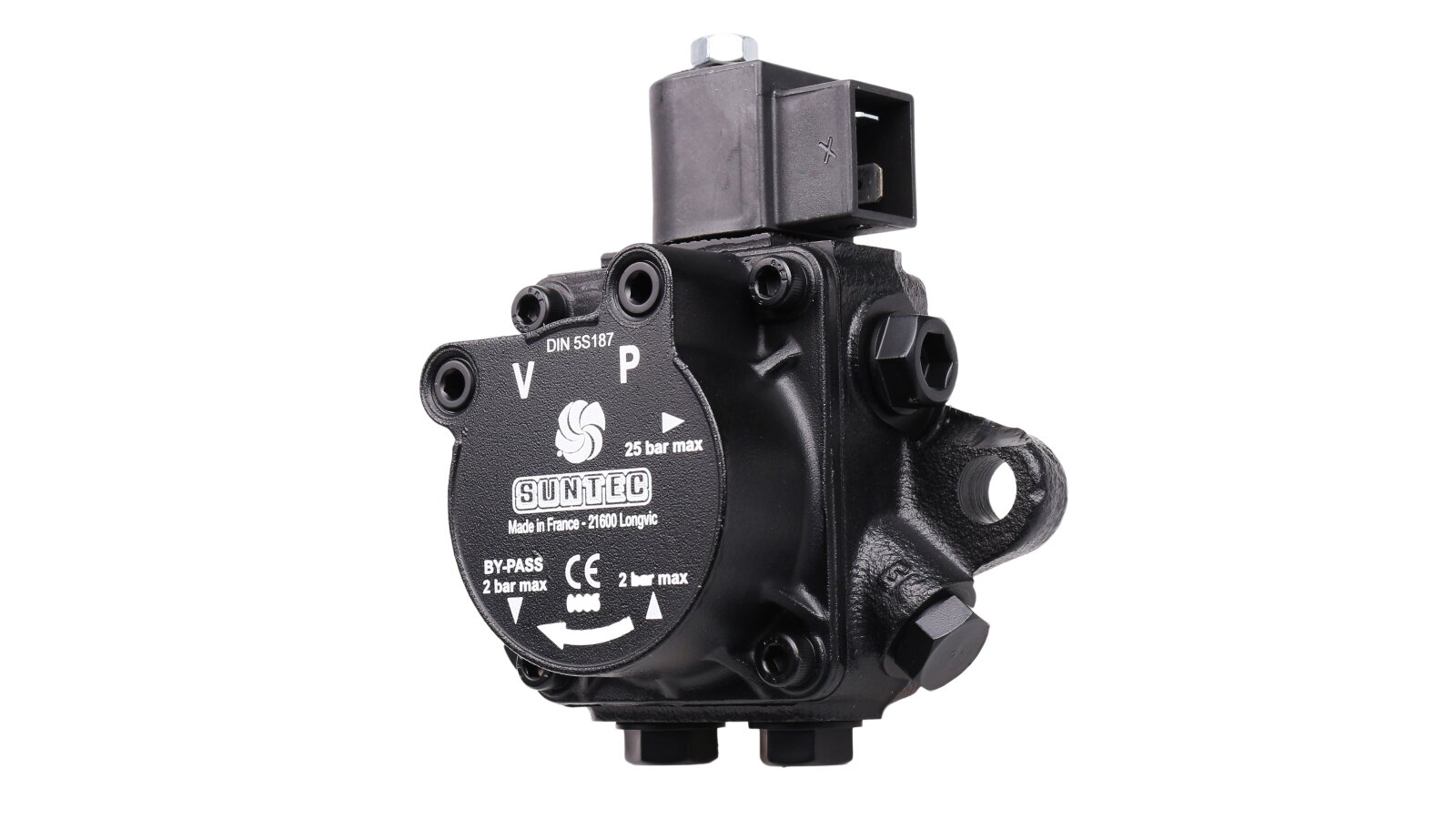

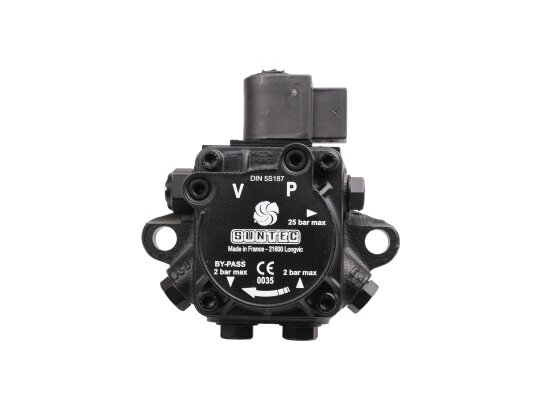

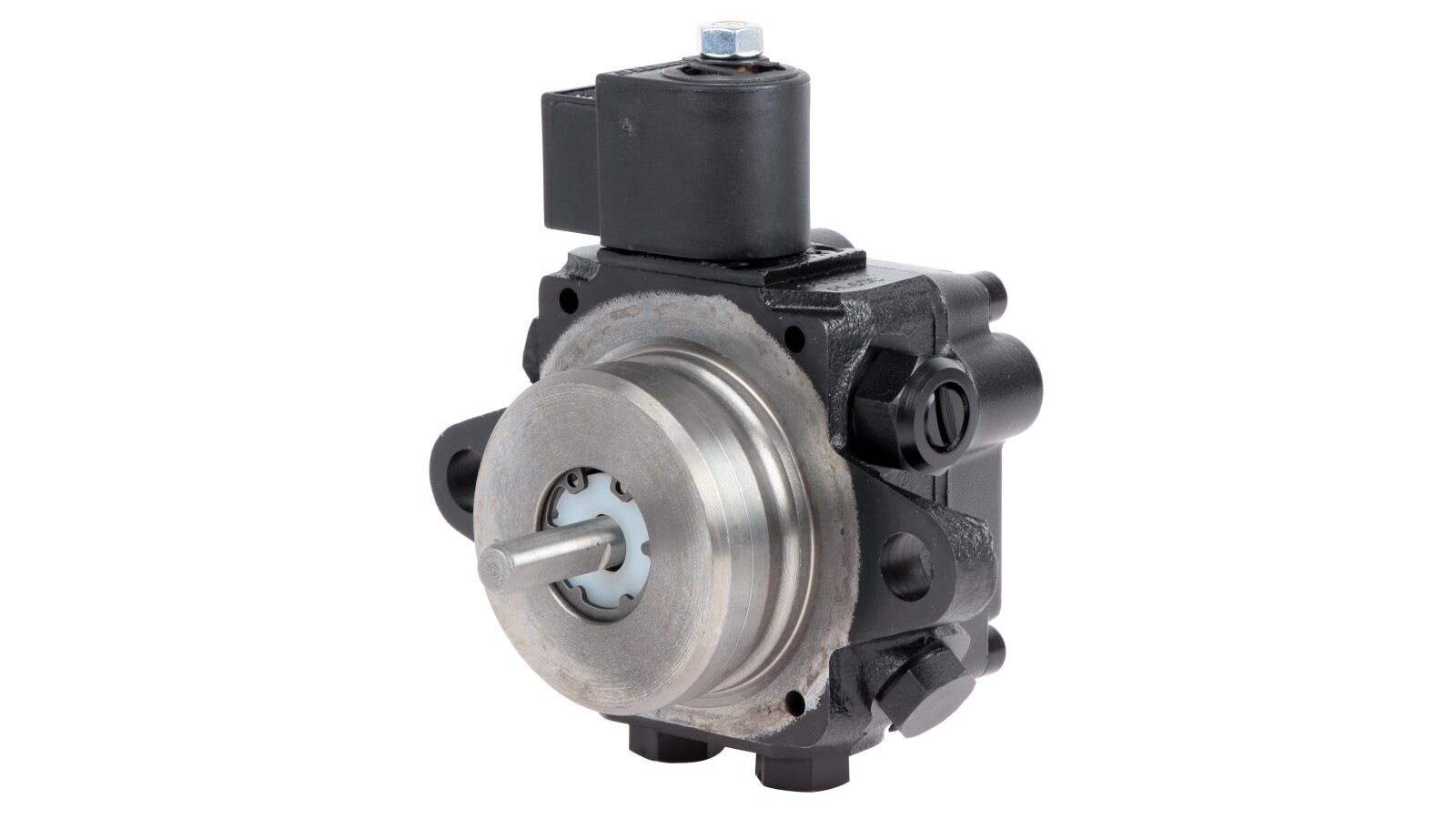

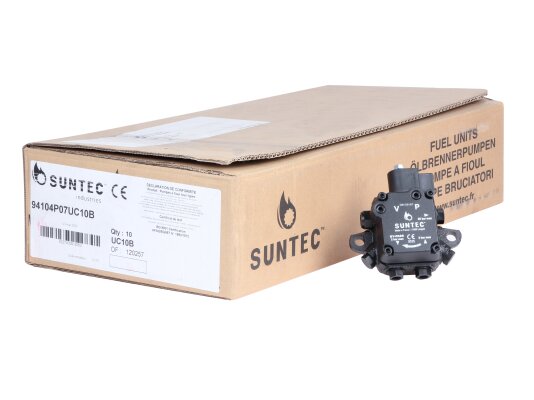

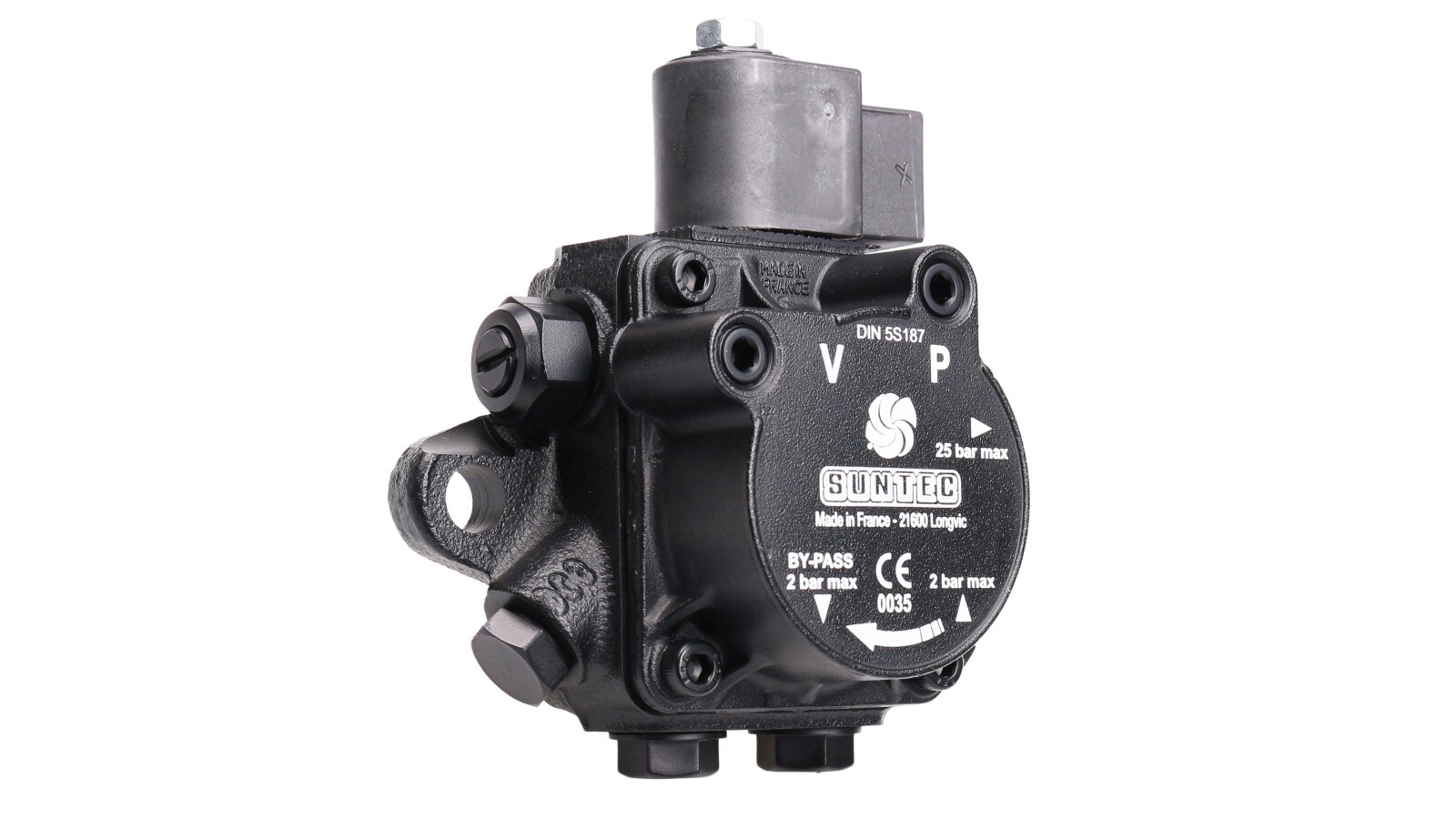

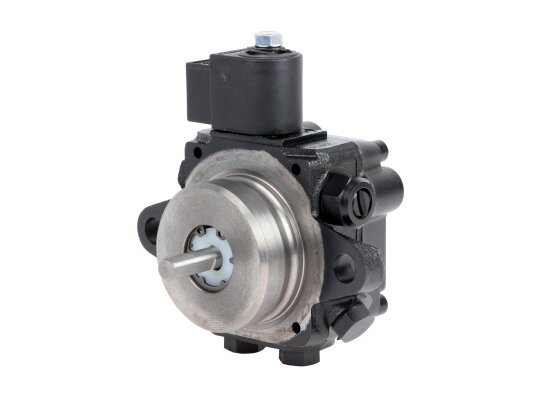

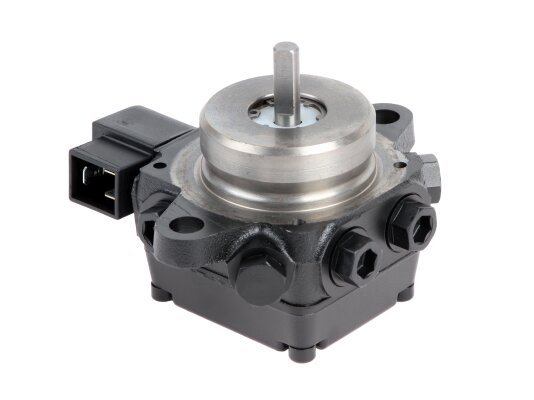

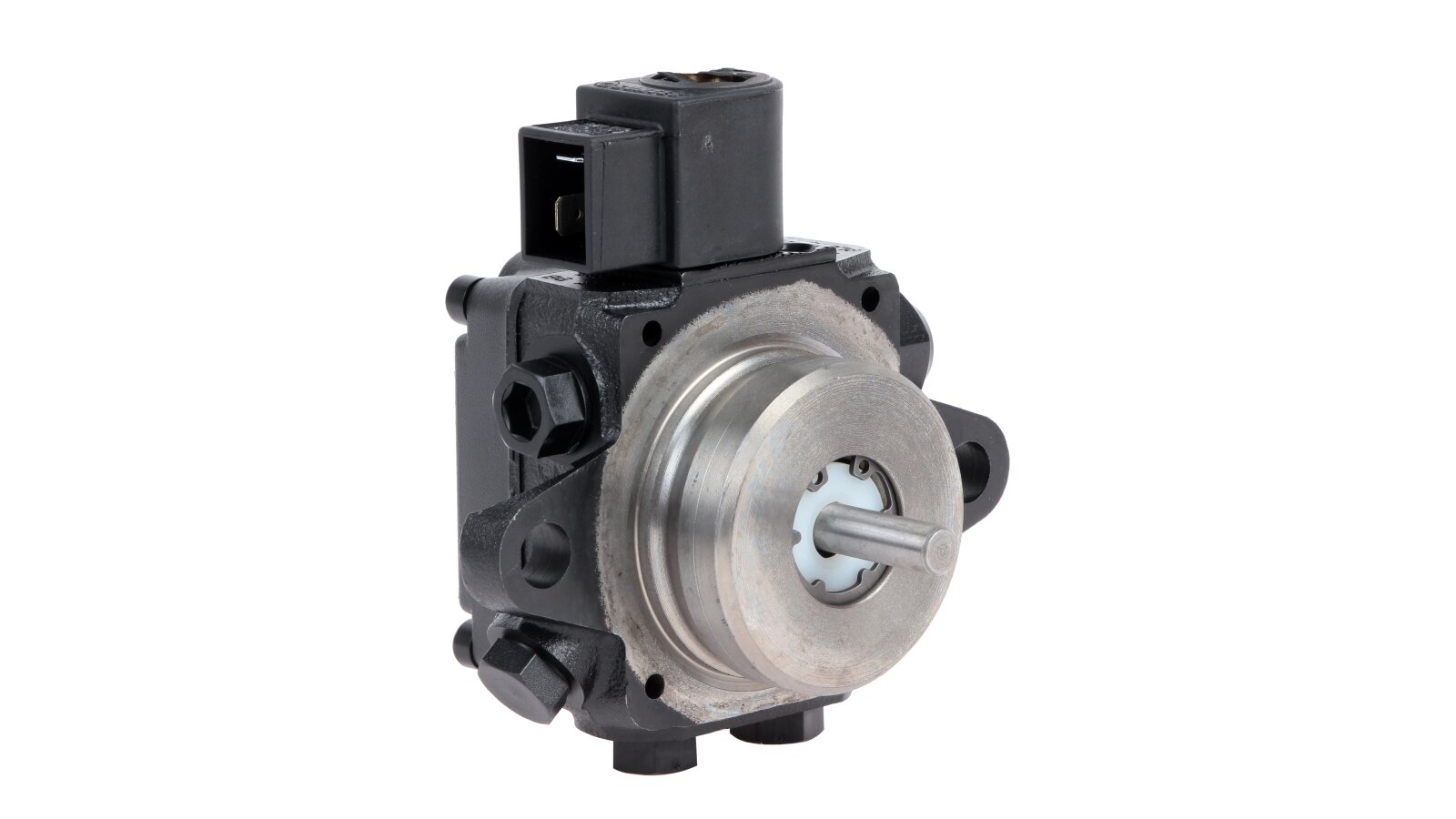

Burner Pump Suntec AL 65 C 9410 4P 0700

Suntec

AED 1,350

Oil Burner Pumps
Products code: 1387

Description

AL 65 C 9410 4P 0700 is a modern model of a single-stage liquid fuel pump, characterized by its compact size and easy installation. This is one of the latest developments of the French company Suntec, known in the boiler equipment market for its high-tech solutions that significantly improve equipment performance and increase its service life.

The unit is equipped with a built-in filter and a shut-off electromagnetic valve. It can be used with single-pipe and double-pipe fuel line configurations. It has a low weight and a sleeve connection with a seat diameter of 54 mm for easy integration into the system.

The pump is highly reliable and has a versatile design. It is fully compatible with burners manufactured by Lamborghini, Elco, Baltur and Weishaupt.

Technical features

  • The main working unit of the unit is a gear pair that supplies the combustible mixture from the fuel tank and moves it along the pipeline to the injectors. In the process, the liquid is cleaned. A mesh filter with a flow area of ​​6 cm² is provided for this purpose.

  • The built-in control valve is required to adjust the pressure in the system, which should be in the range from 8 to 15 atm. And the electromagnetic valve is designed to shut off the fuel supply. In the inactive state, the valve has a closed position and the working fluid is directed to the tank or the suction line, depending on the type of heating circuit.

  • Recommended! When installing in a set with a pump, it is better to install an additional fine filter. It will prevent clogging of the nozzles and significantly extend their service life.

Advantages of the model:

  • optimal performance - up to 81 l / h;

  • installation in single-pipe and two-pipe fuel supply systems;

  • standard threaded ports for mounting a pressure gauge and vacuum gauge — G⅛";

  • wide range of working environment temperatures — from 0 to 60°C.

The company "ANKAS" offers to buy the Suntec AL 65 C 9410 4P 0700 heating burner pump at a favorable price. The catalog contains a large selection of boiler equipment and components, which can be ordered remotely.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.12 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
