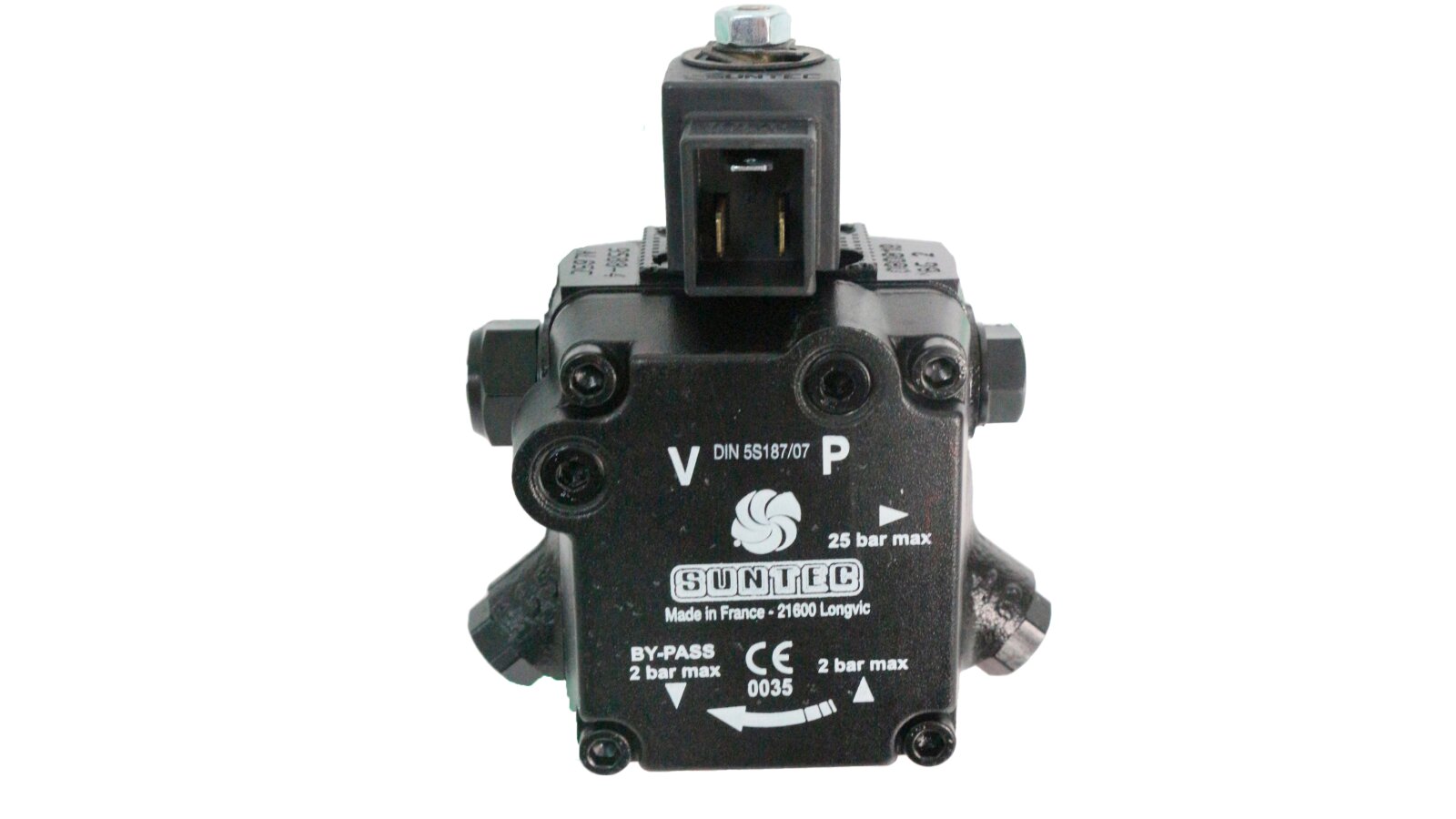

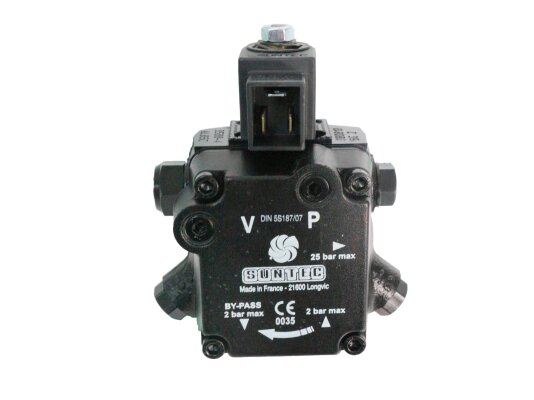

Burner Pump Suntec AL 65 C 9588 4P 0700

Suntec

AED 825

Oil Burner Pumps
Products code: 1178

Description

The AL 65 C 9588 4P 0700 gear pump is a new development by the French Suntec concern, designed to complete burners that operate on diesel fuel. The model with a flow rate of up to 81 l/h is characterized by a long service life and a convenient design that ensures easy connection to the system.

The single-stage pump is fully compatible with liquid fuel burners from manufacturers such as Lamborghini, Weishaupt, Elco and Baltur, which significantly expands its scope of application.

Distinctive features

  • The main working unit of the device is a gear pair that moves the working mixture from the fuel tank to the injectors. During the supply process, the fuel is pre-cleaned. For these purposes, there is a built-in filter with a throughput area of ​​6 cm². The model is equipped with an adjustment device. Its purpose is to adjust the pressure in the system and maintain it within 8 to 15 atm.

  • The shut-off electromagnetic valve shuts off the fuel supply to the injector line when triggered, regardless of the operating mode of the electric motor.

  • The valve has a closed position when inactive and the combustible mixture is directed to the suction line or to the fuel tank, depending on the design of the fuel system.

  • Important information! When connecting fuel lines, it is recommended to install a fine filter after the pump along the flow of the working fluid. This will protect the burner nozzles from periodic clogging and extend their service life.

Main advantages:

  • Adjustment device for adjusting the pressure on the nozzles in a wide range;

  • Shut-off function of the electromagnetic valve;

  • High performance of the device - up to 81 l / h;

  • Automatic air release with a two-pipe fuel line connection system;

  • Reliable protection against mechanical particles, water and dust getting to internal parts - IP54.

The company "ANKAS" is an official dealer of the European manufacturer and offers to buy the heating burner pump AL 65 C 9588 4P 0700 at a bargain price. There is always a large selection of equipment for heating systems in stock, distinguished by high technical characteristics. You can place an order on the website, for this it is enough to fill out a special form.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.12 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
