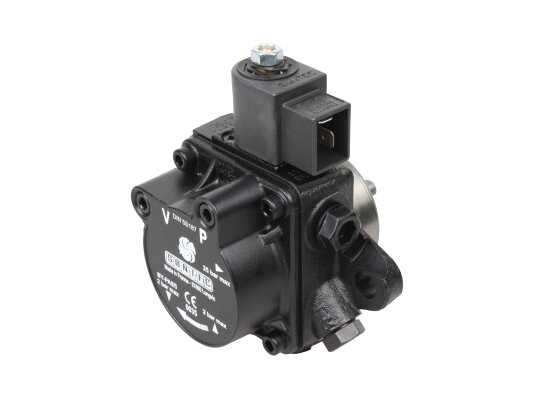

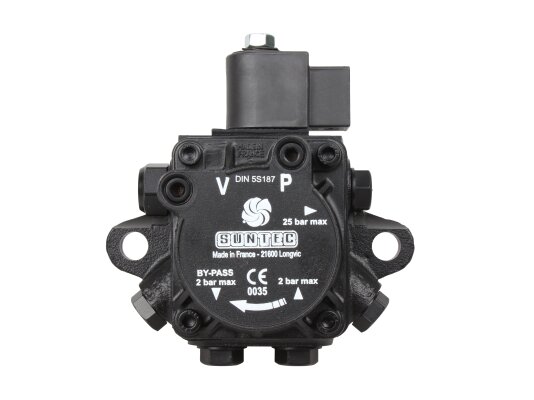

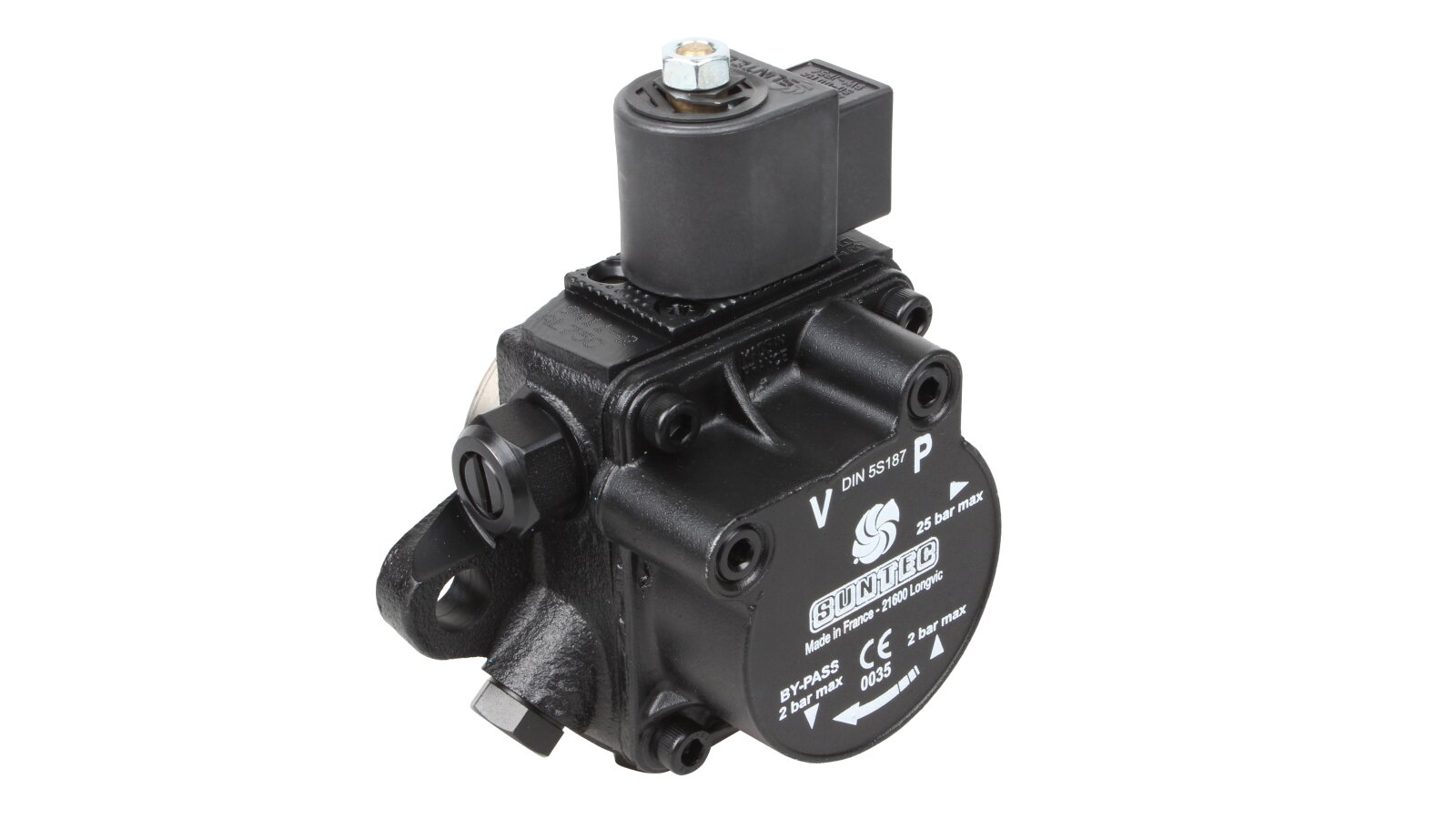

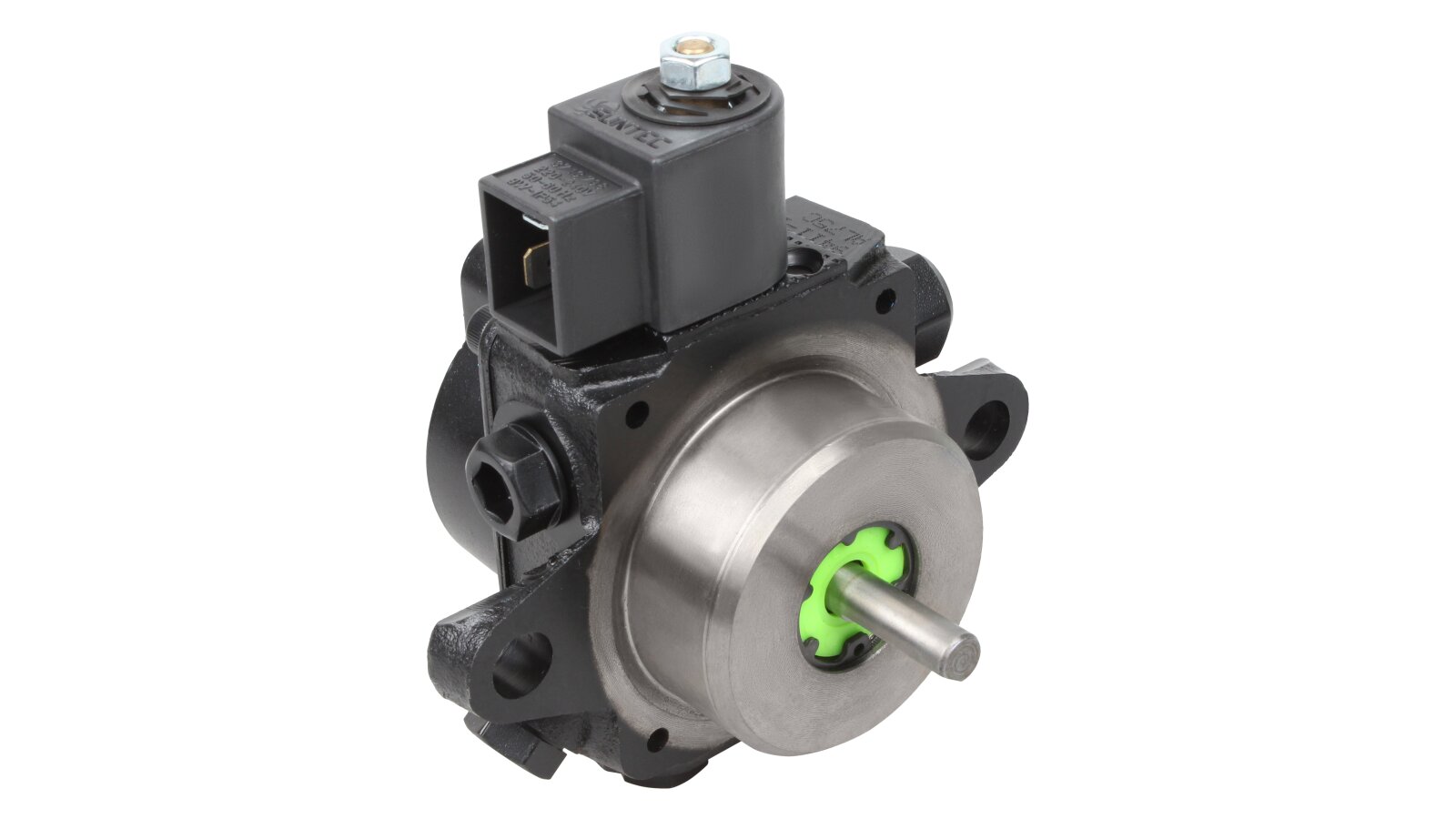

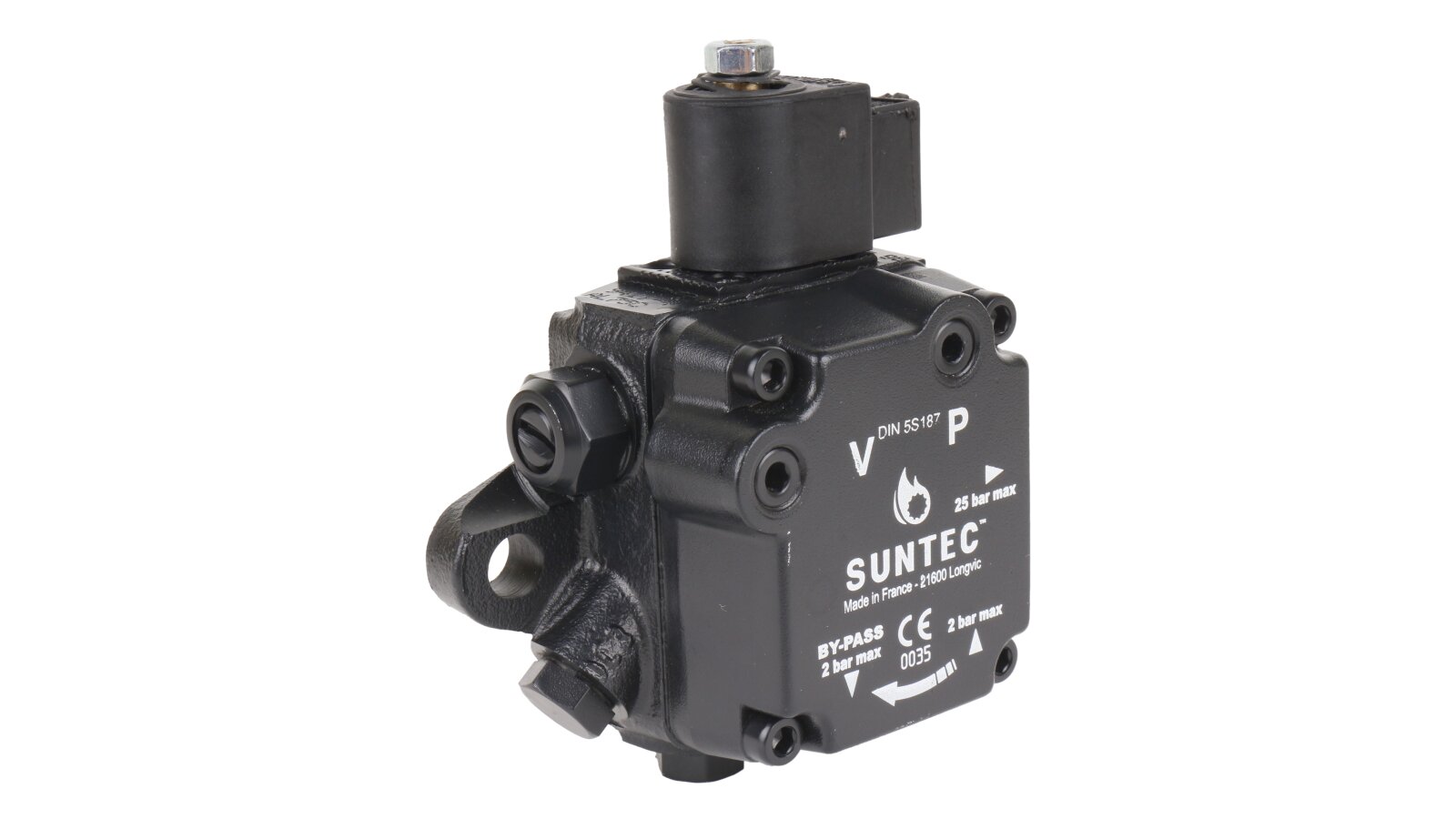

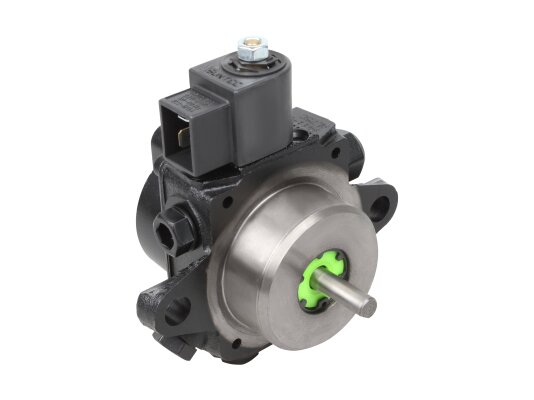

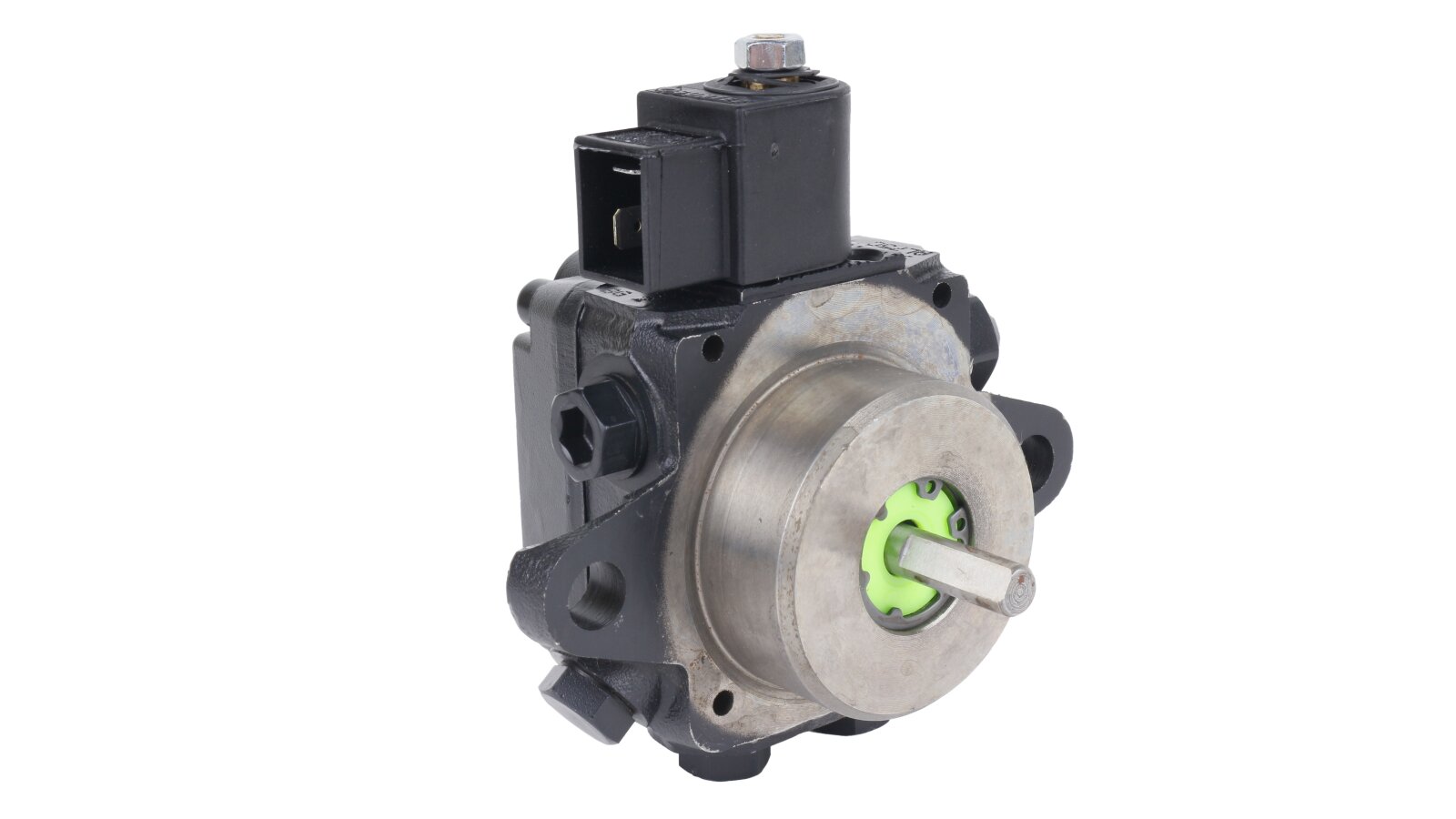

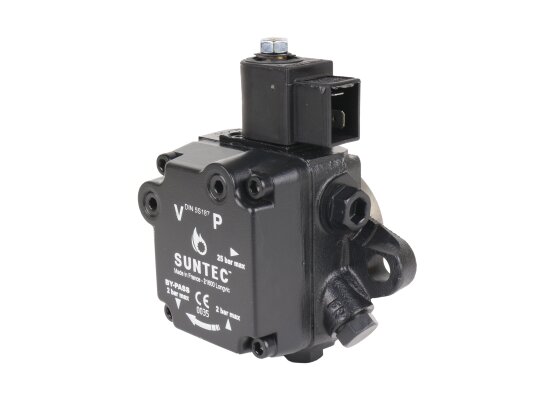

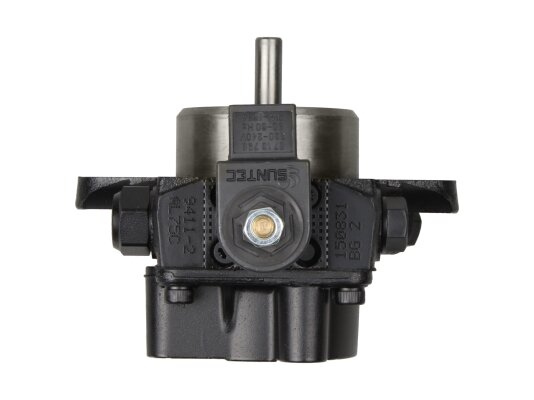

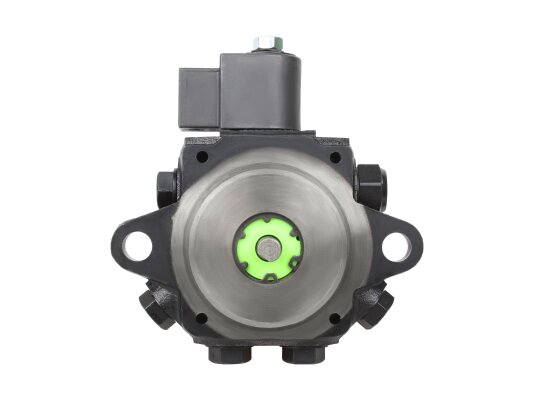

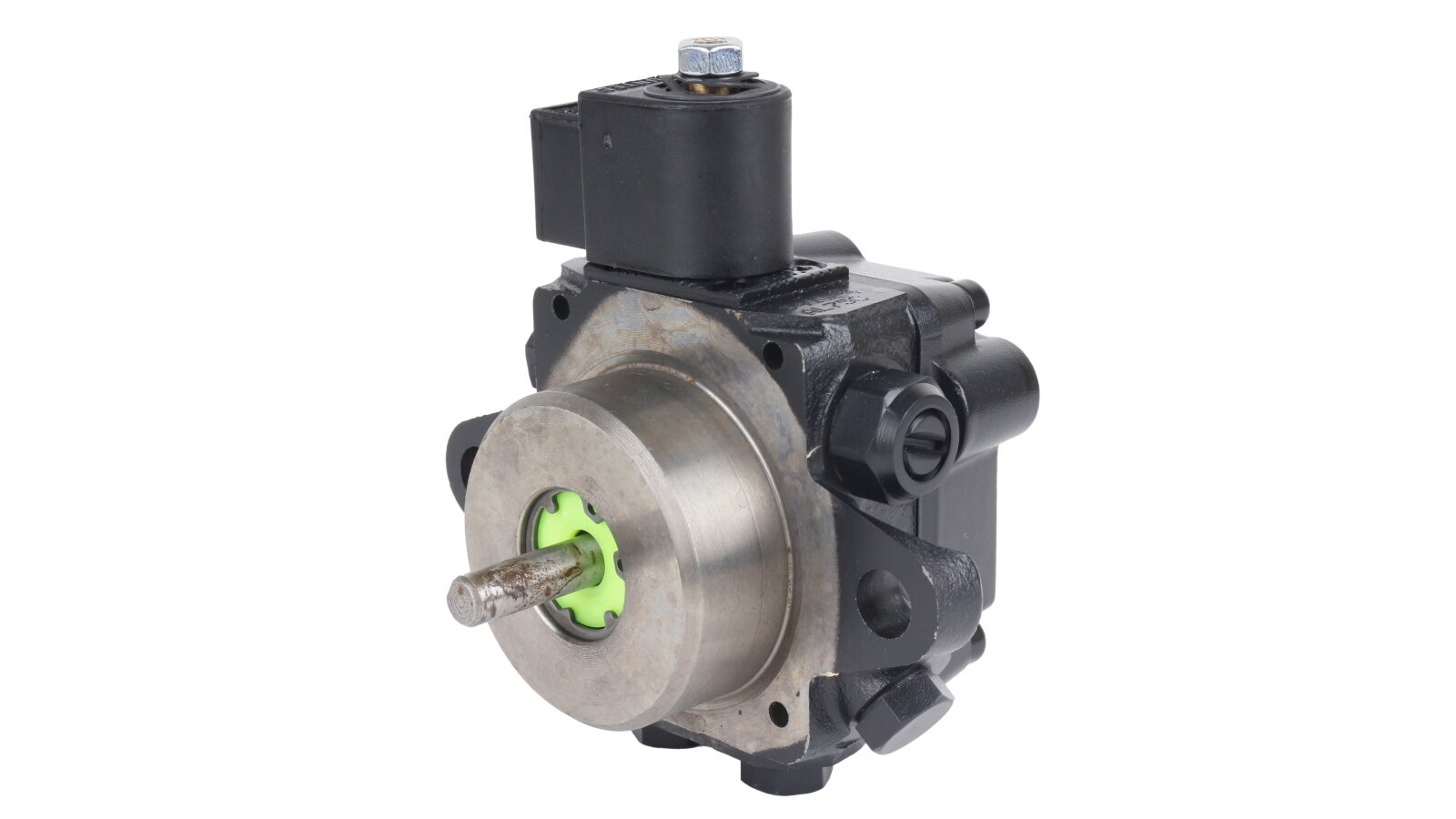

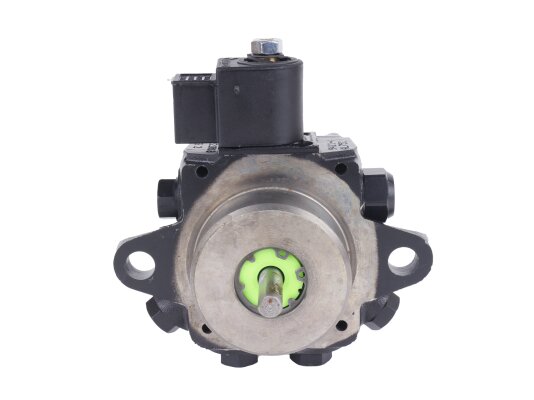

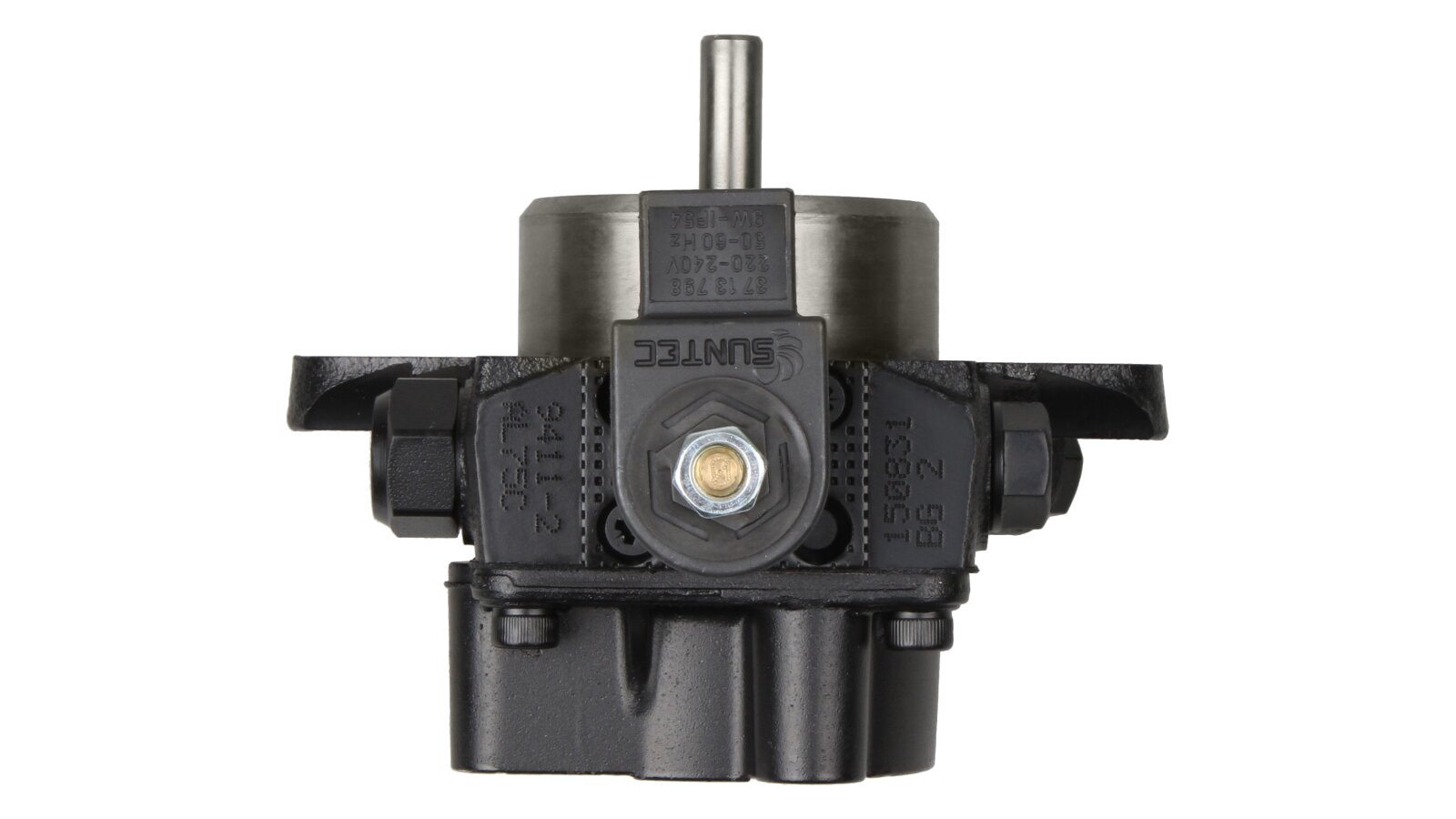

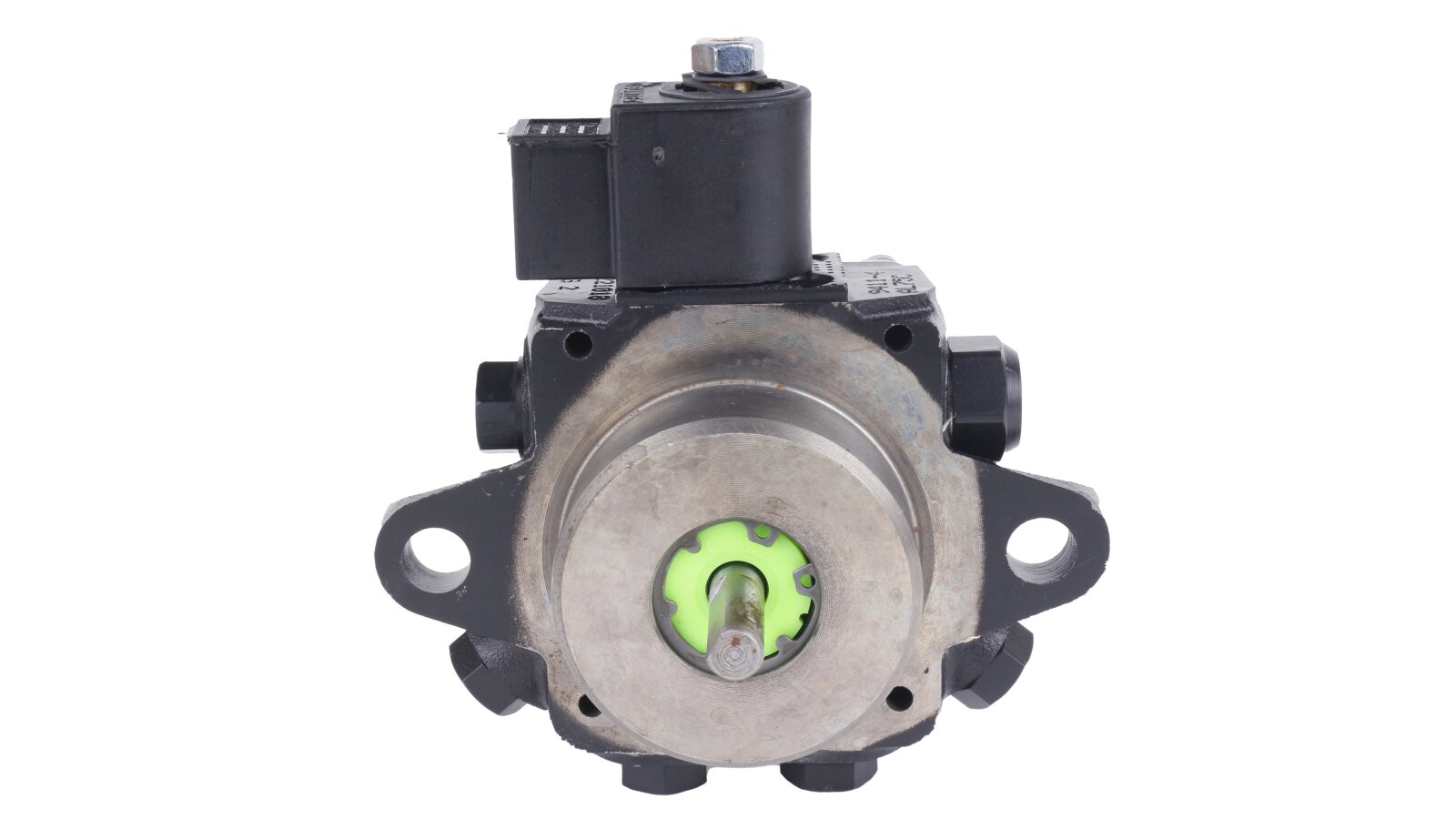

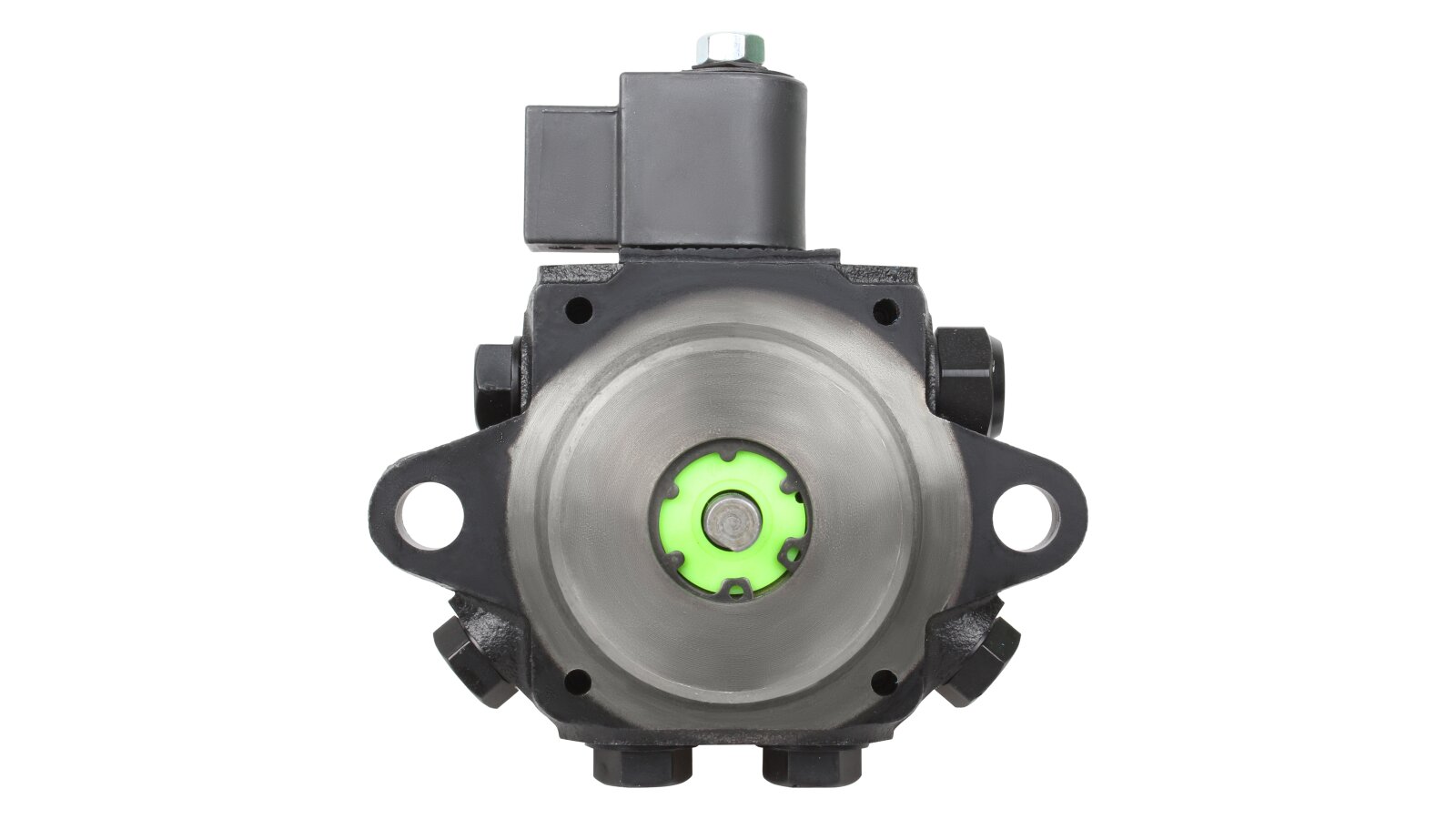

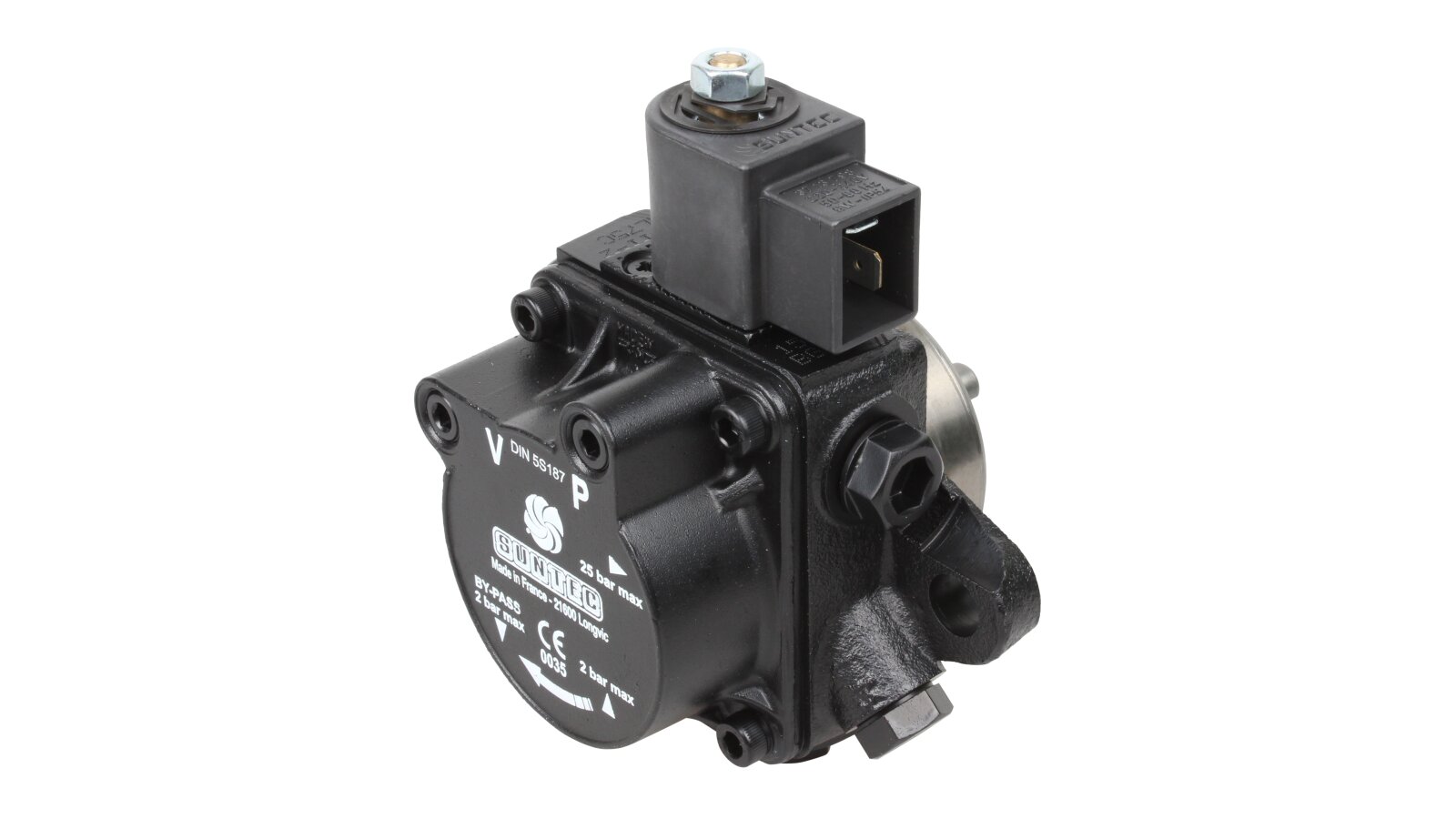

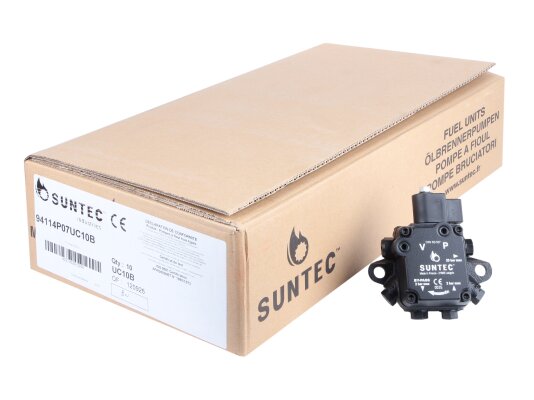

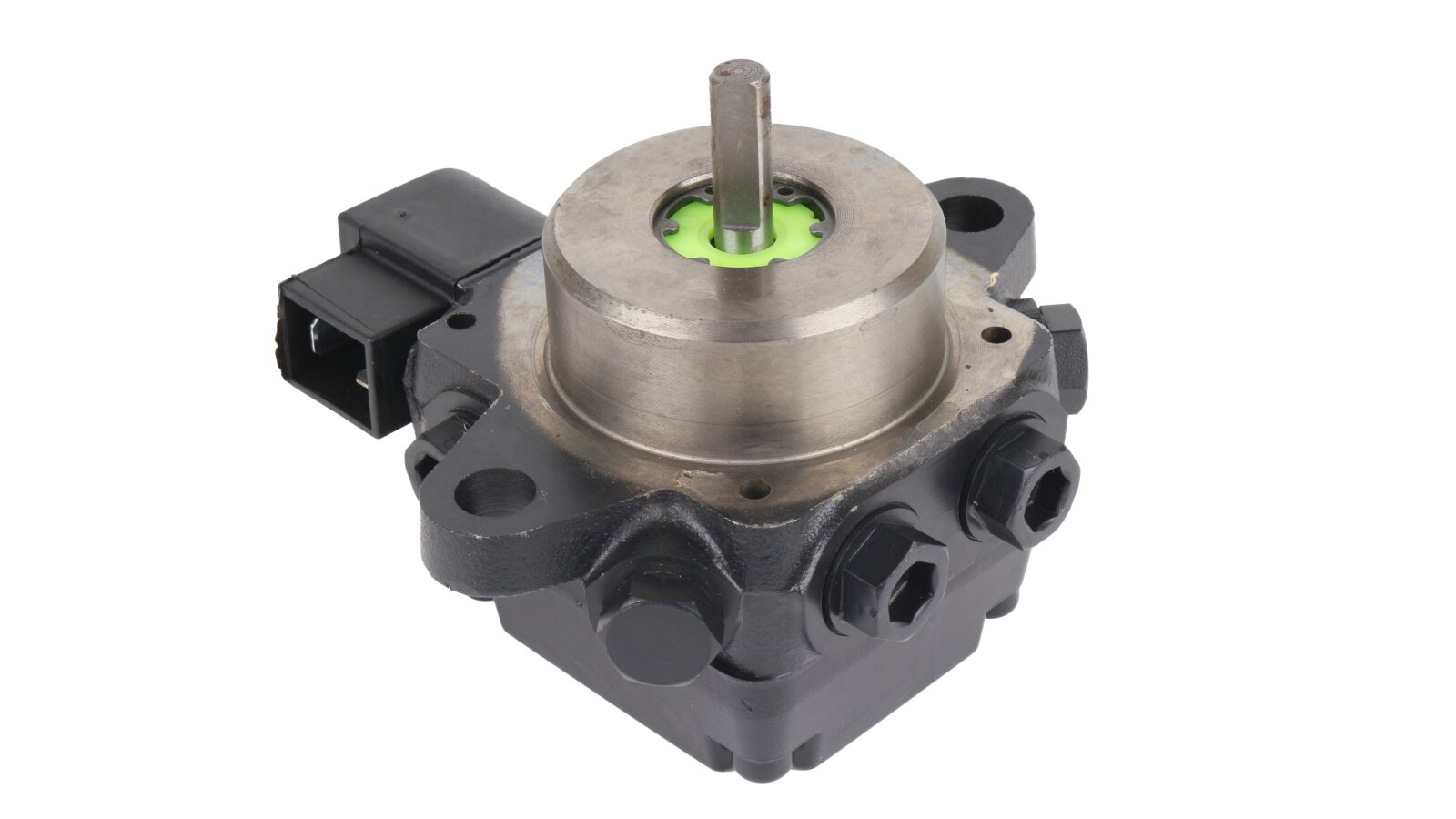

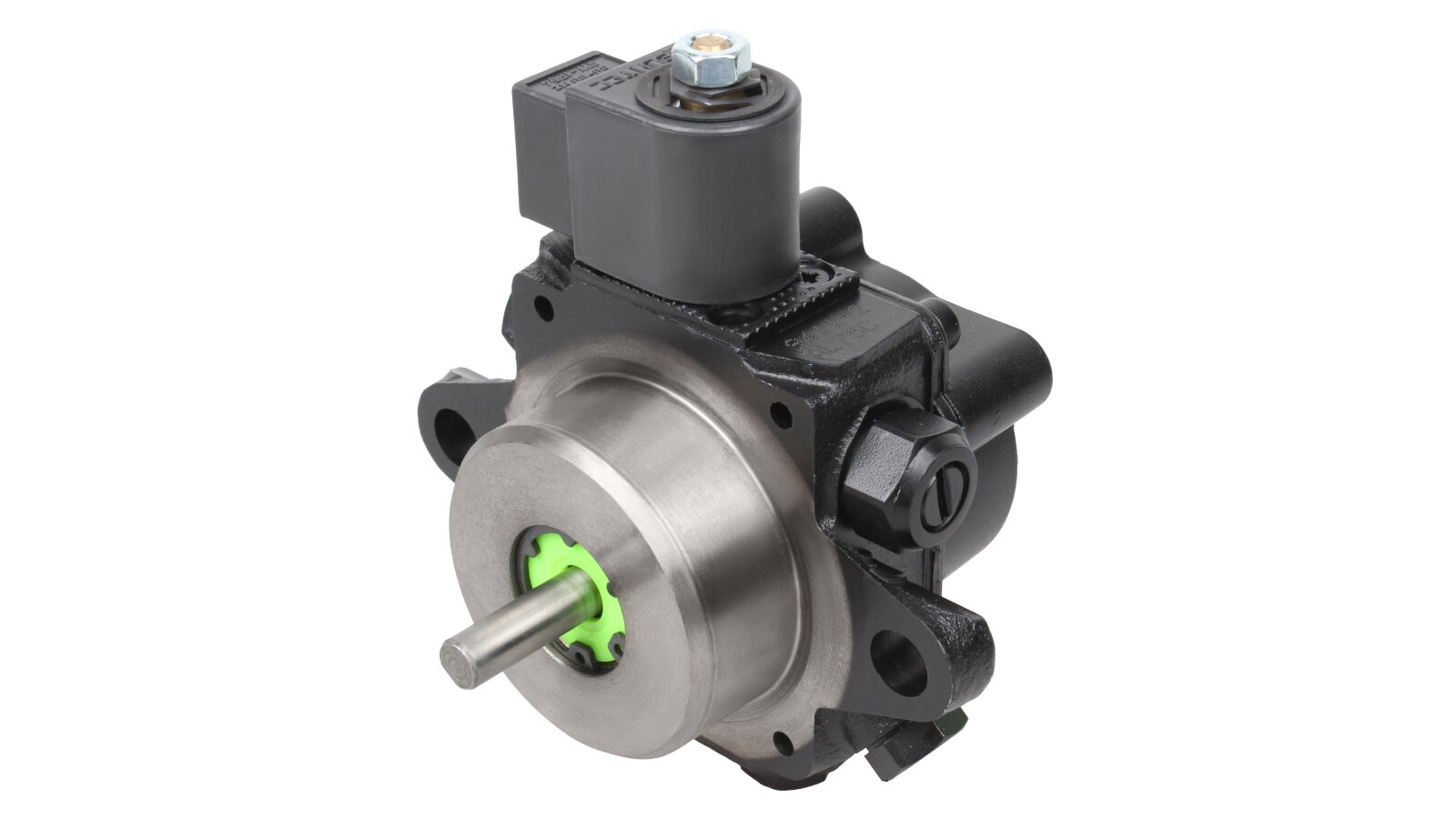

Burner Pump Suntec AL 75 C 9411 4P 0700

Suntec

AED 1,350

Oil Burner Pumps
Products code: 1181

Description

The single-stage pump AL 75 C 9411 4P 0700 with a capacity of 109 l/h is designed for integration into liquid fuel heating burners. It is manufactured by Suntec, which is one of the leading European manufacturers of equipment for boiler plants. The model is equipped with a solenoid valve with a lock, which increases its functionality.

The gear pump is highly reliable and easy to install in the system. It has a wide range of applications, as it is fully compatible with Elco, Baltur, Lamborghini and Weishaupt burners.

Technical description

  • The gear pair is the main working element of the pump. With its help, fuel is supplied from the fuel tank to the nozzle line. During the pumping process, the working fluid is cleaned of foreign impurities. For this purpose, the design includes a filter with a throughput area of ​​20 cm².

  • The built-in regulating valve is necessary to maintain a certain pressure in the system. It should be between 8 and 15 atm. The task of the electromagnetic valve is to instantly trigger a signal from the control unit. Regardless of the operating mode of the electric motor, it shuts off the supply of fuel mixture to the injectors and directs it to the suction line or to the tank.

  • Important recommendations! To extend the service life of the injectors and prevent them from becoming clogged with foreign particles, it is necessary to install a fine filter.

Main advantages:

  • Flange type of fastening with a landing diameter of 54 mm;

  • Dismountable mesh filter with a cell size of 150 µm;

  • High performance up to 109 l/h;

  • Arrangement with regulating and shut-off valves;

  • Standard ports for connecting fuel lines that comply with ISO 228/1.

The company "ANKAS" can offer a wide range of equipment at the manufacturer's price. All items from the catalog presented on the website are available, including the AL 75 C 9411 4P 0700 model.

Applications are processed promptly, and deliveries are made on time according to the agreement. If necessary, consultations with specialists are possible, who will help you buy a diesel burner pump of the corresponding modification.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 109 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 109 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barTorque: 0.14 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
