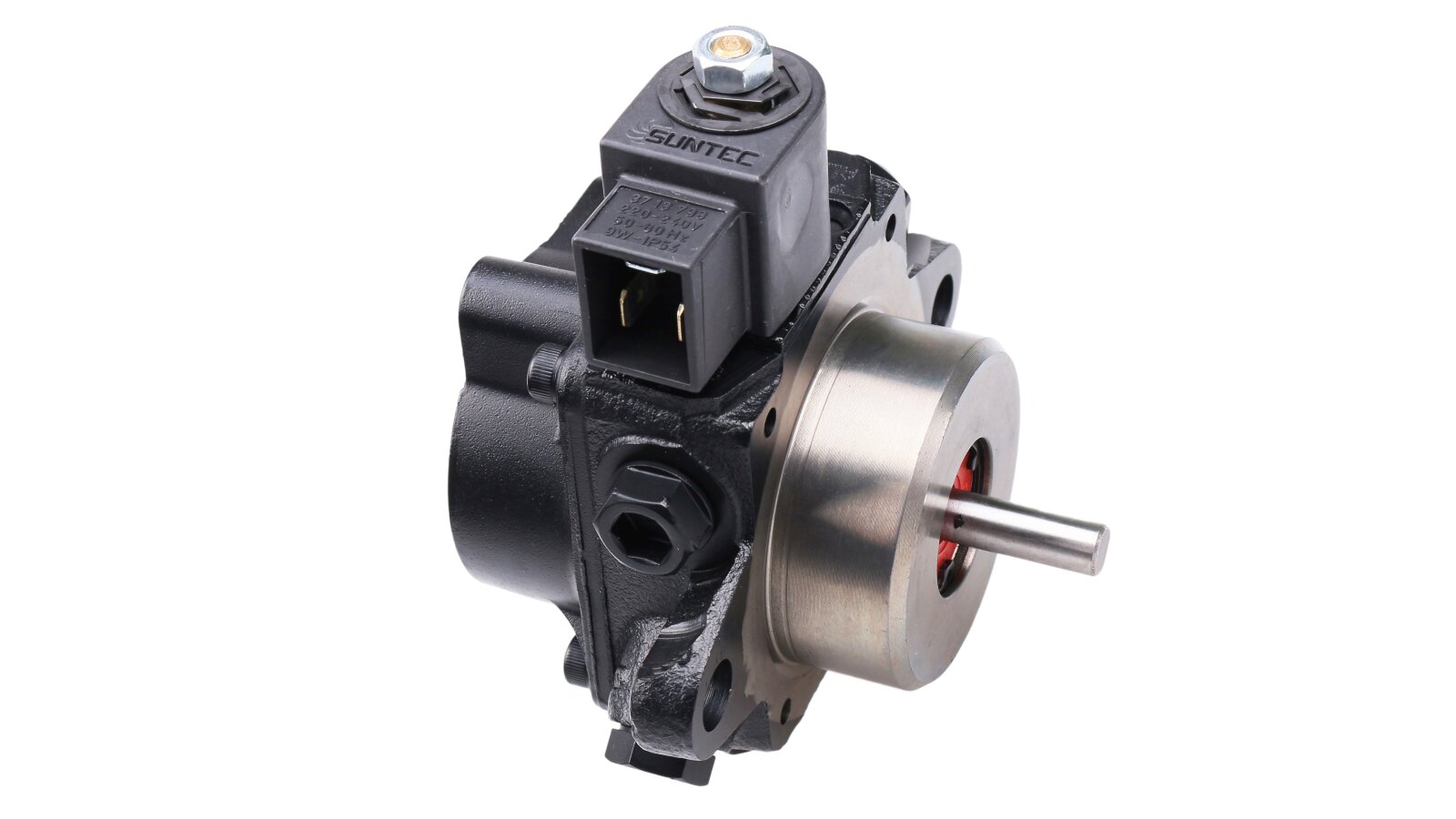

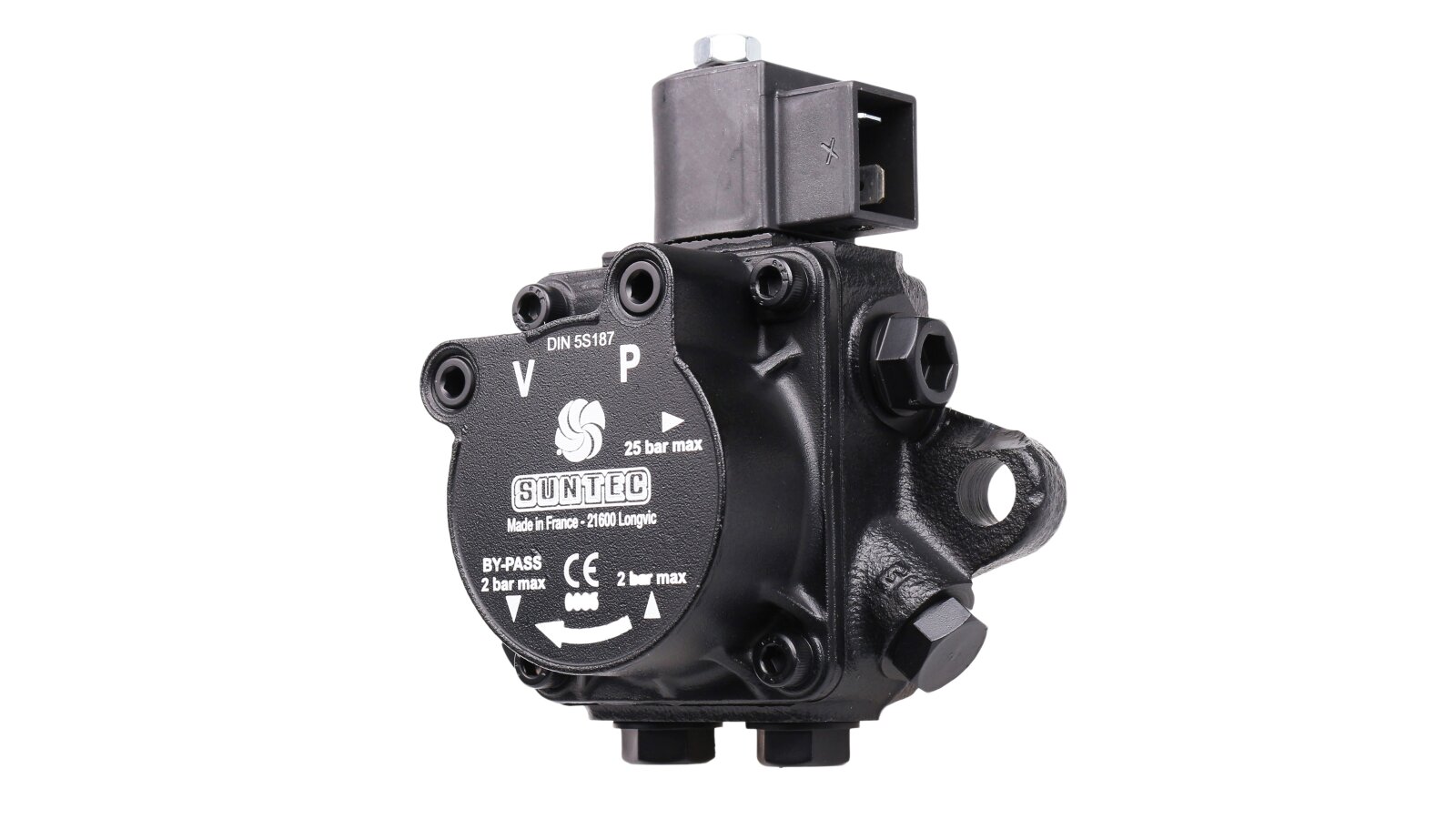

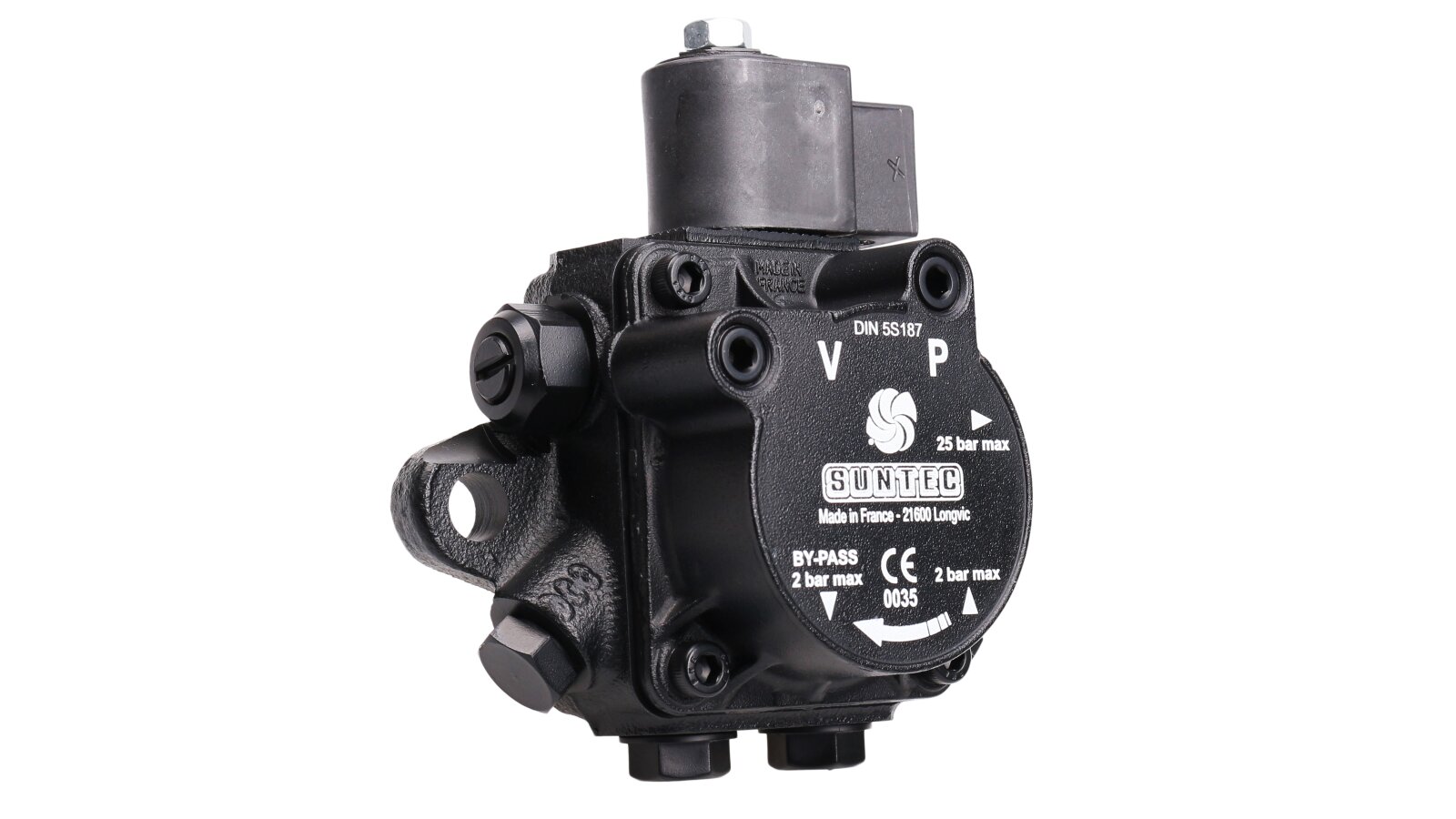

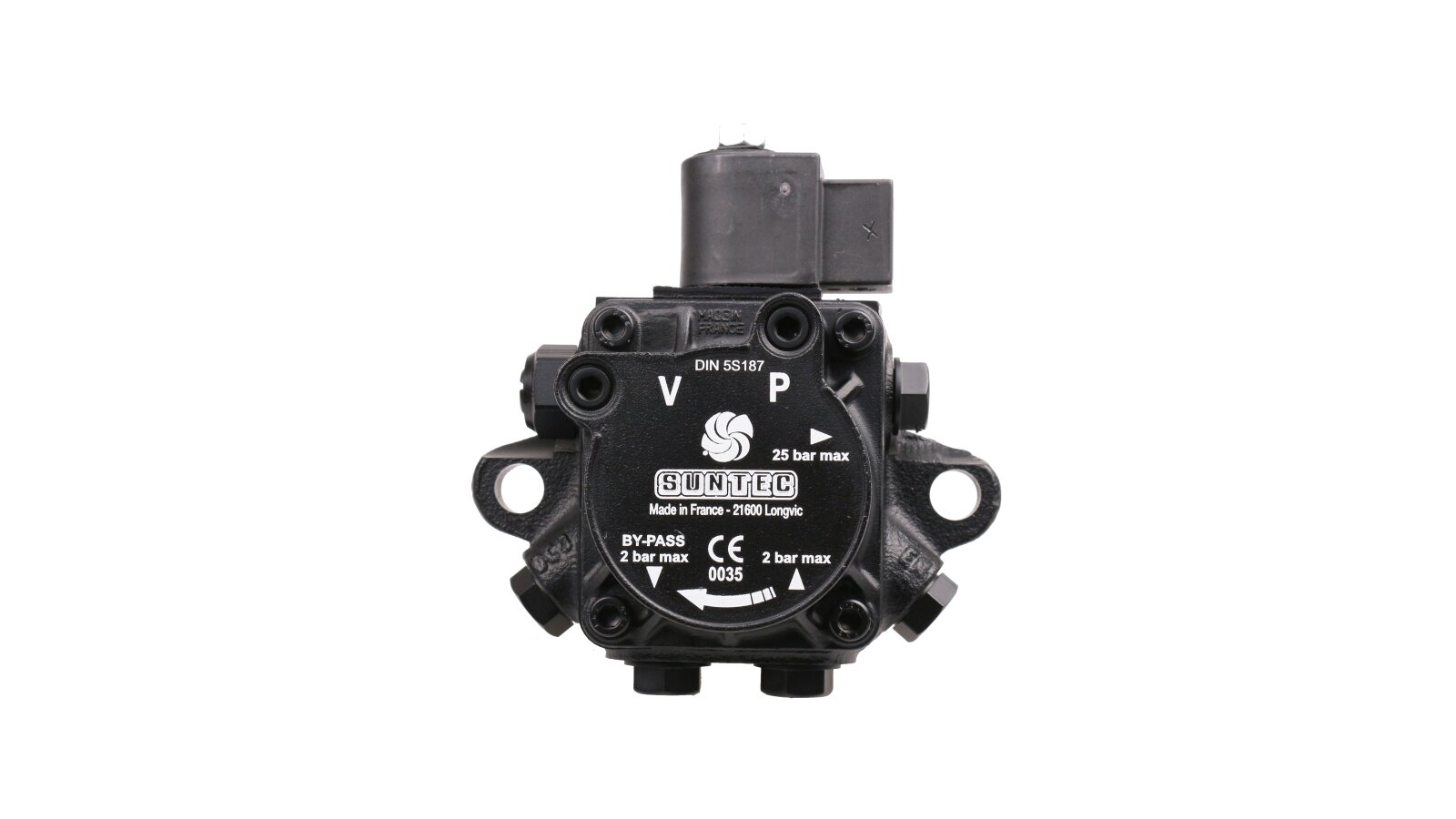

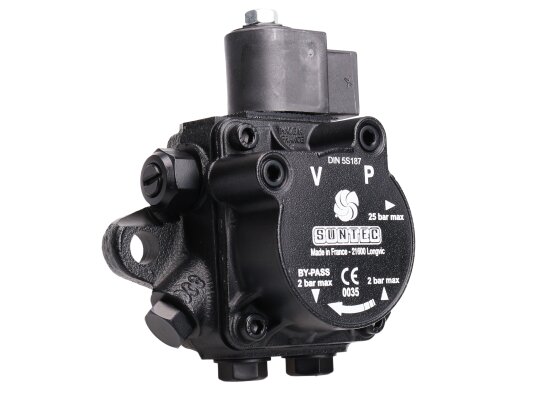

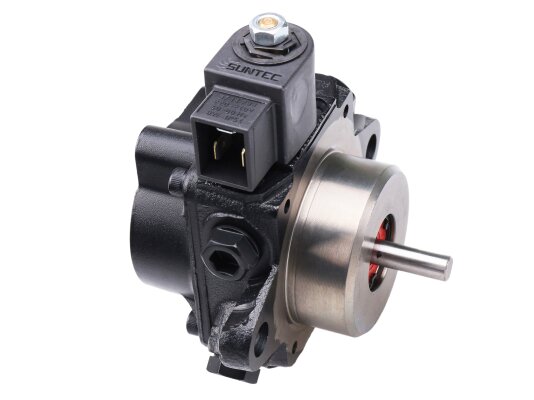

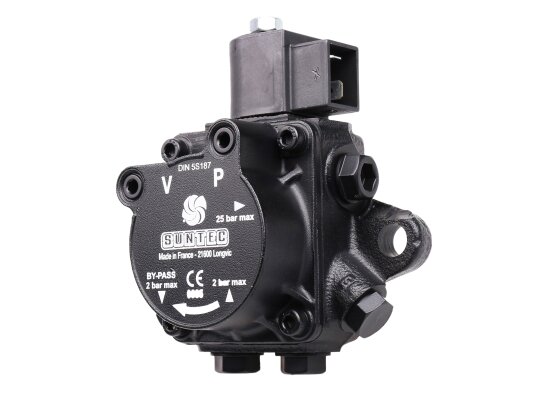

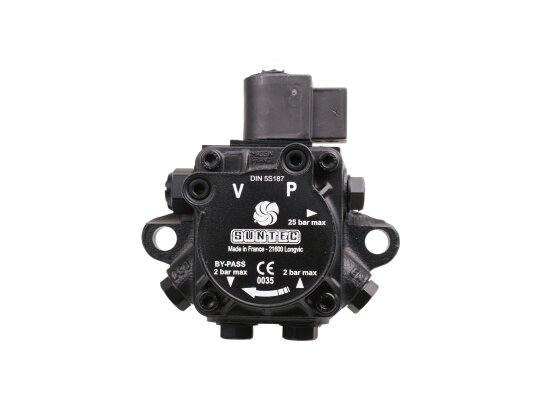

Burner Pump Suntec AL 75 C K 9534 6P 0700

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The AL 75 C K 9534 6P 0700 model is a modern, highly reliable pump with a capacity of 80 l/h, designed to be installed in liquid fuel burners. It is manufactured by Santek, a leading European heating equipment company. A distinctive design feature of this modification is the presence of a shut-off electromagnetic valve. The main advantages of the AL 75 C K 9534 6P 0700 single-stage pump include increased service life and reliability. The unit is compatible with burners of such popular brands as Baltur, Lamborghini, and Elko.

Pump design

  • The basic working element of the device is a toothed pair of gears. It is responsible for collecting diesel fuel and then pumping it to the injector line. The liquid passes through an integrated pre-filter with a throughput area of ​​20 cm2.

  • Important! The manufacturer SANTEC also recommends installing an additional filter that provides fine cleaning. This will help to avoid premature clogging of the injectors and significantly extend their service life.

  • The unit is equipped with a "normally closed" electromagnetic valve. In the activated position, it passes liquid under a pressure of 8-15 atm. When a signal is received from the burner control unit, it immediately blocks the fuel supply regardless of the speed of the electric drive shaft. Depending on how the fuel line circuit is configured, the fuel continues to be supplied to the suction line or returns through the pressure regulator to the fuel tank.

Main advantages:

  • connection to single-pipe and double-pipe fuel line circuits;

  • adjustment of the working environment pressure using a regulating valve;

  • pumping kerosene and diesel fuel;

  • installation of measuring devices - a pressure gauge and a vacuum gauge - to ports with a standard cylindrical thread;

  • low weight (1.2 kg) with high productivity (80 l/h).

As an official dealer of leading European manufacturers, the company "ANKAS" offers reliable modern equipment for boiler systems at the prices of a direct supplier. You can order components for diesel burners of various models and power from us.

Characteristics

Strainer: Open area: 20 cm²Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 W2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 80 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionInstallation method: sleeve ∅ 32 mmStrainer: Opening size: 150 µmOil temperature: from 60 to °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 80 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmDegree of protection: IP54Type of pumped liquid: kerosene, diesel
