Description

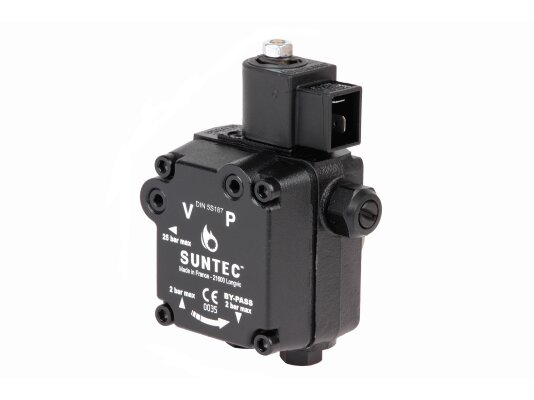

Modification of the pump for the Suntec AL series burner of the standard model without a complete cable with the ability to work with a biofuel mixture containing 30% methyl esters of fatty acids.
Characteristics
Type of pumped liquid: diesel / biodiesel fuel blend B30Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
