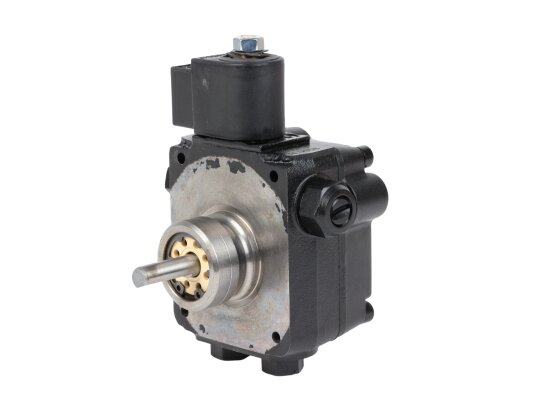

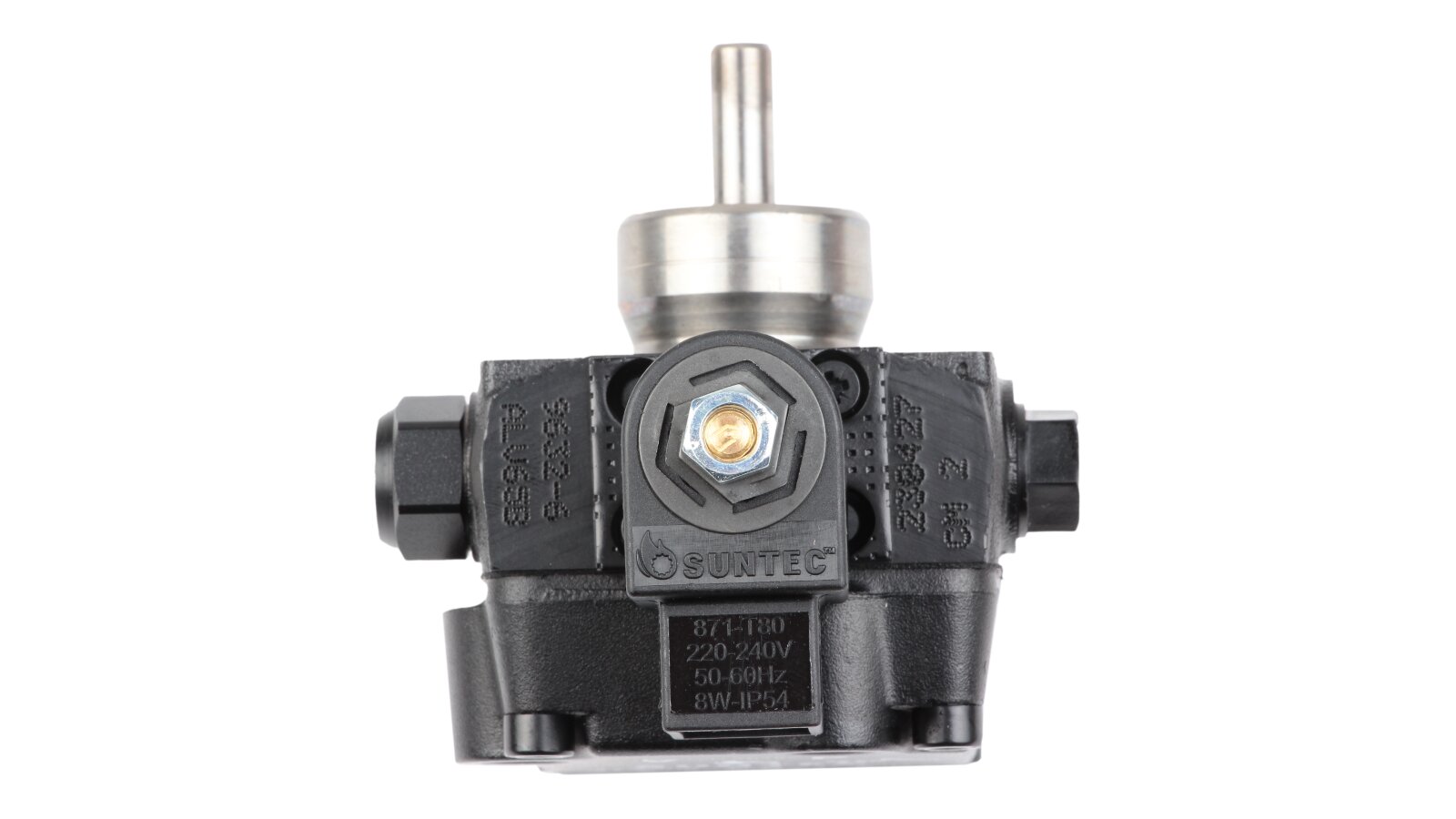

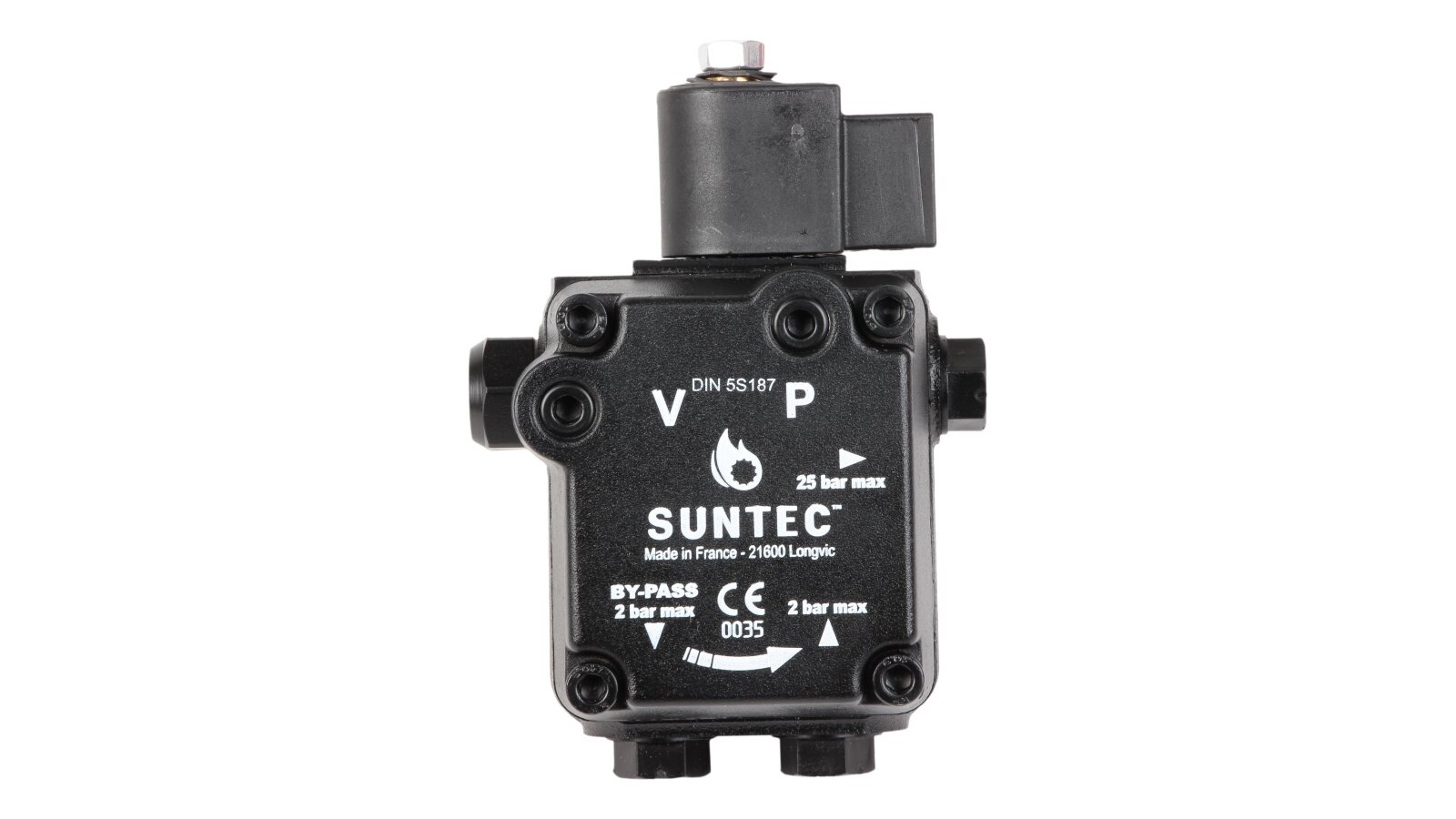

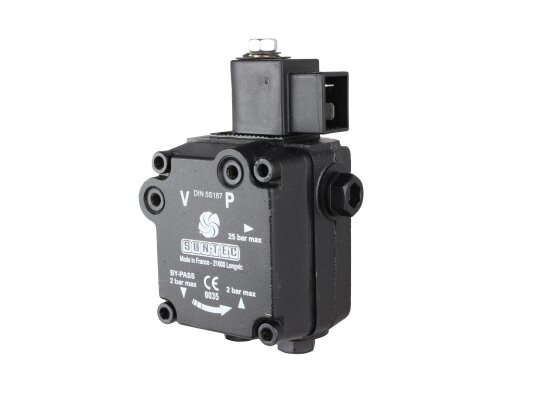

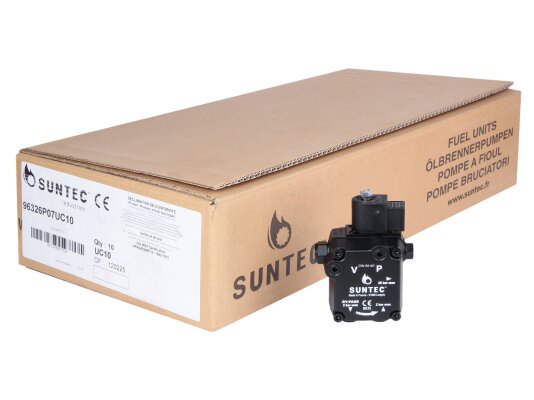

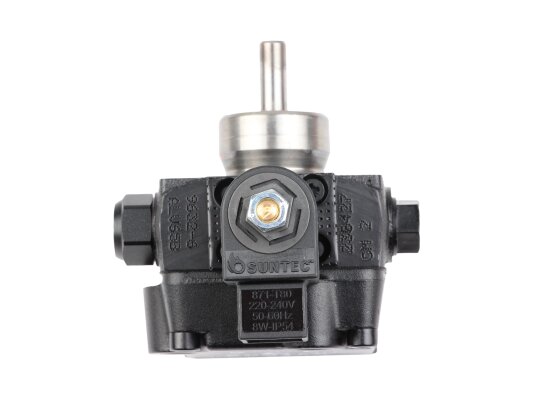

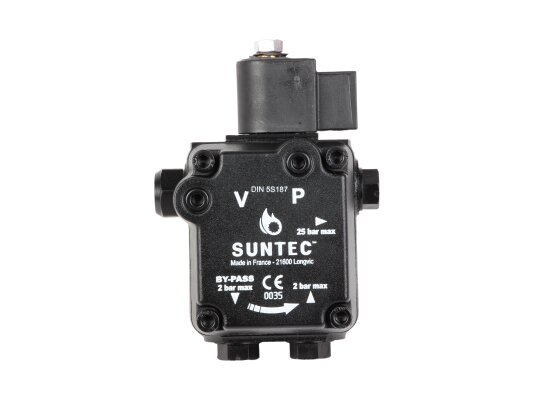

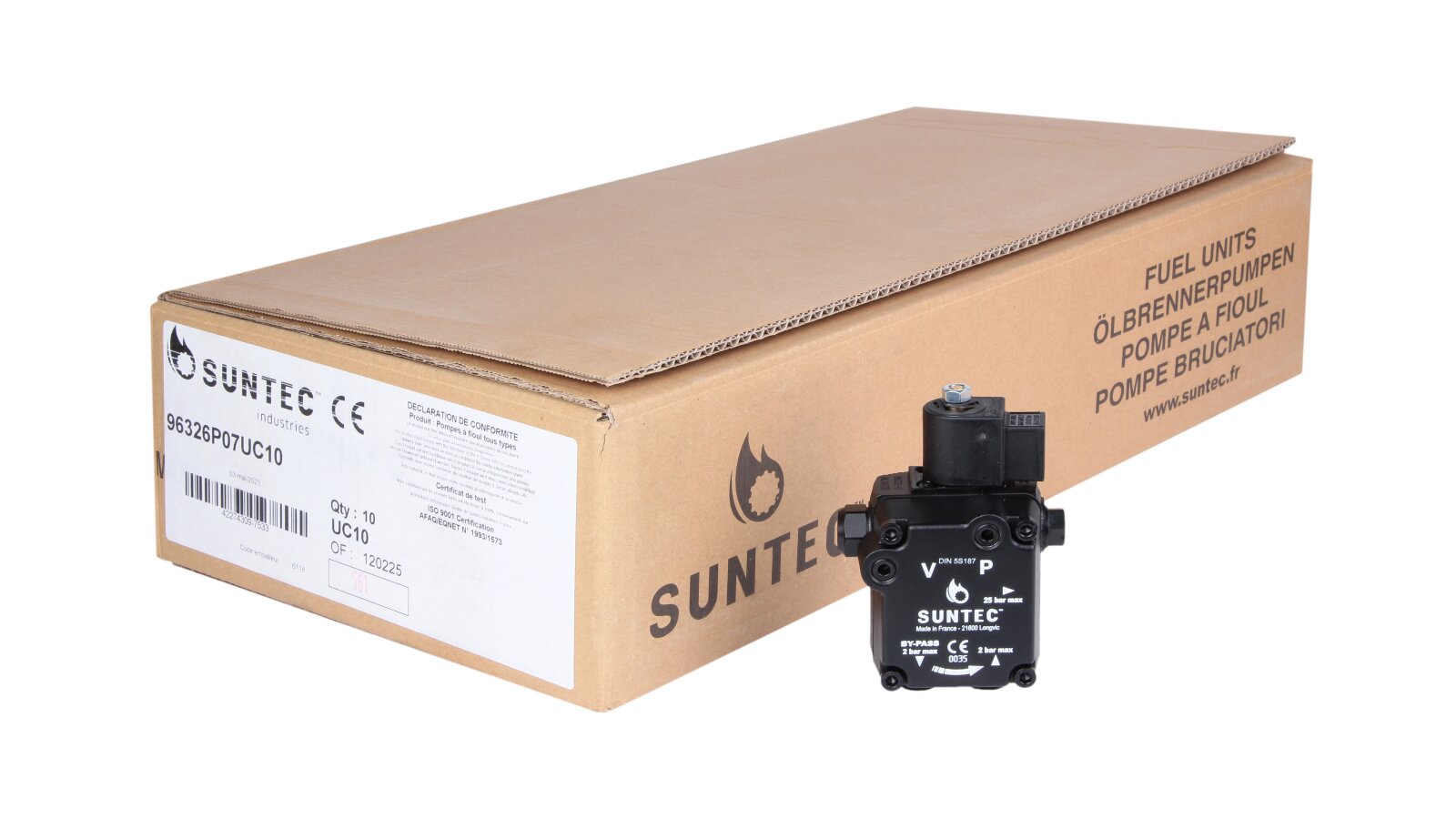

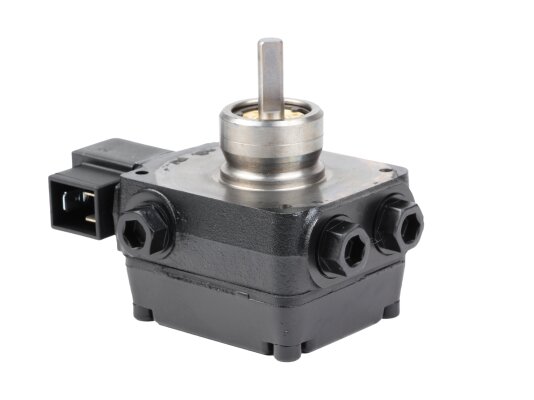

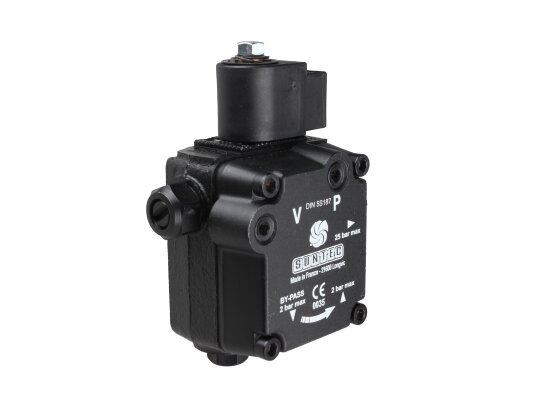

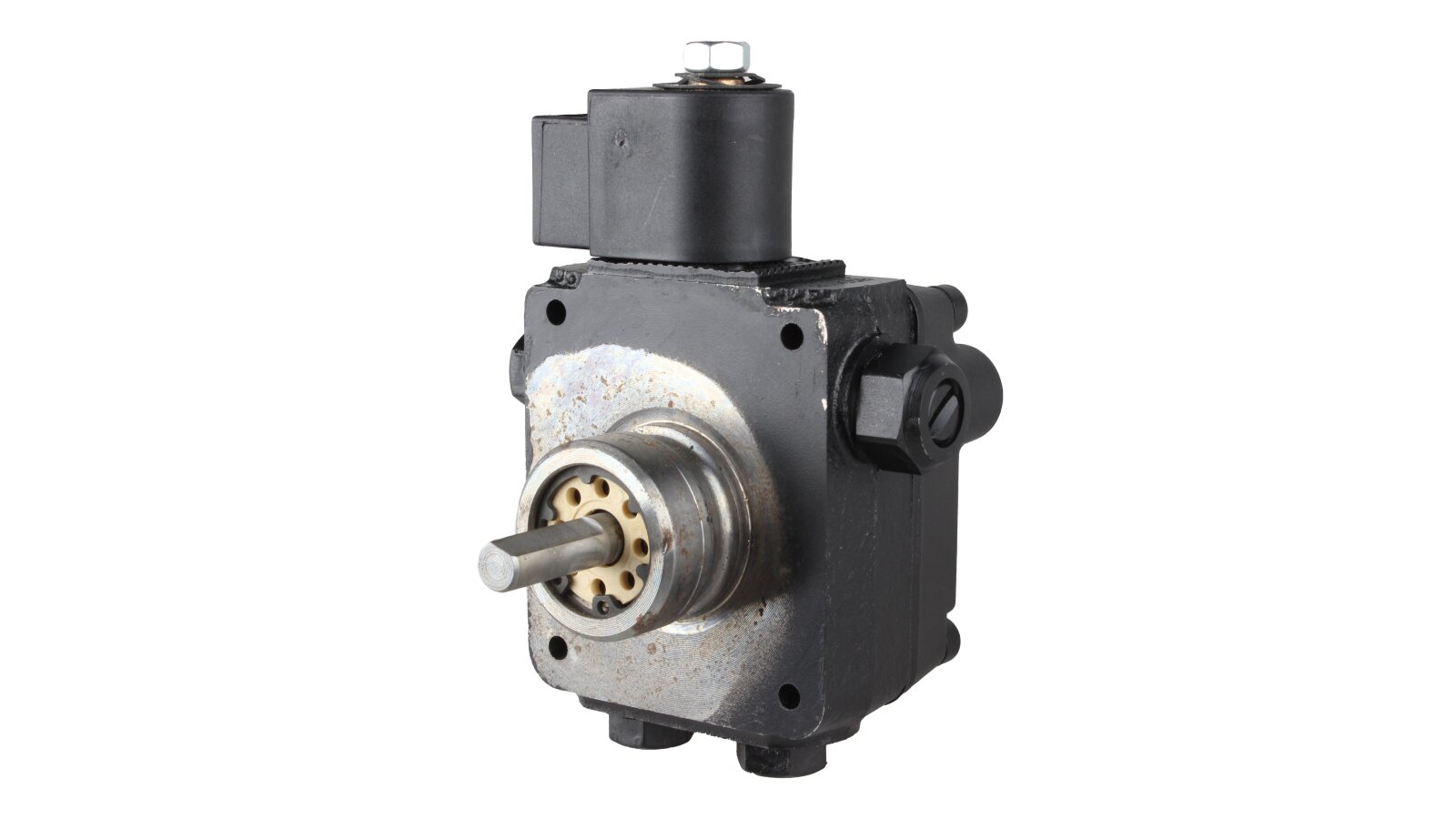

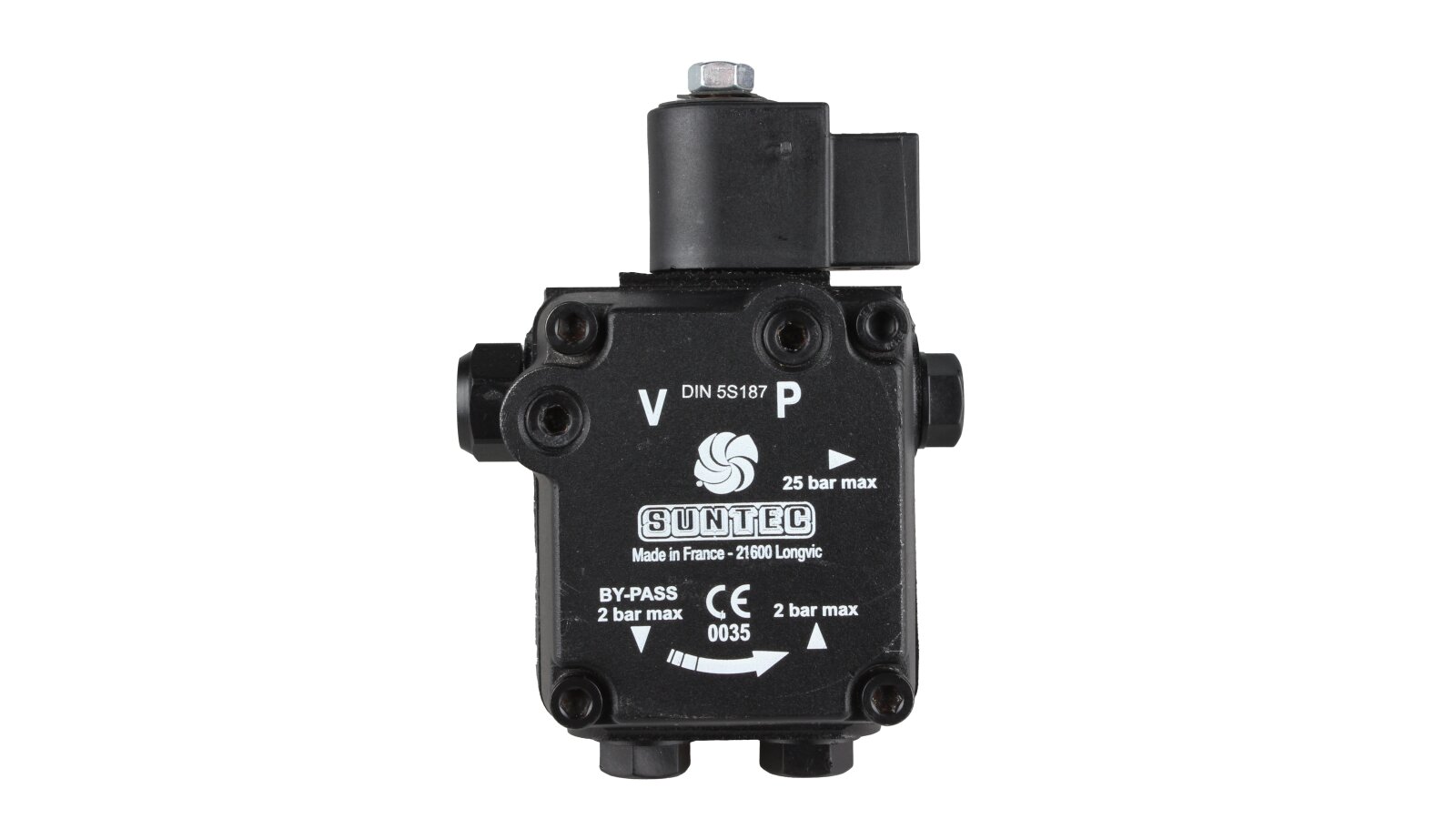

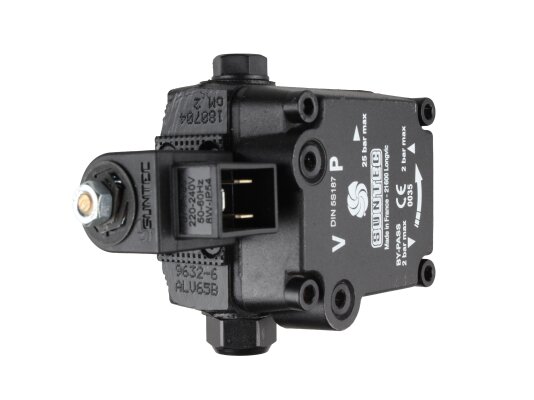

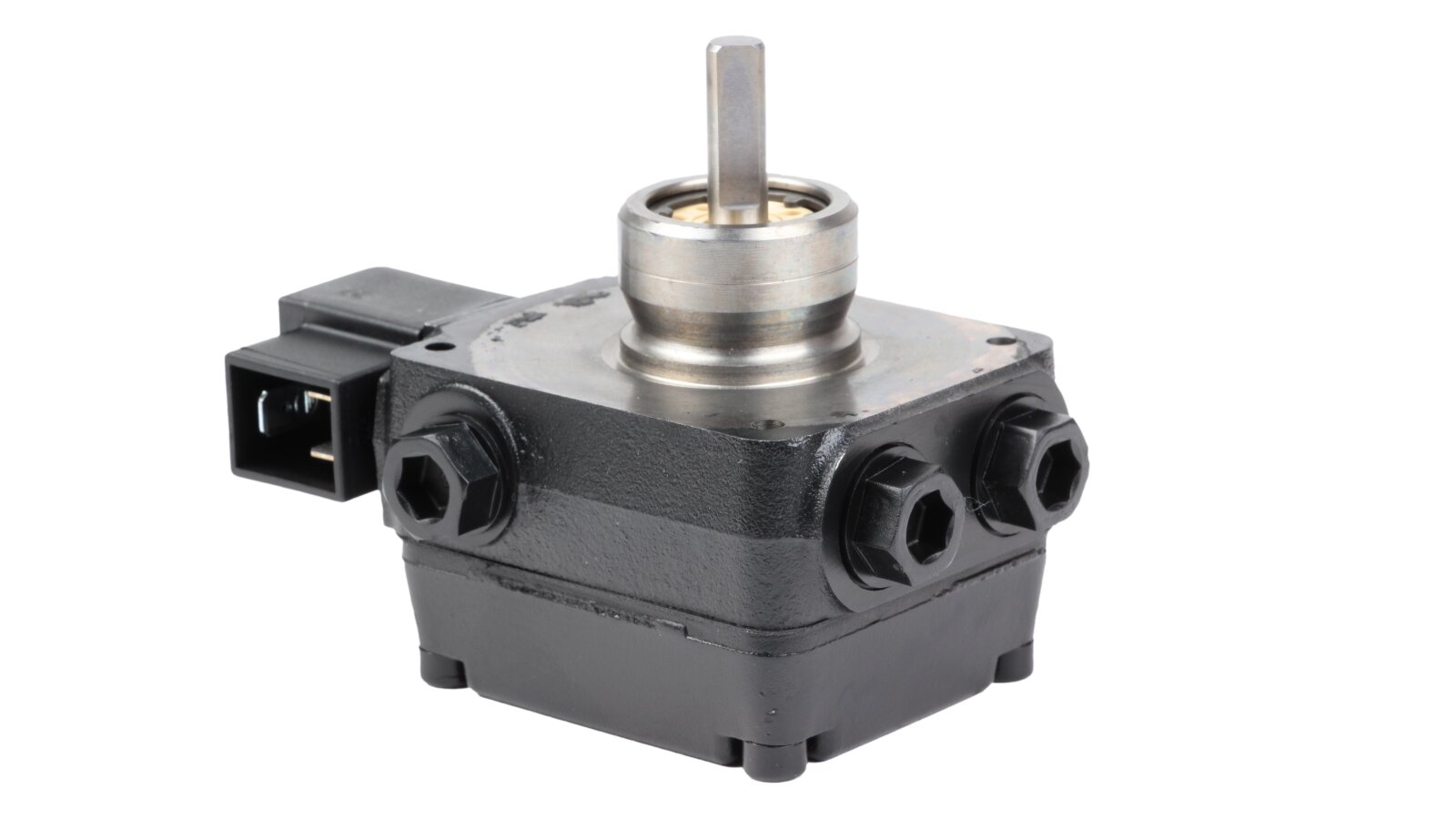

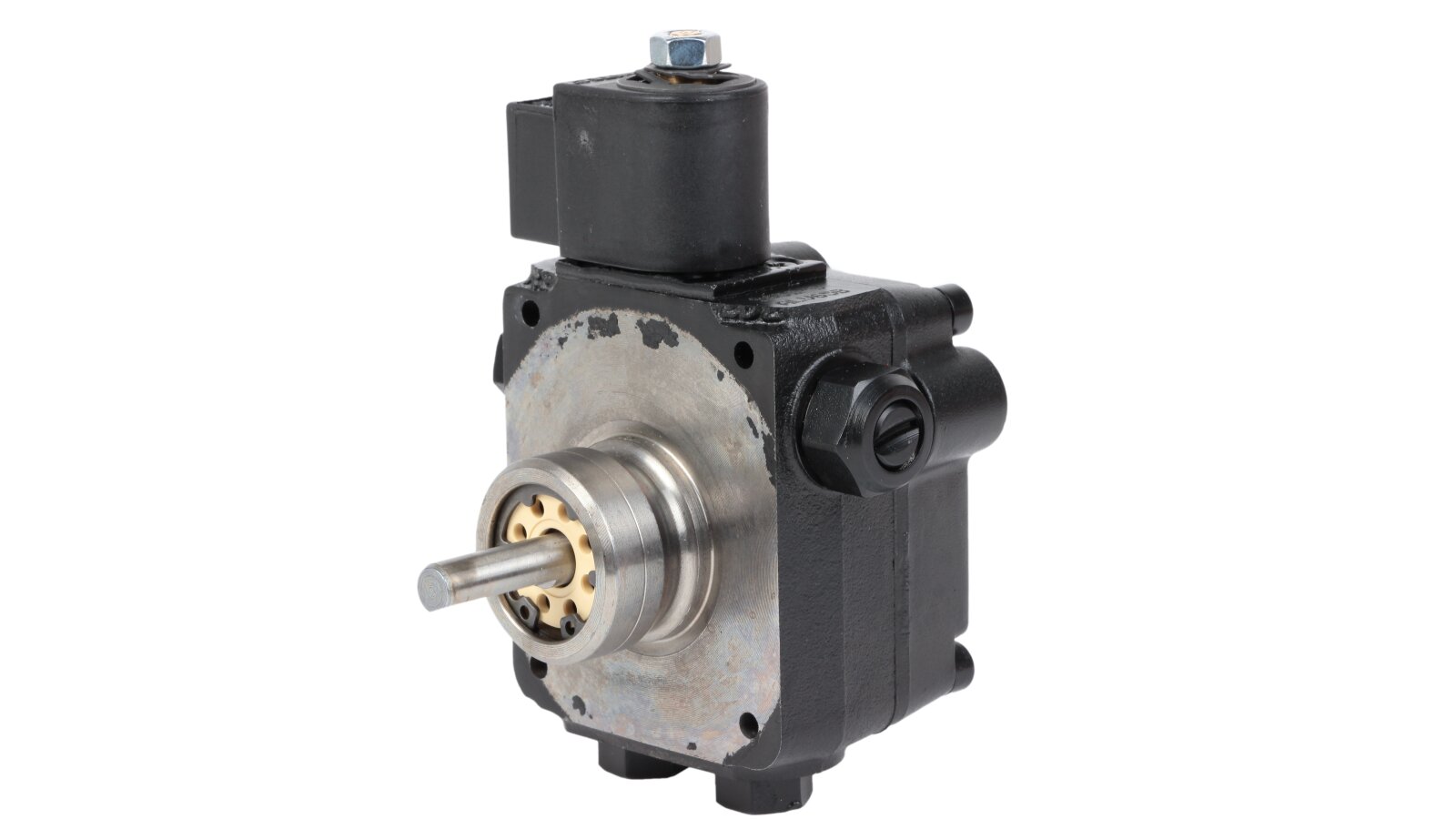

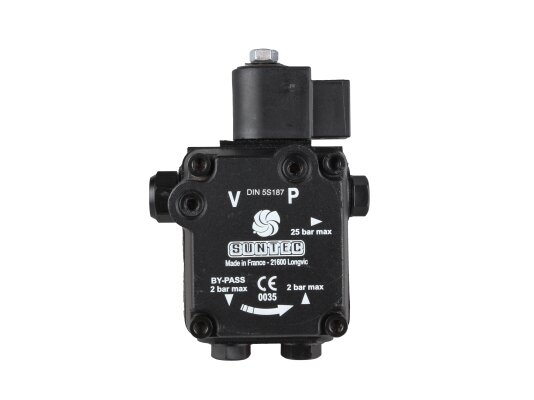

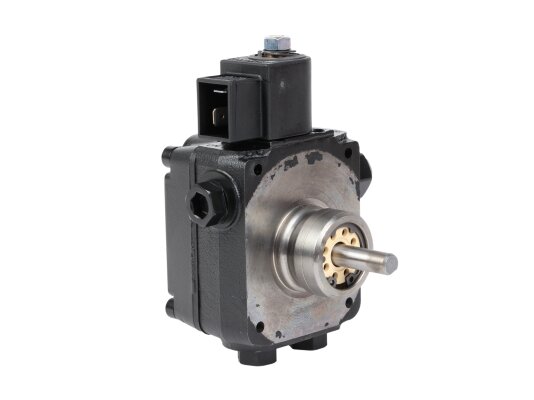

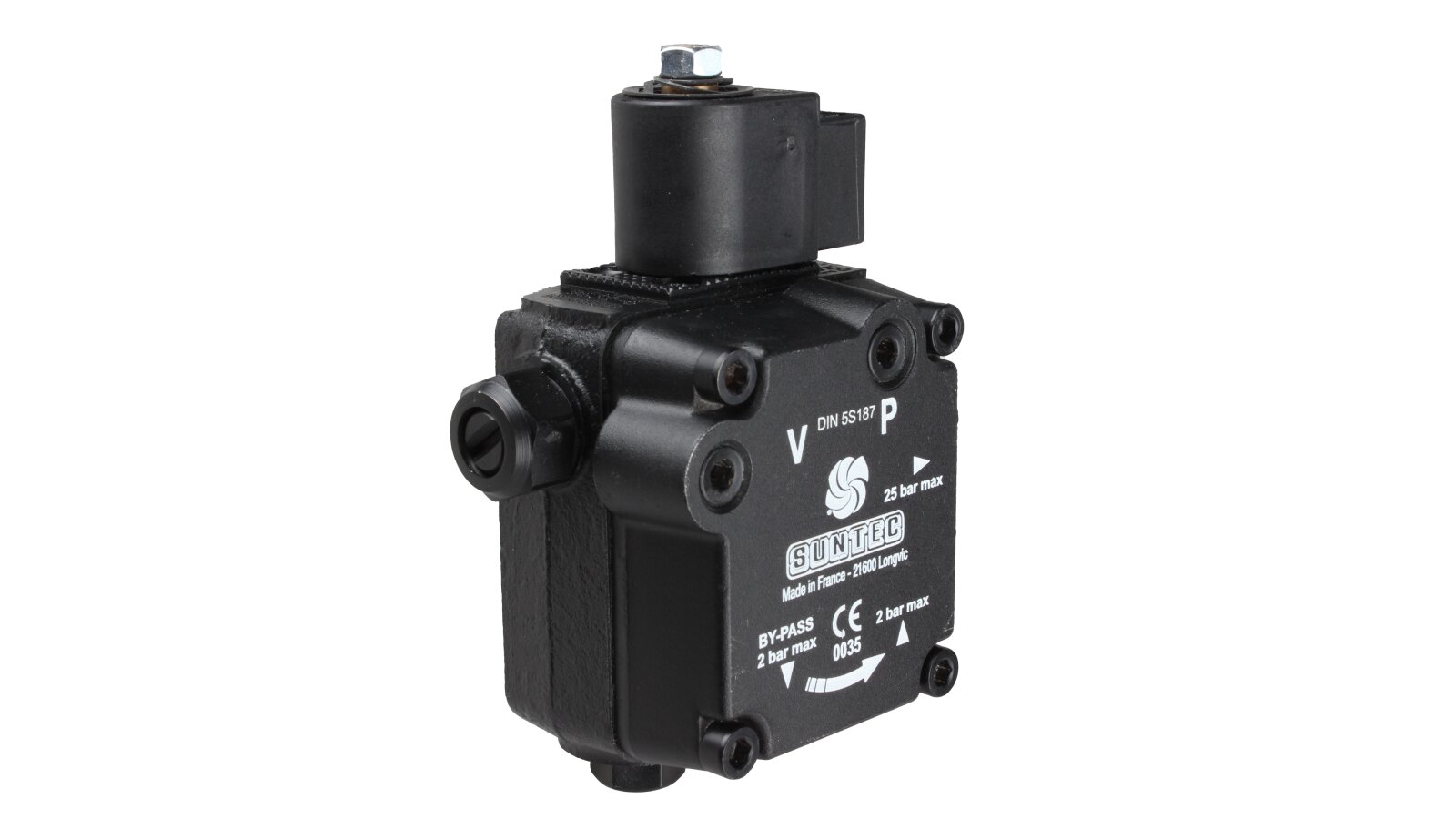

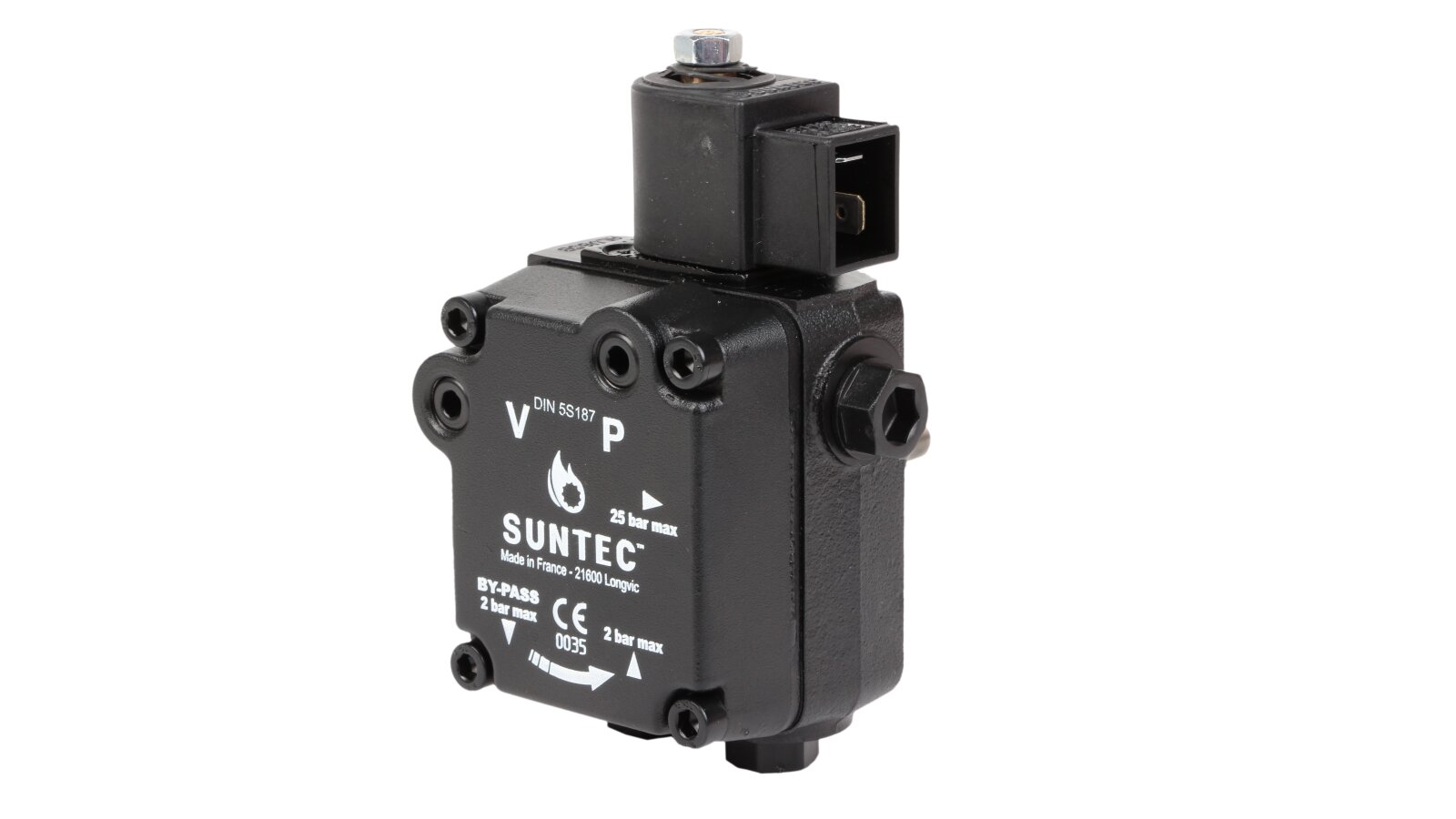

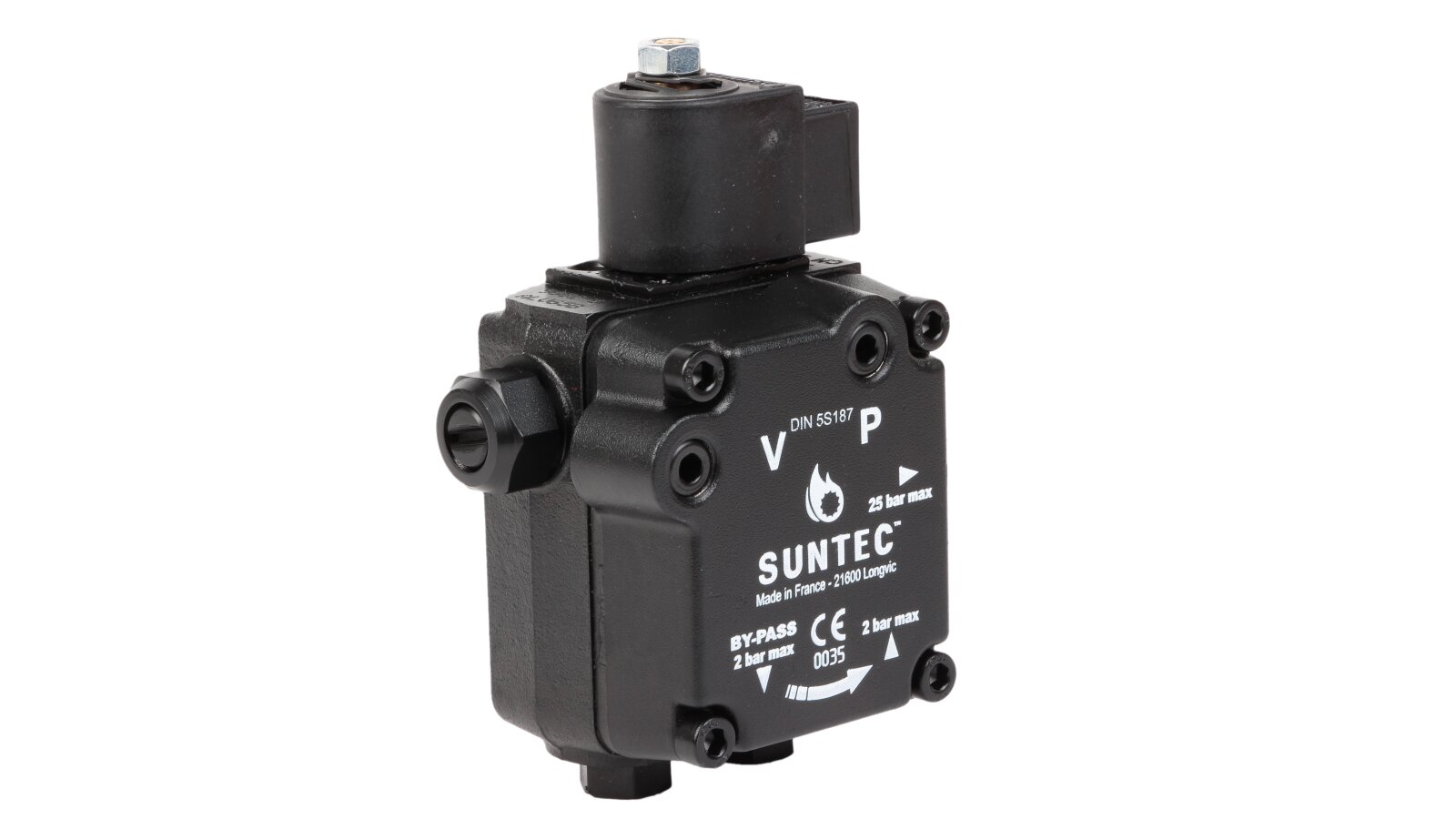

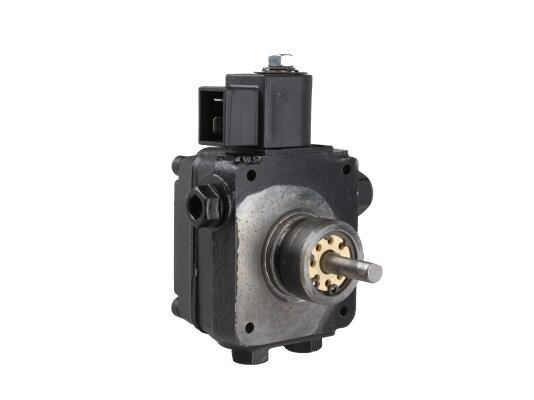

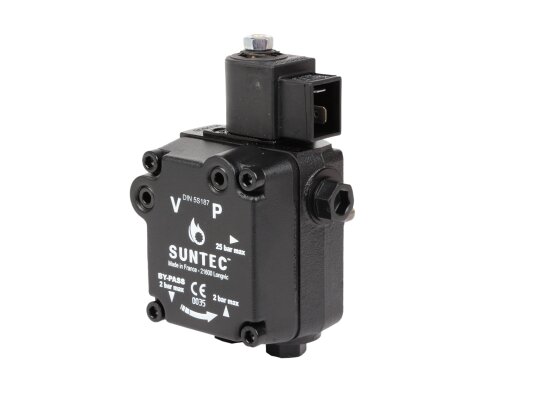

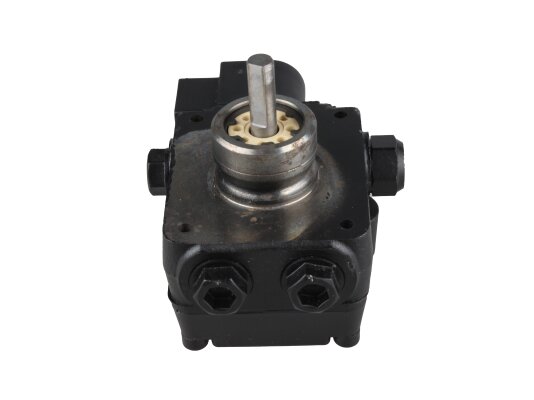

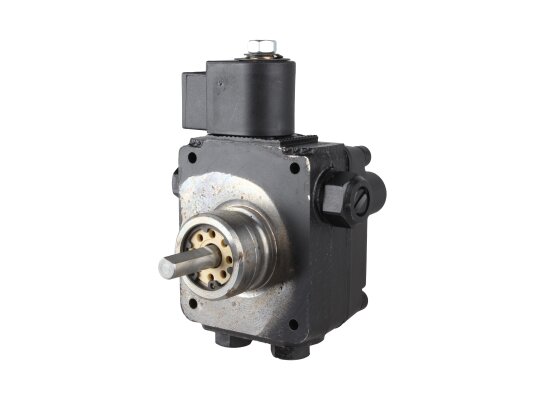

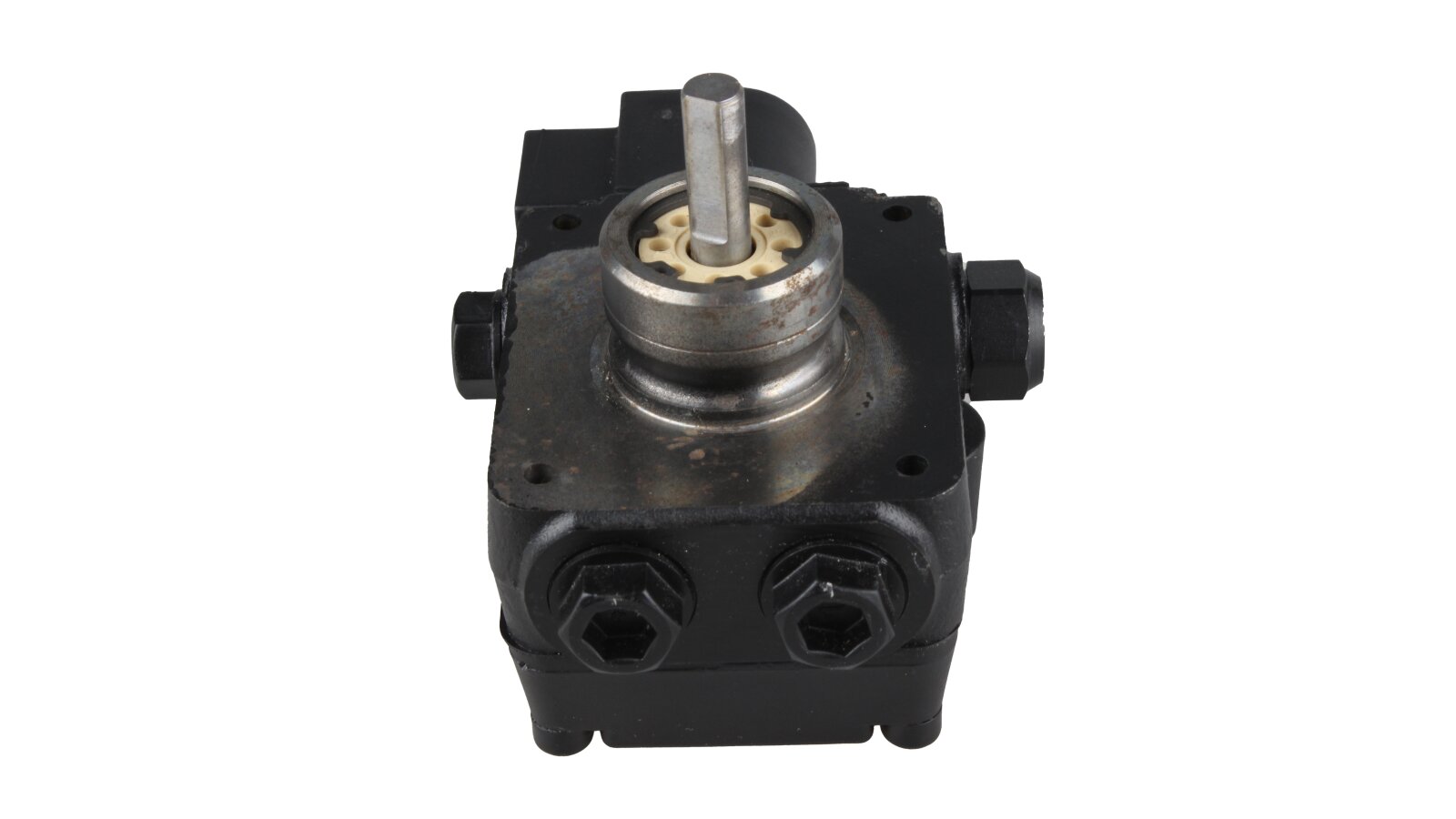

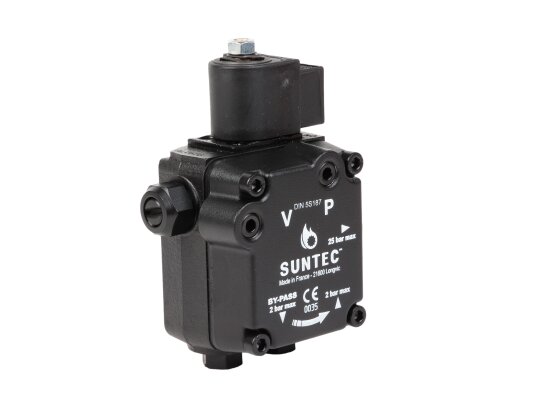

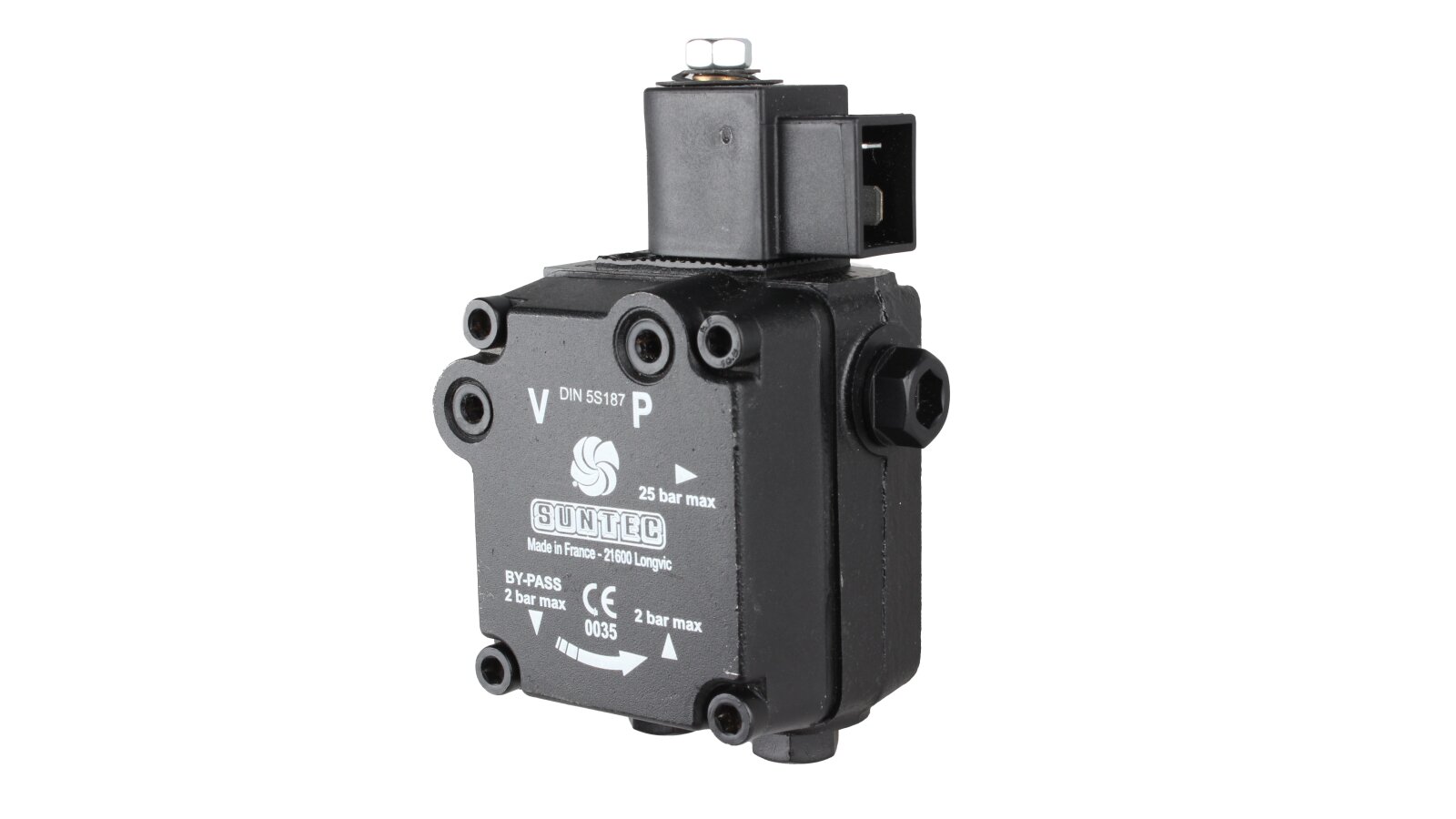

Burner Pump Suntec AL V 65 B 9632 6P 0700

Suntec

AED 825

Oil Burner Pumps
Products code: 1386

Description

The single-stage pump AL V 65 B 9632 6P 0700 with a capacity of 81 l/h is a modern reliable device designed to equip diesel burners. It was developed by the top European manufacturer SANTEC (France), engaged in the production of equipment for heating systems. This modification differs from others by the presence of an electromagnetic shut-off valve. Among the advantages of the device are increased reliability and an increased service life. The model is compatible with liquid fuel burners from the manufacturers Elko, Baltur and Lamborghini.

Design features

  • The main working element of the burner pump is a pair of toothed gears that provide fuel intake from the tank and its further supply to the nozzles. In this case, the working fluid undergoes preliminary cleaning on an integrated filter, the throughput area of ​​​​6 cm².

  • The electromagnetic valve with which the device is equipped is "normally closed". In the active position, it is open and does not interfere with the supply of fuel to the control valve, which maintains the fuel pressure within 8-15 atm.

  • The EM valve ensures immediate cessation of the supply of working fluid at any speed of the electric motor. In the inactive position, the device completely blocks the flow, and, depending on the assembly method of the fuel line circuit, returns the fuel back to the tank or supplies it to the suction line.

  • Important information! It is recommended to additionally use a fine fuel filter. This will prevent clogging of the pump injectors and significantly extend their service life.

Advantages of the model:

  • the ability to work not only with diesel fuel, but also with biodiesel, the kinematic viscosity of which is in the range from 2 to 12 cSt;

  • an effective pre-filter with a mesh size of 150 μm;

  • automatic air bleed with a two-pipe connection, provided by a special cavity on the piston;

  • protection of internal parts from damage by water and dirt using a shell with IP54.

As an official supplier of European components and equipment for heating systems, the company "ANKAS" sells fuel pumps at favorable prices. To buy a burner pump, just enter your contact information in the feedback form.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
