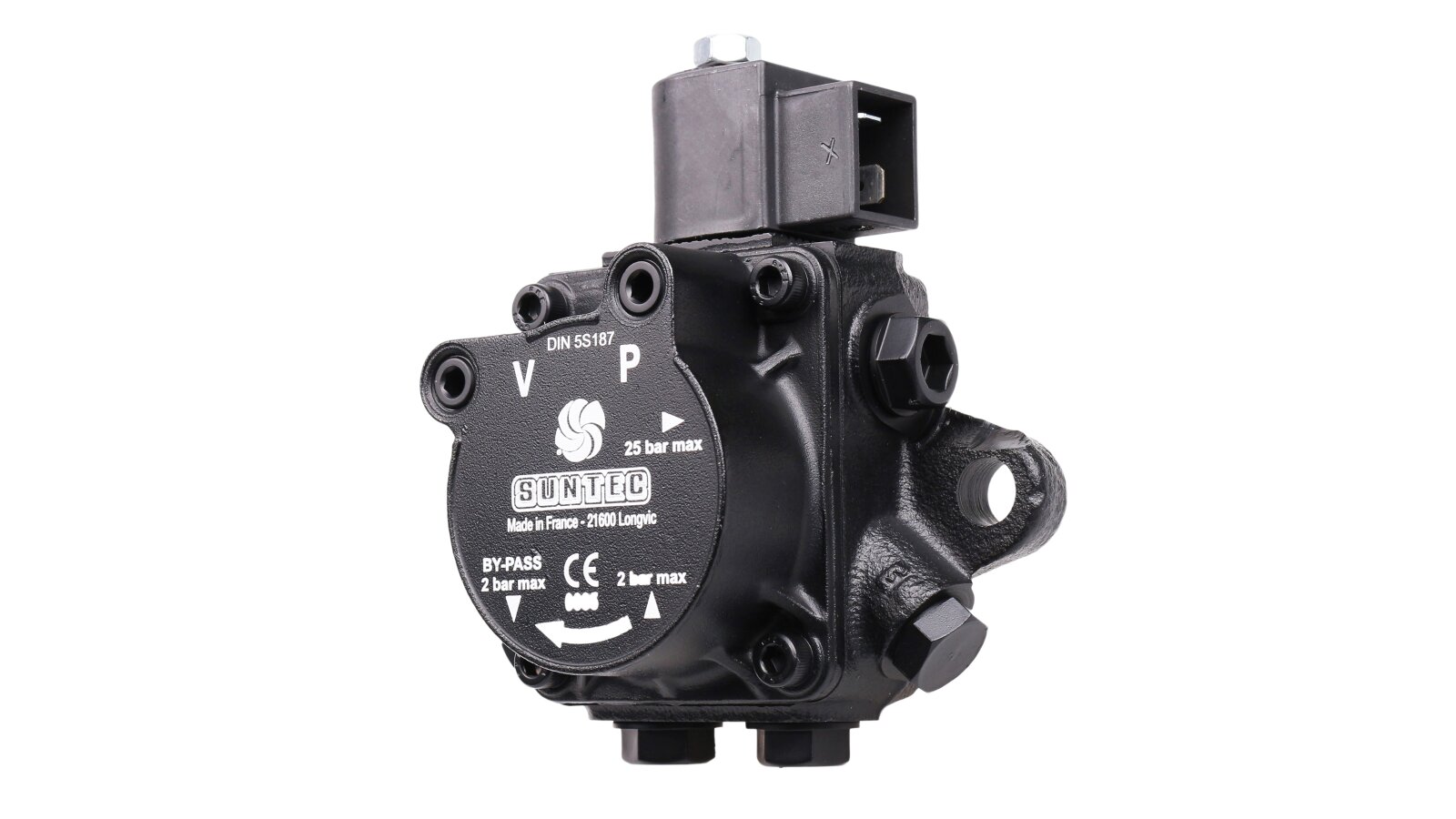

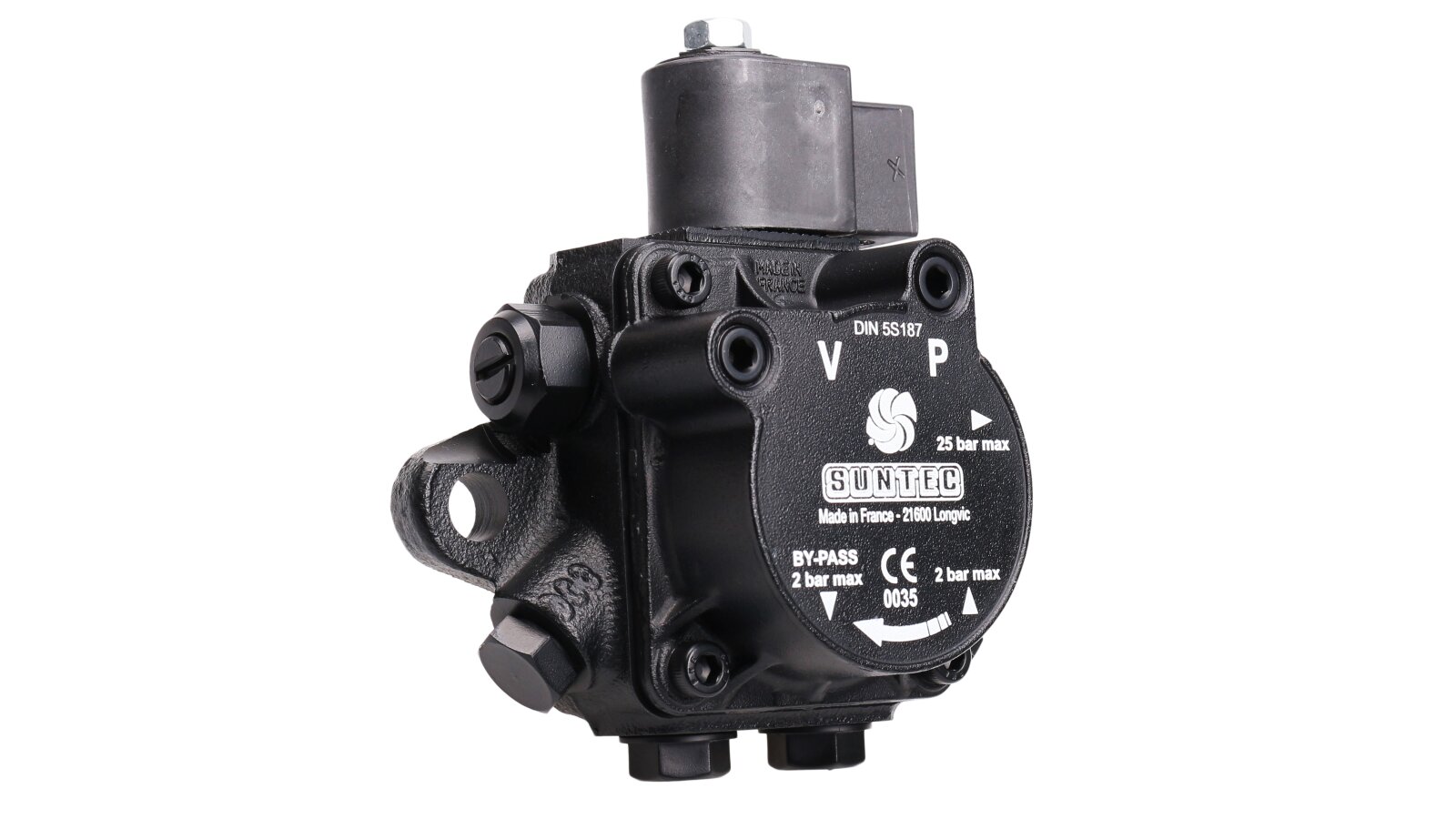

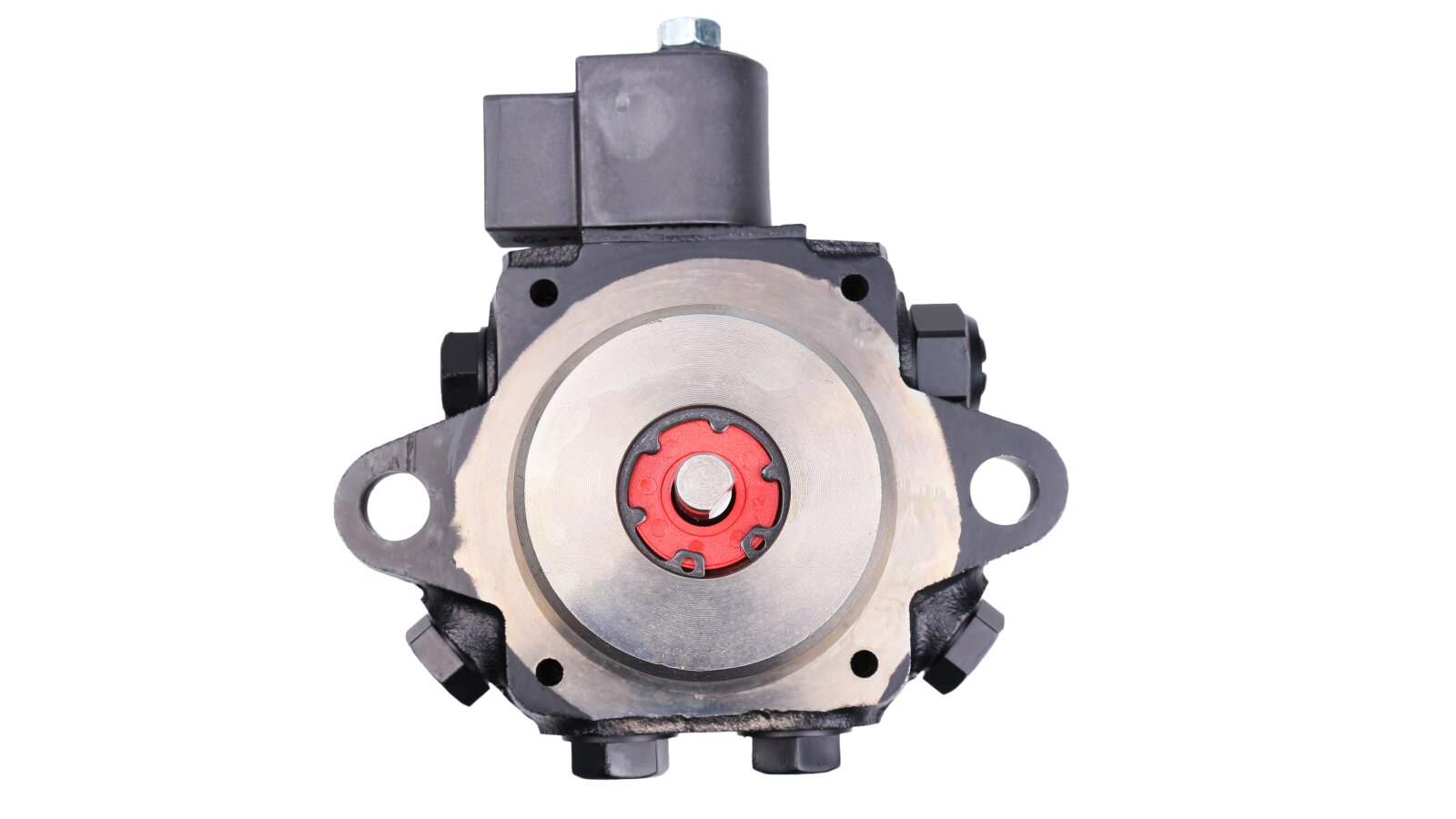

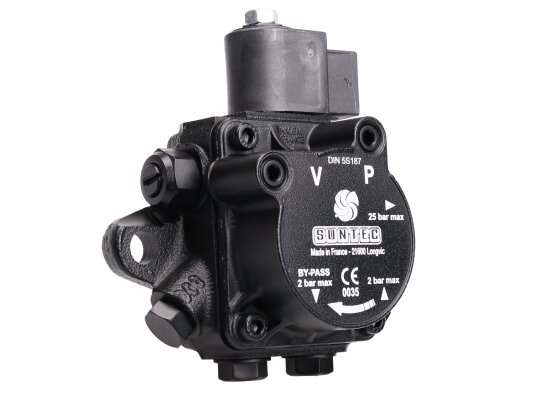

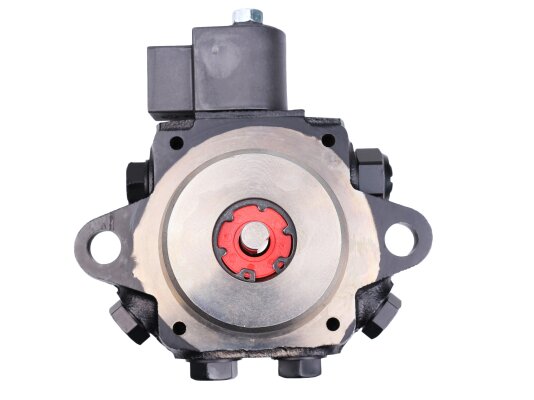

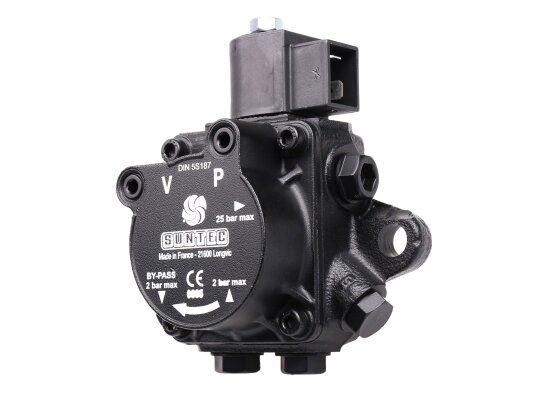

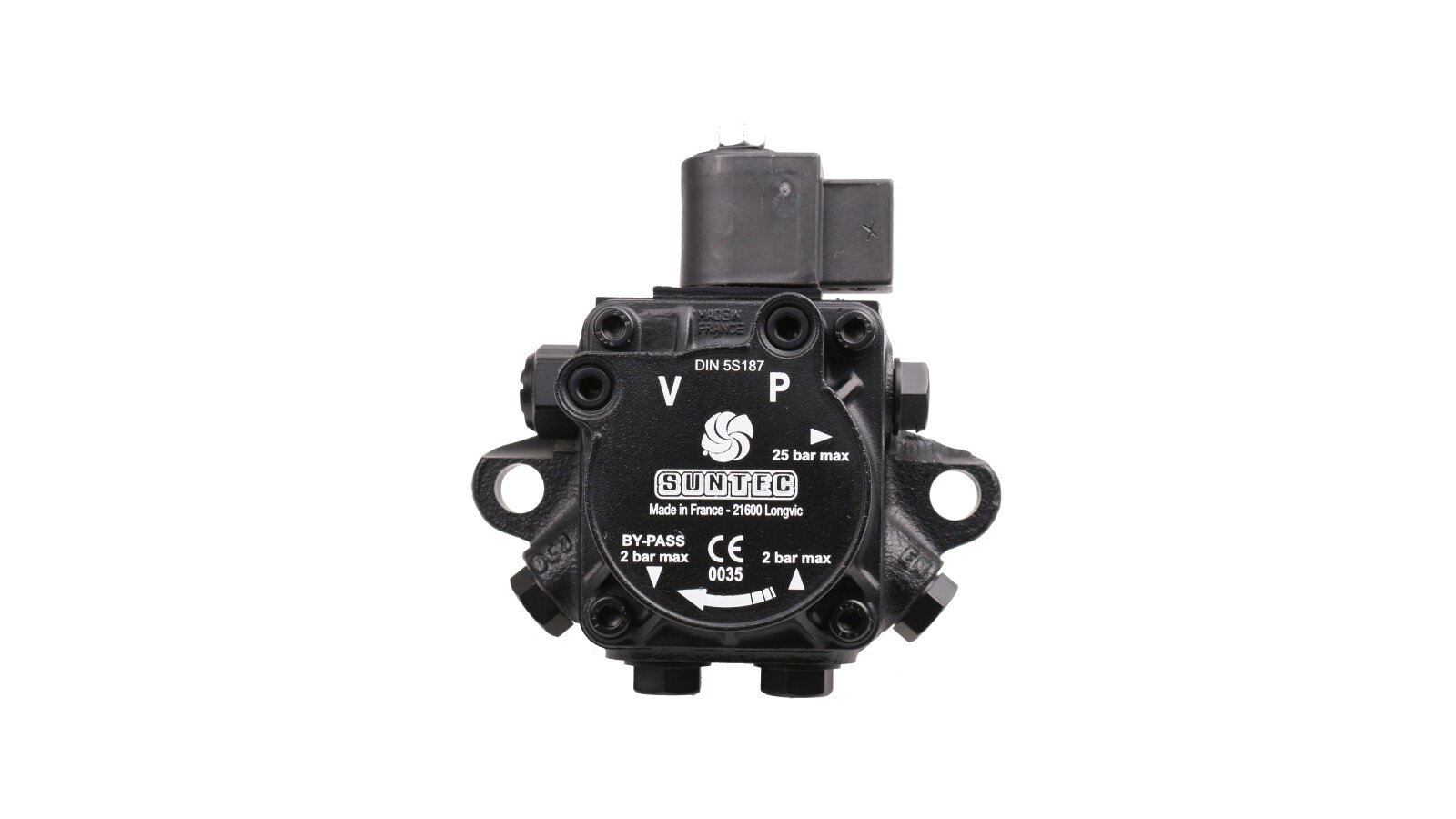

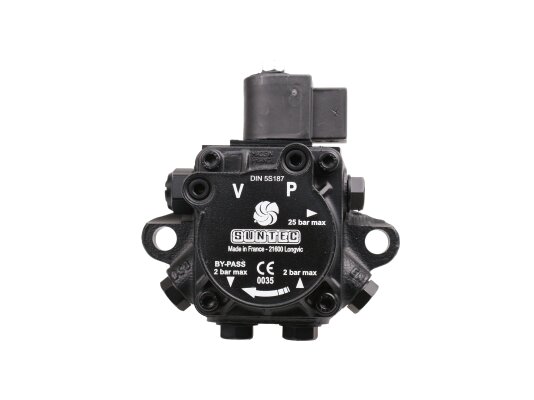

Burner Pump Suntec AL V 65 C 9688 4P 0700

Suntec

AED 1,800

Oil Burner Pumps
Products code: 1180

Description

The liquid fuel pump AL V 65 C 9688 4P 0700 is one of the most successful developments of the specialists of Suntec, which is the leader in the European market of heating equipment. The model, equipped with a shut-off electromagnetic valve, is used for pumping not only diesel fuel, but also biodiesel, which is its distinctive feature.

The device with a capacity of 81 l / h has a high level of reliability, which ensures a long service life without the need for repairs. It is also worth noting the wide range of applications due to compatibility with burners manufactured by Lamborghini, Elco, Weishaupt and Baltur.

Technical characteristics

  • The fuel is supplied from the fuel tank to the injectors using a gear pair, which is the main working unit of the design. When moving, the working mixture is driven through a pre-filter with a throughput area of ​​​​6 cm².

  • The pump has a control valve. It is required to maintain the pressure on the discharge line within the range from 8 to 15 atm. Instantaneous shut-off of the fuel supply, regardless of the engine operating mode, occurs when the solenoid blocking valve is triggered.

  • In the inactive position, the valve is closed, the working fluid is supplied to the suction line or back to the tank, depending on the configuration of the fuel line.

  • Please note! When operating the burner pump, it is recommended to use an additional fine filter. This will eliminate frequent clogging of the nozzles and significantly increase their service life.

Advantages of the model:

  • Standard threaded connections according to ISO 228/1 for mounting a pressure gauge and vacuum gauge;

  • automatic air release with a two-pipe connection;

  • the ability to work with biodiesel and diesel fuel with a kinematic viscosity of 2-12 cSt;

  • pressure on the electromagnetic valve up to 2.5 MPa.

The company "ANKAS" offers to buy the burner pump model AL V 65 C 9688 4P 0700 at a favorable price. The catalog presents a wide range of high-quality equipment, which is distinguished by a long service life. You can place an order directly on the website, indicating your details.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
