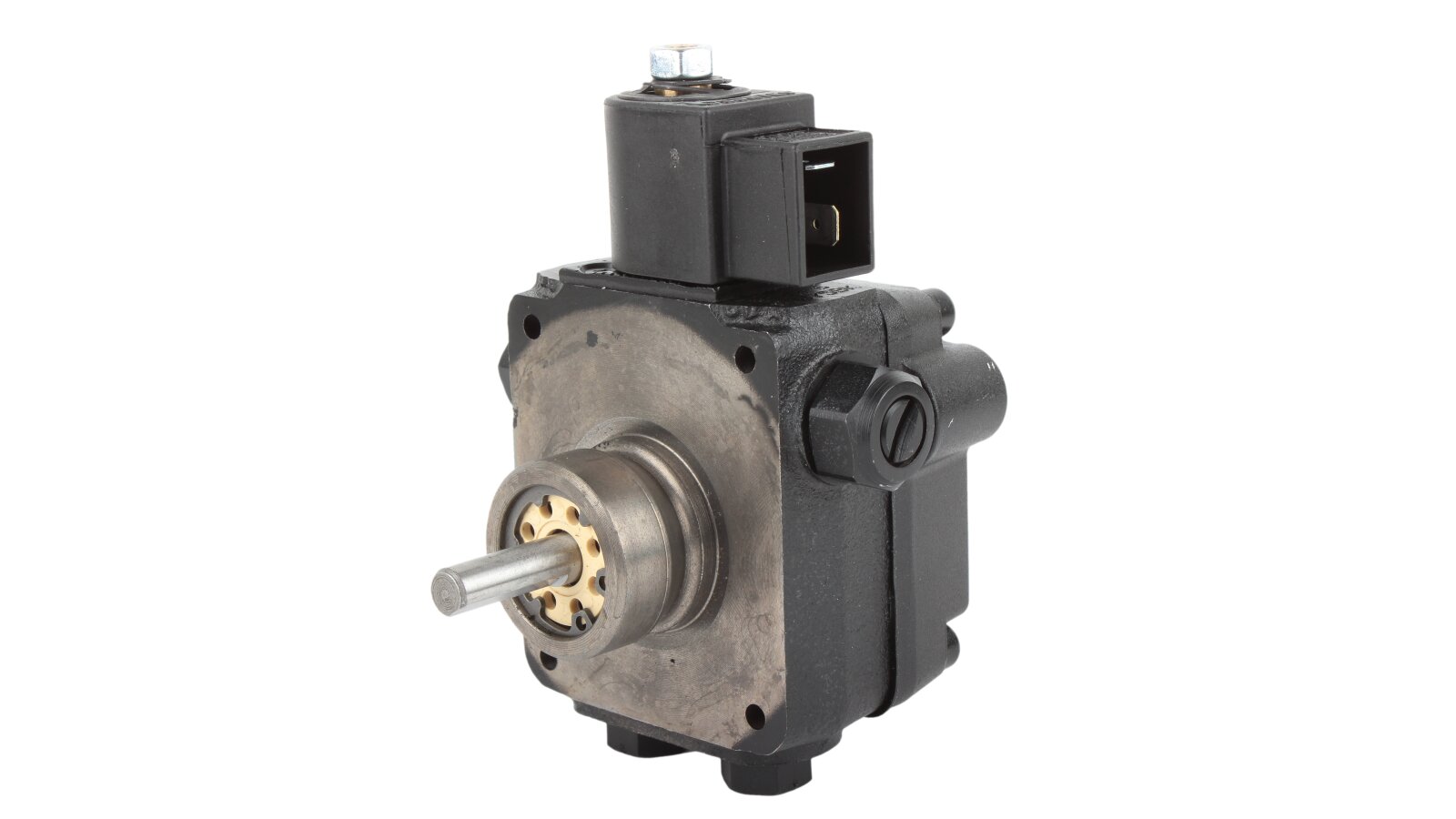

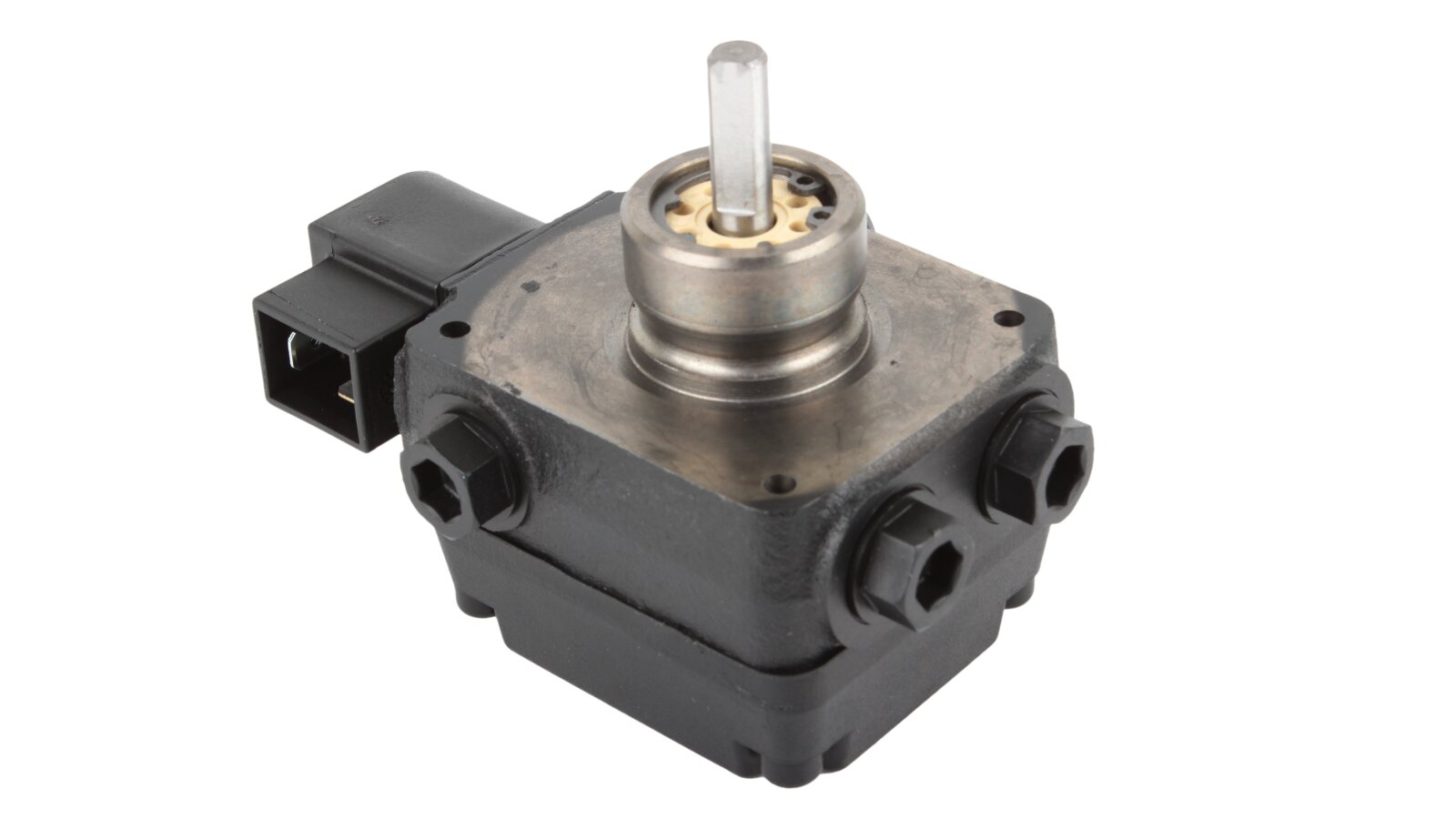

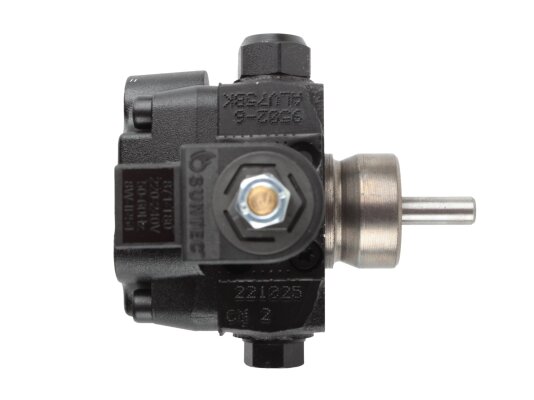

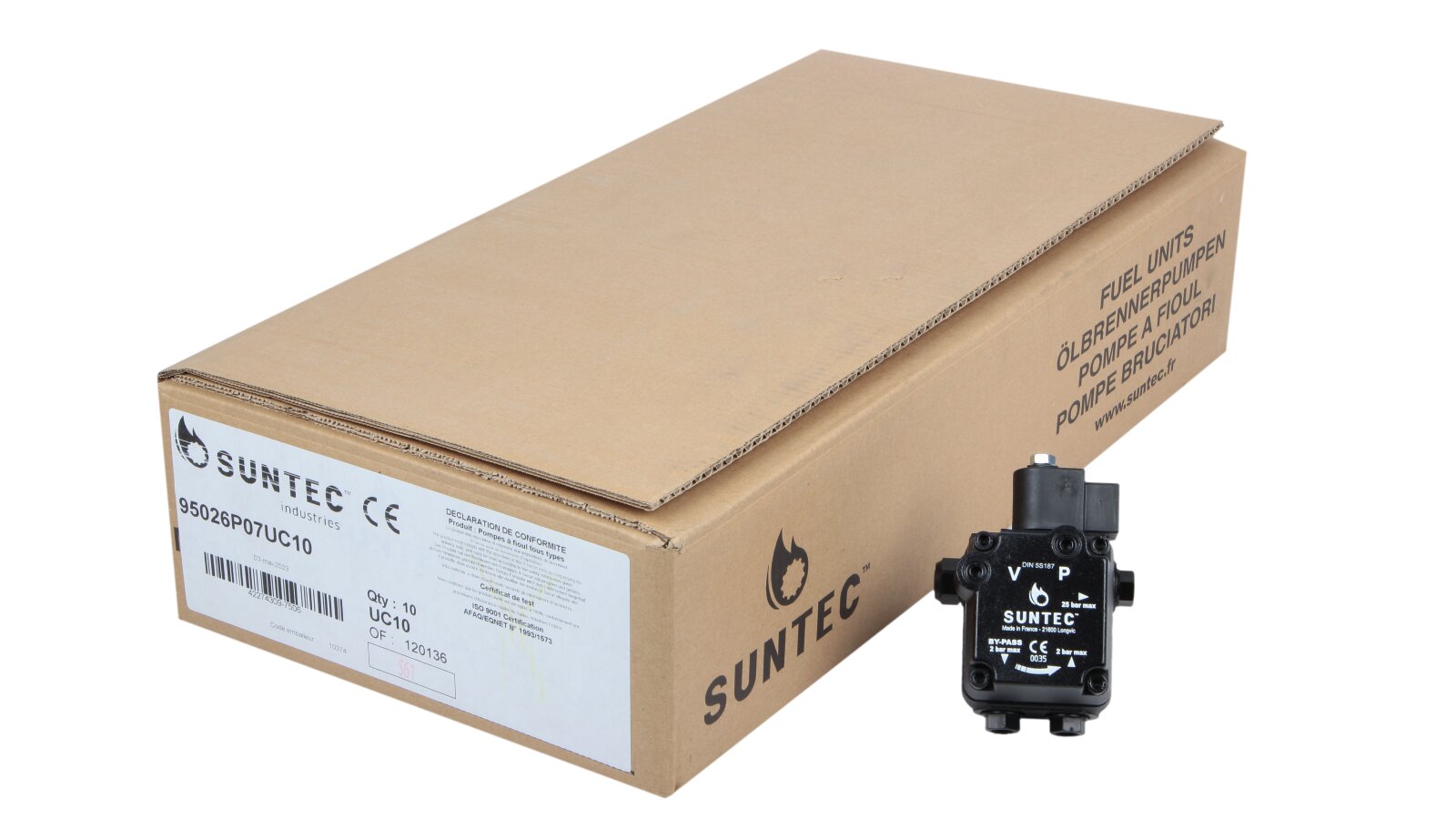

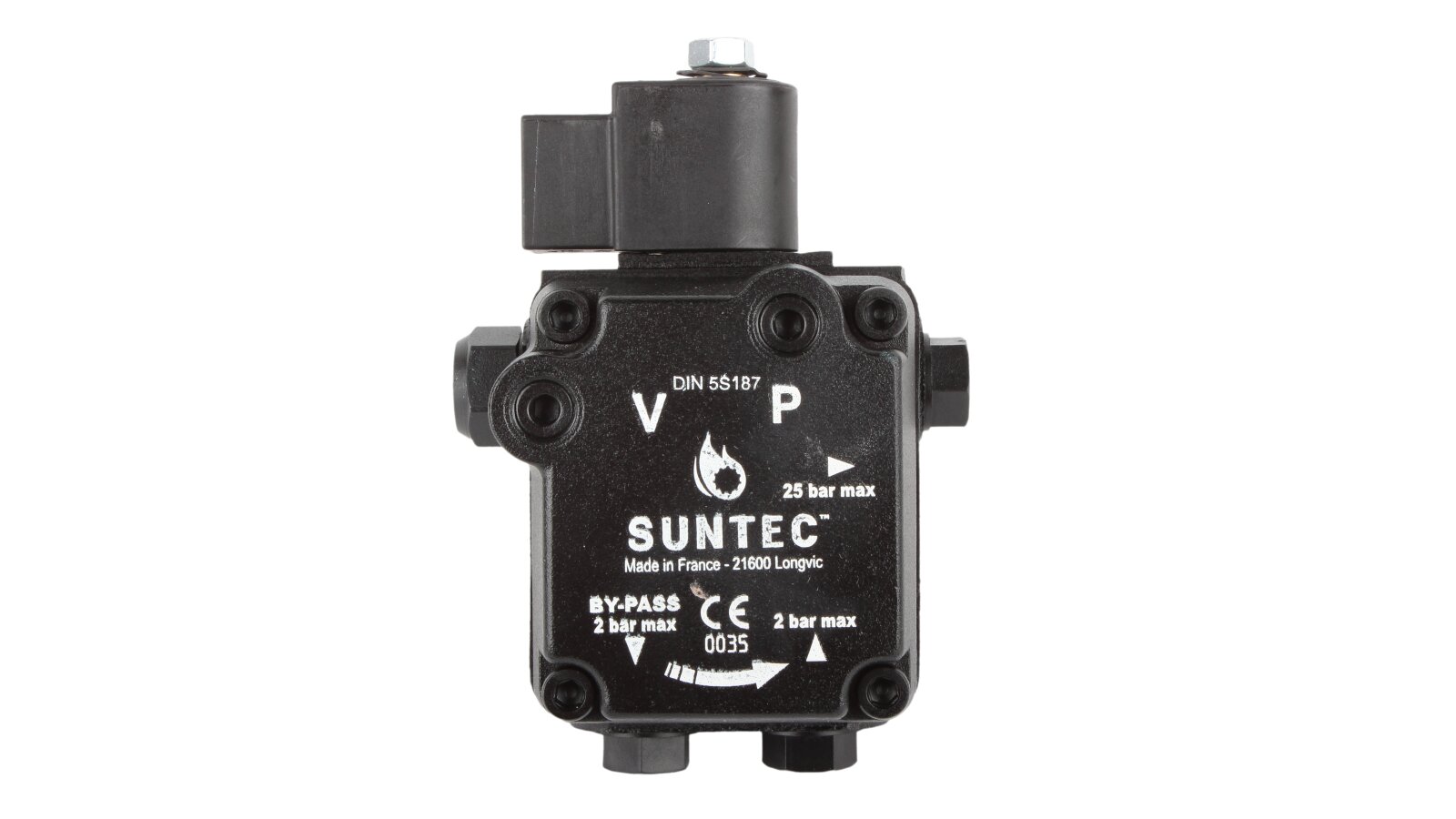

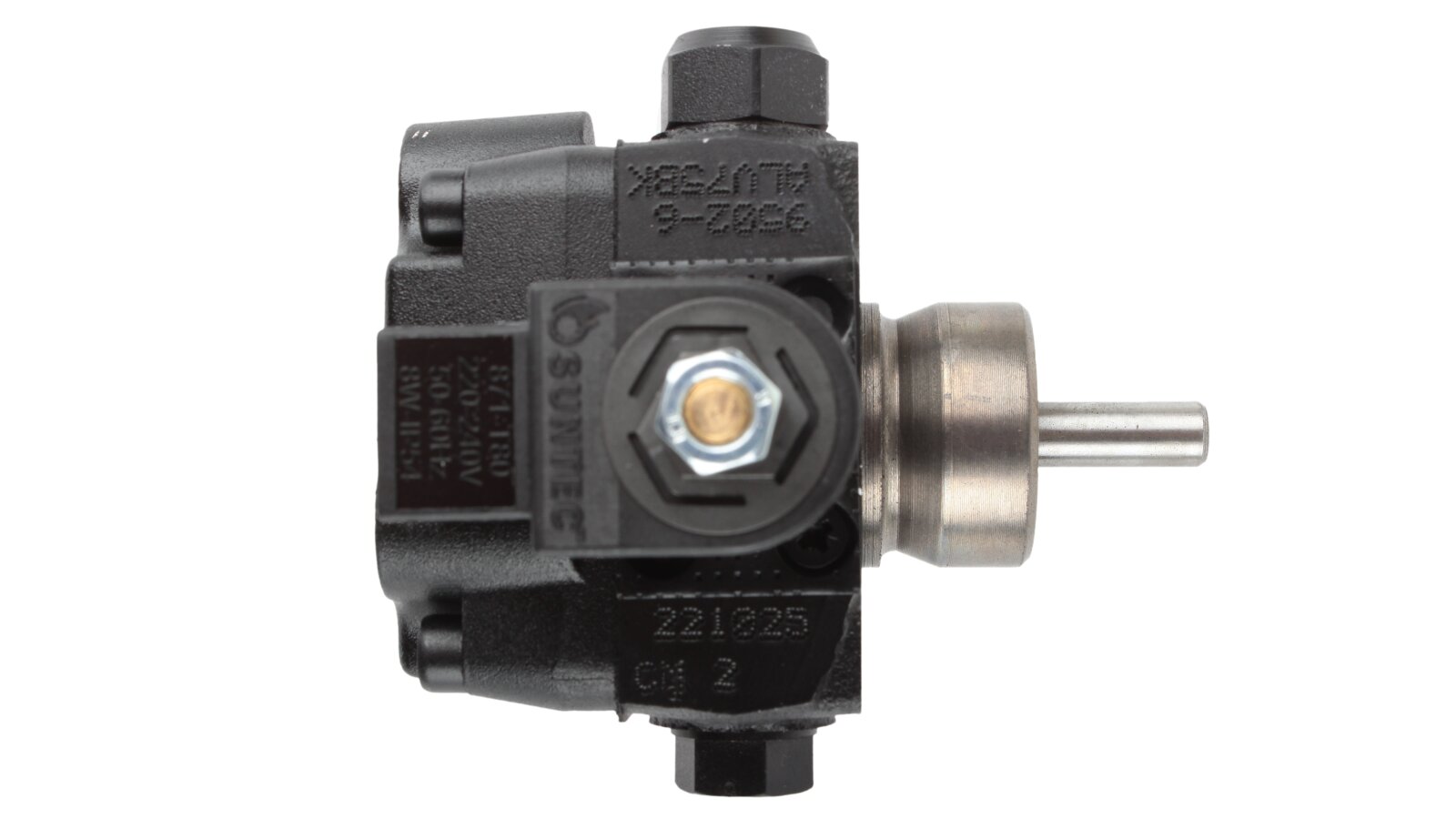

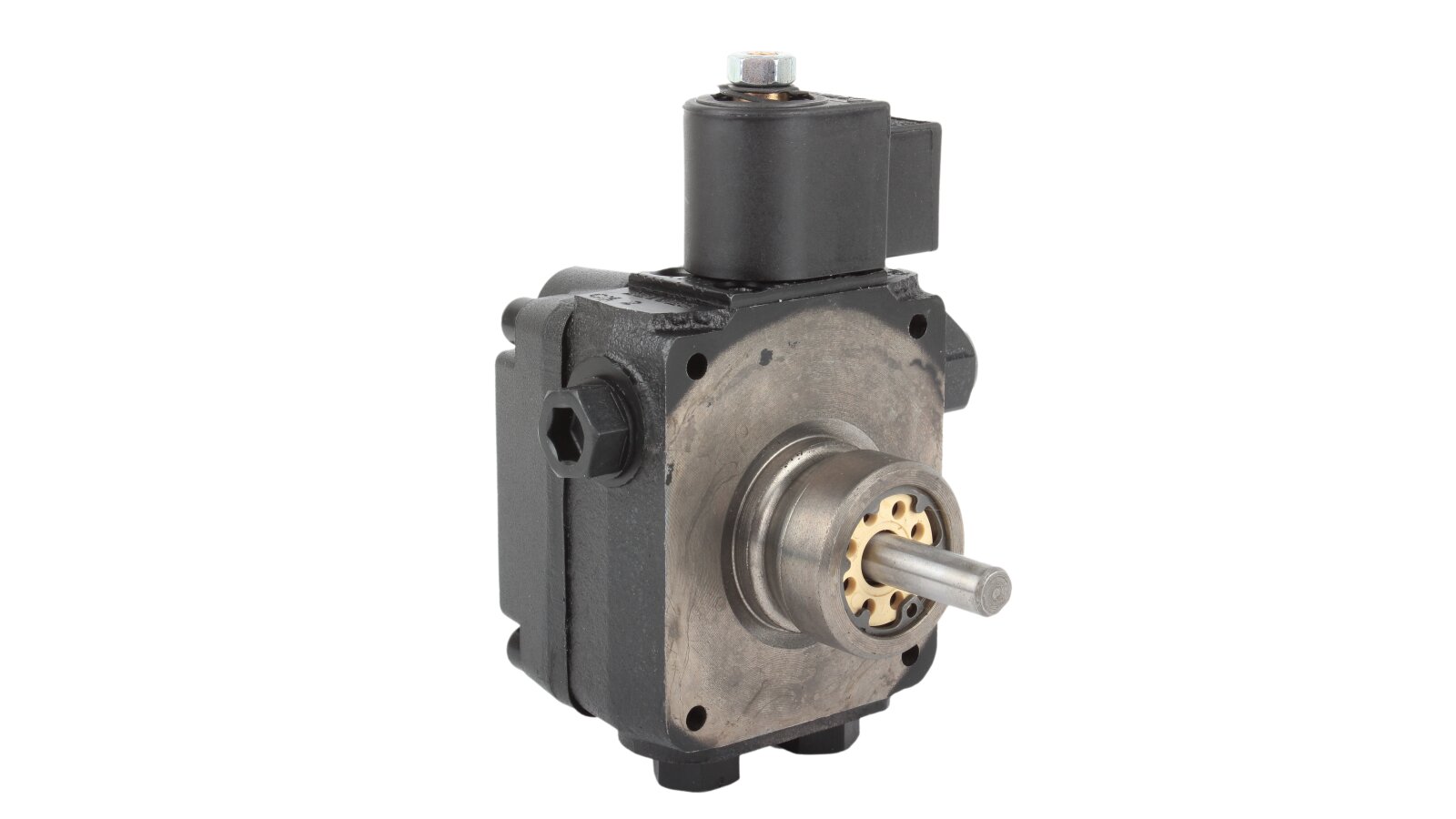

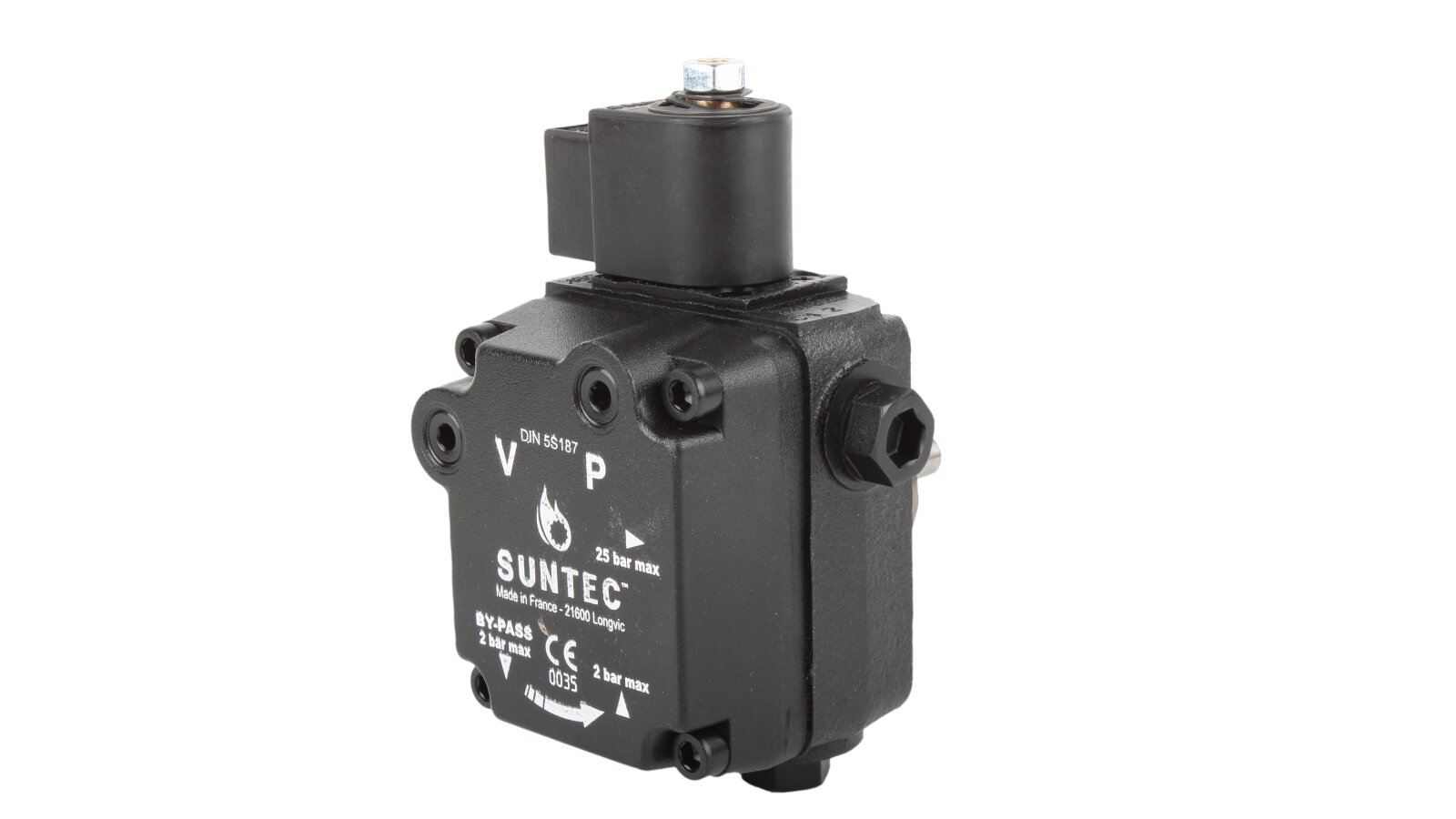

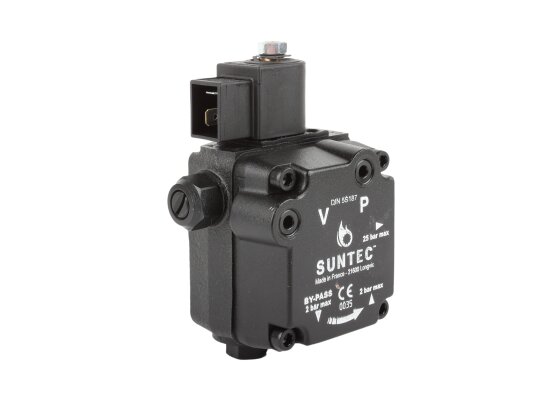

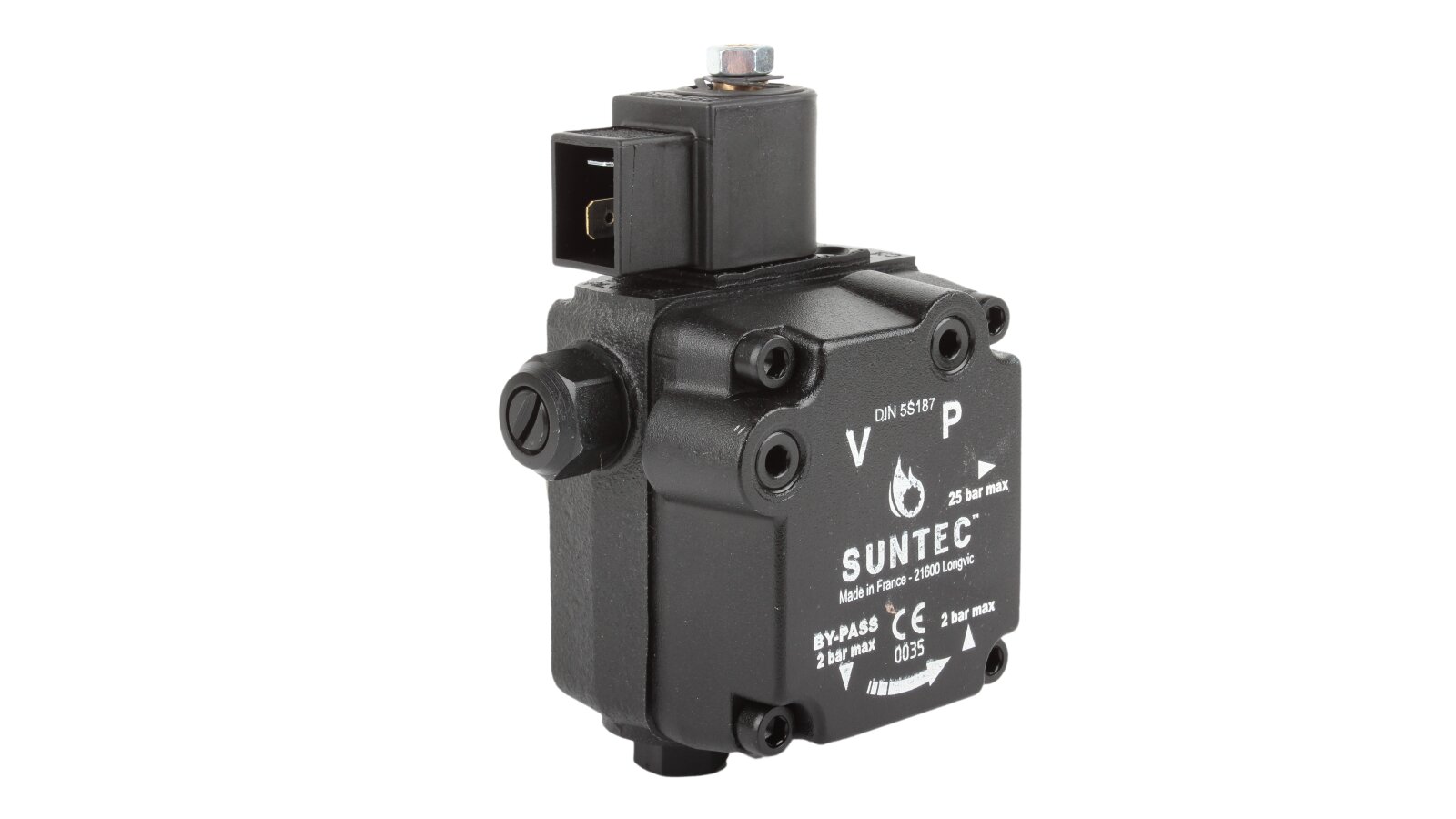

Burner Pump Suntec AL V 75 B K 9502 6P 0700

Suntec

AED 1,225

Oil Burner Pumps
Products code: 6672

Description

The Suntec AL V 75 B K 9502 5P 0700 pump is installed in burners consuming diesel fuel and kerosene. The design includes a blocking electromagnetic valve with a shut-off function.

Features

  • The pump has a high level of protection against external influences, dust and moisture. The design complies with the European standard IP54. Special seals are used for safe pumping of kerosene.

  • The working element of the pump - a gear mechanism is protected from damage and jamming by a filter. The mesh insert cleans the incoming fuel from all large abrasive particles measuring 150 microns.

  • The electromagnetic "normally closed" valve is installed in the injector line, which ensures instantaneous response. When the EM valve is activated, the fuel enters the injector line under the pressure set by the regulating valve.

  • The factory setting of the fuel pressure to the injector is 9 bar. Adjustment is available in the range from 8 to 15 bar.

  • The pump can be built into single-pipe and double-pipe systems. If there is no return line, the bypass plug is removed with an Allen key, and the fuel drain line is blocked with a steel plug and washer.

  • Installation is carried out using a sleeve connection (EN 225 standard), which expands the scope of use of the pump. This type of fastening is supported by many manufacturers when manufacturing burners.

Advantages:

  • for diesel fuel and kerosene;

  • blocking EM valve with a locking function;

  • universal fasteners;

  • fuel filtration before entering the gears;

  • high level of protection against dust and moisture (IP54);

  • single- and double-pipe connection;

  • ports for connecting measuring devices;

  • very fast response of the EM valve;

  • uninterrupted service.

We offer to buy the Suntec AL V 75 B K 9502 5P 0700 pump and other components for assembling burners and heating boilers on our website. You can ask questions about the selection of equipment to ANKAS online consultants.

Characteristics

Maximum rotation speed: 3600 rpmModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barValve function: pressure regulatingNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.12 N·mOperating viscosity: from 2 to 12 mm²/sDegree of protection: IP54Type of pumped liquid: kerosene, diesel
