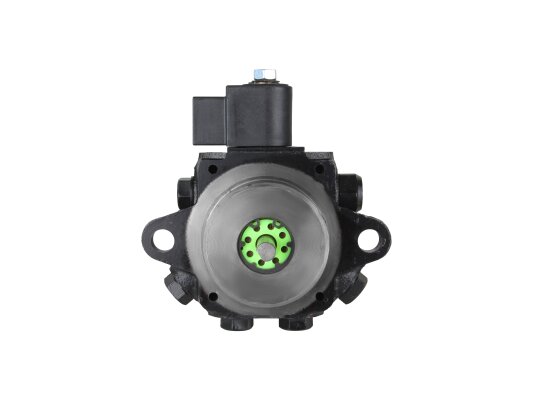

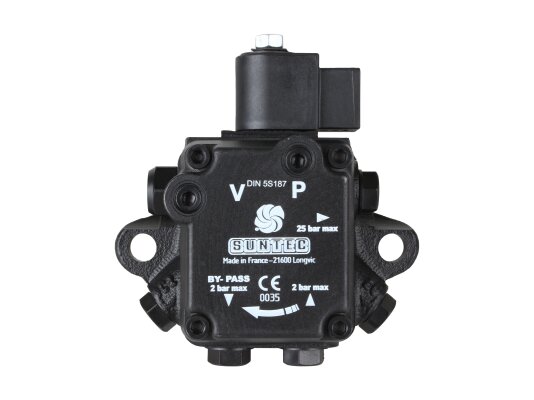

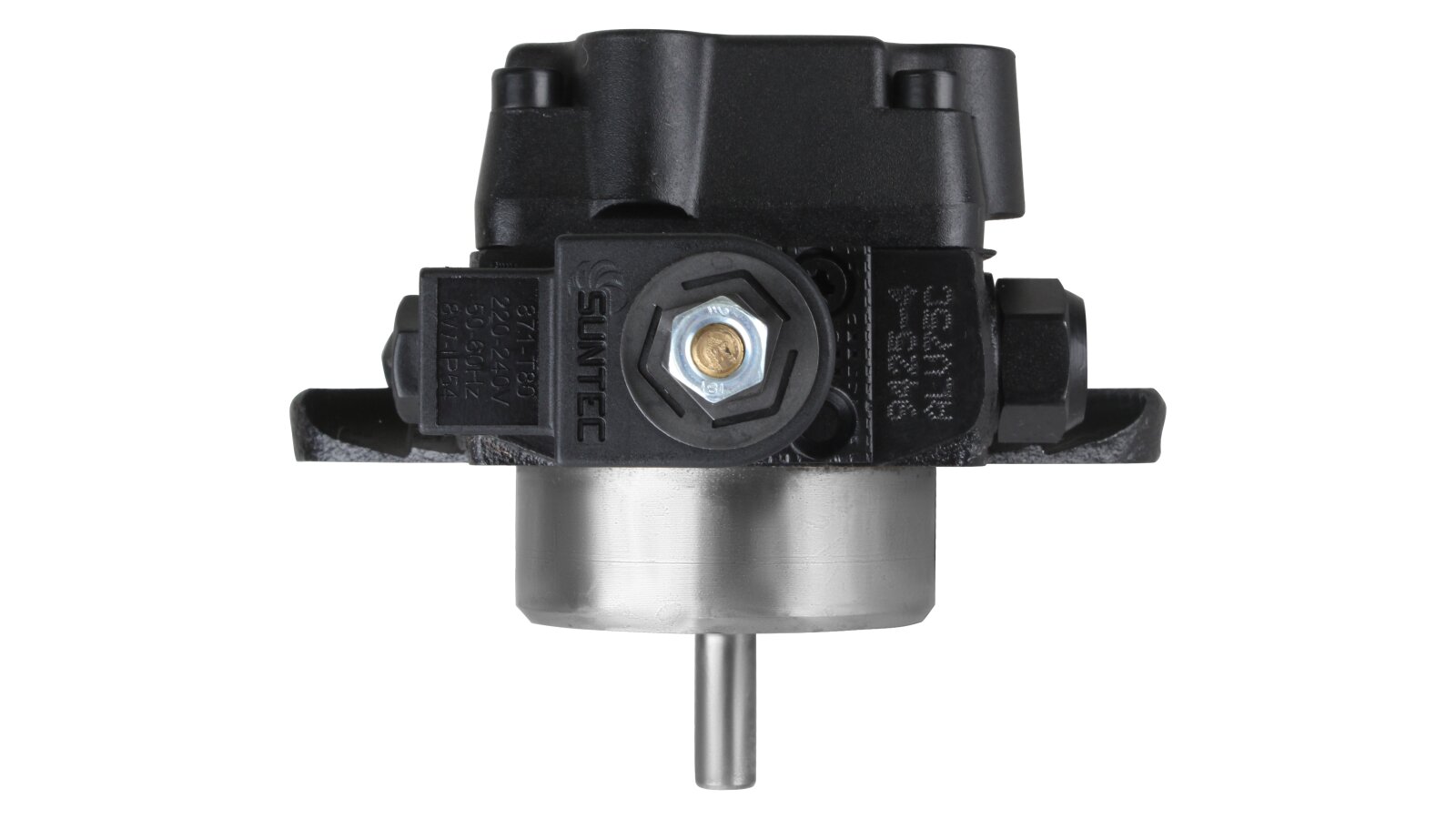

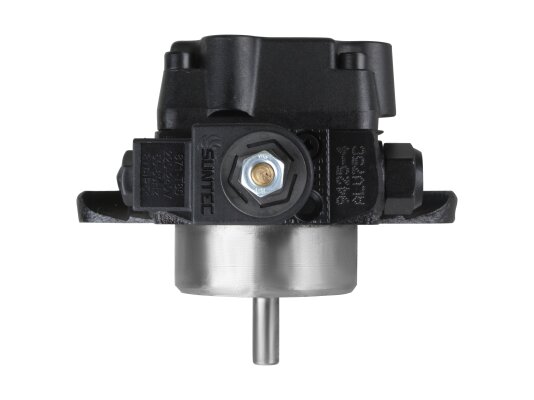

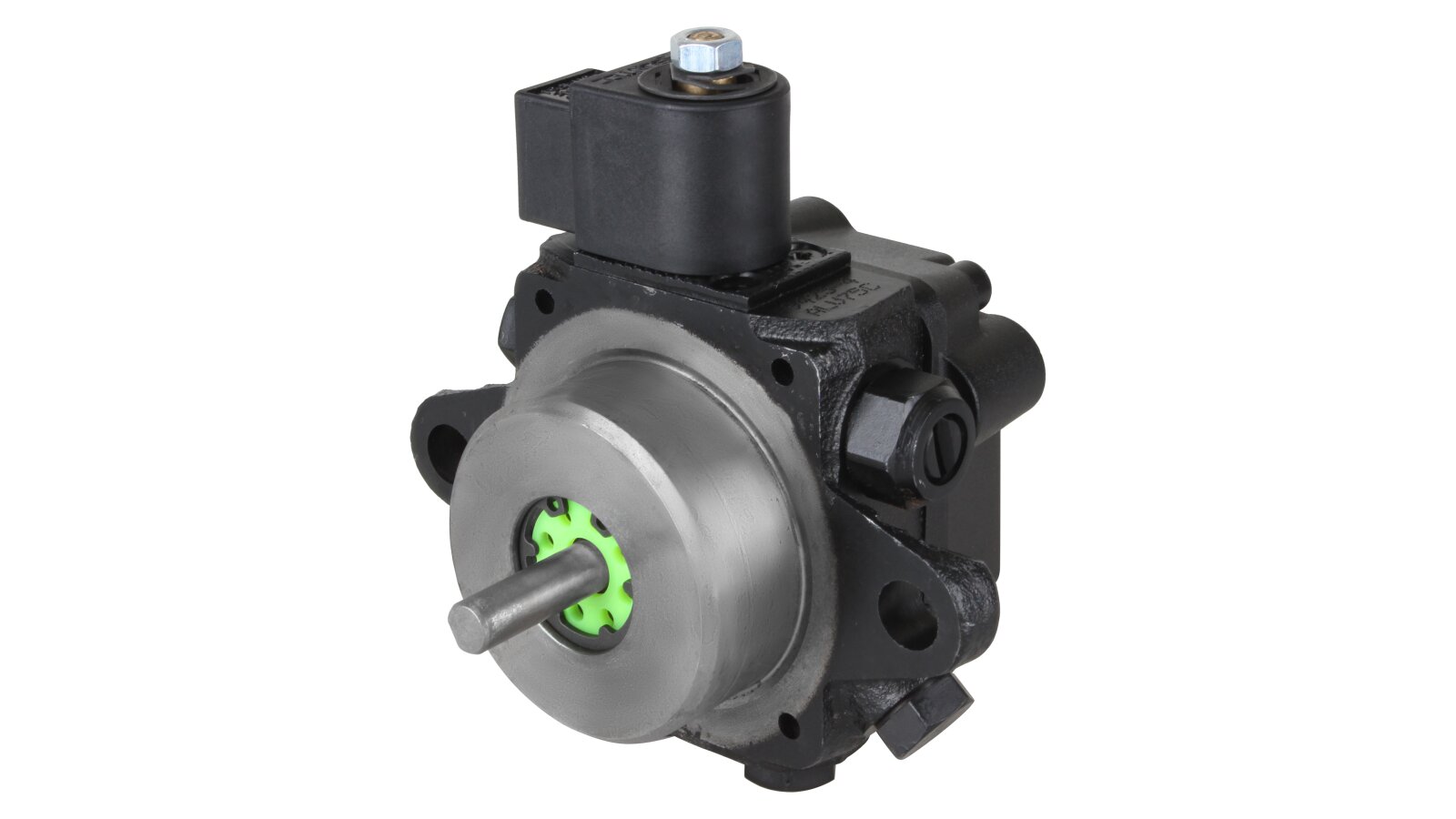

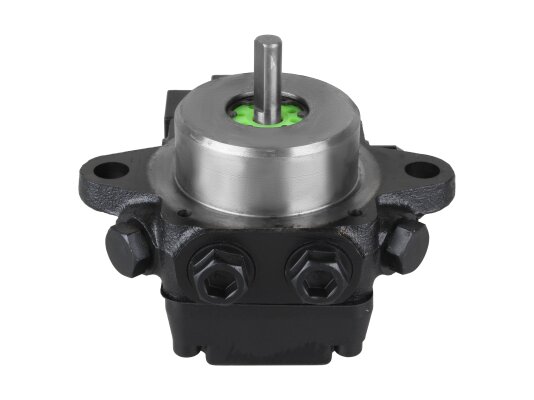

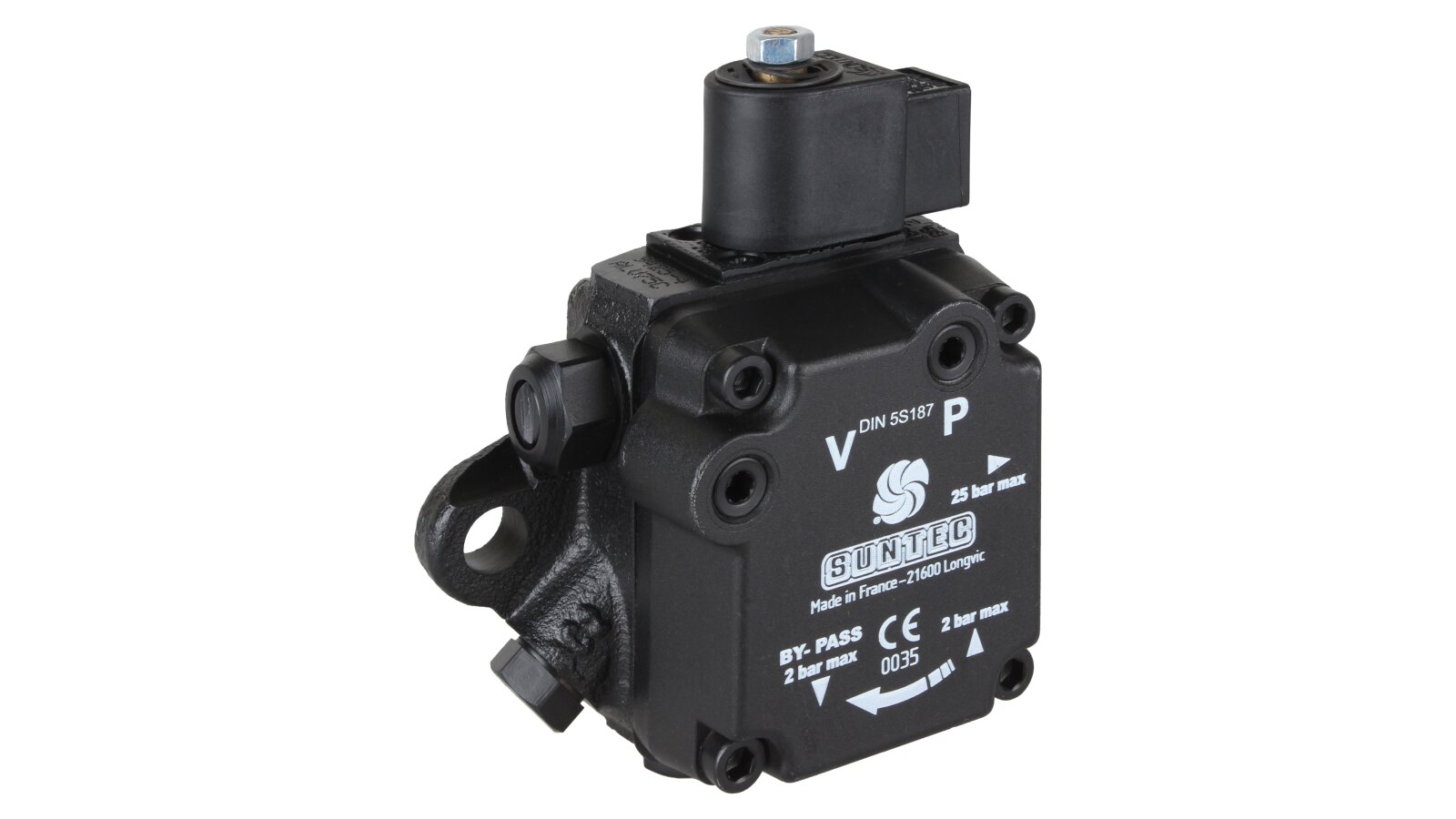

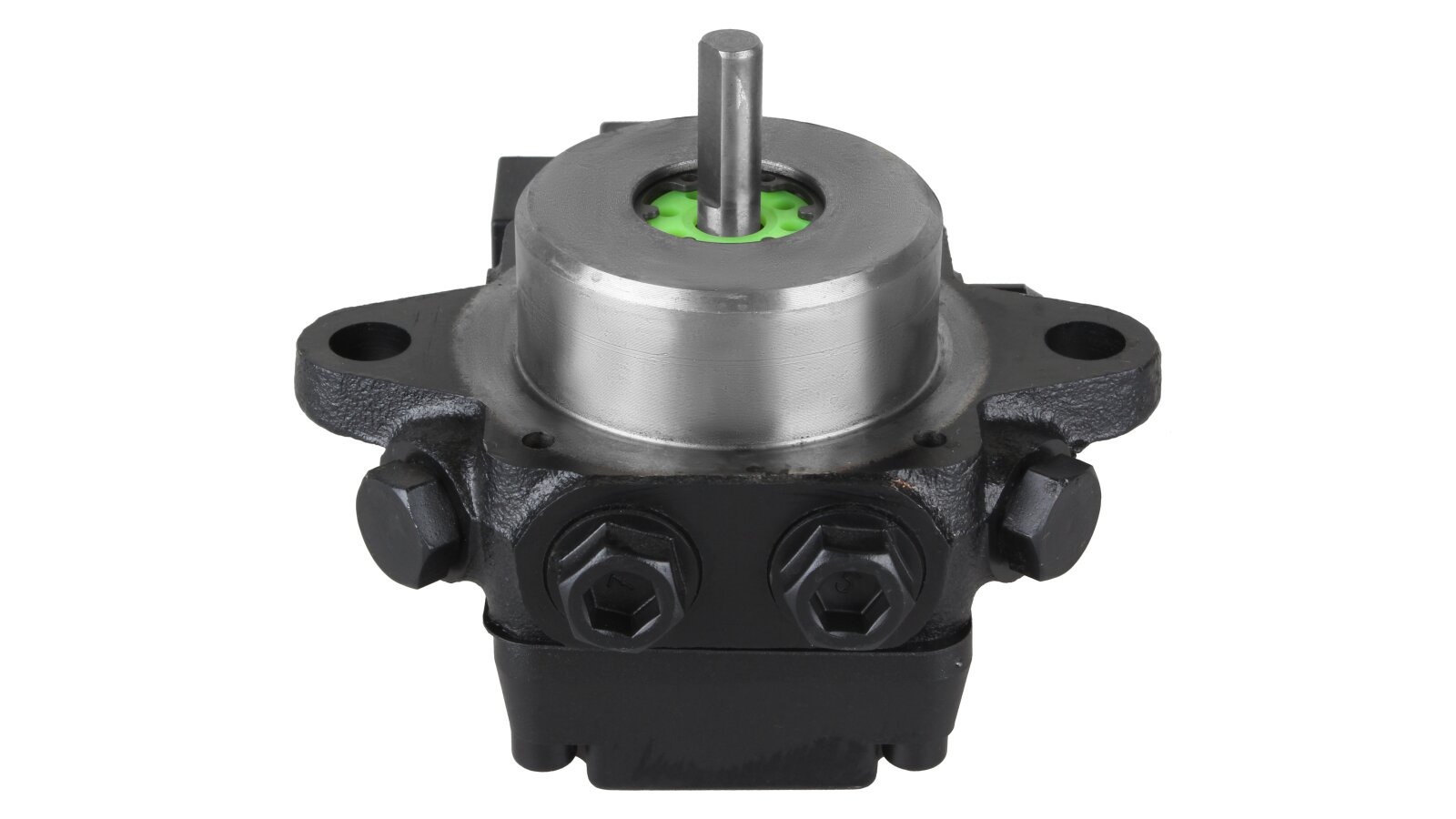

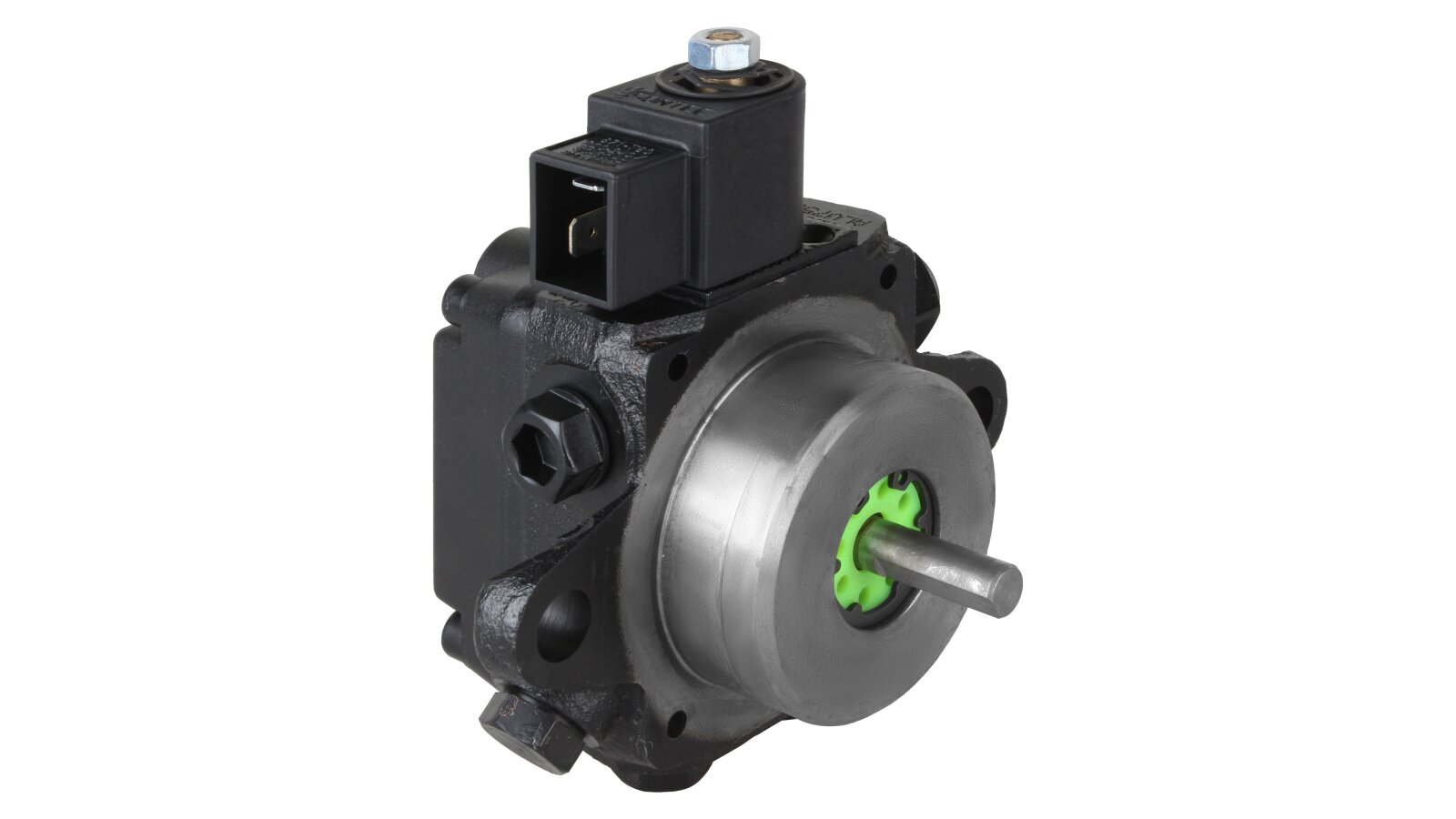

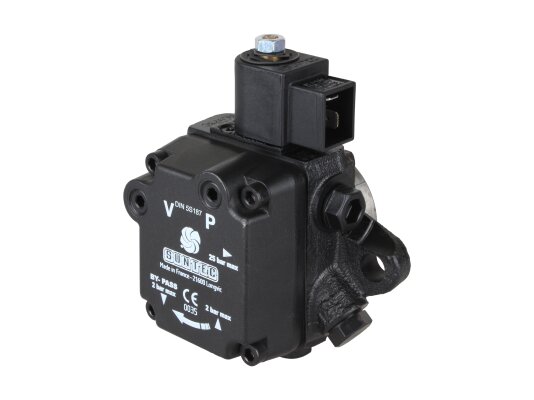

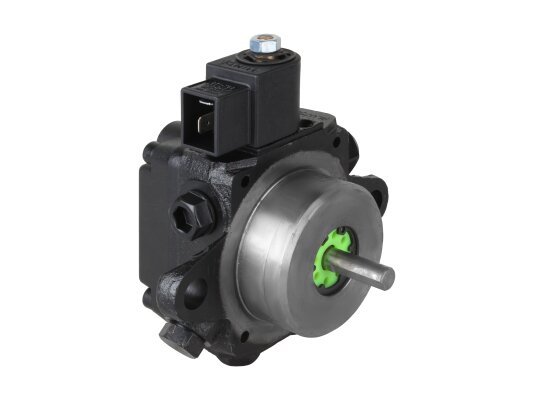

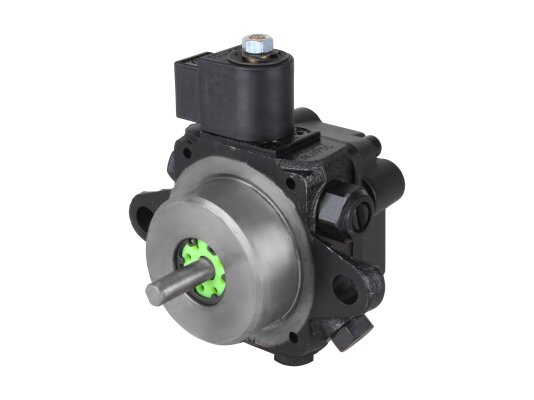

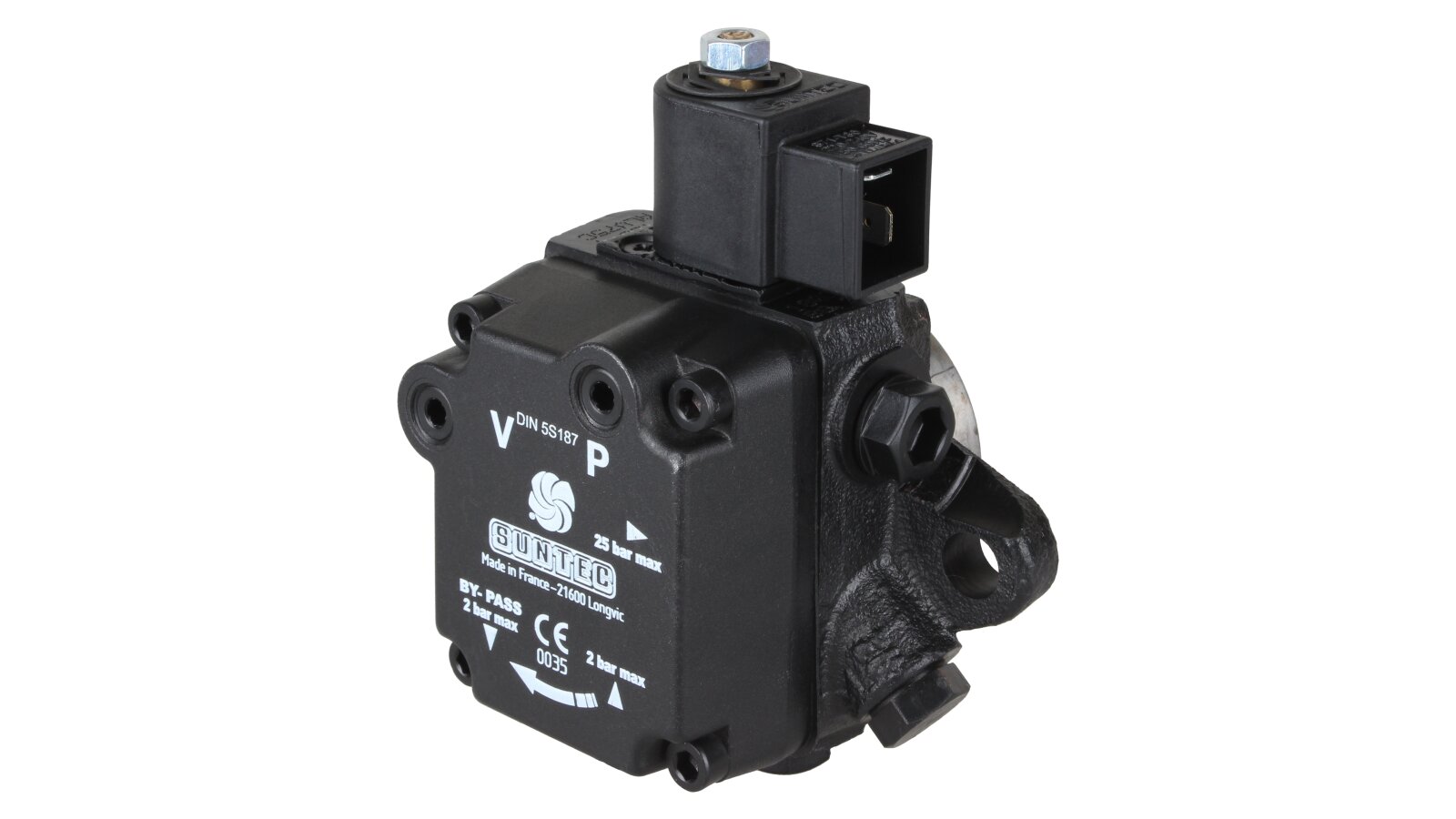

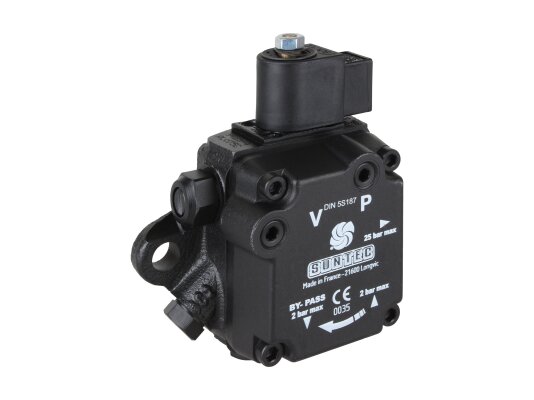

Burner Pump Suntec AL V 75 C 9425 4P 0700

Suntec

AED 1,875

Oil Burner Pumps
Products code: 1388

Description

The single-stage pump of the diesel burner AL V 75 C 9425 4P 0700 is in demand among buyers and this is quite natural. The device is one of the best developments of Suntec, a leading European manufacturer of heating equipment. The model is equipped with a shut-off solenoid valve and is characterized by a high level of reliability.

The unit with a capacity of 109 l / h is used in domestic and industrial heating systems. It is compatible with burners with a capacity of up to 1000 kW of such brands as Weishaupt, Lamborghini, Elco and Baltur, operating on fuel with a kinematic viscosity of 2 to 12 cSt - diesel fuel and biodiesel.

Technical data

  • Santek fuel pumps have a simple design. The main working unit is a gear pair. It facilitates the movement of the combustible mixture from the tank to the nozzles. During the supply process, the fuel undergoes a preliminary cleaning stage, for this purpose it is passed through a mesh filter with a cell size of 150 microns.

  • This model has a control valve, by means of which the liquid pressure in the system is maintained within the range of 8 to 15 atm. The task of the other - the electromagnetic valve-blocker - is to operate on a signal and stop the supply of the working mixture to the injectors. When the valve is not activated, the fuel is sent back to the tank or to the suction line, regardless of the rotation frequency of the drive axle of the electric motor.

  • Important information! For uninterrupted operation of the heating burner, it is recommended to install an additional filter for fine cleaning. It will successfully remove foreign inclusions and prevent clogging of the injectors.

Main advantages:

  • adaptation to various types of fuel - diesel fuel, biodiesel and others;

  • convenient manual adjustment of the fuel pressure on the injector line;

  • wide range of working environment temperatures - from 0 to 60 ° C;

  • high protection class of the outer shell — IP 54;

  • standard ports for connecting a pressure gauge and vacuum gauge.

The company "ANKAS" — the official representative of the Suntec concern — specializes in the sale of AL series models. You can buy a liquid fuel pump for a burner from us at the manufacturer's price. The website offers an online order function for any model from the catalog. Specialists provide telephone consultations to help you choose the necessary modification depending on individual requirements and design features of the heating system.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 109 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 109 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDegree of protection: IP54
