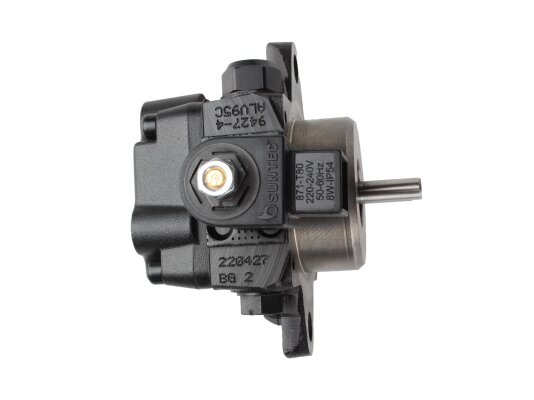

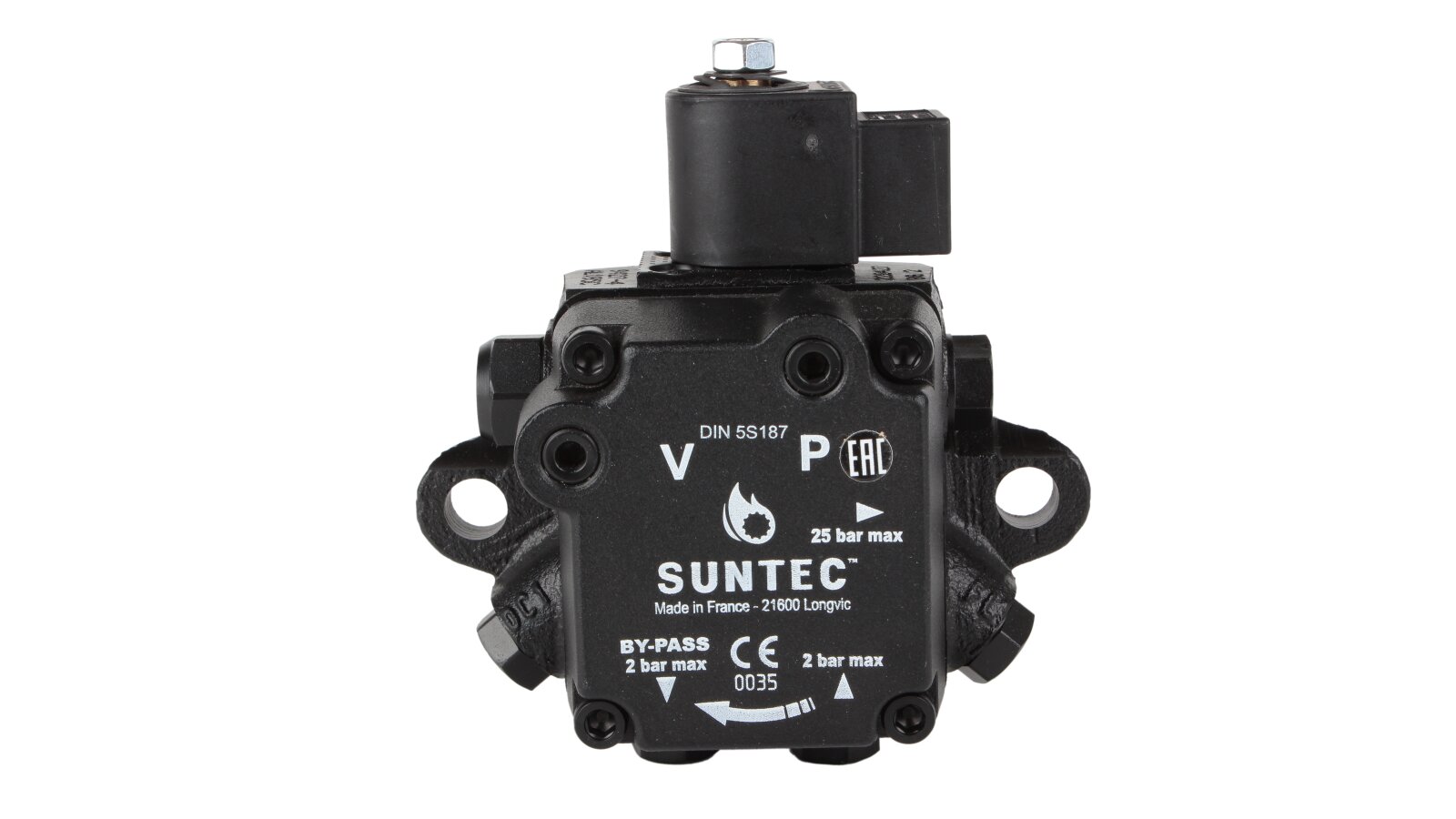

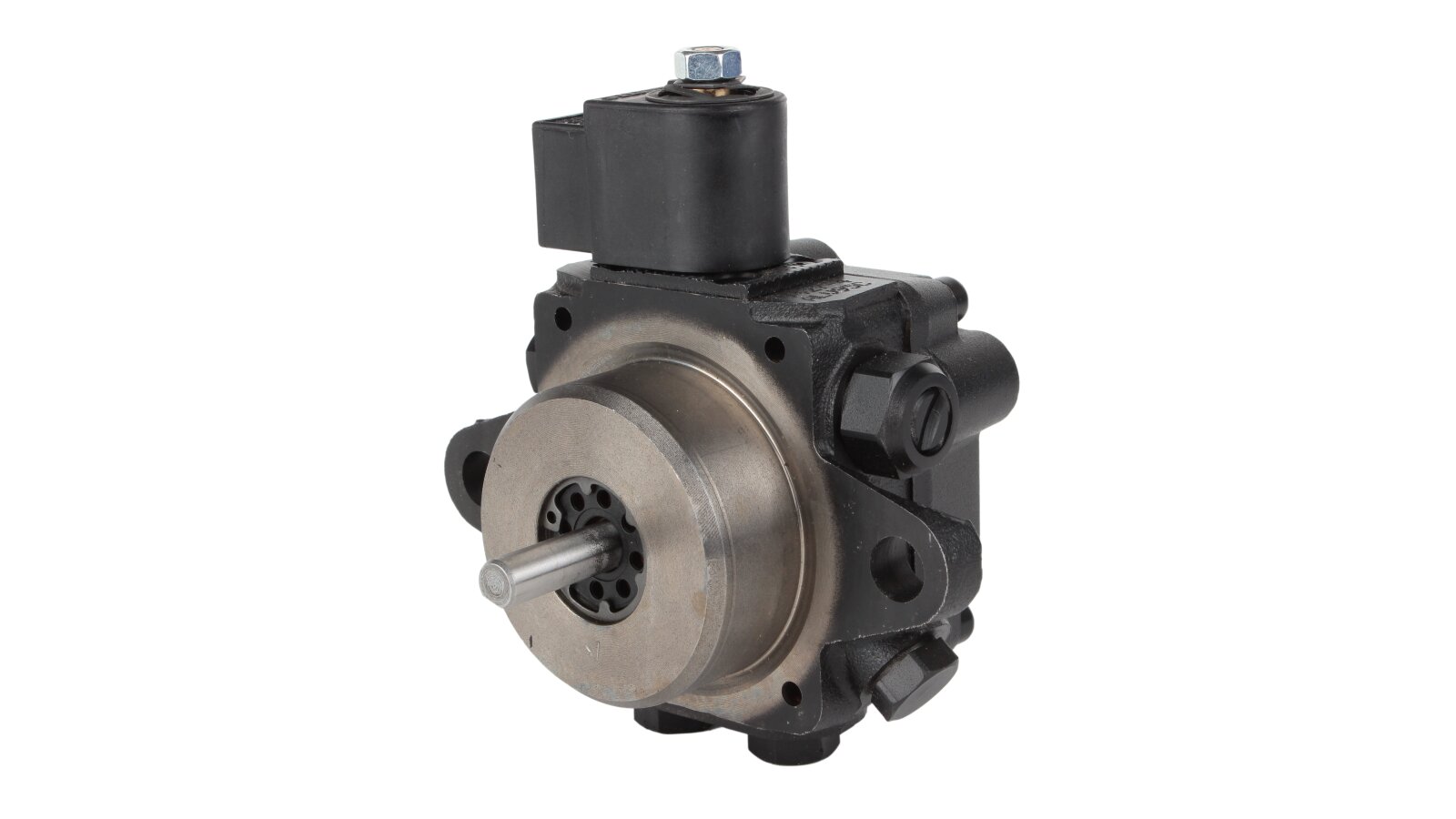

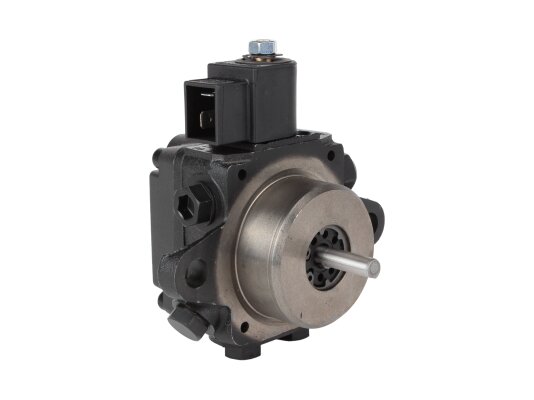

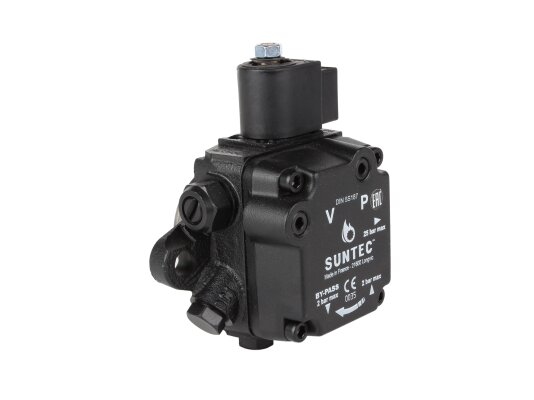

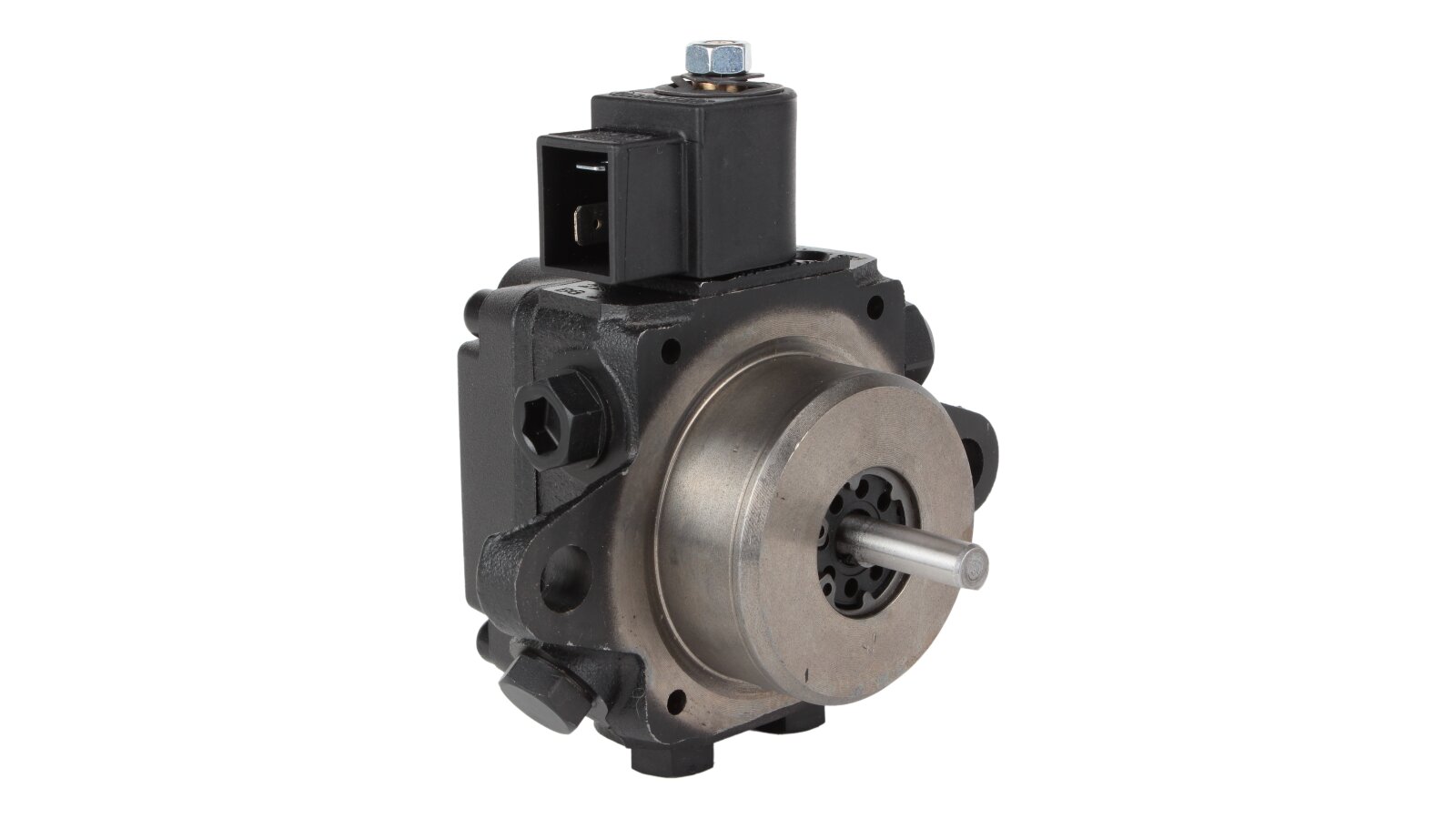

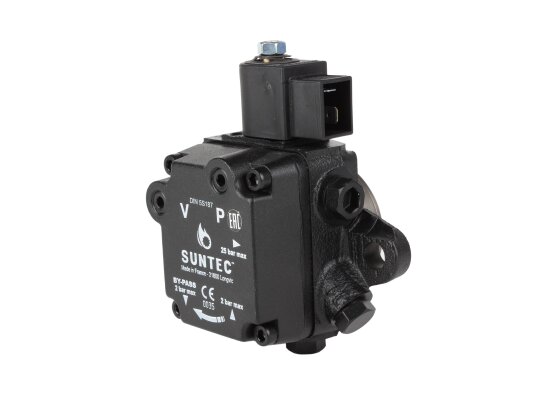

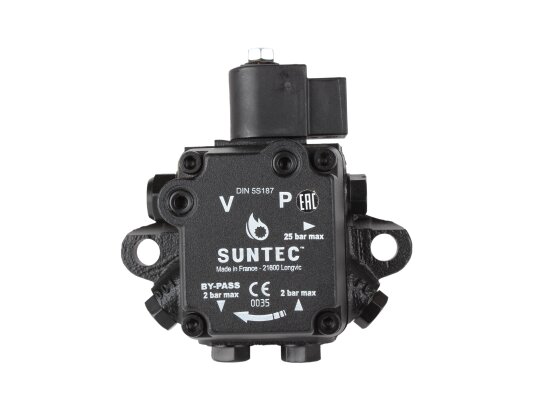

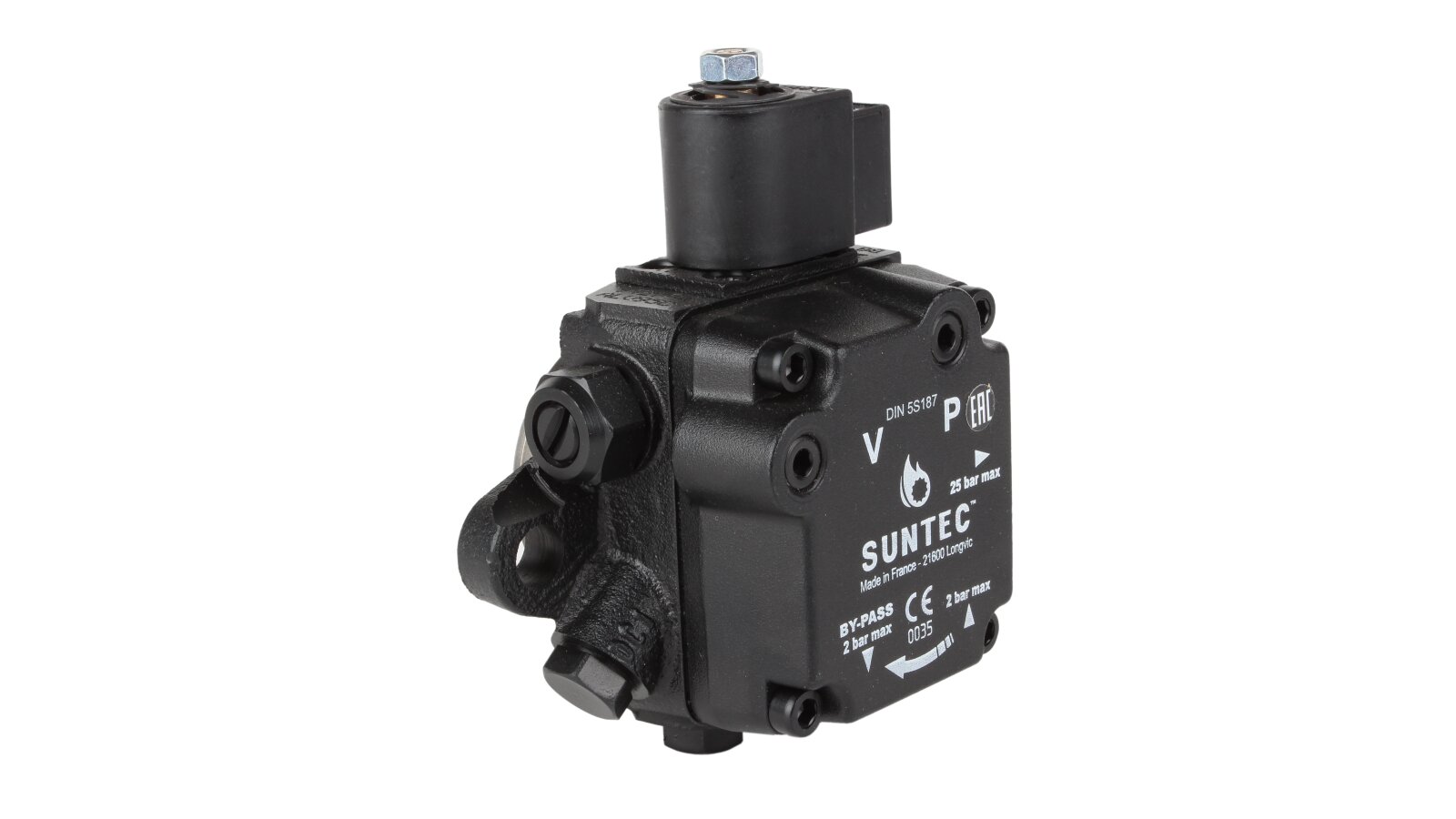

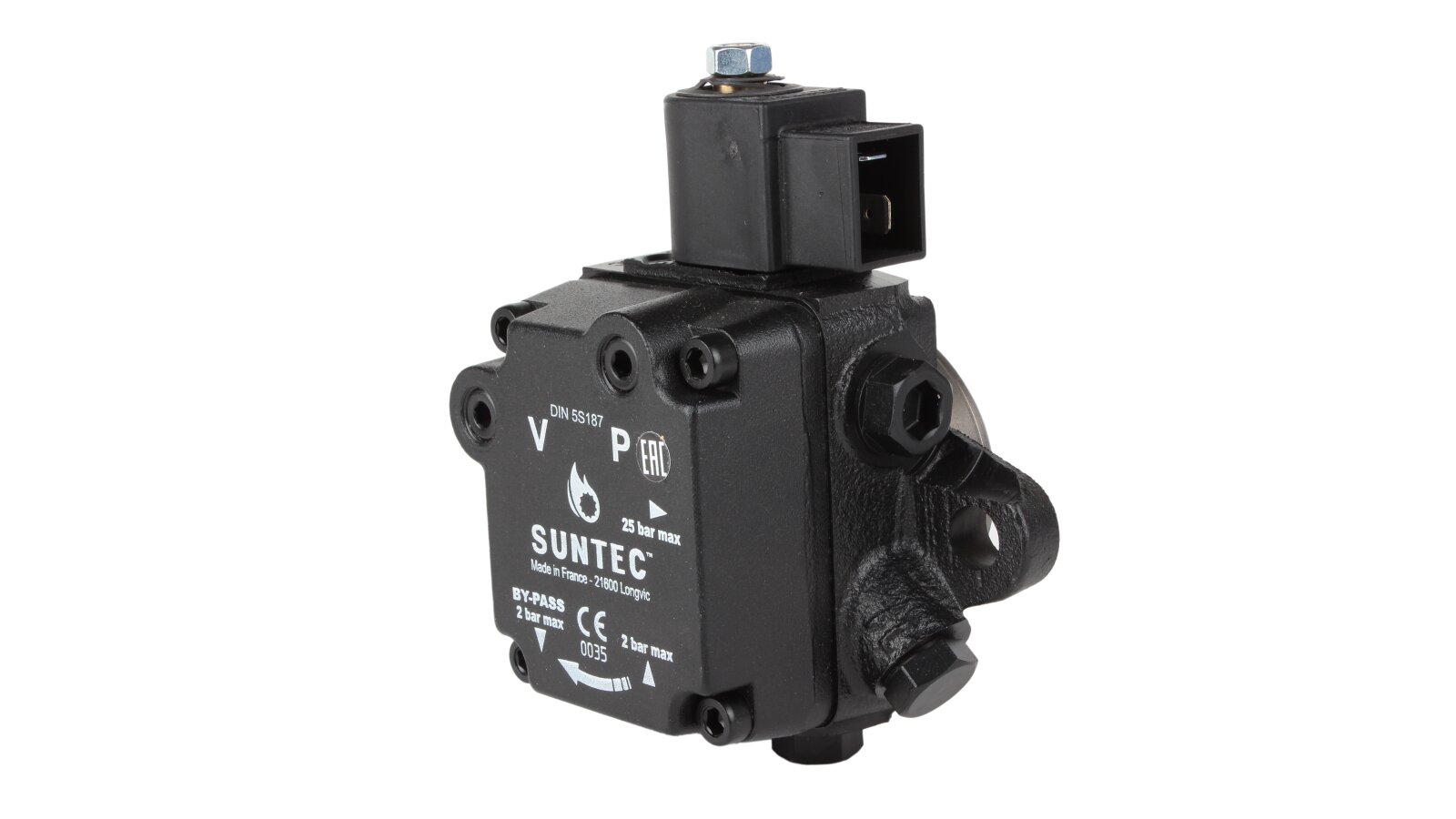

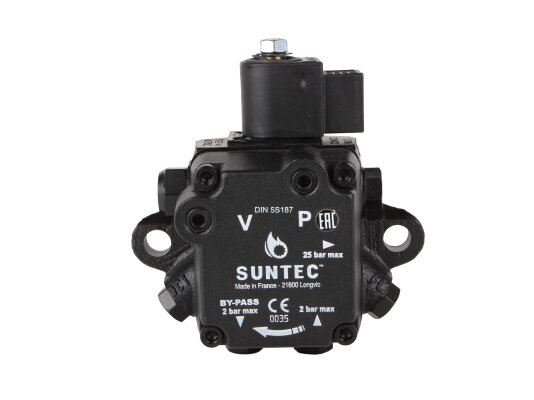

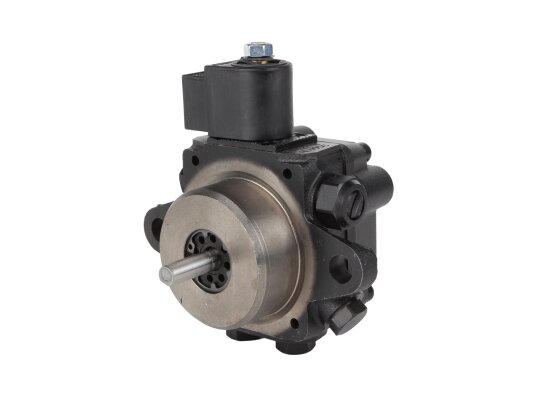

Burner Pump Suntec AL V 95 C 9427 4P 0700

Suntec

AED 1,675

Oil Burner Pumps
Products code: 1376

Description

The high-performance liquid fuel pump AL V 95 C 9427 4P 0700 is a modern development of the European company Suntec. The device is used to complete heating burners with a capacity of up to 1000 kW of almost all models of well-known brands: Lamborghini, Baltur, Elco, Weishaupt and others.

The design difference of the modification is the presence of a built-in solenoid valve with a shut-off function, as well as the ability to smoothly adjust the pressure on the nozzles in the range from 8 to 15 atm.

The Ankas company offers to buy a pump for diesel burners at an affordable price. To do this, call the specified phone numbers or place an order on the website yourself.

Device device

  • The main functional part of gear pumps is a gear pair, which serves to pump the working fluid from the tank to the nozzle line. But first, the fuel passes through a coarse filter of a dismountable type with an open area of ​​20 cm². The mesh insert is designed to retain foreign suspended matter of 150 microns or more in size and requires periodic washing. For better cleaning of diesel fuel, it is recommended to use an additional filter, which will prevent clogging of the injectors and extend their service life.

  • For a smooth change in the pressure of the working mixture within 8-15 bar, an adjustment valve is provided. The manufacturer has adjusted the screw to supply fuel under a pressure of 12 atm.

  • The mode of alternate switching on and off of the liquid fuel burner is possible thanks to the electromagnetic valve of the "normally closed" type. In the activated position, it freely passes the fuel, but at any time, regardless of the rotation speed of the electric drive, it is ready to stop its supply.

Advantages of the model:

  • optimal performance at a viscosity of 5 cSt - 128 l / h;

  • automatic removal of accumulated air with a two-pipe configuration of fuel lines;

  • reliable flange mount with a landing size of 54 mm;

  • sealed housing with a high degree of protection - IP54.

The Ankas company, which is an official supplier of high-quality European equipment for heating systems, offers to buy a burner pump on favorable terms. By contacting the website of our online store at the specified phone numbers, you will receive professional advice from our specialists.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 20 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 128 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 128 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.2 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDegree of protection: IP54
