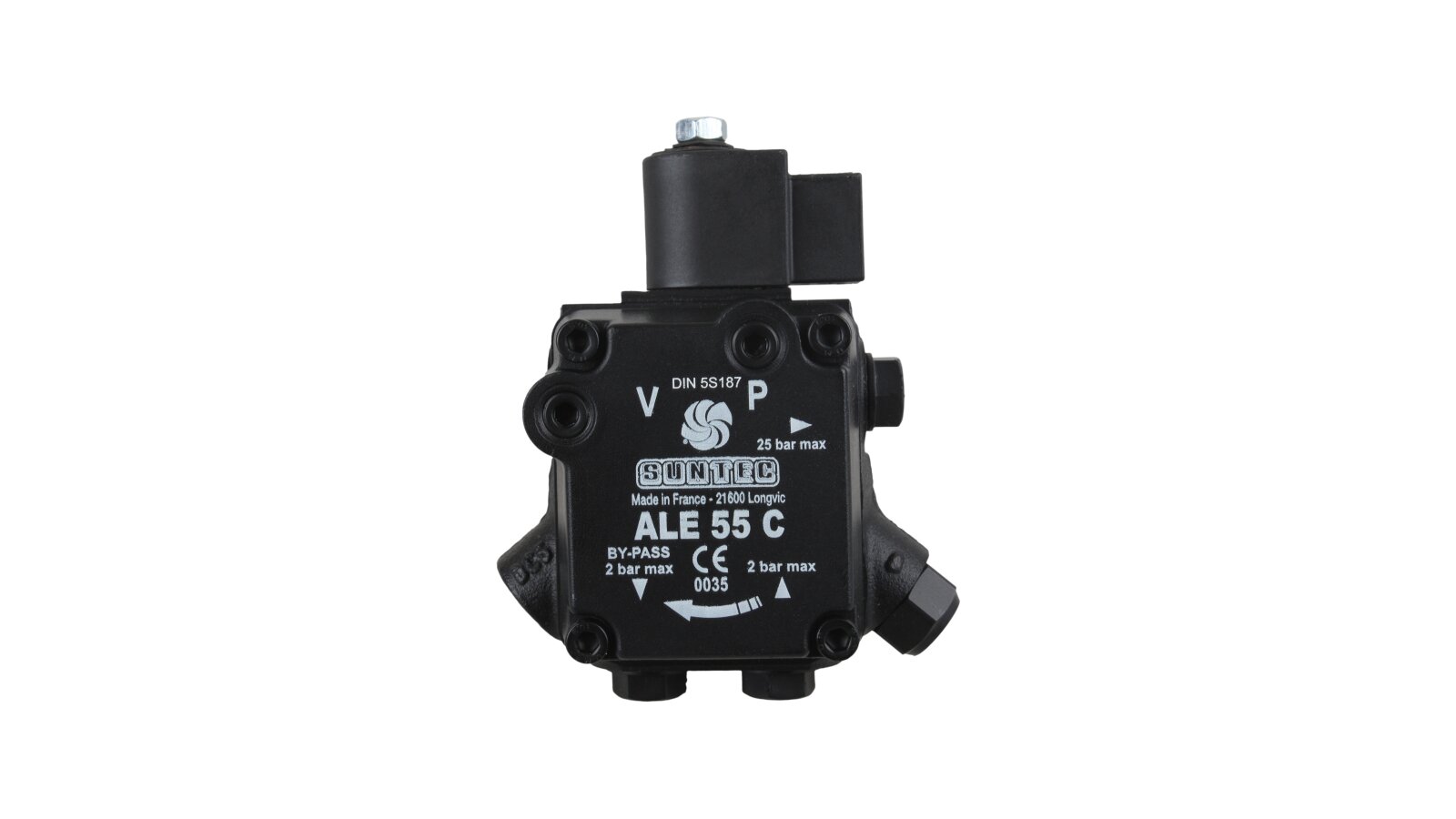

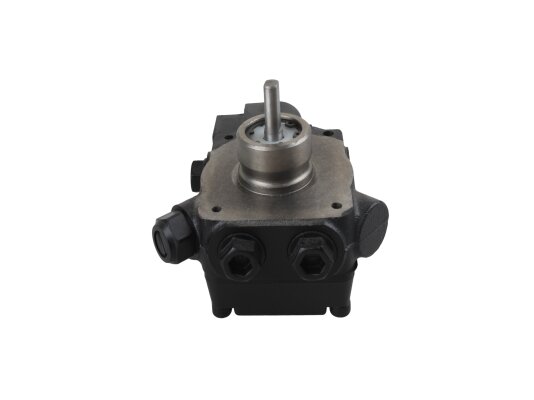

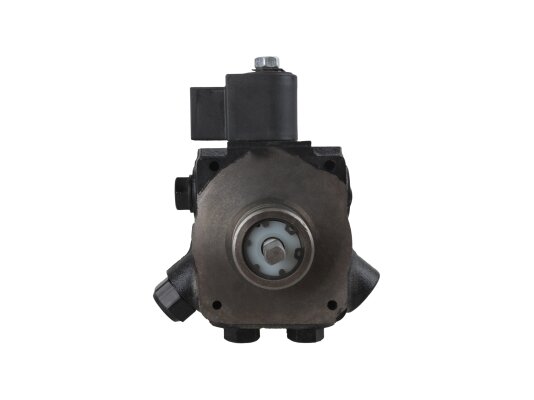

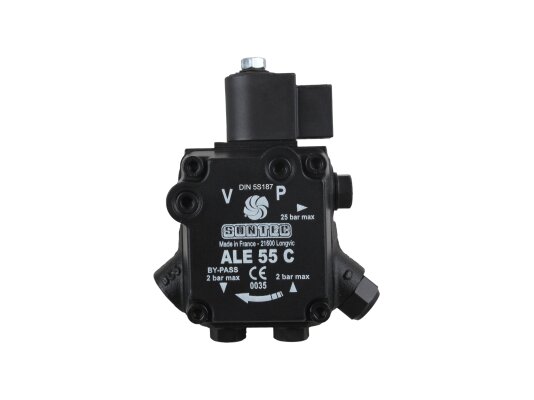

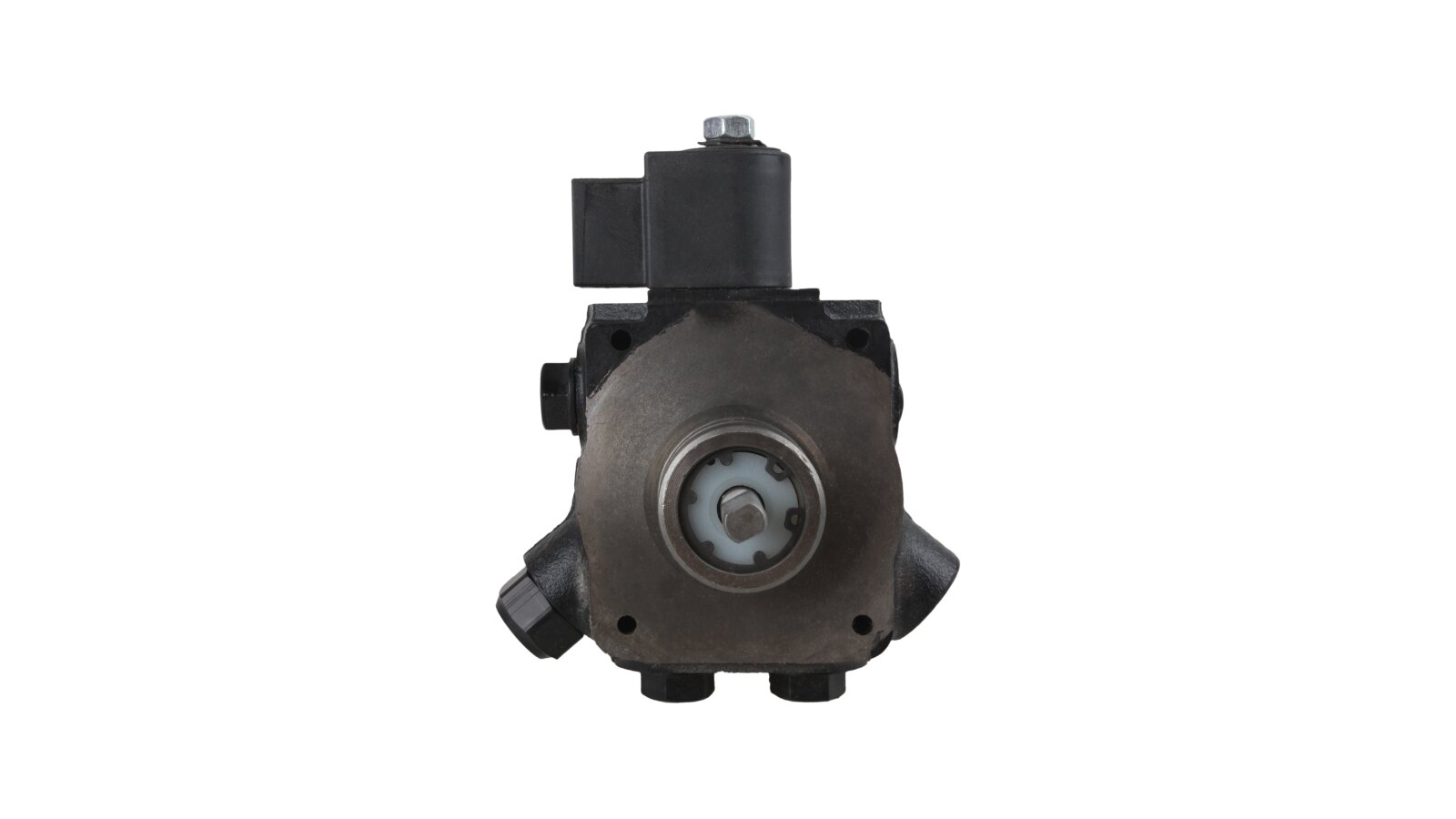

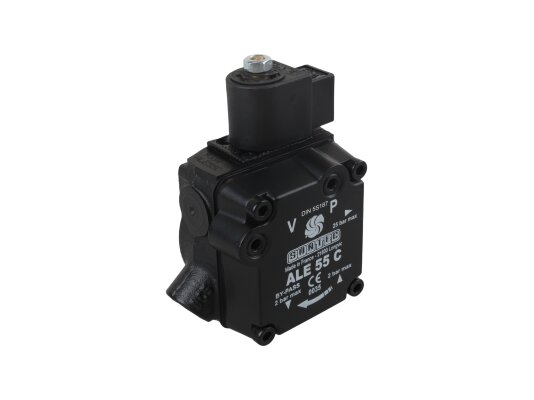

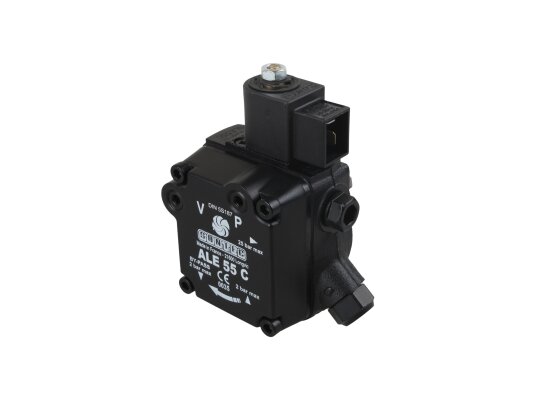

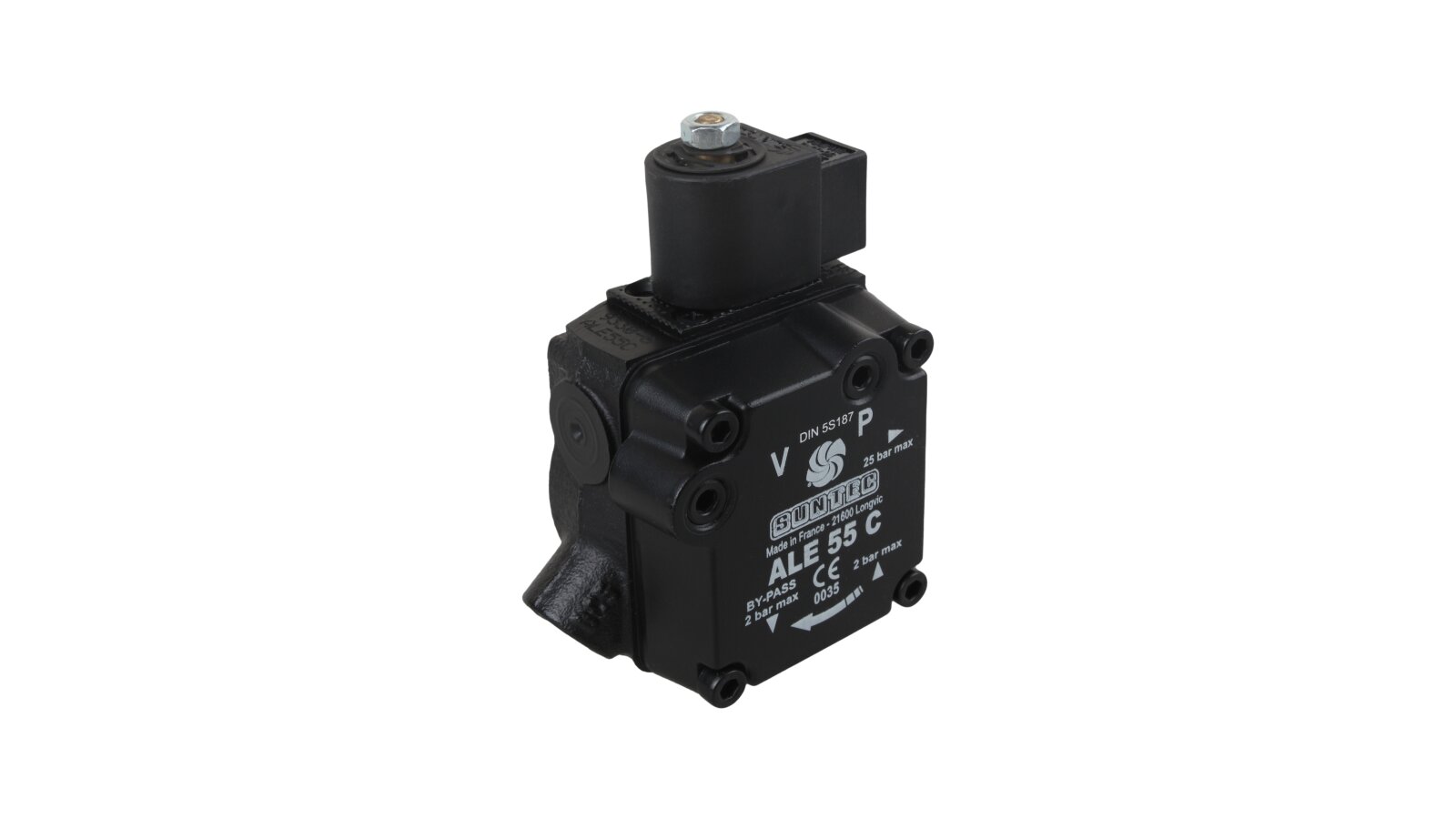

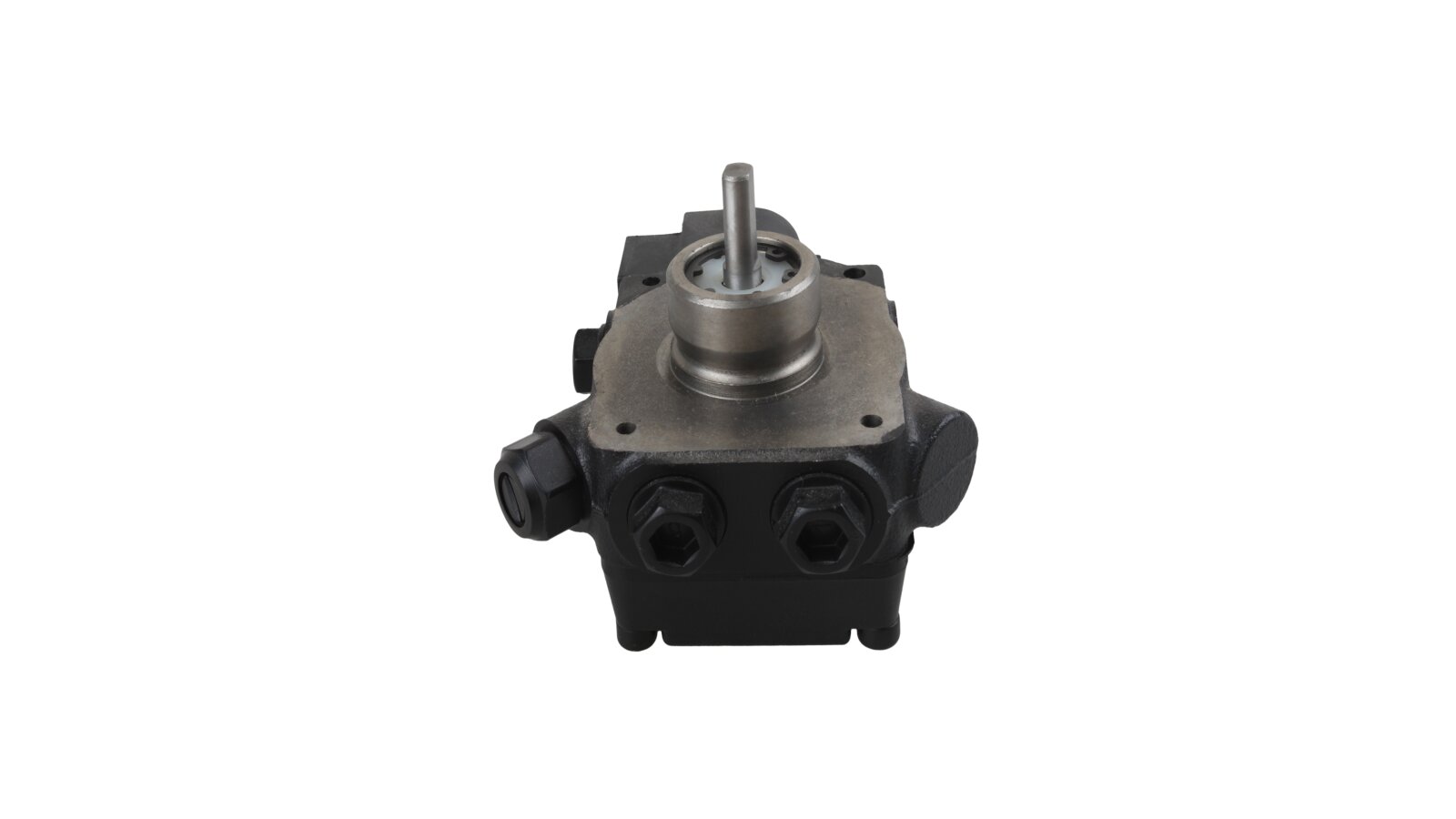

Burner Pump Suntec ALE 55 C 9330 6P 0700

Suntec

AED 1,850

Oil Burner Pumps
Products code: 6841

Description

The Suntec ALE 55 C 9330 6P 0700 liquid fuel pump is the best option for equipping diesel burners with a capacity of no more than 1000 kW. The device pumps 48 liters of diesel fuel per hour under a pressure of 11 atmospheres. The model is compatible with burners of many brands thanks to the standard sleeve connection made according to EN 225.

Design and features

The ALE series is characterized by the presence of a blocking electromagnetic valve with a built-in check valve, which ensures flow locking and pressure relief in the nozzle line. Otherwise, the operating parameters correspond to the AL series models.

The Suntec ALE 55 C 9330 6P 0700 pump in the factory configuration is suitable for installation in a 2-pipe system - a bypass plug is installed in the return line opening. If the pump is used in single-pipe designs, it is necessary to remove the plug and close the drain channel. In this case, excess fuel will not be directed to the tank, but back to the gear mechanism.

The pressure regulating valve is responsible for draining the fuel that has not reached the nozzle. The pressure is adjusted using the adjusting screw located on the body, turning which you can decrease or increase the pressure in the range of 8-15 bar.

The manufacturer recommends

When using the pump, it is necessary to regularly clean the mesh filter and change the cover gasket. Installing an additional fine filter will eliminate the possibility of clogging the nozzles and extend the service life of the equipment.

Important advantages:

  • the presence of an electromagnetic valve with locking and pressure relief;

  • manual method of adjusting the pressure on the nozzle;

  • filter to protect the gears from premature wear;

  • standard method of connecting to the motor shaft;

  • compact dimensions and low weight;

  • compatibility with burners of many brands.

The Suntec ALE 55 C 9330 6P 0700 fuel pump, sold at an affordable price, comes with a factory warranty and the necessary installation and operating instructions. Call if you have any questions about choosing equipment or need consulting support.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 49 l/hDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fPerformance for stage 2 at 11 bar and 5 cSt viscosity: 48 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmShaft diameter: 8 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barInstallation method: sleeve ∅ 32 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmType of pumped liquid: diesel
