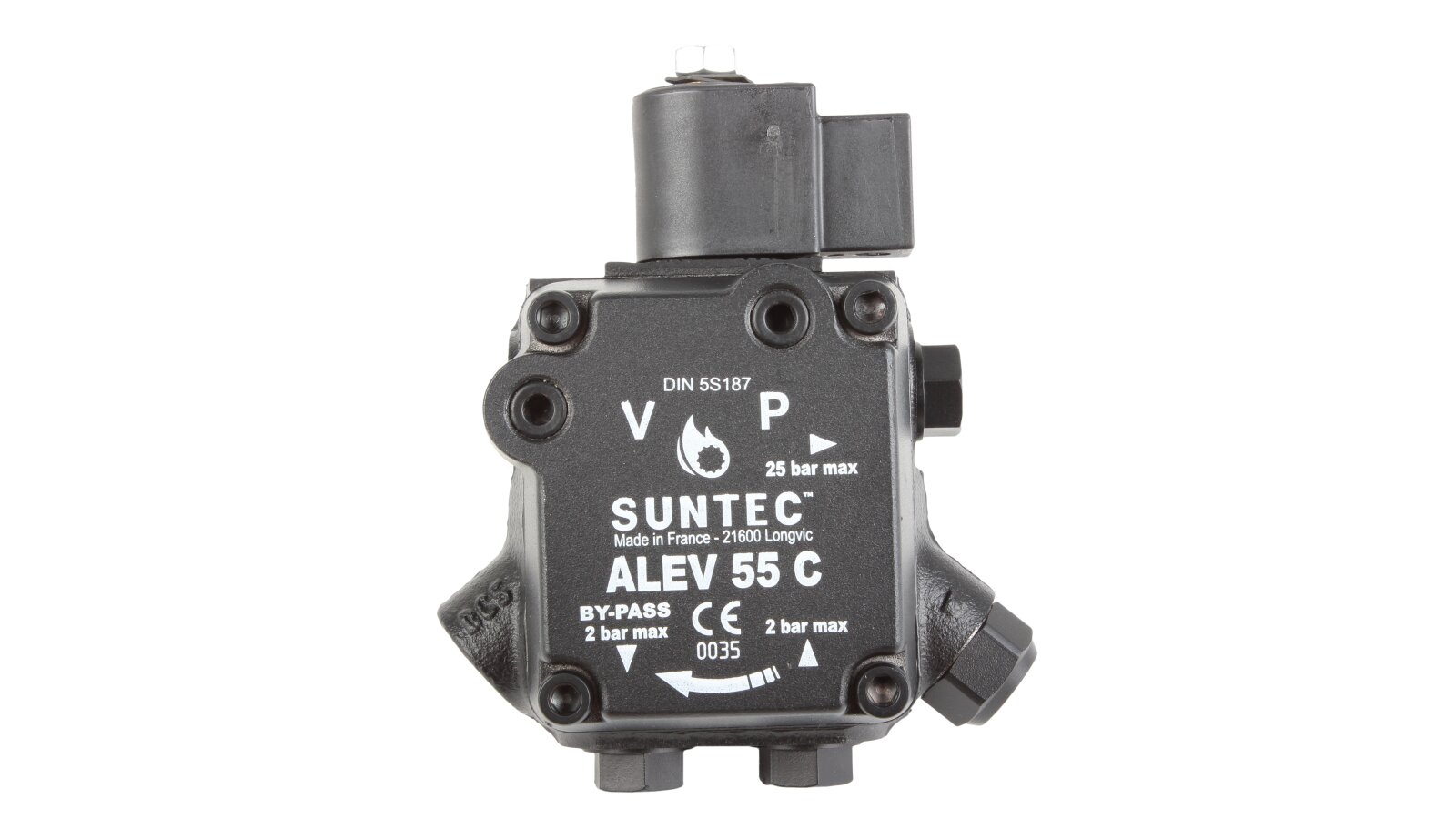

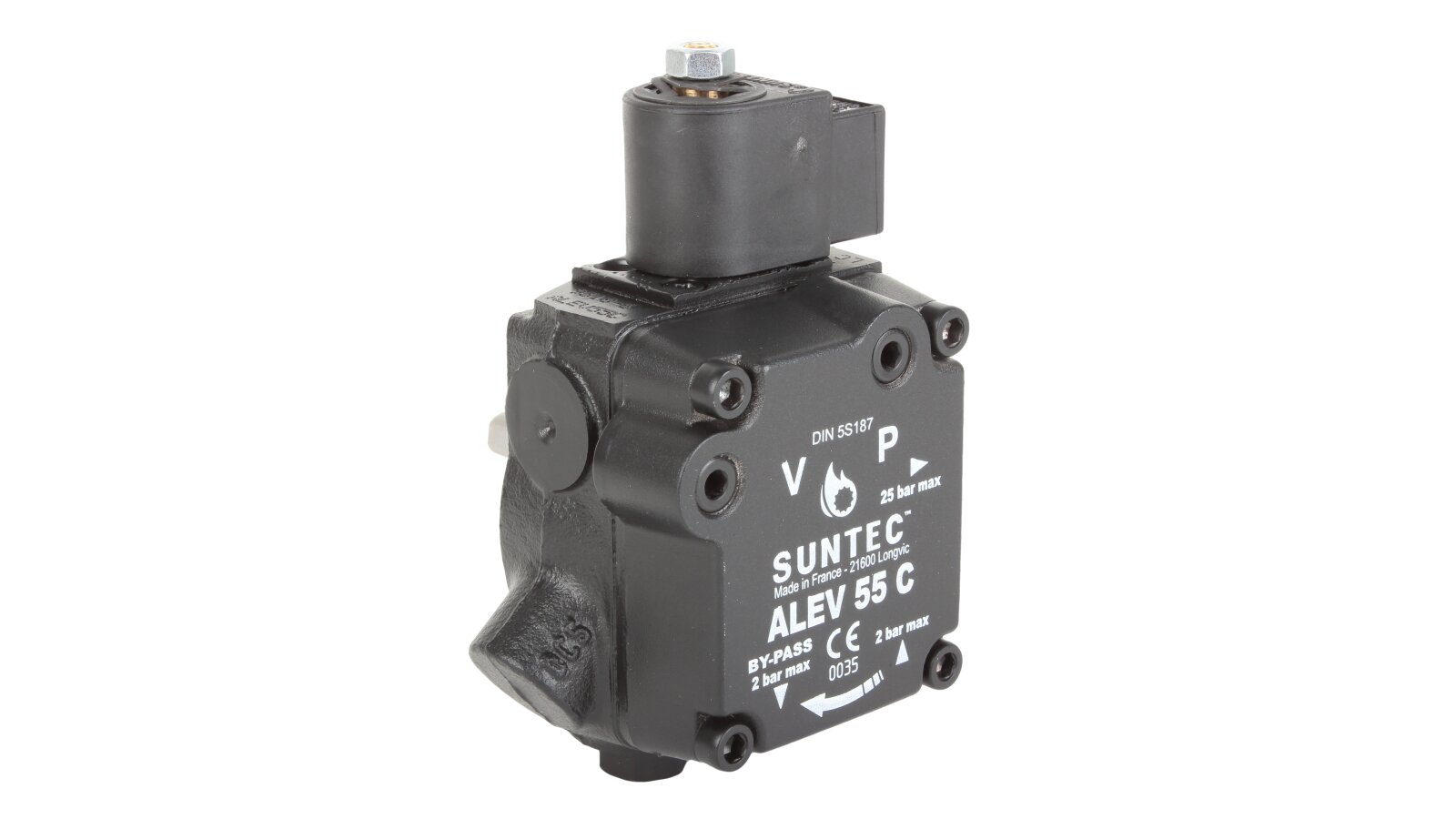

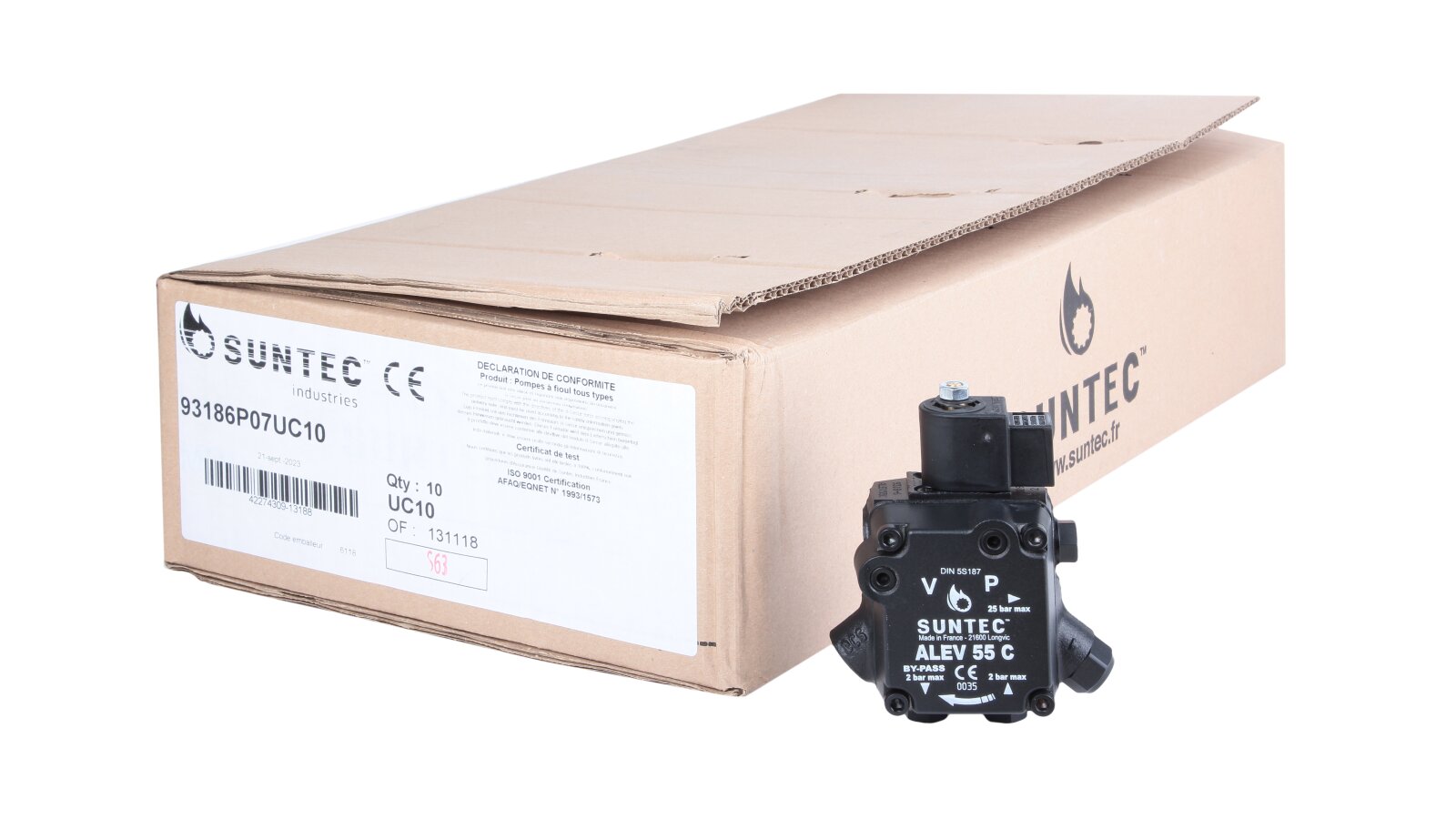

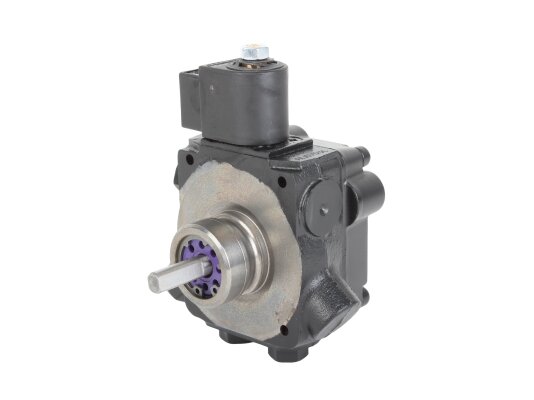

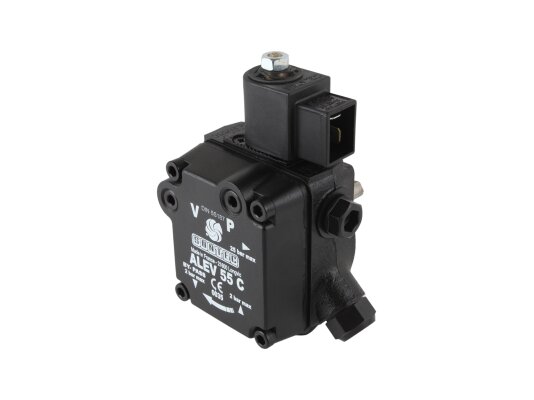

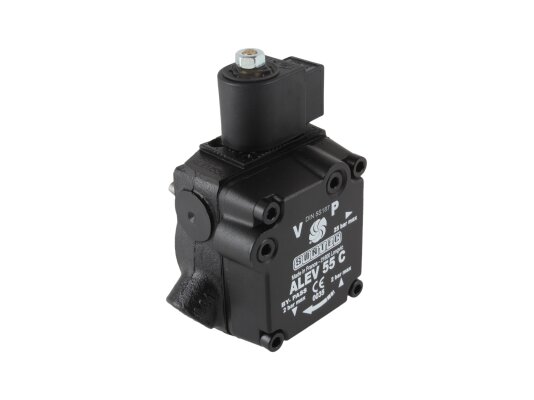

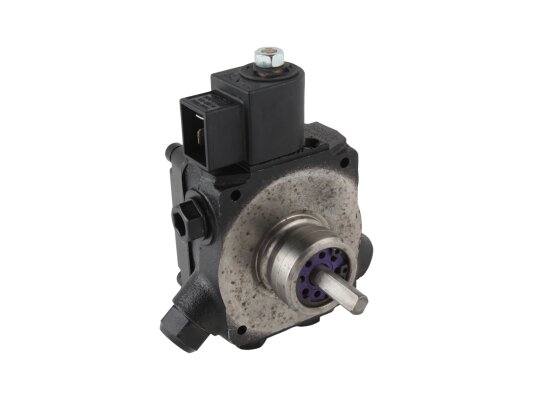

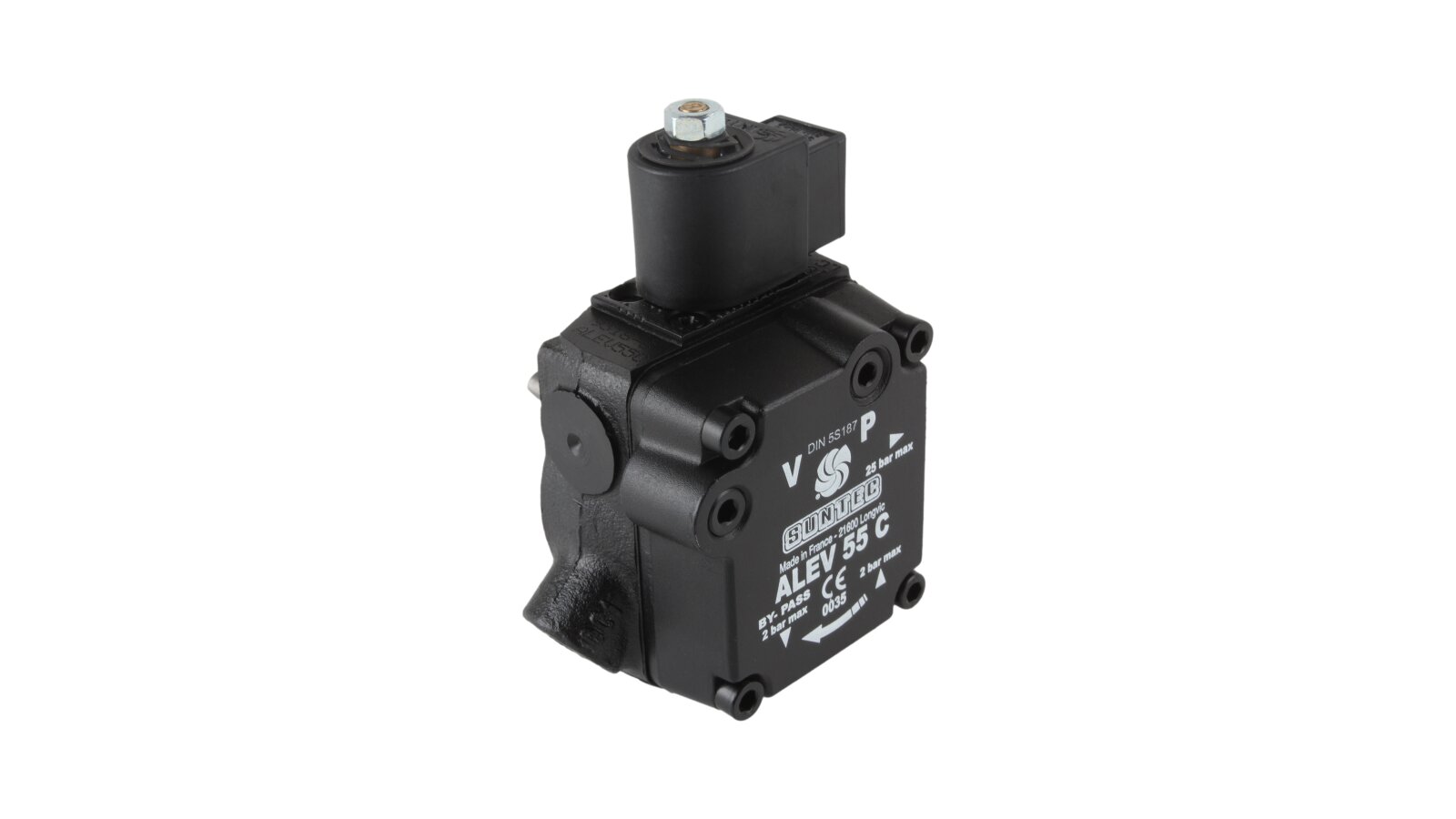

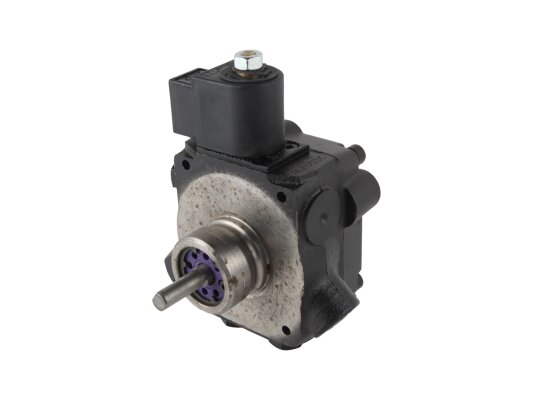

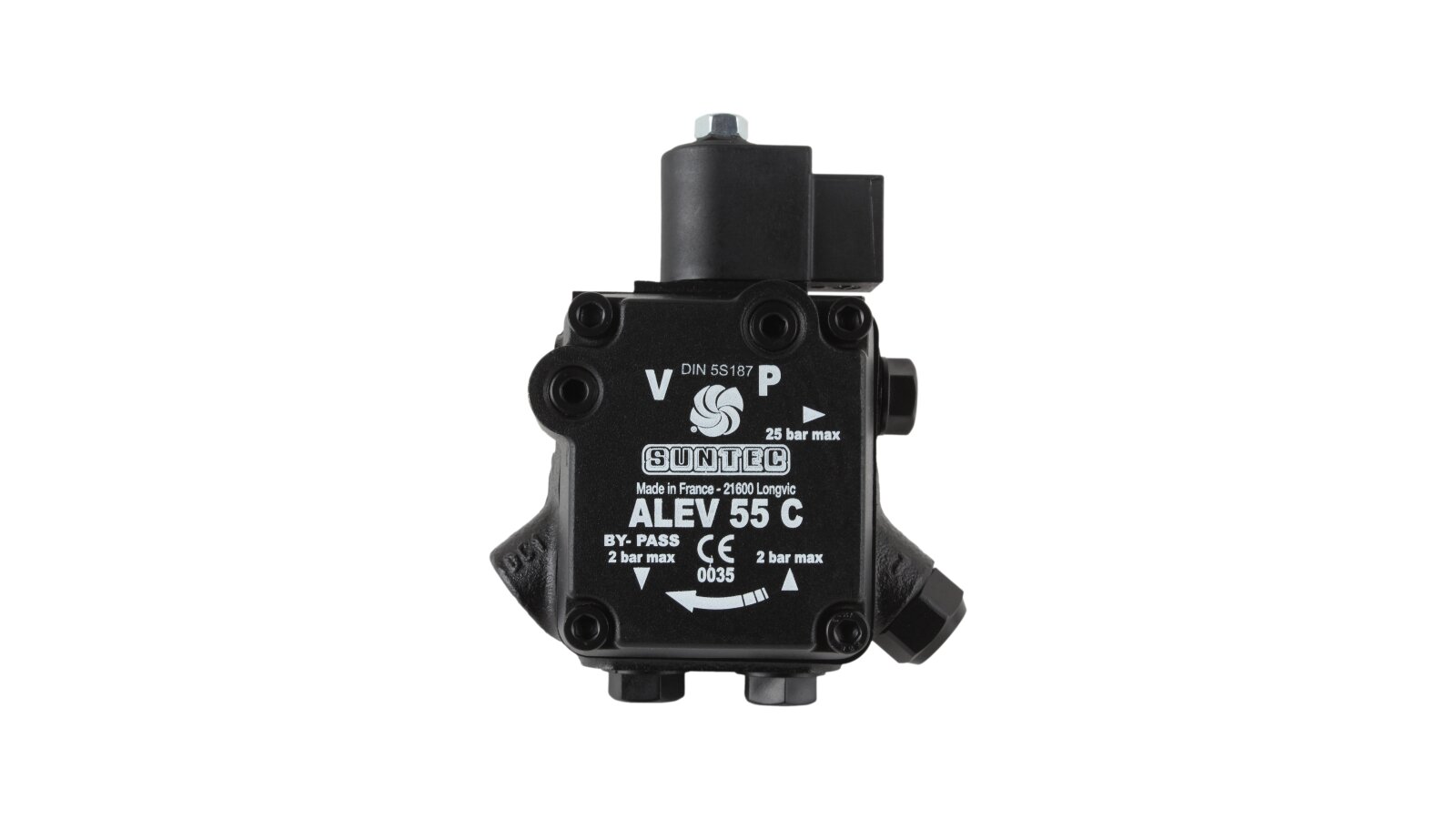

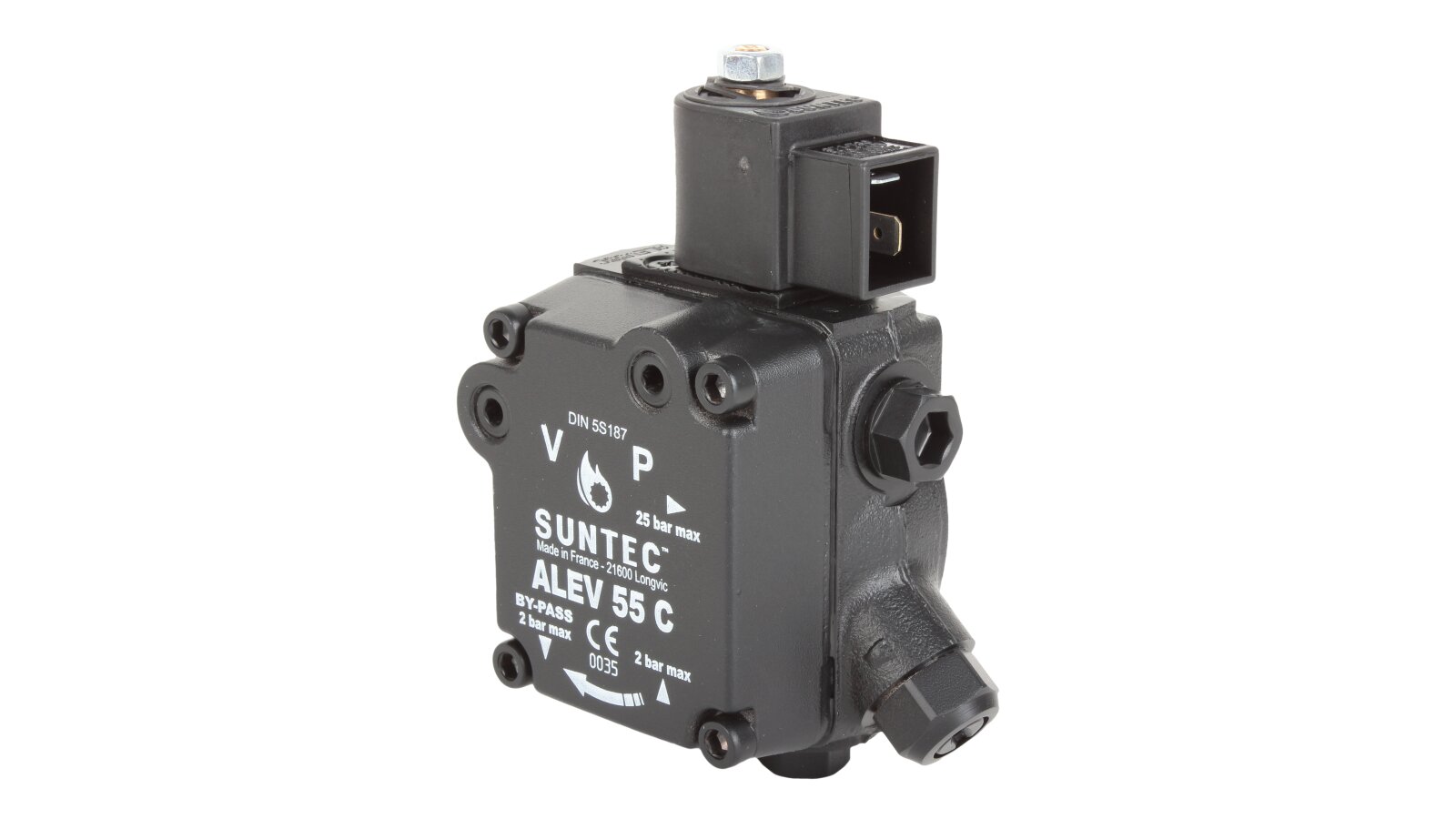

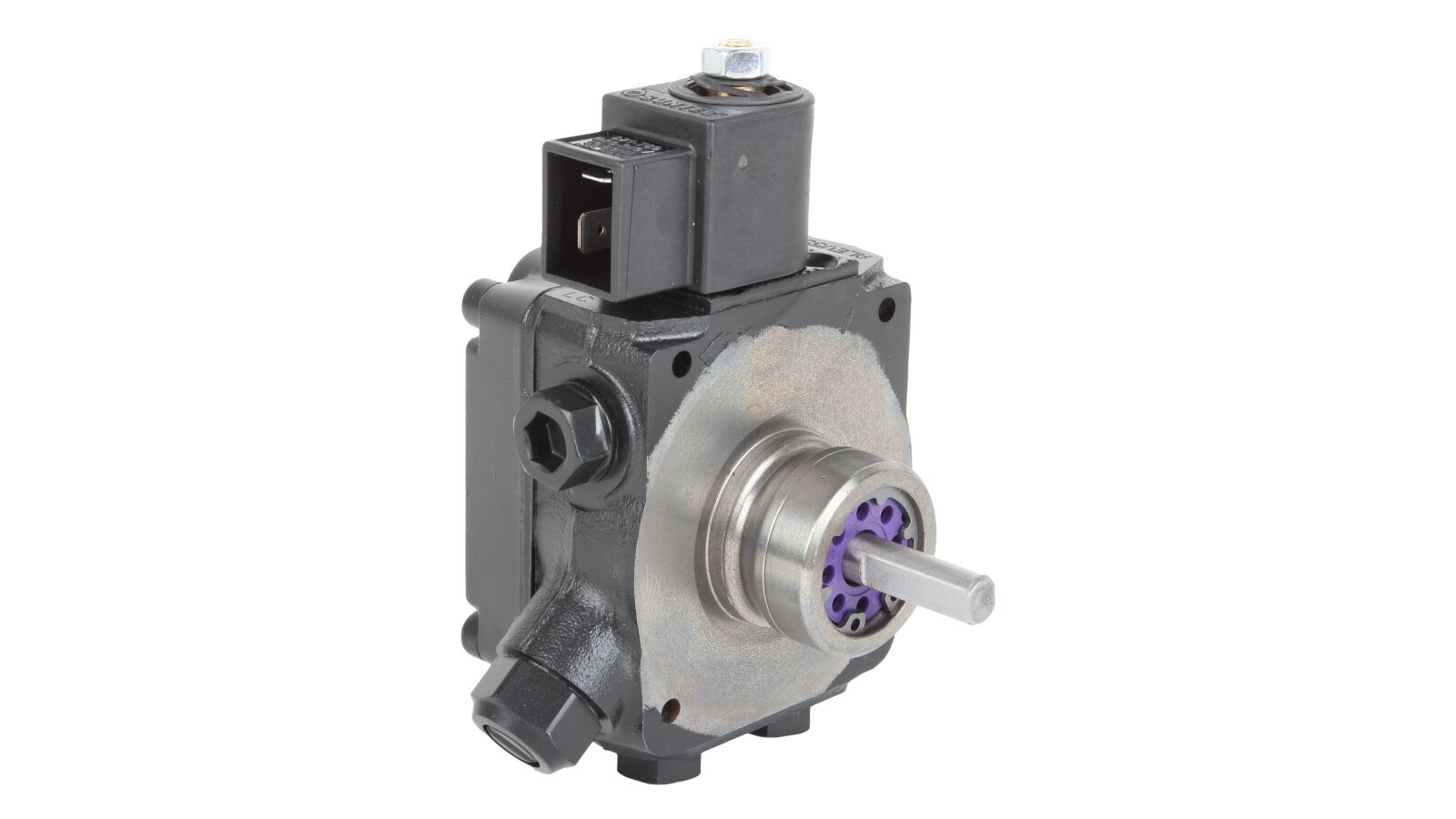

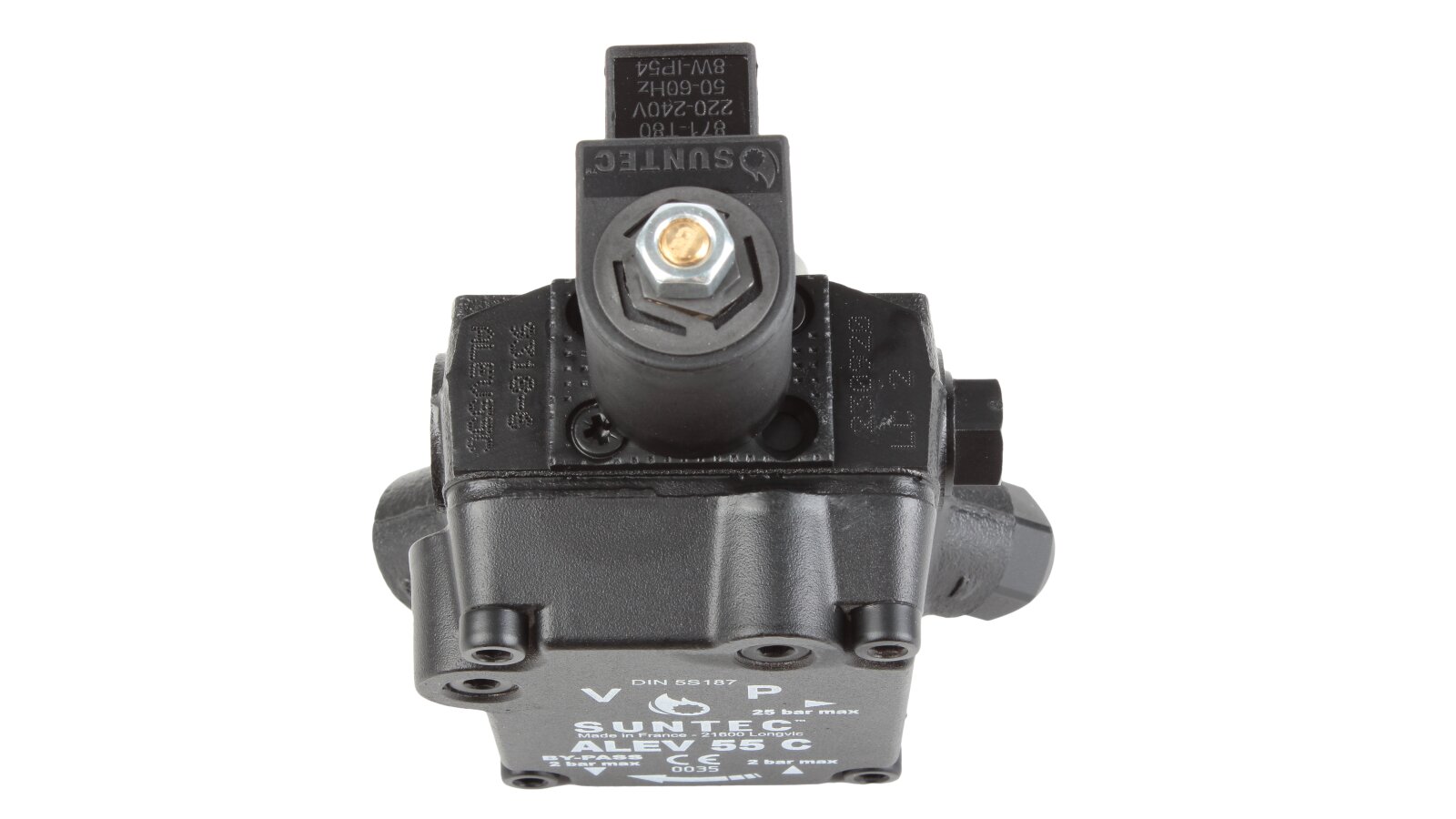

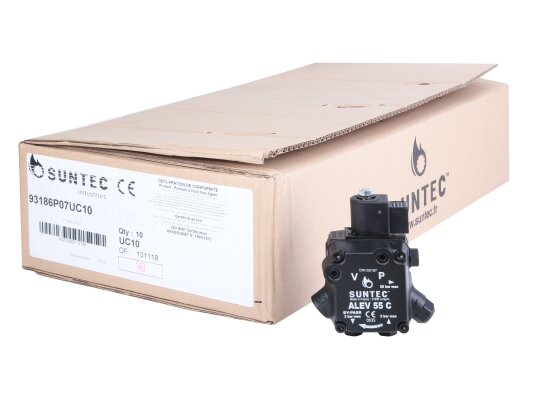

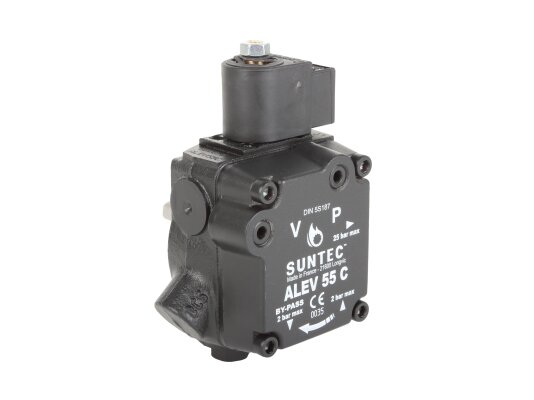

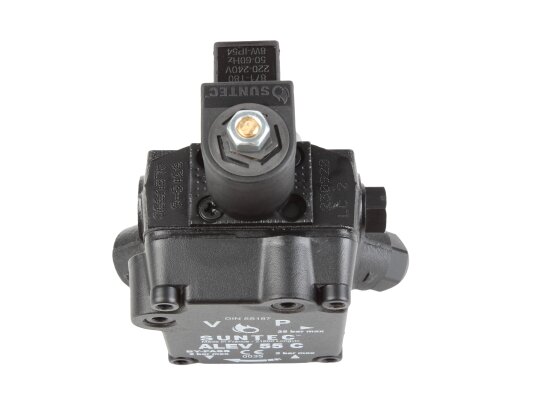

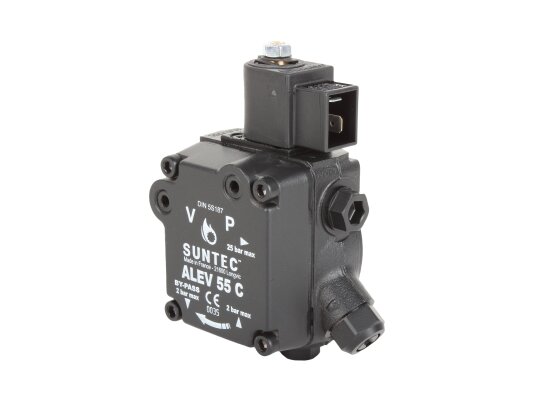

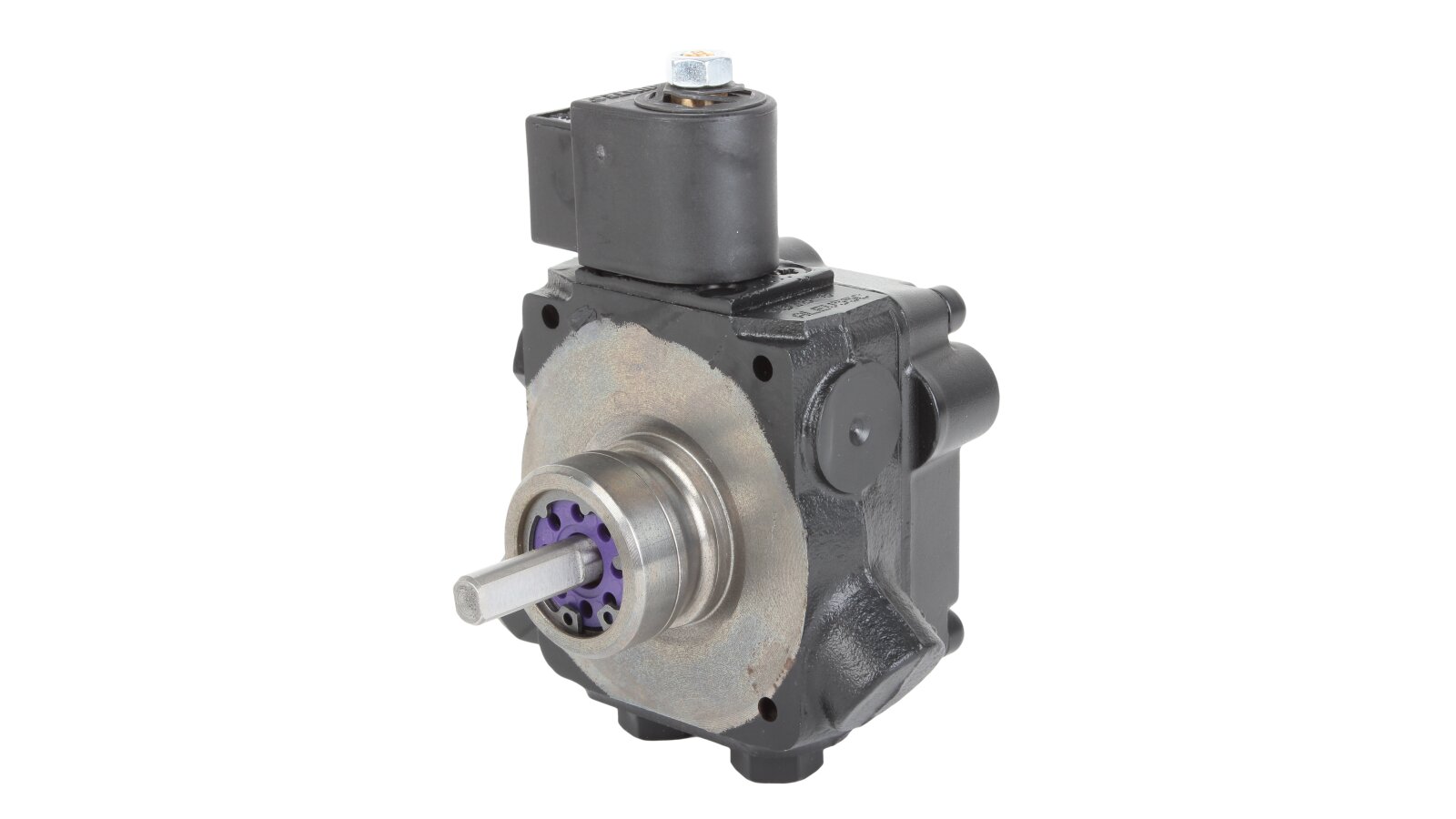

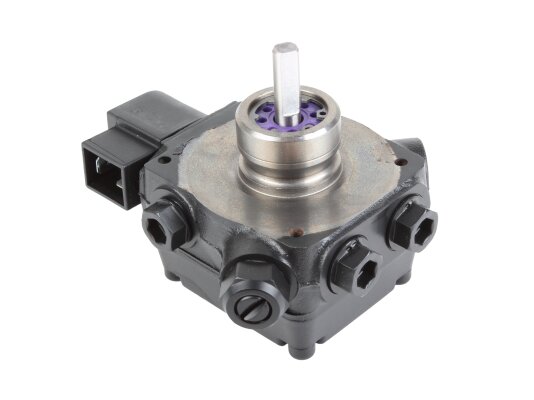

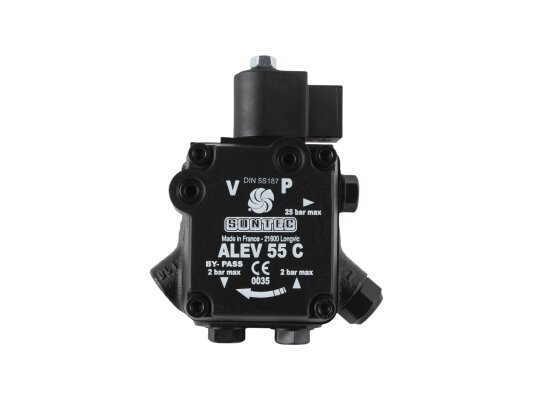

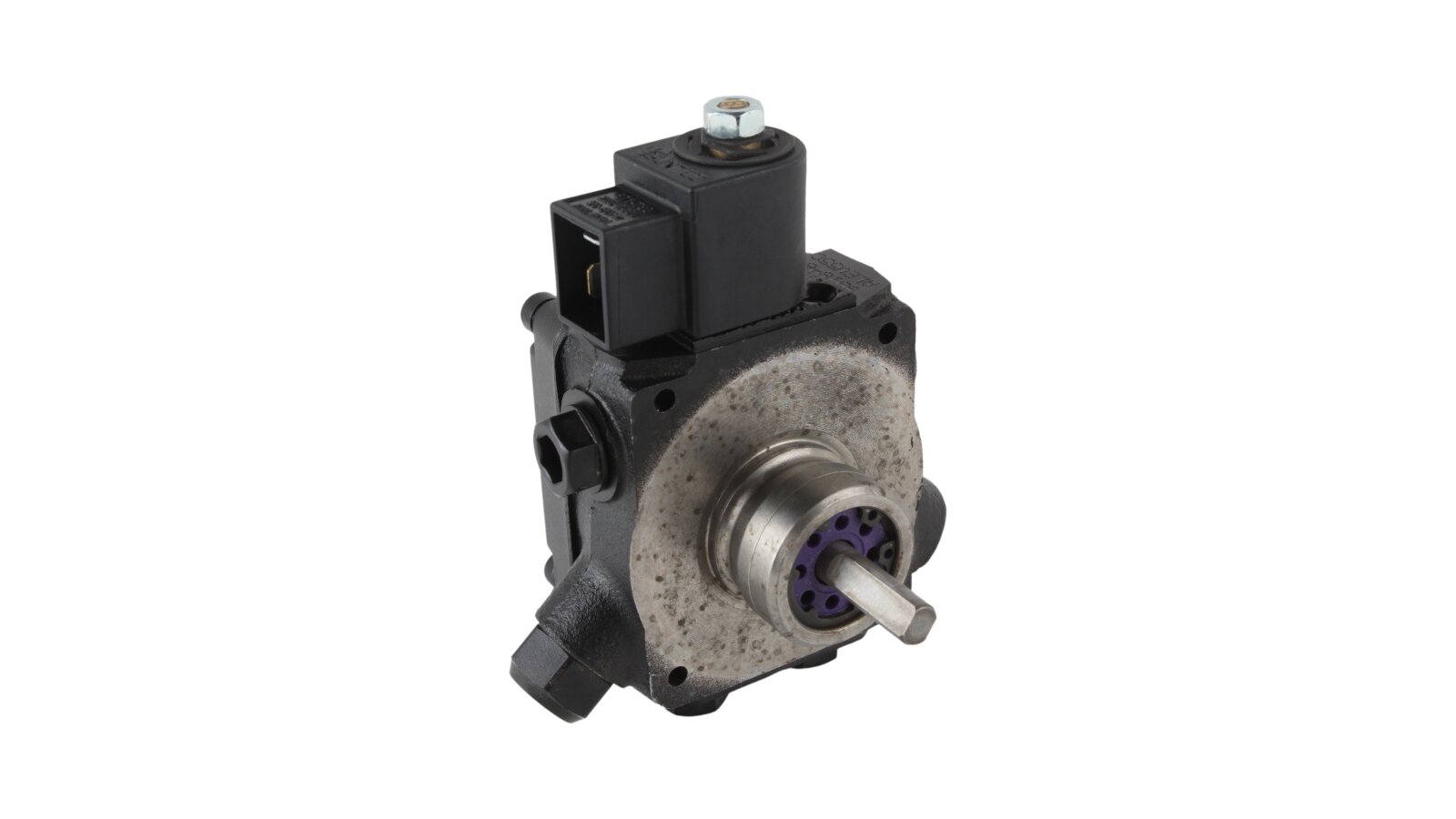

Burner Pump Suntec ALE V 55 C 9318 6P 0700

Suntec

AED 925

Oil Burner Pumps
Products code: 6842

Description

The Suntec ALE V 55 C 9318 6P 0700 liquid fuel pump is a universal device for feeding fuel and biodiesel to low-power burners. The capacity of this model is 49 l/hour with a pressure setting of 11 atm. The unit is widely used in the assembly of residential and commercial heating systems.

Design and features

The ALE series pumps are equipped with a blocking EM valve, which provides a shut-off function and pressure relief.

The ability to work with biofuel is achieved due to the use of a special material for the shaft seal in the design.

The main functional units of the unit are a gear device that moves fuel from the tank to the regulator, and then to the nozzle. The gear pair is protected by a built-in filter that filters out all foreign impurities larger than 150 microns. The manufacturer recommends regular maintenance of the filter using a soft brush and clean diesel fuel.

In order for the injectors to serve as long as possible, it is recommended to buy a Suntec ALE V 55 C 9318 6P 0500 fuel pump together with a deep cleaning filter. The accessory is installed in the pressure line.

The control valve is responsible for draining excess fuel. It is adjusted using a screw located on the body. Tightening the spring increases the pressure, loosening it decreases it. Range - 8-15 bar.

In a single-pipe system, unused fuel is directed to the gear mechanism, in a two-pipe system - back to the tank. Air comes out of 2-pipe units automatically using a special cavity on the piston. In units with one pipe, to bleed air, it is necessary to loosen the plug of the pressure gauge.

Let's highlight the main advantages:

  • universal purpose - work with different types of fuel, including biofuel;

  • built-in electromagnetic valve providing a shut-off function and pressure relief;

  • sifting out dirt and debris before fuel enters the system;

  • ability to adjust feed parameters;

  • standard sleeve seat, diameter 32 mm;

  • connection of measuring instruments to standard thread.

The Suntec ALE V 55 C 9318 6P 0700 pump, offered at an affordable price, can be ordered on the website using a short application form. Call us if you have any questions or need help in selecting equipment.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Maximum pressure of the solenoid valve: 15 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 49 l/hPump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpValve function: pressure regulatingModel type: 1 stage with electromagnetic valveMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmBypass valve opening pressure: 3.5 barReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.1 N·mDegree of protection: IP41
