Description

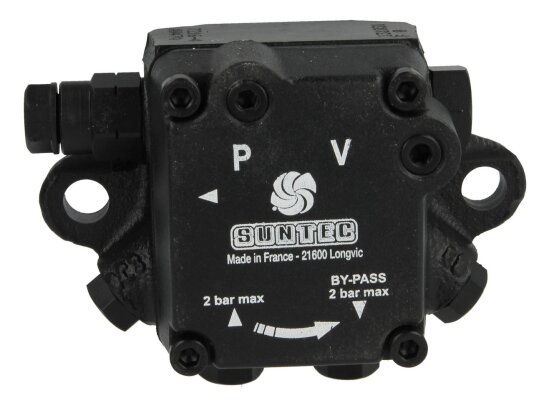

The gear pump with a pressure regulating valve and shut-off function AN 47 A 7216 4P is presented by the leader in the development of boiler equipment - the French company Suntec. It is used to complete liquid fuel burners with supercharging with a capacity of up to 1000 kW and serves to supply diesel fuel to the nozzle line under a pressure of 7-14 bar. In the factory version, the device is suitable for installation in a two-pipe circuit. For installation in a single-pipe system, it is enough to block the return line with a steel plug with a washer and dismantle the bypass plug with a 4 mm Allen key.
Technical features
The burner pump is adjusted by the manufacturer to an average pressure of 9 atm, but this value can be either decreased or increased manually.
Fuel consumption is directly proportional to the rotation frequency of the electric drive, the maximum value of which should not exceed 3600 rpm.
The device is designed to pump working fluid with a fairly wide range of kinematic viscosity - from 2 to 75 mm²/s at a temperature of 0 to +60°C.
To ensure long-term and trouble-free operation of fuel injectors, it is recommended to install an additional fine filter on the pressure section with its periodic replacement as it becomes dirty.
Main advantages:
Standard G⅛" ports for installing a pressure gauge and vacuum gauge, corresponding to ISO 228/1;
Optimum performance at a fuel pressure of 11 bar - 39 l/h;
Presence of a mesh filter for preliminary cleaning with a cell size of 150 μm;
Compact dimensions and light weight - 1.0 kg.
The company "ANKAS", which is an official dealer of reliable European equipment and components for heating systems, offers to buy a pump for burners Lamborghini, Elco, Weishaupt, Baltur and other models at an affordable price. To order a product on the website, fill out the feedback form, indicating the contact phone number.
