Description

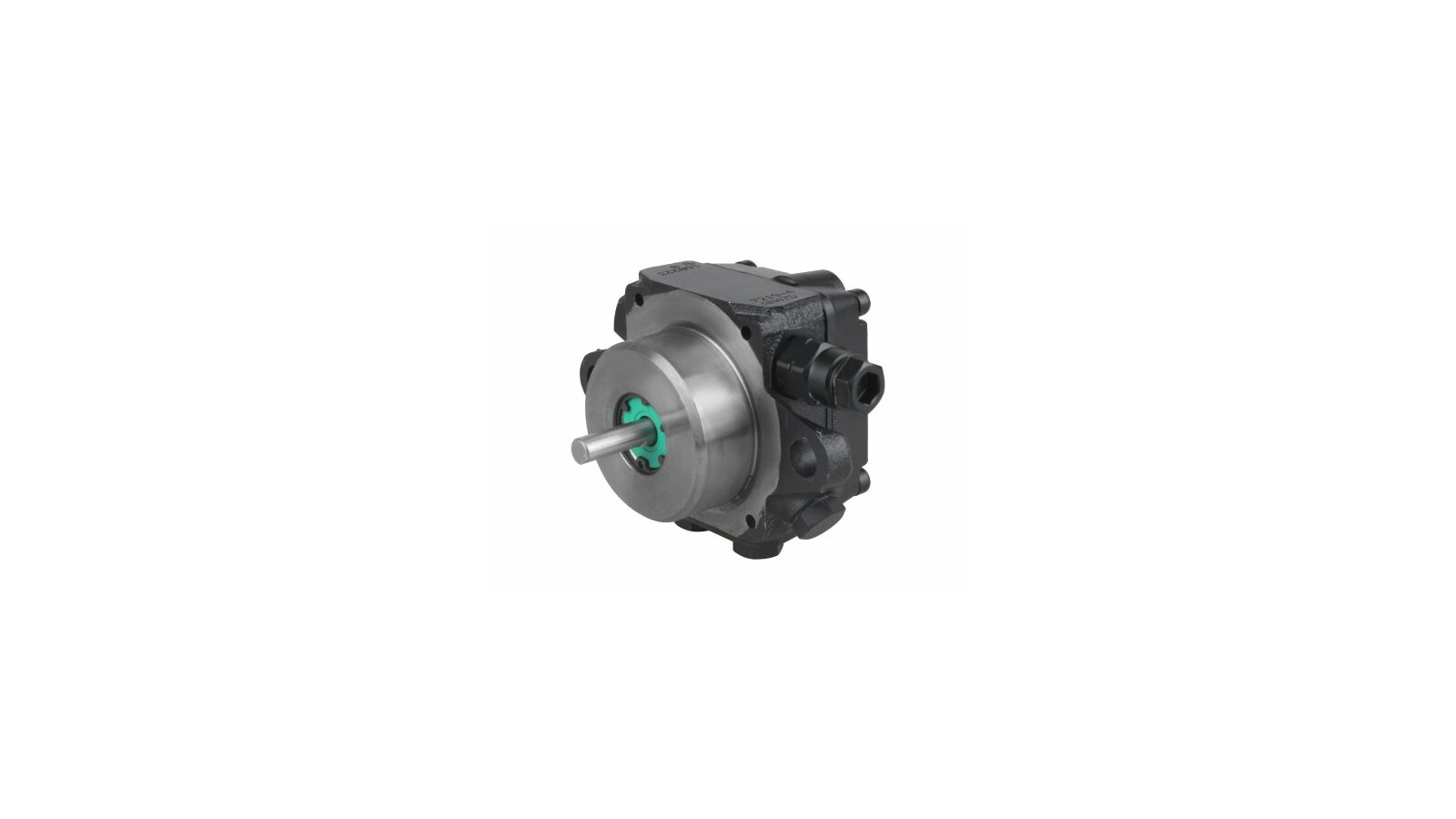

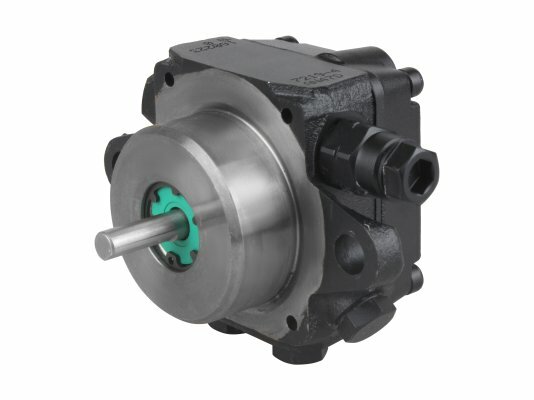

The Suntec AN 47 A 7326 4P burner pump is designed to equip single-stage diesel burners. The performance depends on the characteristics of the pumped fuel and the set pressure parameters. With a working medium viscosity of 5 cSt and a pressure of 11 bar, it is 39 l / h. The pump is equipped with a pressure regulating valve with a shut-off function. Suitable for single-pipe and dual-pipe configuration systems. In the factory version, it is ready for a 2-pipe connection.
Features and key parameters:
working medium: diesel fuel;
high-reliability gear working mechanism;
built-in pressure regulating and flow shut-off valve;
nozzle pressure range: 7-14 bar, factory setting - 9 bar;
flow filtration from mechanical particles larger than 150 μm;
mounting on a flange ∅ 54 mm;
connection to a ¼ inch NPTF pipeline (suction and return drain line);
ports for pressure gauge and vacuum gauge with a diameter of ⅛ inch;
fuel discharge temperature: 0...+60°C;
the possibility of installation in any position, except with the axis up;
one-pipe and two-pipe connection (for systems without a return line, it is necessary to close the drain channel);
automatic air removal in 2-pipe installations.
The removable filter must be regularly cleaned from dirt with a brush and diesel fuel, removing the pump cover.
Application
The Suntec AN 47 A 7326 4P burner pump is used in domestic and commercial heating systems. Compatible with most burners of famous brands.
