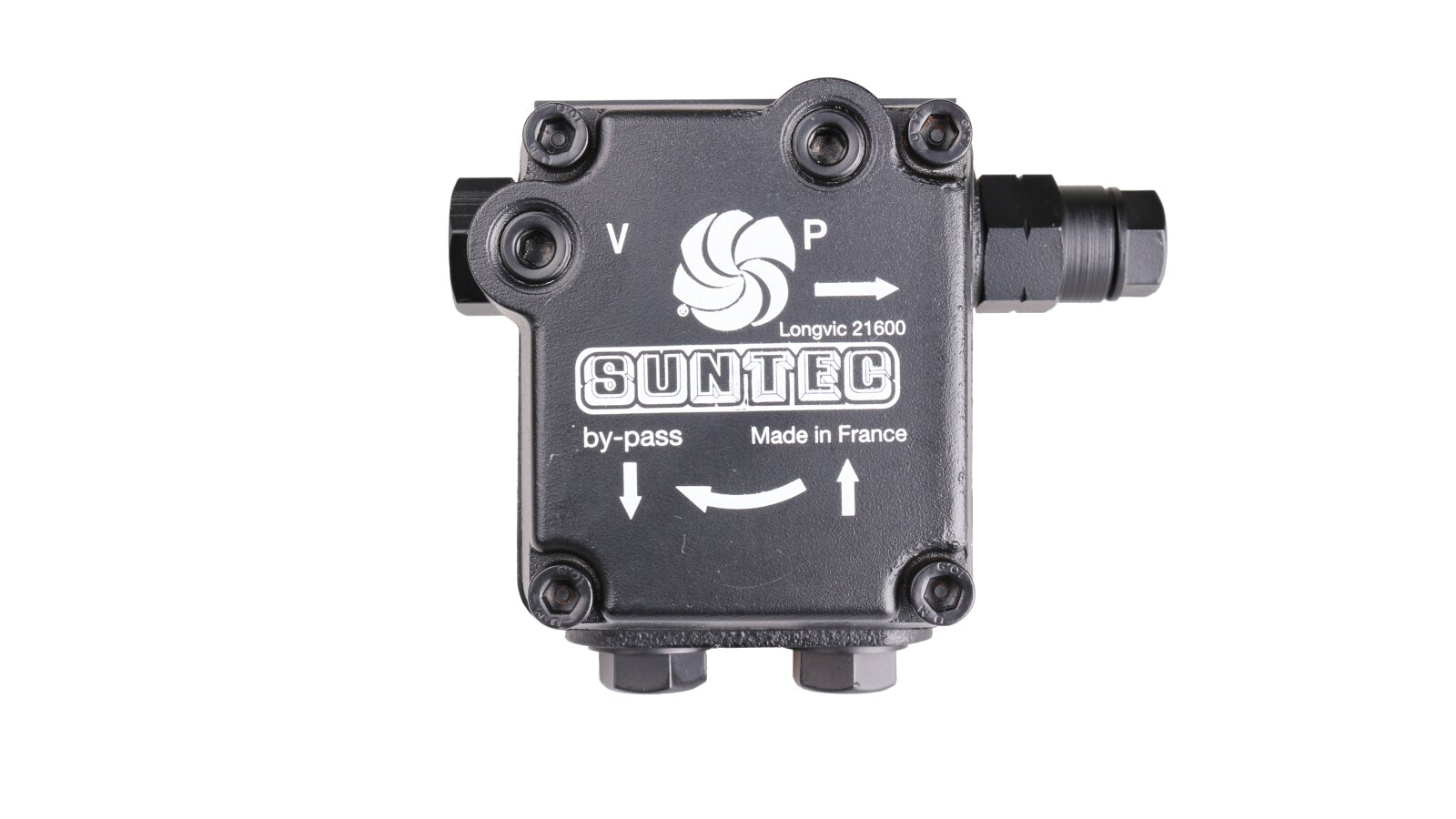

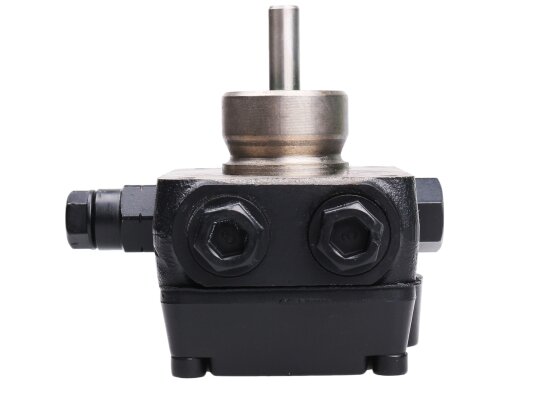

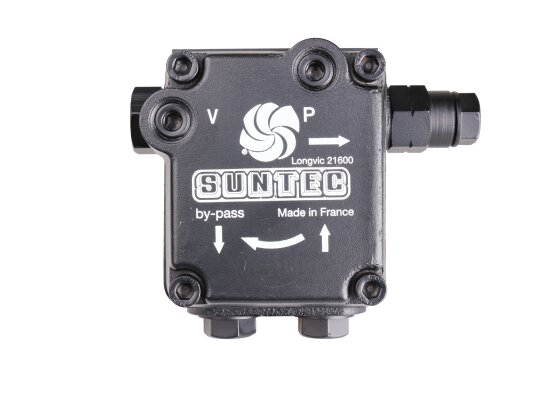

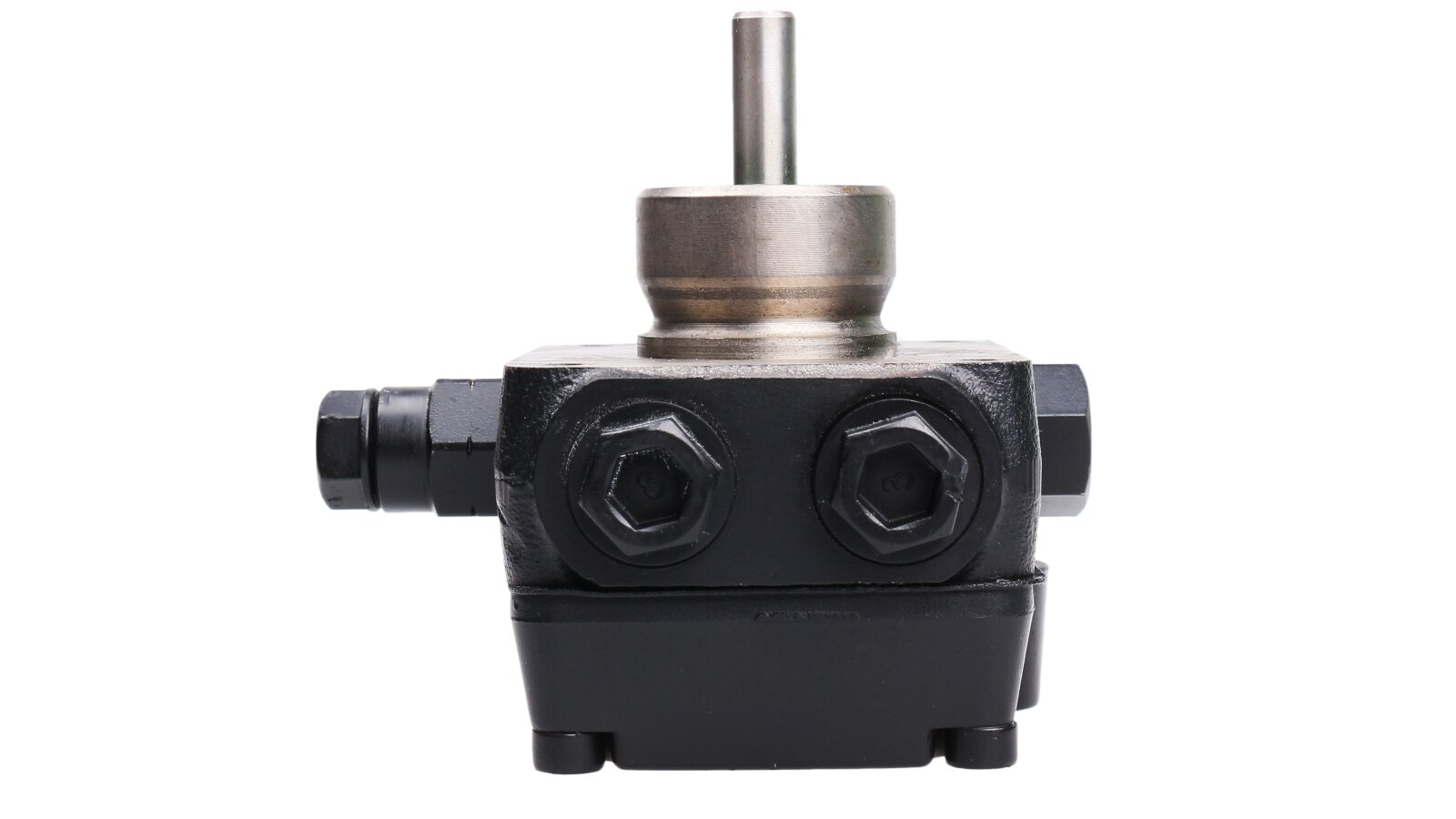

Burner Pump Suntec AN 47 B K 7227 4P

Suntec

Alternative Part Number

Lamborghini 04013730
  • Discontinued
  1. Oil Burner Pumps

Description

The European manufacturer of functional equipment for heating systems — the Suntec concern — has developed a modern gear pump for burners AN 47 B K 7227 4P. The device is designed to pump not only diesel fuel, fuel oil, but also kerosene. It has a built-in shut-off valve that regulates the pressure of the working fluid in the range from 7 to 15 bar. It is installed in boiler equipment of the Weishaupt, Lamborghini, Elco, Baltur brands, used for heating residential and industrial premises.

Technical characteristics

  • Performance depends on the pressure of the working medium and its kinematic viscosity. At average rates, it can reach 39 l / h.

  • The liquid temperature should be in the range from 0 to + 60 ° C, which is not difficult to achieve when placing boilers inside industrial premises.

  • The nominal speed of the drive shaft is 2850 rpm, the electric motor should be selected based on these parameters.

  • The pump is set by the manufacturer to a pressure of 9 bar, which is easily adjusted manually with a screw: when turned counterclockwise, it decreases, when turned clockwise, it increases.

  • Excess air is removed automatically with a 2-pipe fuel line system, but with a single-pipe system, it is recommended to speed up the process by opening the pressure gauge port.

  • The unit is mounted to the electric drive using a sleeve method with a seat diameter of ∅54 mm.

Advantages of the model:

  • a unified single-cavity shaft with a diameter of 8 mm, manufactured according to the European standard EN 225;

  • the presence of a built-in pre-filter with a mesh insert cell size of 150 µm;

  • standard thread for connecting control and measuring devices - a pressure gauge and a vacuum gauge;

  • the ability to work with kerosene, diesel fuel and other types of fuel with an operational viscosity from 1 to 75 cSt.

The AN 47 B K 7227 4P heating burner pump from the French company Suntec is reliable equipment for domestic and industrial purposes, designed for a long service life. It is manufactured according to international safety requirements, and its components comply with European quality standards EN 225 and ISO 228/1.

Characteristics

Nominal rotation speed: 2850 rpmPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 27 l/hPerformance at 11 bar pressure and 5 cSt viscosity: 39 l/hOperating viscosity: from 1 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AN: base valve with locking function2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 27 l/hPerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftShaft diameter: 8 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barNozzle pressure range: from 7 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 54 mmType of pumped liquid: kerosene, diesel
