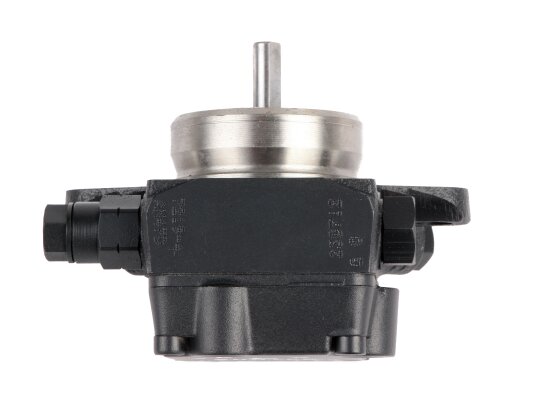

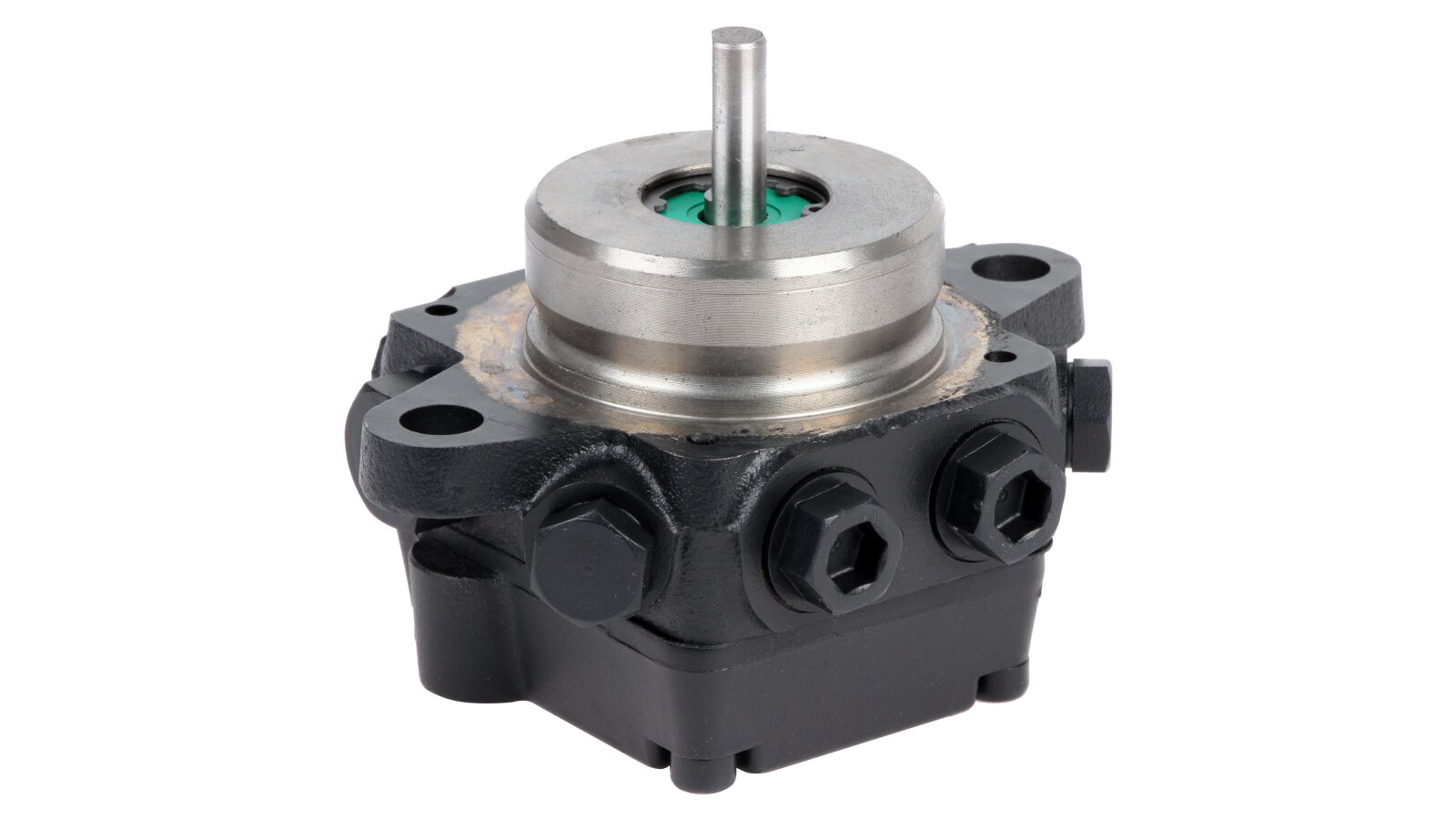

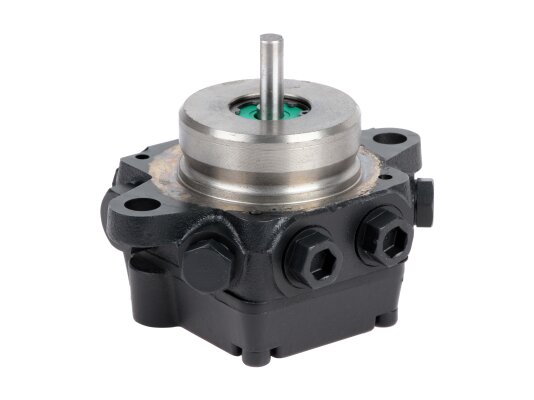

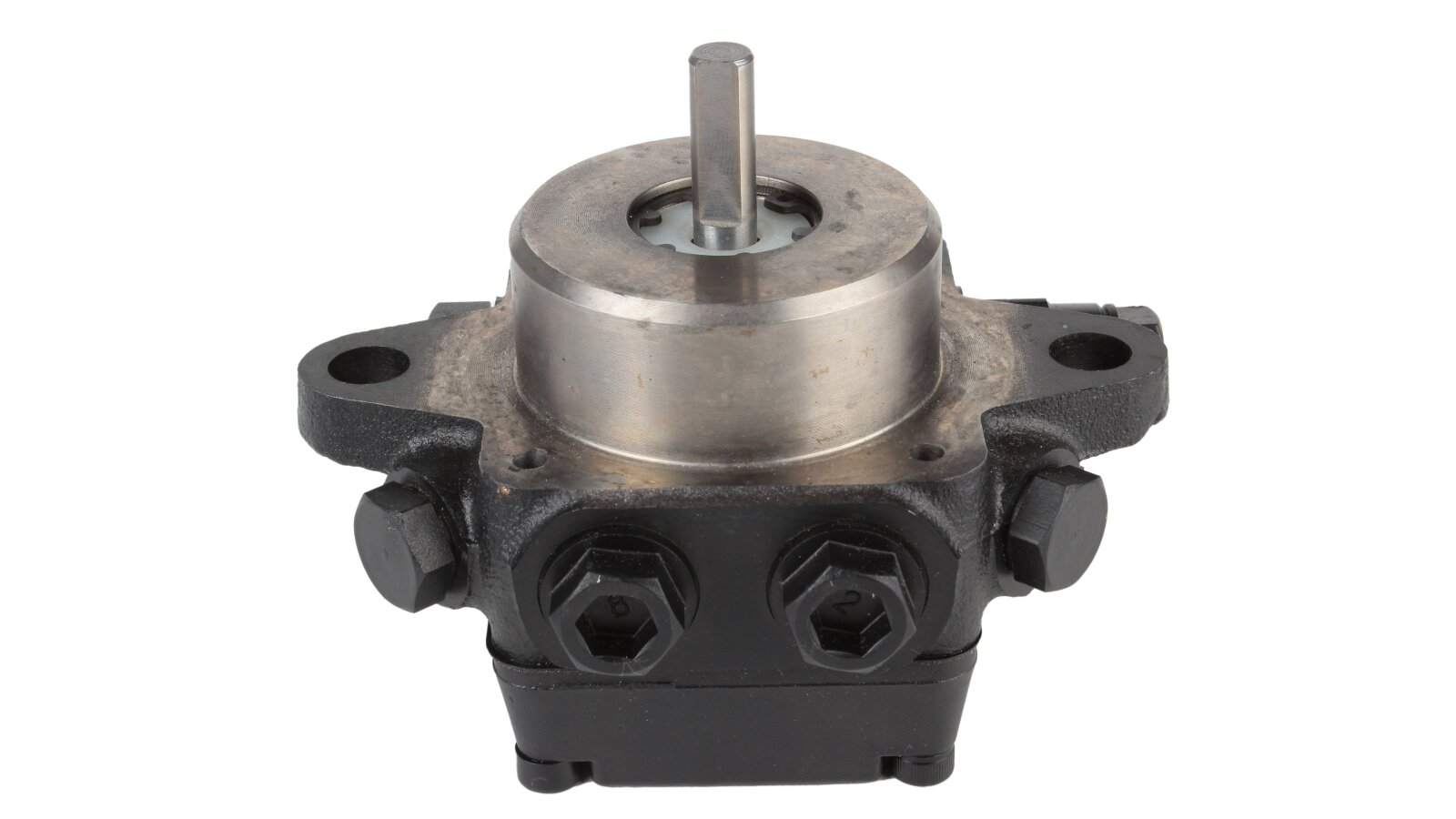

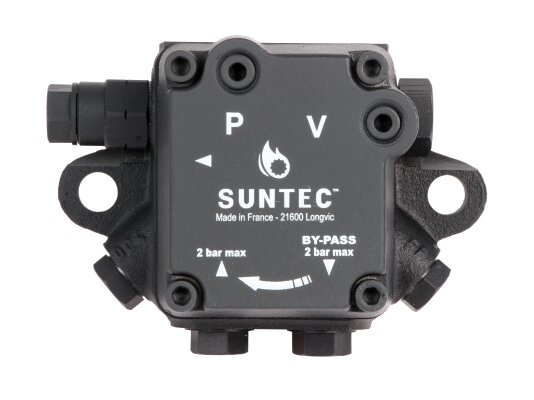

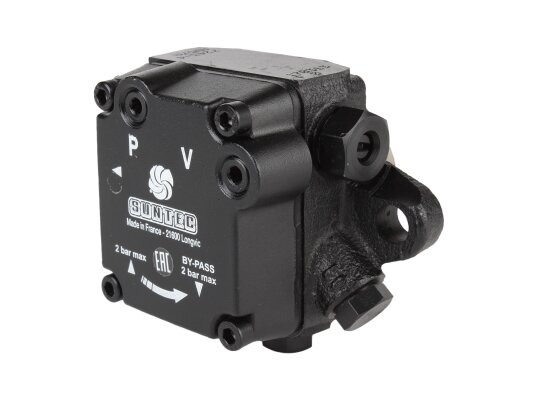

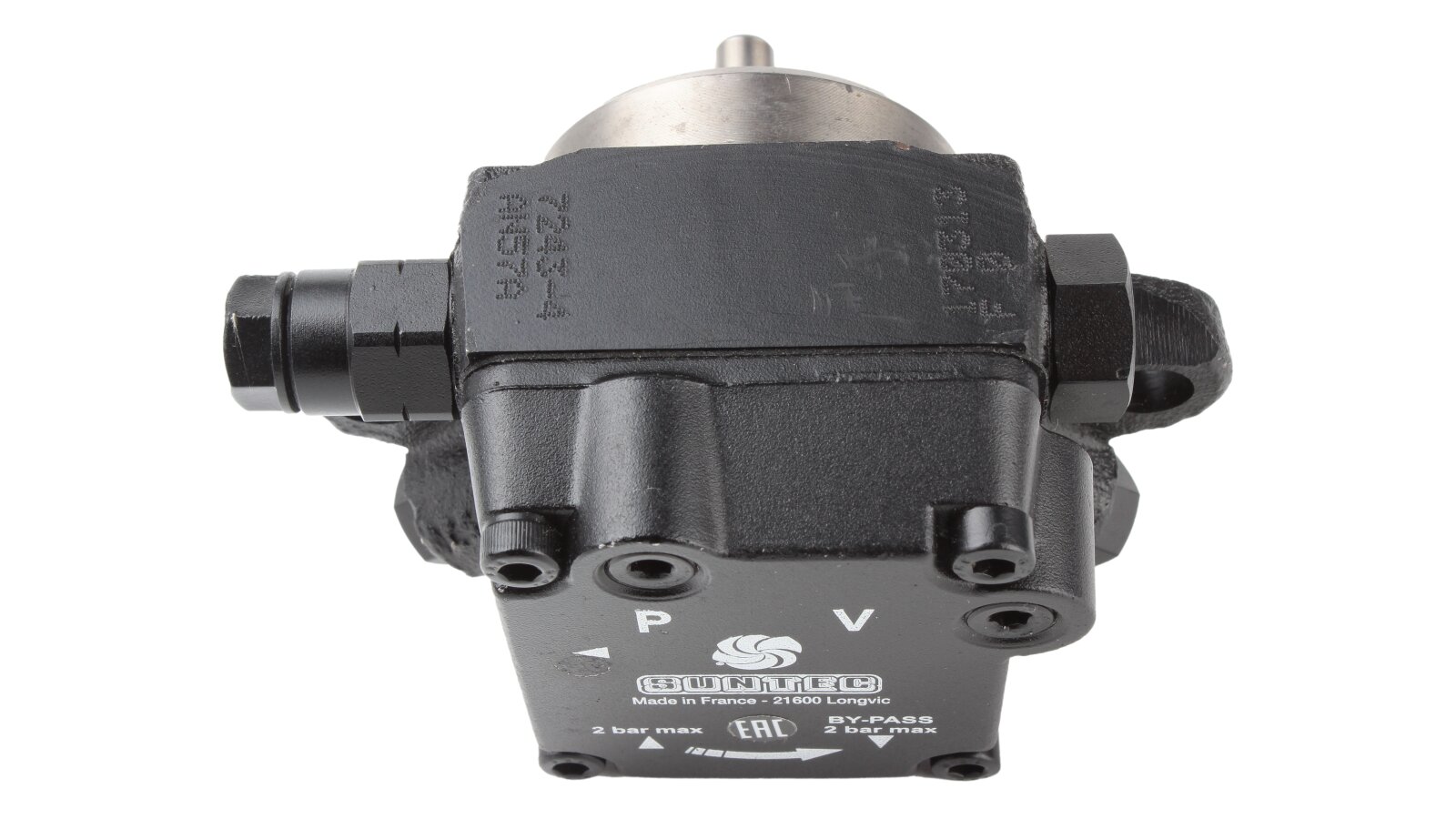

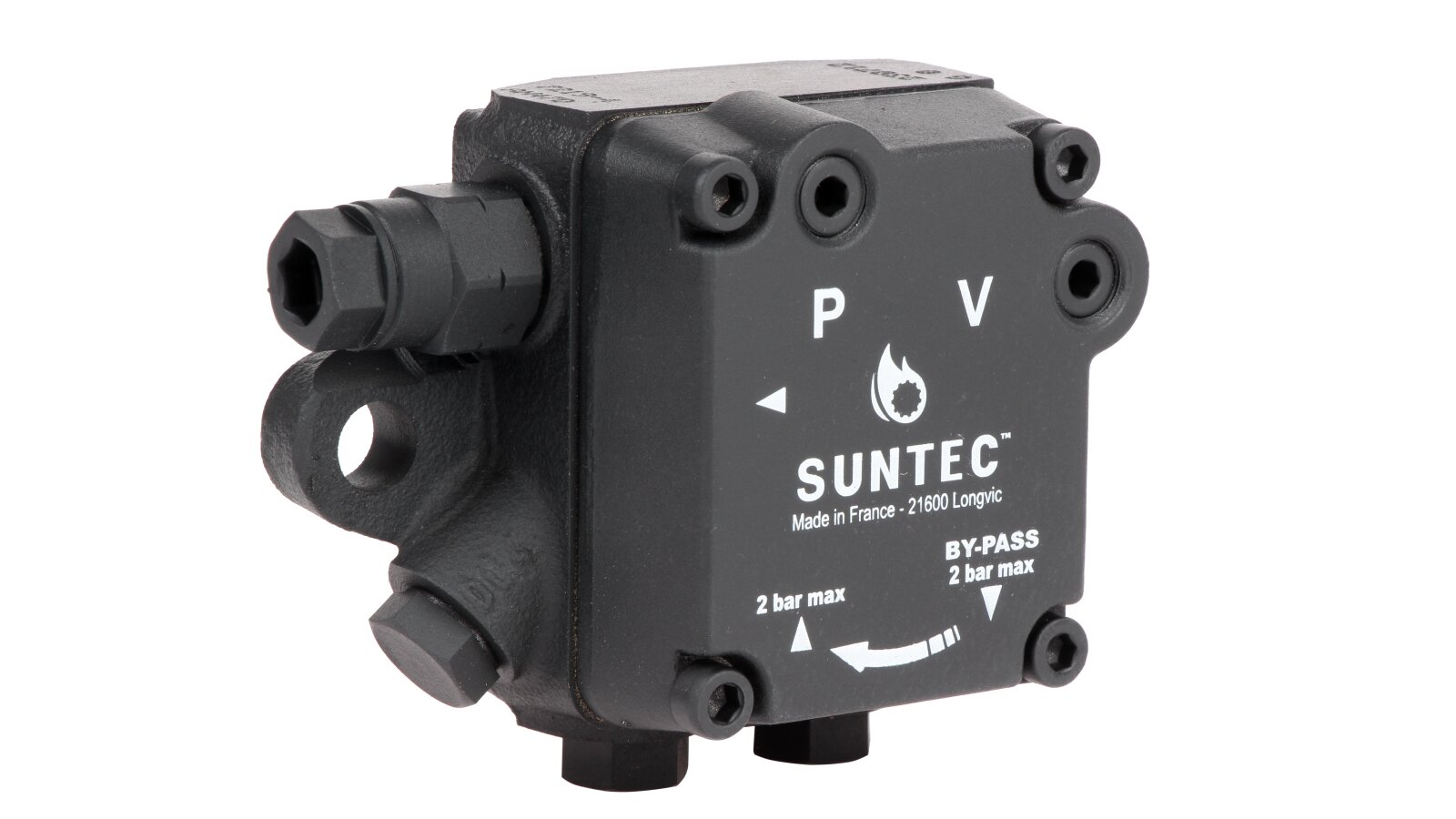

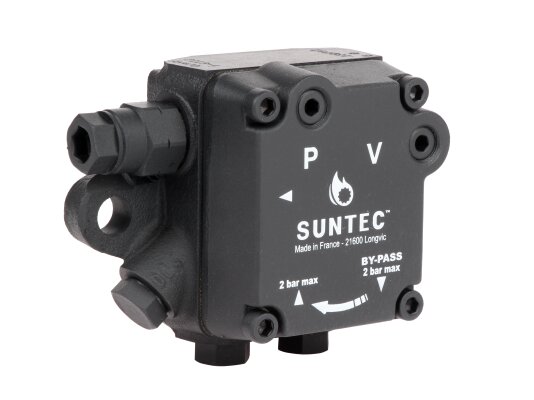

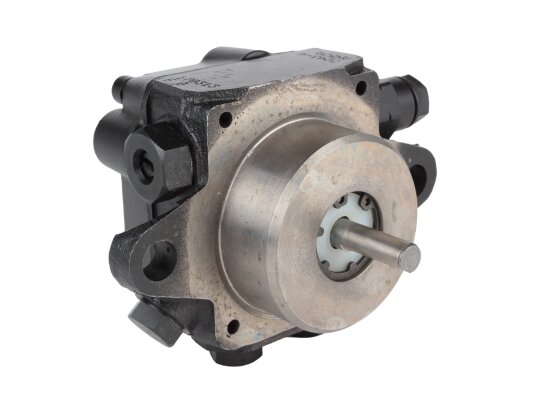

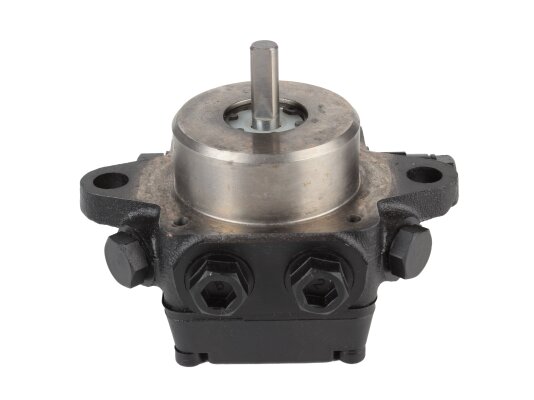

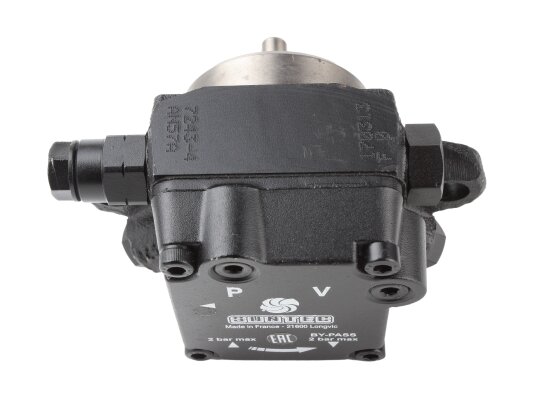

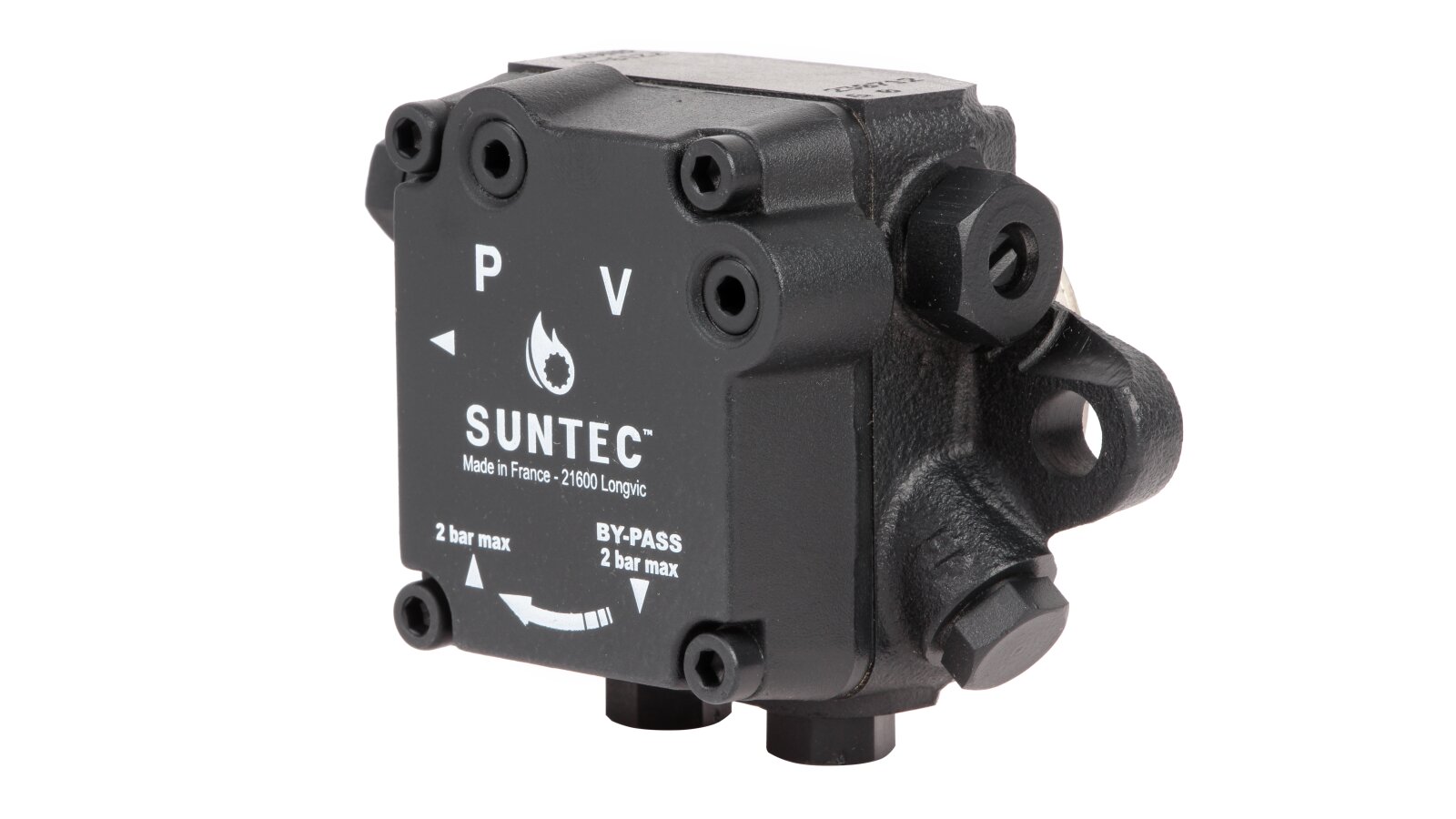

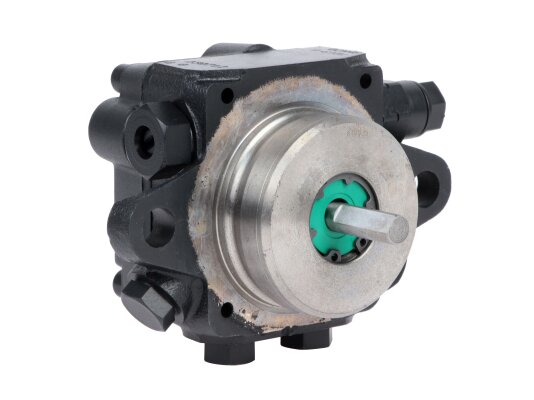

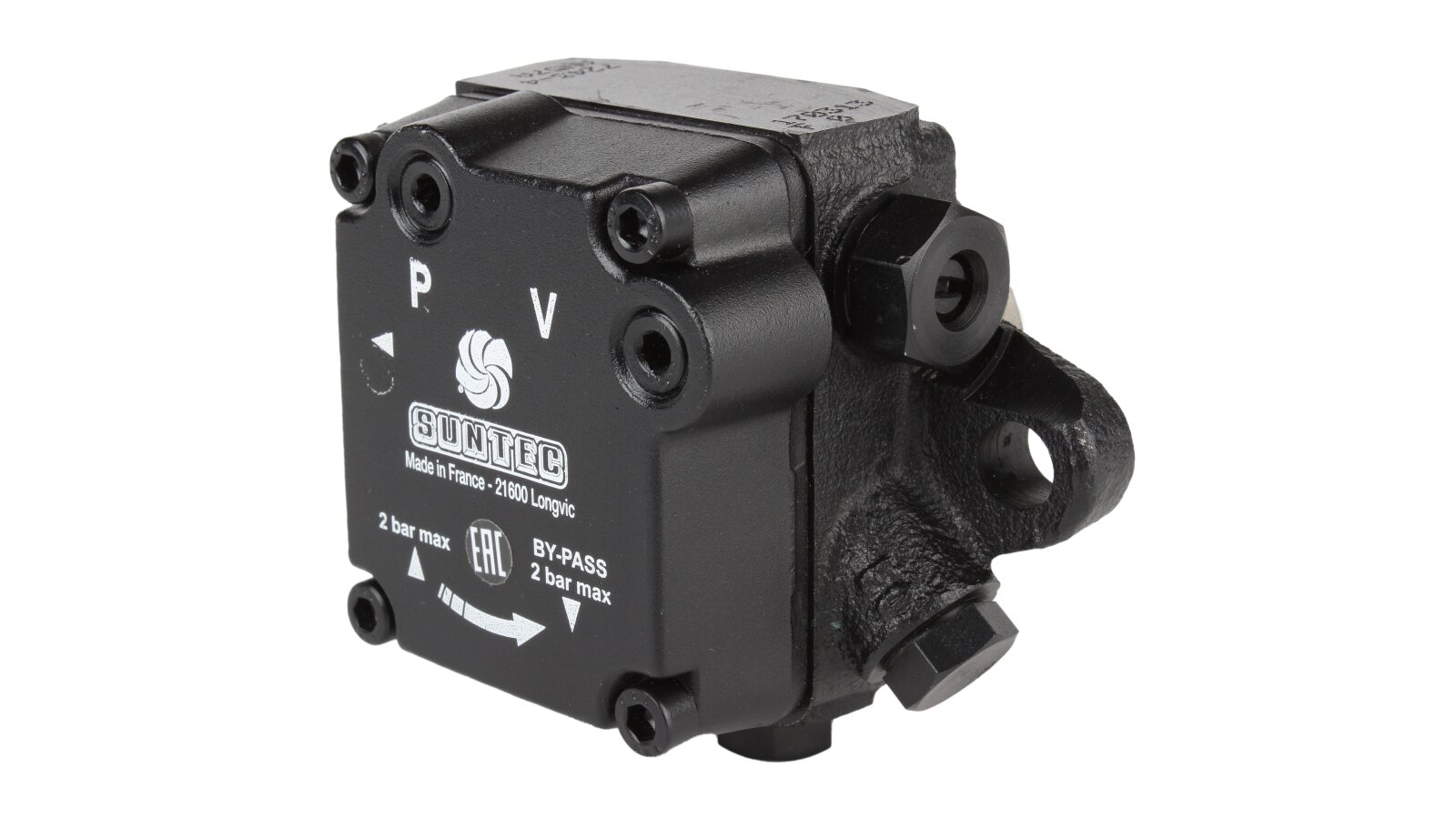

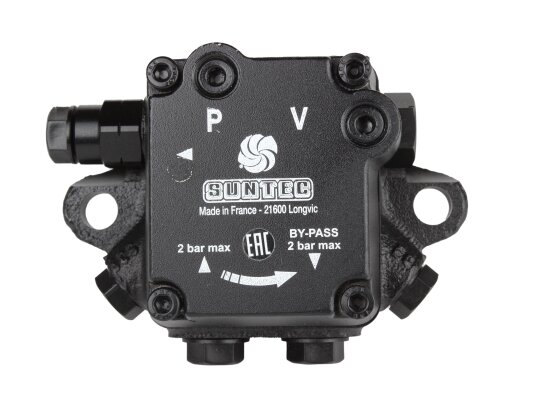

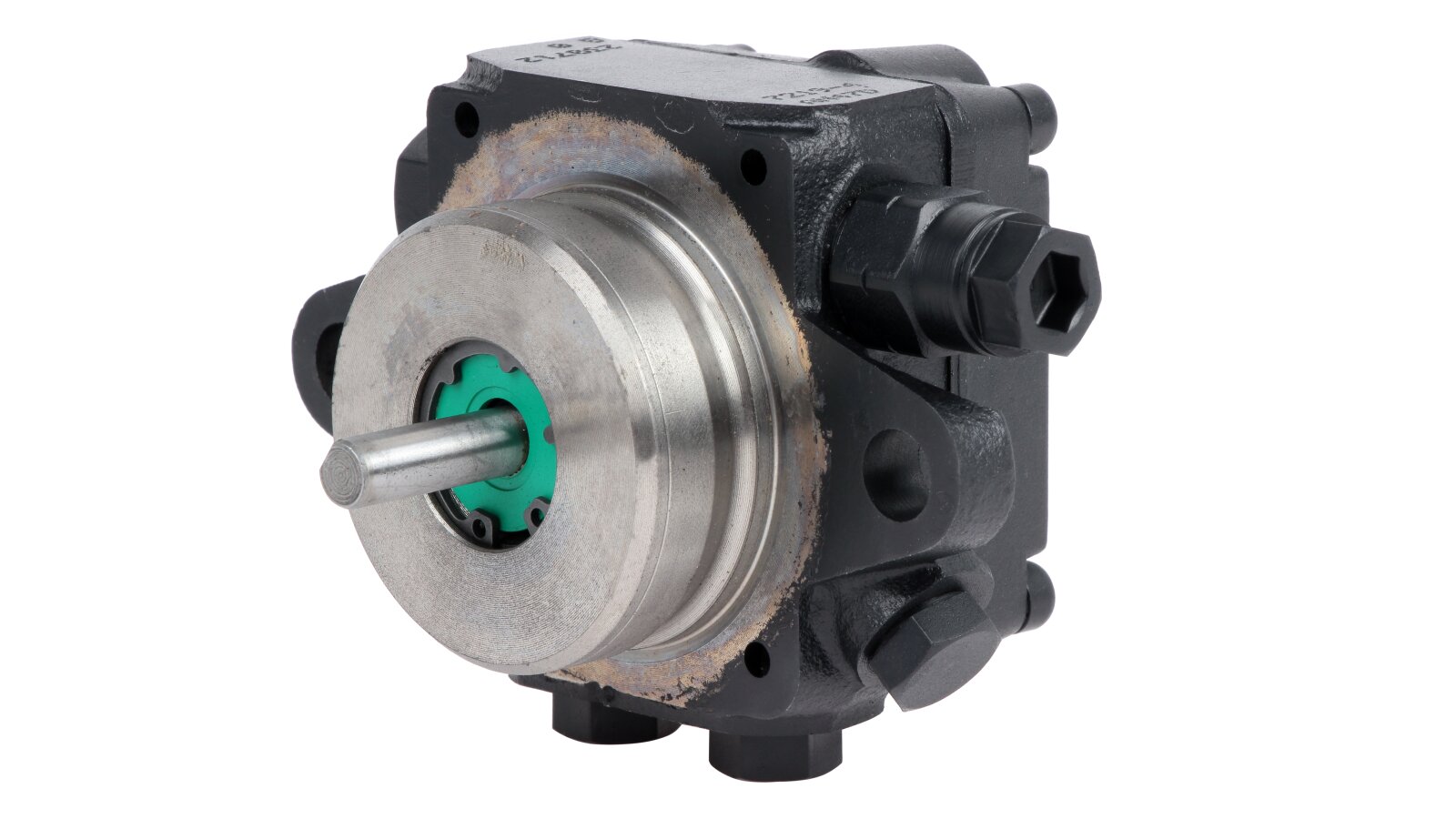

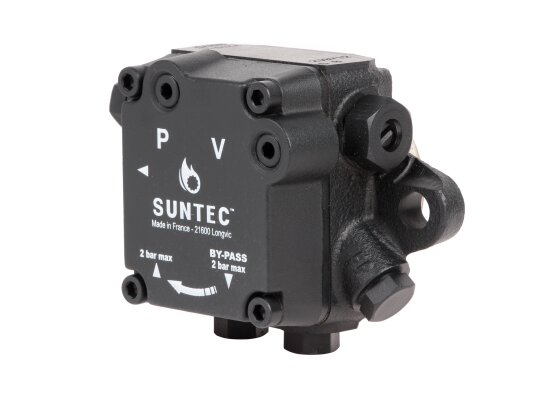

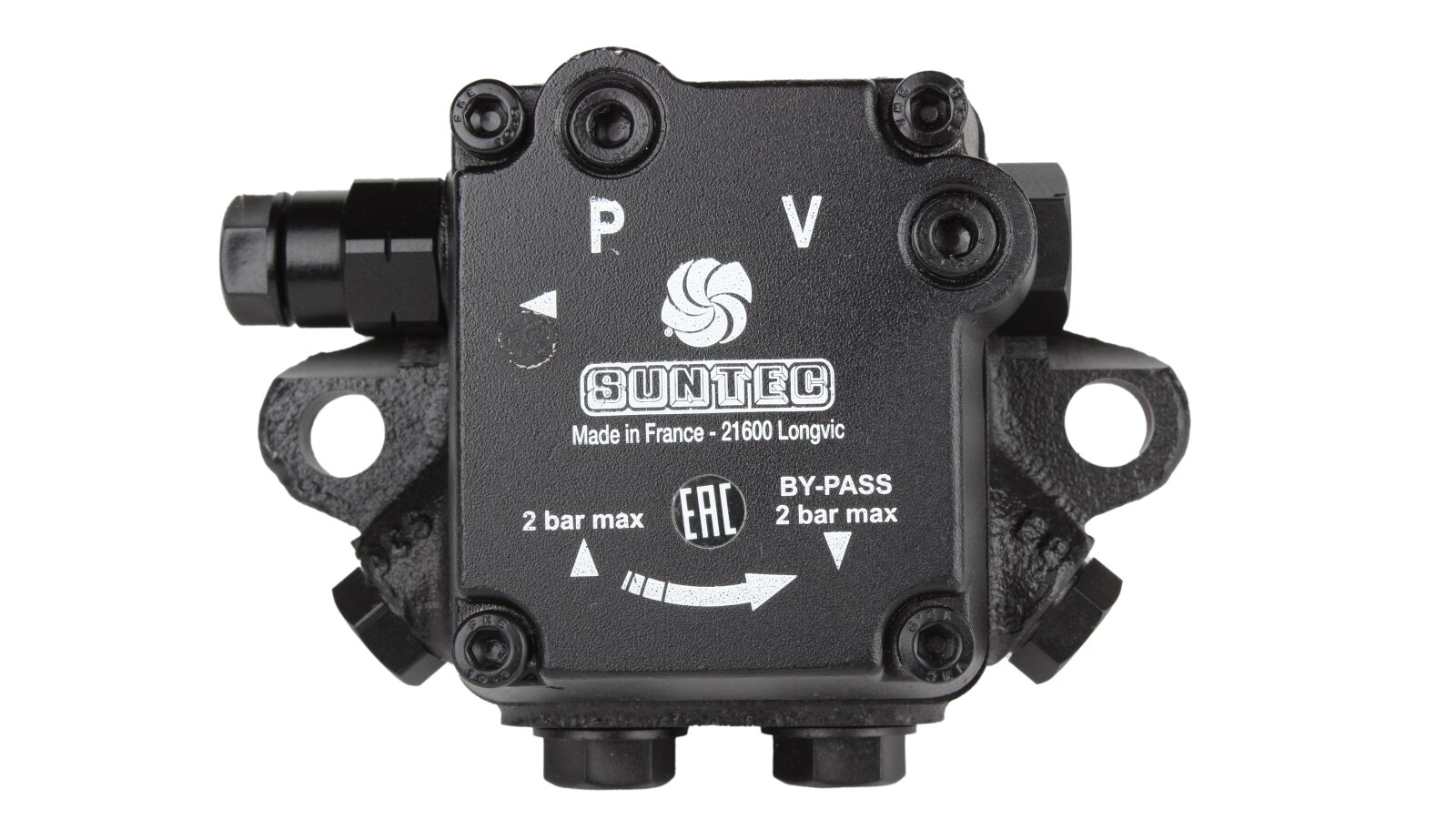

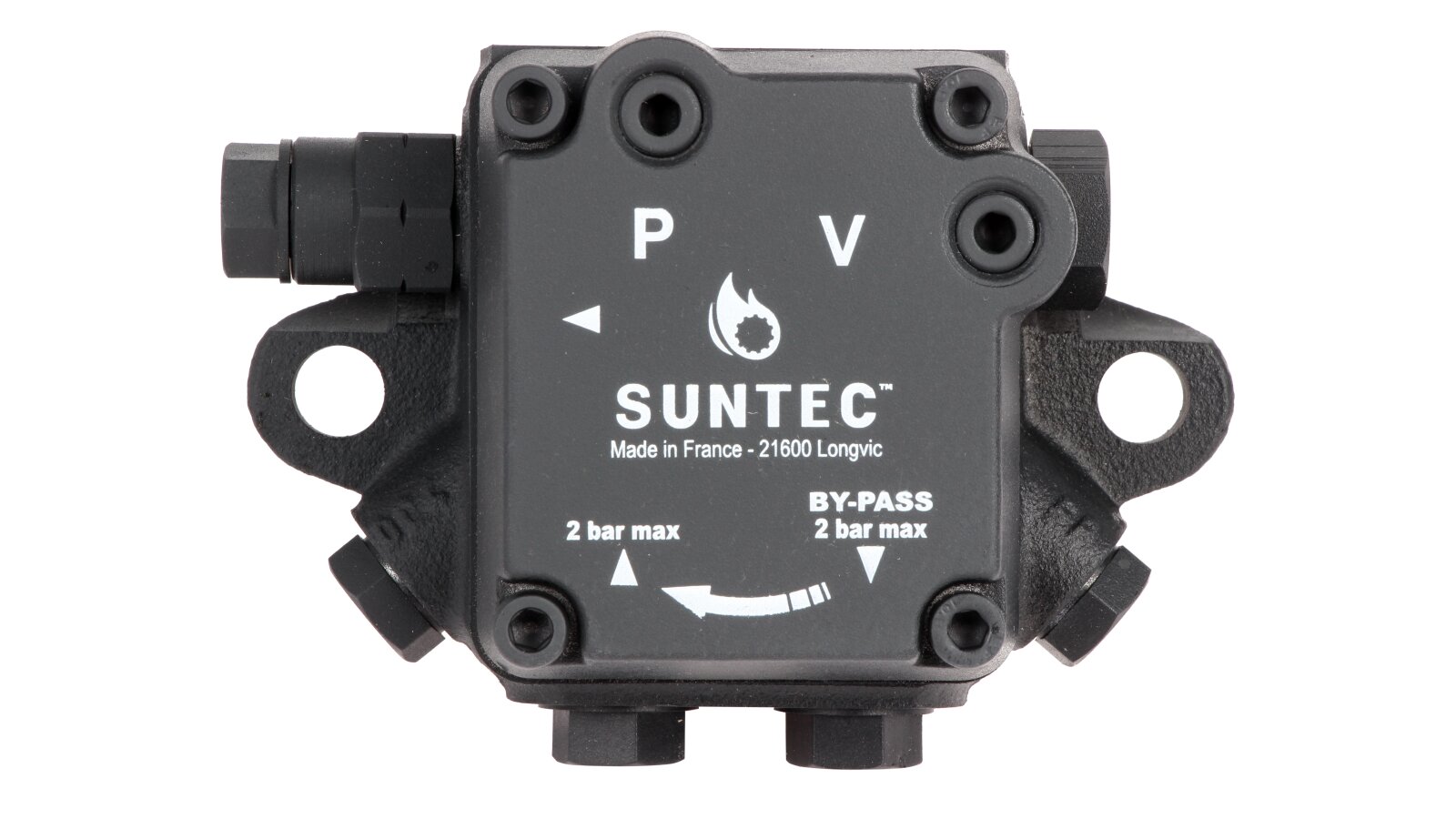

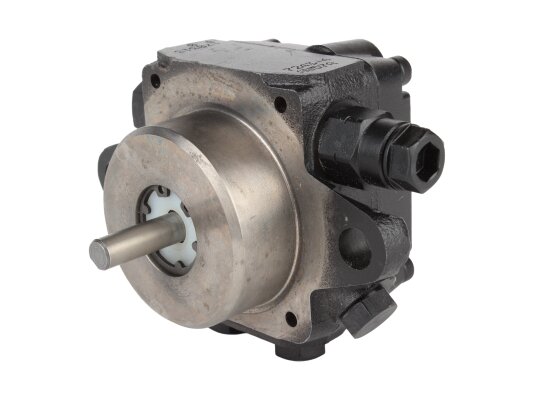

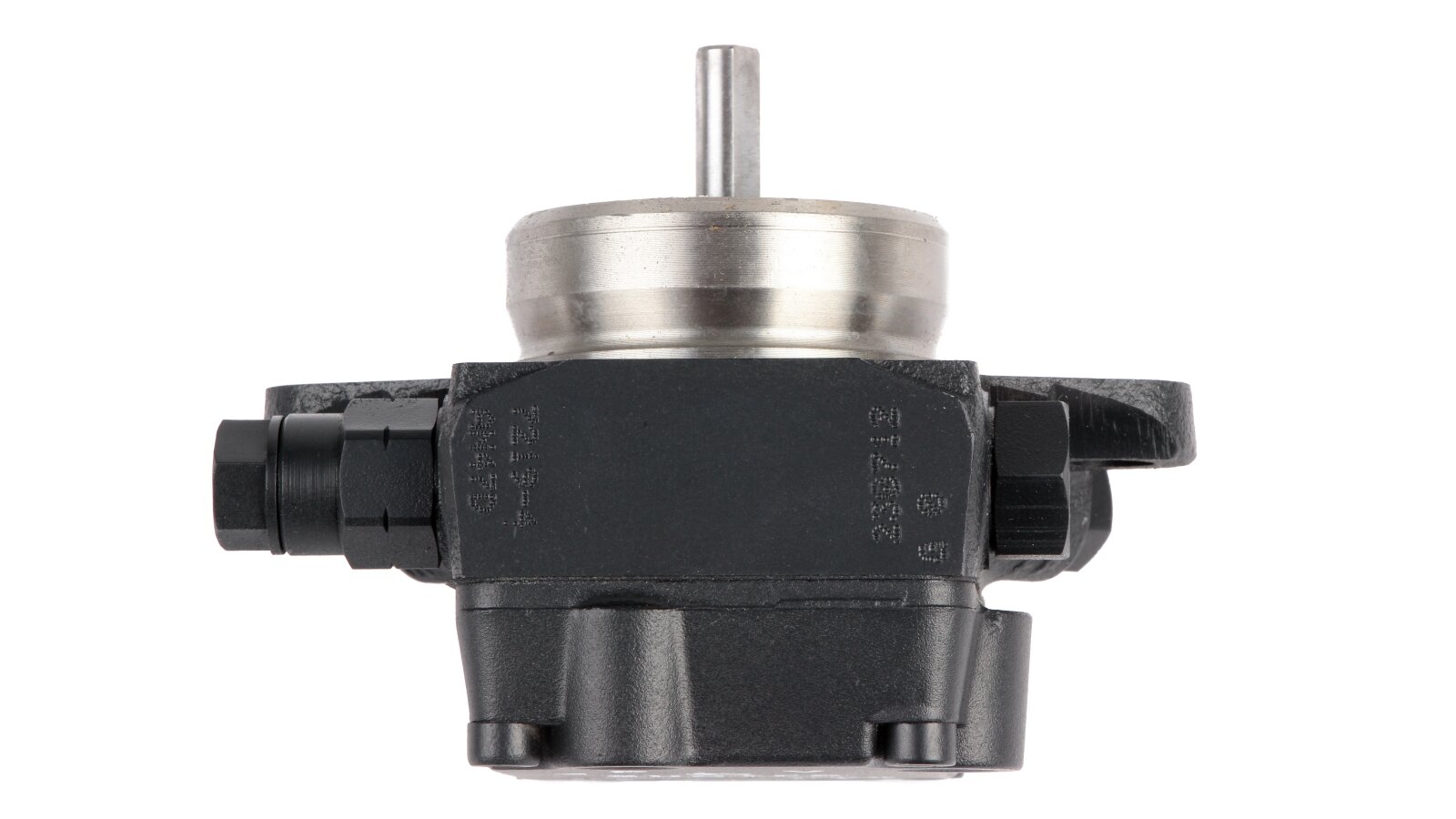

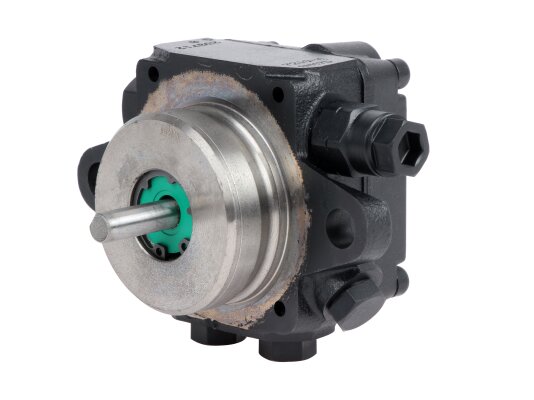

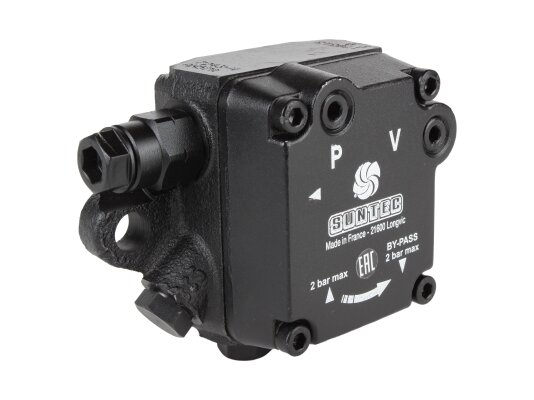

Burner Pump Suntec AN 57 A 7243 4P

Suntec
AED 600
  1. Oil Burner Pumps

Description

For installation in heating systems operating on liquid fuel, it is appropriate to use the gear pump AN 57 A 7243 4P from the French company Suntec. This equipment is characterized by optimal performance and reliability. Thanks to a carefully thought-out design, the model can operate for a long time without the need for scheduled maintenance and repair.

The purpose of the device is to supply liquid fuel to the nozzle line of the burners. The main advantage is the ability to connect it to both a single-pipe and a two-pipe system. In the second version, the unit is mounted in a standard configuration, in the first, the bypass plug is removed and a steel plug with a washer is installed.

Normal operation of the equipment is possible if the fuel temperature corresponds to 0 to +60 ° C, and the kinematic viscosity value is from 2 to 75 mm² / s.

Main characteristics

  • The model's performance is 39 l / h if the pressure in the system is maintained at 11 bar.

  • The weight of the pump is 1 kg, which significantly simplifies its installation.

  • When the equipment is operating, the pressure on the nozzle line is set within the range from 7 to 14 atm.

  • The torque corresponds to a value of 0.10 N m.

  • The factory settings of the pump are designed for a pressure of 9 bar, but they can be changed. For this purpose, a manual regulator is provided in the design.

The main advantages include:

  • equipment with a shut-off valve with the ability to adjust;

  • the presence of a mesh filter with a cell size of 150 μm;

  • standardized ports for connecting pressure measuring devices - a pressure gauge and a vacuum gauge.

When connecting to the fuel pipeline system, it is recommended to use an additional filter that performs fine cleaning of the fuel. It is installed in the discharge section.

The company "ANKAS", an official dealer of the European company Suntec, offers to buy a burner pump of the AN 57 series. We will please you with affordable prices from the manufacturer. We always have a large assortment of equipment and components for heating systems in stock. The products are provided with an official guarantee.

Characteristics

Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 55 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 55 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmShaft diameter: 8 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barInstallation method: flange ∅ 54 mmNozzle pressure range: from 7 to 14 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmType of pumped liquid: diesel
