Description

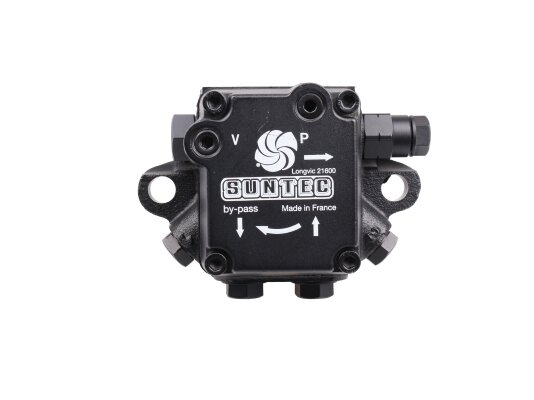

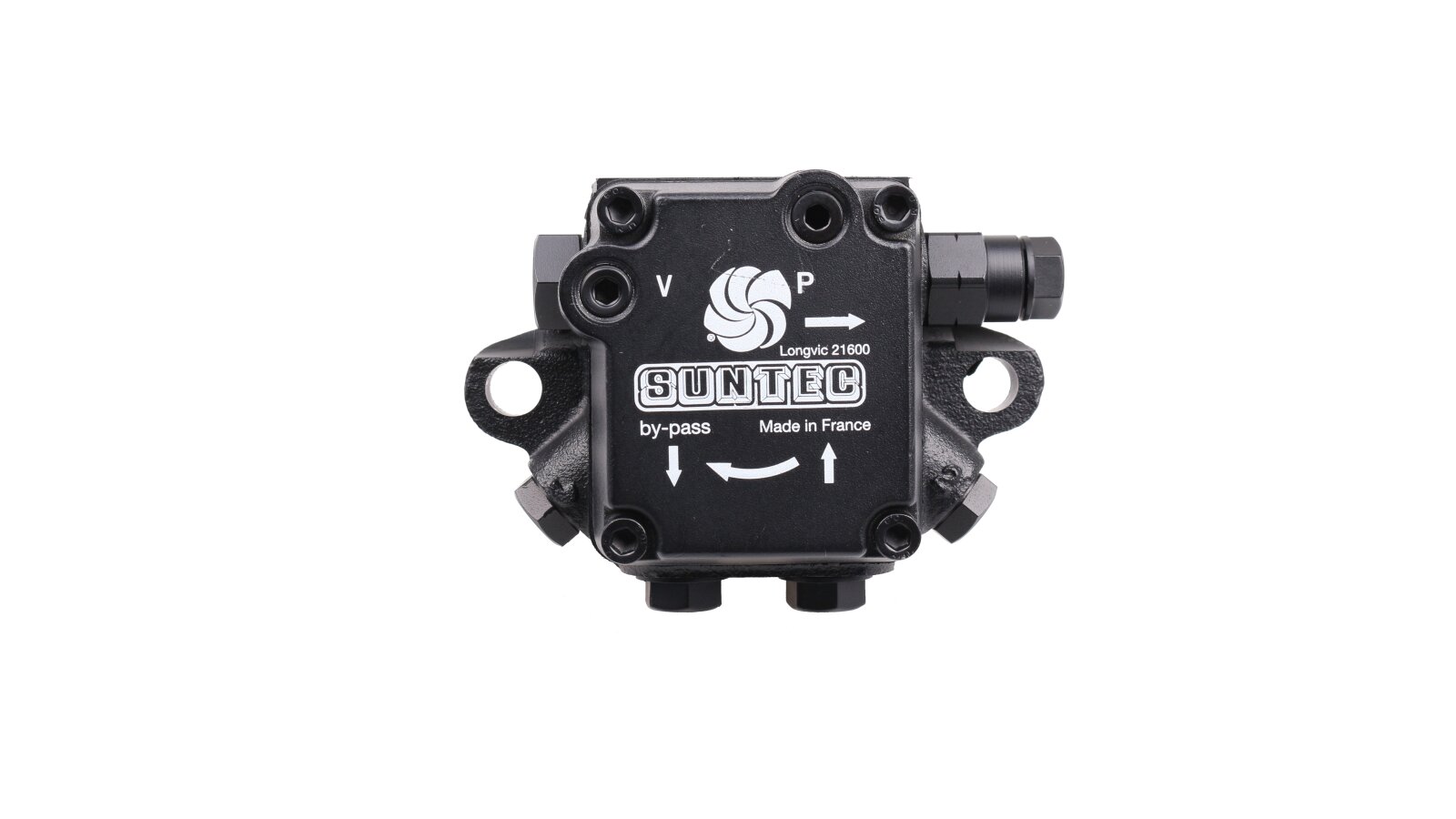

Single-stage pump AN 67 A 7345 4P is the best option for equipping forced-draft burners operating on liquid fuel. This is one of the latest developments of the French company Suntec, which occupies a leading position in the production of heating equipment and components for it.
The unit is used to supply fuel to the injectors. The standard version is intended for a two-pipe connection, but this model is also suitable for a single-pipe connection. To do this, you will need to make minor changes to the design, which consist of removing the usual bypass plug and installing a steel one with a washer.
Operational requirements for fuel: kinematic viscosity in the range from 2 to 75 mm² / s, temperature - from 0 to + 60 ° C.
Basic data
Weight of the device - 1.2 kg.
Fuel mixture supply rate - 79 l / h at a system pressure of 11 bar.
When the pump is operating, the pressure on the injector line is maintained within the range of 10 to 20 atm.
Torque — 0.12 N m.
The manufacturer has set the basic settings of the unit, designed to maintain a pressure of 14 bar. The pressure can be changed manually using a screw regulator. The maximum rotation speed of the drive axis is 3600 rpm.
Features of the model
there are ports for installing measuring equipment - a pressure gauge and a vacuum gauge;
there is a mesh filter with a throughput area of 6 cm²;
the pump is equipped with a regulating shut-off valve.

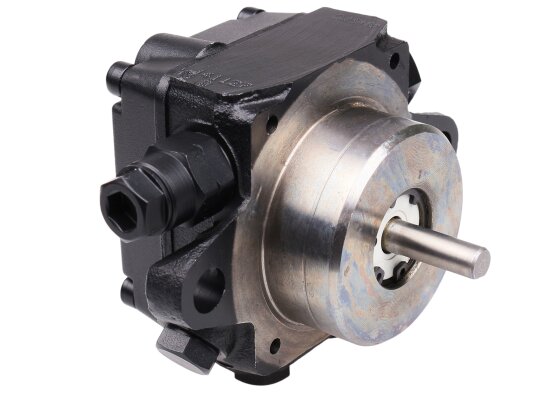

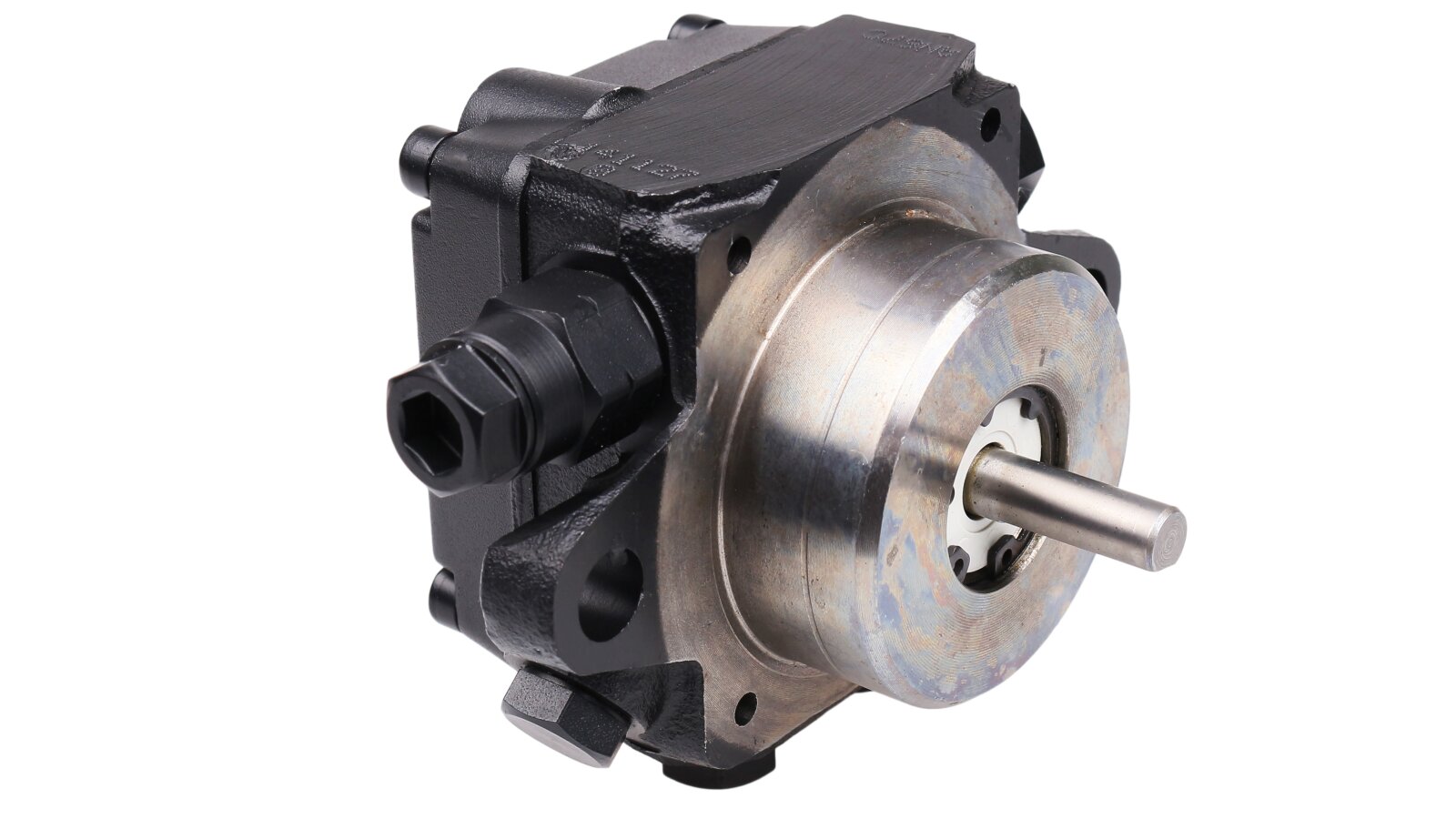

The unit is mounted to the electric drive using a sleeve mount with a diameter of 32 mm. A standard threaded connection G¼" and G⅛" is used to connect the fuel lines.
The company "ANKAS" offers to buy a pump for burners at the manufacturer's price. The catalog contains a large selection of heating equipment, which can be purchased on favorable terms at any time. Wholesale customers are offered individual terms of cooperation.
