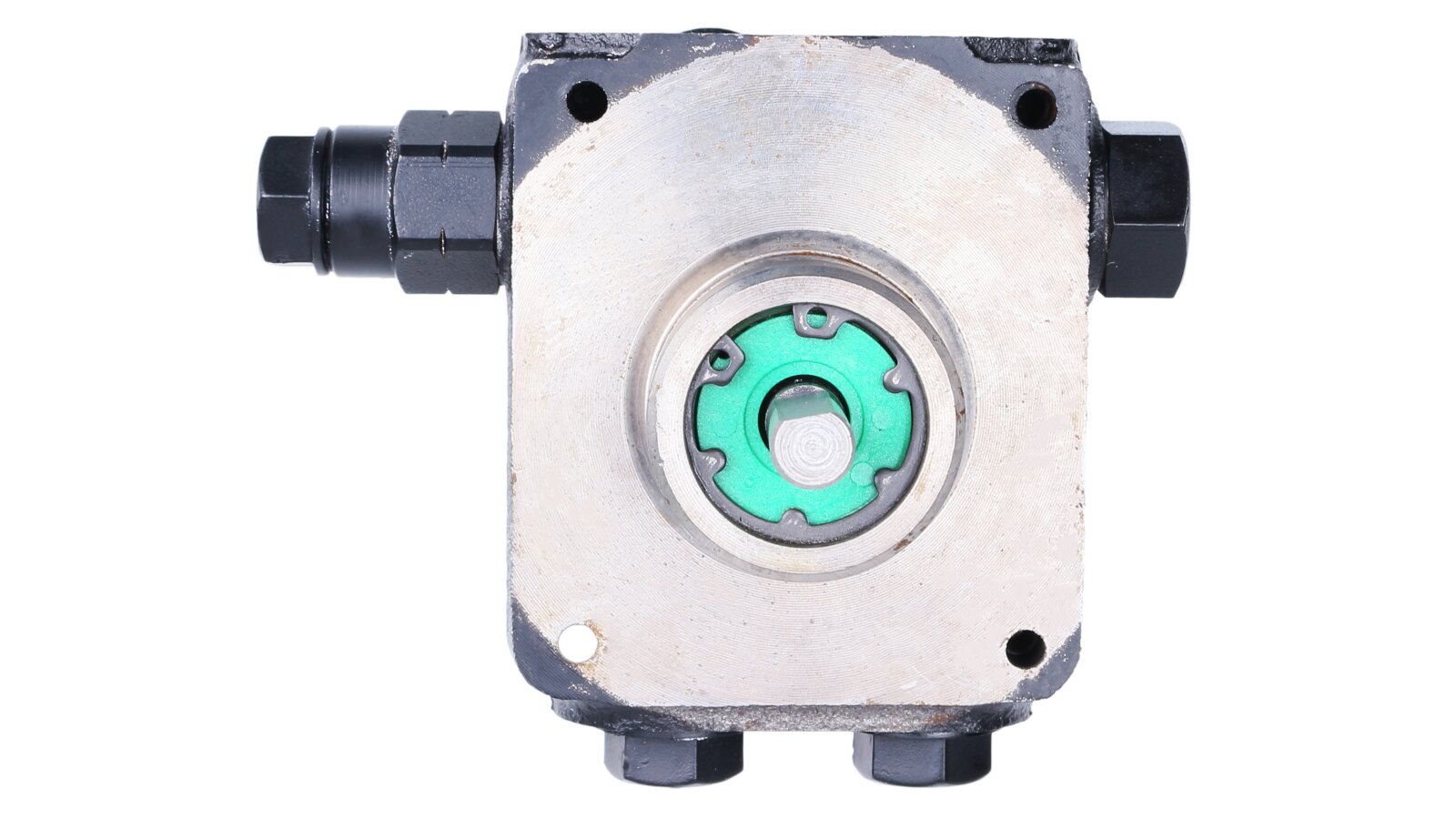

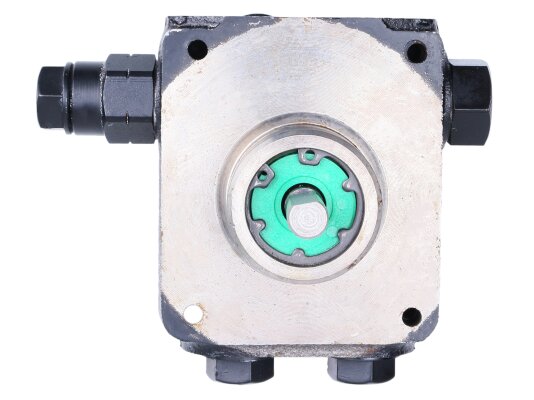

Burner Pump Suntec AN 67 B 1335 6P

Suntec

AED 750

Oil Burner Pumps
Products code: 55506

Description

The Suntec AN 67 B 1335 6P burner pump is used to pump diesel fuel during operation of heating systems. The capacity varies depending on the set pressure and viscosity of the working environment, and is 79 l/h (at a pressure of 11 bar and a viscosity of 5 cSt). The pressure is regulated in the range of 10-20 bar. The pump is supplied with a pressure regulating valve with a shut-off function. Suitable for one-pipe and two-pipe systems.

Features and important parameters:

  • working environment: diesel fuel;

  • high reliability and wear resistance of the design;

  • compact dimensions and light weight;

  • fuel cleaning from mechanical particles by a 150 μm filter;

  • built-in valve for pressure regulation and flow shut-off;

  • pressure setting within the range: 10-20 bar, "default" - 14 bar;

  • pressure in the suction and return drain line - no more than 2 bar;

  • mounting on a ∅ 32 mm sleeve;

  • connection to the inlet pipe and return line on a ¼ inch NPTF thread;

  • ports for connecting a pressure gauge and vacuum gauge with a diameter of ⅛ inch;

  • temperature of the pumped fuel: 0 ... + 60 ° C;

  • installation in any position, except with the axis up;

  • one- or two-pipe connection;

  • automatic air bleed in two-pipe devices;

  • compatibility with burners of most manufacturers.

When installing the pump for the Suntec AN 67 B 1335 6P burner in a system with one pipe, it is necessary to unscrew the bypass plug and tightly close the drain hole.

Characteristics

Torque: 0.12 N·mPerformance at 11 bar pressure and 5 cSt viscosity: 79 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 79 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 14 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle pressure range: from 10 to 20 barShaft diameter: 8 mmReturn pressure: 2 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilInlet pressure: 2 barNozzle outlet: ⅛ inchType of pumped liquid: dieselDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the left
