Description

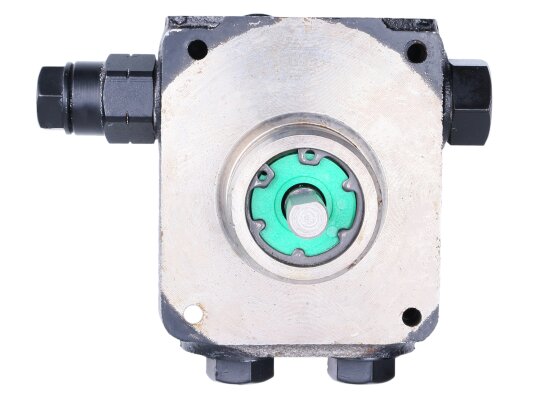

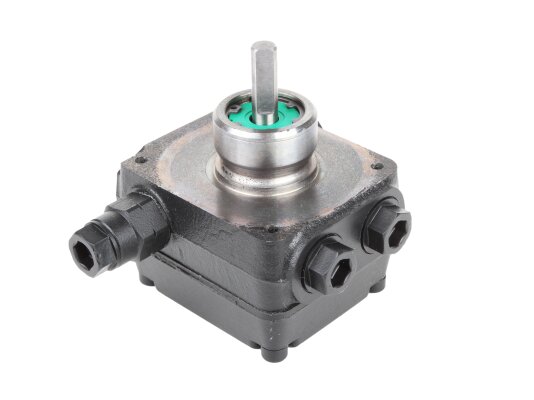

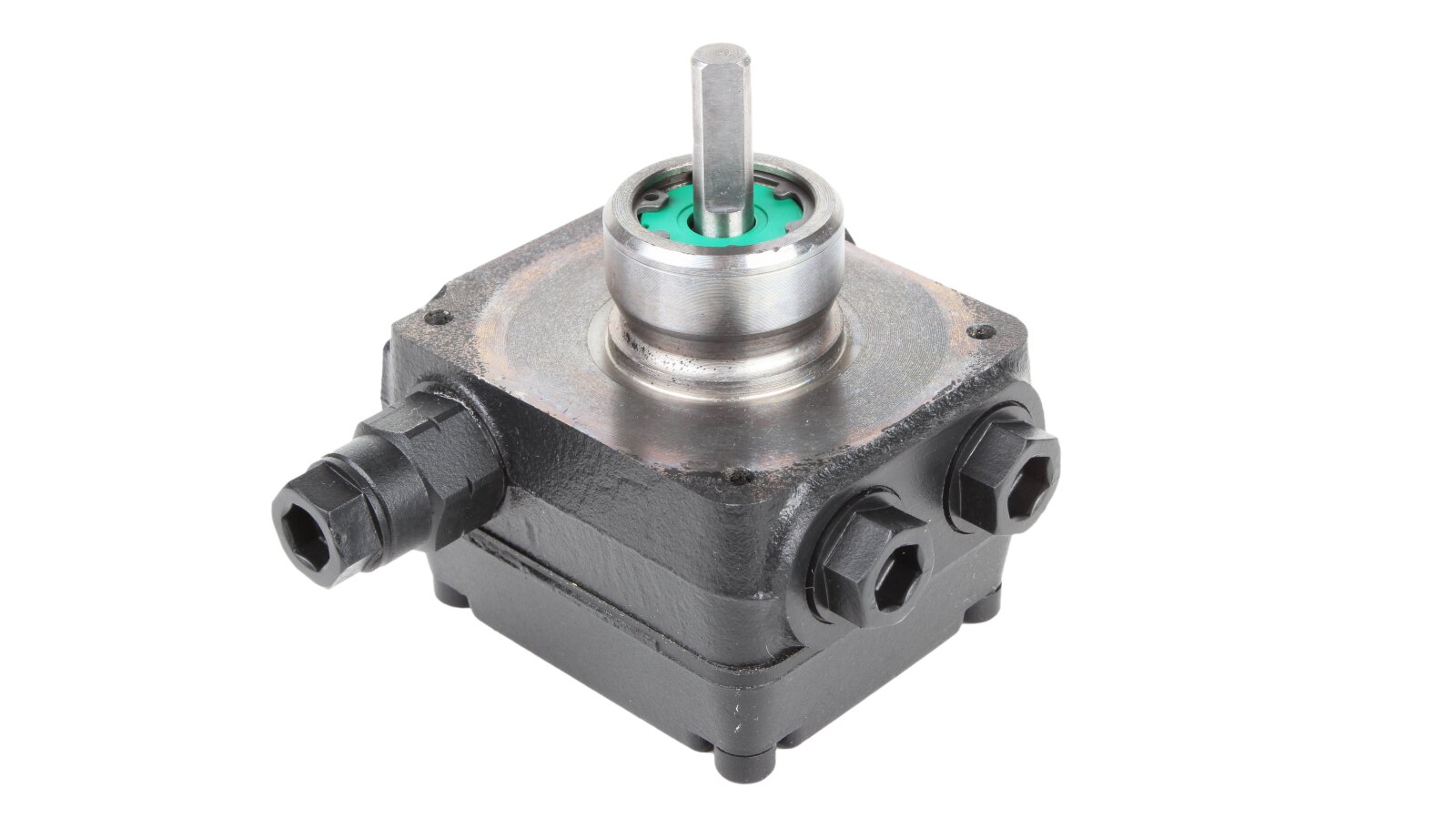

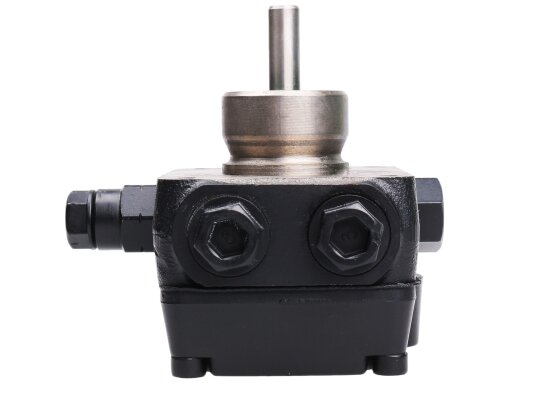

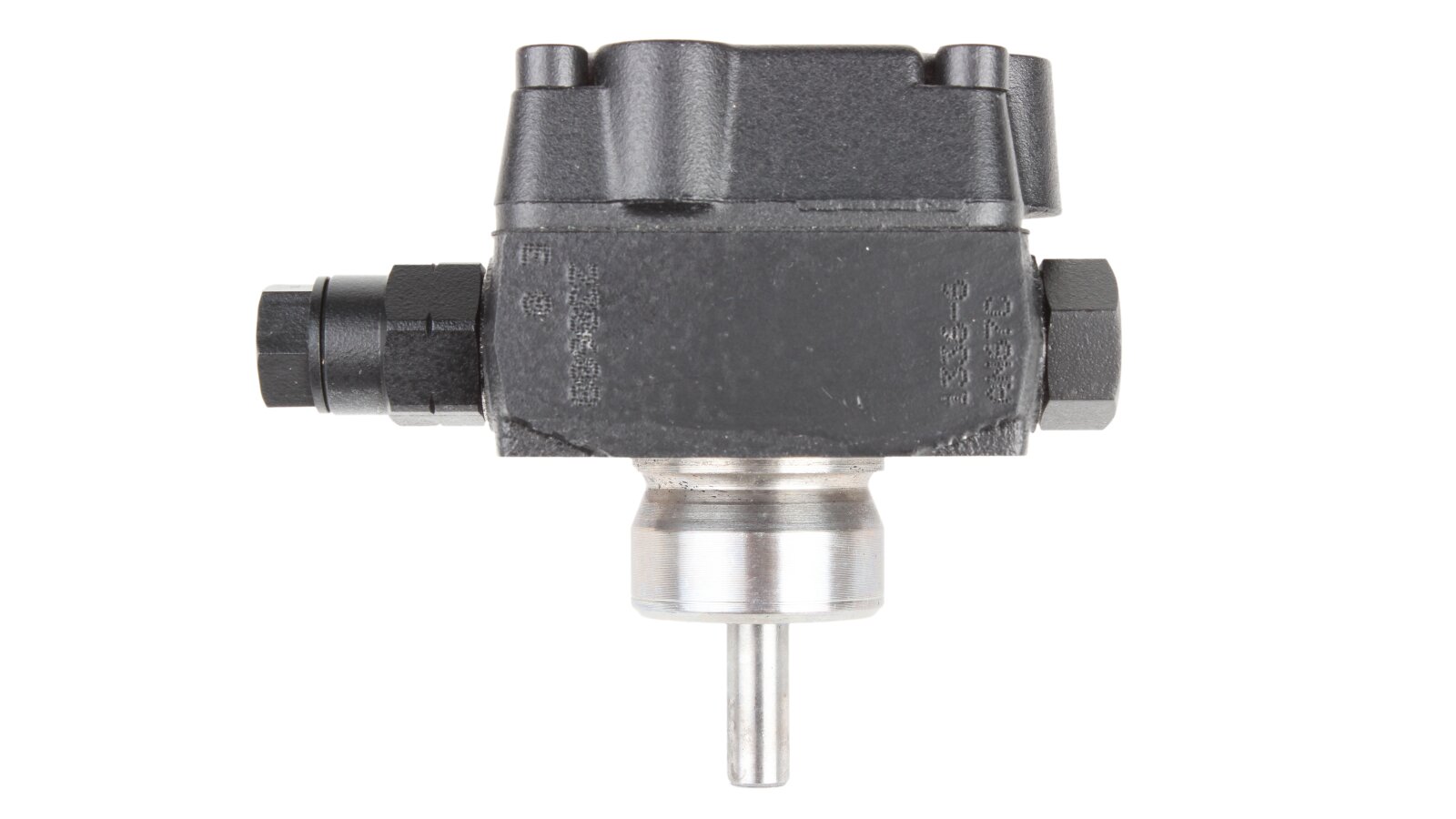

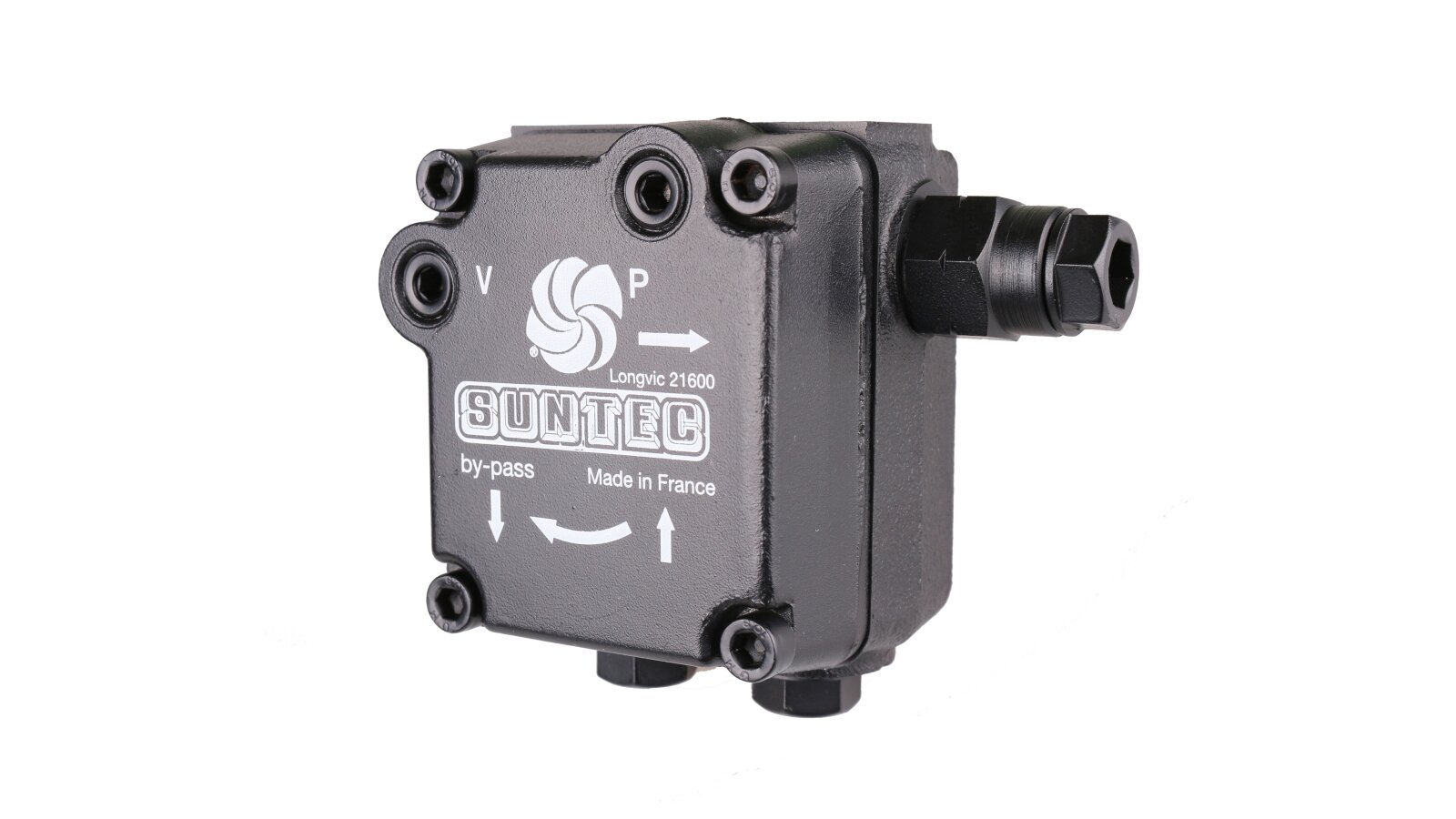

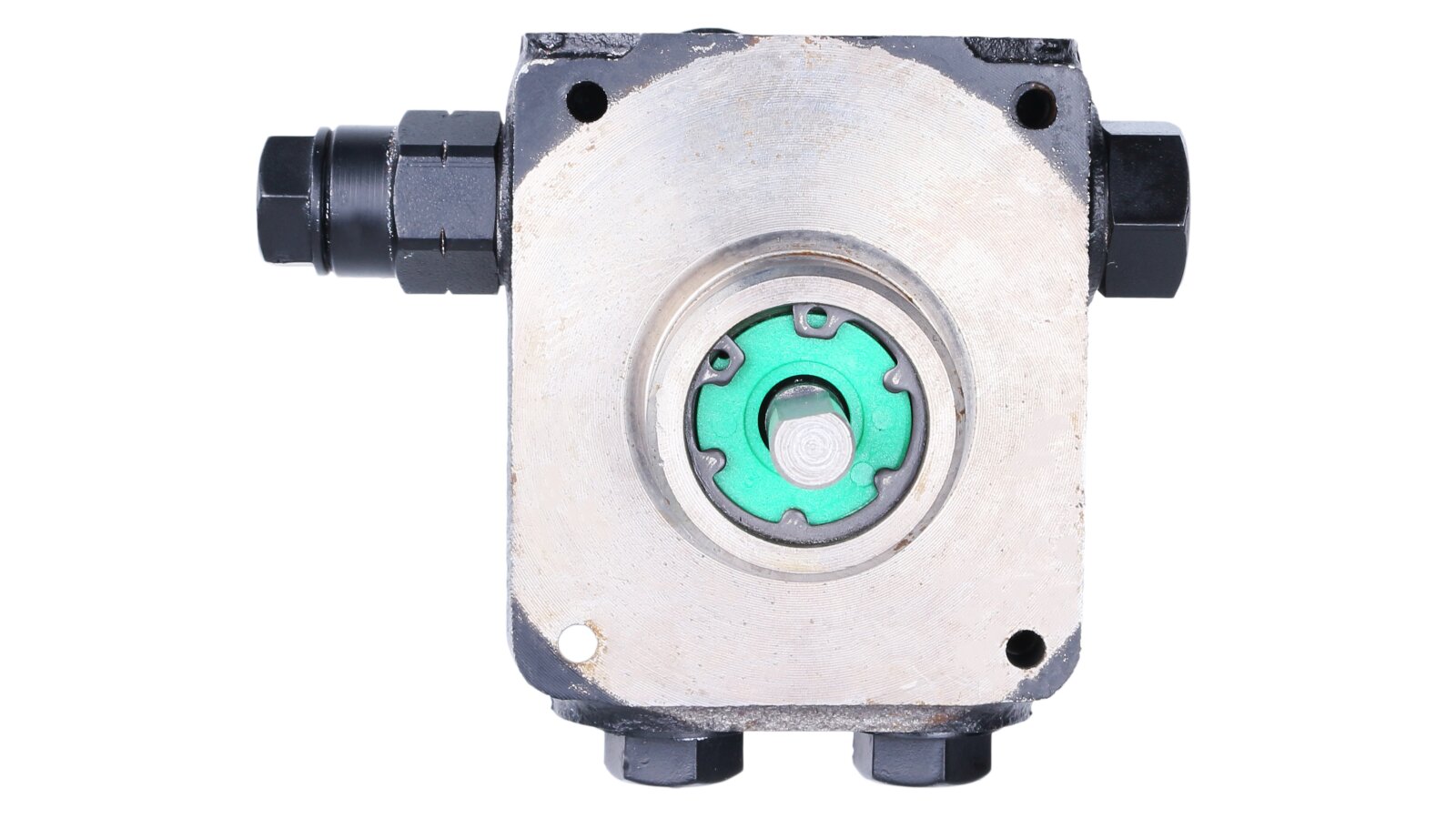

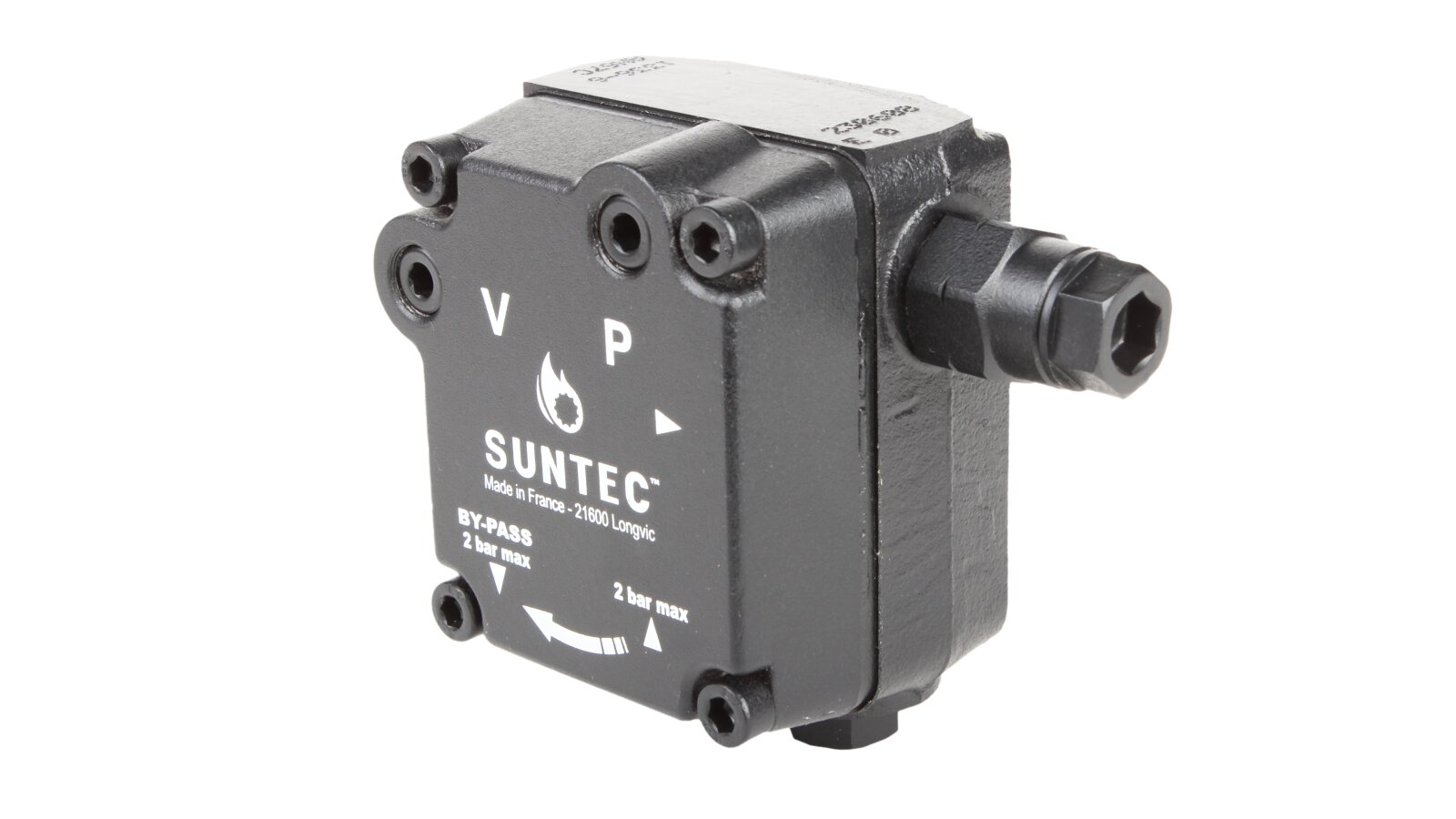

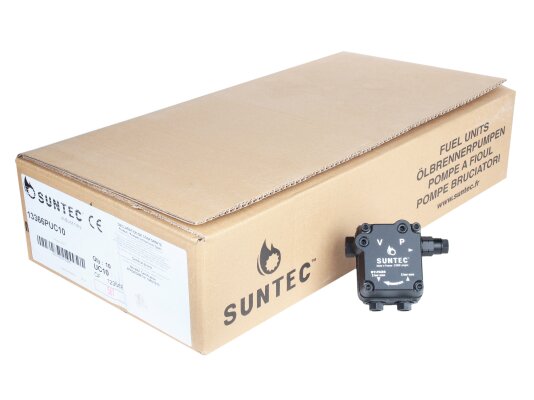

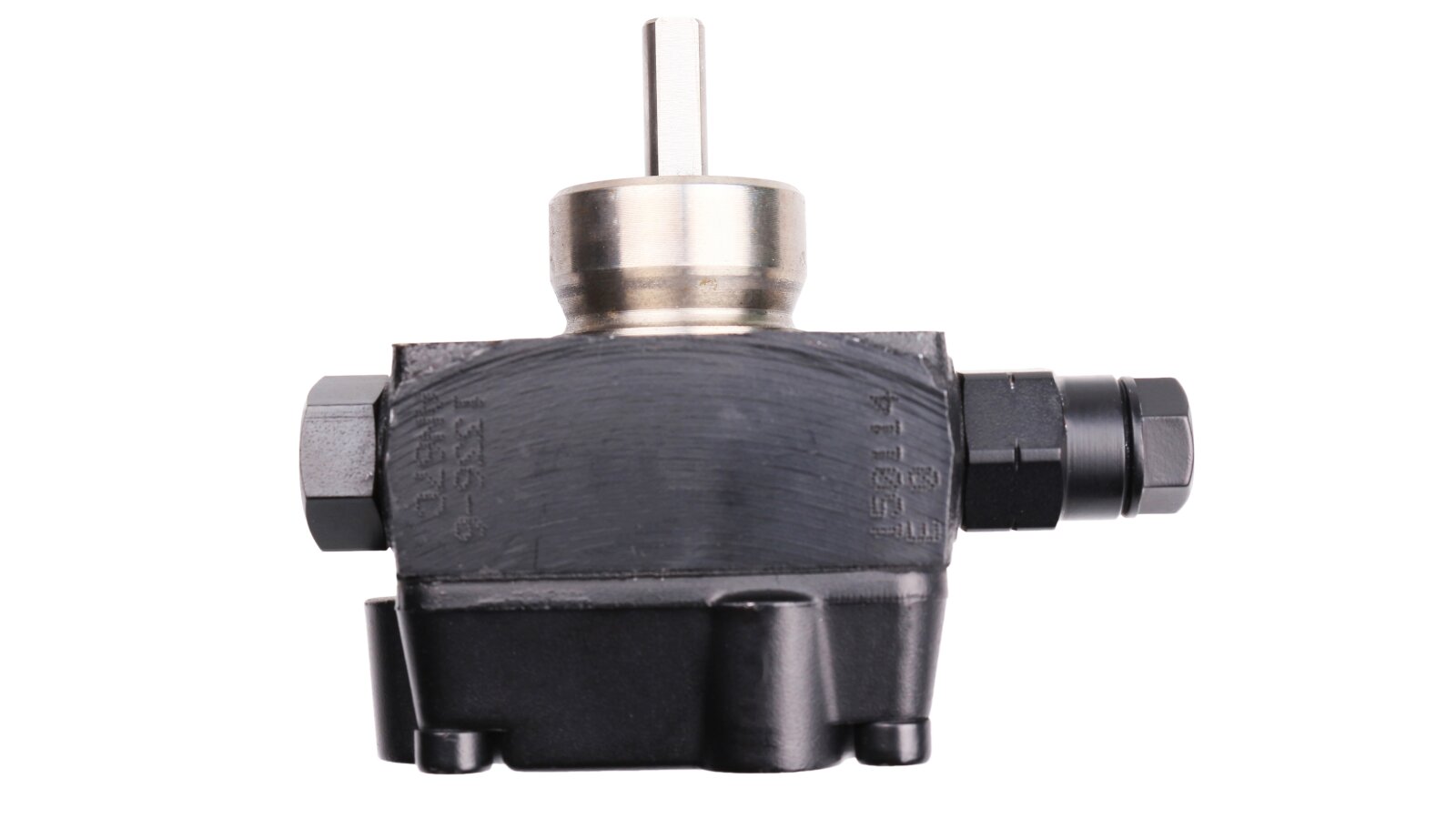

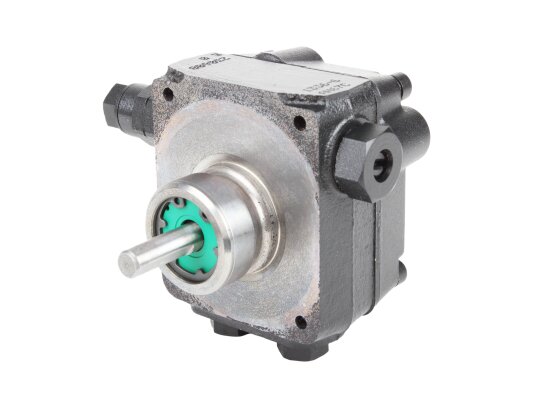

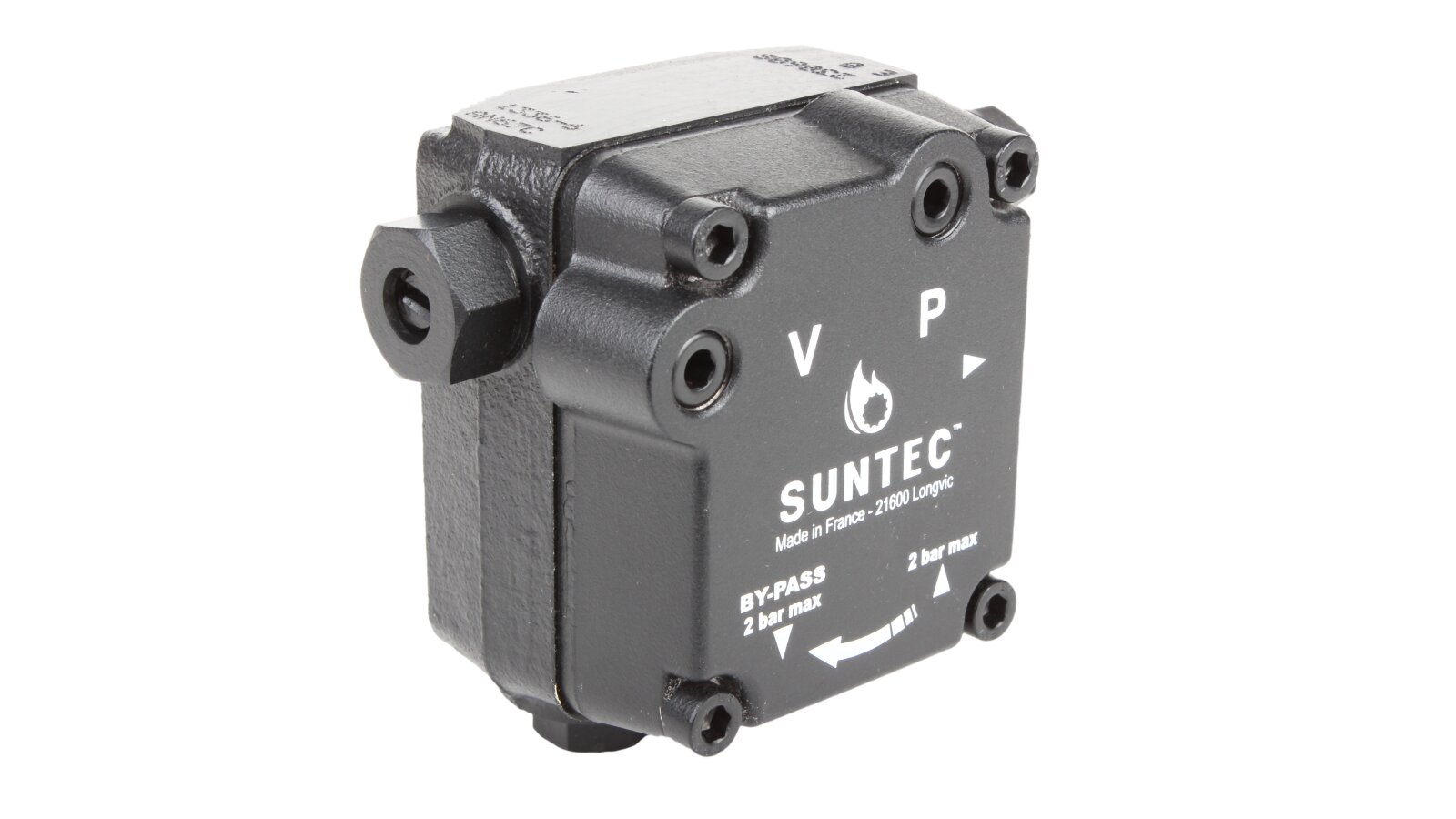

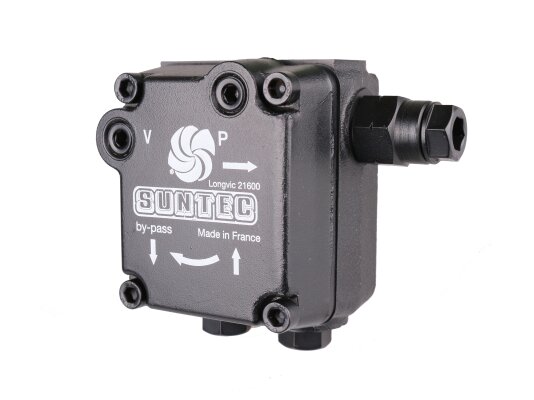

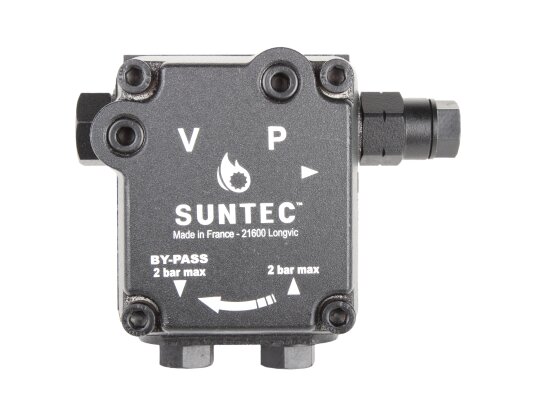

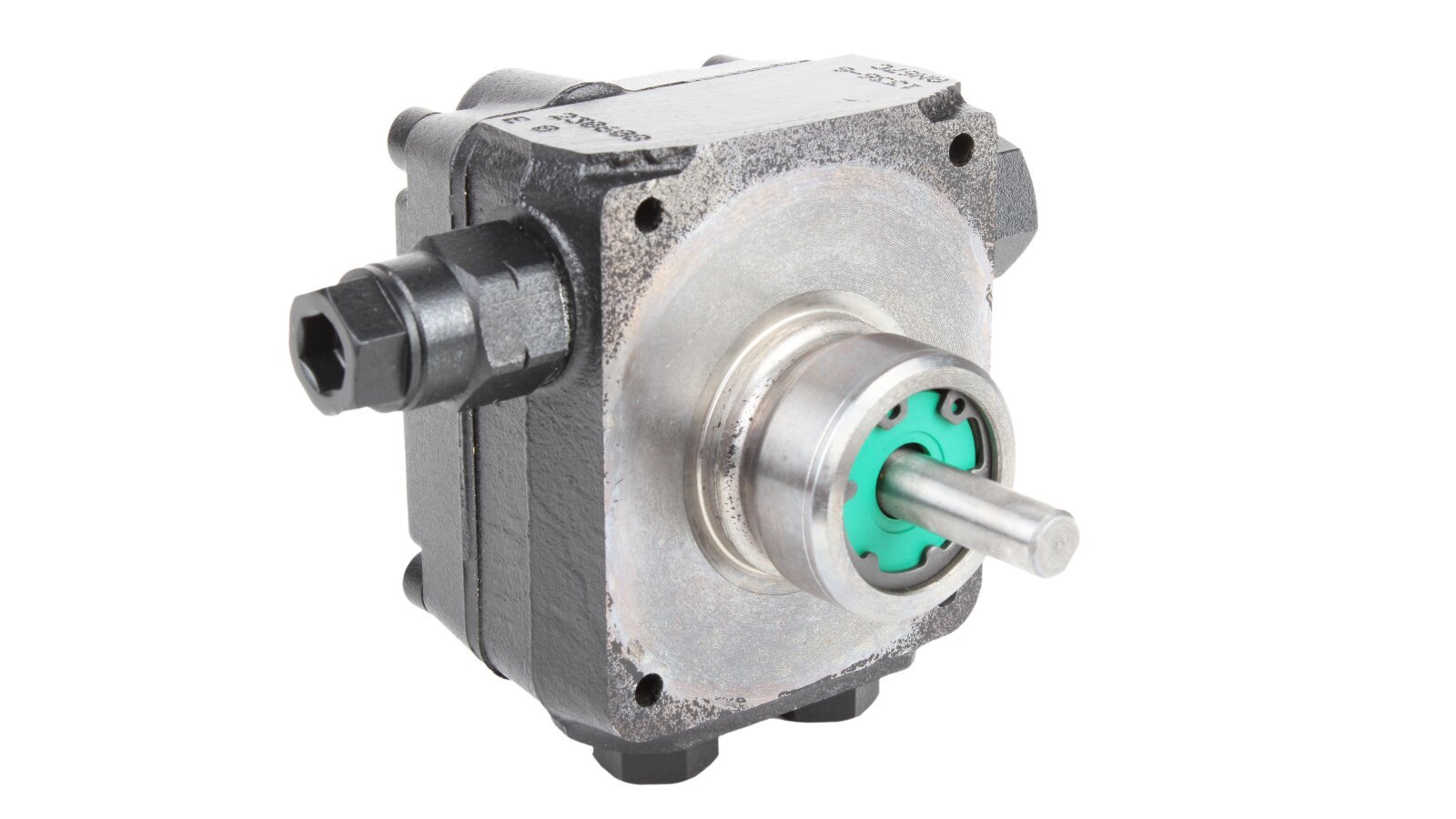

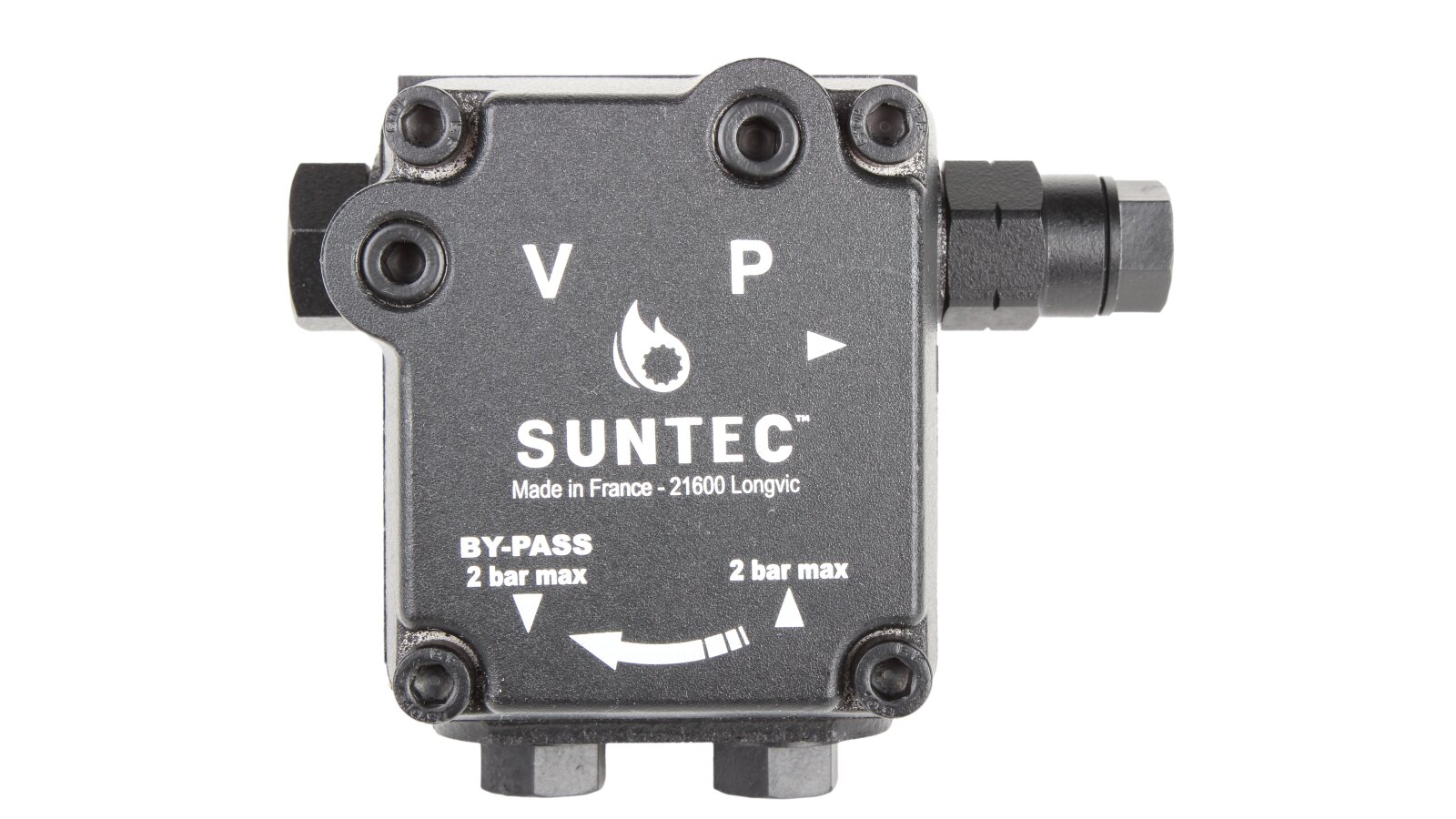

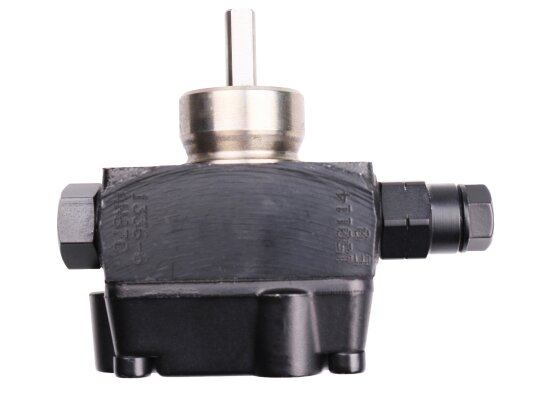

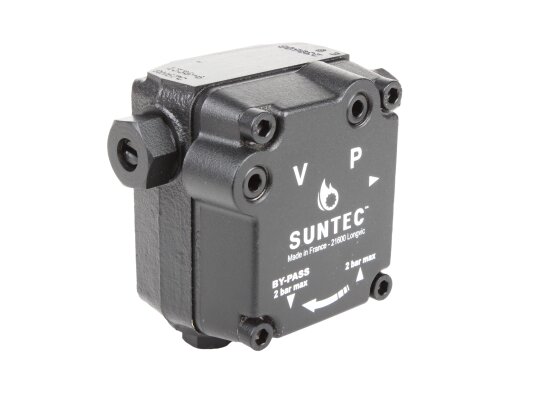

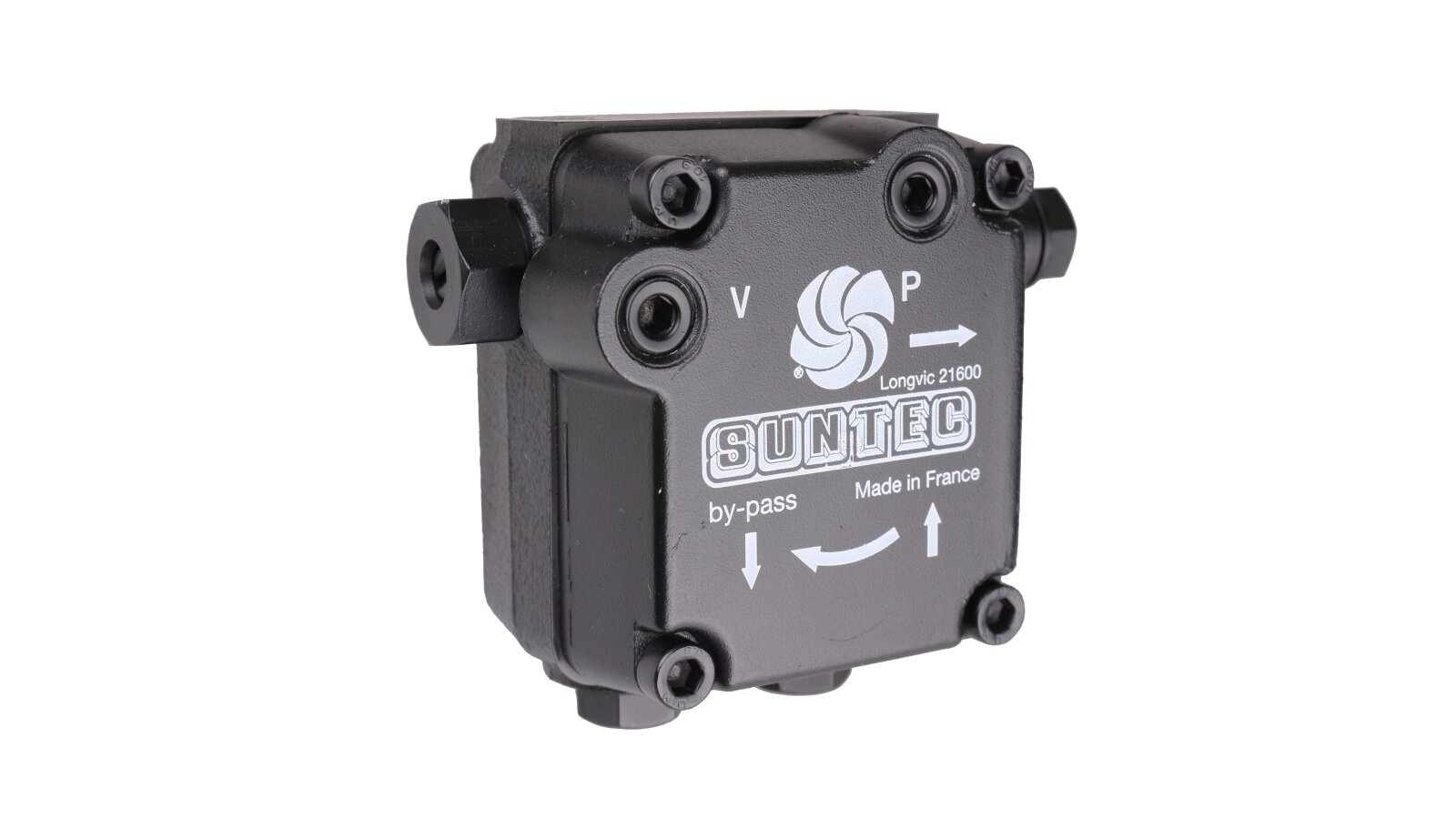

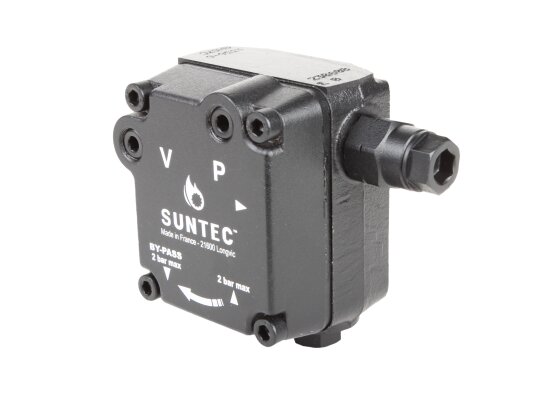

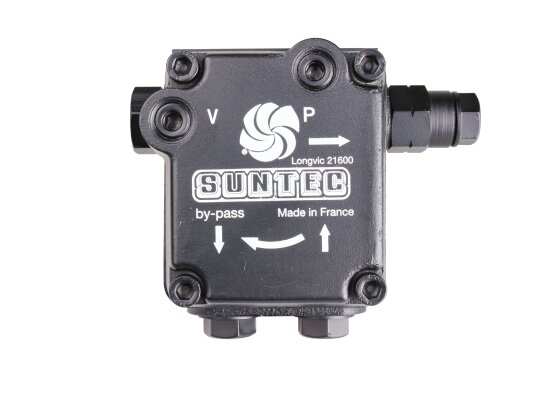

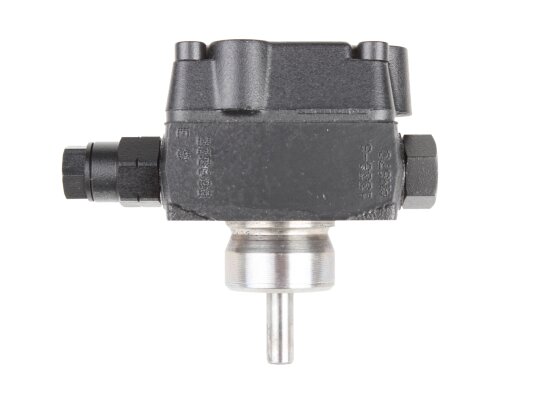

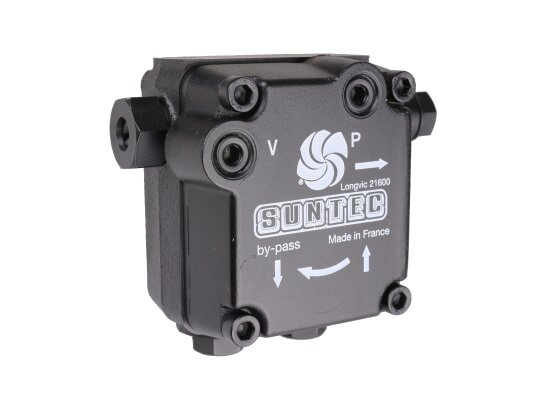

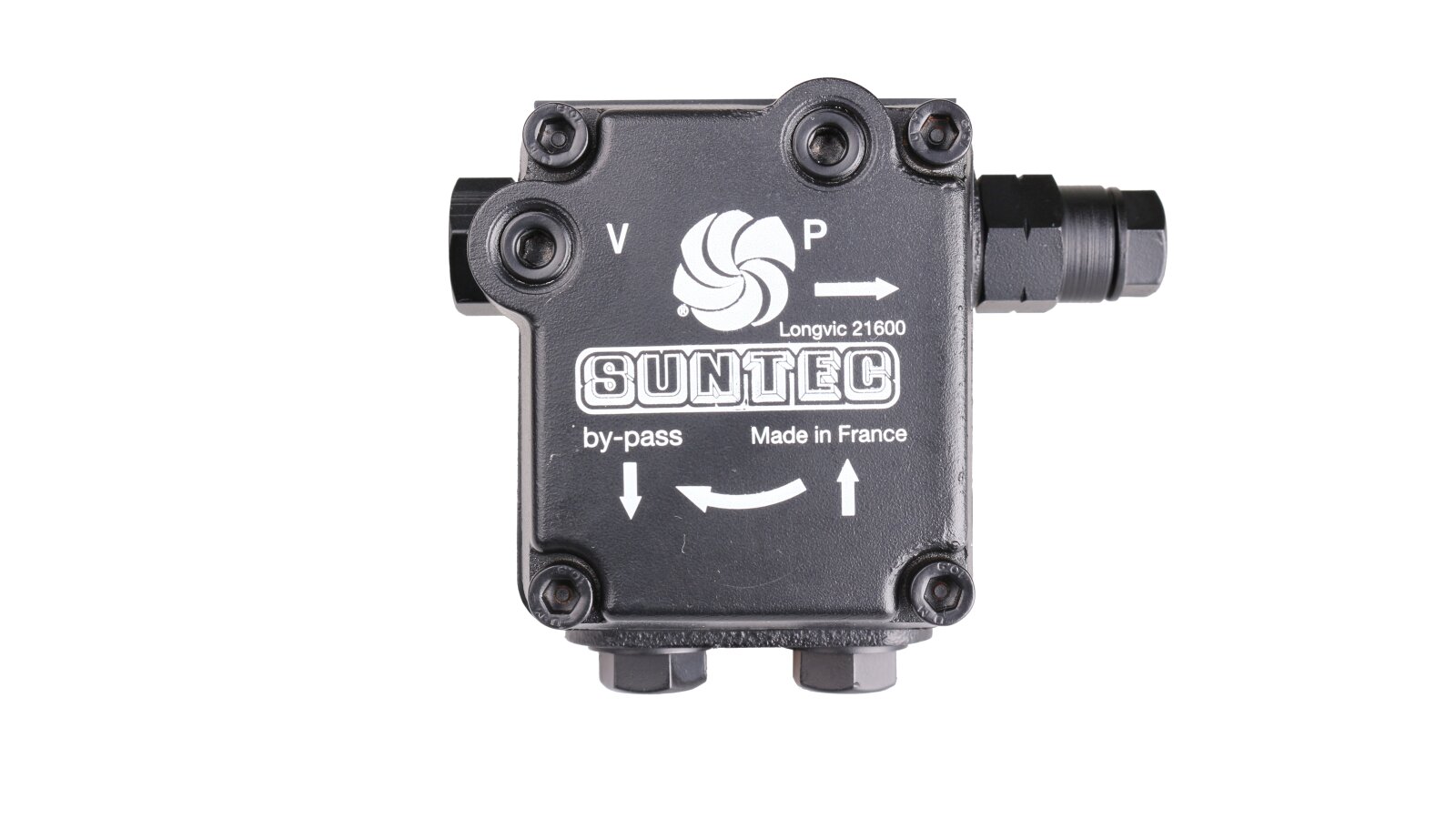

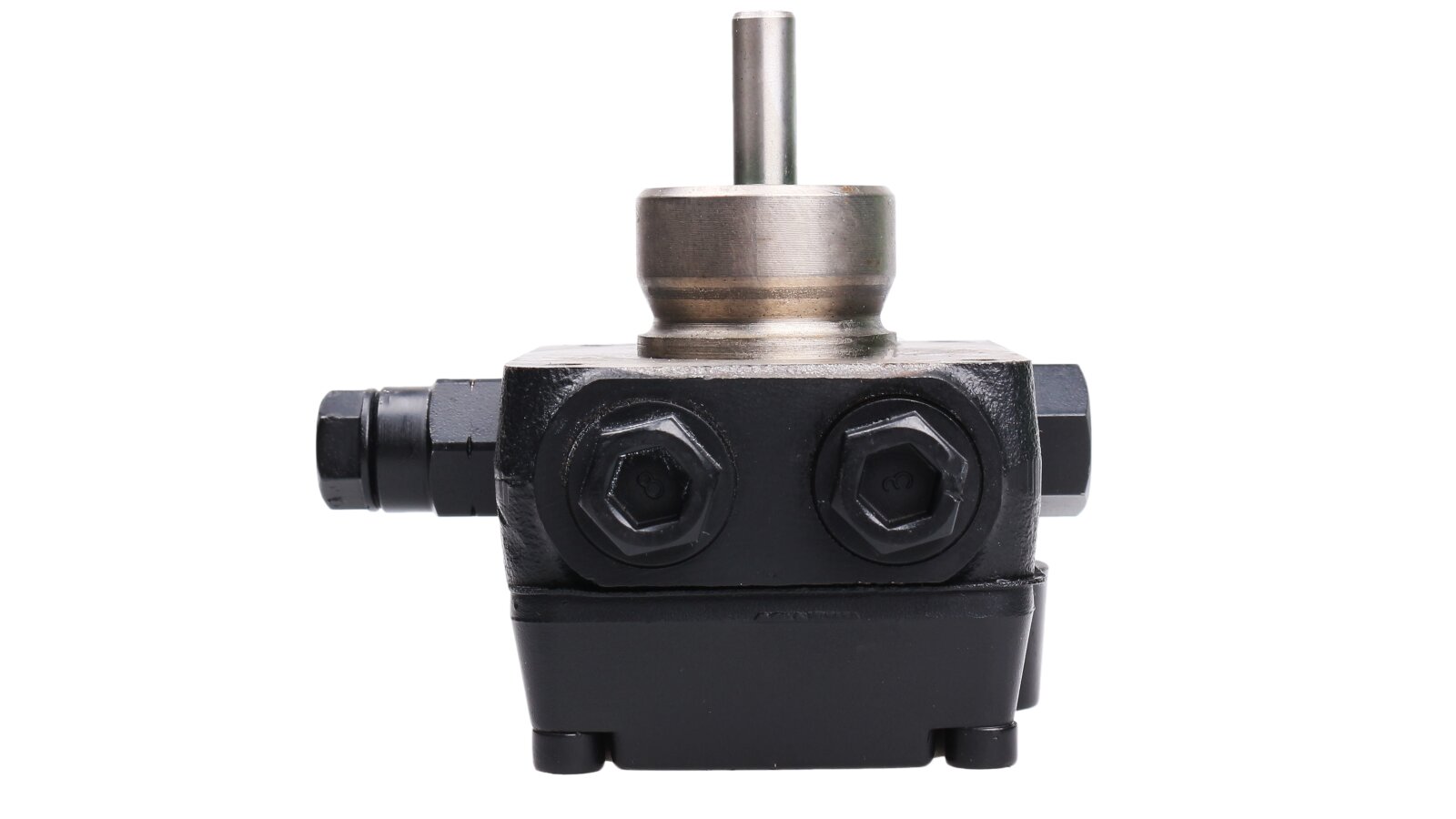

The single-stage gear pump AN 67 C 1336 6P is designed to complete liquid fuel heating systems. It was developed by specialists from the French company Suntec and meets all established quality requirements. This equipment does not require expensive maintenance and can operate for a long period of time without scheduled repairs.
In heating systems, the main task of the pump is to move fuel from the tank to the injectors. To maintain optimal operation, the temperature of the working mixture should be between 0 and +60 ° C, and the viscosity should be between 2 and 75 mm² / s.
The presented model can be used in two-pipe and one-pipe lines. When connecting to a 2-pipe line, no changes to the design are required. In case of connecting to a one-pipe line, it is necessary to remove the bypass plug and install a steel one with a washer on the return line.
Technical data:

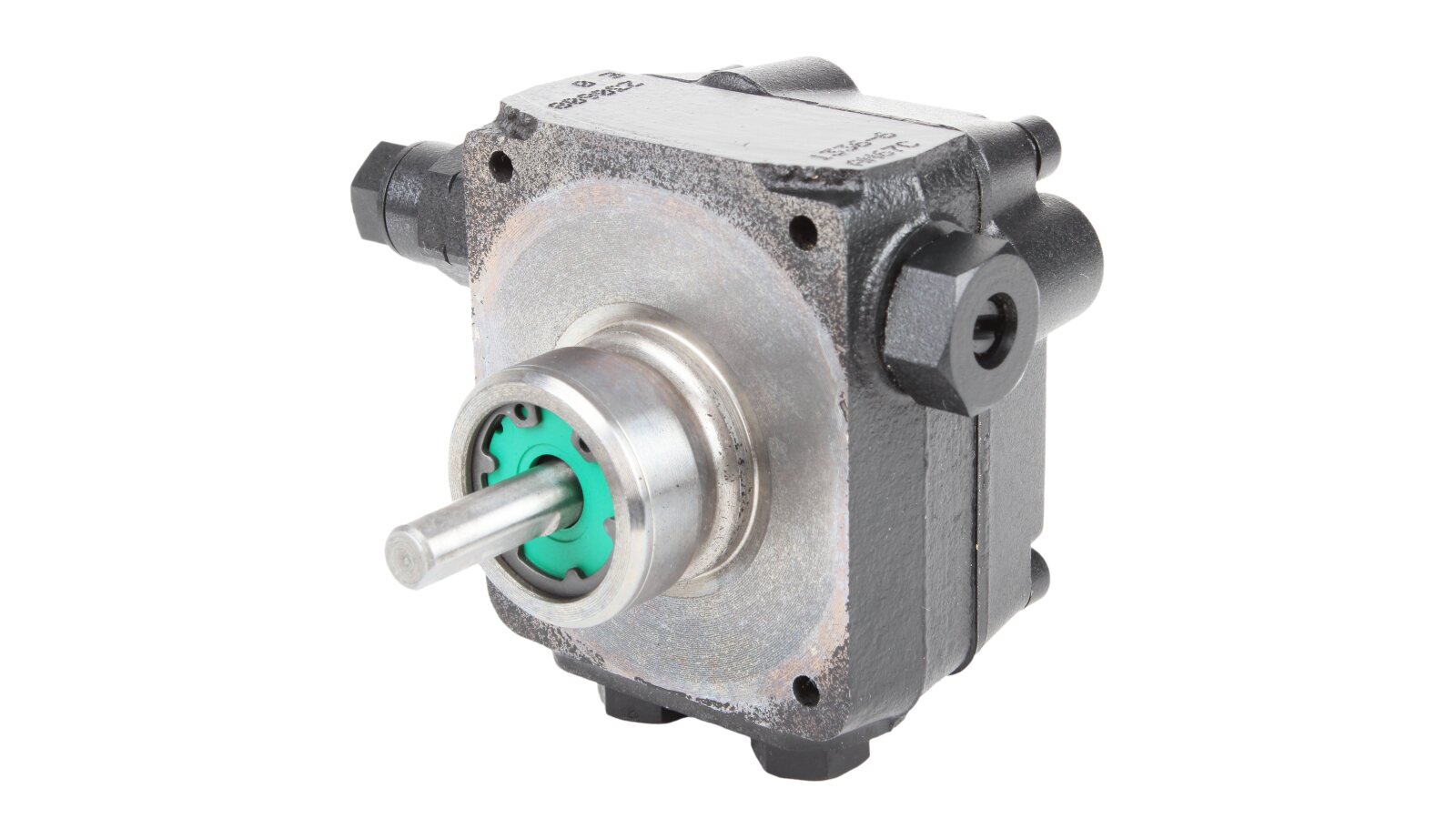

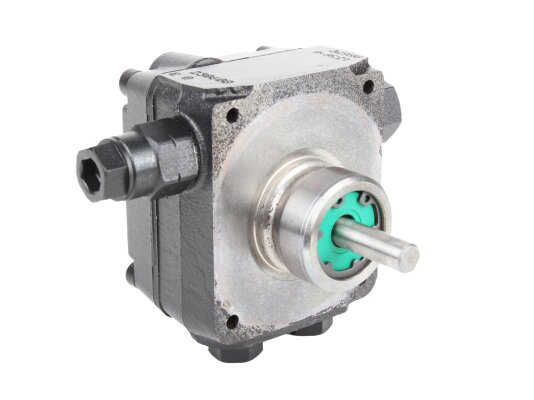

sleeve mount with a diameter of 32 mm;
counterclockwise rotation of the axis;
torque — 0.12 N m;
fuel feed rate — 79 l/h at a pressure of 11 bar;
pressure on the injector line within 10-20 atm;
small weight — 1.2 kg;
Main advantages:
there is a pre-filter for cleaning the combustible mixture with an open area of 6 cm²;
there are standard ports according to ISO 228/1 for installing a pressure gauge and vacuum gauge;
the presence of a regulating valve with a shut-off function.
The connection of fuel lines is carried out using a cylindrical thread G⅛" and G¼".
When integrating the pump into the system, it is recommended to use an additional filter designed for fine cleaning of fuel.
The company "ANKAS" offers to buy a pump for a diesel burner AN 67 C 1336 6P at a bargain price. We always have a large selection of equipment and components for heating systems. Applications for delivery are accepted directly on the website online.
