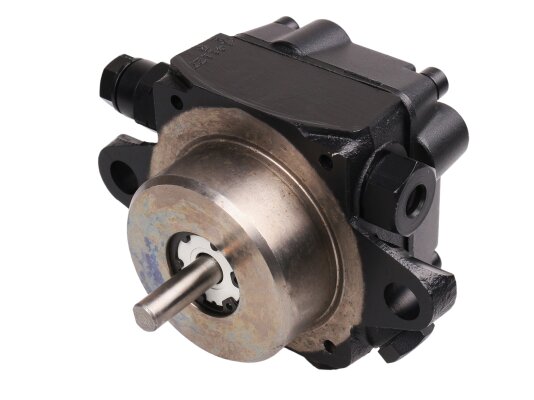

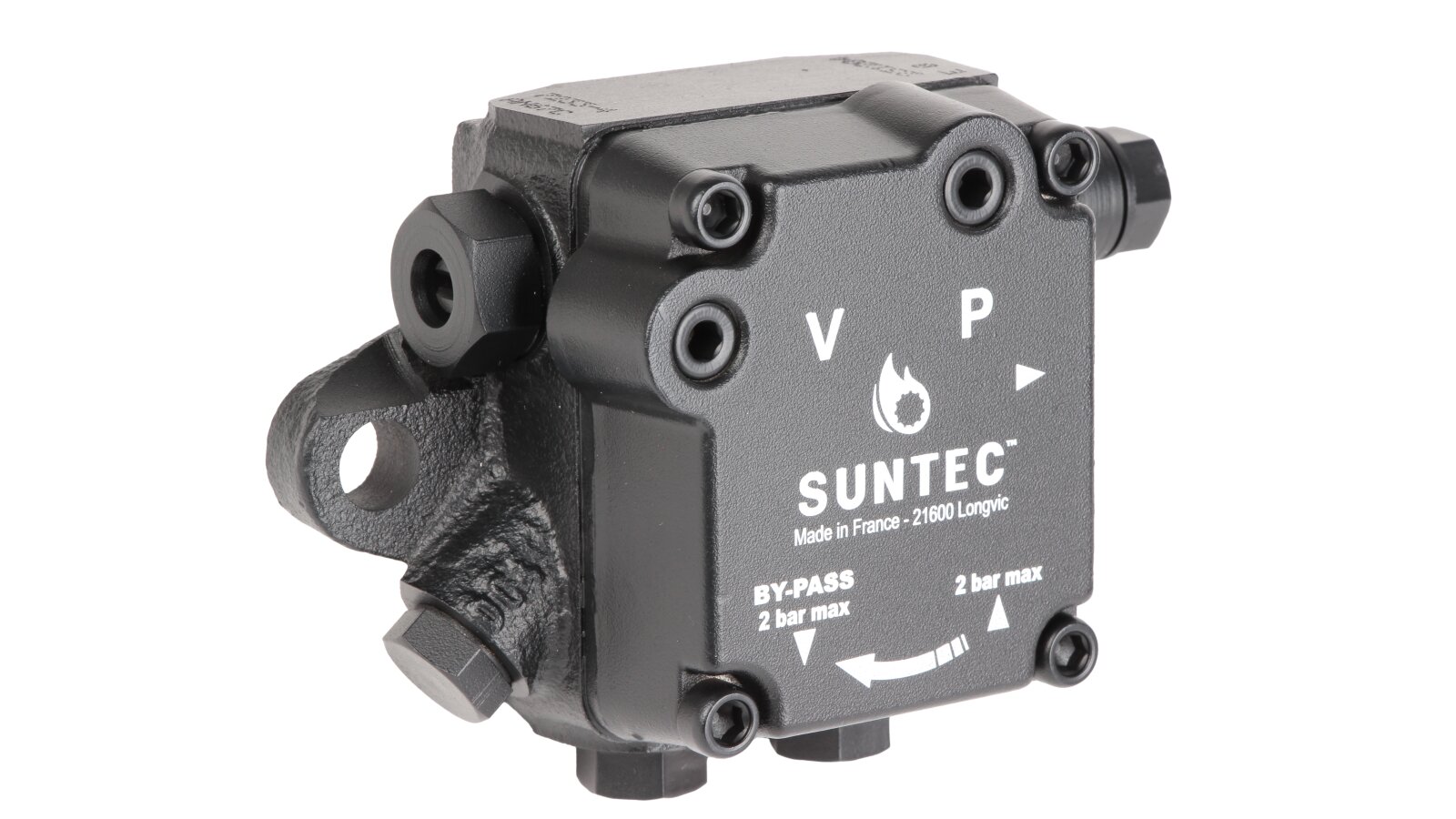

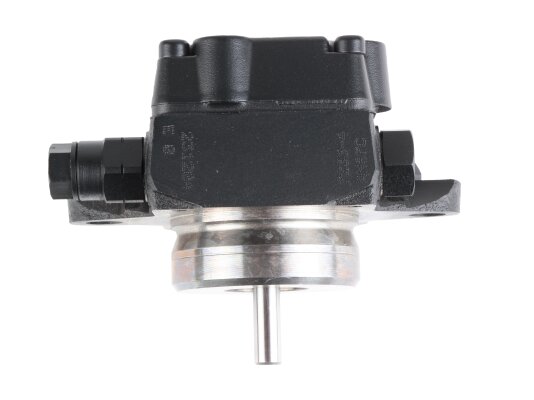

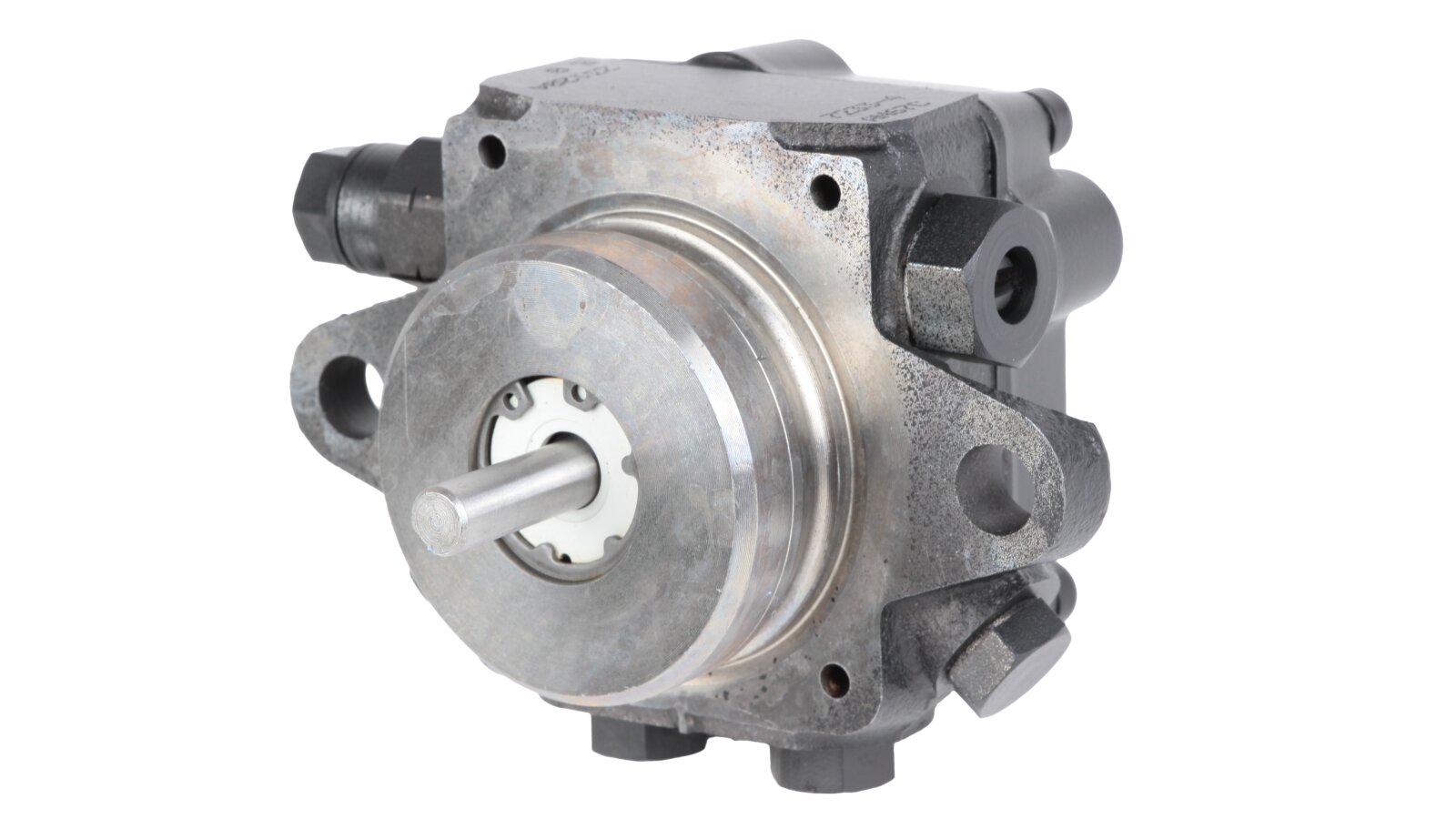

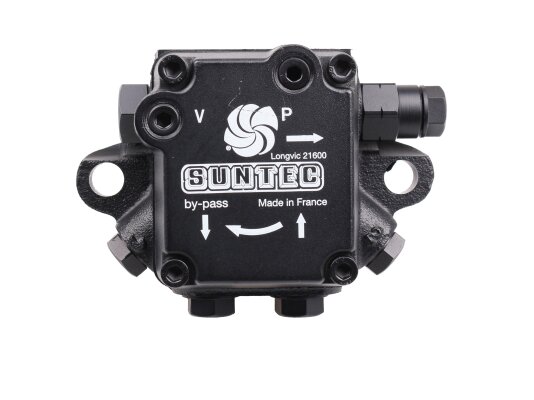

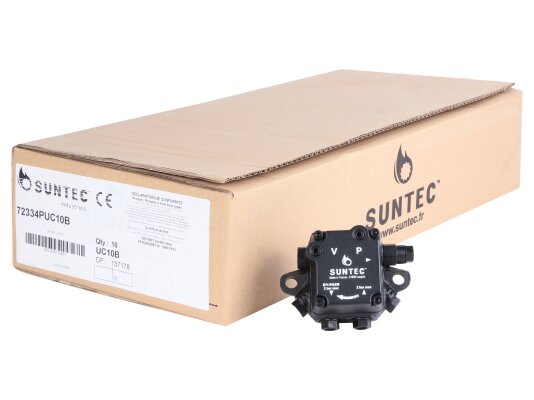

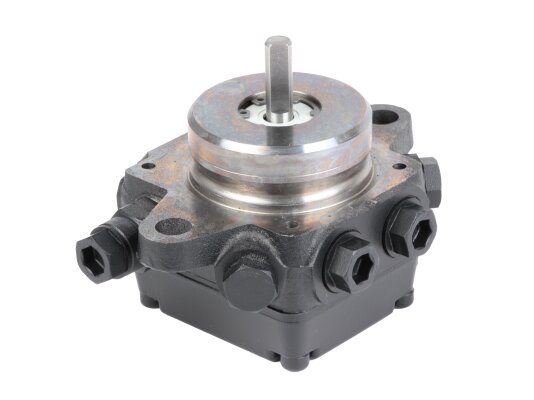

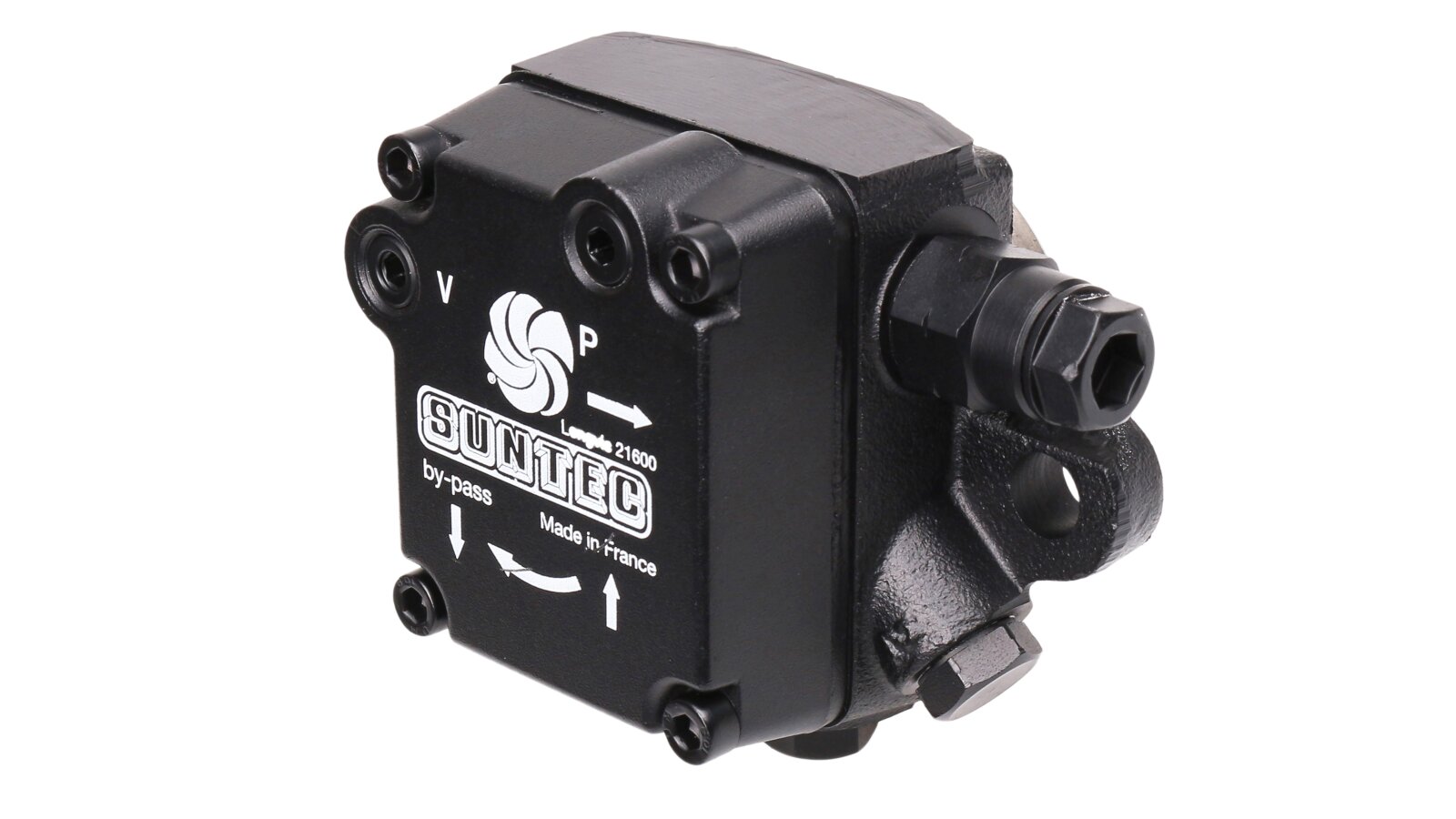

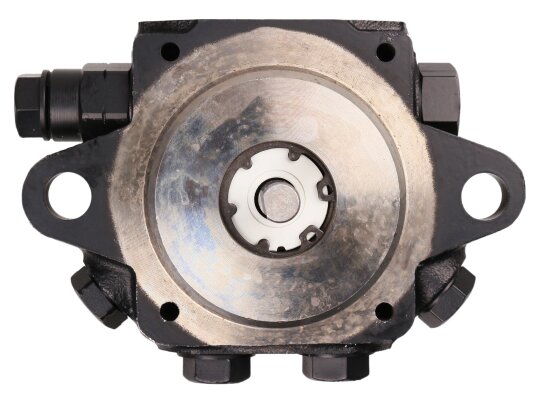

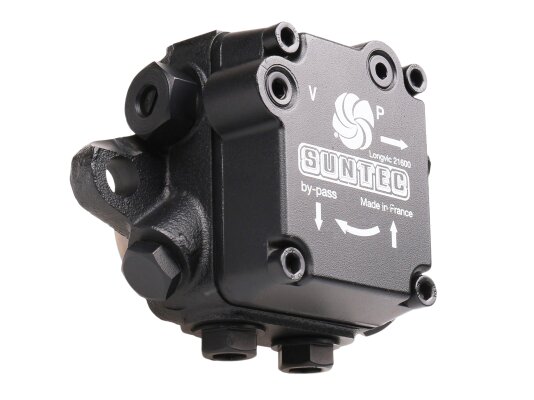

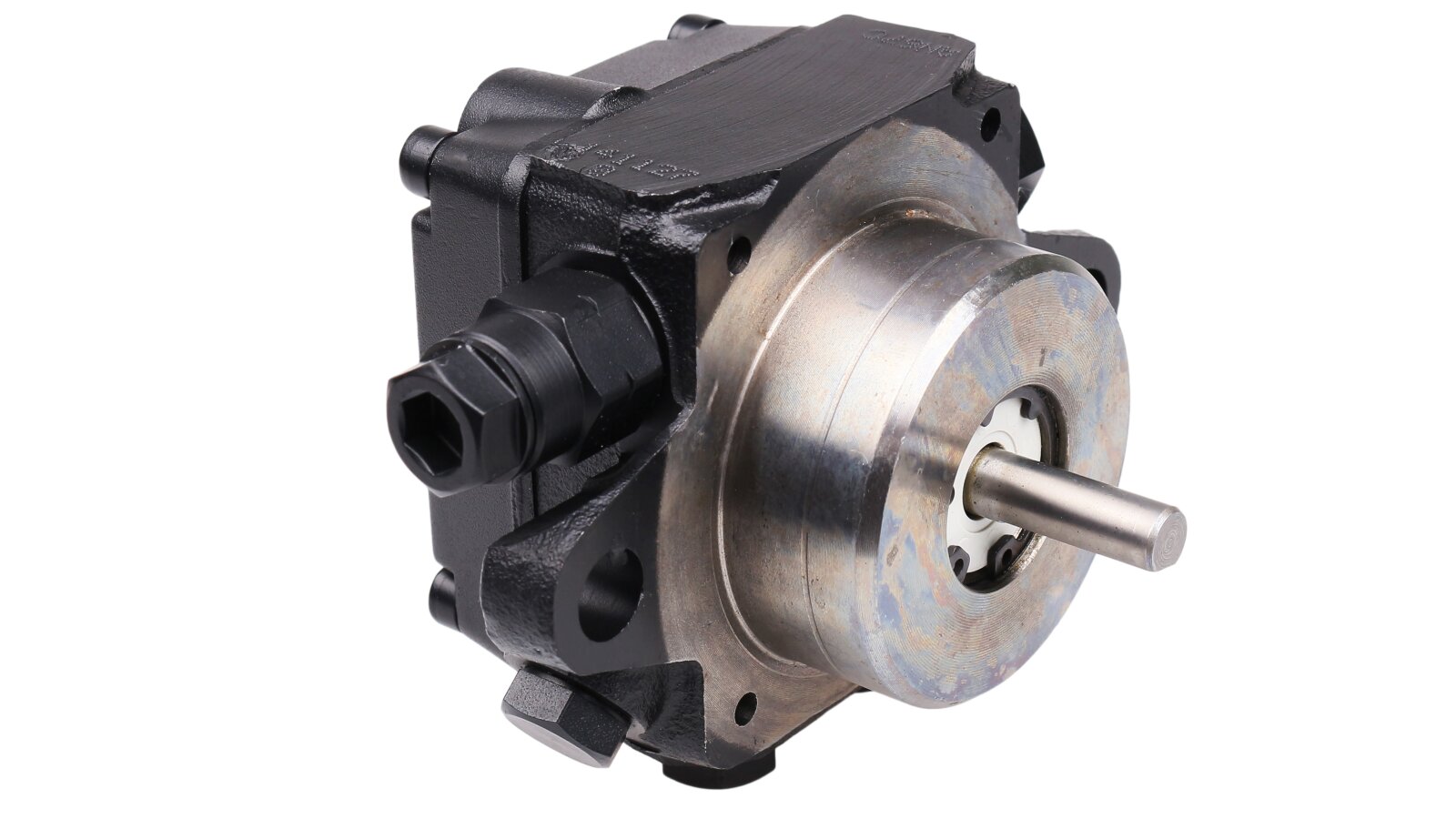

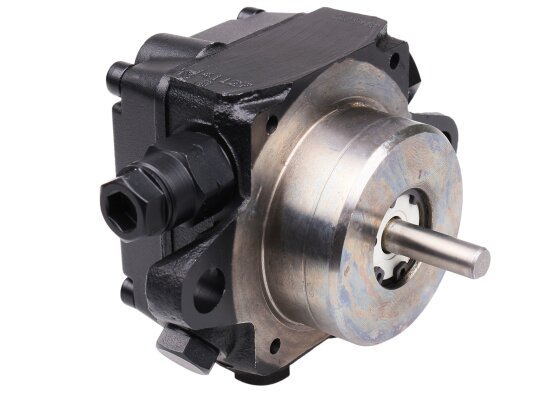

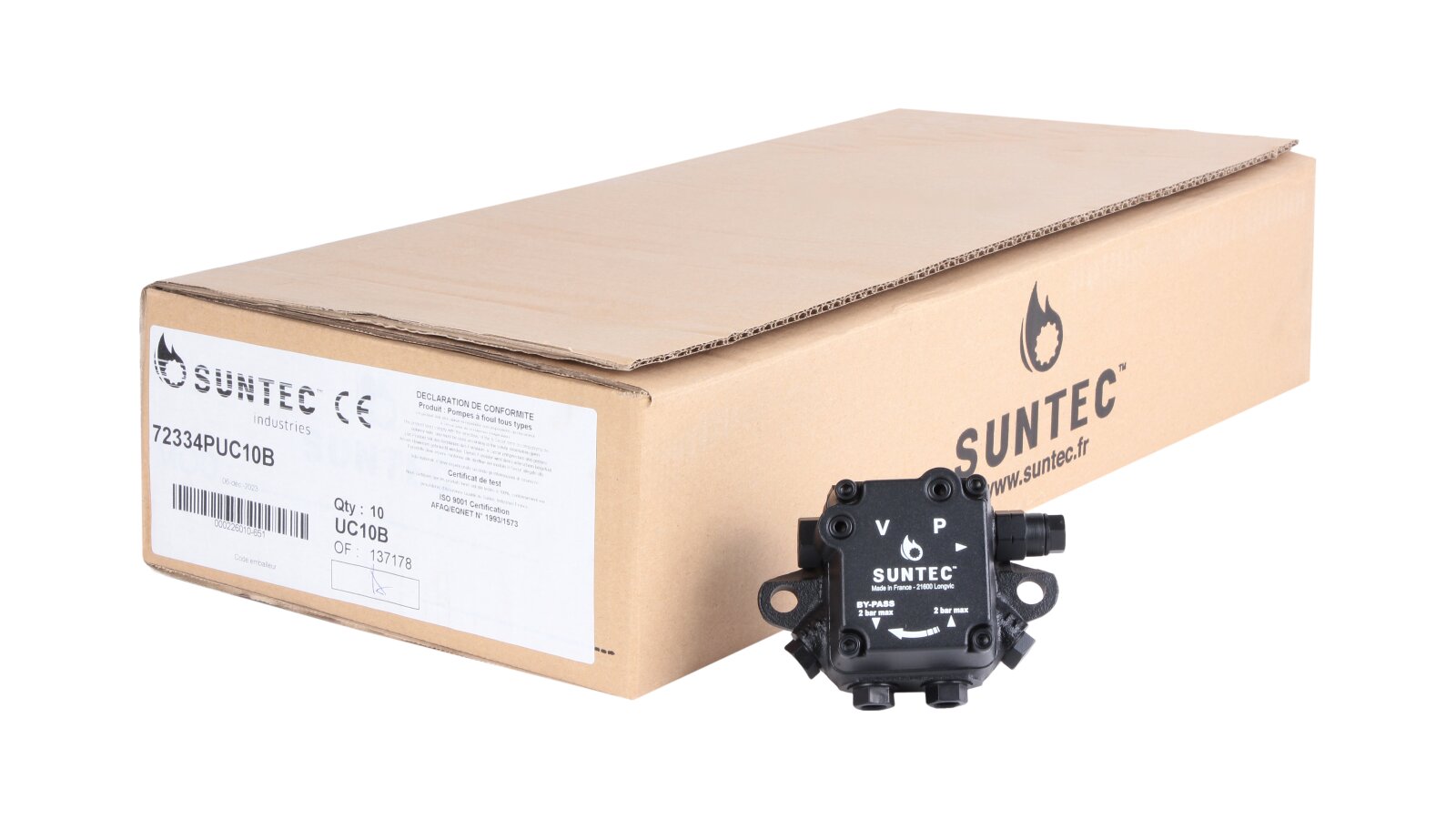

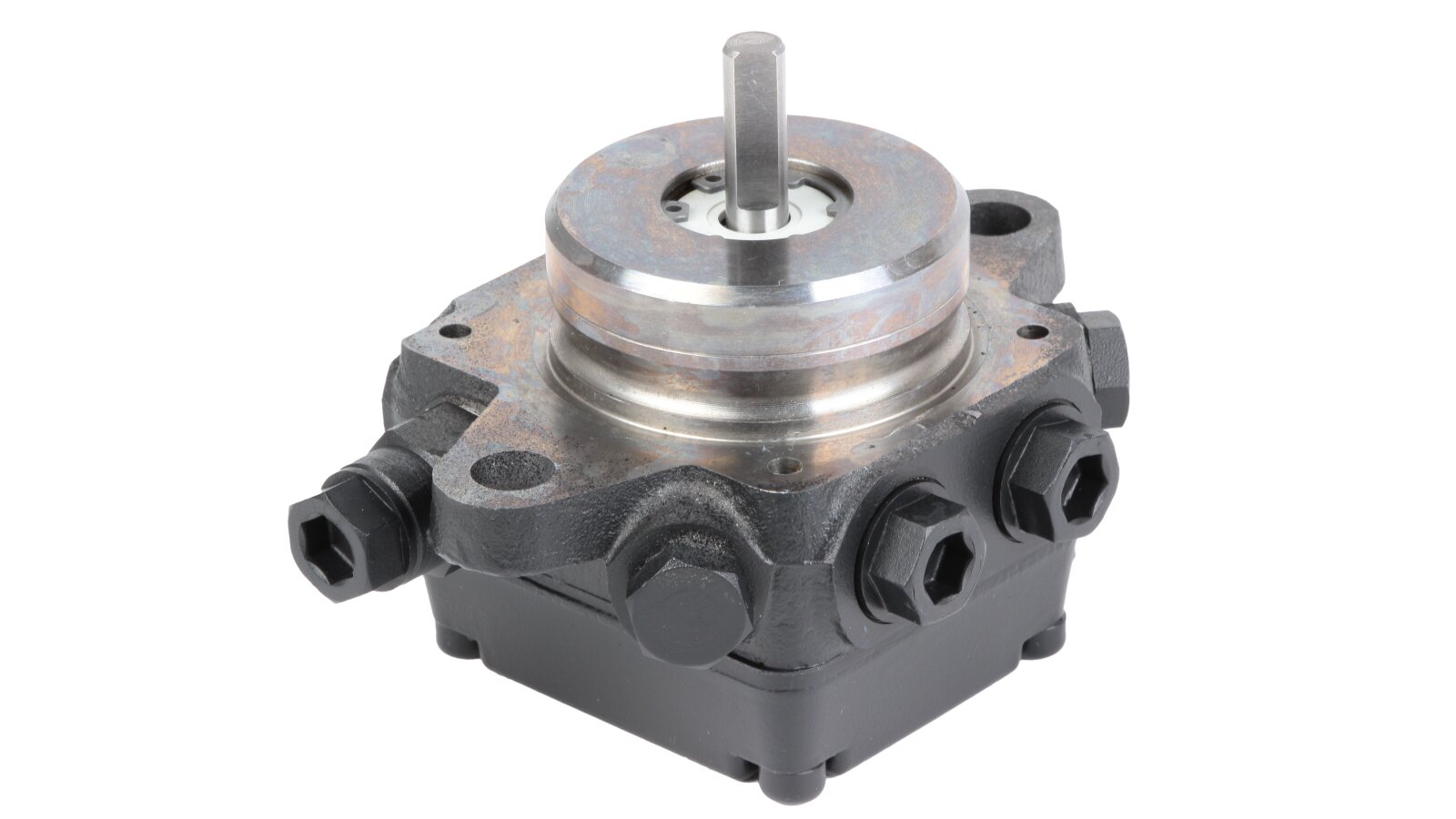

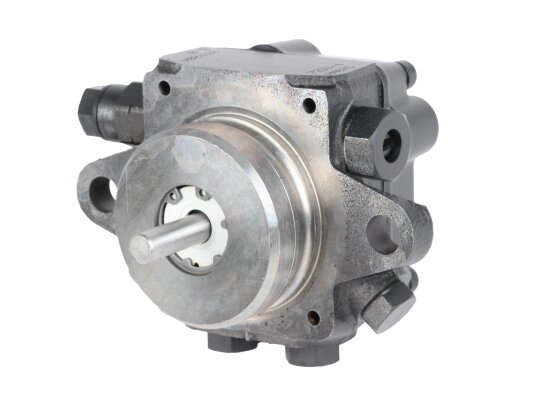

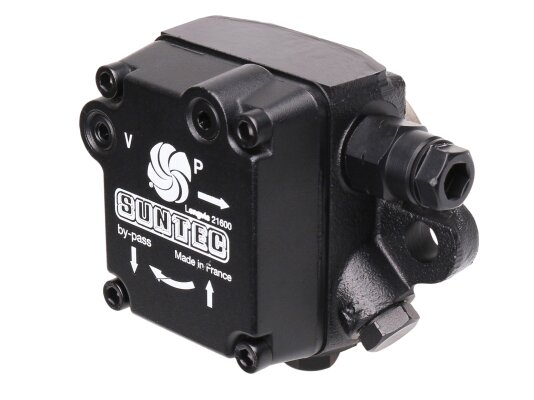

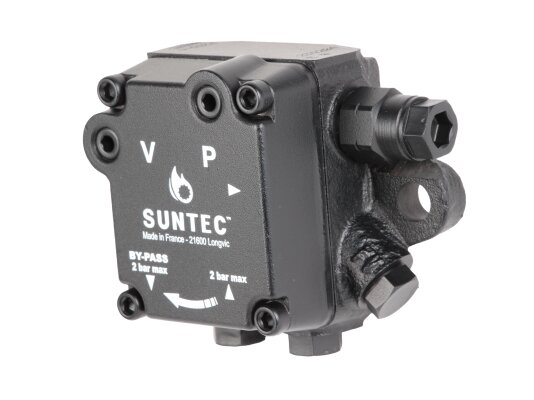

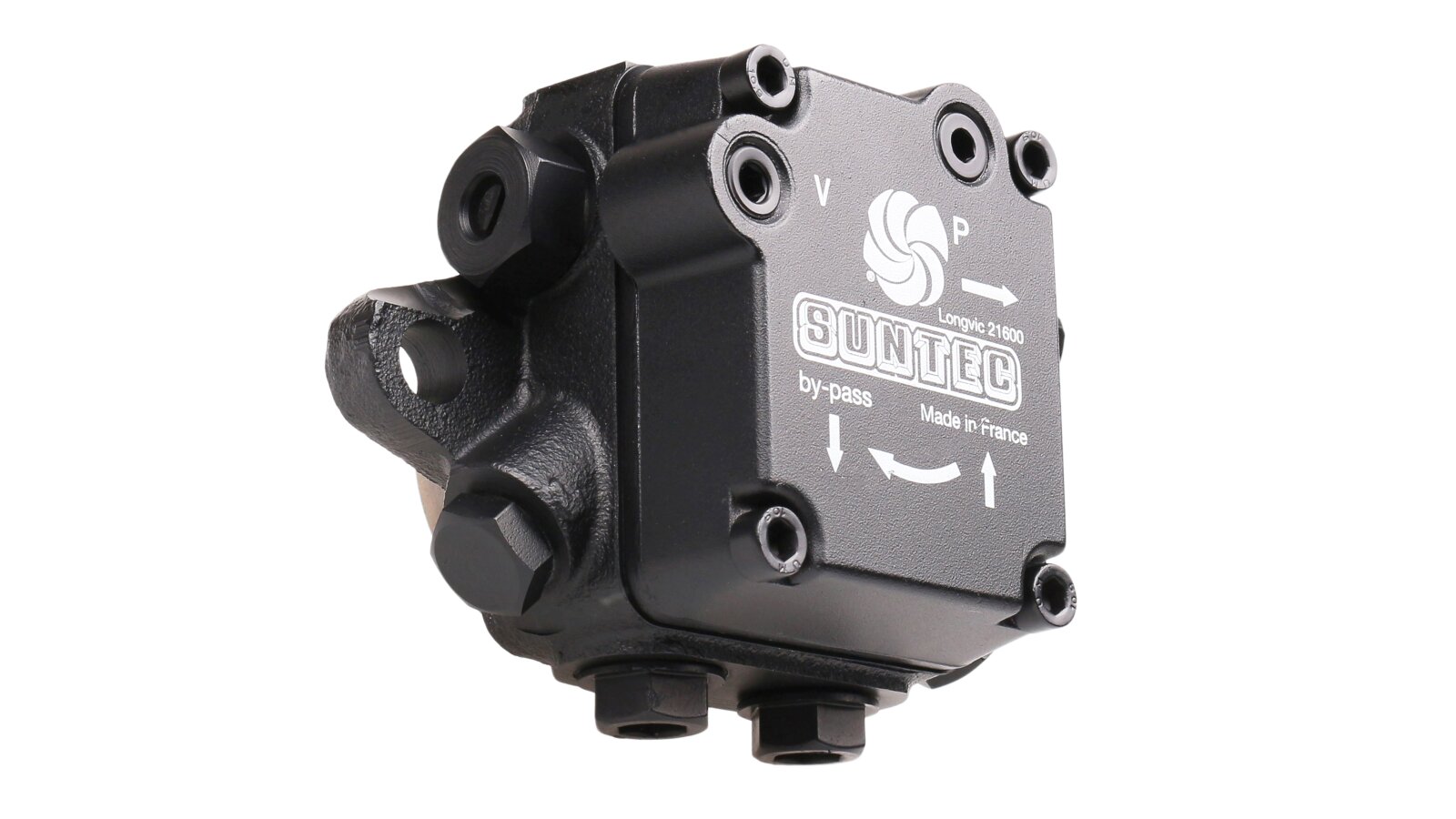

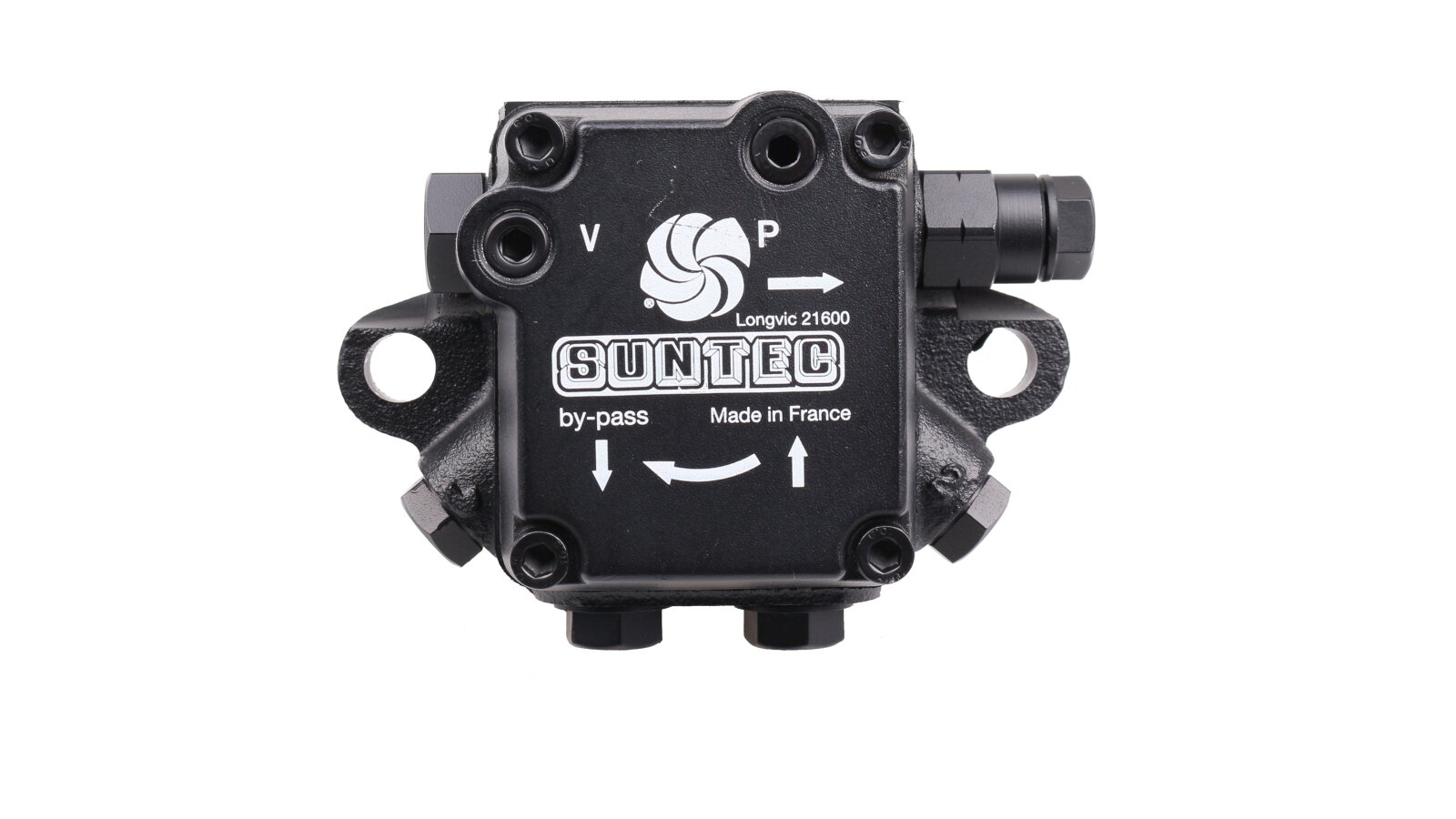

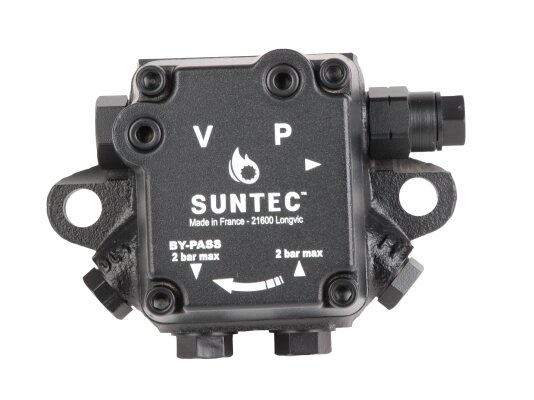

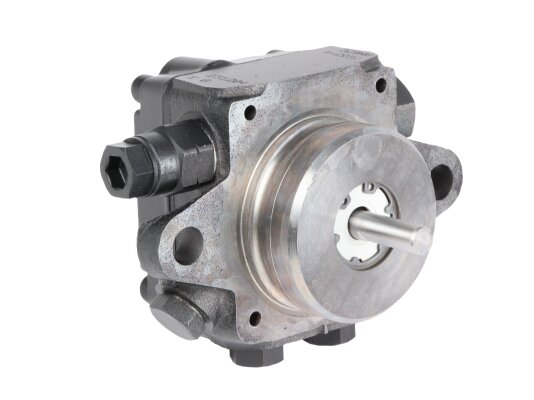

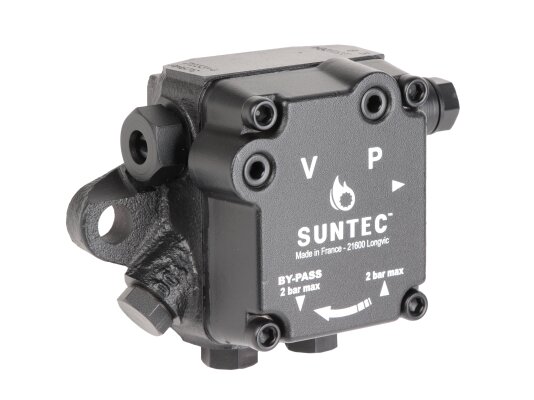

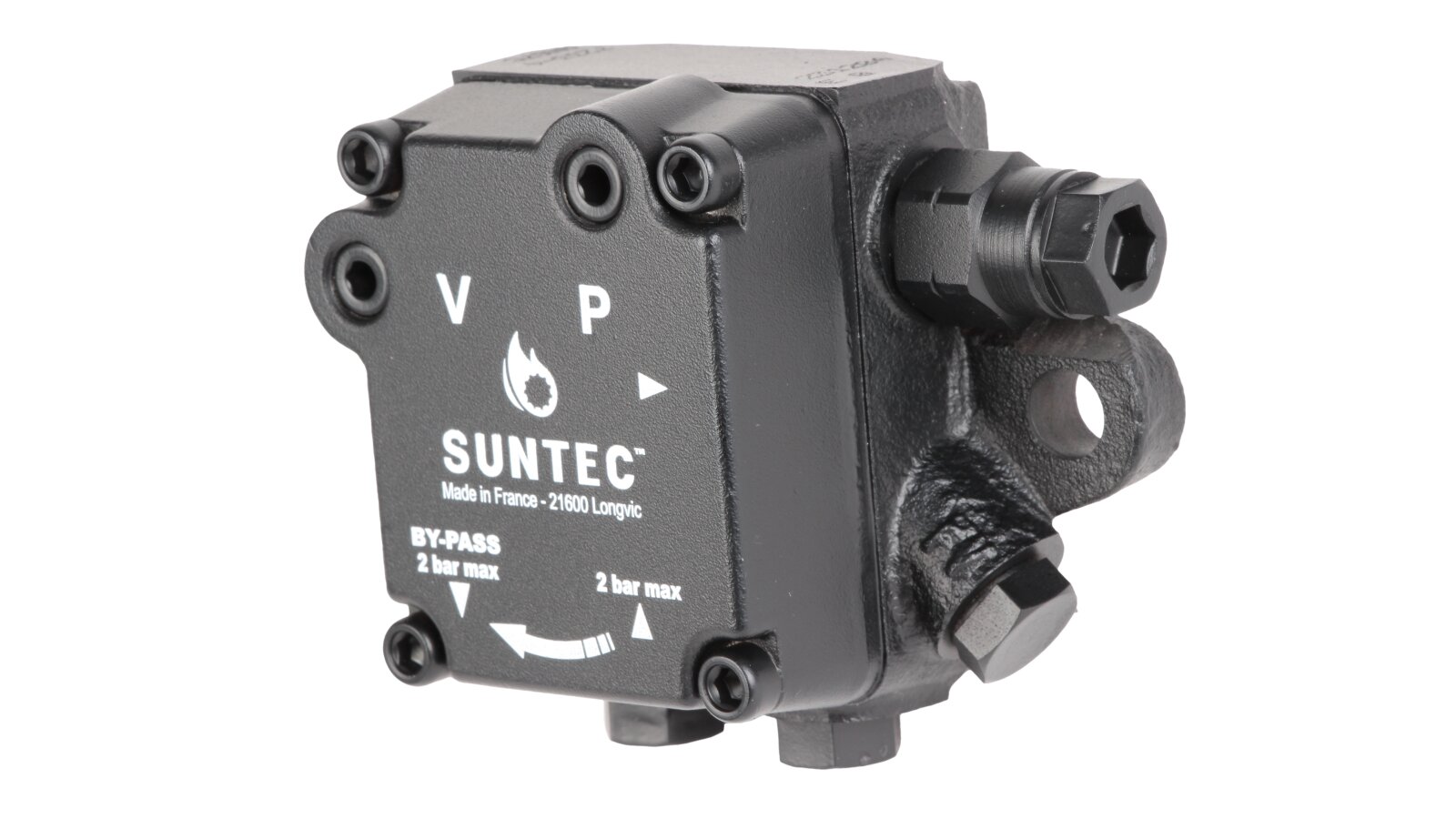

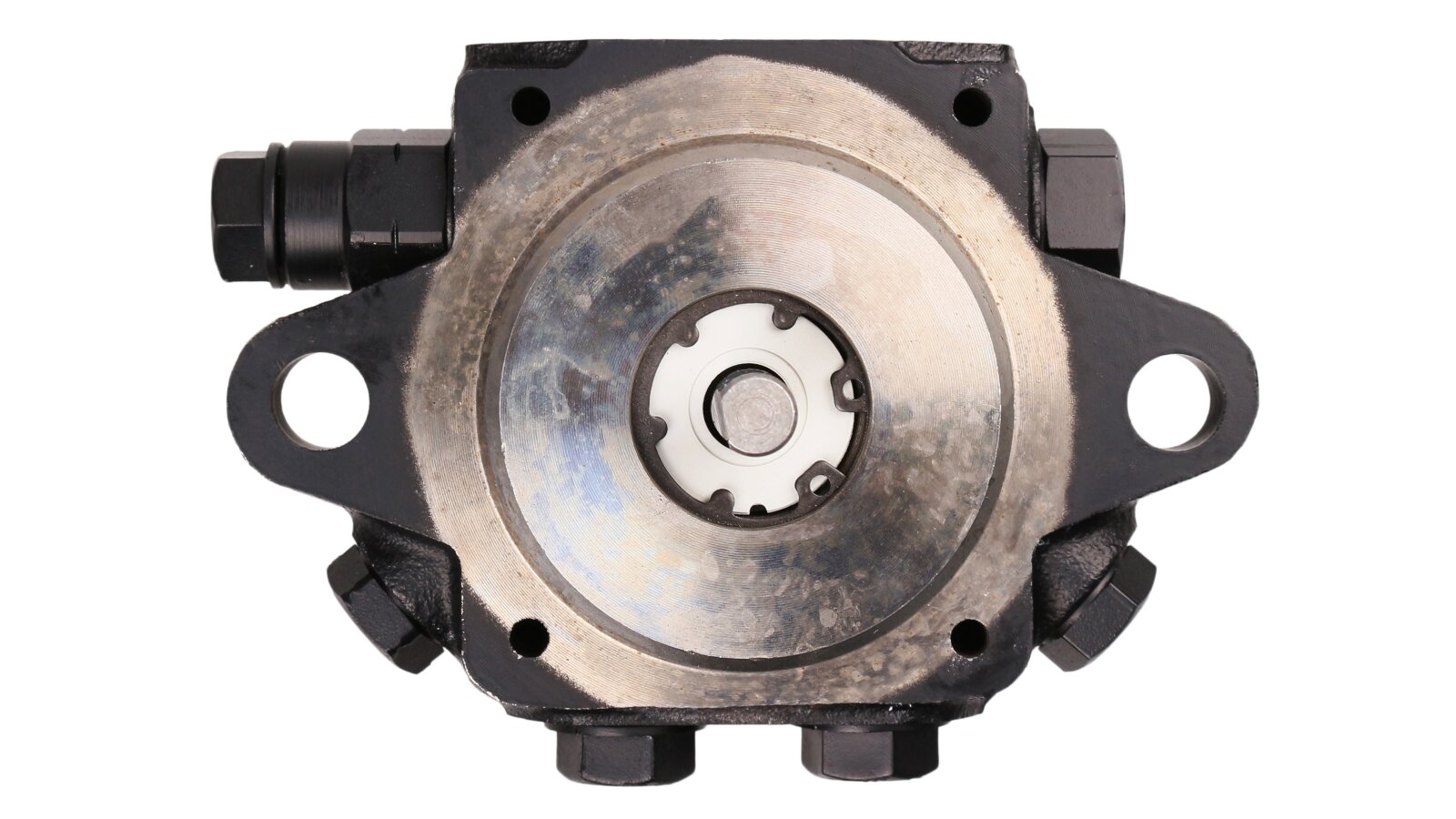

Burner Pump Suntec AN 67 C 7233 4P

Suntec
AED 625
  1. Oil Burner Pumps

Description

The single-stage pump model AN 67 C 7233 4P is used in pressurized liquid fuel burners, where it supplies diesel fuel under various (10-20 bar) pressure. This gear device with a shut-off and control valve was developed by the well-known manufacturer "Santek" (France). In the factory version, such a unit is installed in two-pipe systems. It is also possible to install it in 1-pipe circuits, but for this, the return line should be blocked with a steel plug, and the bypass plug should be removed using a 4 mm Allen key.

Technical features

  • From the factory, the model is set to a liquid pressure of 1.4 MPa. Users can manually change the specified value up or down.

  • The AN 67 C 7233 4P burner pump is suitable for pumping media of various viscosities (2-75 mm²/s) and temperatures (from 0 to +60°C).

  • There is a direct proportional relationship between the engine speed (its maximum value is 3600 rpm) and the unit's performance.

Important! To increase the durability and reliability of the injectors, it is recommended to additionally install a filter on the pressure section that provides fine cleaning.

Basic advantages

  • Compactness and low weight of the unit (1.2 kg), which simplifies its transportation and installation.

  • The presence of a mesh filter that performs preliminary cleaning of the fuel from suspended particles of 150 microns and more.

  • Optimum performance - at a pressure of 11 bar equals 79 l / h.

  • There are ports for connecting a vacuum gauge and a pressure gauge (G⅛"), meeting the requirements of ISO 228/1.

As an official dealer of leading manufacturers of equipment and components for heating systems, the company "ANKAS" offers to buy inexpensive pumps for burners Elco, Baltur, Weishaupt, Lamborghini and other brands. You can place an order through our website or by phone.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 79 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 79 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmShaft diameter: 8 mmTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barInstallation method: flange ∅ 54 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmType of pumped liquid: diesel
