Description

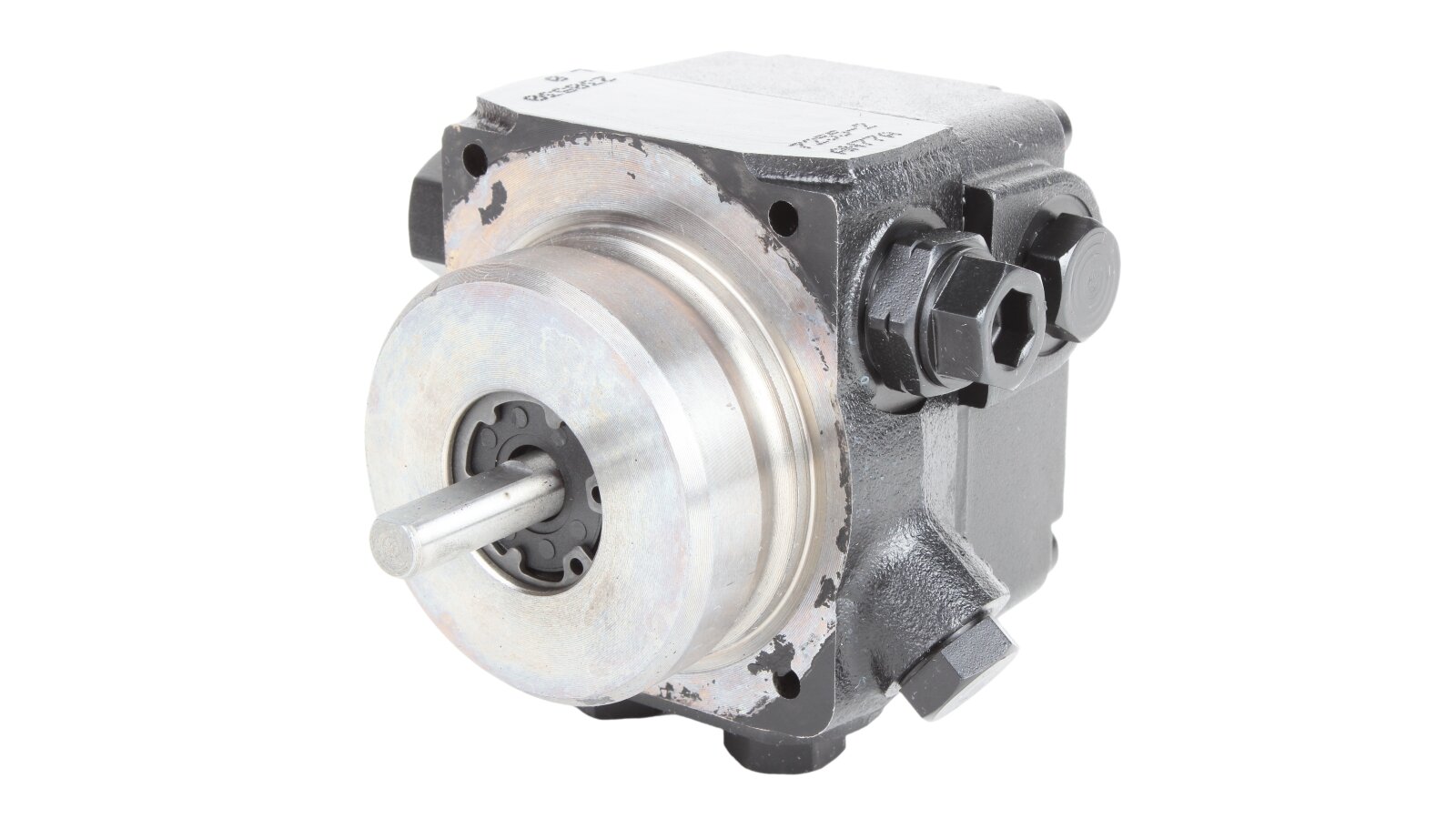

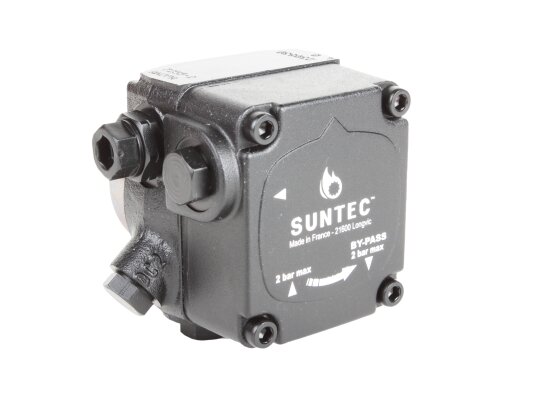

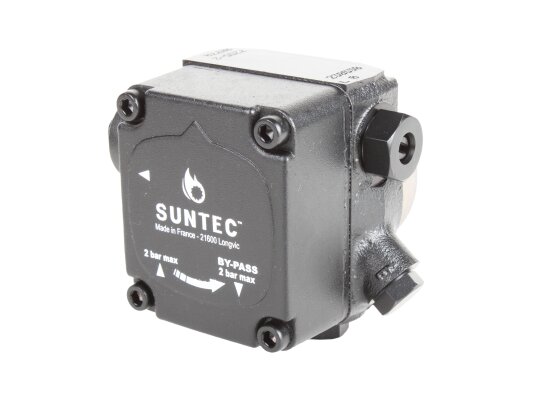

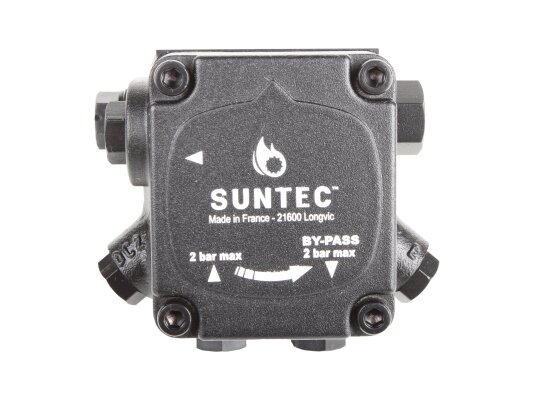

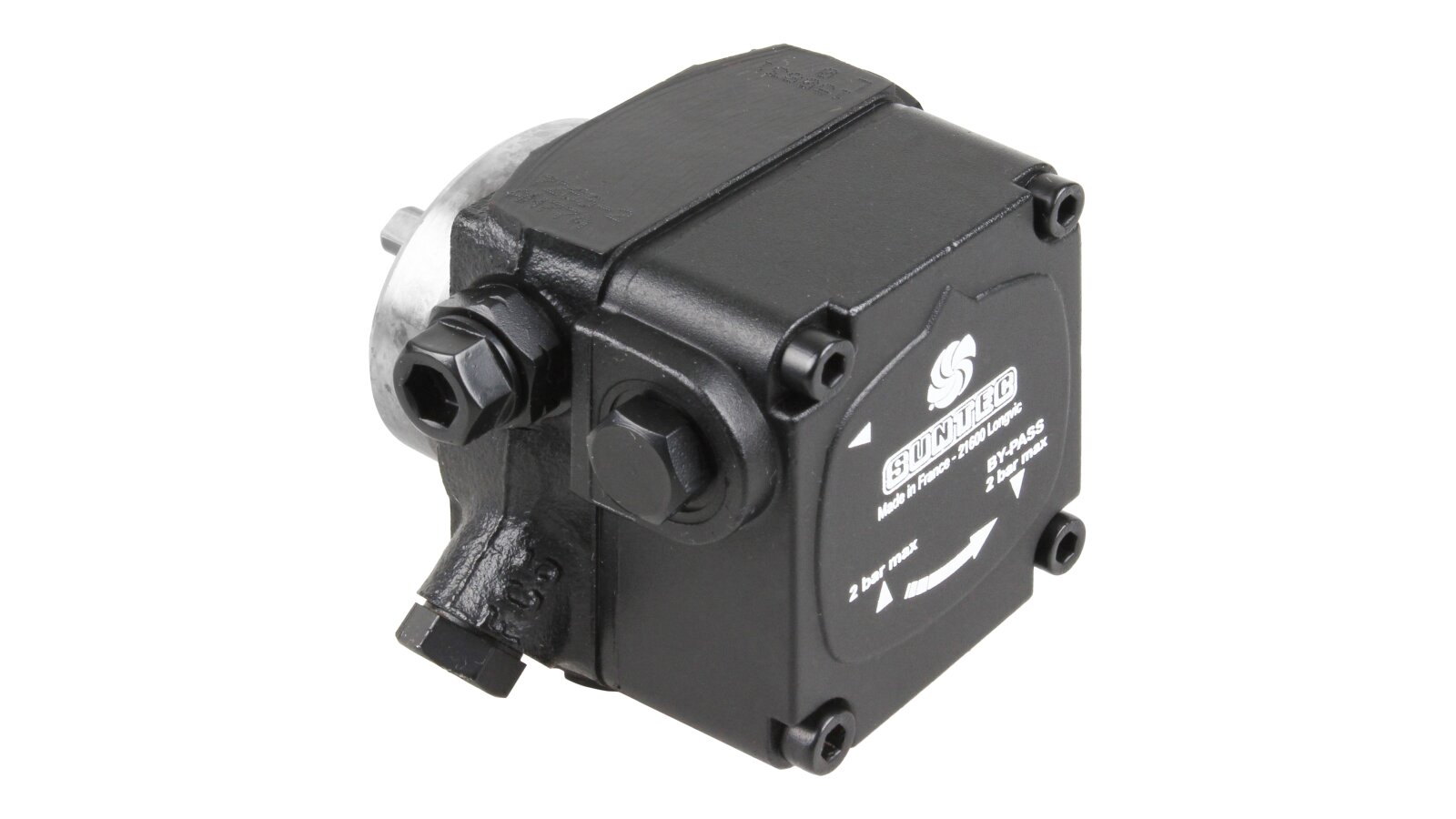

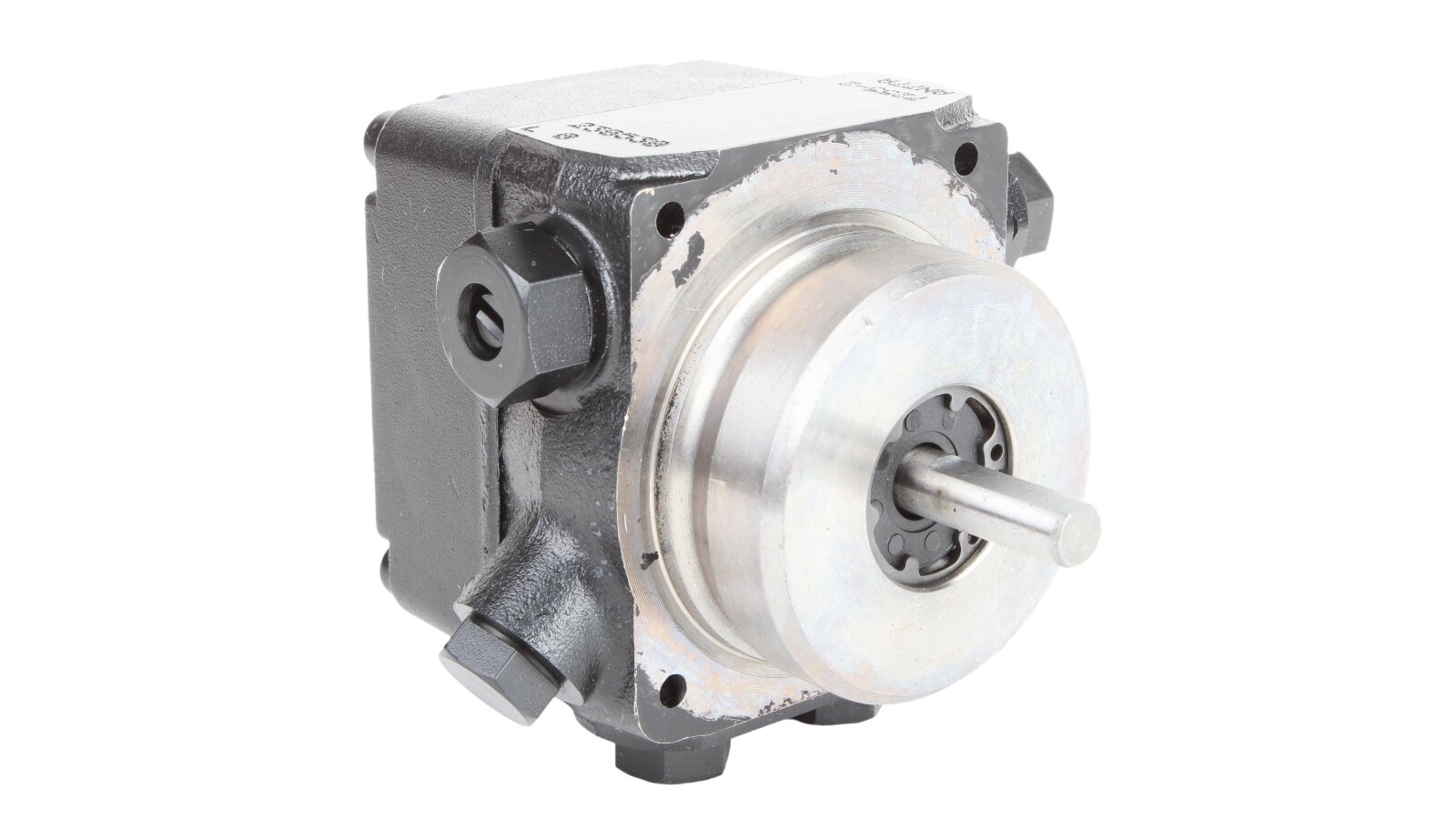

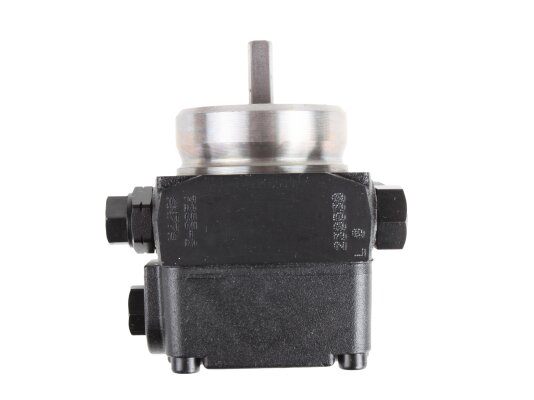

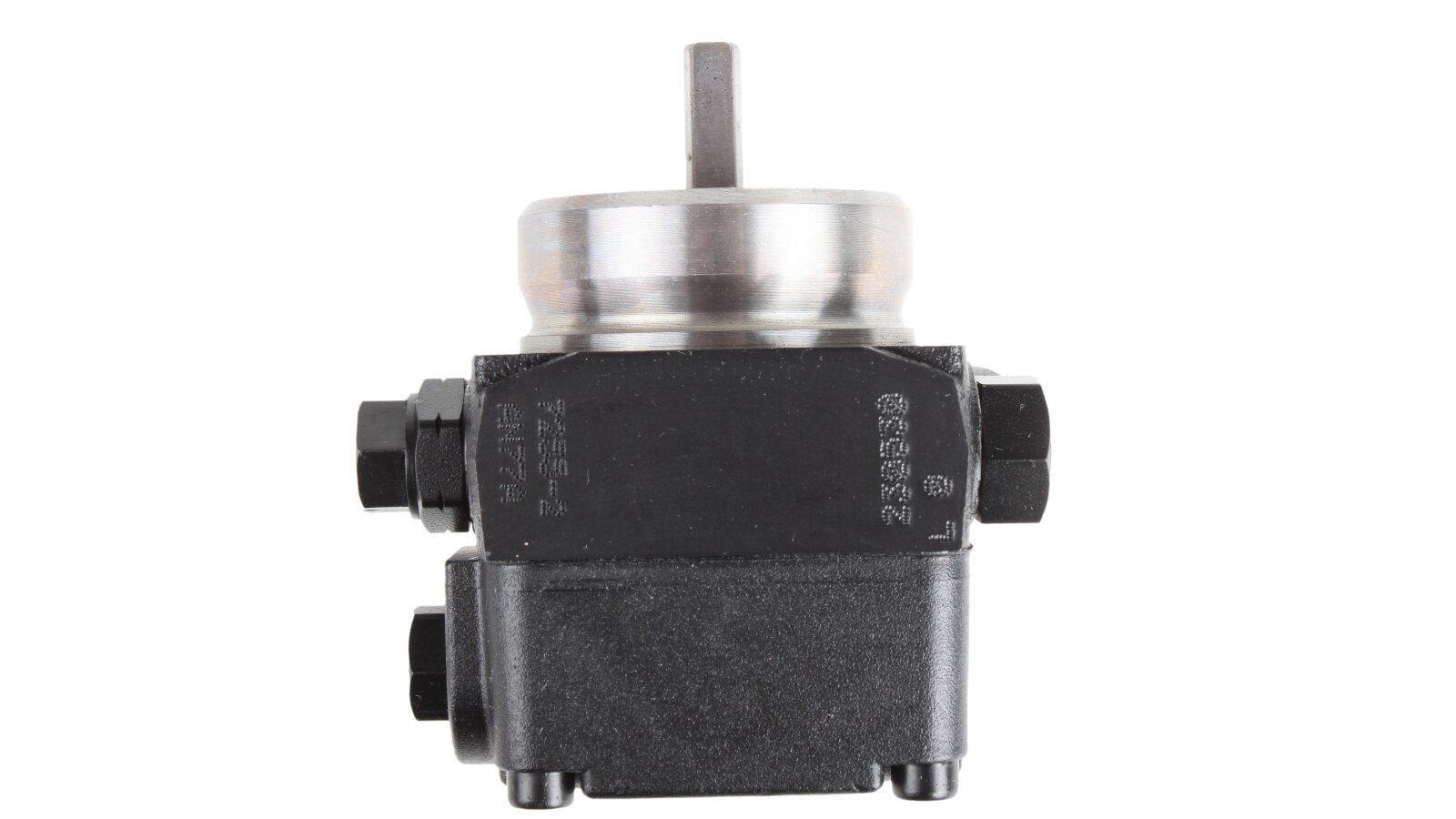

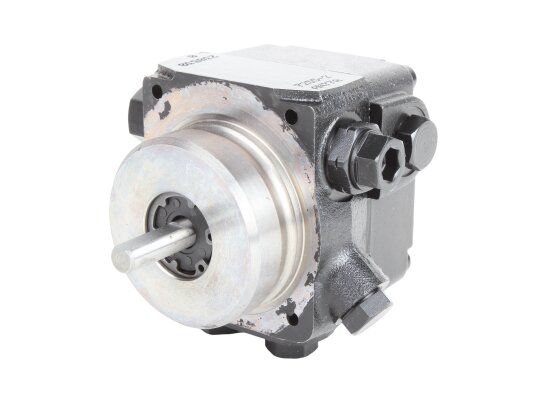

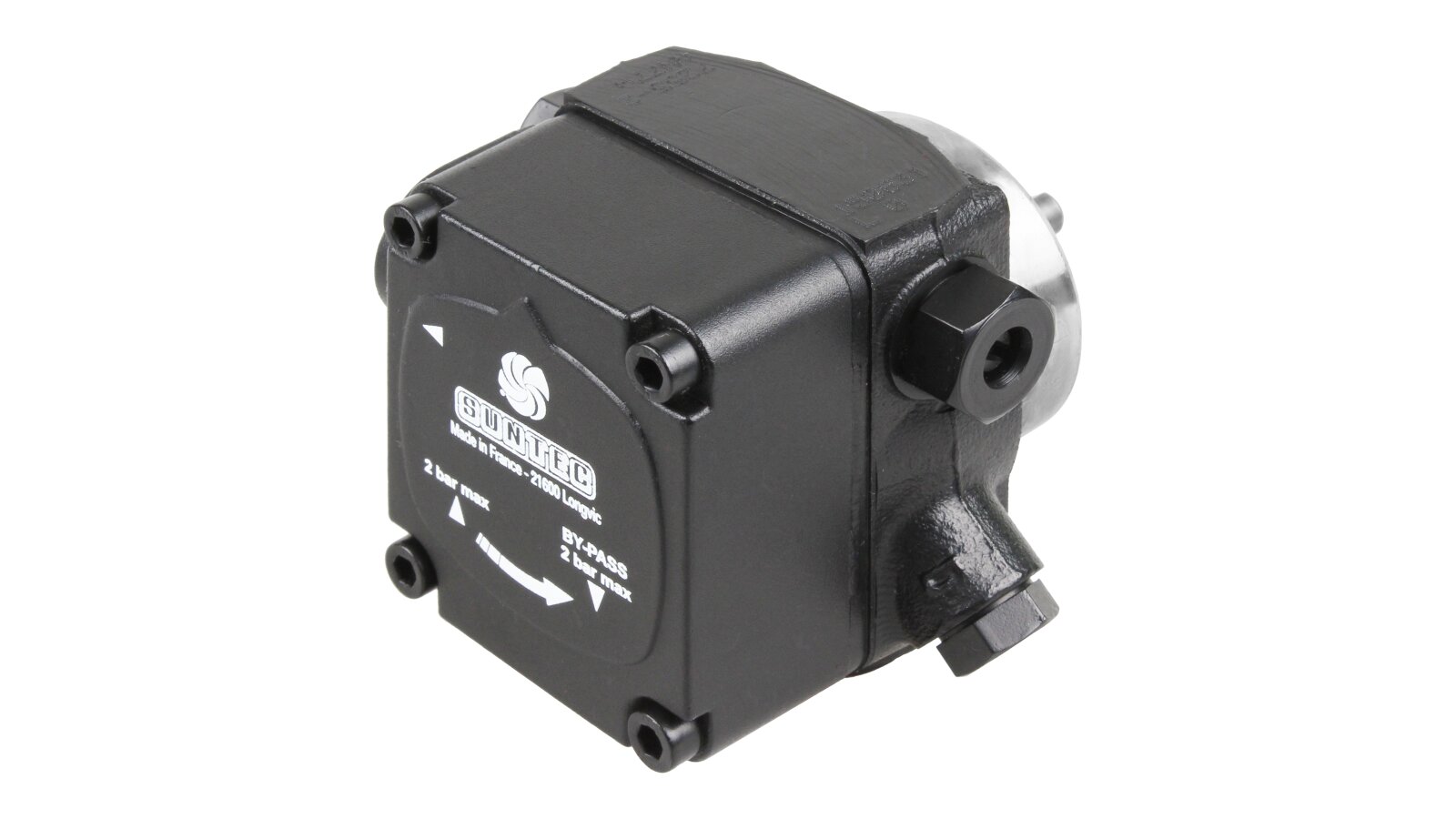

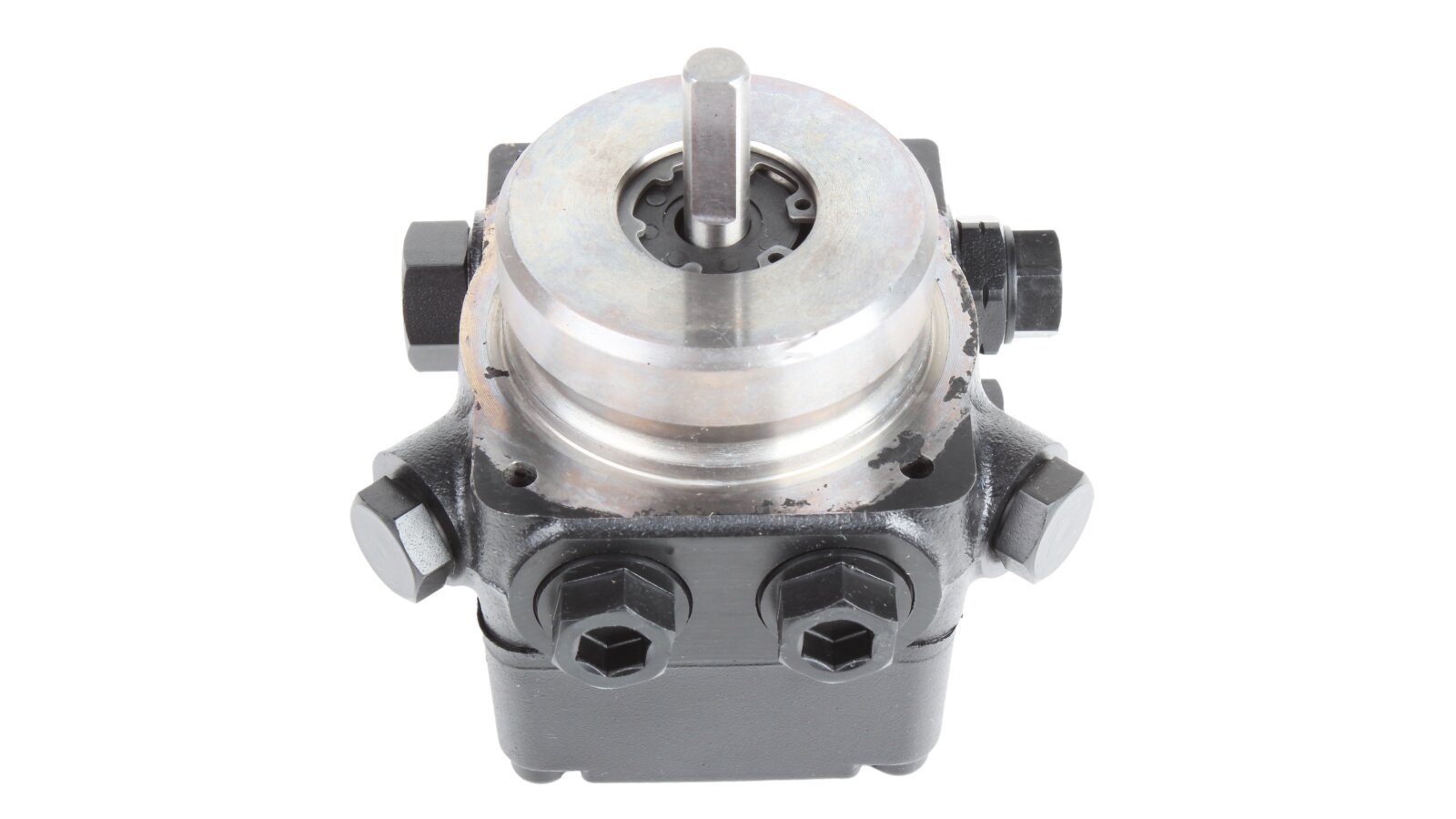

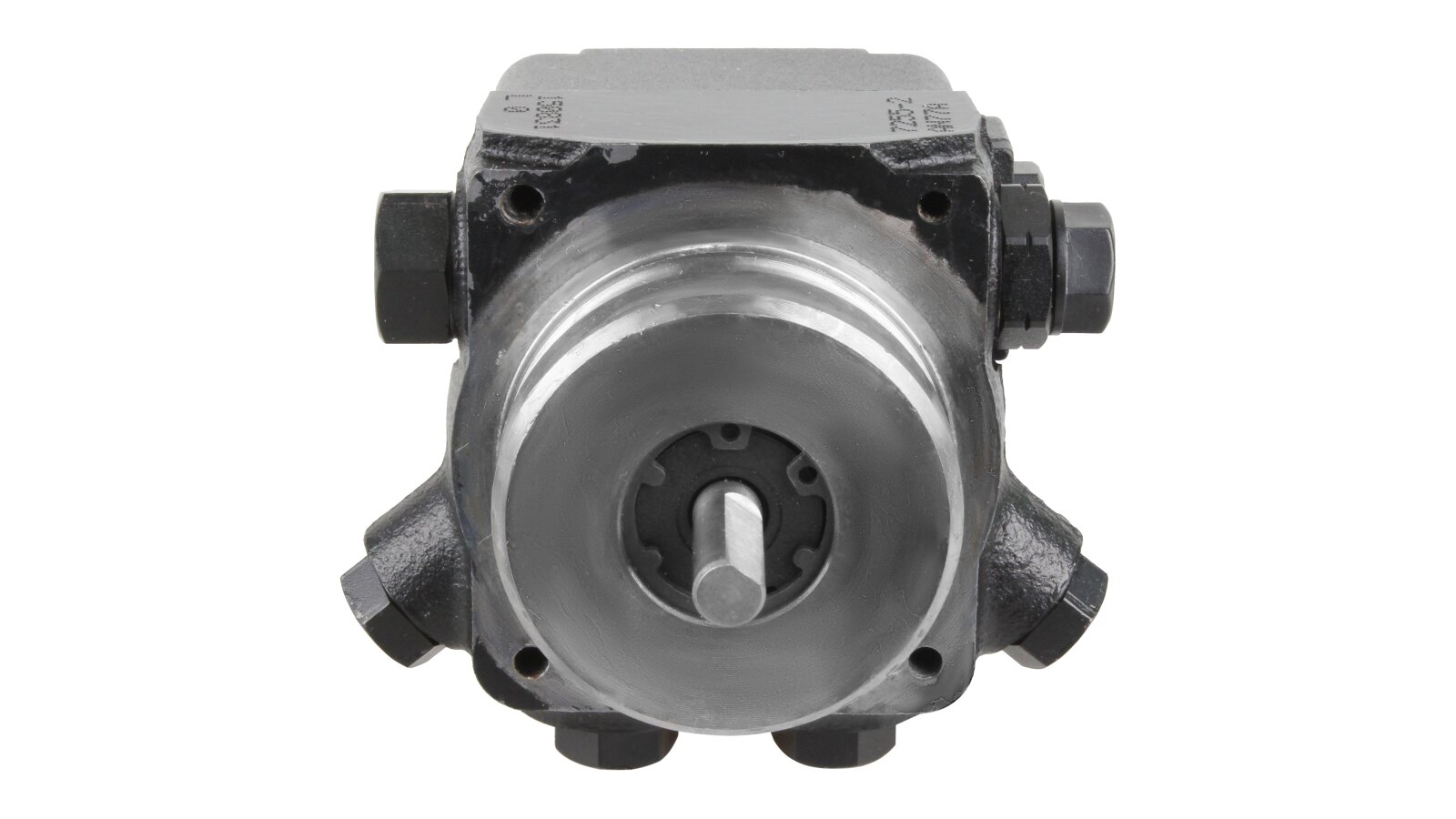

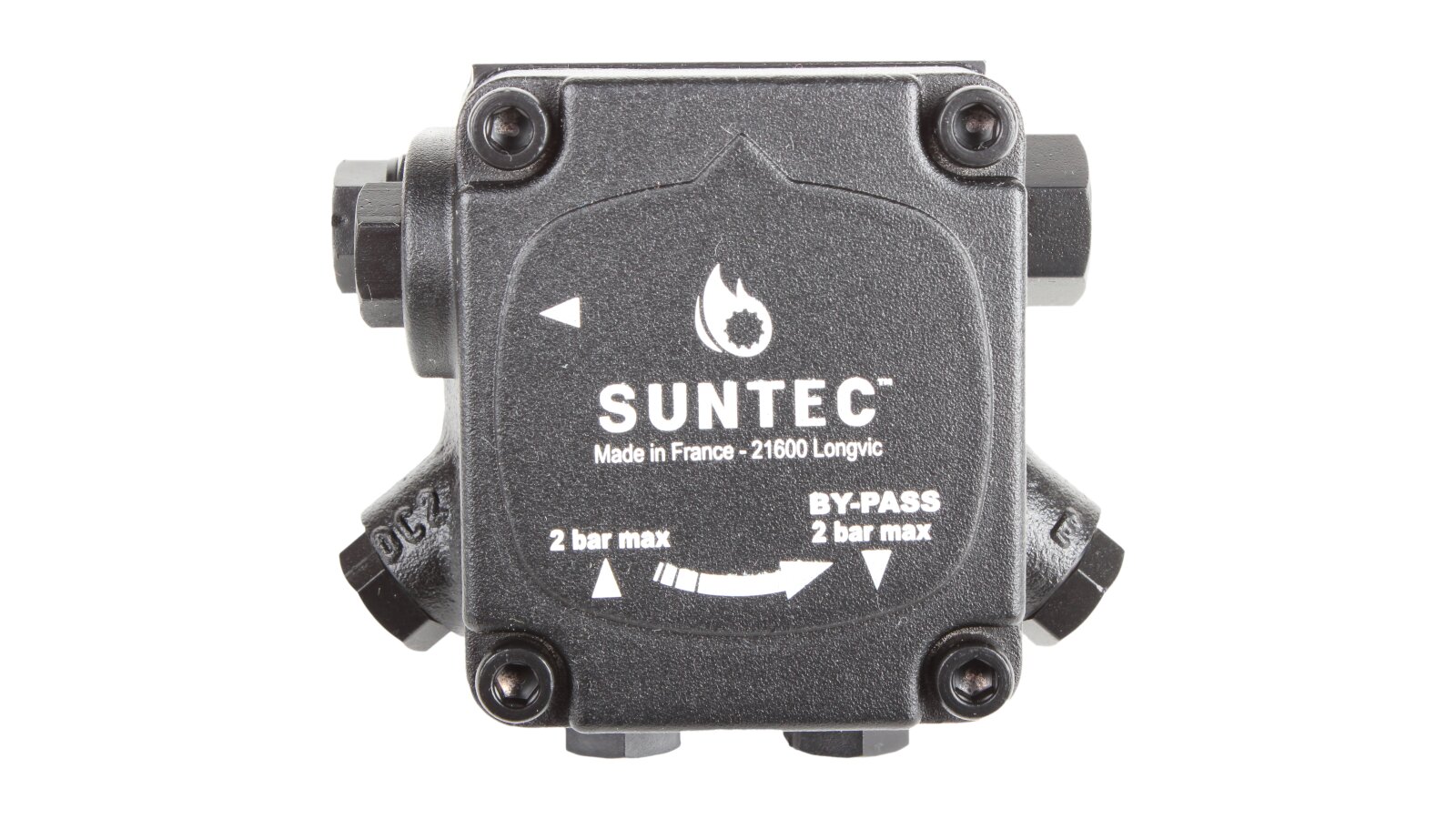

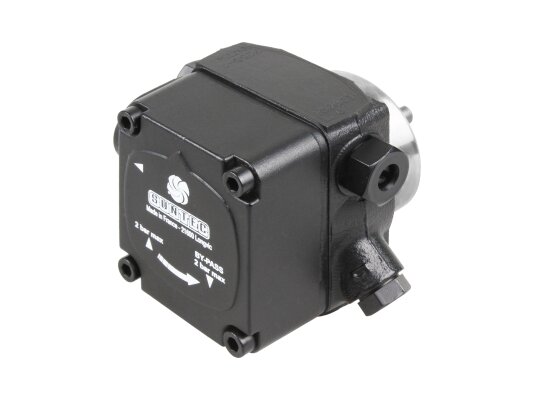

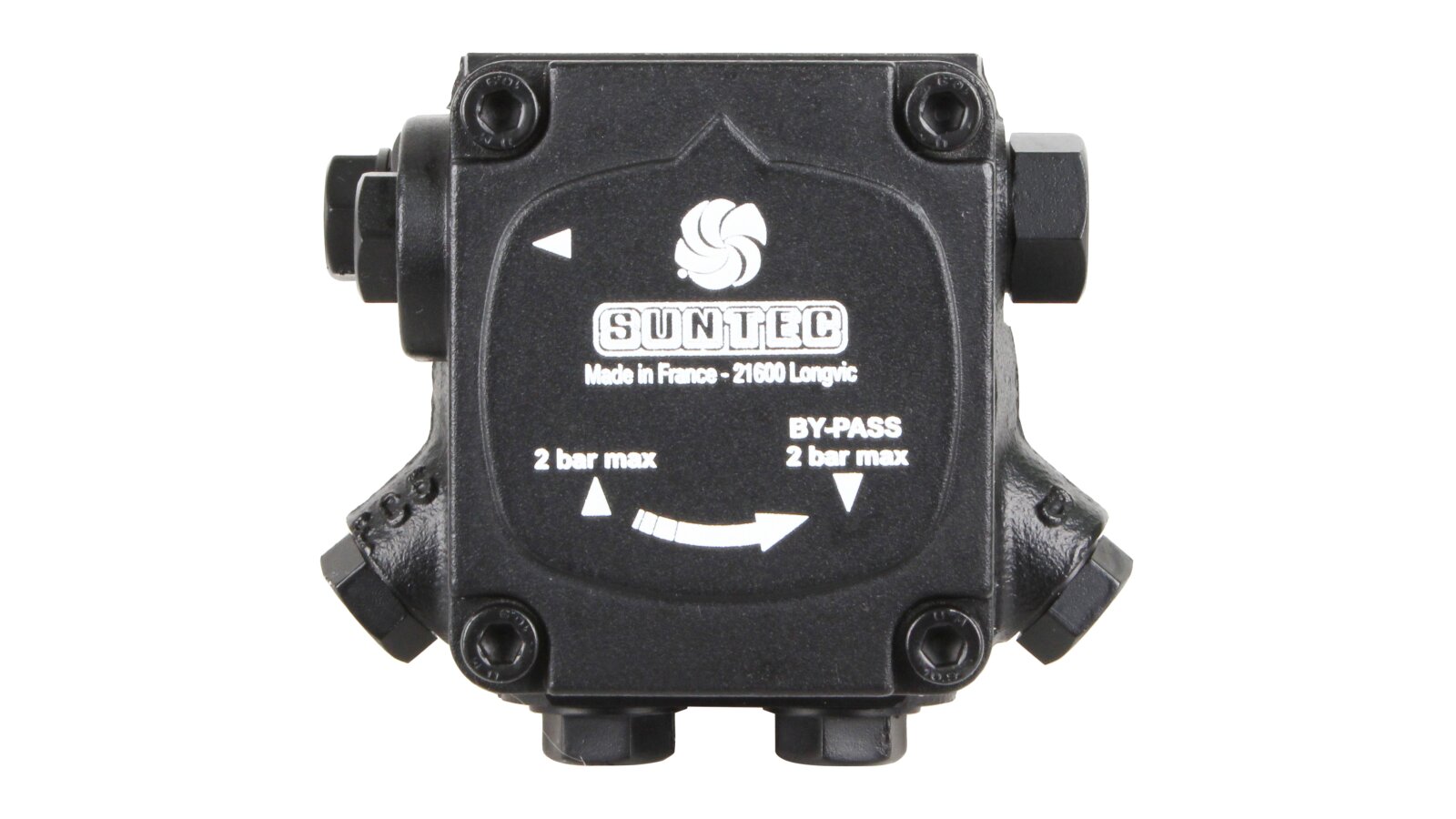

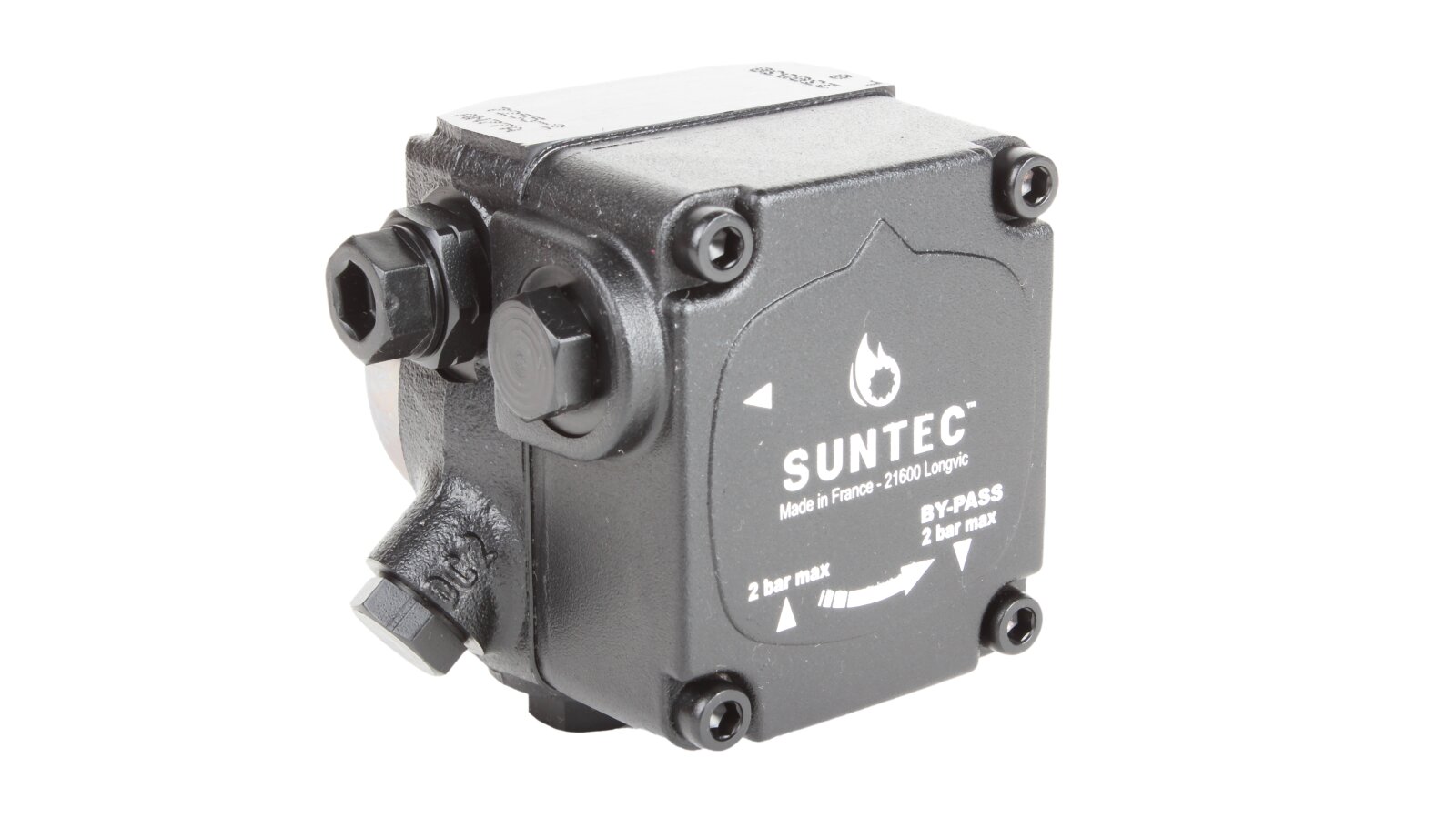

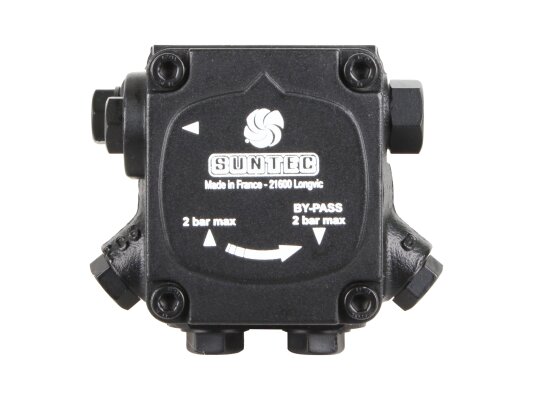

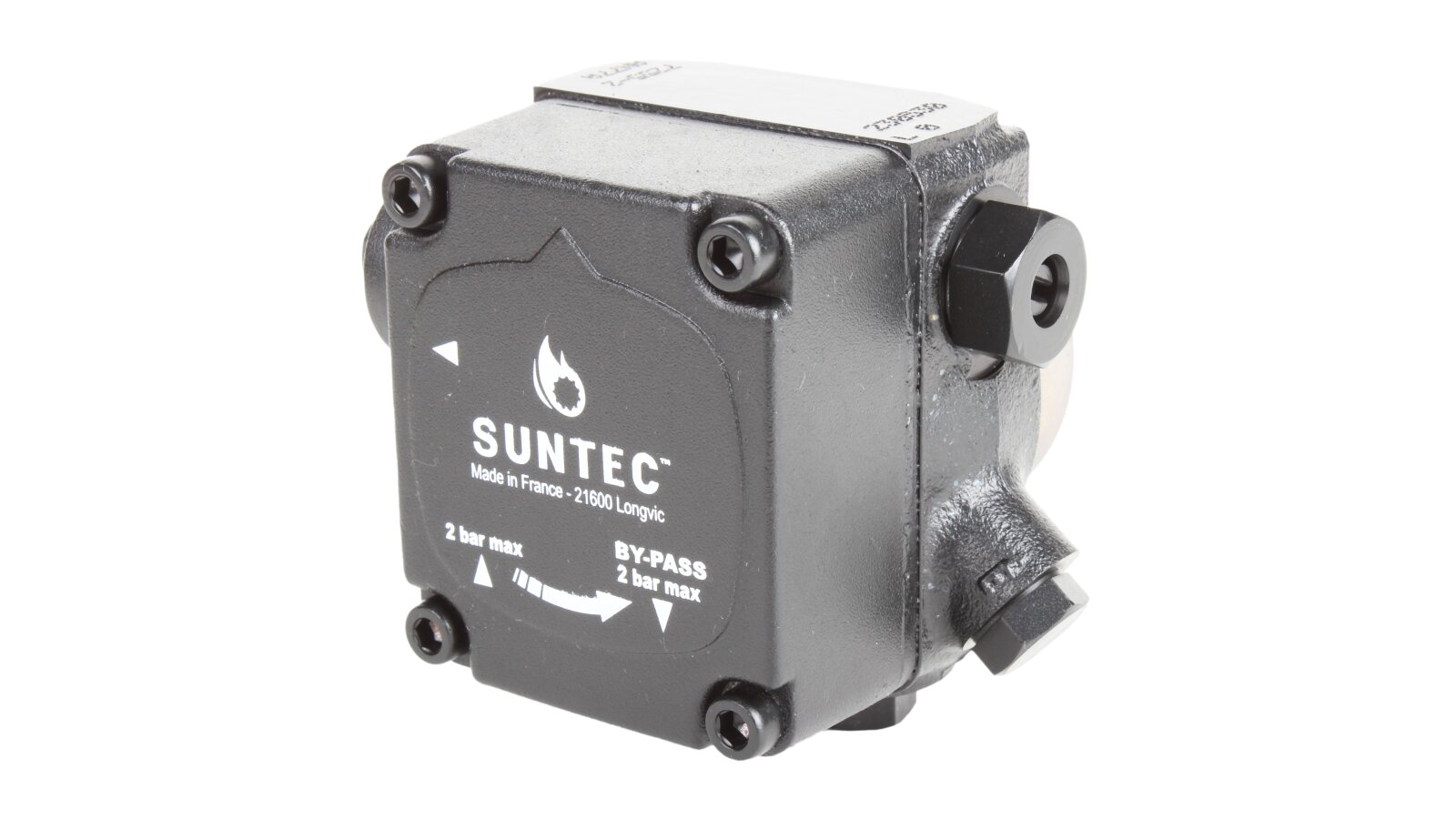

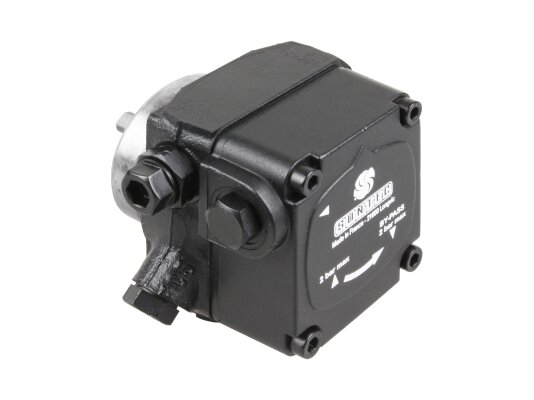

The French company Suntec, which successfully develops heating equipment for the European market, presents a single-stage gear pump AN 77 A 7255 2P. The unit with a capacity of 108 l/h is used to complete liquid fuel burners for domestic and commercial use, used to heat small areas. The device is equipped with a control valve with a shut-off function, which is used to adjust the pressure of the working medium in the range from 10 to 20 atm.
Technical features
The mechanical part of the single-stage pump is represented by a gear pair, which, when rotating, draws fuel from the tank. Before feeding it to the nozzles, it is cleaned of foreign suspensions using a mesh filter with a cell size of 150 microns.
Attention! The filter needs to be periodically cleaned with a soft brush and washed with diesel fuel. When disassembling the filter, do not forget to change the cover gasket to a new one each time.
The unit can be used in both single-pipe and double-pipe circuits. The factory version with a bypass plug installed on the return line will allow the pump to be mounted in a 2-pipe circuit without interfering with the design. A pressure gauge and vacuum gauge are used to measure the pressure of the working fluid on the discharge and suction lines. The device body has ports for their connection with a standard G⅛" thread.
Main advantages:
high performance - 108 l/h - with small overall dimensions of the device;
the presence of a built-in filter for preliminary cleaning of fuel from mechanical particles of 150 microns and more in size;

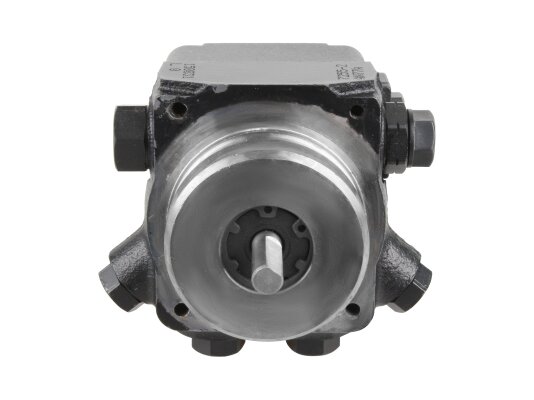

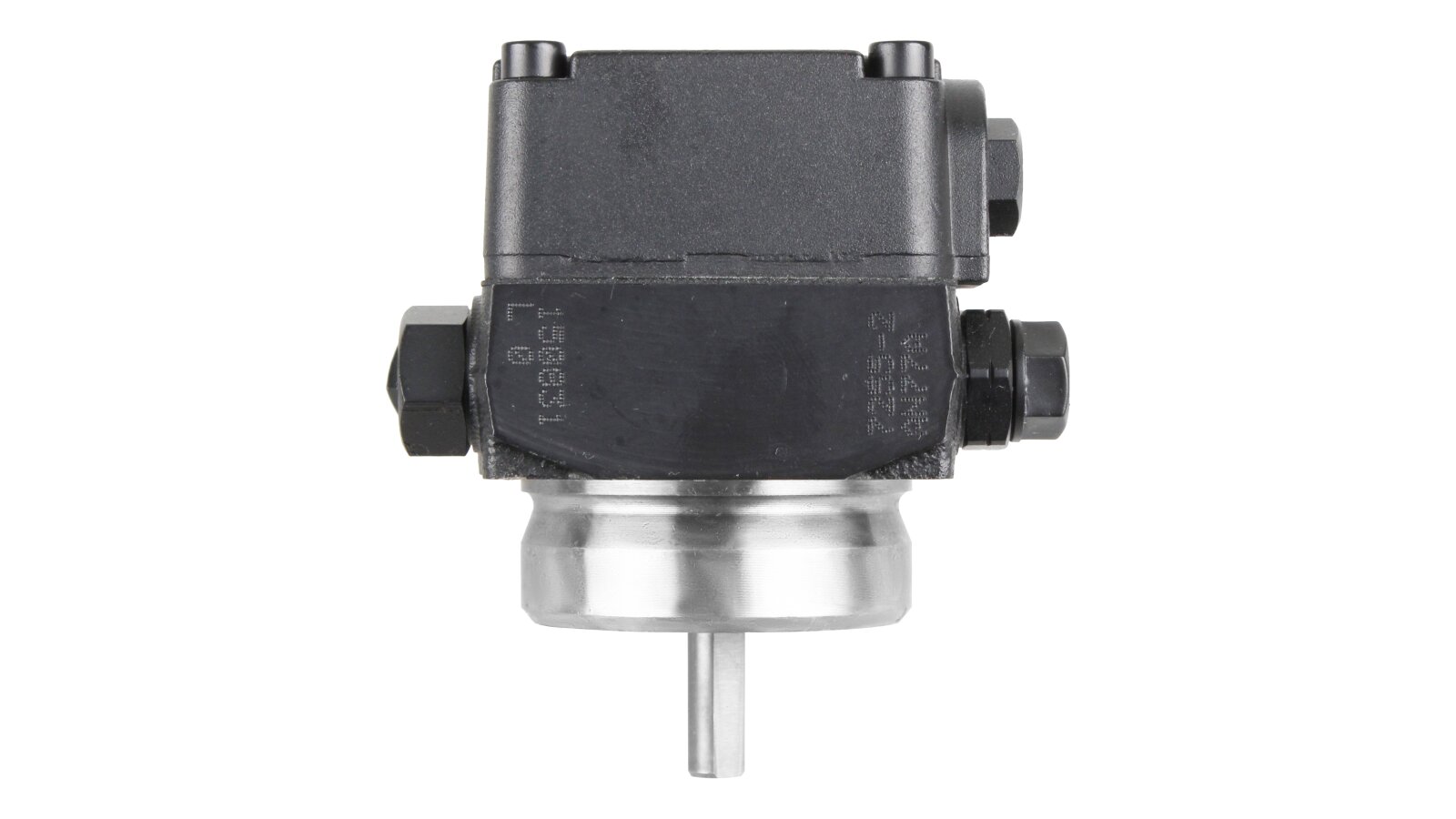

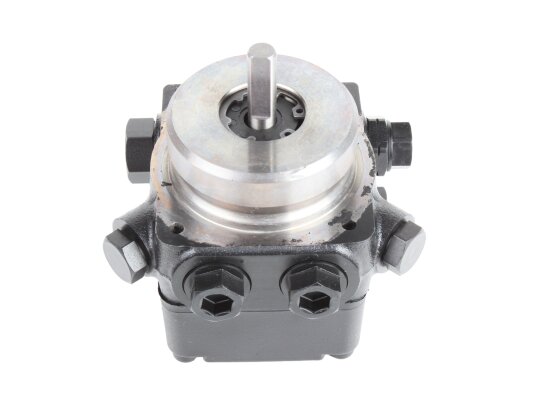

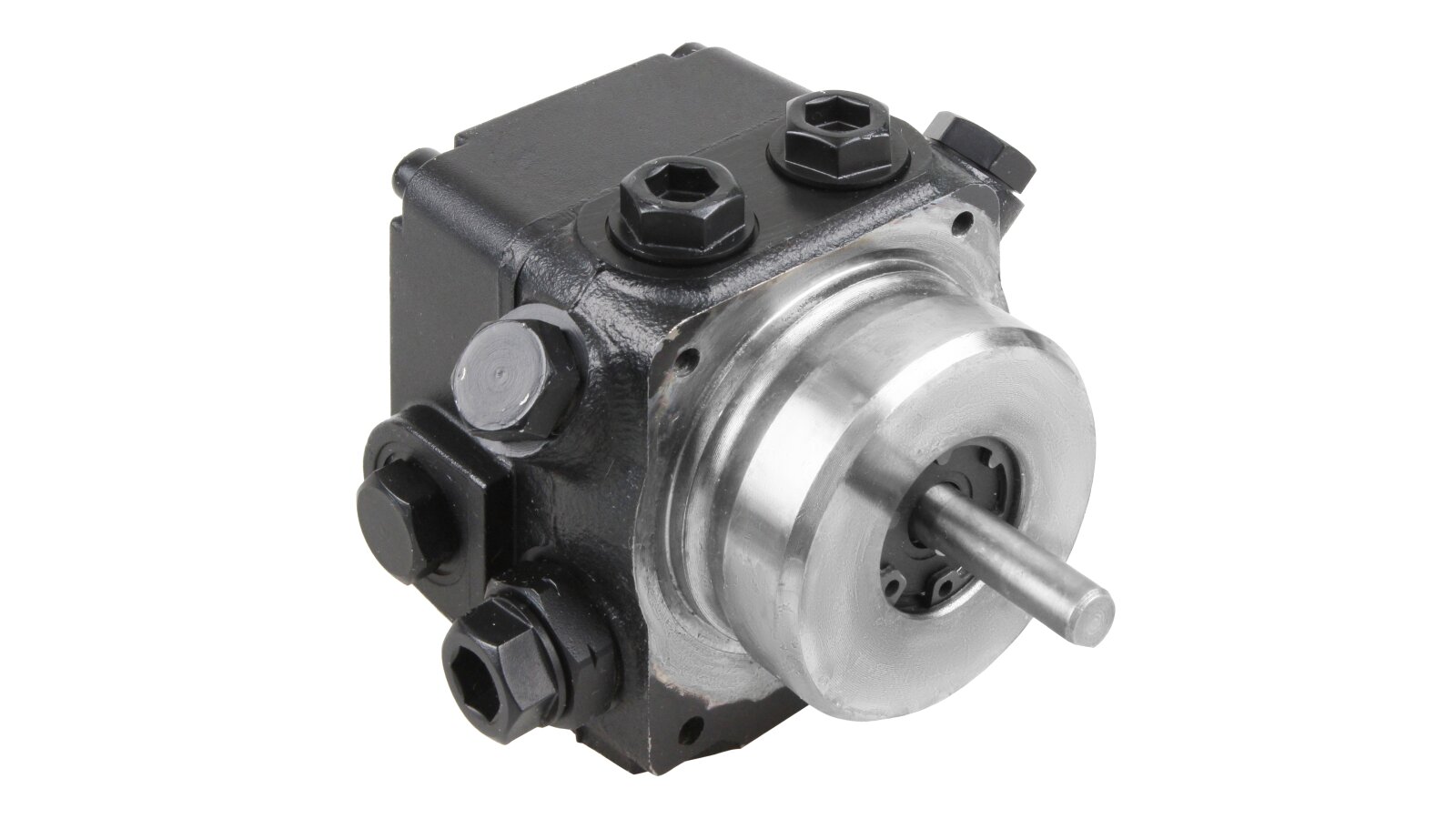

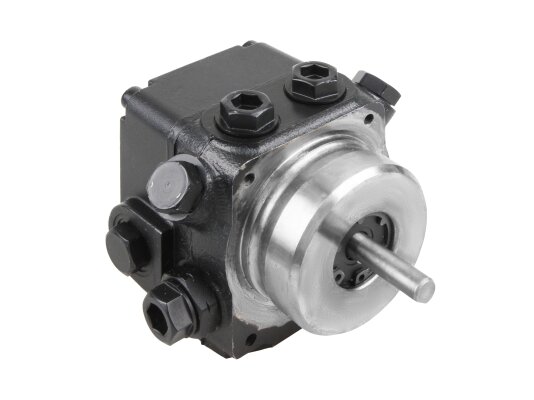

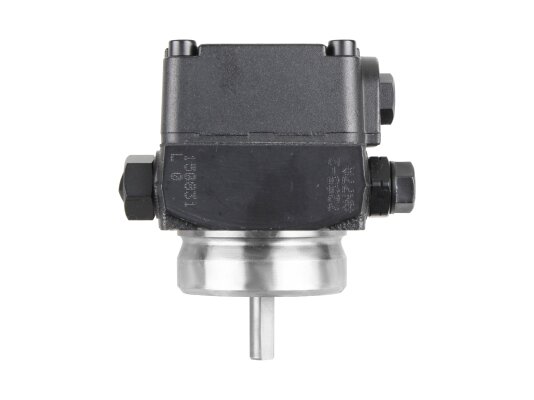

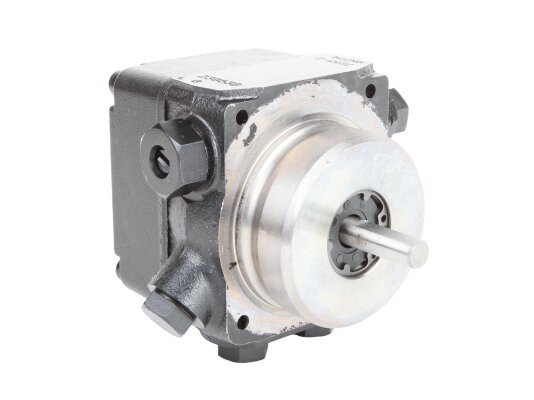

sleeve mount to the burner with a landing diameter of 54 mm;
wide range of operating temperatures - from 0 to +60 ° C;
no forced air release is required with a 2-pipe connection.
On the website of the official supplier - the company "ANKAS" - you can buy a liquid fuel pump for diesel burners AN 77 A 7255 2P at an affordable price. We offer exclusively high-quality equipment from the European manufacturer Suntec, designed for continuous operation.
Characteristics
