Description

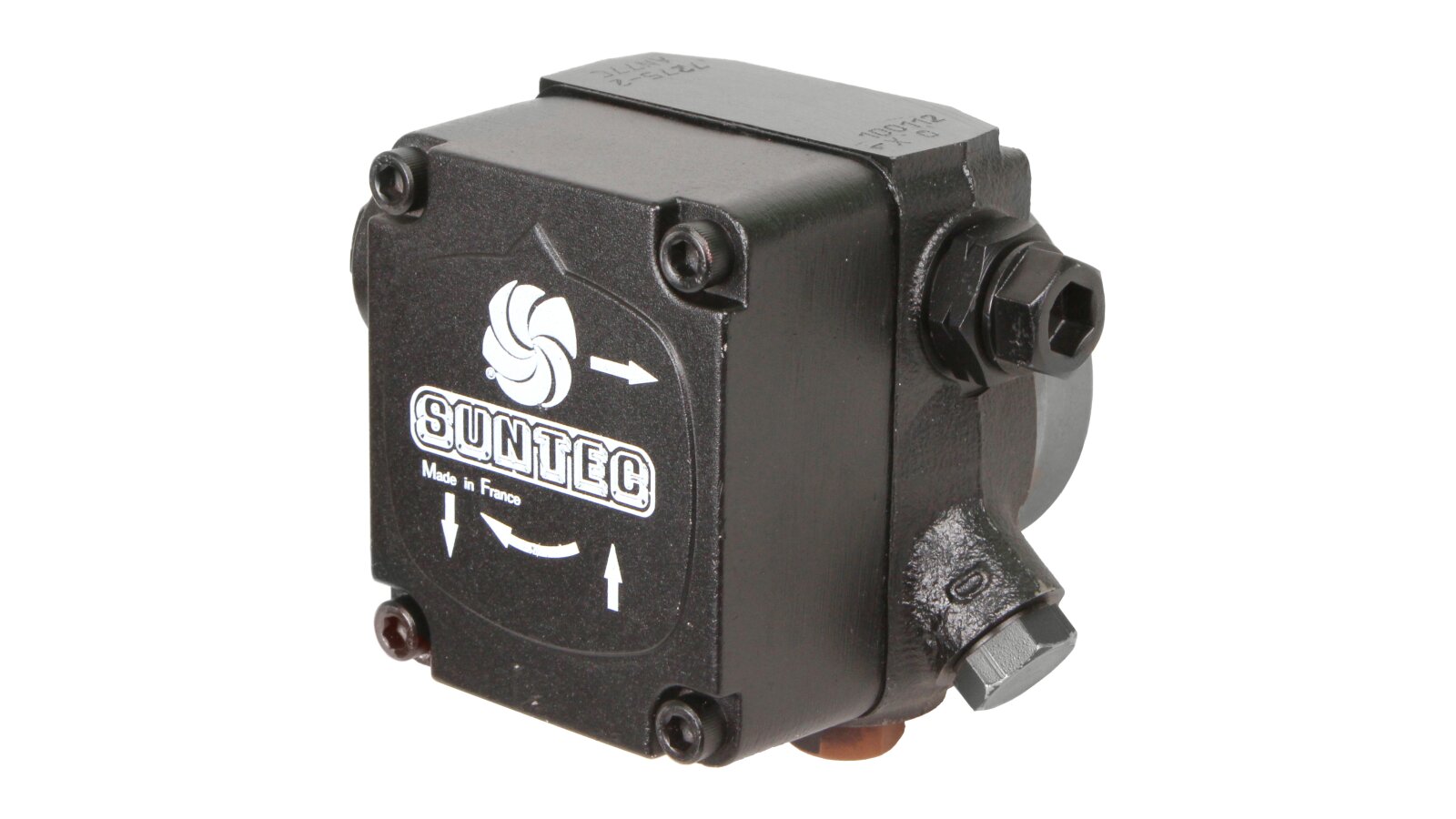

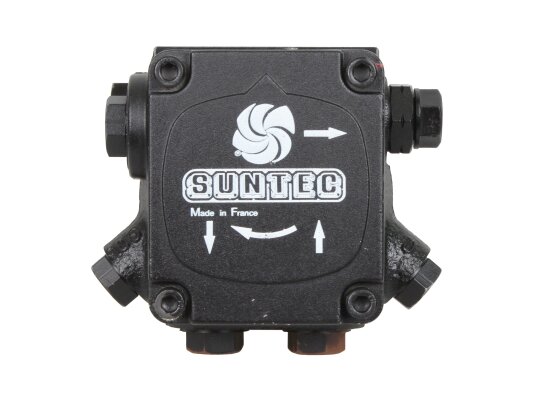

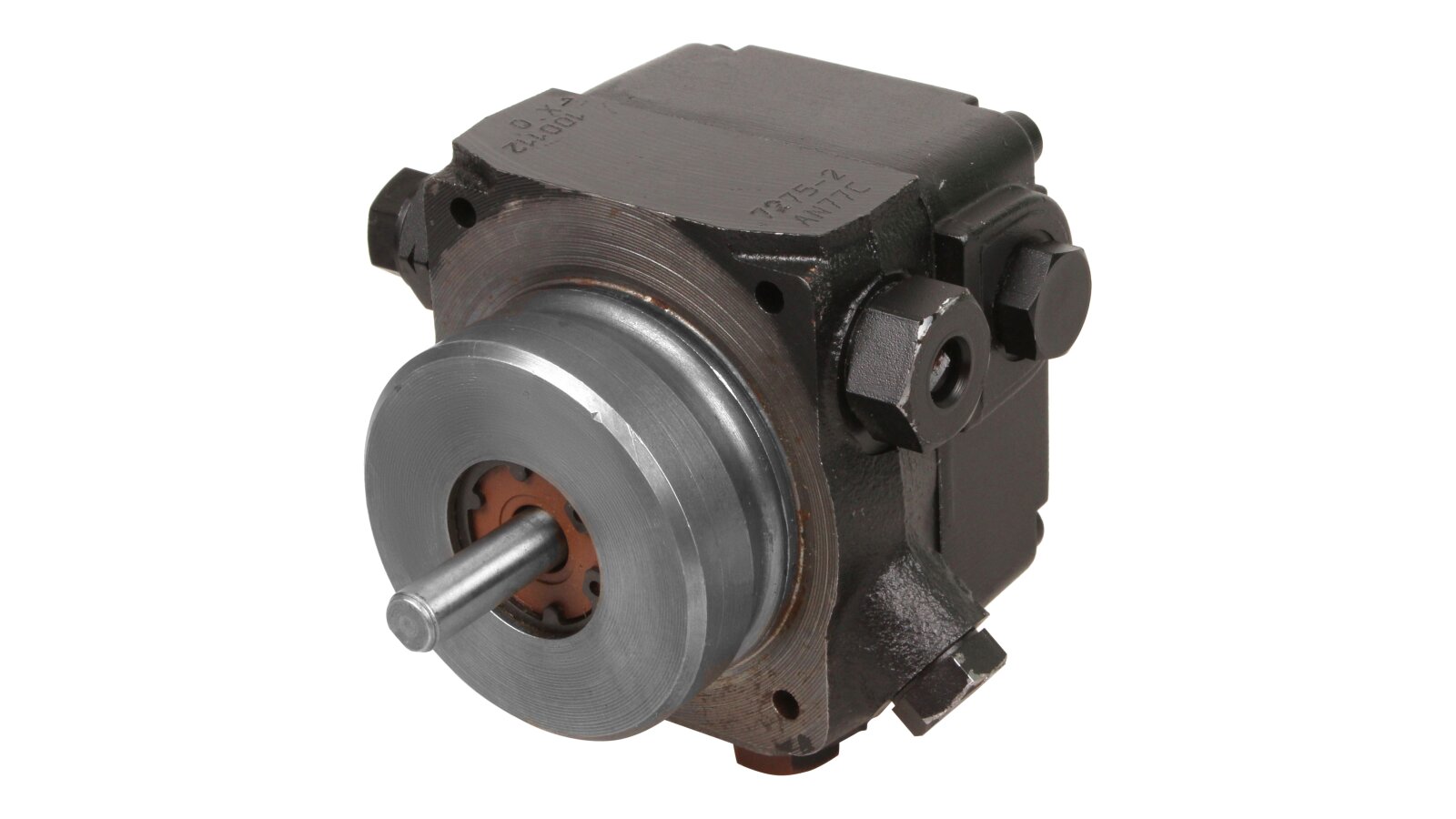

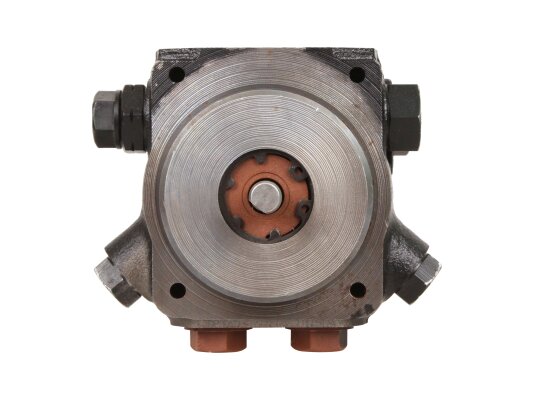

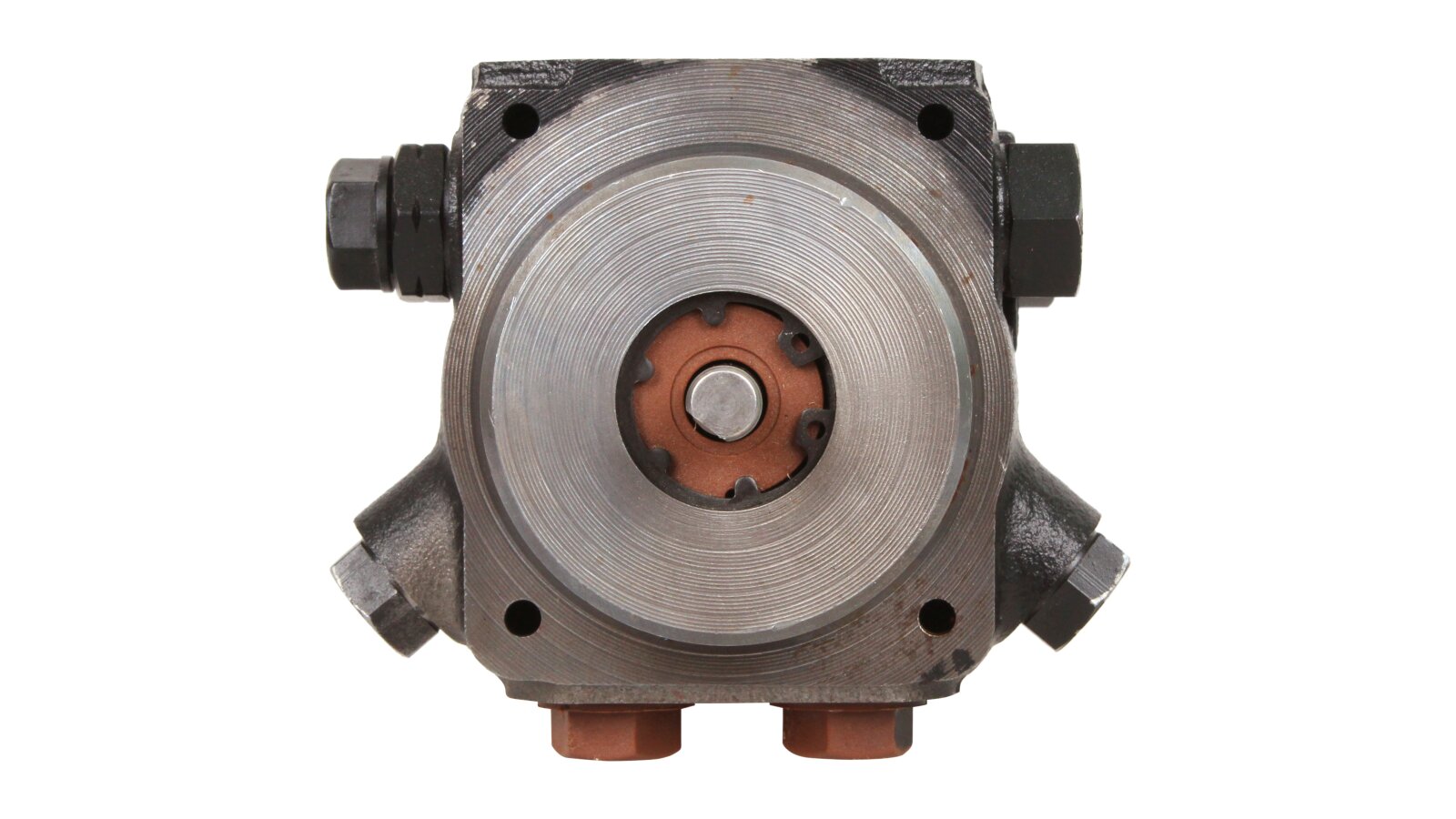

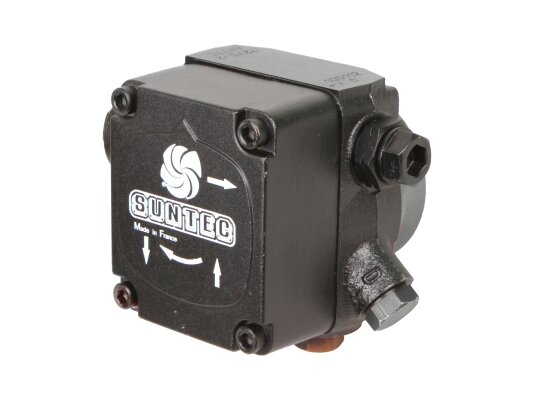

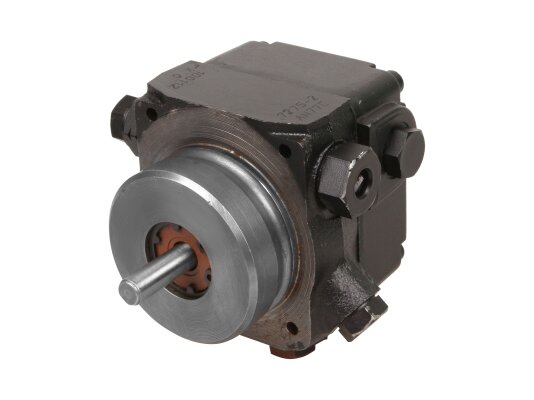

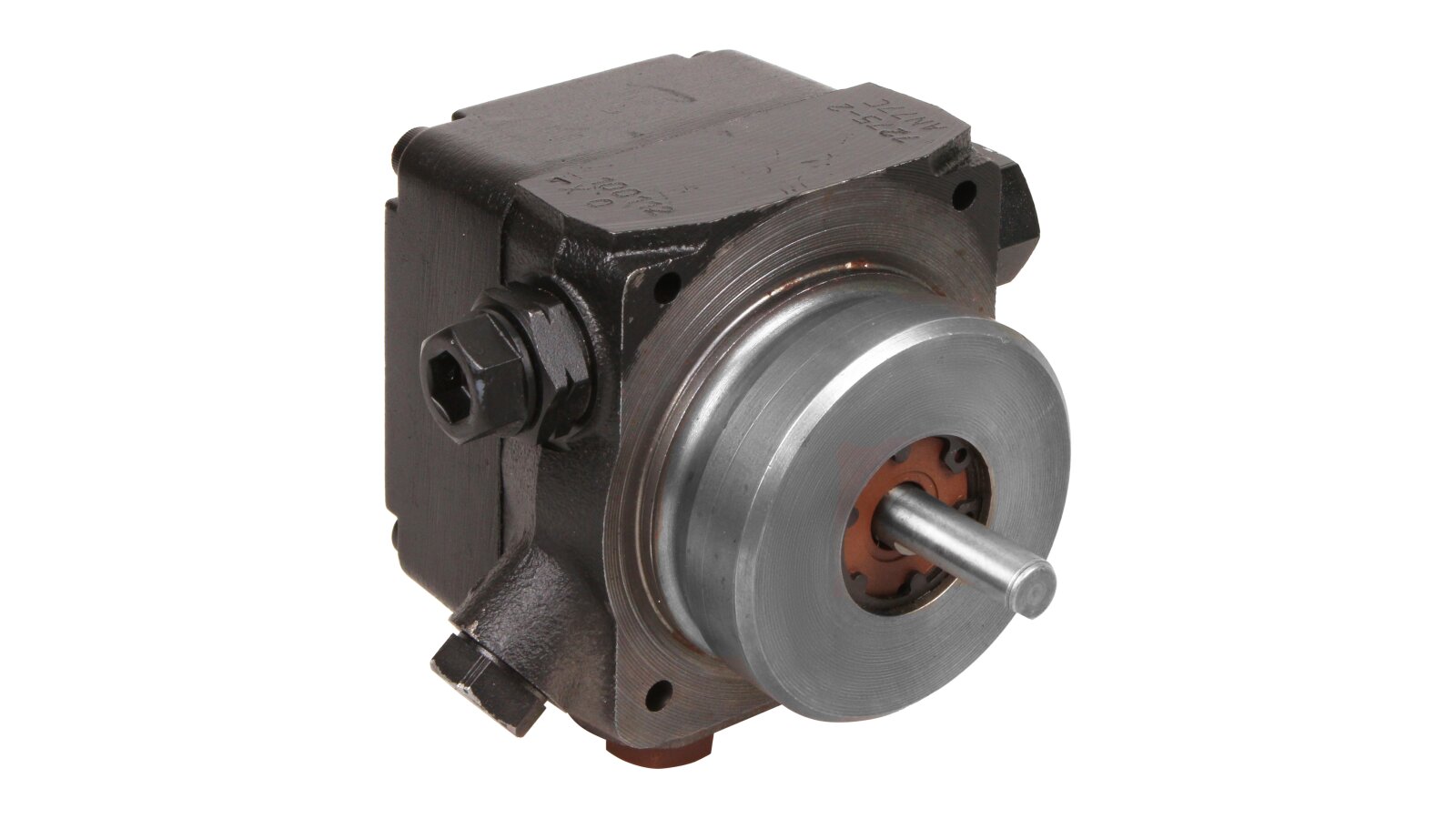

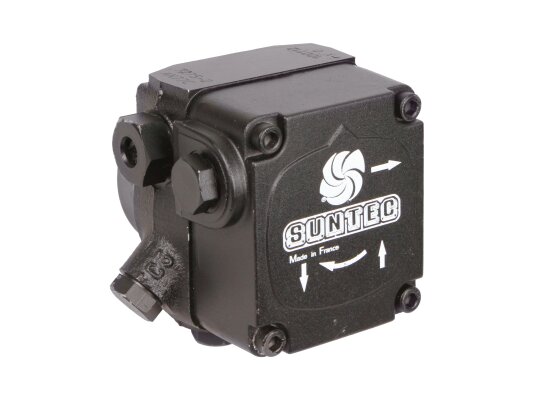

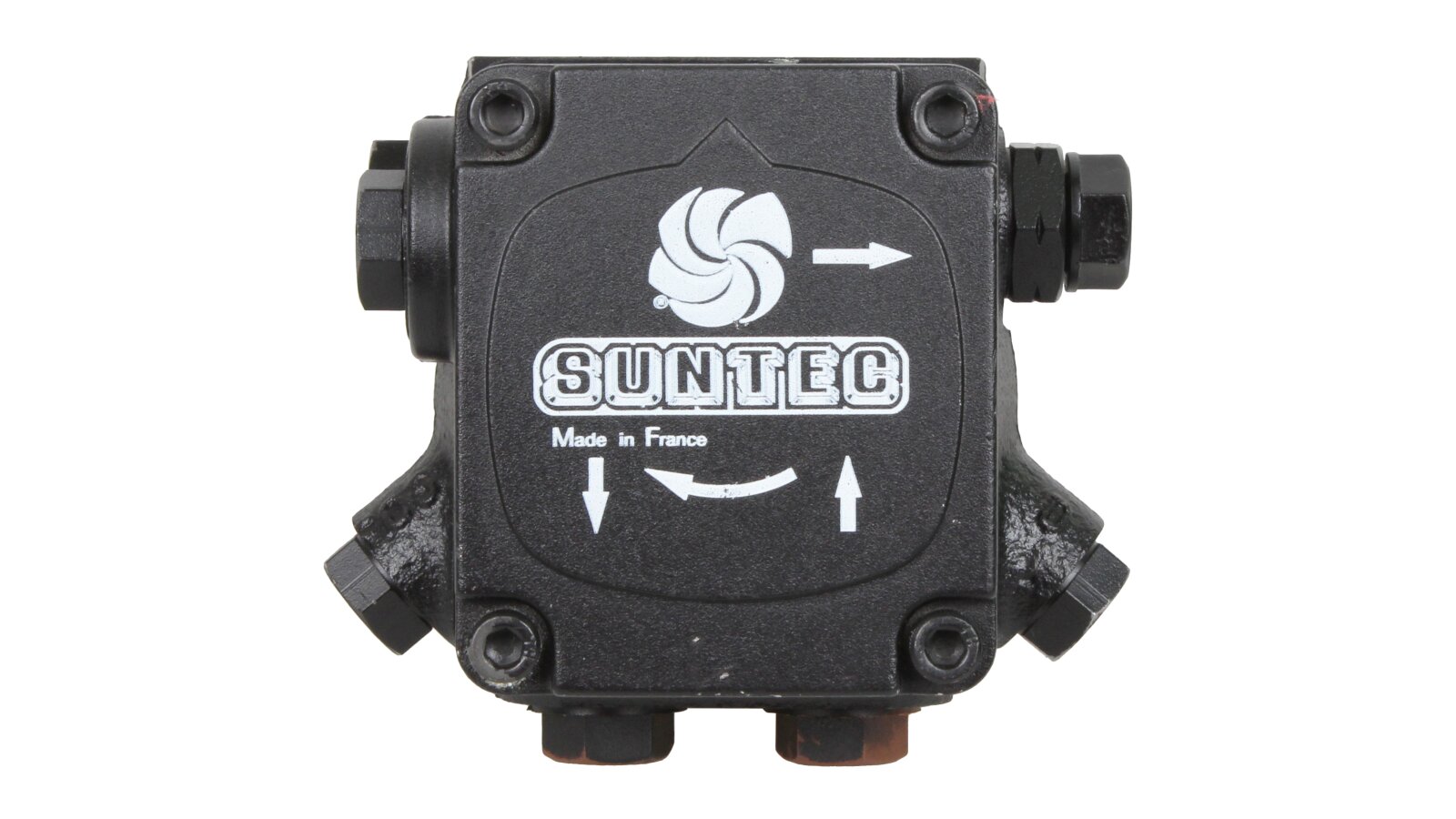

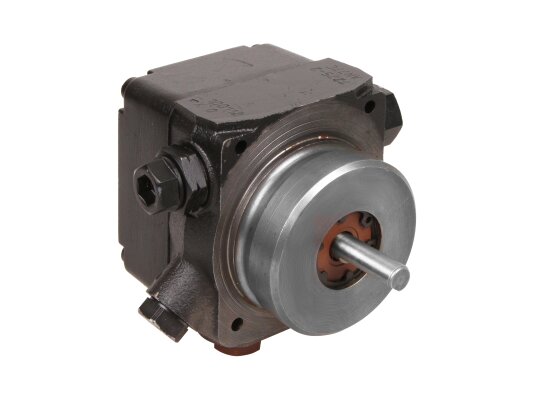

The high-performance unit AN 77 C 7275 2P from the French company Suntec is used to equip forced-draft burners running on diesel fuel. It supplies fuel under pressure within 10-20 bar. The pump has a reliable gear design, supports shut-off and control functions. Its standard version is suitable for installation in two-pipe fuel supply systems. It is also possible to mount the unit in a single-pipe circuit by removing the bypass plug with a 4 mm Allen key and blocking the return supply line with a steel plug.
Technical features
It is permissible to use the unit to supply liquids of different operational viscosity (from 2 to 75 mm²/s), having a temperature from 0 to +60 °C.
At the factory, the pumps are adjusted to an average pressure of 14 atm. If necessary, it can be manually increased or decreased.
Fuel supply is directly proportional to the engine speed (maximum value is 3600 rpm).
Recommendation! By installing a fine filter on the pressure section, you will increase the reliability and service life of the heating burner nozzles.
Main advantages
Small weight (1.2 kg) and relatively small dimensions simplify transportation, as well as installation of the unit.
At a fuel pressure of 11 bar, the optimum performance of the device is achieved - 108 l/h.
The design provides for a mesh filter with a flow area of 20 cm², which cleans the fuel from contaminants. The size of its cells is 150 microns.
Ports with cylindrical thread G⅛" (ISO 228/1 standard) are provided, through which users can connect a vacuum gauge and a pressure gauge to the pump.
The company "ANKAS" is an official dealer of leading European brands engaged in the production of reliable equipment for heating systems. To inexpensively buy a pump for a diesel burner AN 77 C 7275 2P and other components, use our contact phone number or make a purchase online.
