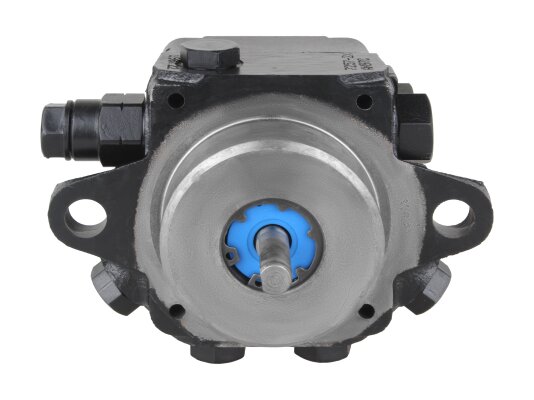

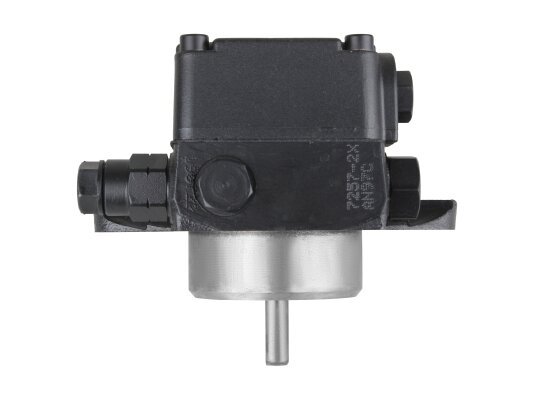

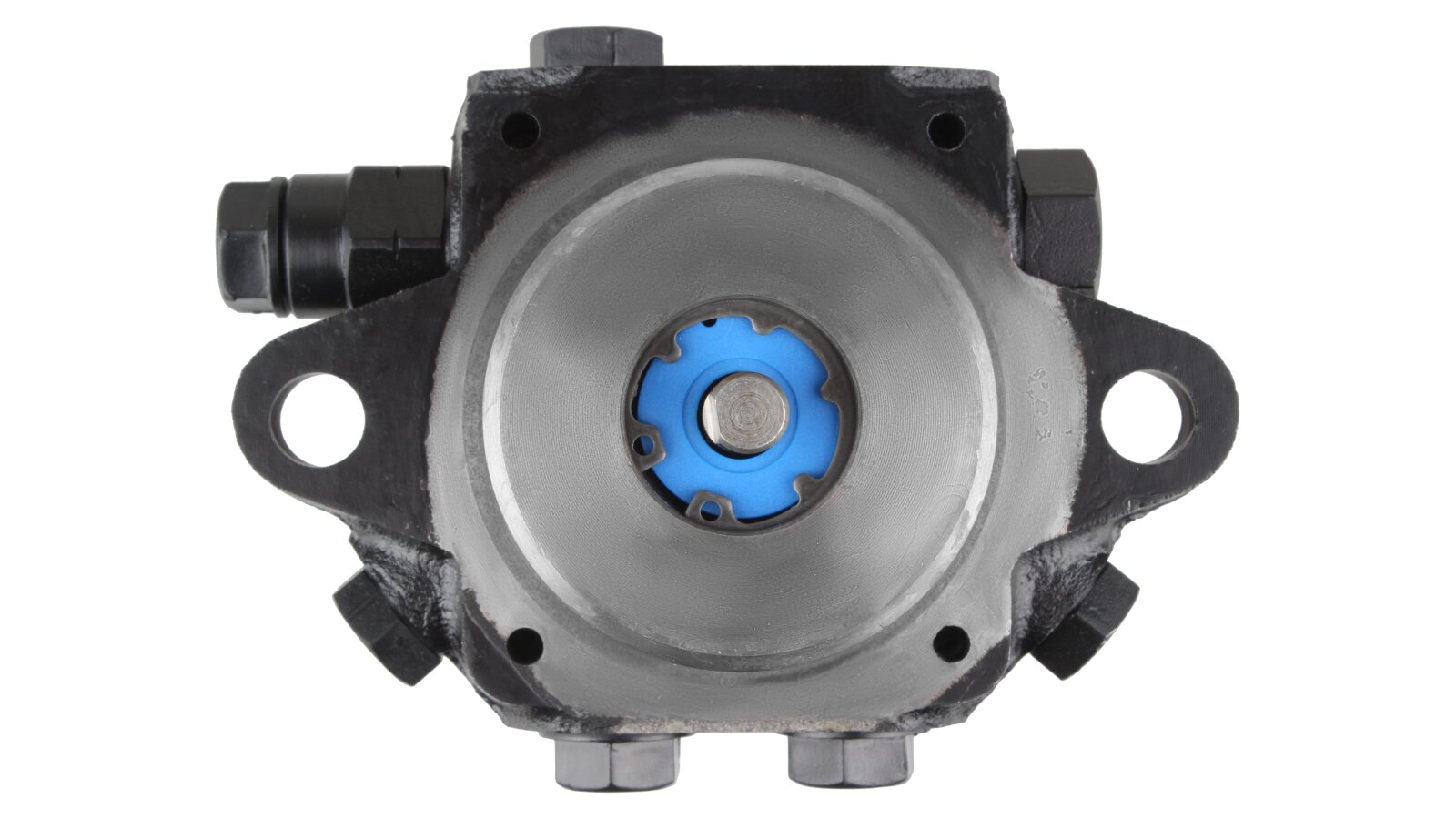

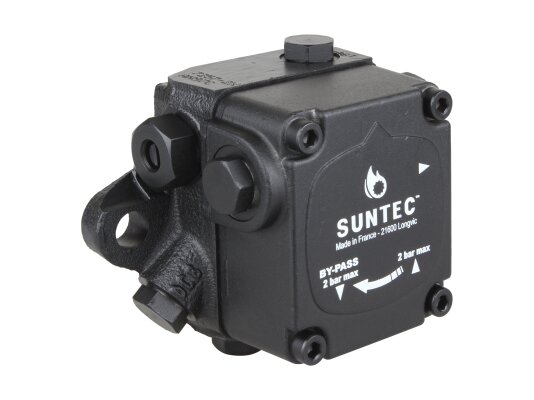

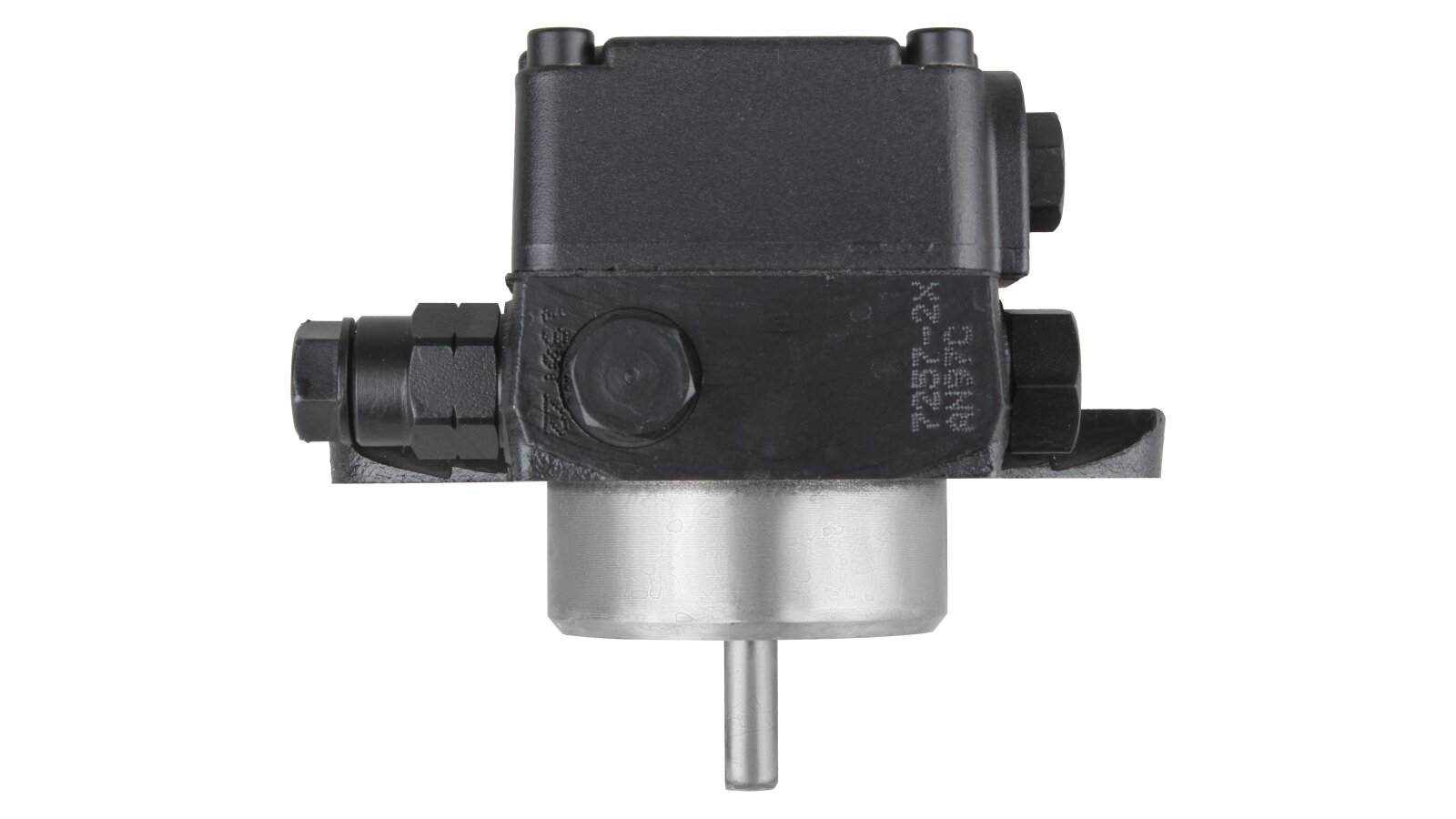

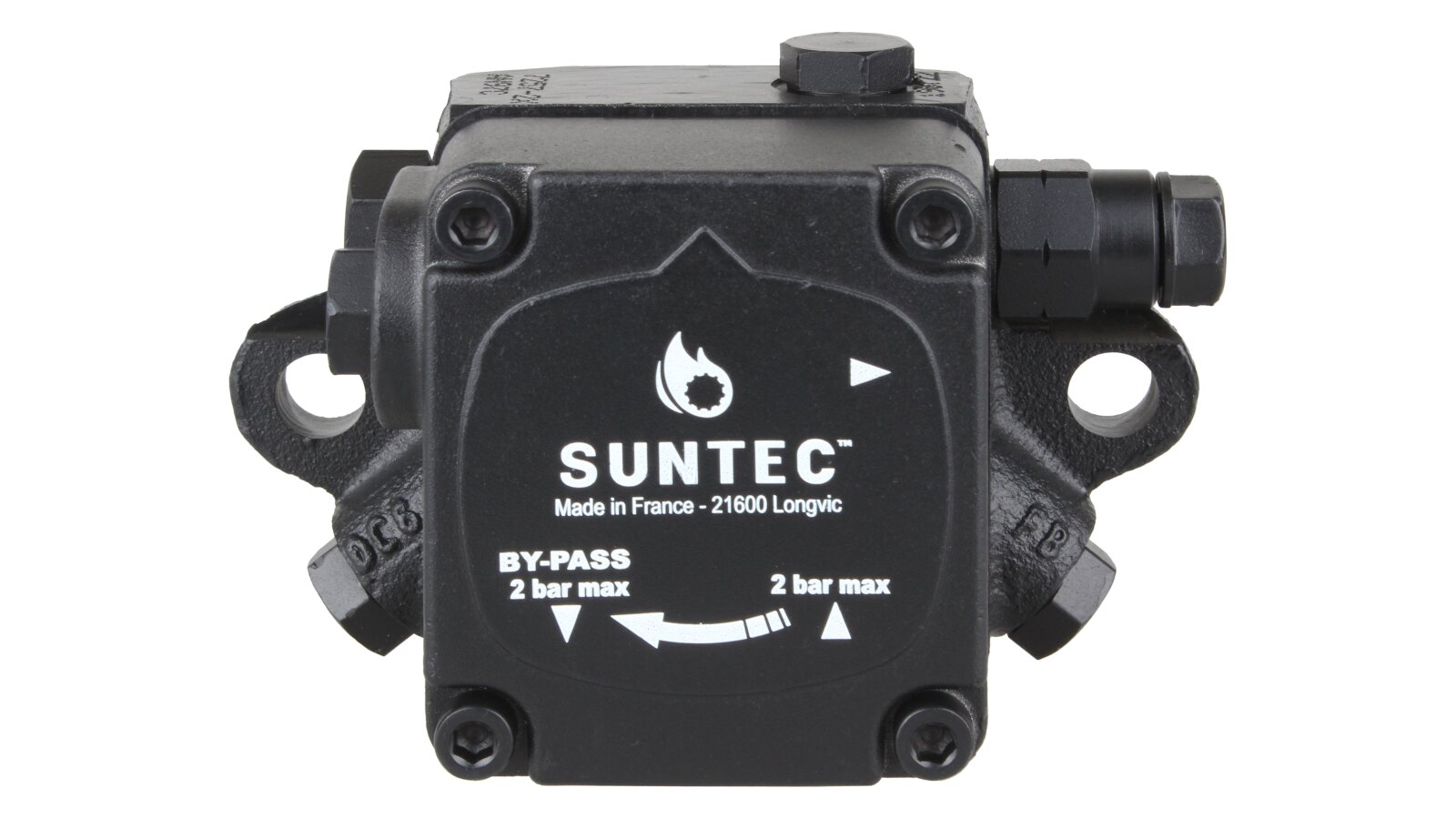

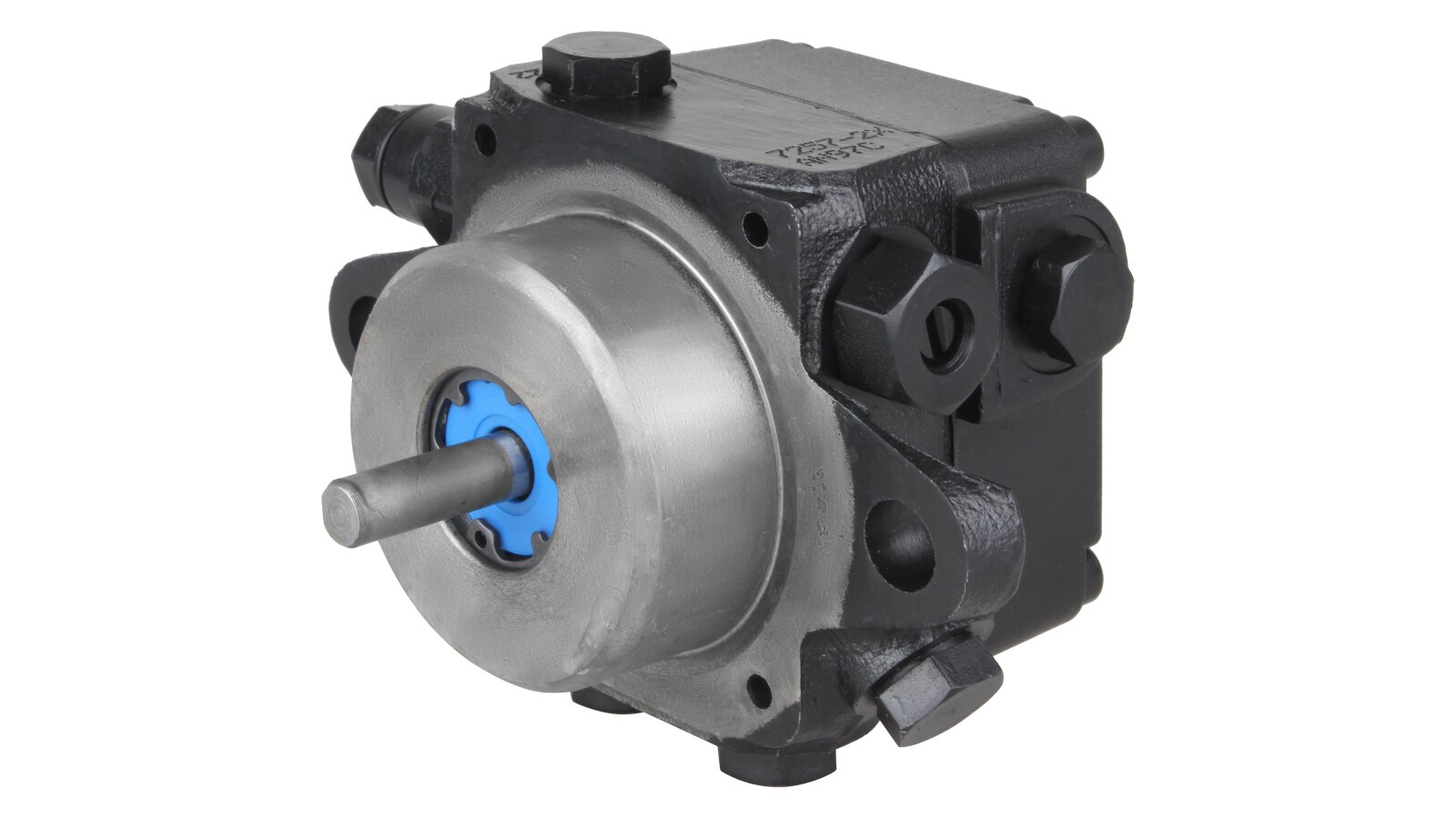

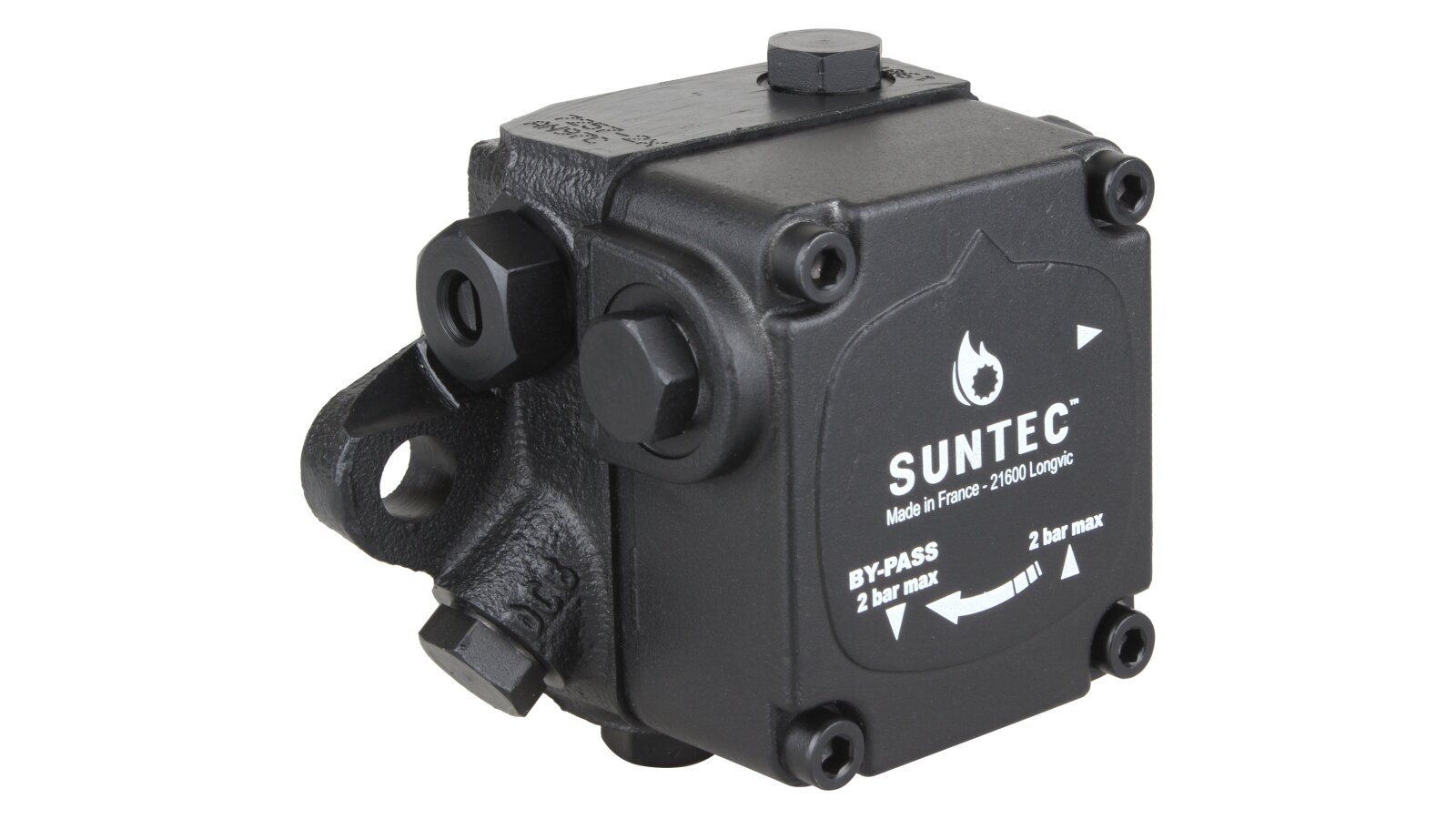

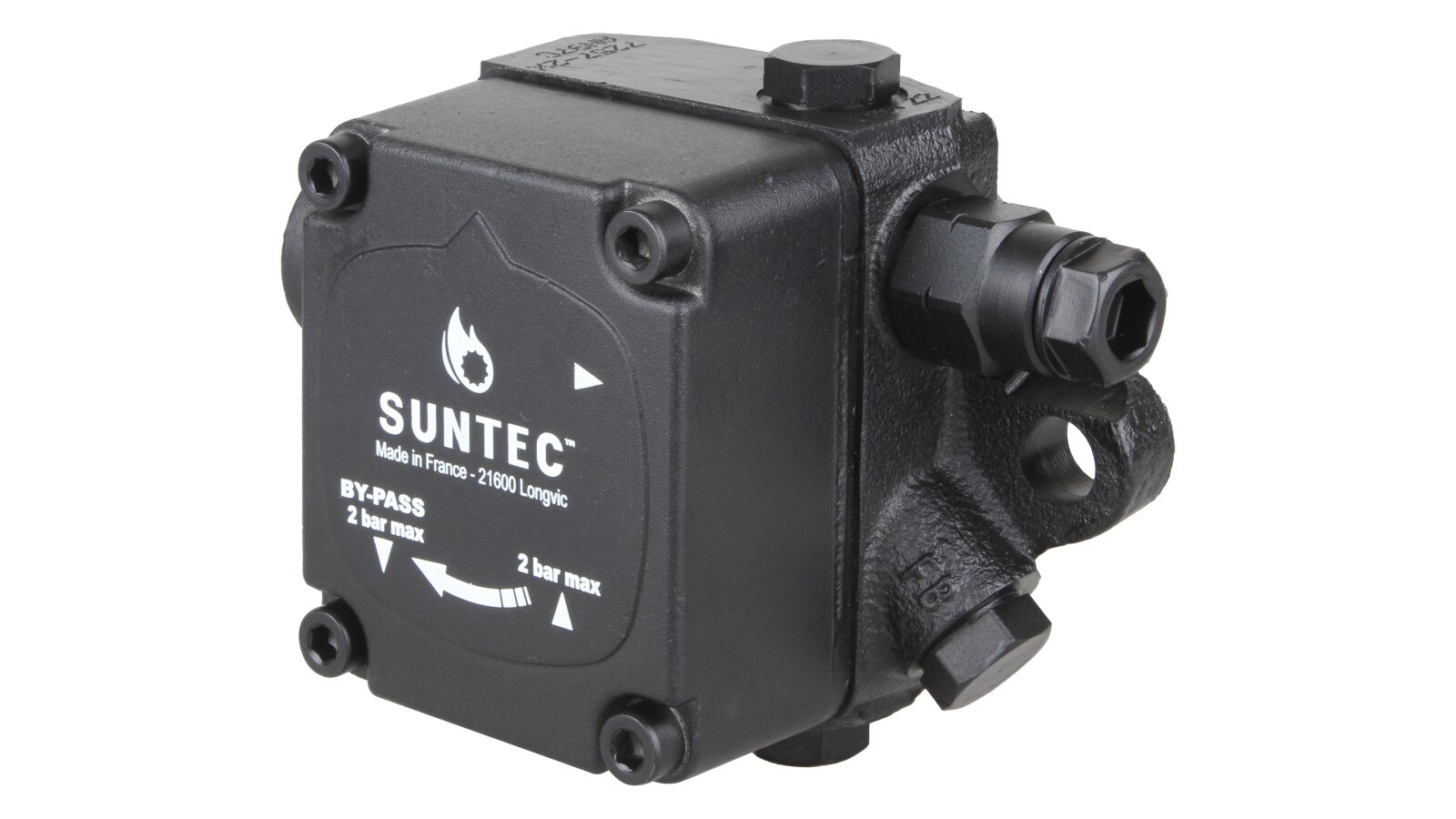

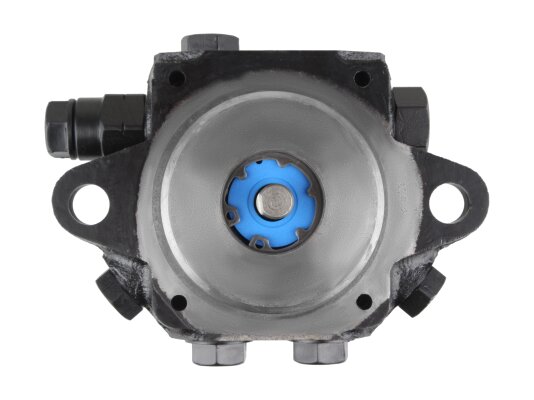

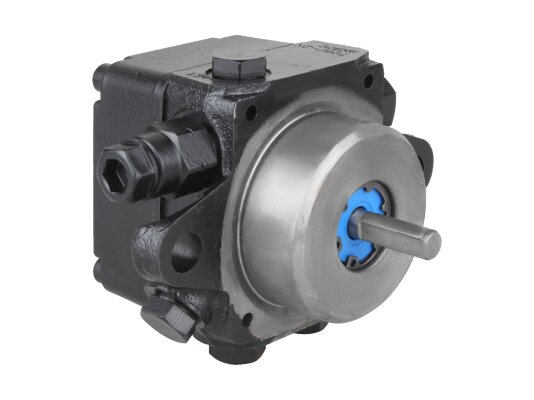

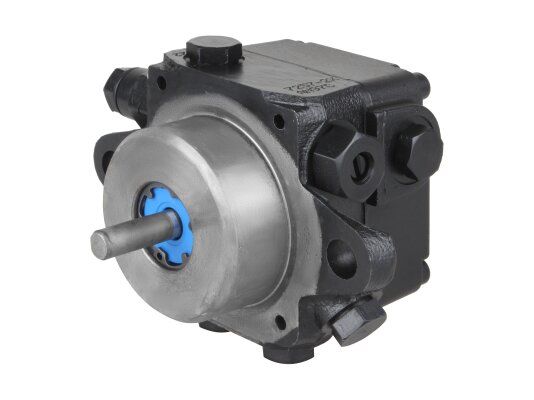

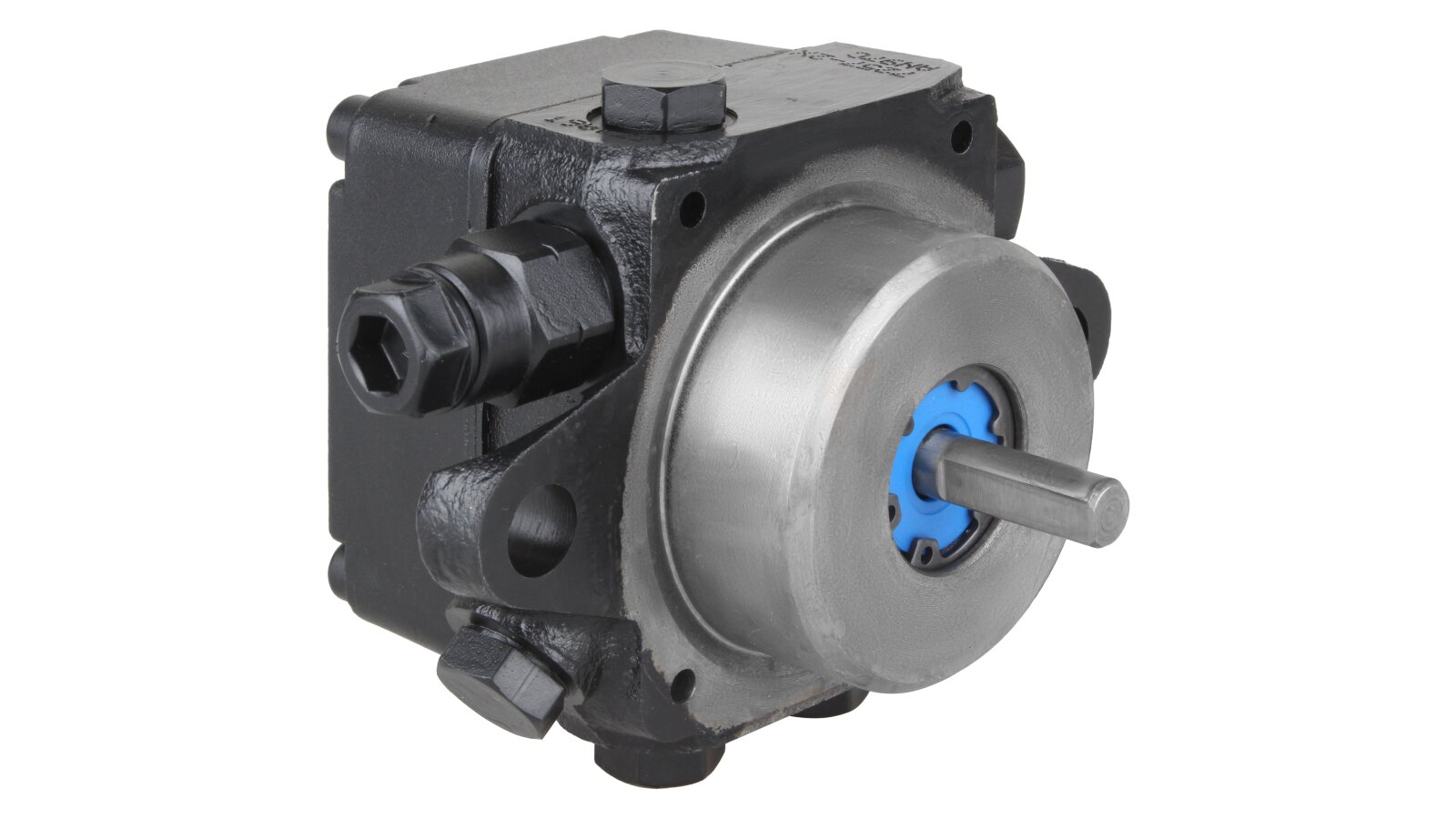

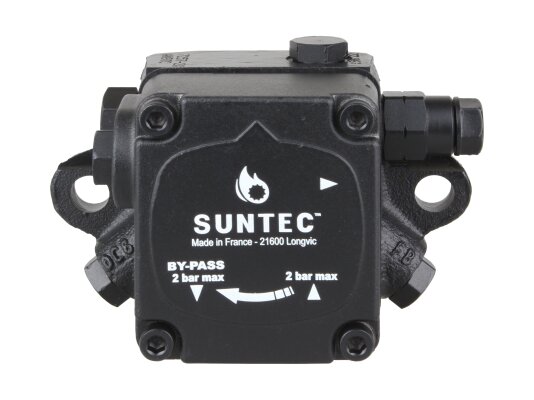

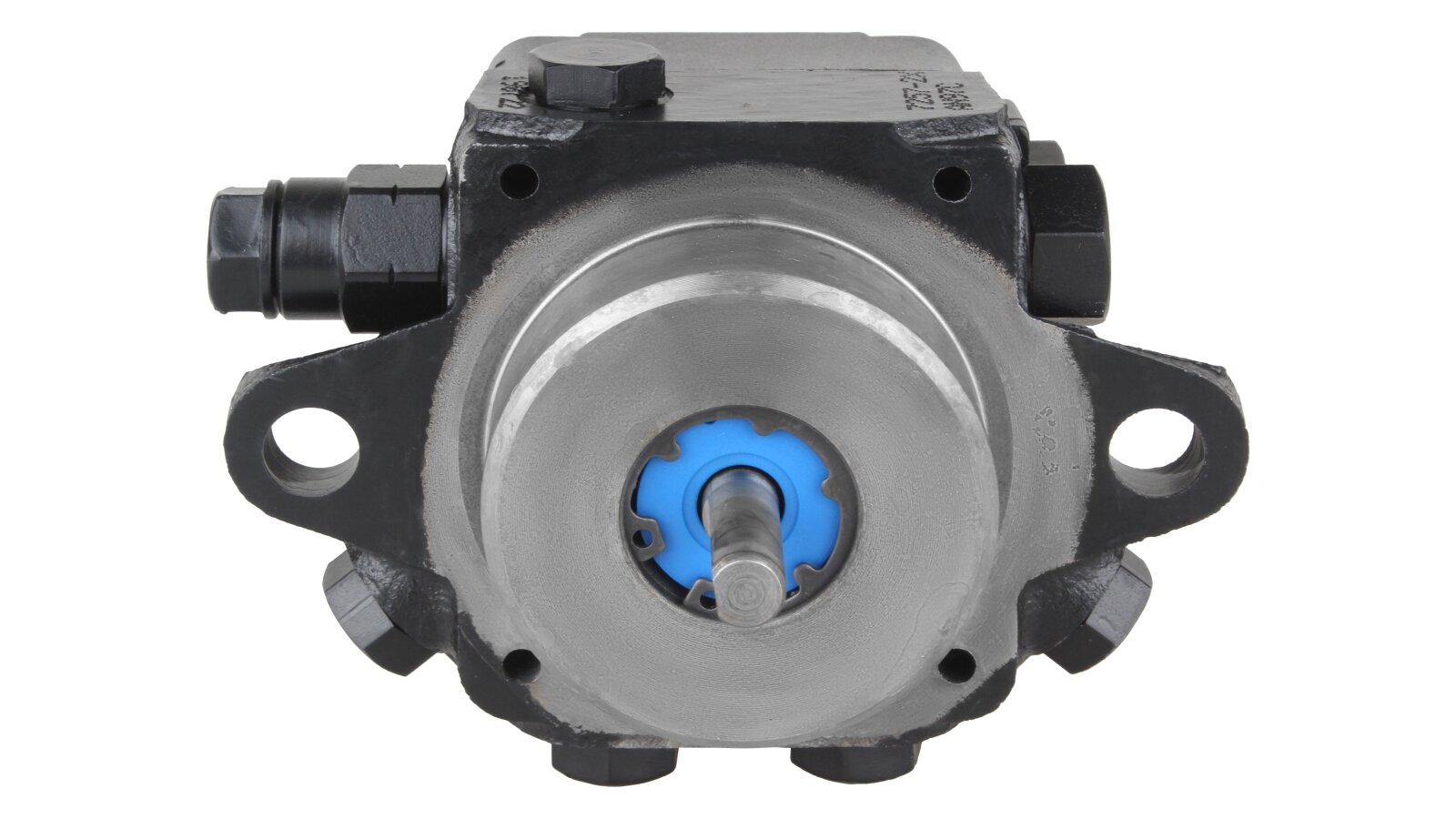

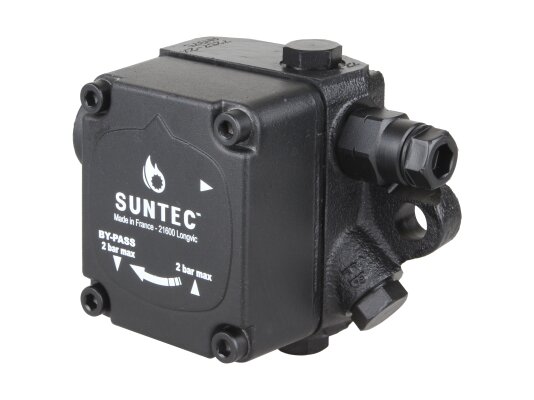

Burner Pump Suntec AN 97 C 7257 2P

Suntec

Alternative Part Number

0089189
AED 875
  1. Oil Burner Pumps

Description

The French company Suntec, a leading manufacturer of boiler equipment, presents a gear pump for diesel heating burners. AN 97 C 7257 2P is a basic model with a capacity of 106 l/h, which has a valve with a pressure regulation and locking function. On the website of the official dealer - the company "ANKAS" - you can buy a Suntec liquid fuel pump in 1 click. Our specialists are always in touch and will answer all your questions.

Design features

  • It is possible to install a factory-assembled unit in a two-pipe circuit. When installing in a one-pipe system, the bypass plug should be removed, and the return line should be blocked with a steel plug and washer. You will need a 4 mm Allen key.

  • The nozzle pressure range is from 10 to 20 bar.

  • The nozzle outlets and the pressure gauge and vacuum gauge ports are standard - G⅛". The cylindrical thread complies with ISO 228/1.

  • The mounting method is sleeve (with a seat diameter of 54 mm) according to the European standard EN 225, the shaft diameter is 8 mm.

  • The design includes a coarse mesh filter. The cell size is 150 μm.

Important! We recommend installing an additional fine filter on the pressure line and regularly flushing it as it gets dirty. This will extend the service life of the fuel injectors and reduce the likelihood of their failure.

Advantages of the model

  • The manufacturer has adjusted the pressure of the device to 14 atm. This is an average value, you can decrease or increase it manually.

  • Fuel consumption depends on the rotation speed of the electric drive, the maximum value of which is 3600 rpm.

  • The unit pumps liquids with a kinematic viscosity from 2 to 75 mm²/s, and the temperature range fuel — from 0 to +60°C.

  • The maximum capacity of the device is 106 l/h with a fuel pressure of 11 bar.

  • The model has compact dimensions and a small weight — 1 kg.

The company "ANKAS" is an official dealer of reliable European equipment and components for heating systems. We offer to order pumps for Lamborghini, Elco, Weishaupt, Baltur burners or other models on the website. To do this, fill out the feedback form, do not forget to leave a contact phone number.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 106 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 106 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmShaft diameter: 8 mmTorque: 0.20 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barInstallation method: flange ∅ 54 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmType of pumped liquid: diesel
