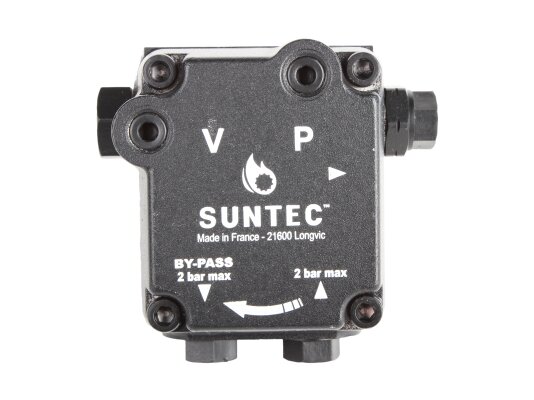

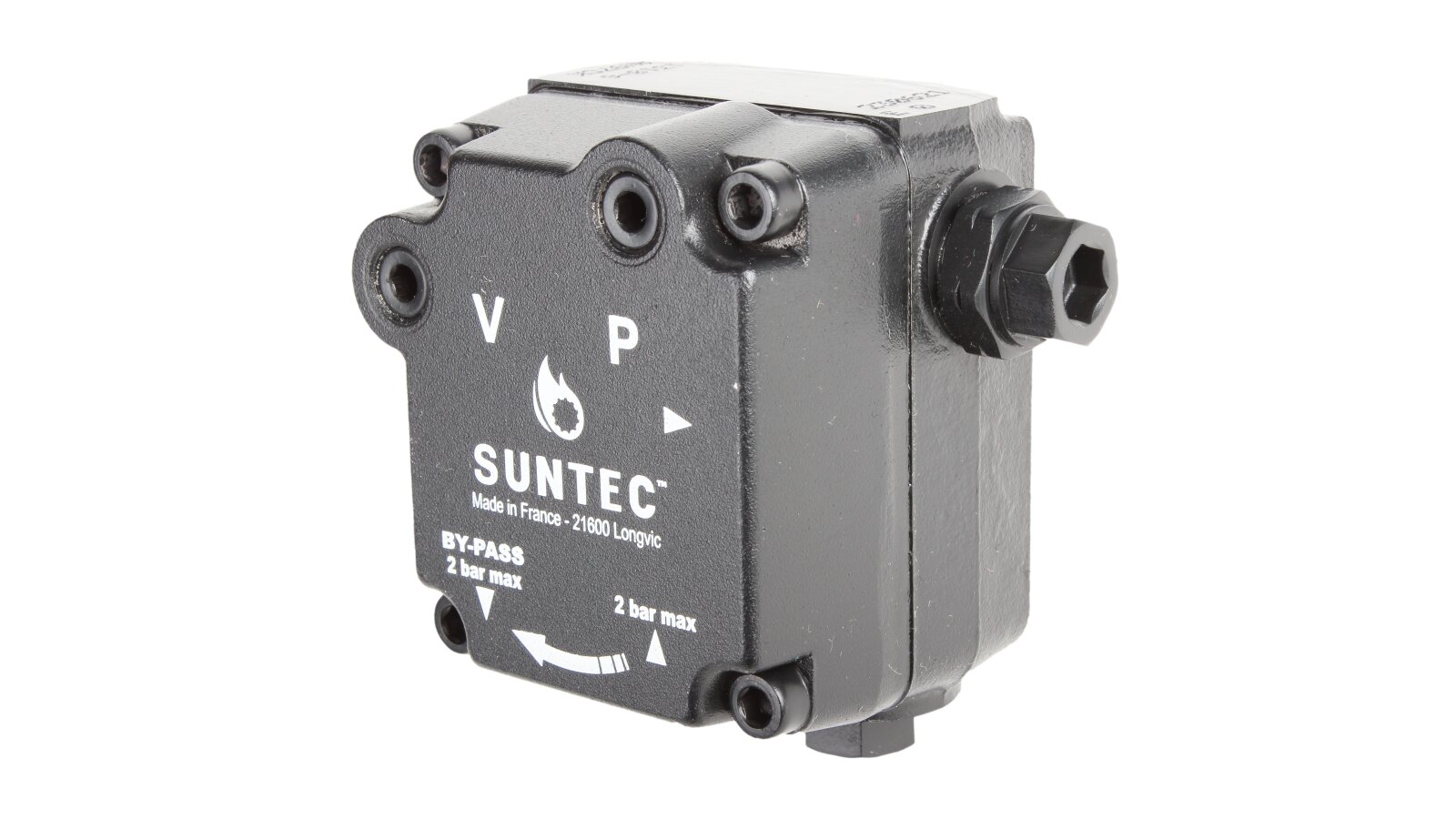

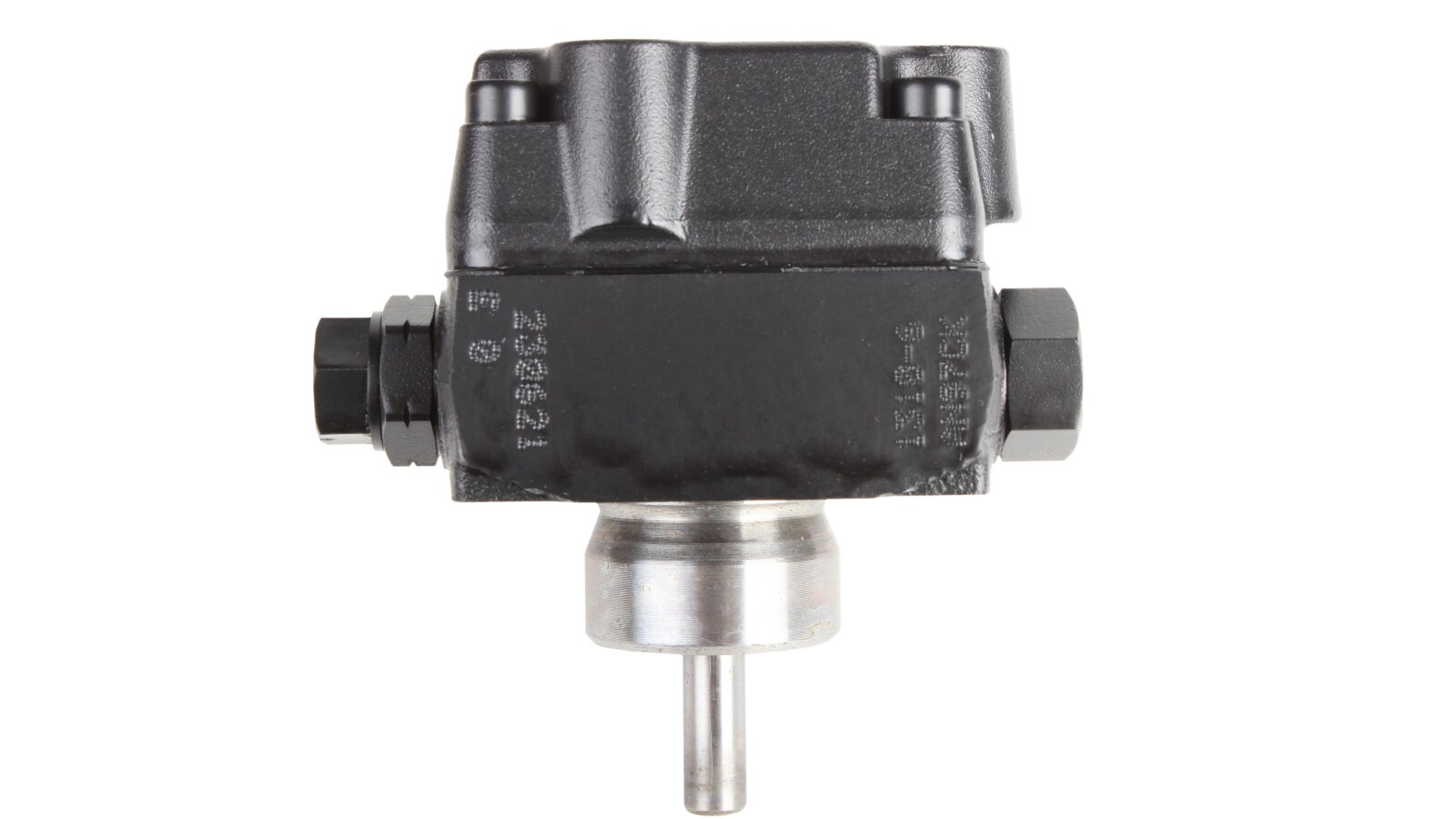

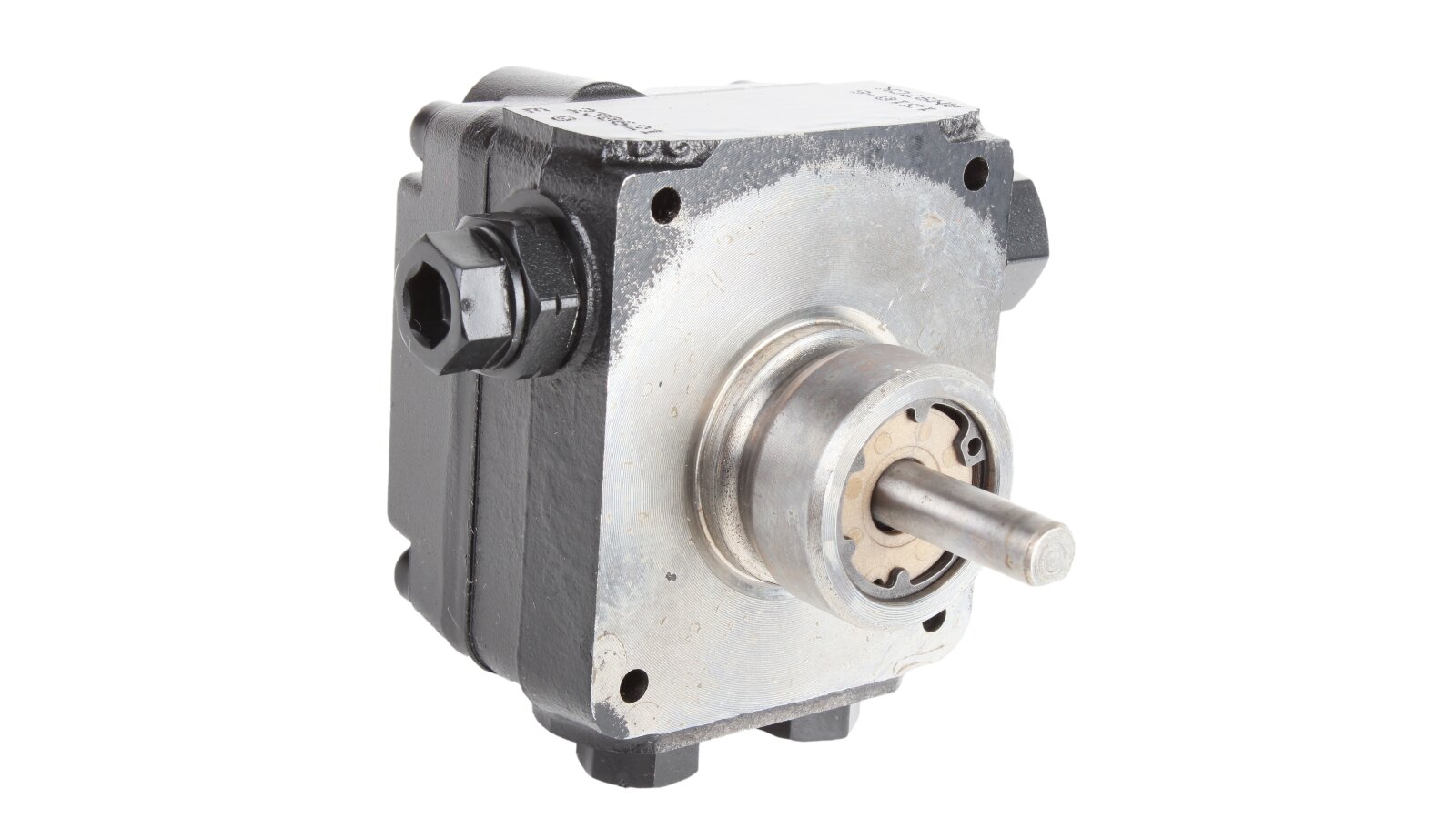

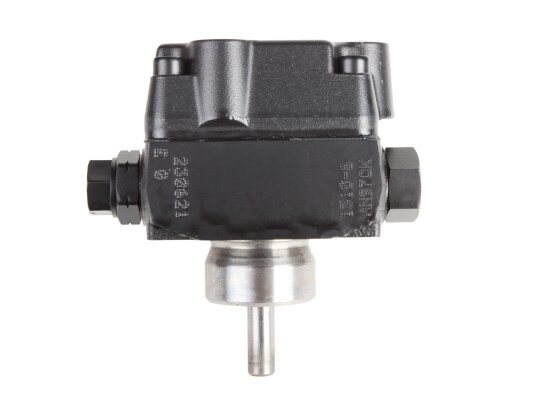

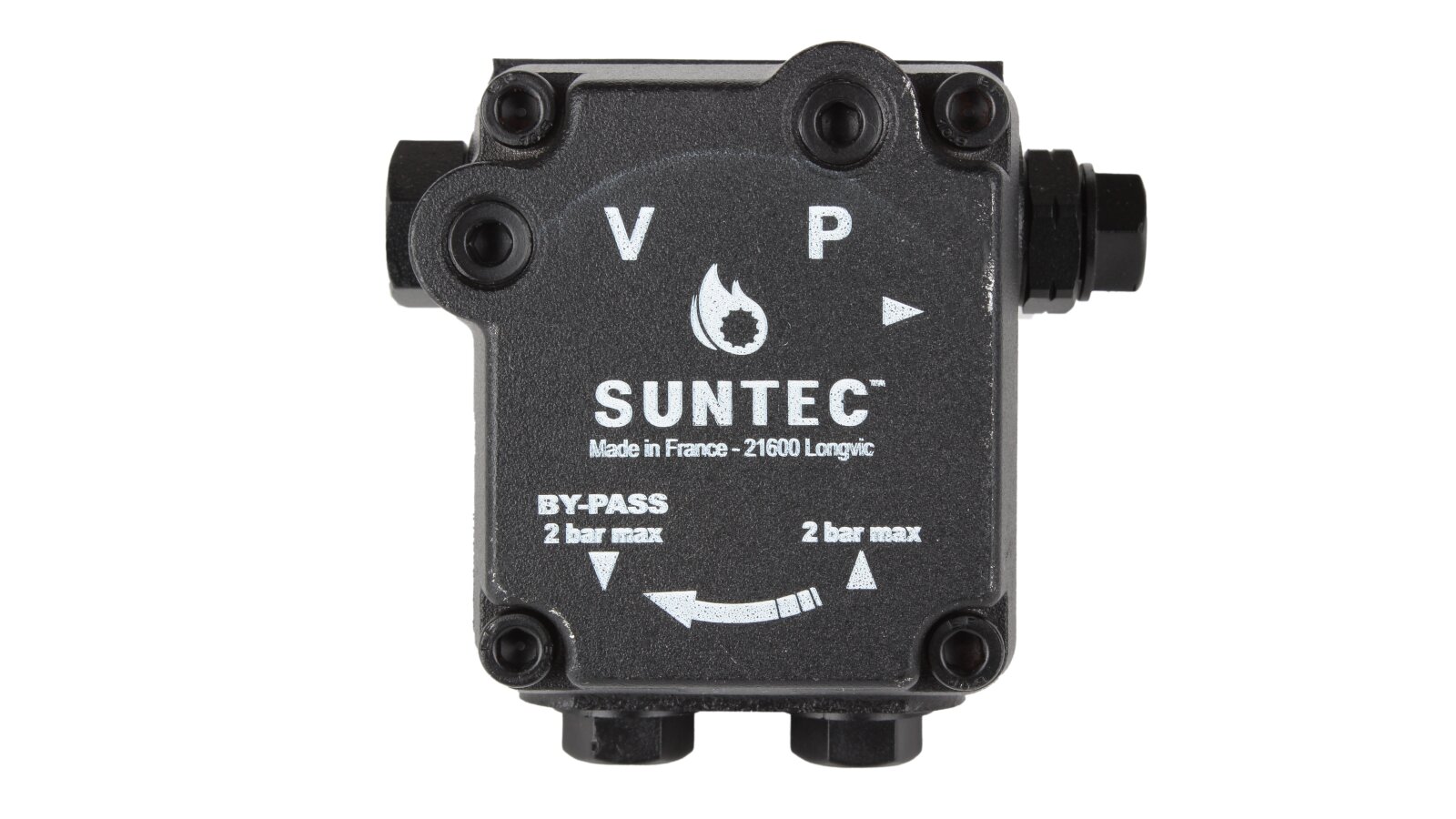

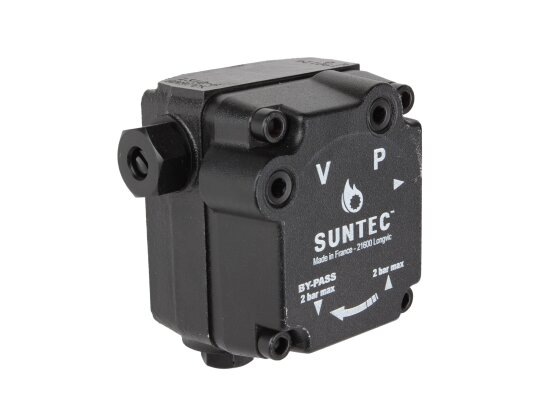

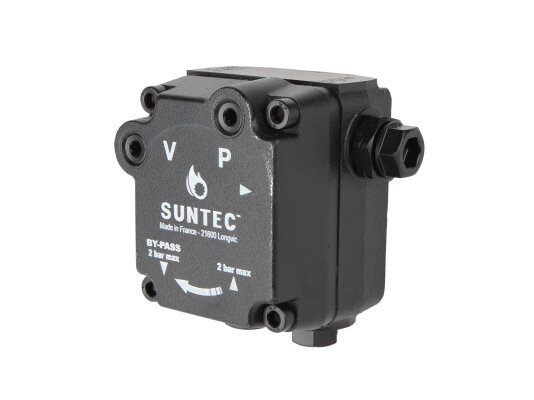

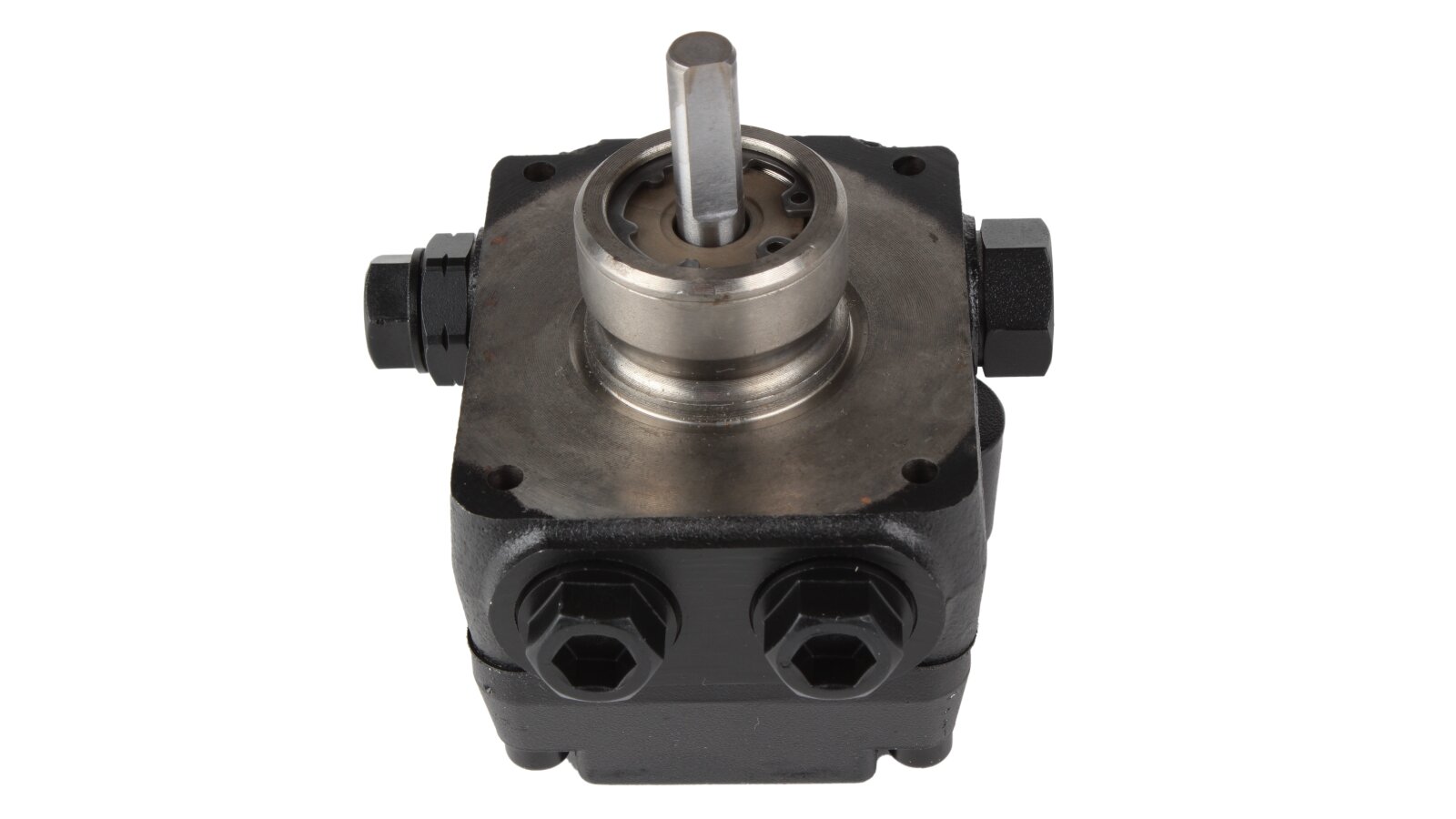

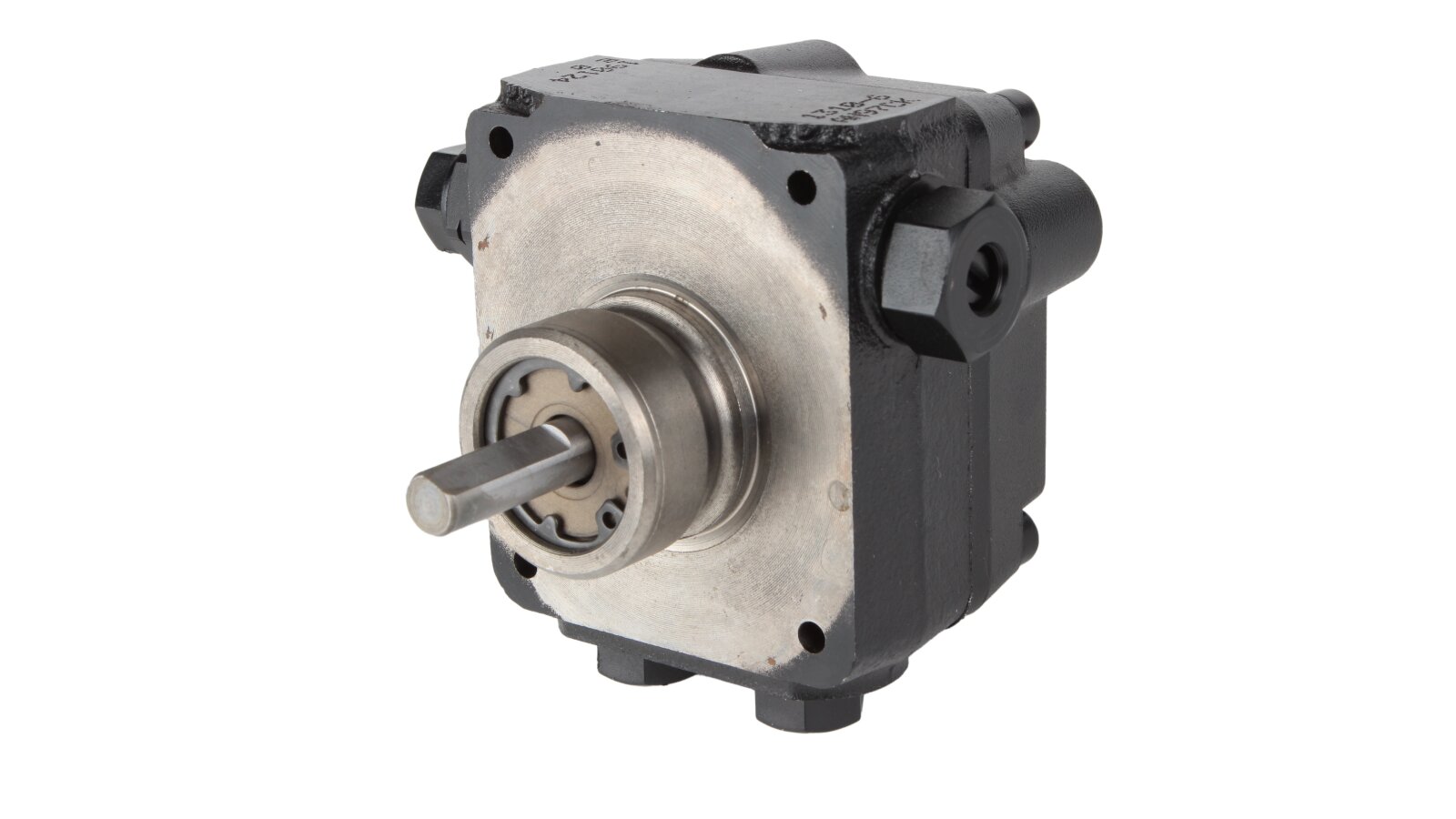

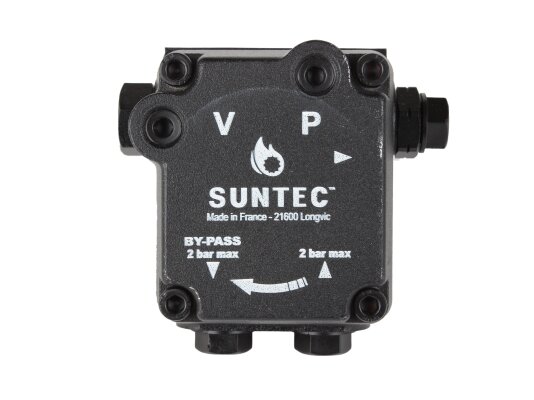

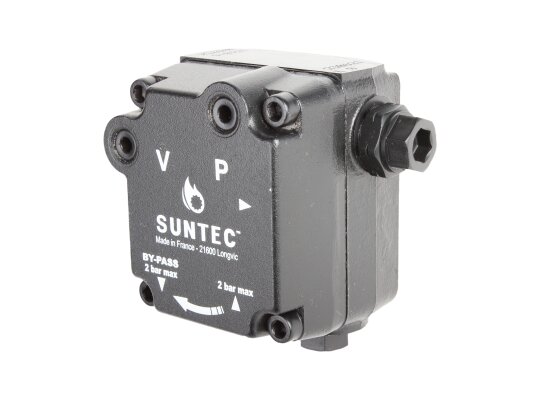

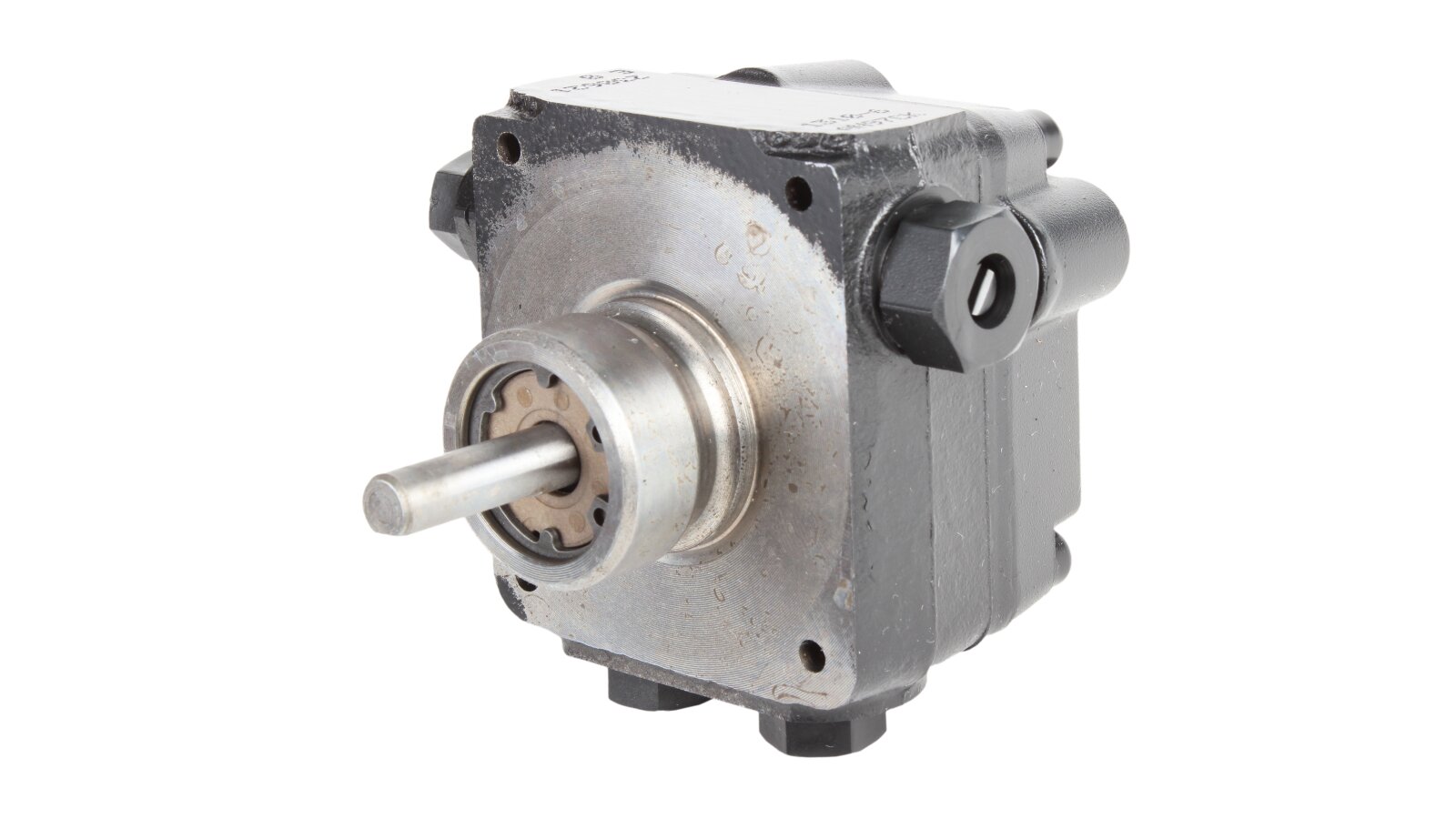

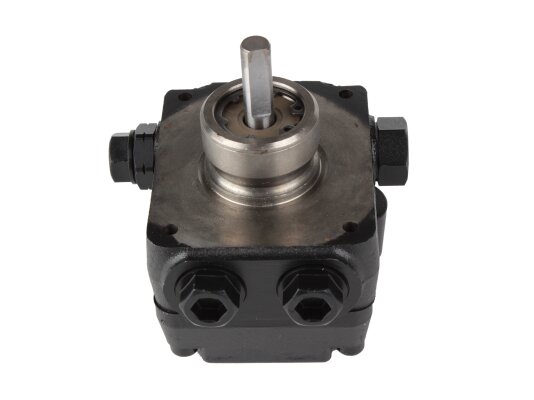

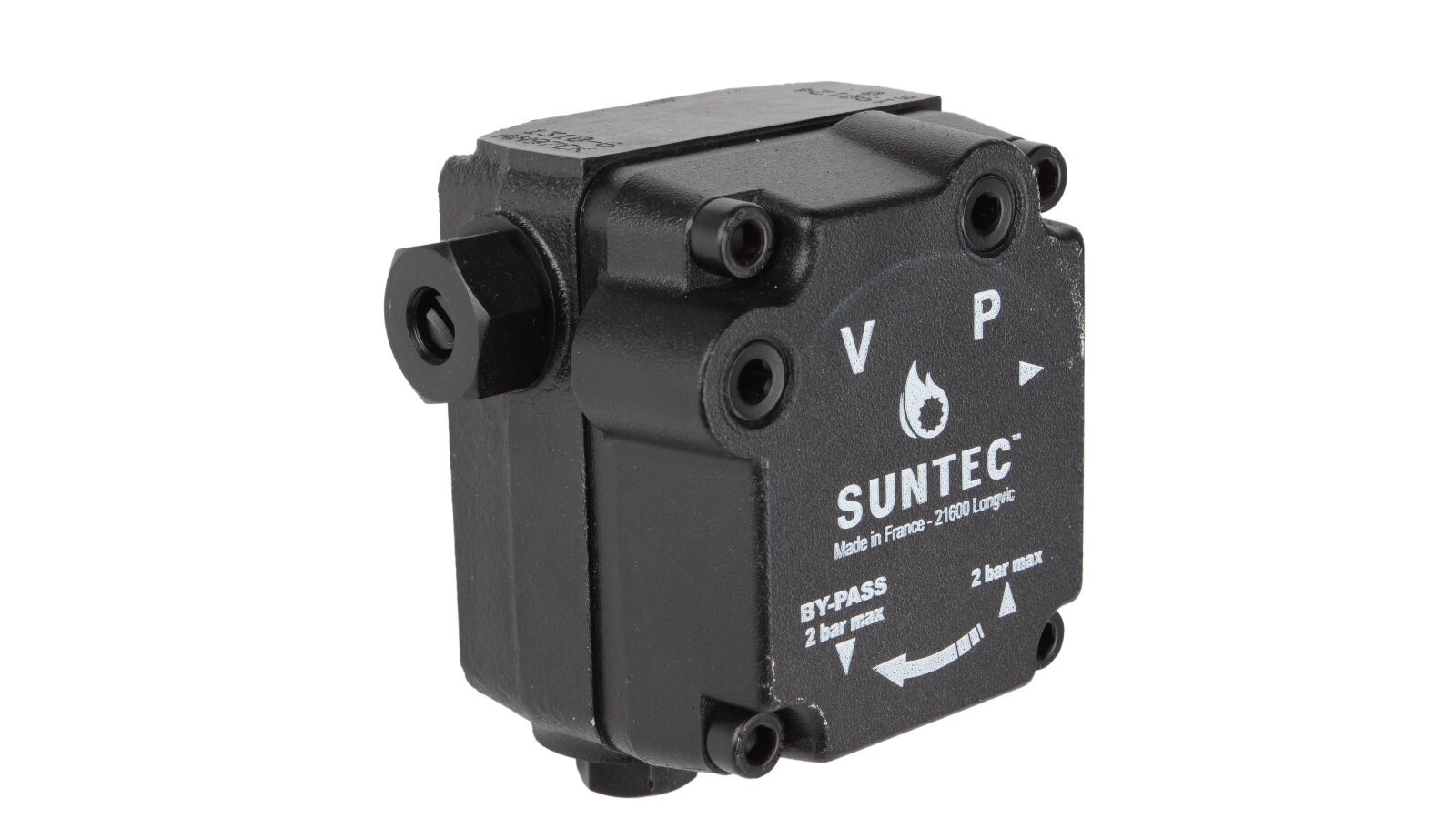

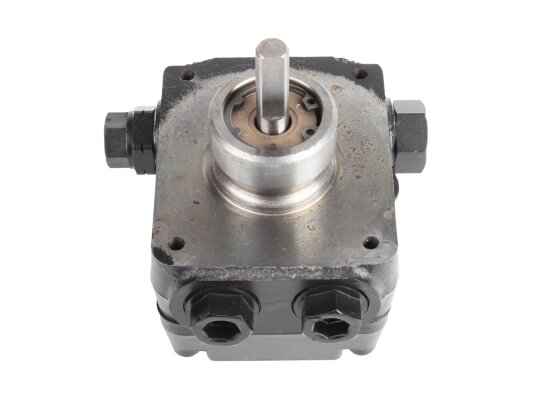

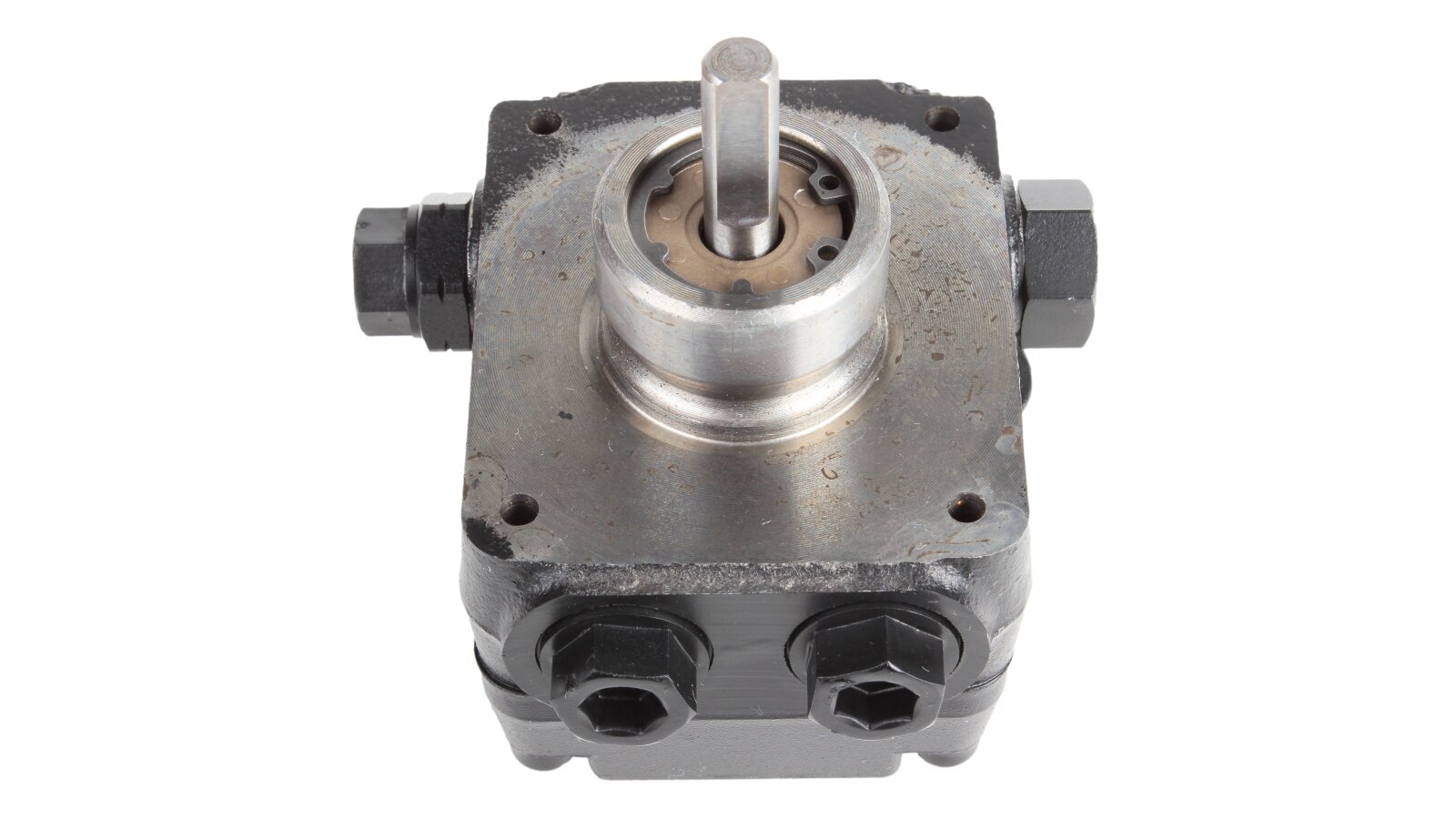

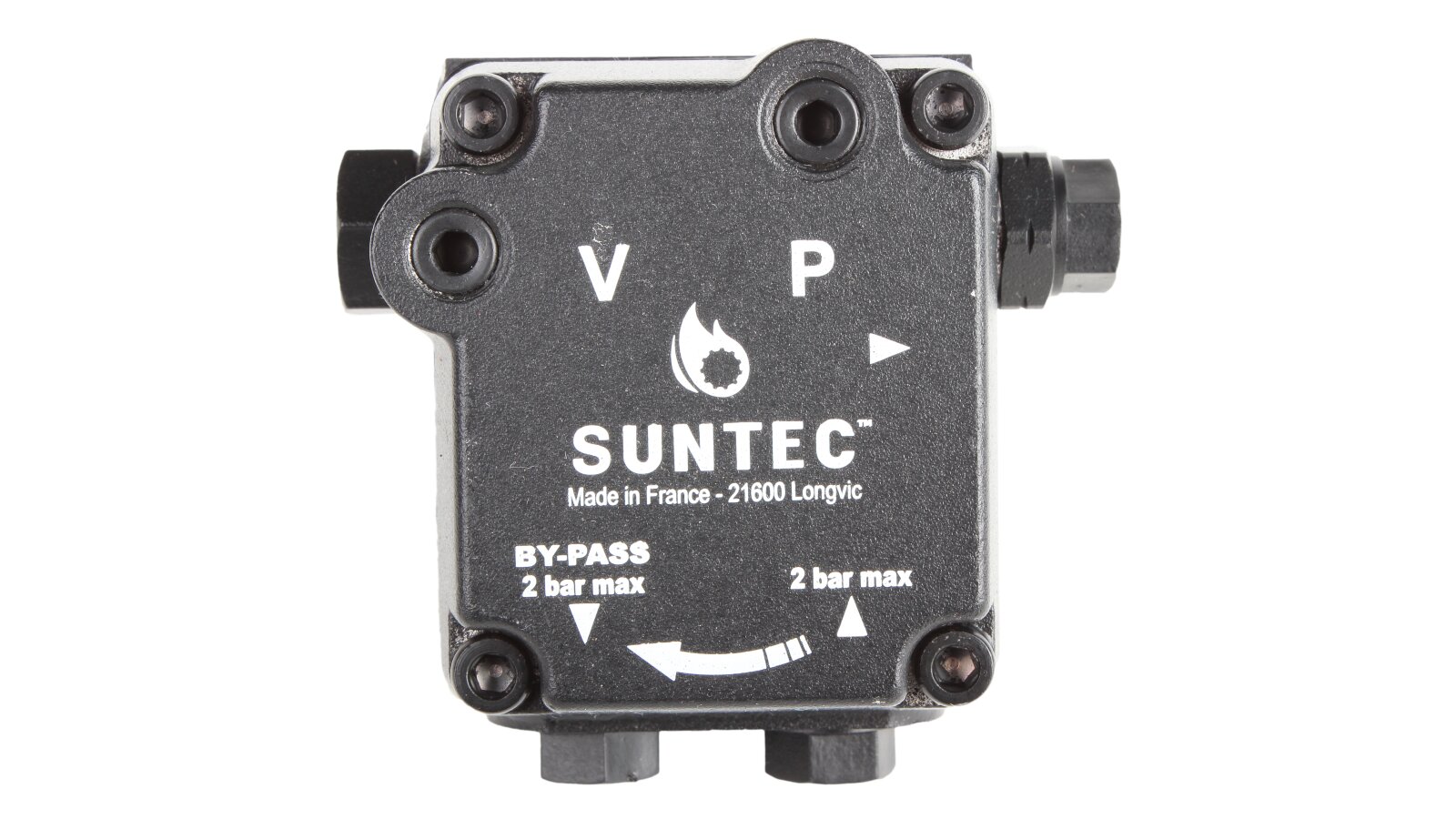

Burner Pump Suntec AN 97 C K 1310 6P

Suntec

AED 1,550

Oil Burner Pumps
Products code: 6837

Description

The Suntec AN 97 C K 1310 6P pump is a basic model equipped with a pressure regulating valve with a shut-off function. It is designed for pumping diesel fuel and kerosene. The pumping speed depends on the pressure setting and the viscosity of the fuel.

Features

  • The design is basic. The pump is equipped with a valve that regulates the fuel pressure and performs a shut-off function. Thanks to the Viton seals, the pump can pump kerosene.

  • Before getting to the gear pair, the fuel is cleaned of mechanical particles of 150 microns or more using a mesh filter with a working surface of 20 cm², which contributes to the stable operation of the gear mechanism and eliminates breakage.

  • The pump can be built into systems with one or two pipes. With a two-pipe connection, the bypass plug is installed in the return line, with a single-pipe connection, it is replaced with a steel plug with a washer.

  • At the factory, the pump is adjusted to a pressure of 14 bar. During operation, the fuel supply pressure can be adjusted in the range from 10 to 20 bar.

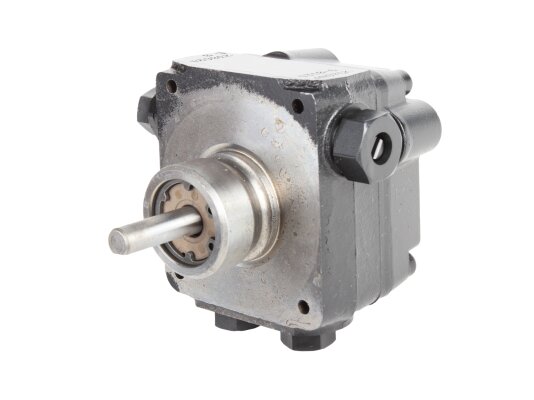

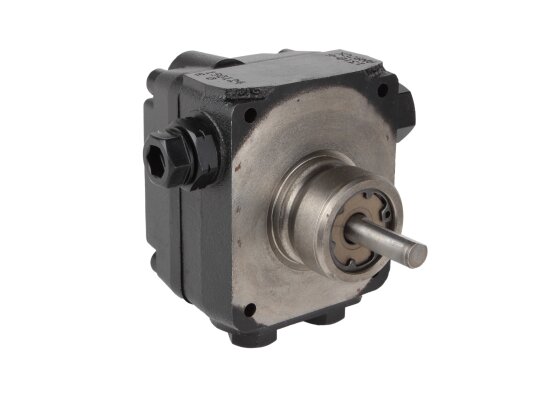

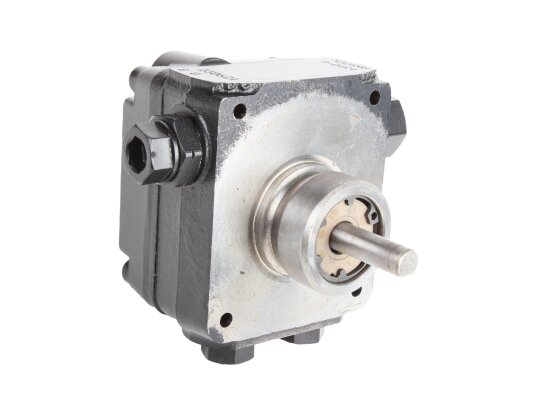

  • The pump is mounted using a flange connection ∅ 54 mm. The body has standard ports for connecting measuring instruments.

  • As a rule, the pump is used with an external electromagnetic valve (purchased upon a separate request).

Advantages:

  • for pumping diesel fuel and kerosene;

  • pressure regulating valve with a shut-off function;

  • protection of the working unit from damage by a filter mesh;

  • installation variability - in systems with one or two pipes;

  • standard ports for connecting measuring instruments;

  • Viton shaft seals;

  • stable, long-lasting service.

On the ANKAS website you can buy a Suntec AN 97 C K 1310 6P pump and all the necessary components for assembling boiler equipment at the prices of a direct supplier.

Characteristics

Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 106 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 14 barValve function: pressure regulating and cut-offNozzle pressure range: from 10 to 20 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.2 N·mOperating viscosity: from 2 to 75 mm²/sType of pumped liquid: kerosene, diesel
