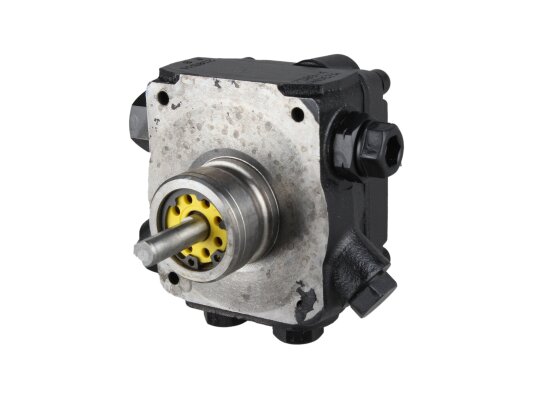

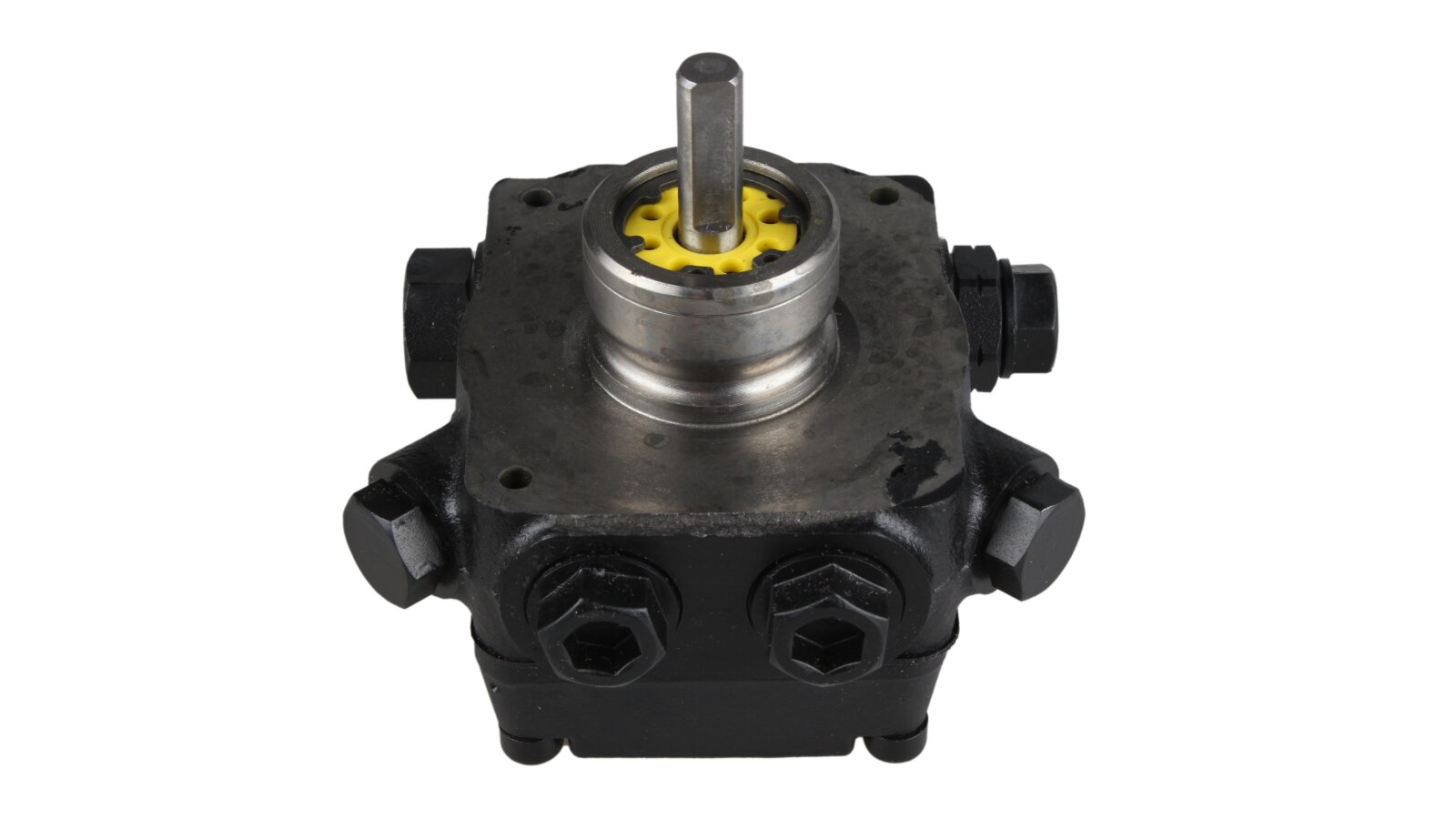

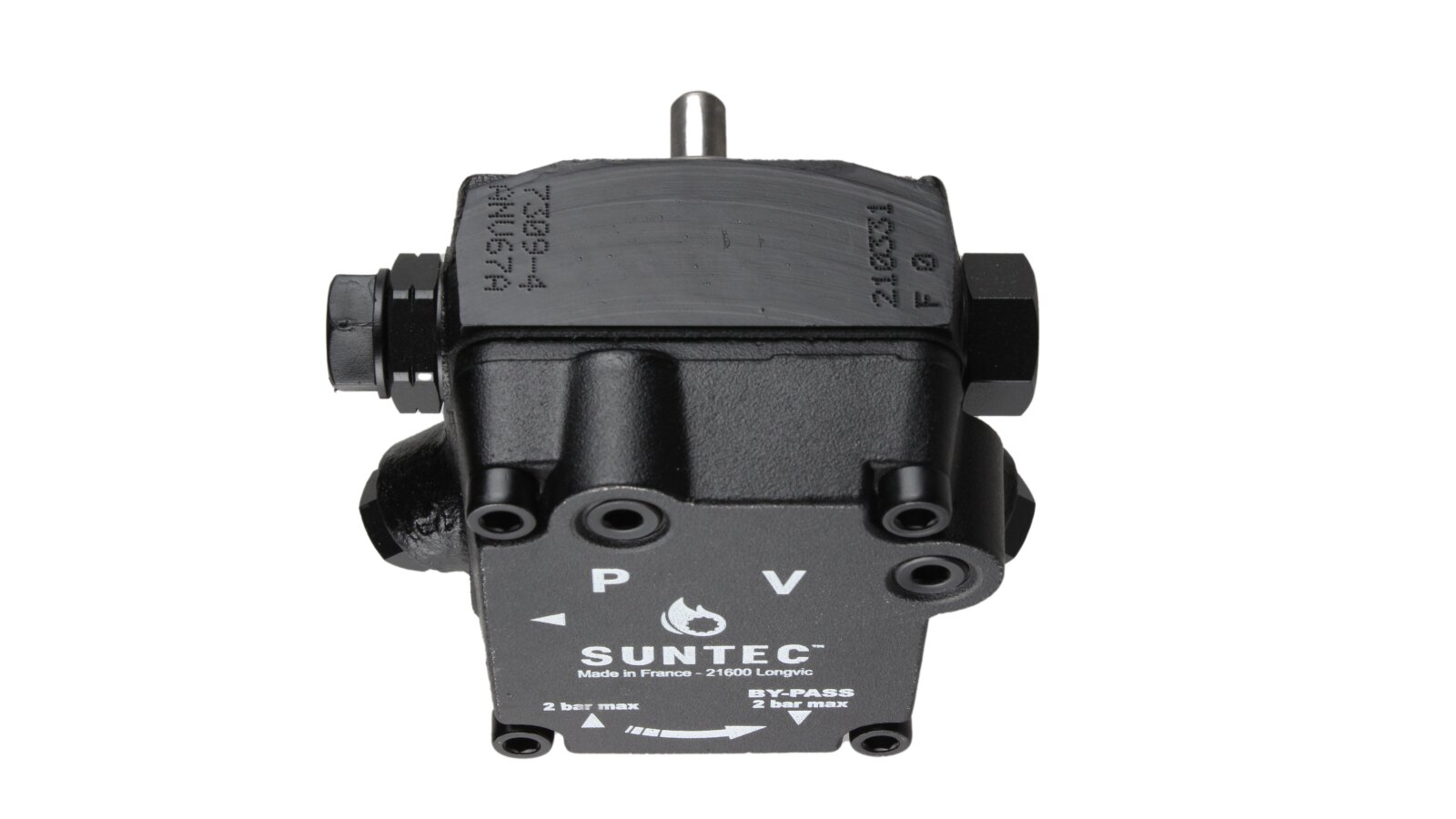

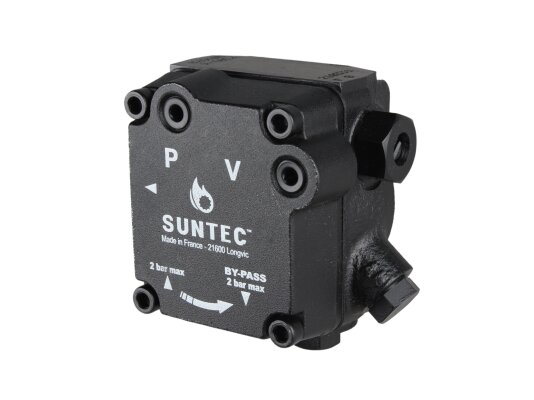

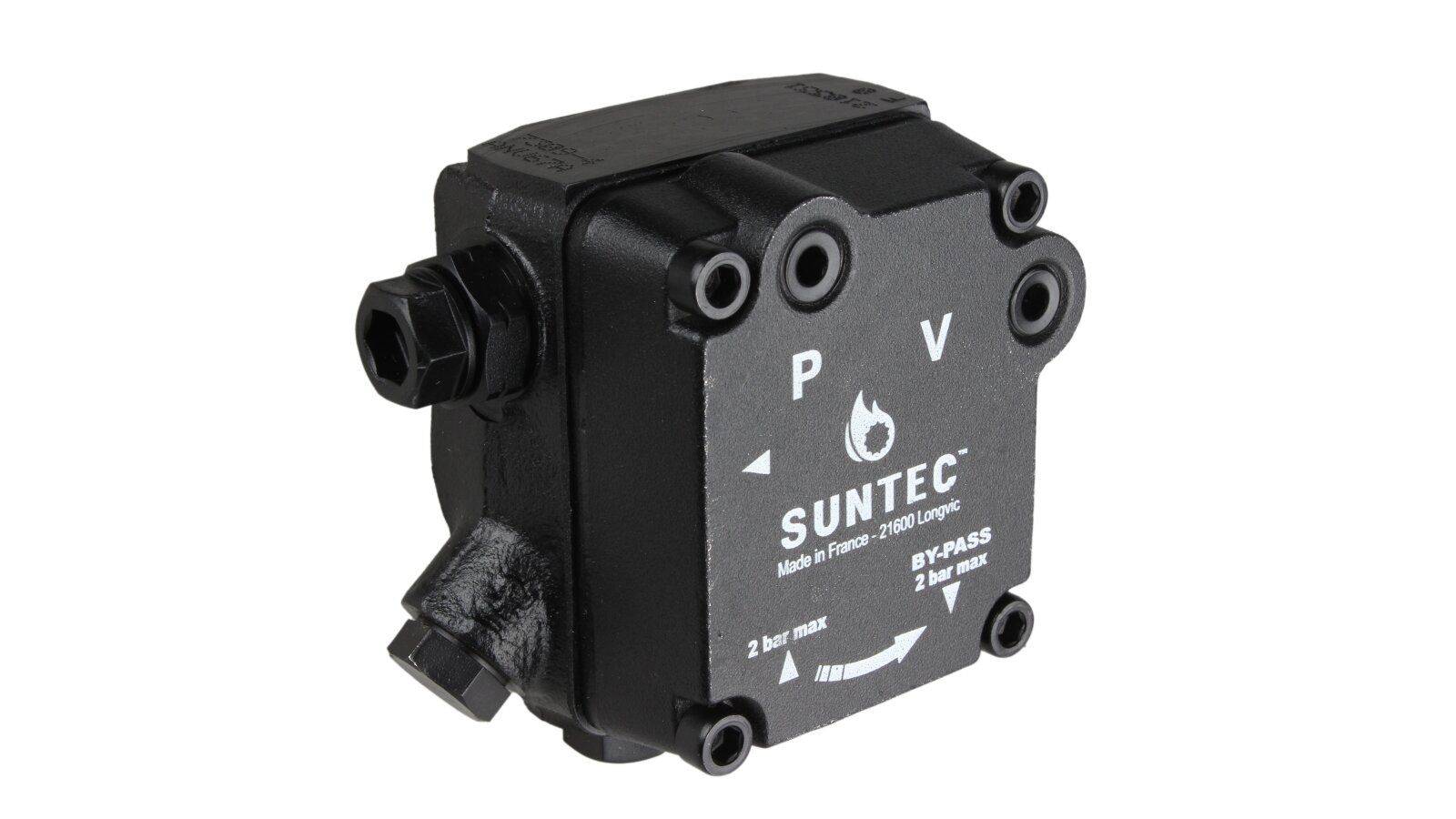

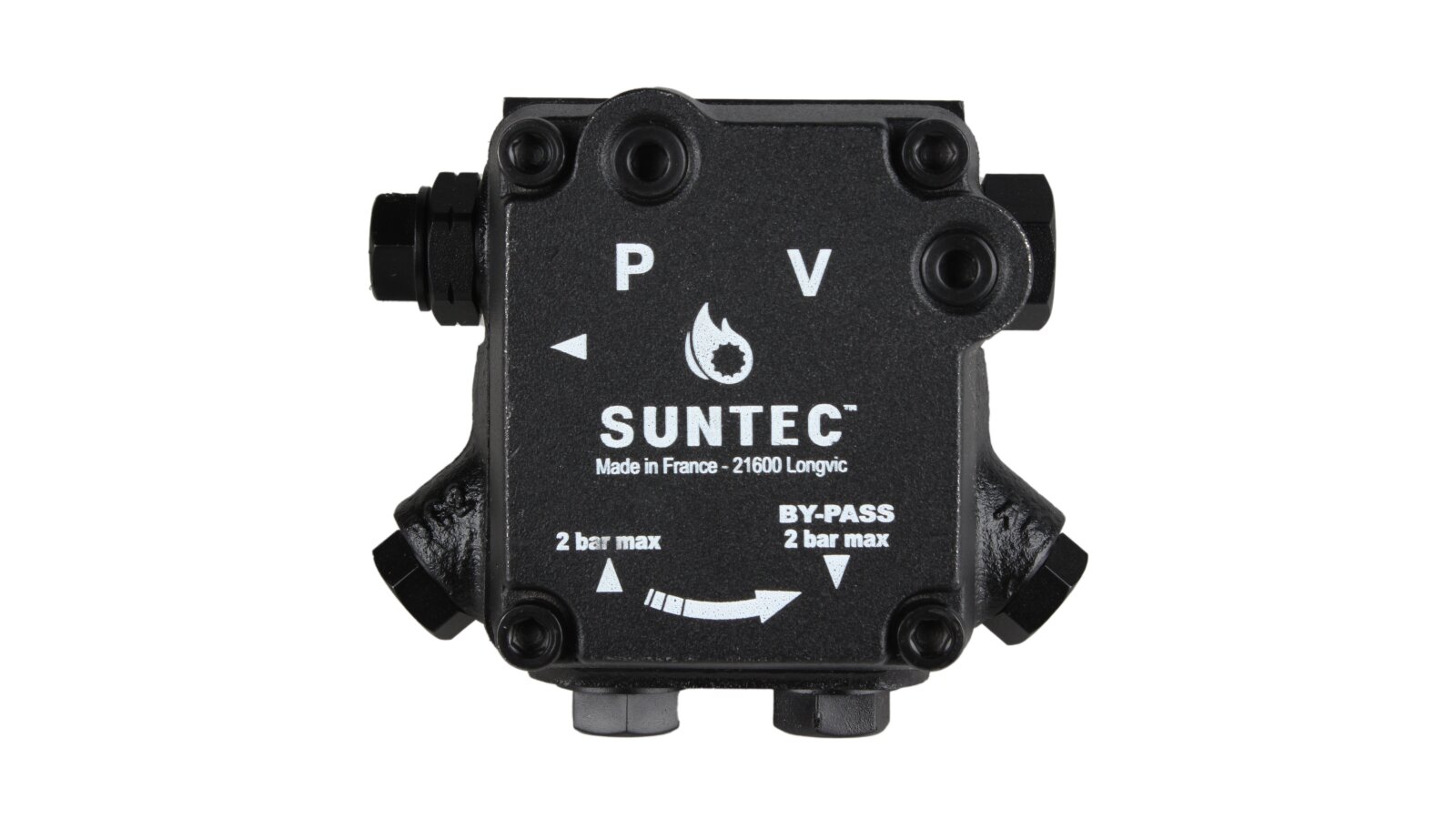

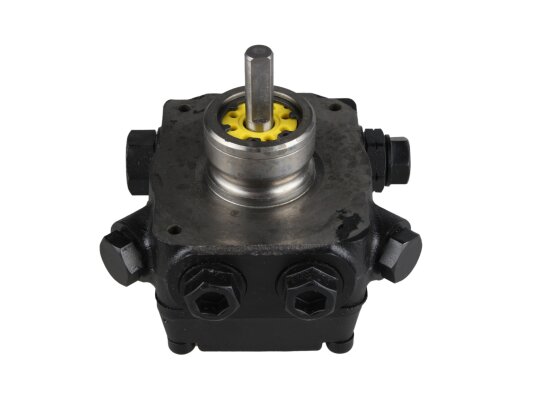

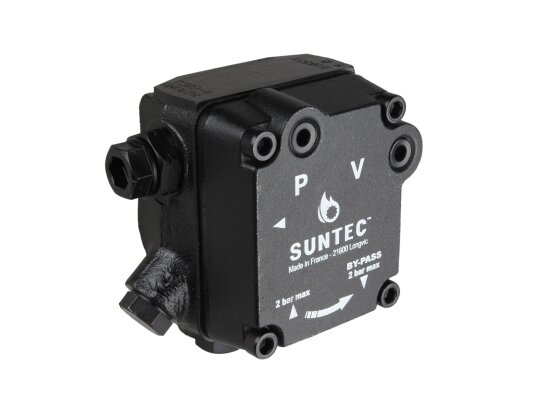

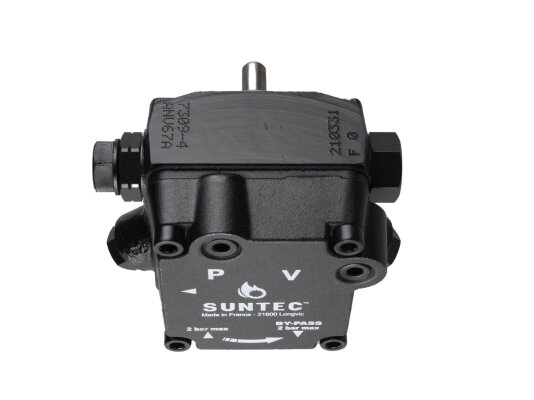

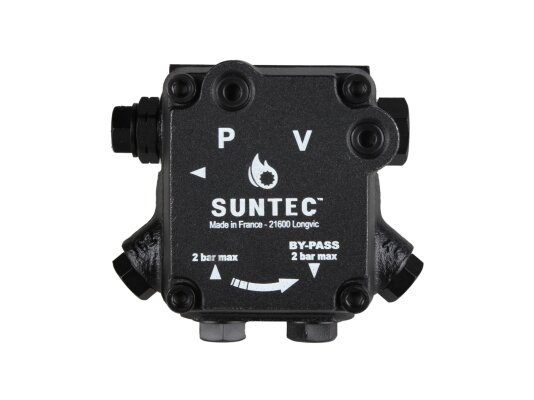

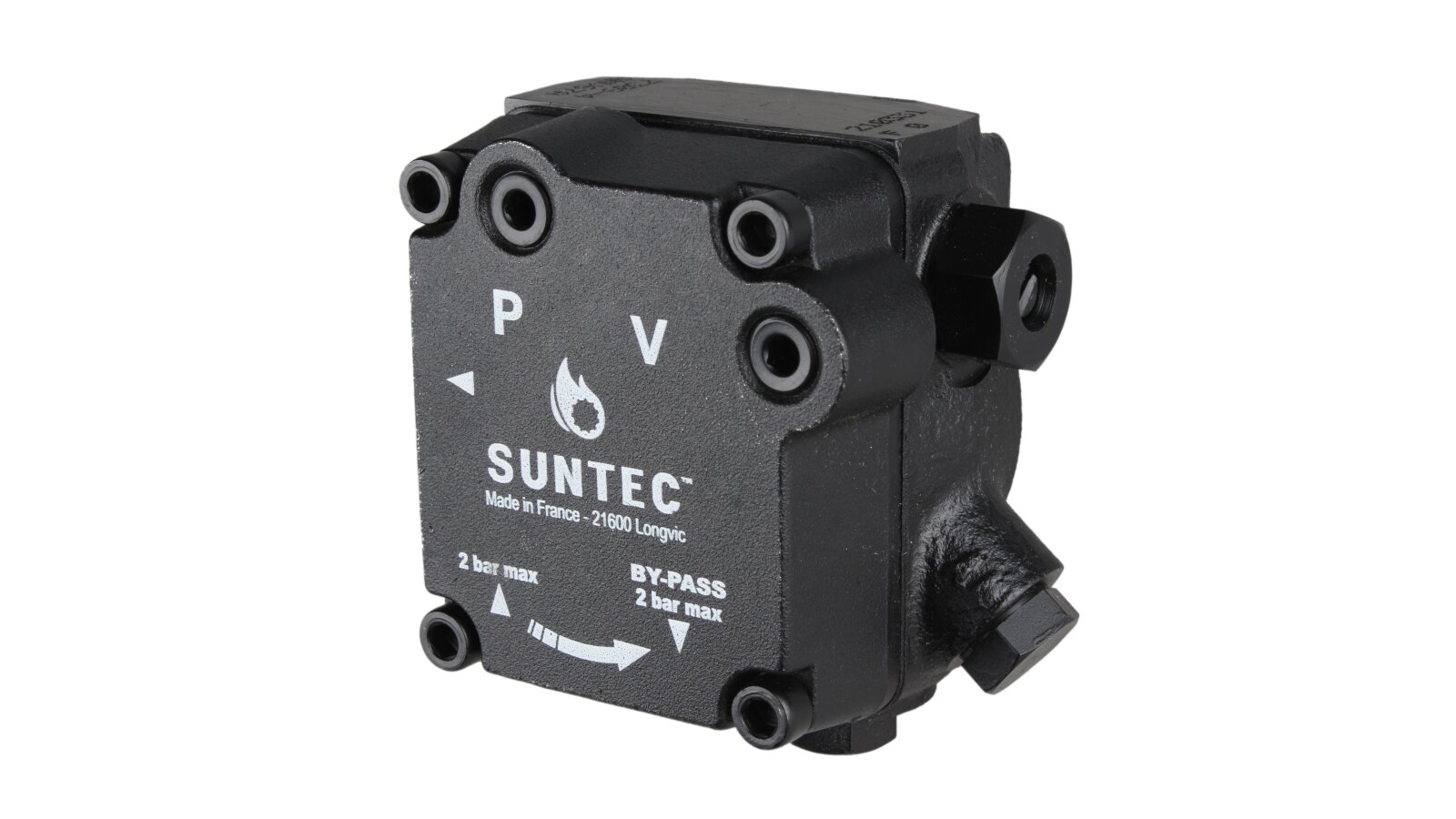

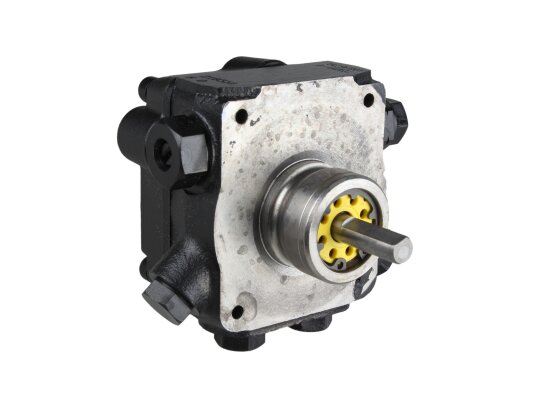

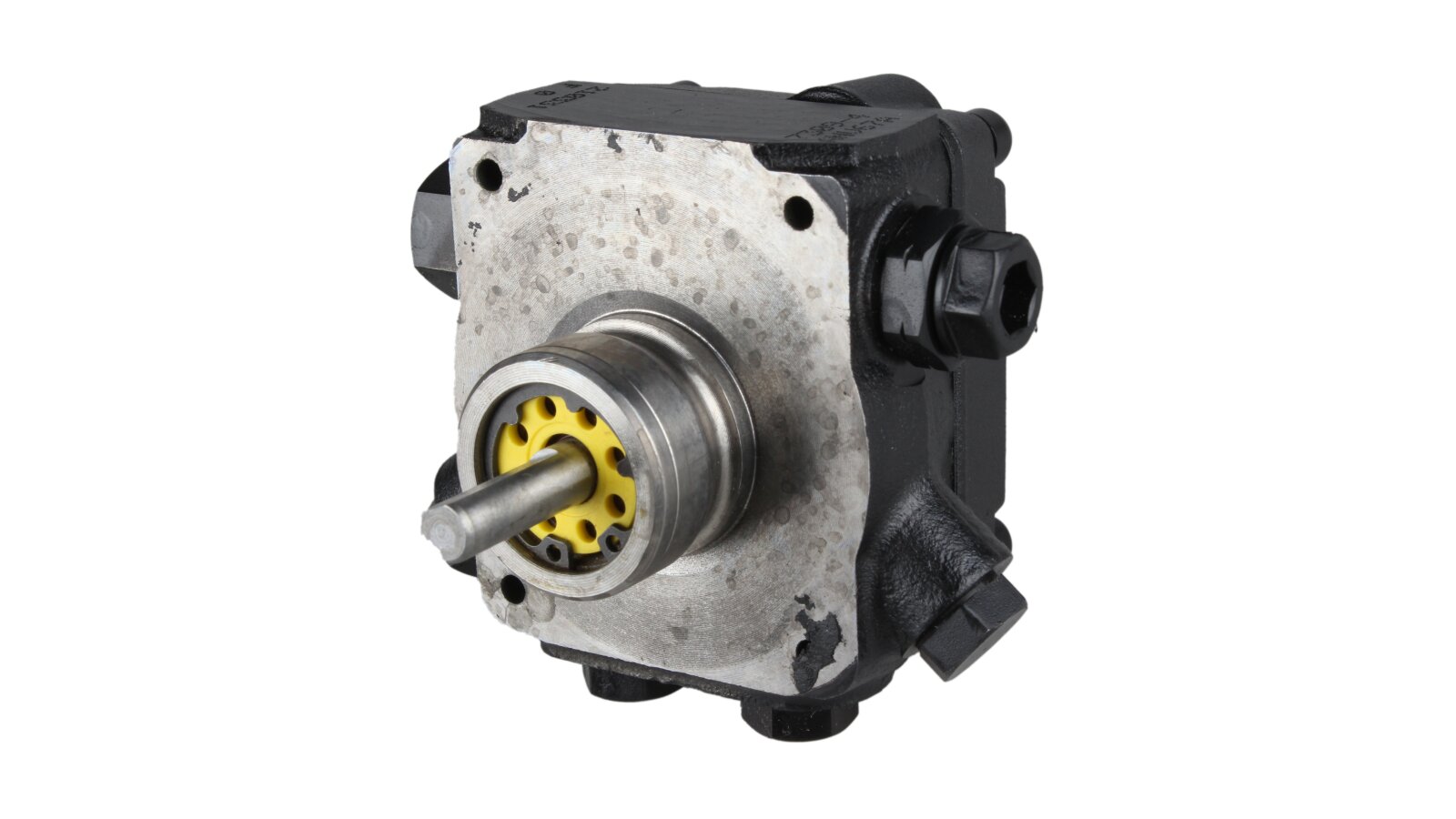

Burner Pump Suntec AN V 67 A 7309 4P

Suntec

AED 975

Oil Burner Pumps
Products code: 54443

Description

The Suntec AN V 67 A 7309 4 burner pump pumps diesel fuel, biodiesel B10 blend. Ready for connection to systems with a return line, but can also be used in single-pipe installations. The performance depends on the viscosity of the pumped fuel and the pressure parameters. The pump is equipped with a pressure regulating valve with a shut-off function. The gear mechanism moving the fuel to the nozzle is protected from jamming by a built-in filter mounted at the inlet.

Features and key parameters:

  • versatility, for diesel and biodiesel fuel B10;

  • Viton seals;

  • reliable, wear-resistant working mechanism;

  • built-in valve for pressure regulation and flow shut-off;

  • pressure regulation range 10-20 bar;

  • factory pressure parameters - 14 bar;

  • performance - 80 l/h with a working medium viscosity of 5 cSt and a pressure of 11 bar;

  • filter at the flow inlet with 150 µm cells;

  • mounting on a ∅ 32 mm bushing;

  • connection to a ¼ inch NPTF pipeline (suction and return drain lines);

  • holes for connecting a pressure gauge and vacuum gauge with a diameter of ⅛ inch;

  • permissible temperature of the pumped fuel: 0...+60°C;

  • the possibility of mounting in any orientation, except with the axis up;

  • for installations with a single-pipe and two-pipe distribution system;

  • automatic air removal in 2-pipe devices.

During operation, it is necessary to regularly clean the filter from dirt by opening the pump cover.

The Suntec AN V 67 A 7309 4 burner pump is suitable for burners of most manufacturers.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 108 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmMaximum rotation speed: 3600 rpmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityInstallation method: sleeve ∅ 32 mm
