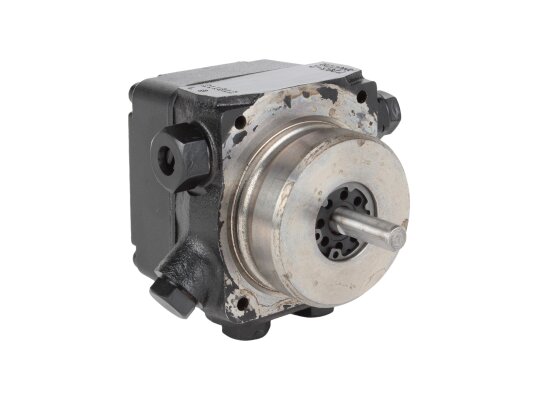

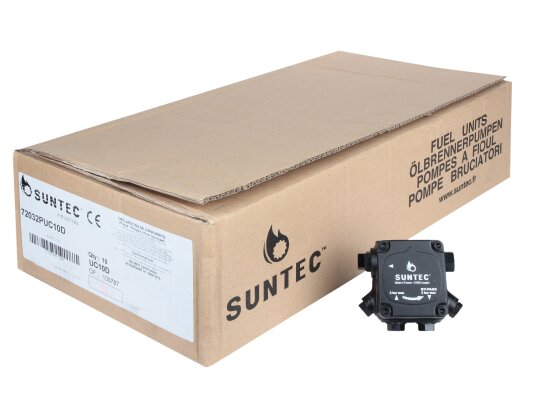

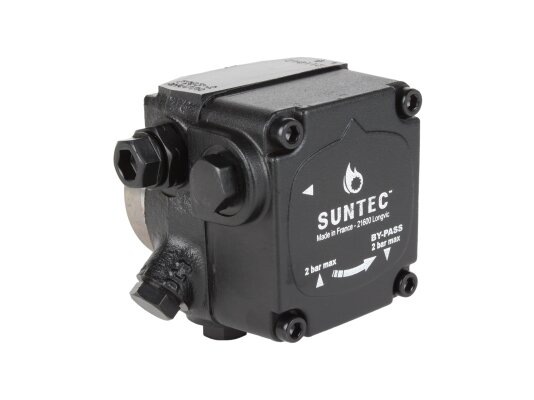

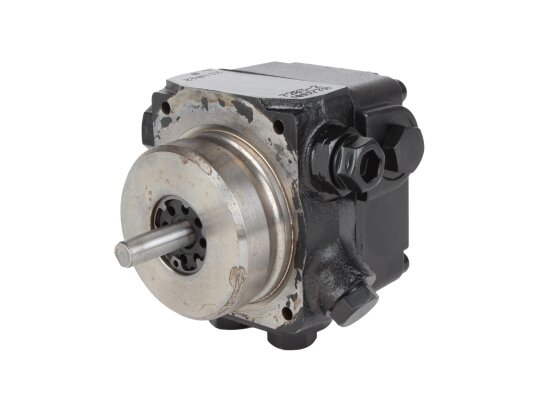

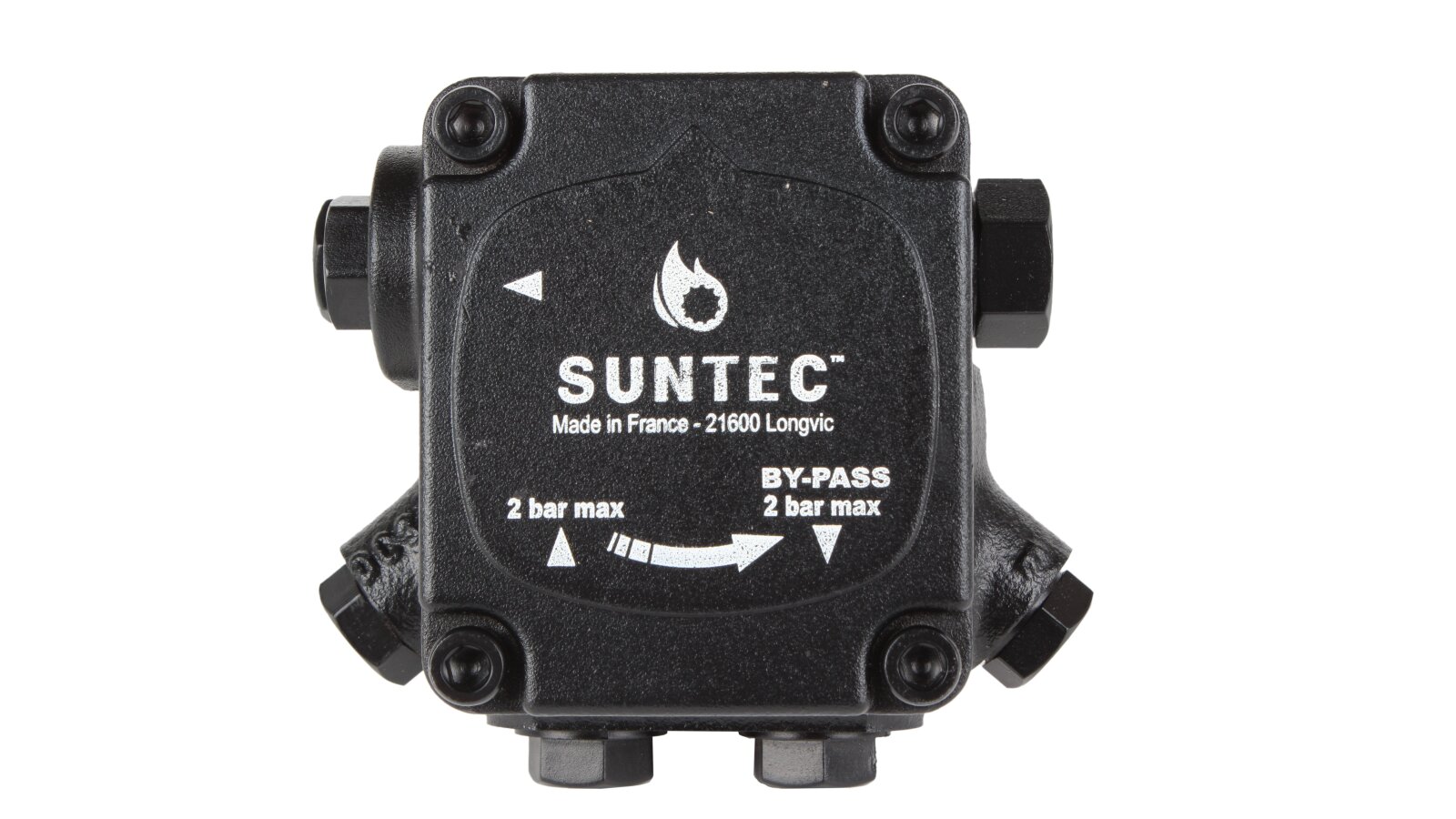

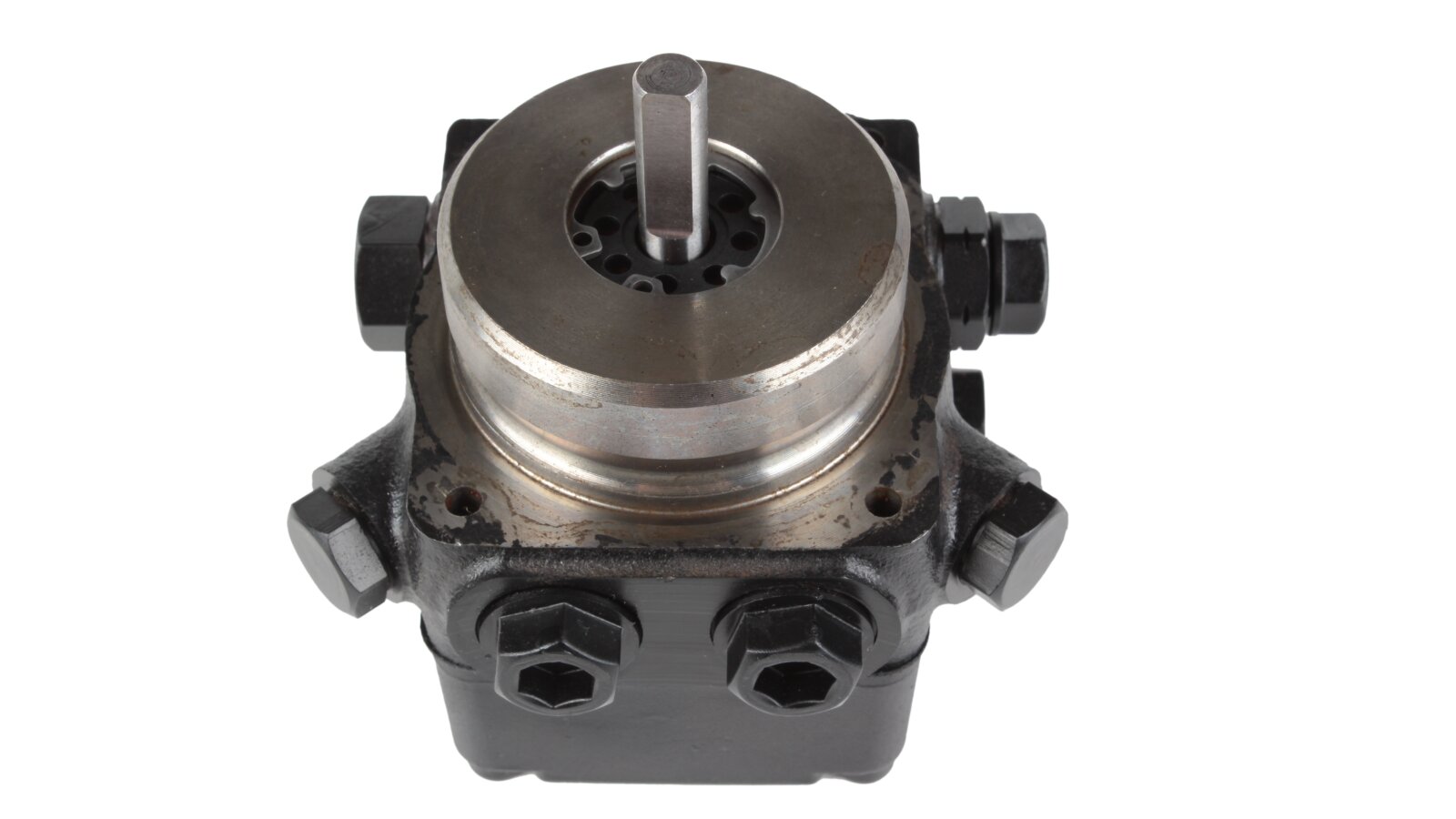

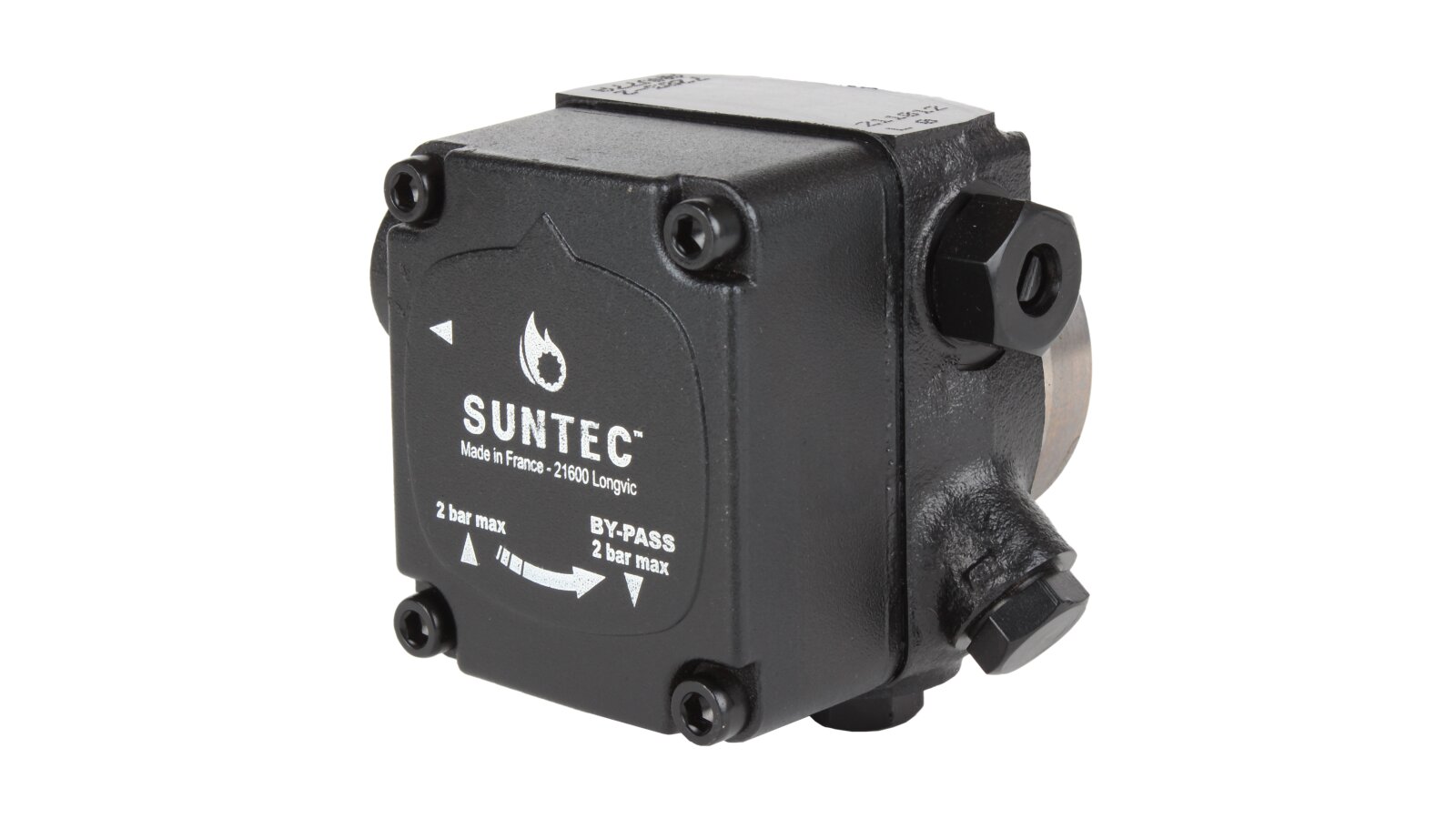

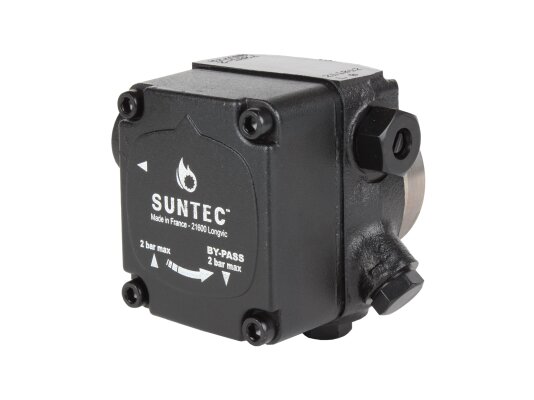

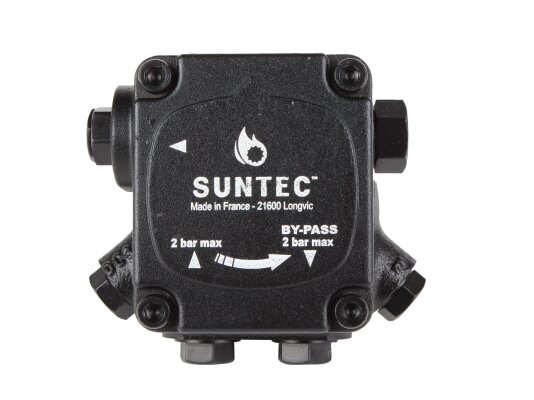

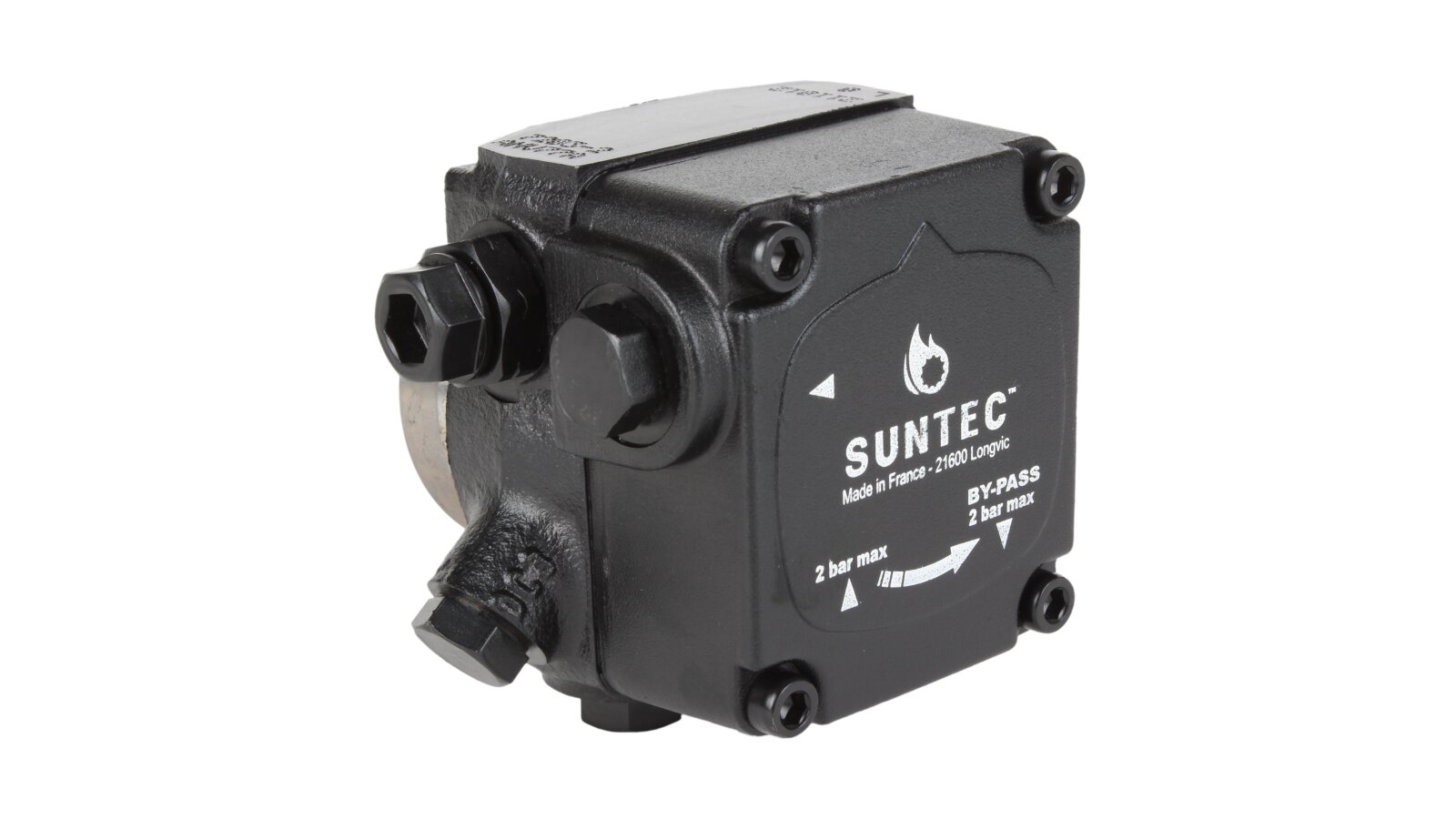

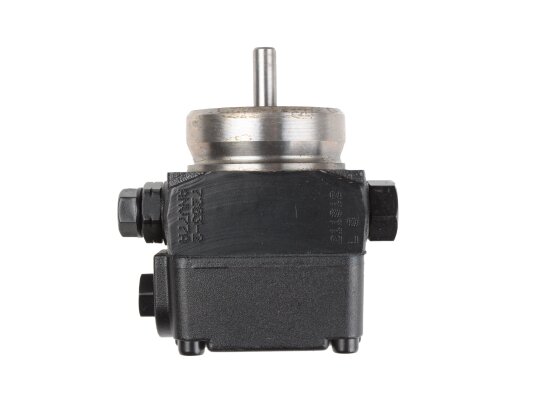

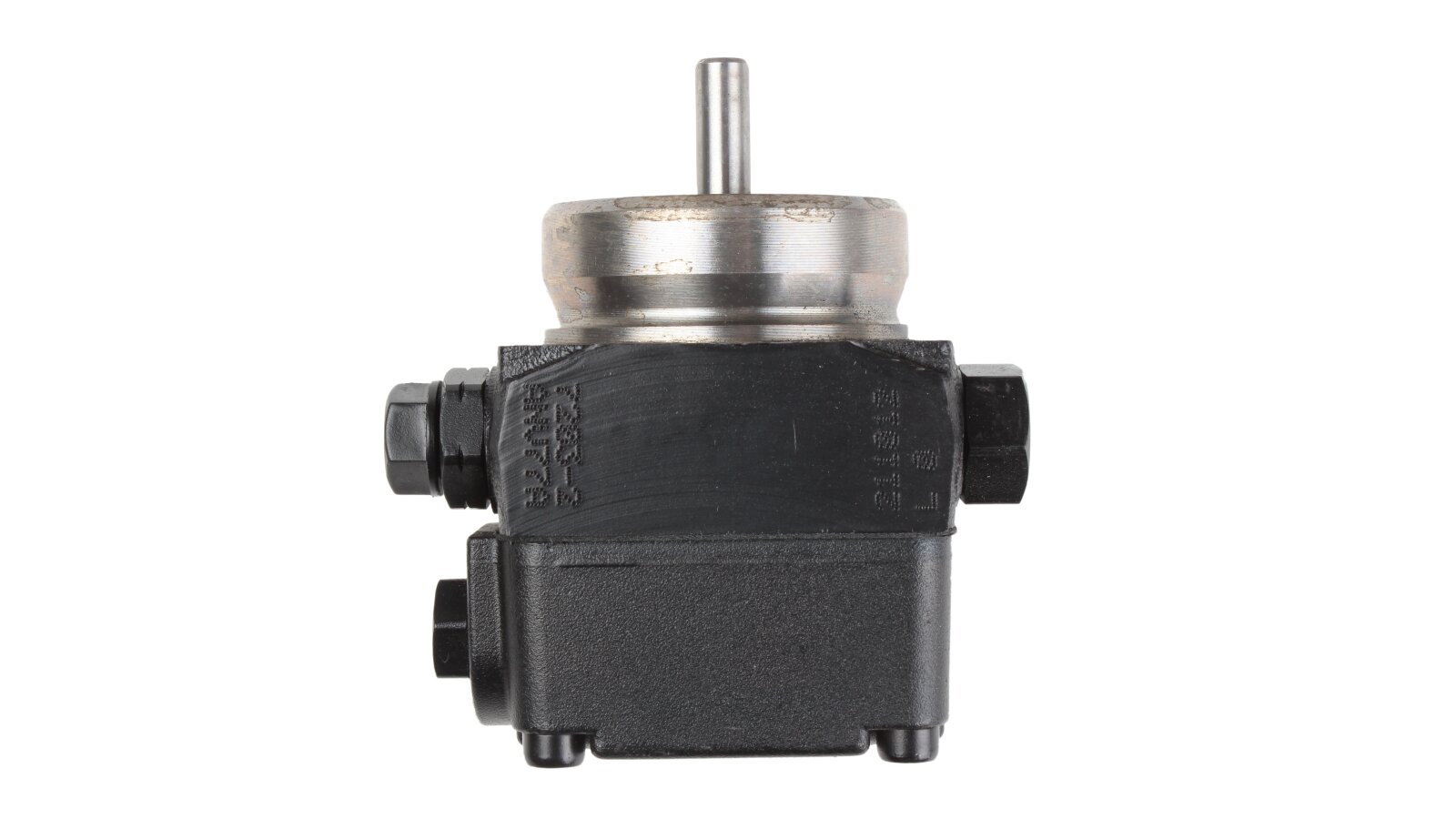

Burner Pump Suntec AN V 77 A 7203 2P

Suntec

AED 950

Oil Burner Pumps
Products code: 6751

Description

The Suntec AN V 77 A 7203 2P pump is a basic model with a pressure regulating valve and a shut-off function. It is used to pump diesel fuel, kerosene, and biodiesel. The pump is usually operated with an external electromagnetic valve (purchased separately). The pumping speed depends on the pressure setting and the viscosity of the pumped fuel.

Features

  • The pump design is basic. The pump includes a valve that regulates the fuel pressure and performs a shut-off function.

  • A mesh filter with a working surface of 20 cm² is installed at the fuel inlet, holding back all mechanical inclusions of 150 μm or more, which prevents damage and breakdown of the equipment.

  • The pump is suitable for equipping a one-pipe and 2-pipe system. With a two-pipe connection, the bypass plug is mounted in the return line, with a single-pipe connection, it is removed with a hex key, and the fuel return line is hermetically sealed with a steel plug and washer.

  • At the factory, the pump is adjusted to a pressure of 14 bar. You can change the setting yourself to suit individual needs, within the range of 10 to 20 bar.

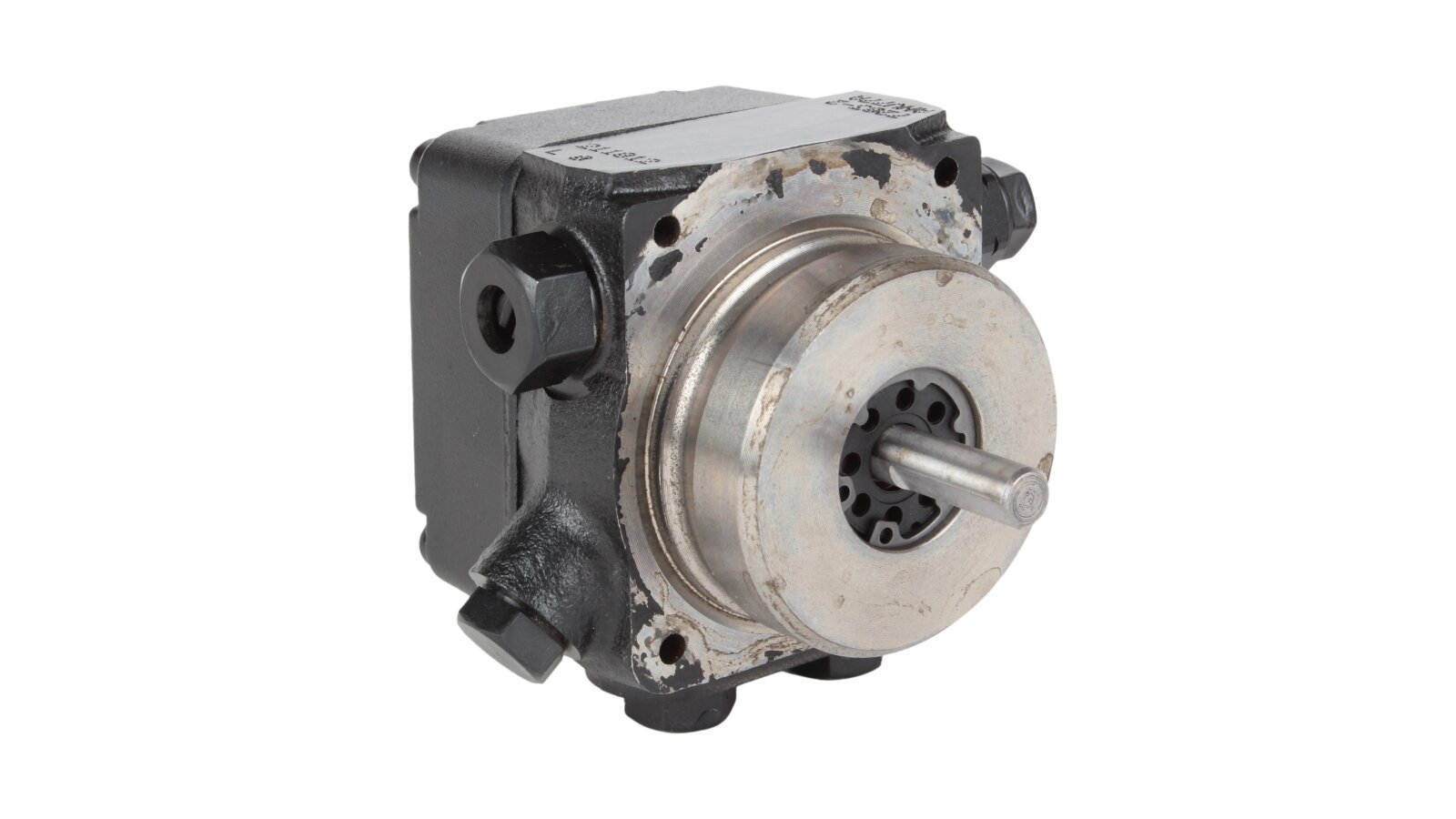

  • Installation is carried out using a ∅ 54 mm sleeve connection. Standard ports are provided for connecting measuring devices.

Advantages:

  • for diesel fuel and kerosene;

  • pressure regulating valve with shut-off function;

  • fuel cleaning from abrasive particles with a mesh filter;

  • one- and two-pipe connection;

  • simple installation;

  • standard ports for connecting measuring devices;

  • uninterrupted service.

On the ANKAS website you can buy a Suntec AN V 77 A 7203 2P pump and all the necessary components for assembling boiler equipment at direct supplier prices.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 108 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 14 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 20 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.14 N·m
