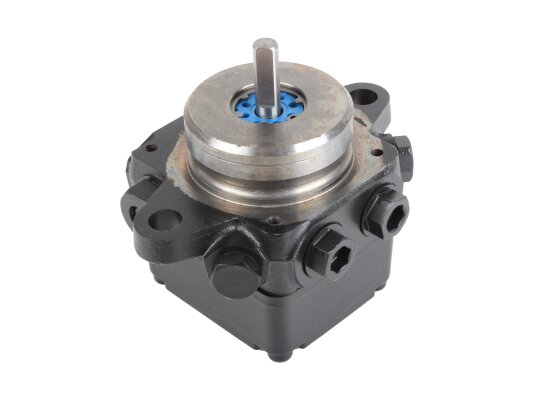

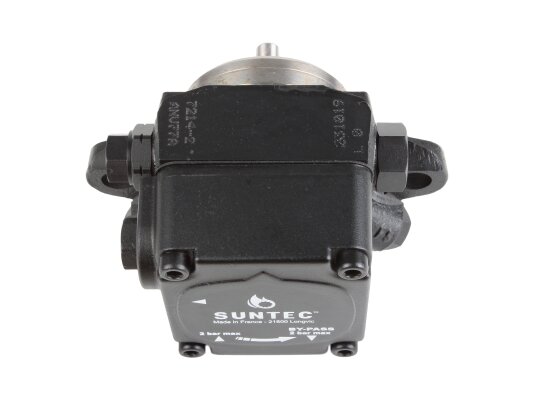

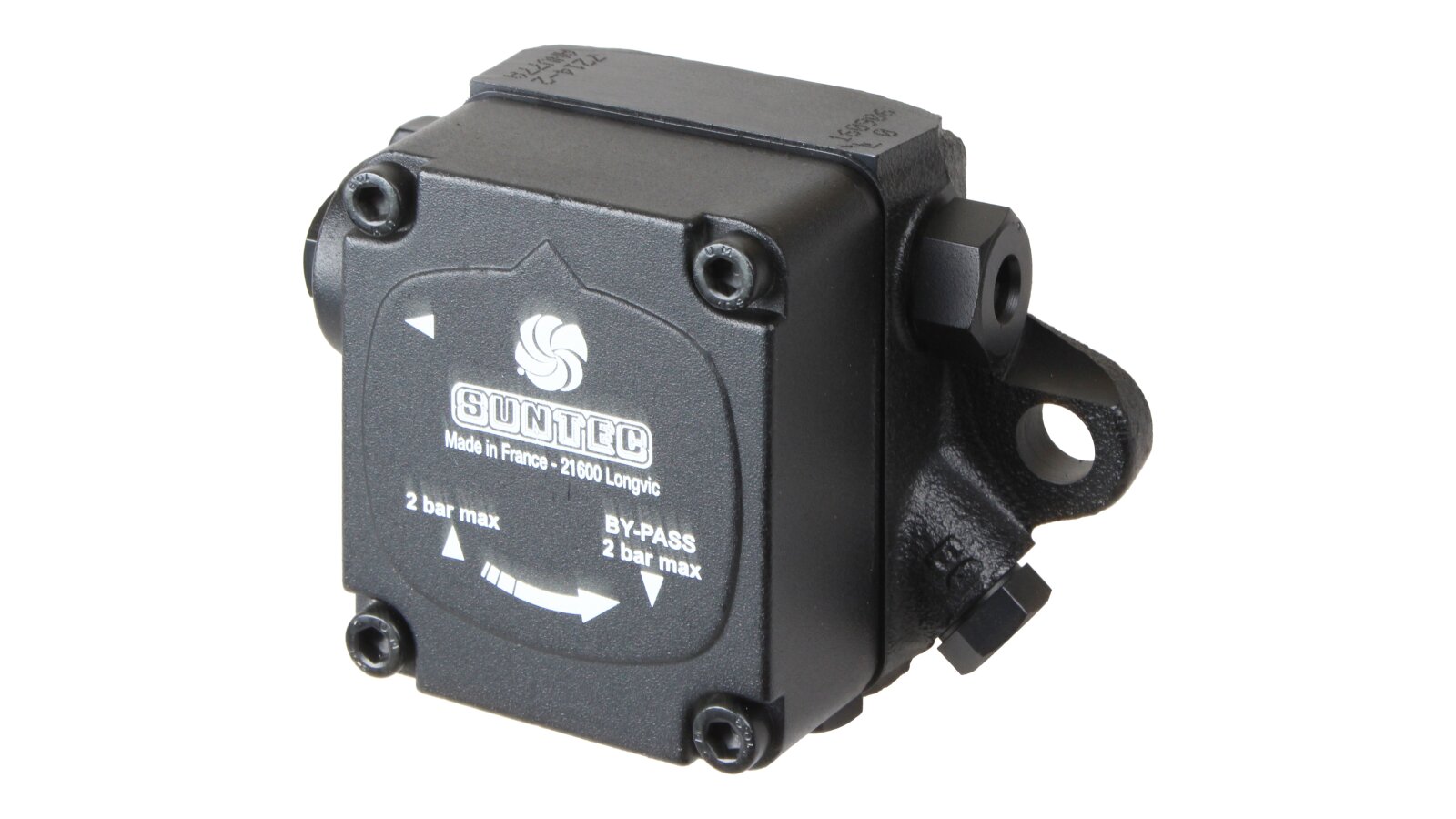

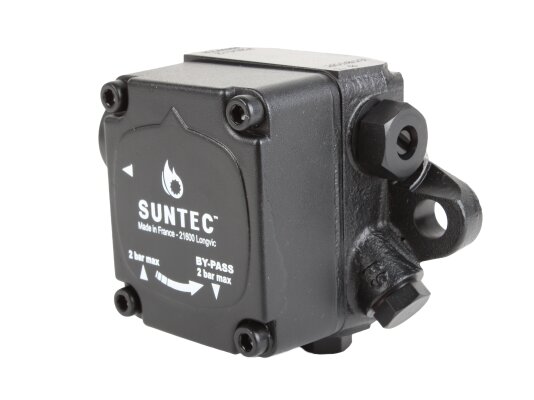

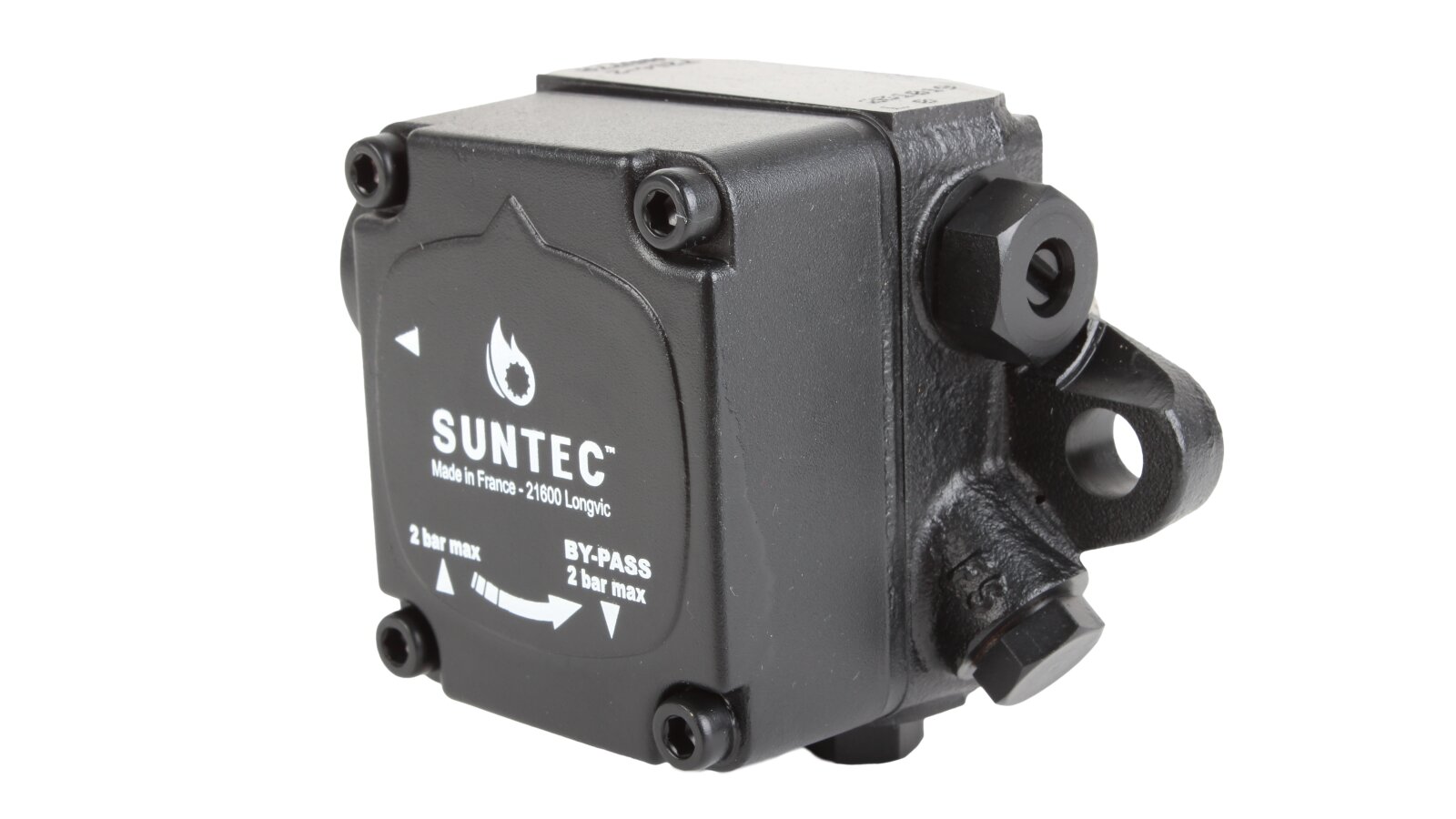

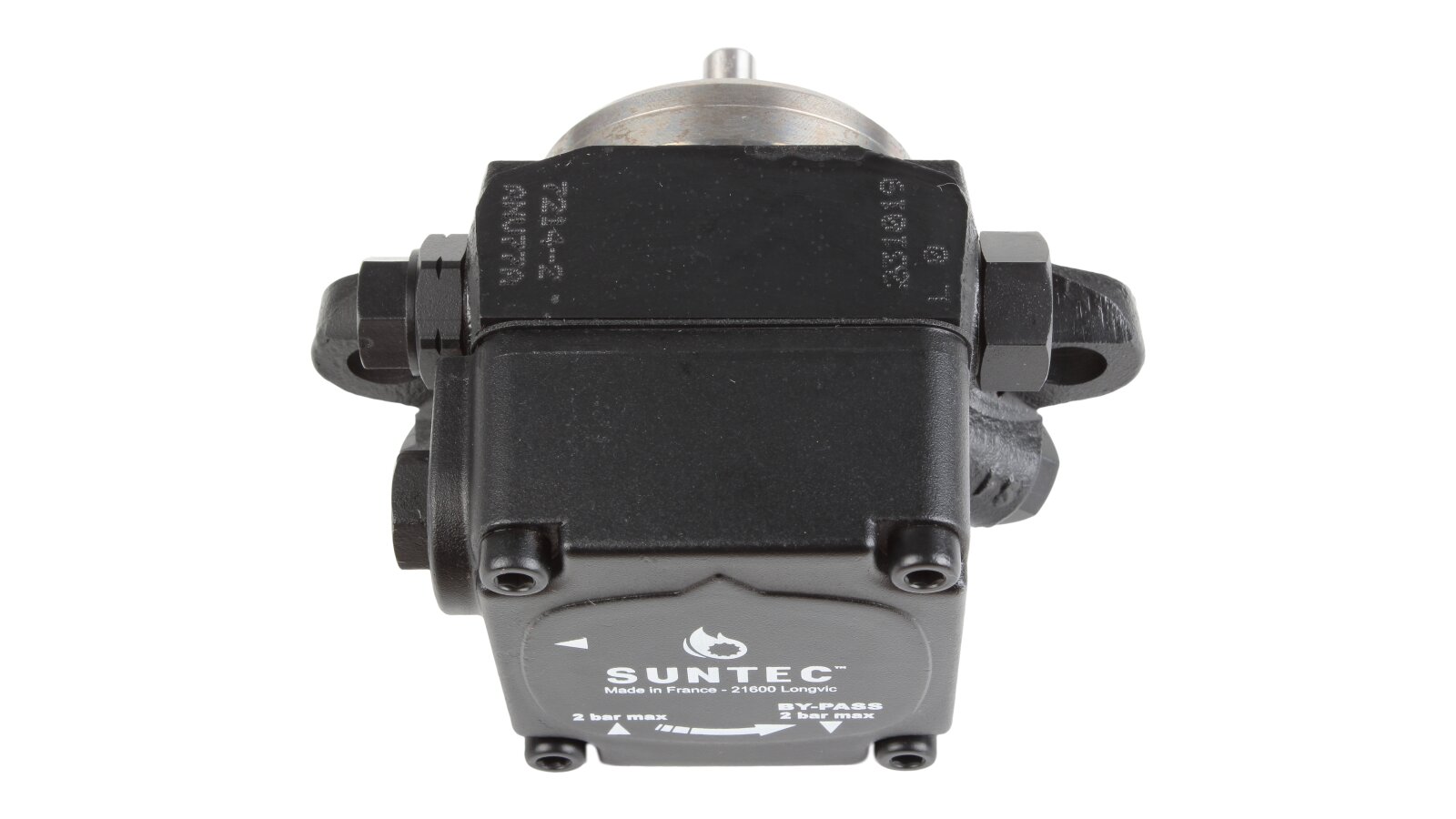

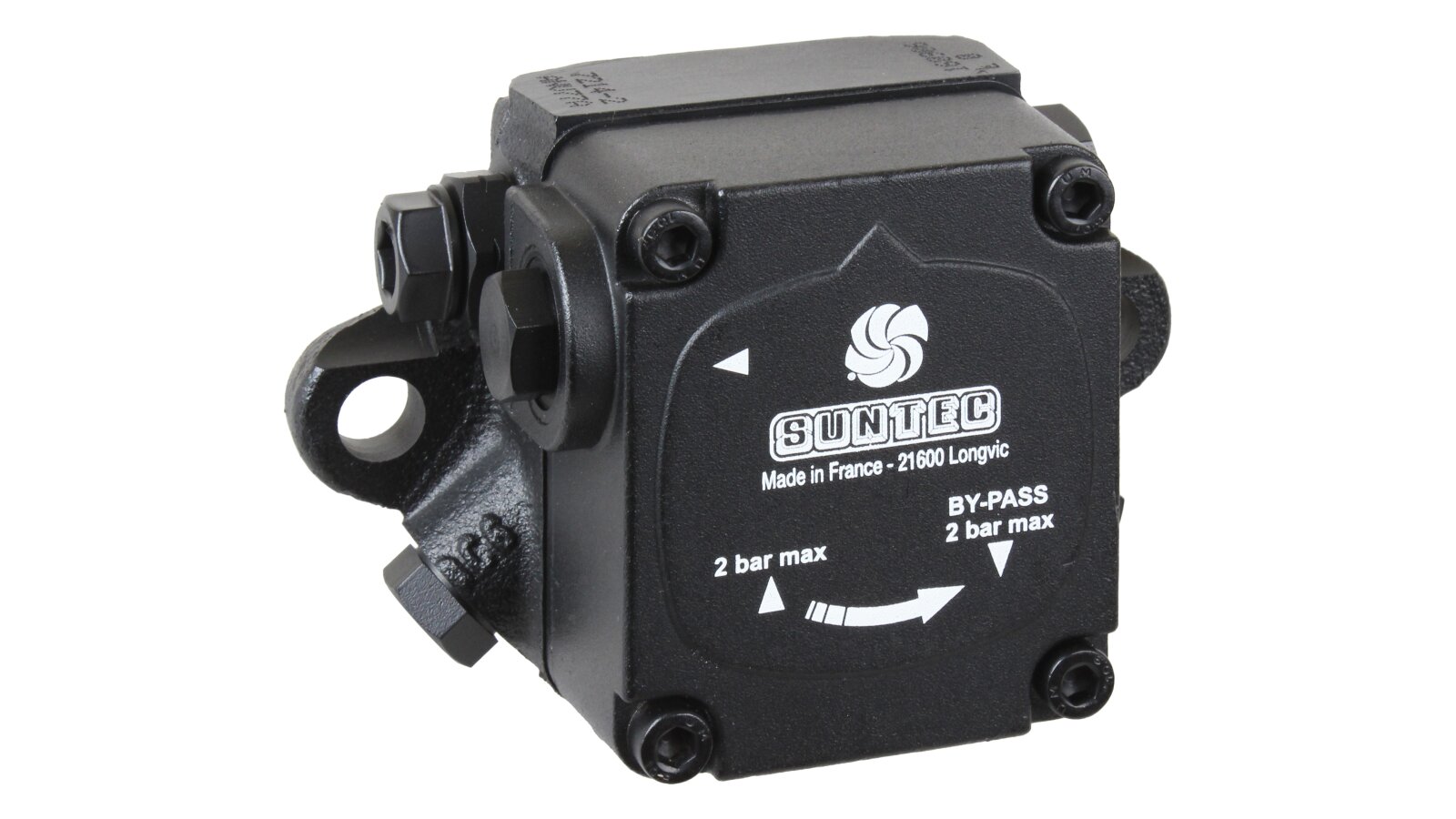

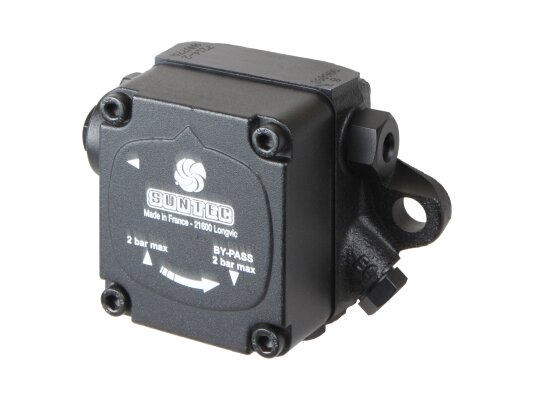

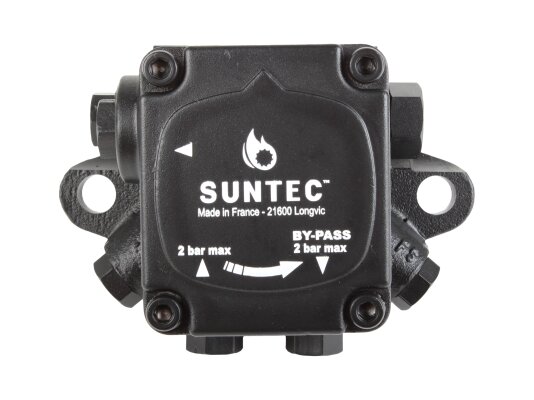

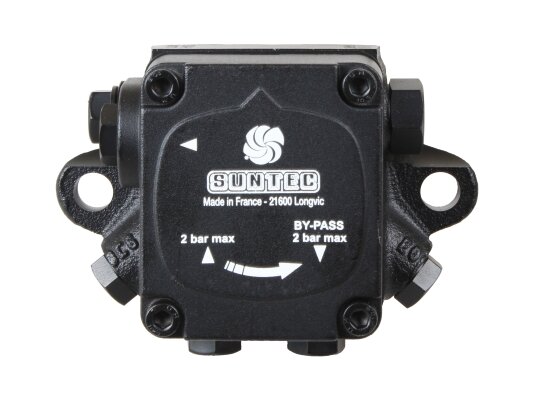

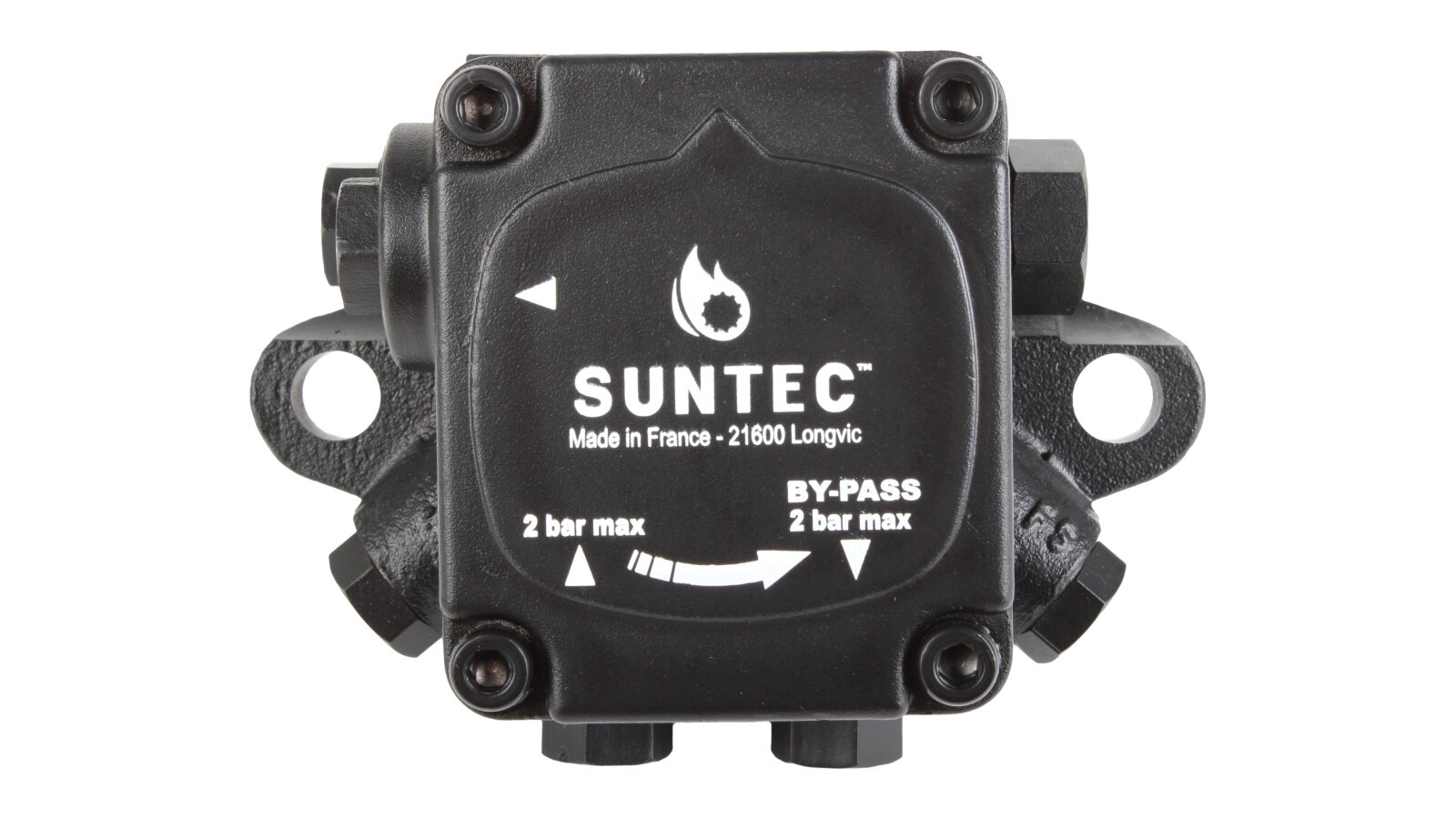

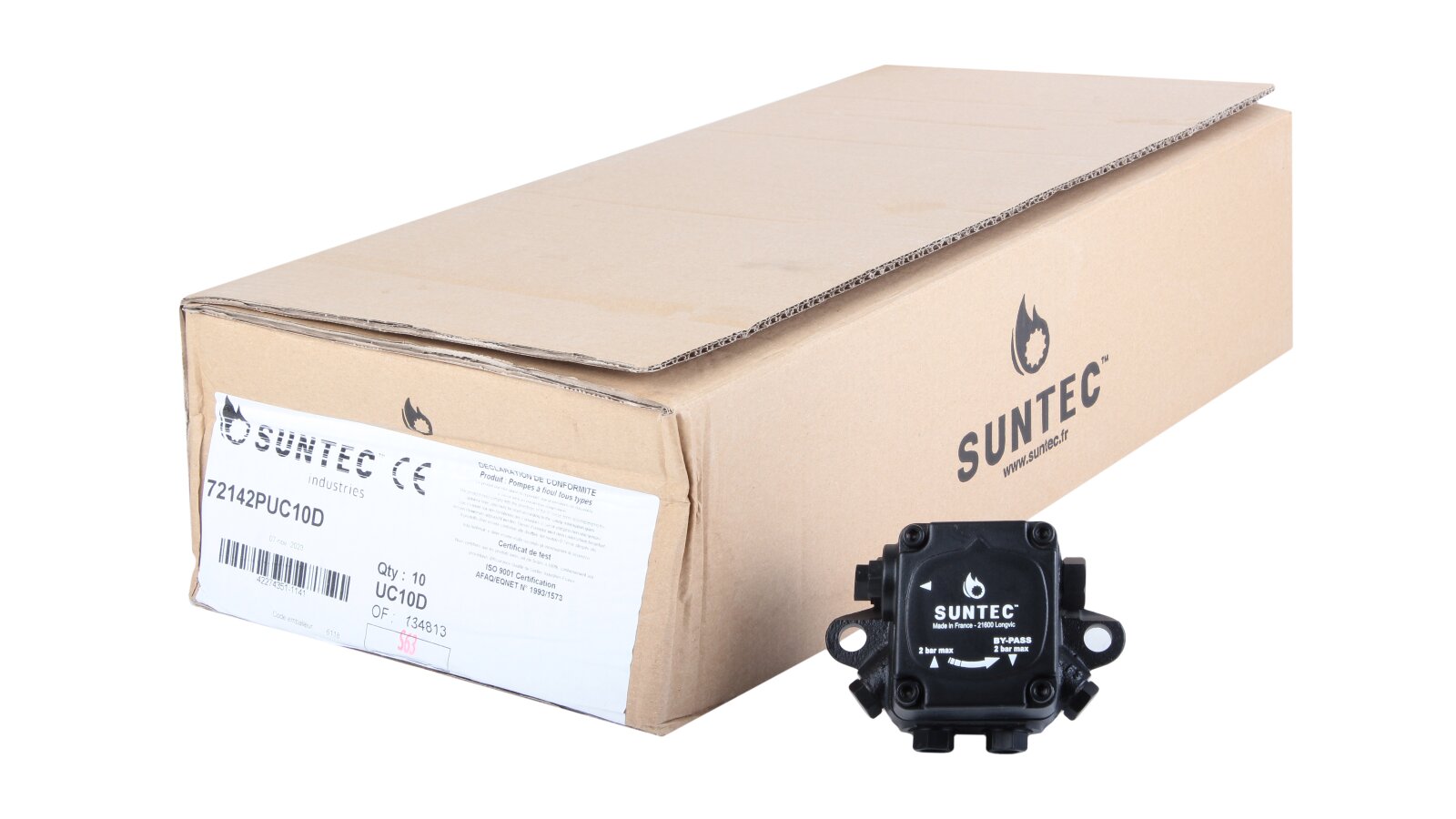

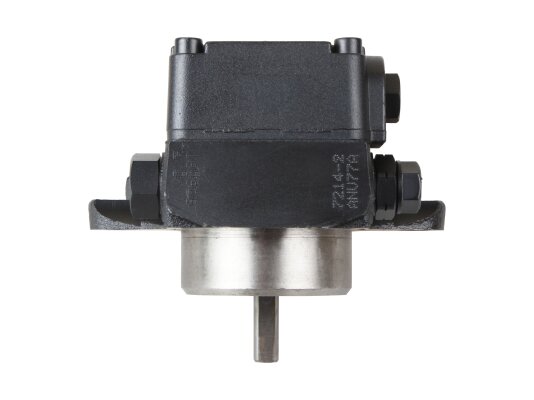

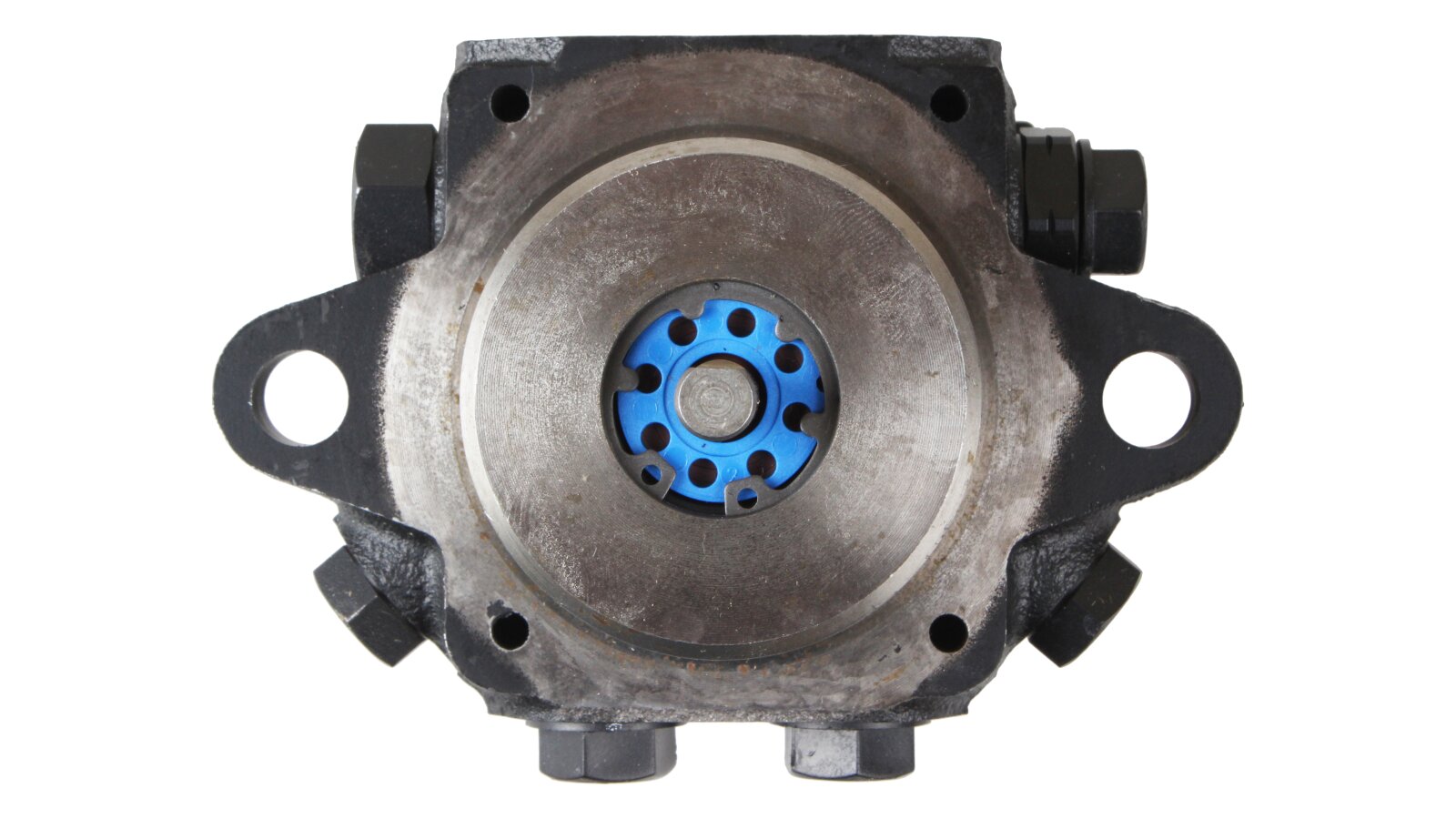

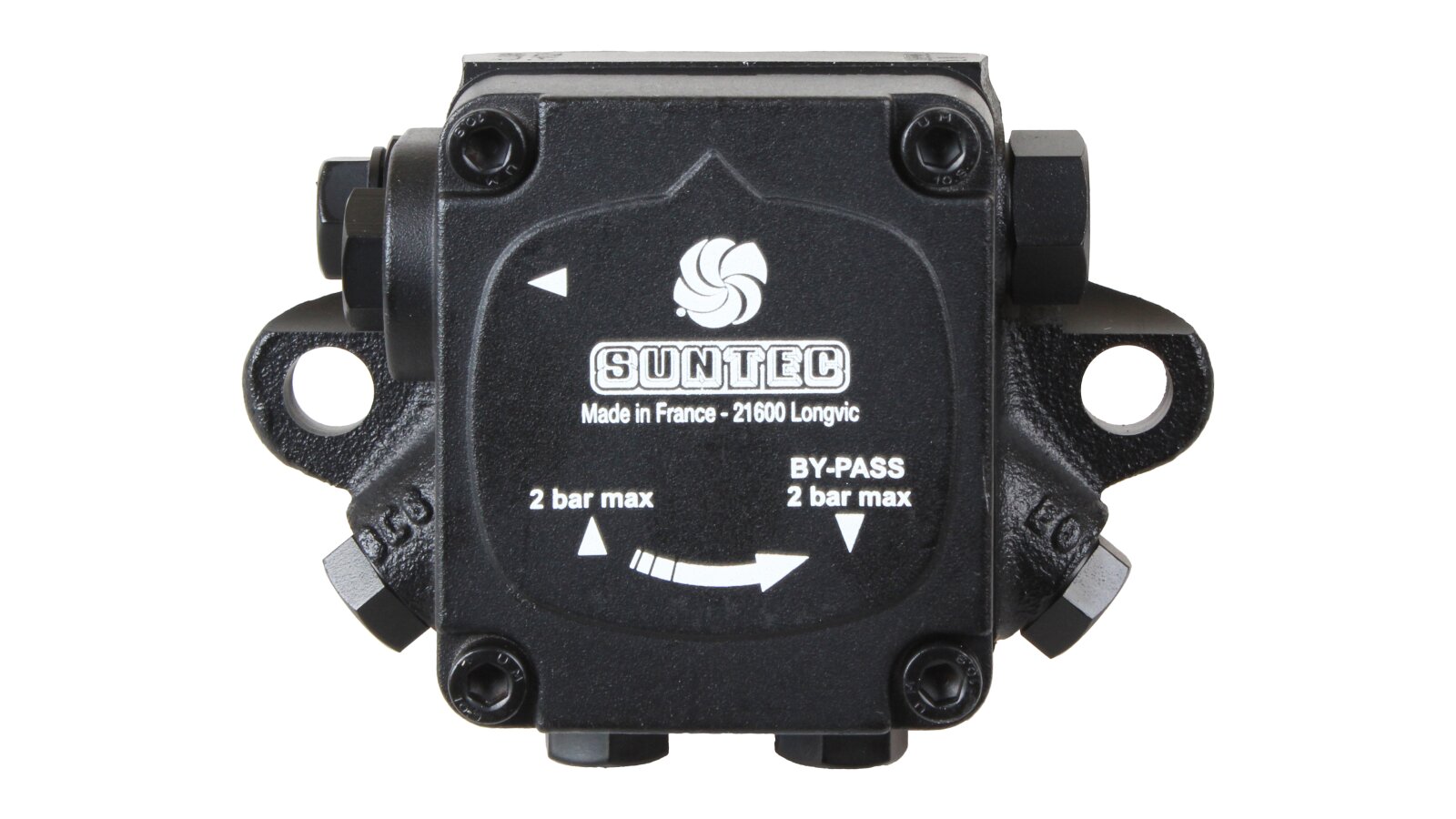

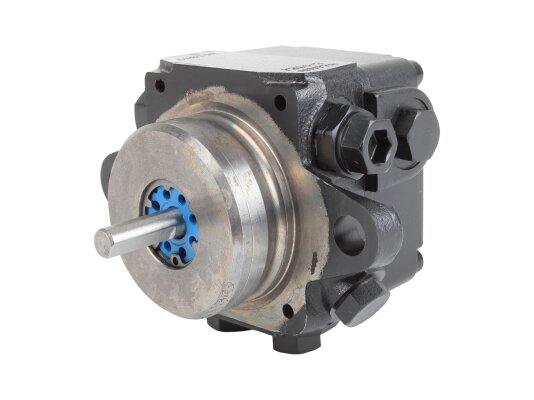

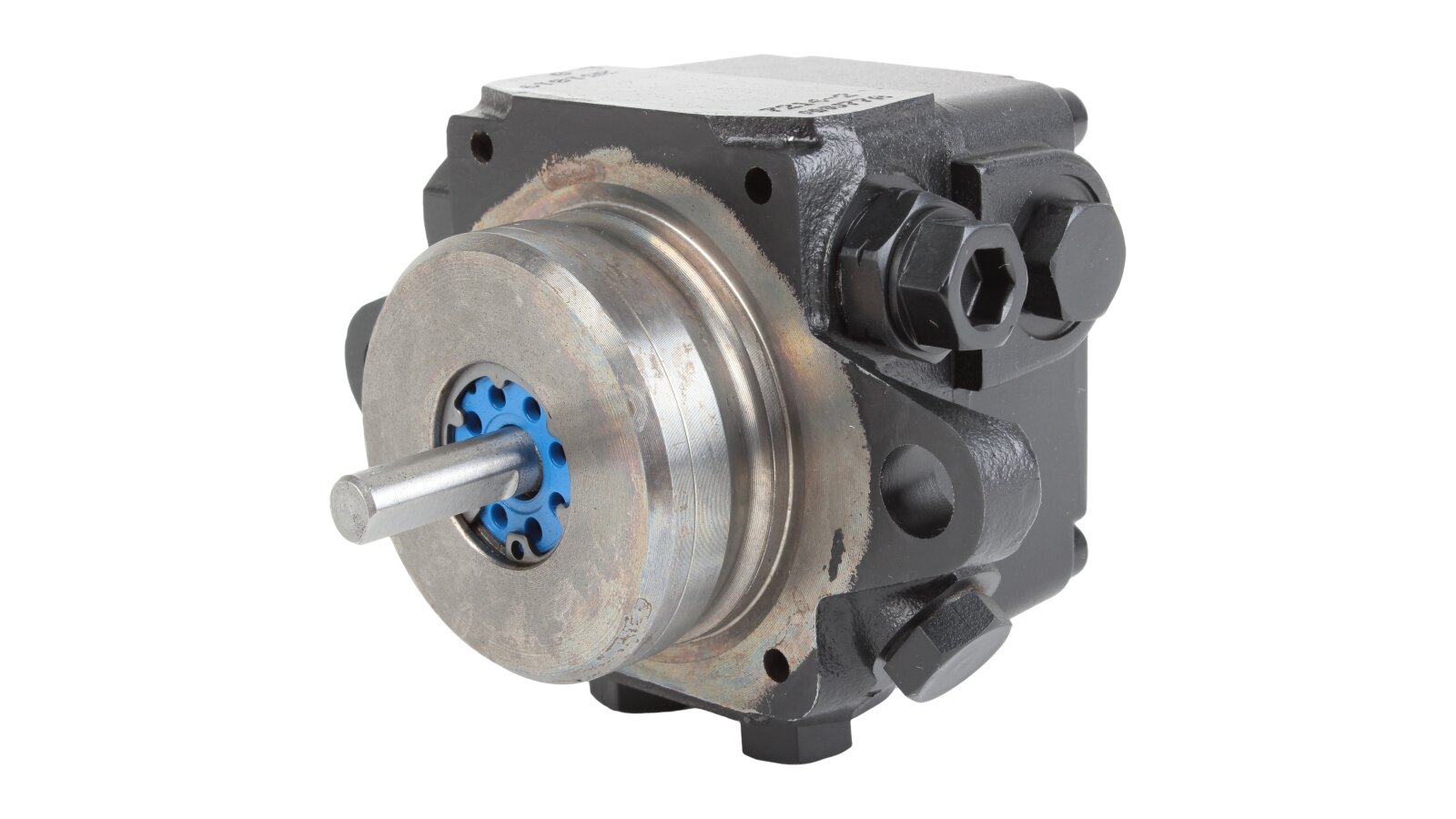

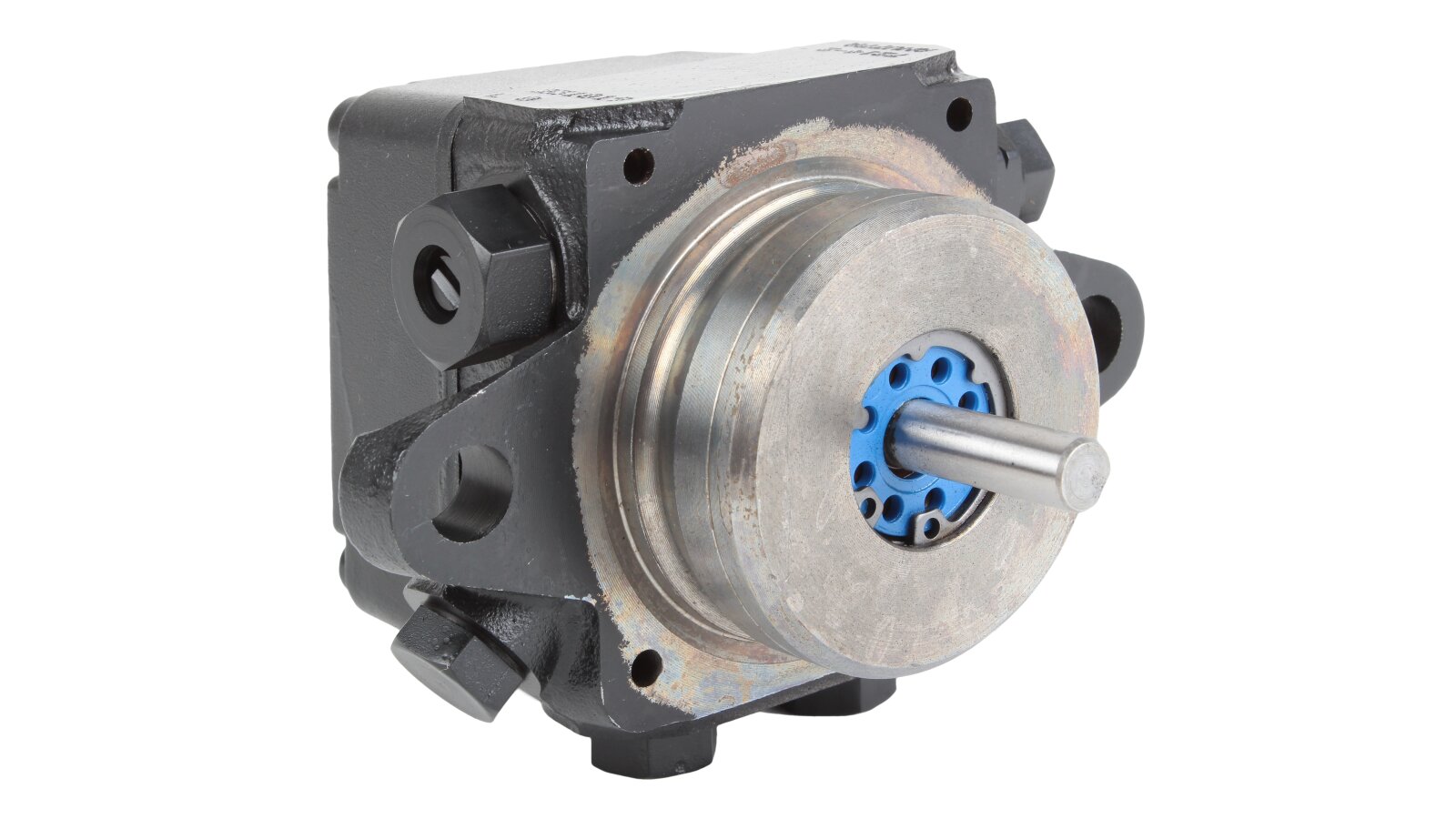

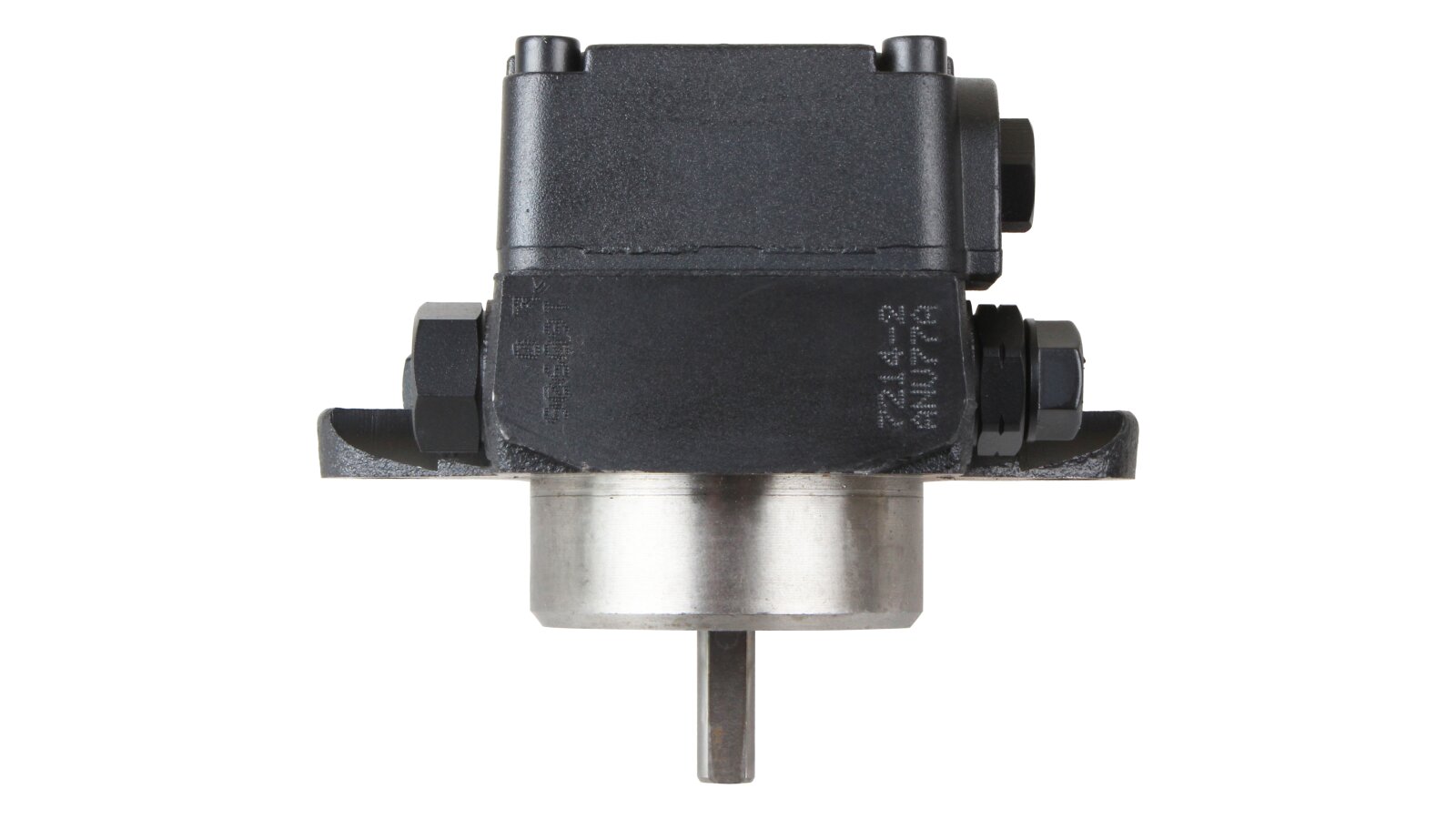

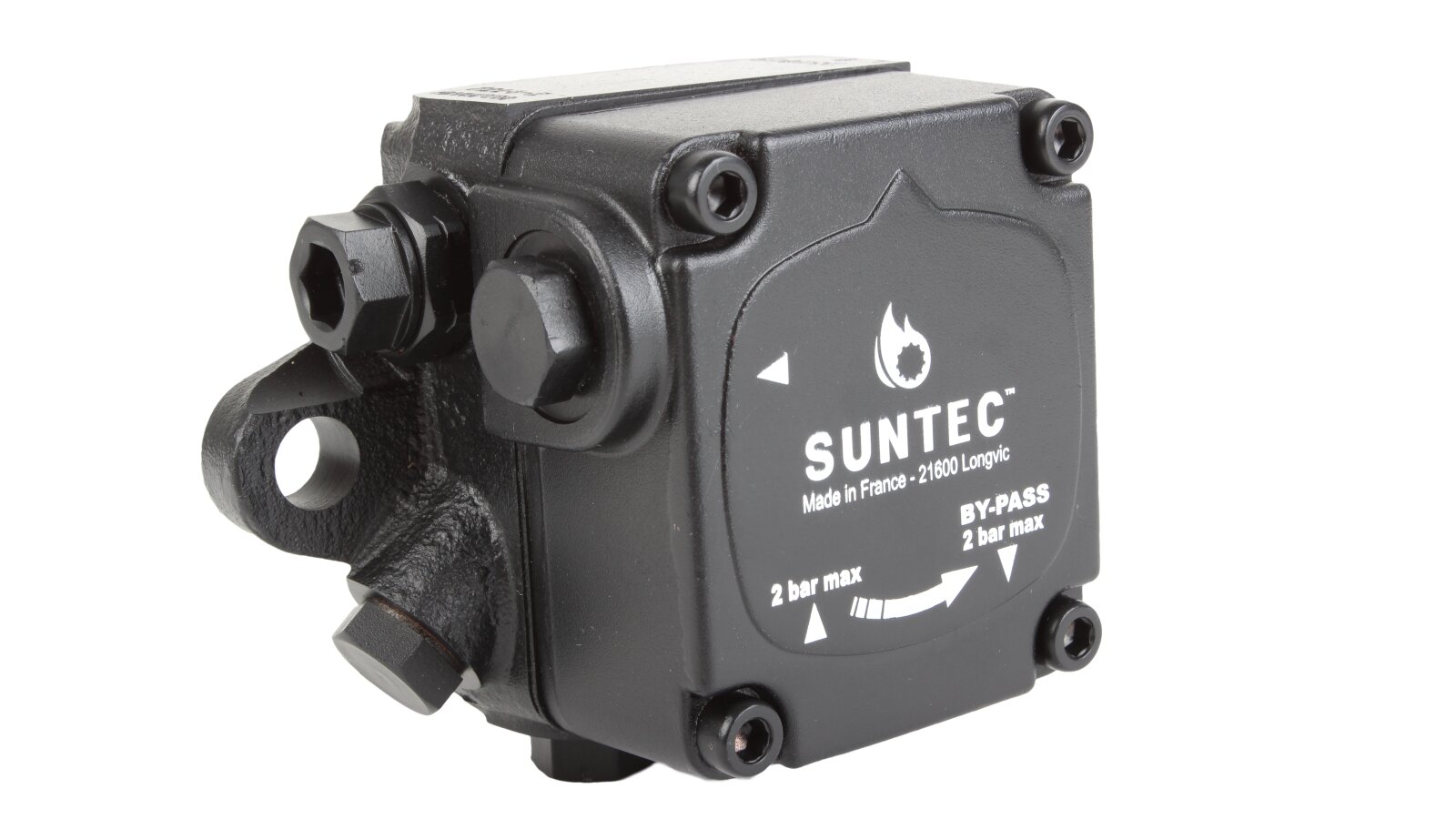

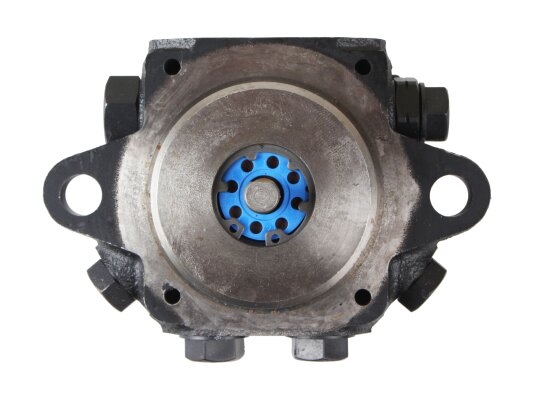

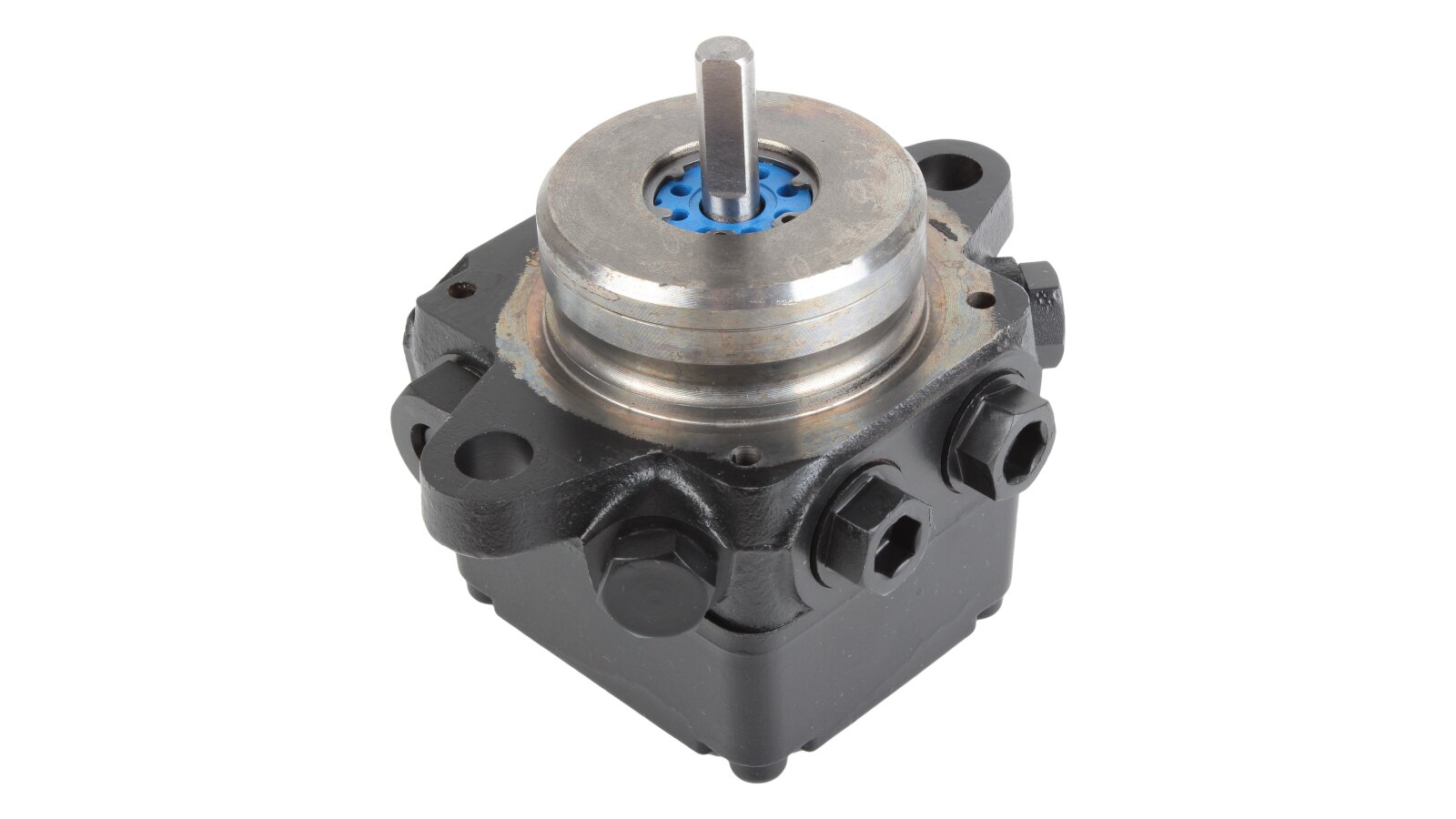

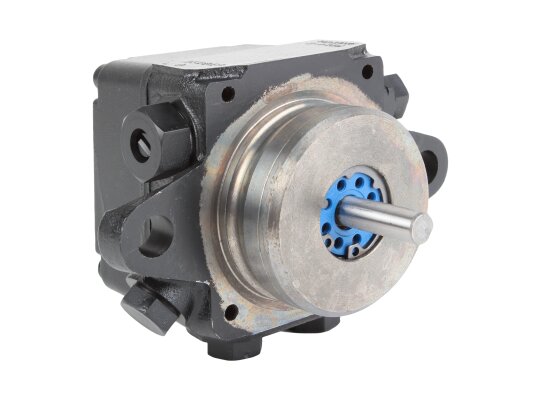

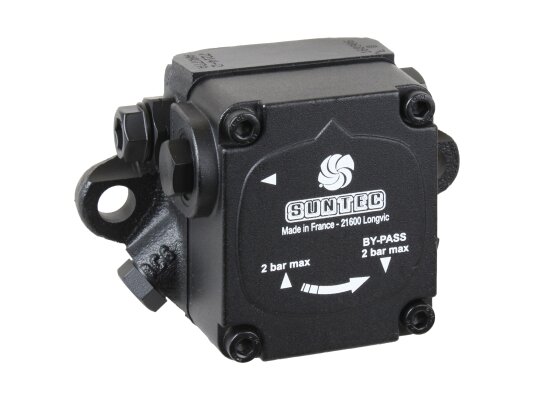

Burner Pump Suntec AN V 77 A 7214 2P

Suntec
AED 850
  1. Oil Burner Pumps

Description

The French concern Suntec, engaged in the development of components for heating systems, presents the liquid fuel pump AN V 77 A 7214 2P with a capacity of 108 l/h. The unit is equipped with a valve with a shut-off function, which is used to regulate the pressure of the working environment within 10-20 bar. A special feature of the device is that it can be used for pumping both diesel fuel and biodiesel.

To buy a pump for a diesel burner at a reasonable price, leave a request on the website of the official dealer of industrial equipment - the company "ANKAS".

Design parameters

  • The principle of operation of the device is quite simple. It consists of rotating a pair of toothed gears clockwise and creating a vacuum in the suction pipeline. This forces the working fluid to move from the tank to the nozzle line under pressure controlled by the regulating valve - from 10 to 20 atm.

  • Before the fuel enters the diesel burner nozzles, it undergoes preliminary cleaning using a built-in filter. Its open area is 20 cm², and the cell size is 150 μm. This will trap mechanical particles and rust, but for better fuel filtration, an additional fine filter should be installed upstream of the pump.

  • The model is ready for use in a system with a two-pipe fuel line configuration. When connecting to a single-pipe circuit, use an Allen key to remove the bypass plug and close the return line with a steel plug and washer.

Advantages of the model:

  • standard cylindrical thread according to ISO 228/1 for connecting fuel lines and control and measuring instruments;

  • wide range of kinematic viscosity of the working medium - from 2 to 75 cSt;

  • automatic air bleed for 2-pipe connection.

The single-stage fuel pump AN V 77 A 7214 2P is a high-quality equipment manufactured on modern equipment of the European company Suntec. The versatility of the unit lies in the standard sizes of fasteners, connecting threads and technical parameters required for the operation of most heating liquid fuel burners Baltur, Weishaupt, Elco and Lamborghini.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 108 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 108 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmMaximum rotation speed: 3600 rpmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityInstallation method: flange ∅ 54 mm
