Description

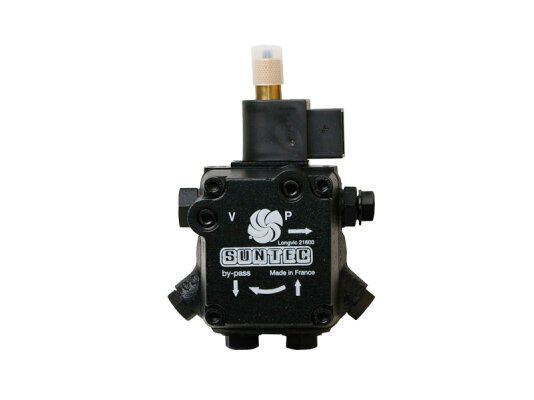

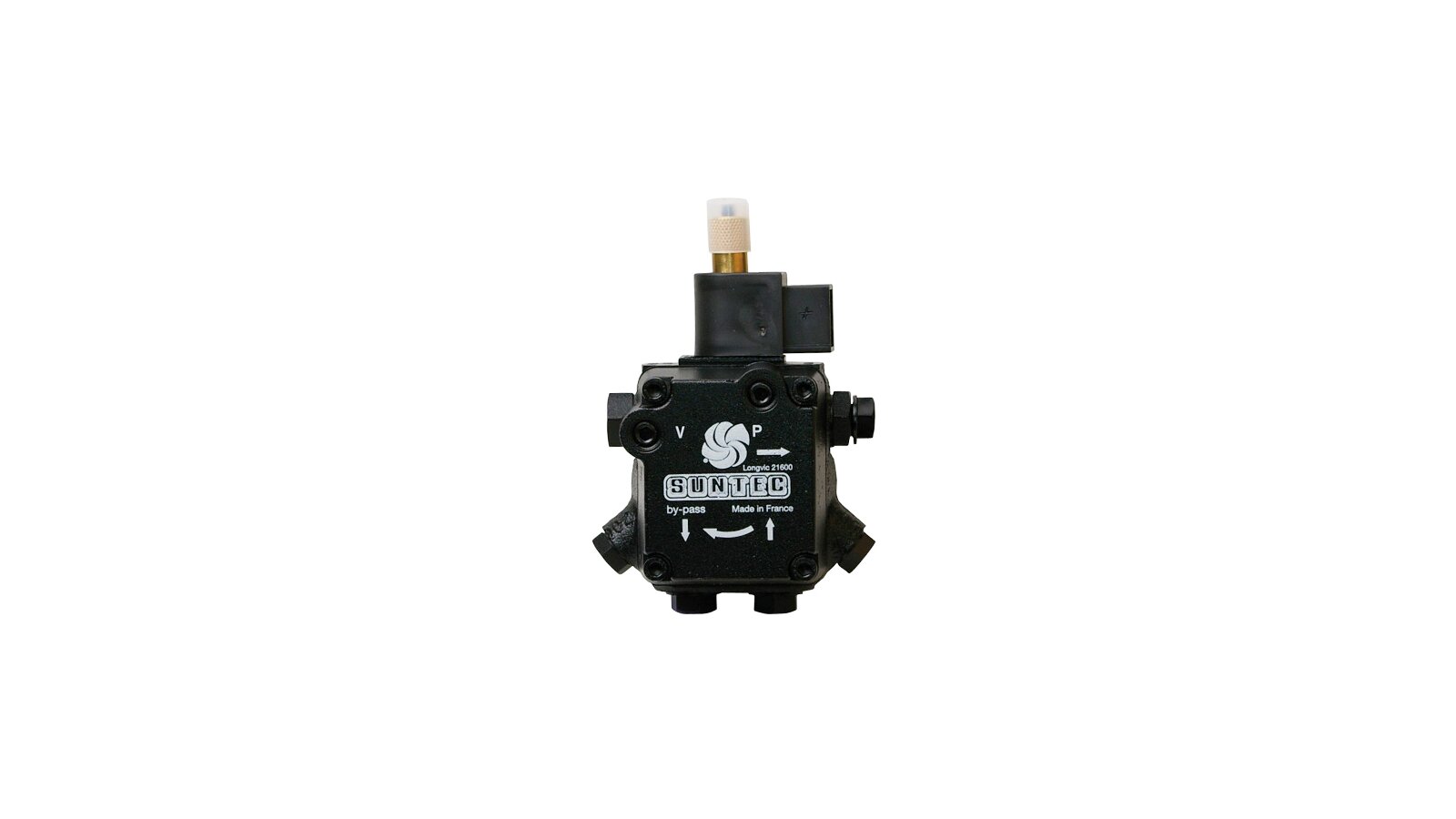

The line of popular liquid fuel pumps for diesel burners from the European manufacturer Suntec has been replenished with a new representative - the AP2 65 B 9523 4P 0700 model. The AP2 index indicates the presence of two operating modes without a shut-off function. The model is equipped with an electromagnetic valve installed in the upper part of the housing, which serves to switch pressure stages. To buy a burner fuel pump at the best price in the online store of the ANKAS company, just call the numbers listed on the website or fill out a short feedback form.
Design features
Most of the pump body is occupied by the mechanical part - two gears meshing with each other. One of them - the outer one - has teeth on the inner side, with which the teeth of the second gear interact.
The electric drive through the drive shaft transmits rotation to the mechanism clockwise, which creates a vacuum in the suction channel. The mesh filter installed in front of the system traps the smallest grains of sand, shavings and other small particles. It needs to be dismantled and washed periodically.
Diesel fuel is supplied to the injector under different pressures. This is achieved by having two separate valves. They are adjusted using a screw that increases the spring tension.
Main advantages:
works in a configuration with one or two fuel lines;
two pumping stages: low (8-15 bar) and high (12-25 bar);
maximum capacity - 84 l/h;
protected housing from moisture and dust - IP54;
European standard connections 1/8 "and ¼";
light weight - 1.3 kg and small overall dimensions of the device.
Pumps for the heating burner from the French company Suntec are manufactured using modern technology at the plant using high-precision equipment for metal processing. New technologies make it possible to allow minimal gaps in parts, reducing wear of rubbing parts and extending the service life of devices. All AP series fuel pumps are repairable - repair kits and individual elements are provided for them.
Characteristics
