Description

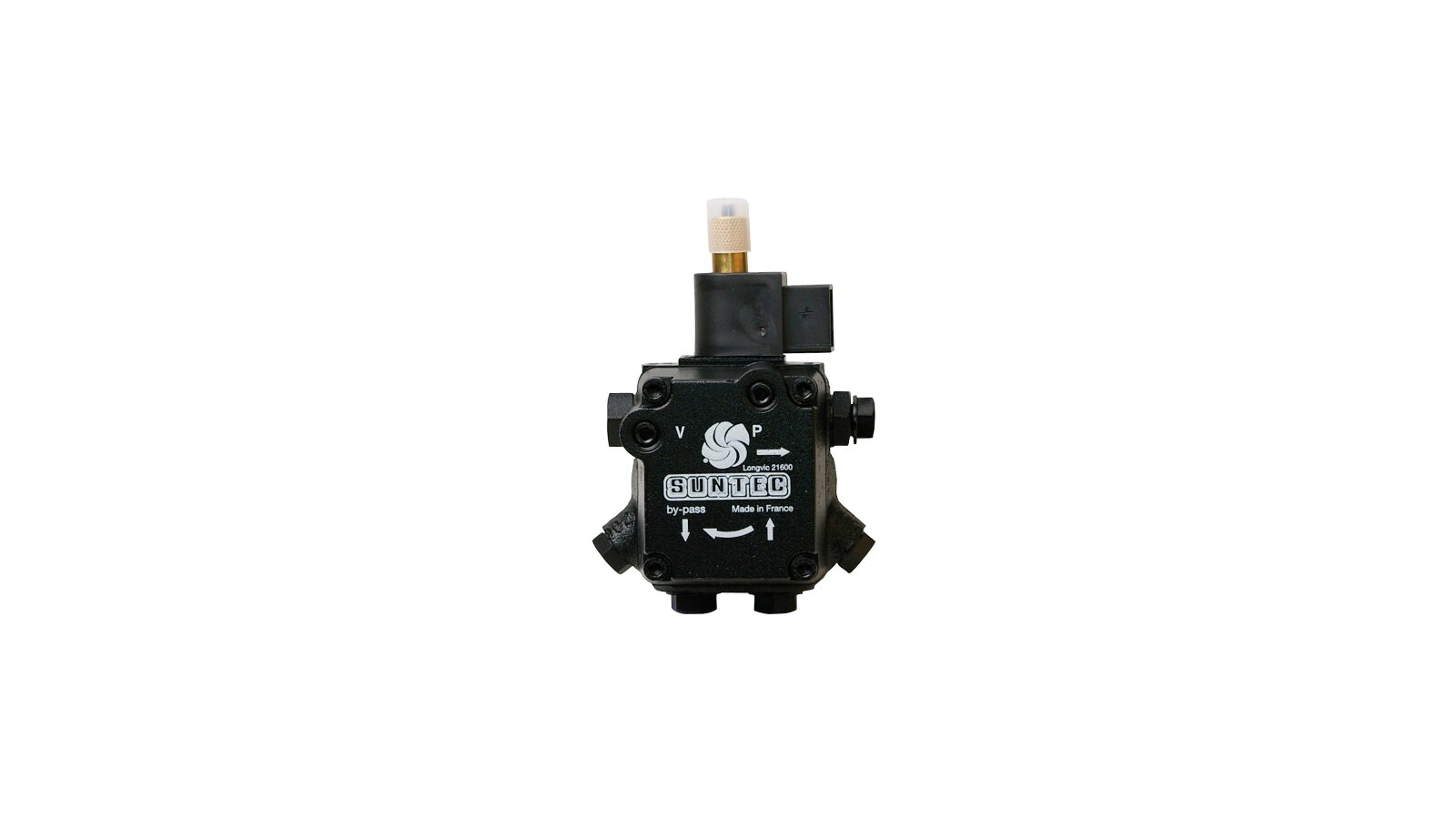

Modification of the pump for the Suntec AP series burner of the standard model without a complete cable with the ability to work with a biofuel mixture containing 30% methyl esters of fatty acids.
Characteristics
Strainer: Open area: 6 cm²Maximum pressure of the solenoid valve: 25 barSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 64 l/hPump series: AP: 2-stage model (one nozzle line and two pressure modes), no shut-off functionDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulation without locking functionOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 84 l/hMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.12 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: diesel / biodiesel fuel blend B30Degree of protection: IP54
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
