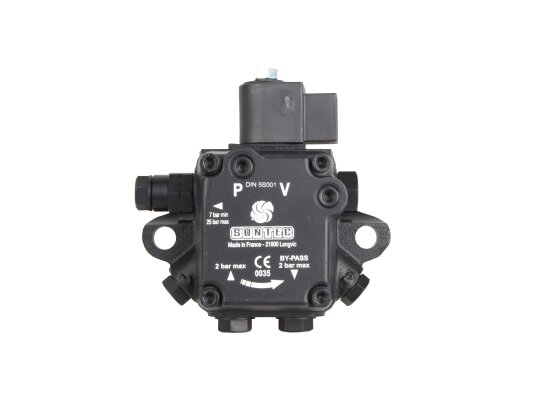

Burner Pump Suntec AS 47 A 7332 4P 0500

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec AS 47 A 7332 4P 0500 pump supplies diesel fuel to the injector under a pressure of 7-14 bar. It is equipped with an electromagnetic valve with a locking function for quick interruption and resumption of fuel supply at any engine speed.

Features

  • The diesel pump is manufactured according to the IP54 dust and moisture protection standard. The housing reliably protects electrical components from external influences. The nozzle connection pipe is on the right.

  • The pump is prepared for a 2-pipe connection. To create a single-pipe design, the bypass plug must be dismantled and a steel plug with a washer must be installed instead.

  • Depending on the selected fuel line scheme, excess fuel is sent to the tank or passes back to the gears.

  • The gear mechanism has a wear-resistant design. Additional protection for the gears is provided by a mesh filter with a working area of ​​6 cm². All abrasive inclusions of 150 microns in size are retained by the mesh, which protects the gear pair from breakage. To maintain the pump's performance, it is necessary to periodically disassemble the filter for cleaning.

  • The electromagnetic "normally open" valve provides instantaneous response. In its inactive state, the bypass channel is open, the fuel is drained into the tank or passes to the suction line, depending on the fuel line diagram. The active position of the valve closes the drain channel, and the fuel is supplied to the injector.

  • The pressure can be adjusted in the range: 7-14 atm. Factory setting - 9 bar. Performance depends on the pressure parameters and viscosity of the fuel.

Advantages:

  • electromagnetic valve with locking function;

  • protection of electrical components from dust and moisture class IP54;

  • sifting out coarse mechanical particles with a built-in filter;

  • one- and two-pipe connection;

  • universal installation according to the European standard EN 225;

  • standard ports for connecting metering and control devices;

  • safe operation.

The Suntec AS 47 A 7332 4P 0500 pump is supplied with a factory warranty, installation and operating instructions and other accompanying documents.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 39 l/hDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
