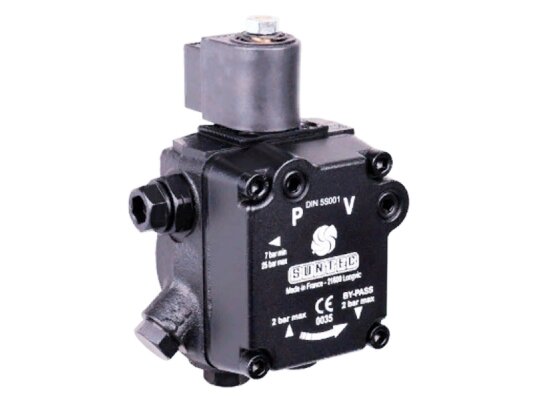

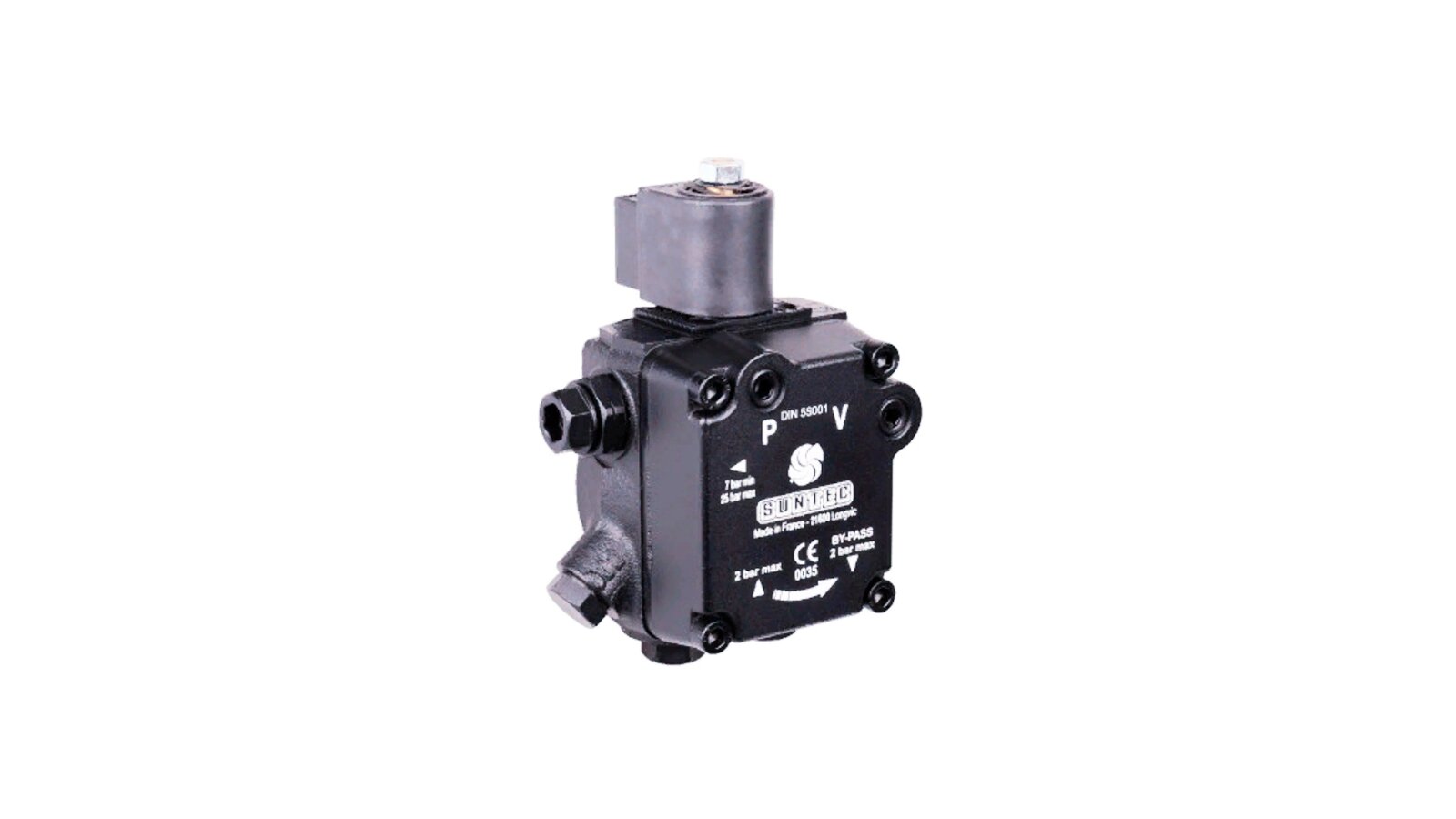

Burner Pump Suntec AS 57 B K 7471 4M 0700

Suntec

AED 1,425

Oil Burner Pumps
Products code: 8784

Description

The Suntec AS 57 B K 7471 4M 0700 burner pump pumps diesel fuel and kerosene. It is equipped with a shut-off electromagnetic valve for instantaneous shut-off/restoration of fuel supply in any operating mode. Compact dimensions simplify installation in the system.

Features:

  • The main pump unit is a pair of wear-resistant gears;

  • A version with an electromagnetic shut-off valve;

  • Pressure adjustment within 7…14 bar using a screw, the default setting is 9 bar,

  • Built-in mesh filter to protect the working mechanism and the electromagnetic valve from damage, filtering capacity 150 µm;

  • Viton shaft seal for safe pumping of kerosene;

  • Electrical protection class – IP 54 according to EN 60529;

  • Operating conditions and temperature of the pumped fuel: 0…+60 °C;

  • Sleeve connection method, diameter 54 mm;

  • without bypass plug, return line is closed for 1-pipe system;

  • installation position – arbitrary, exclude the position with the axis up, axial or radial load;

  • connection to the inlet and return line on the thread;

  • ports for connecting measuring instruments.

After the Suntec AS 57 B K 7471 4M 0700 pump, it is recommended to install an additional filter to enhance the protection of the nozzle from clogging and damage, increasing the service life.

Characteristics

Maximum rotation speed: 3600 rpmConnection type: G 1/4"Installing the bypass plug: M: no bypass plug, return line closed to single pipe systemOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valveSolenoid valve consumption: 9 WNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 54 mmMaximum pressure of the solenoid valve: 25 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.1 N·mType of pumped liquid: diesel, keroseneDegree of protection: IP54
