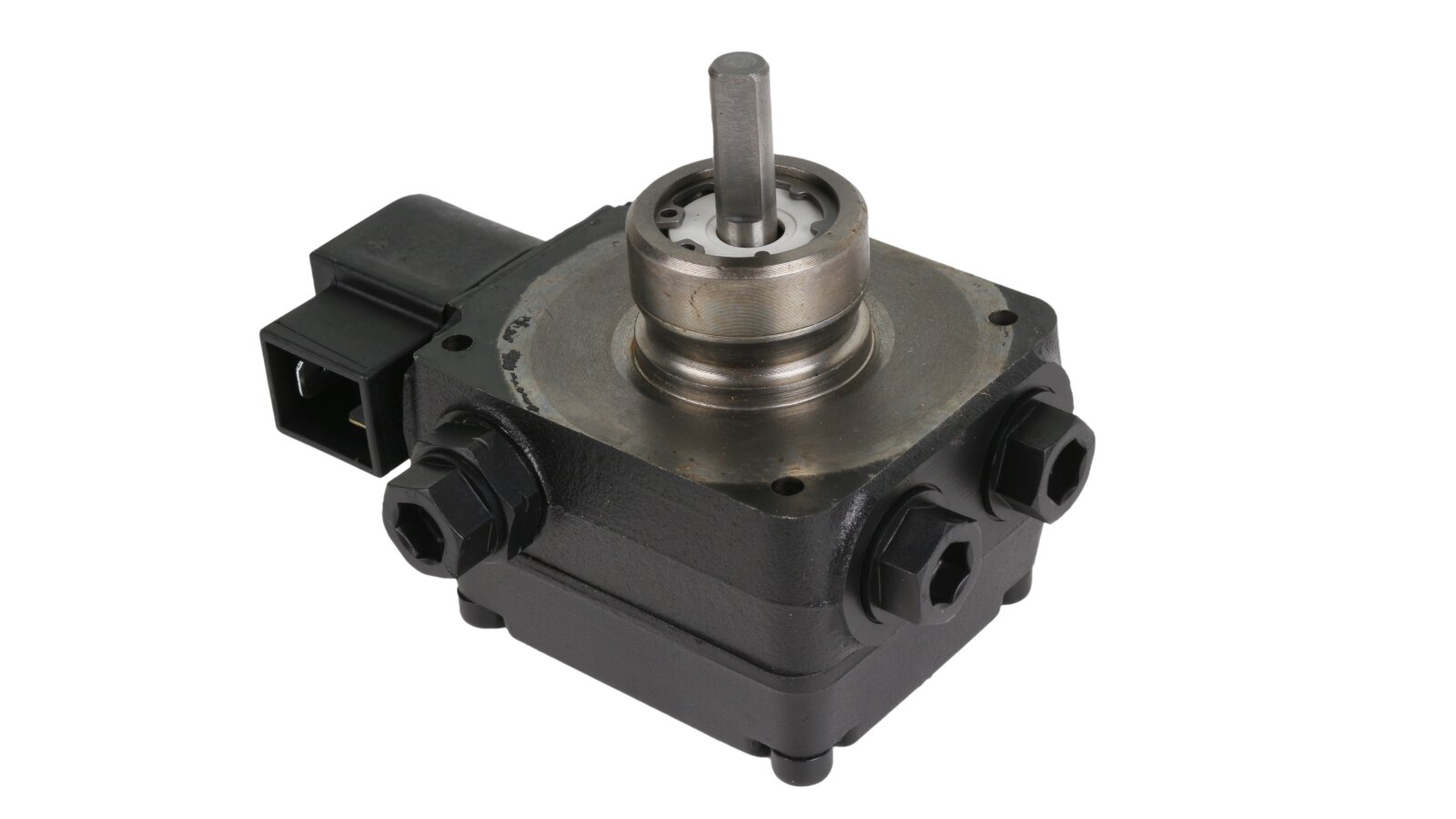

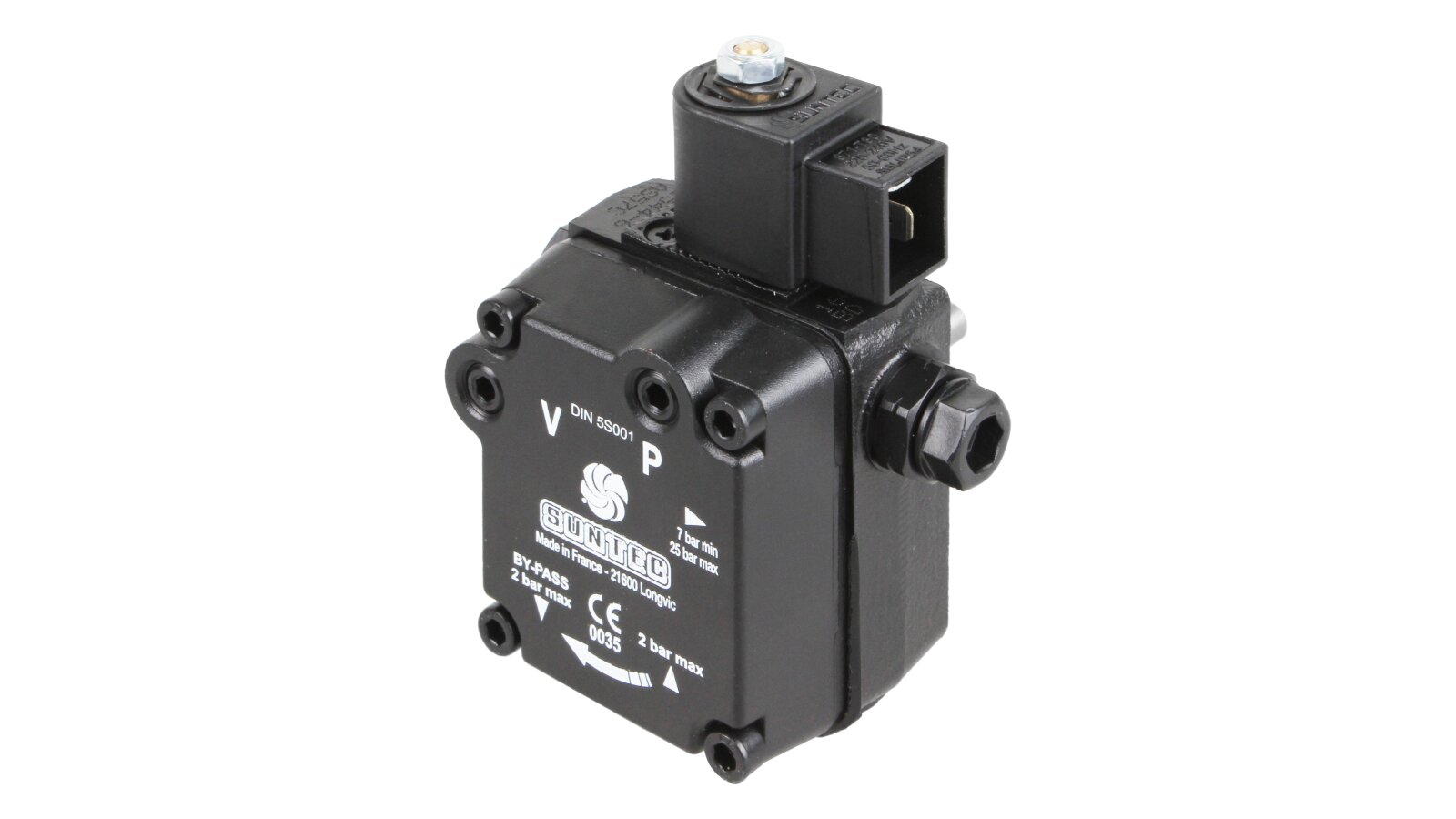

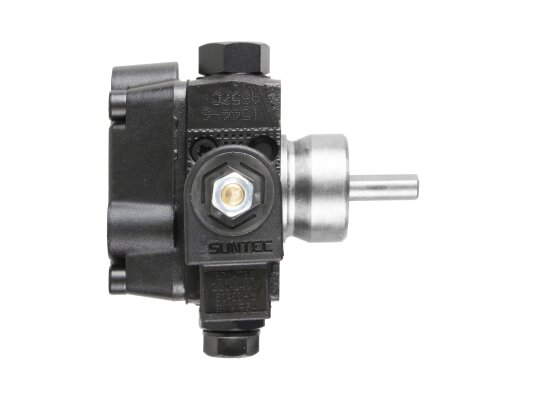

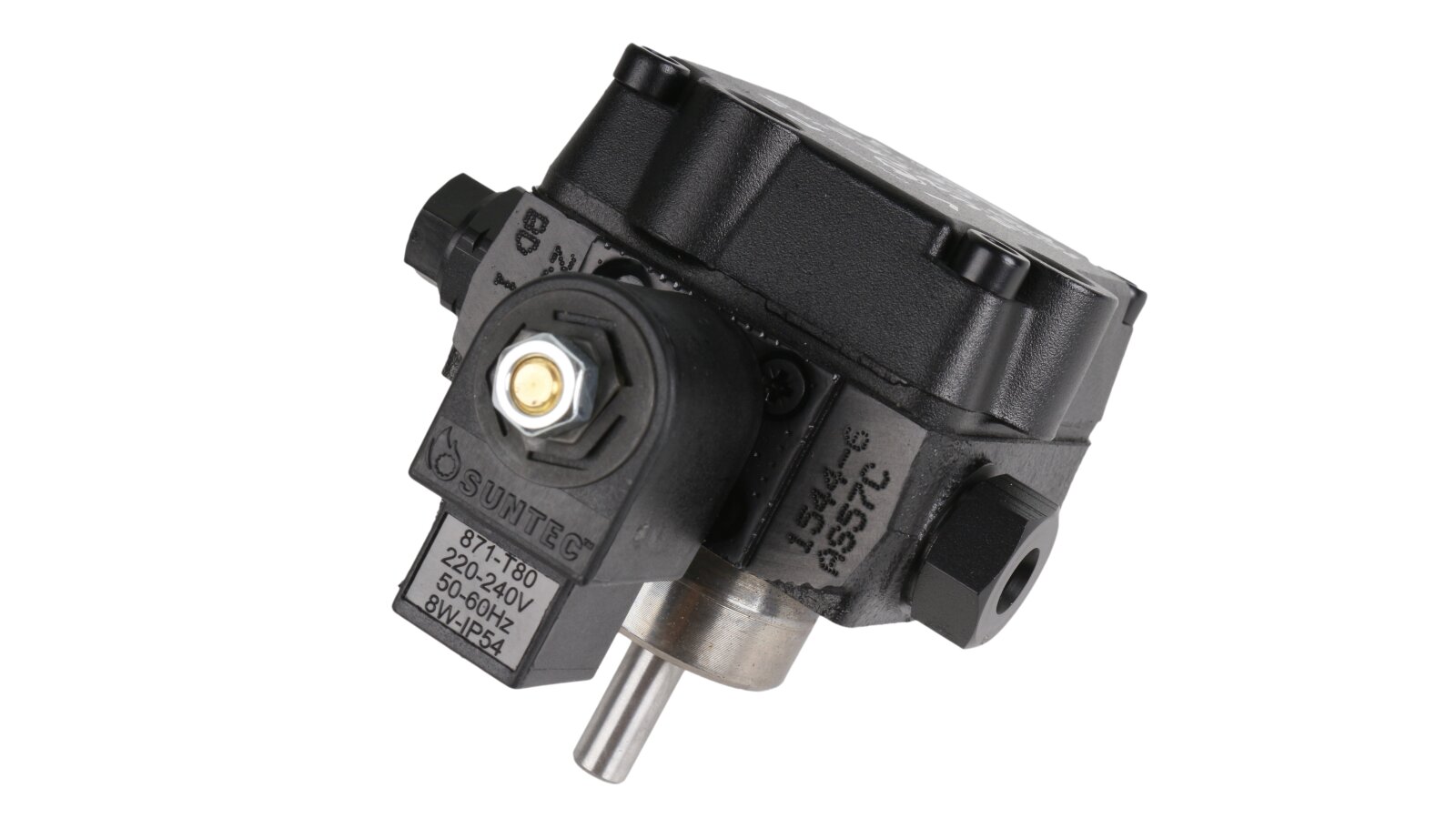

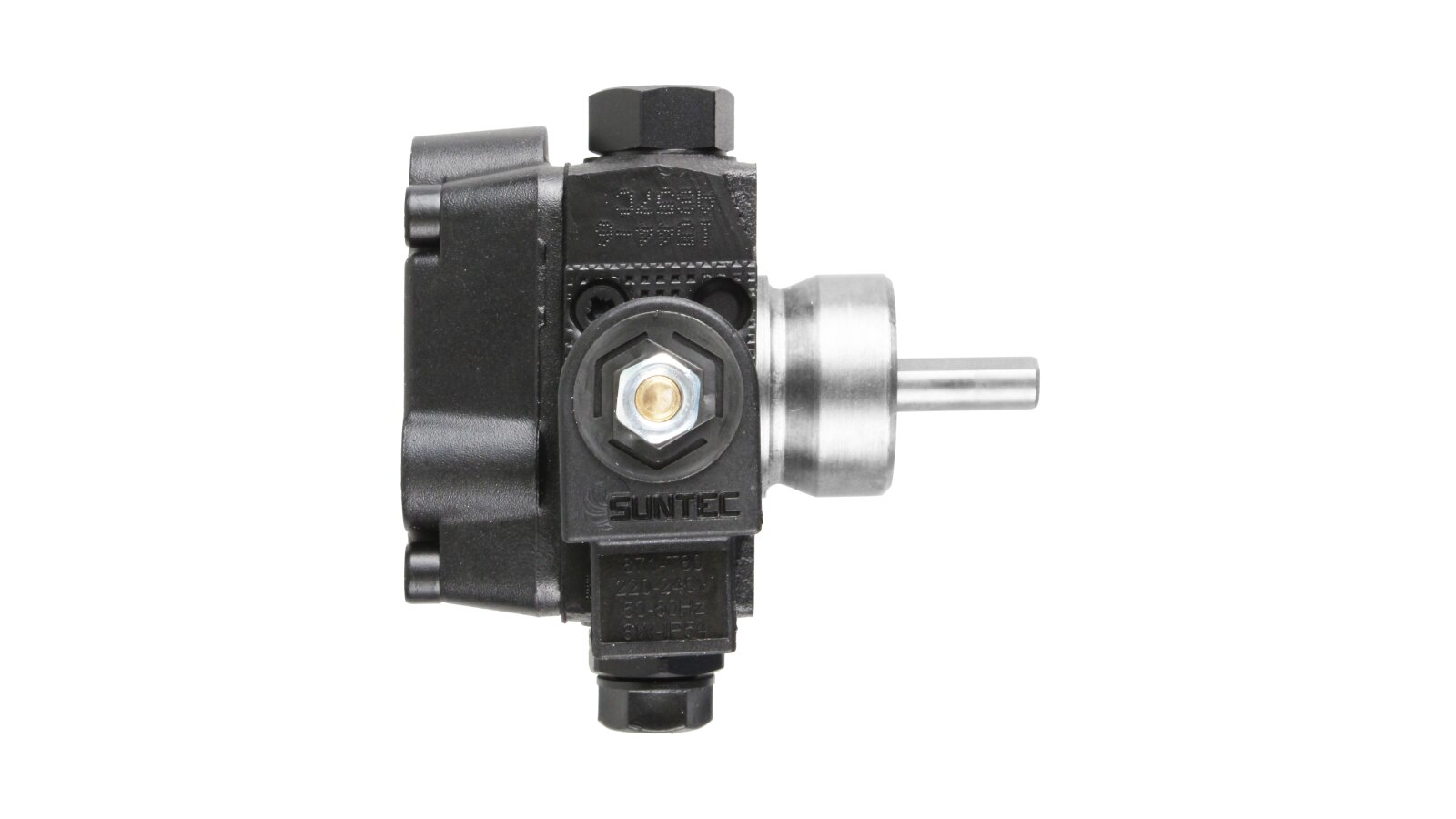

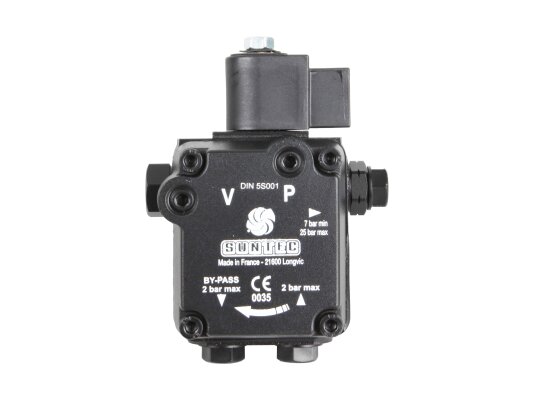

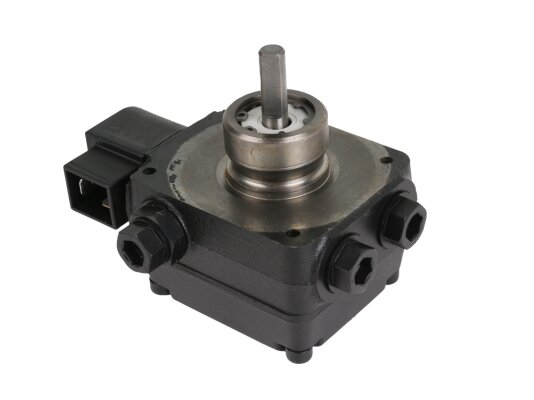

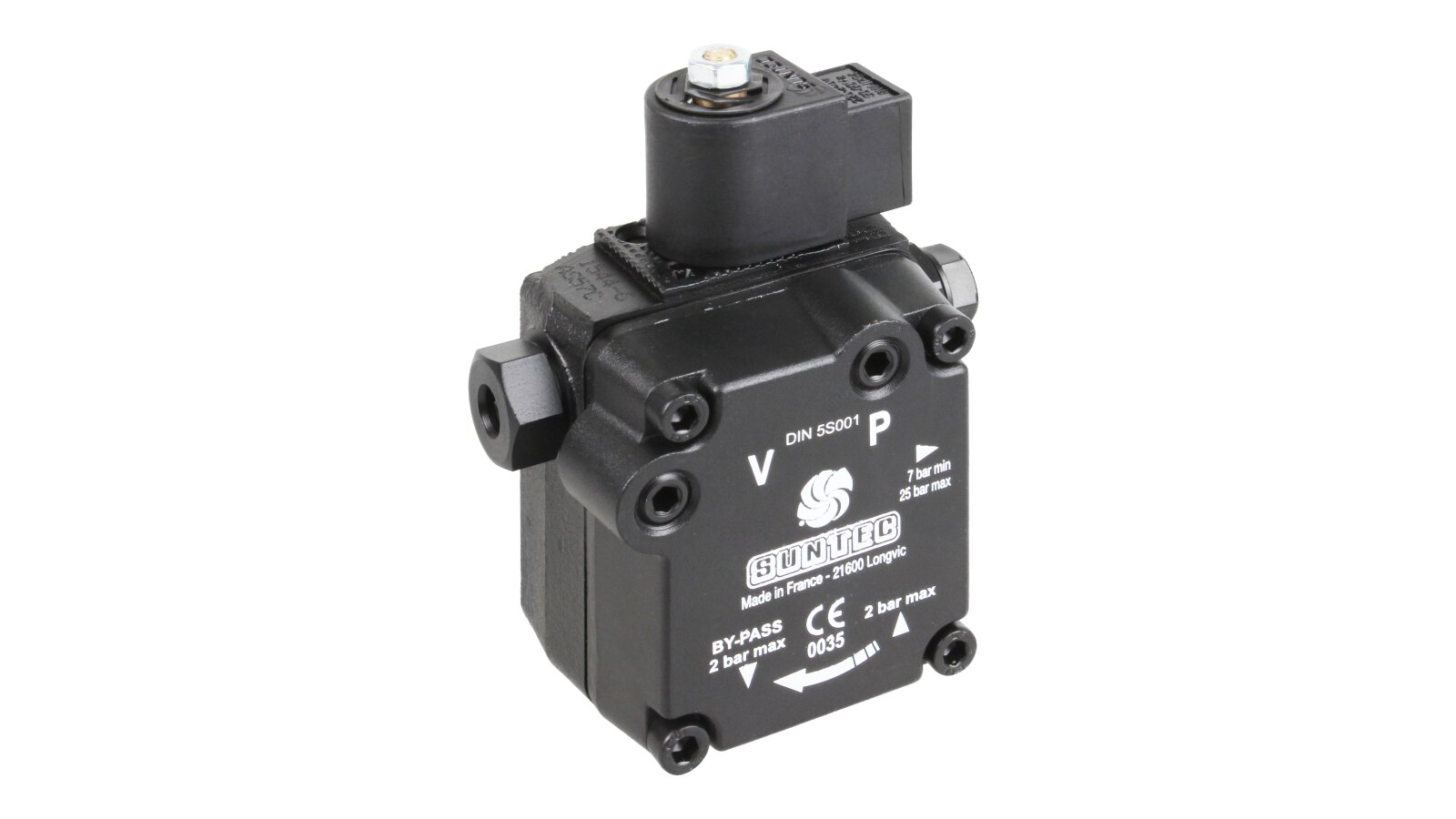

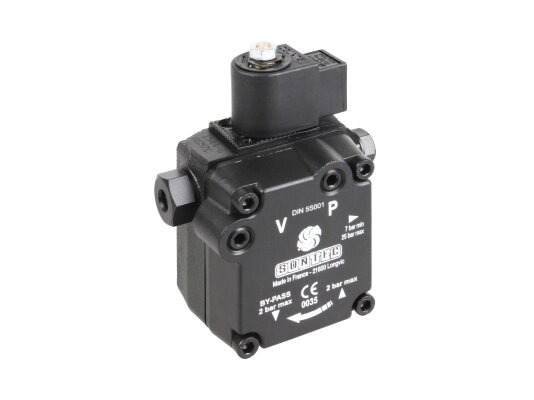

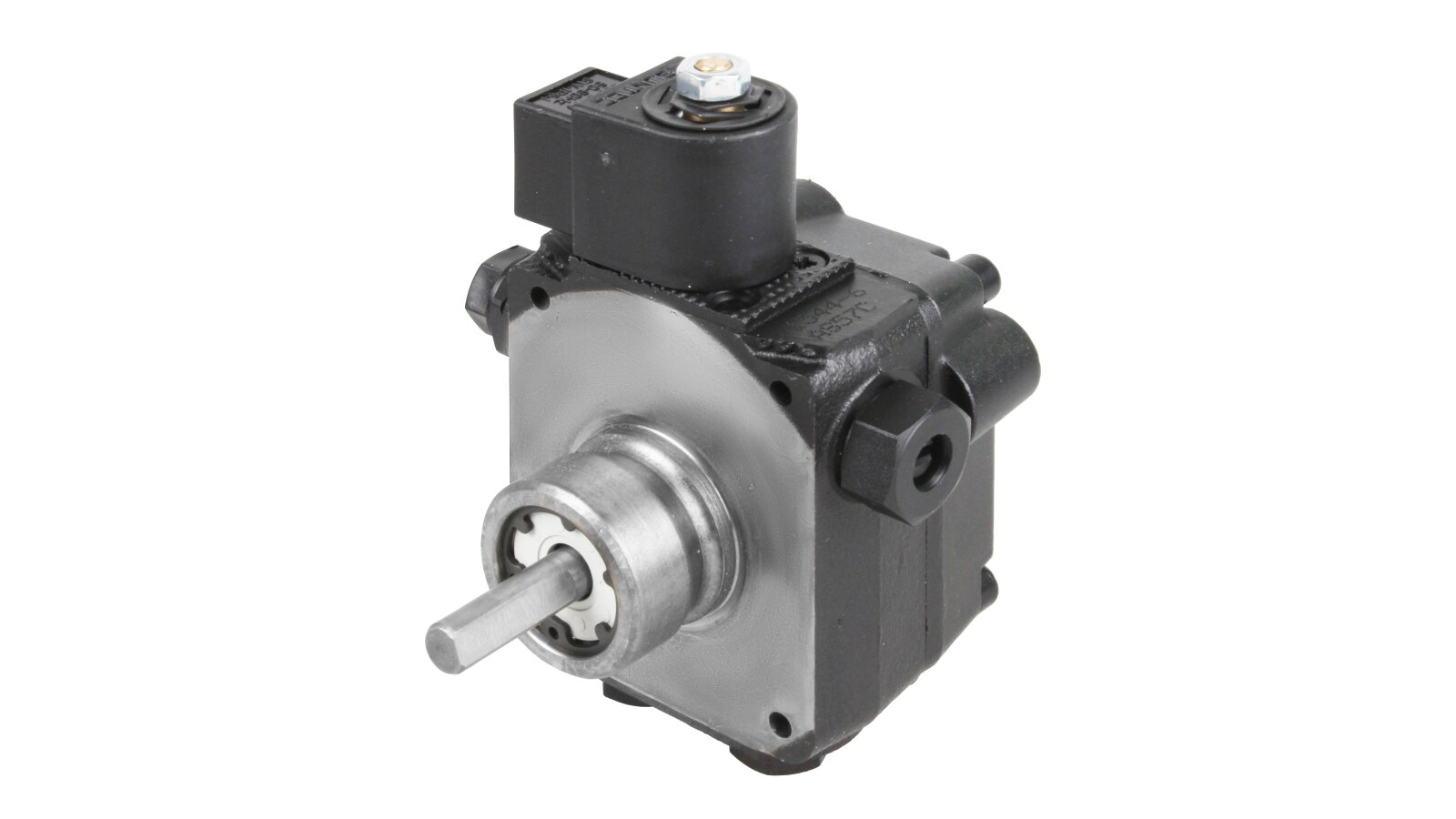

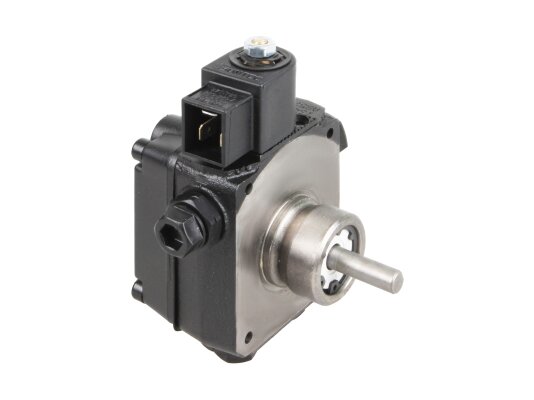

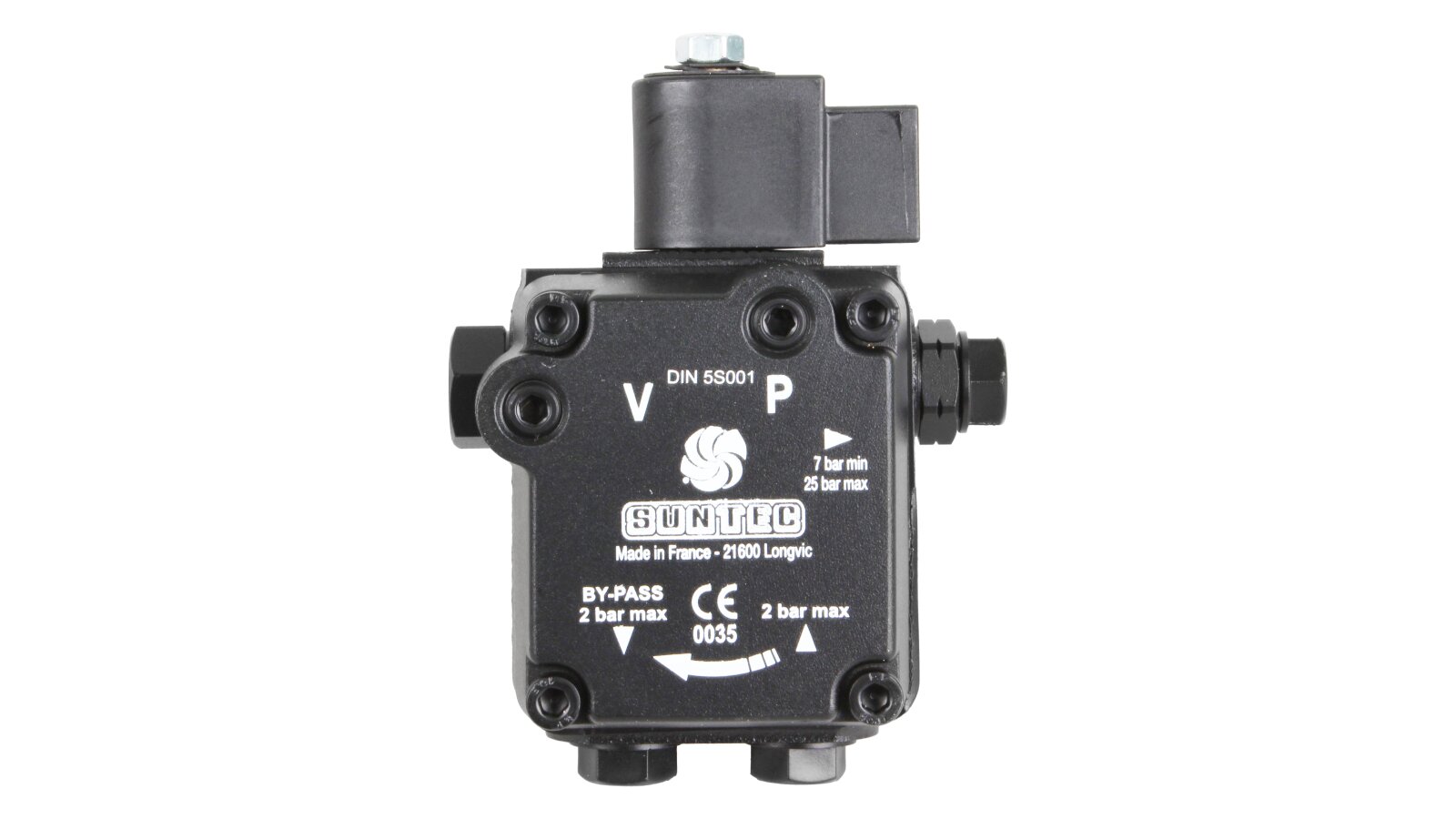

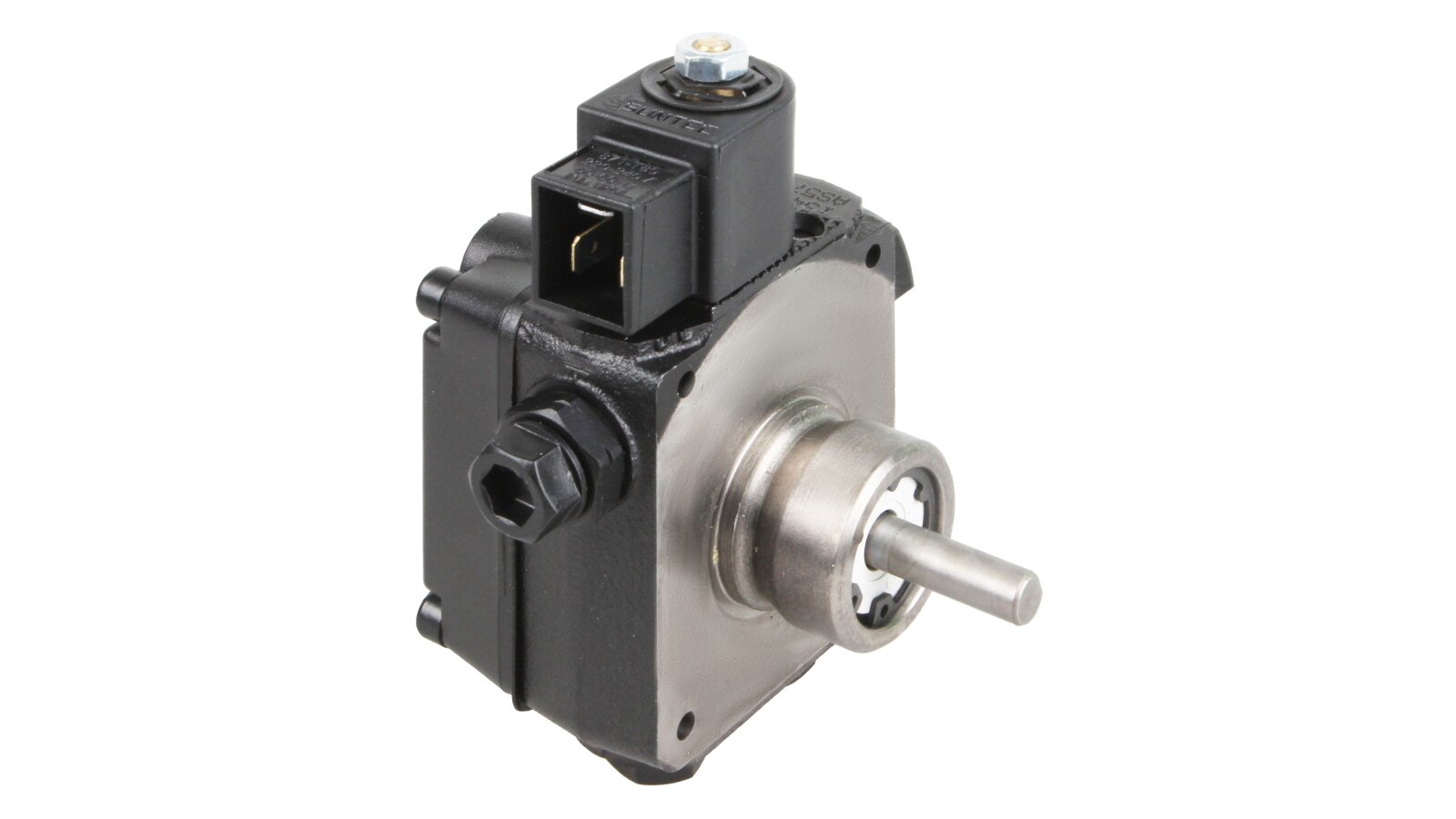

Burner Pump Suntec AS 57 C 1544 6P 0700

Suntec

AED 700

Oil Burner Pumps
Products code: 1205

Description

Gear fuel pump Suntec AS 57 C 1544 6P 0700 is a representative of the medium power range of the AS line. These devices are distinguished by a built-in electromagnetic valve of the "normally open" type with a locking function and a slide valve for adjusting the liquid pressure on the nozzle line.

High performance and maximum fuel supply pressure allow the unit to be used for completing domestic and commercial heating burners with a capacity of up to 1000 kW. Modification "C" has a left-hand location of the outlet to the nozzle line and counterclockwise rotation of the shaft.

In the online store of the company "ANKAS" you can buy a Suntec pump at a bargain price. We offer only high-quality equipment from well-known European manufacturers.

Design features

  • This type of pump uses a gear mechanism consisting of a pair of meshed links - a central gear and an external gear wheel. Rotating counterclockwise, it creates a low-pressure zone in the suction pipe. Cleaned diesel fuel, having passed through the mesh cylindrical filter, is attracted to the teeth and pushed out under pressure to the fuel injectors.

  • A small spool valve with an adjusting screw, the cap of which is located outside the housing, is responsible for setting the required pressure in the discharge section.

  • The factory configuration allows using the pump in 2-pipe fuel systems. For installation in 1-pipe systems, remove the bypass plug and close the "return" with a steel plug and washer.

Advantages of the model:

  • works with summer and winter grades of diesel fuel;

  • high power with low energy consumption;

  • low noise level;

  • small dimensions and weight;

  • supply of the working medium under pressure from 7 to 14 atm;

  • a solenoid valve is provided, which switches the device to idle mode regardless of the drive speed;

  • there are standard ports for connecting instrumentation.

The Suntec AS series of pumps for diesel burners is popular due to its reliability and ease of operation. The AS 57 C 1544 6P 0700 model has a high power reserve and can be installed on almost any burner with a 32 mm diameter sleeve connection. Precise adjustment of rotating parts and the use of high-quality seals make it possible to work with fuel of different viscosities.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 56 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 56 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
