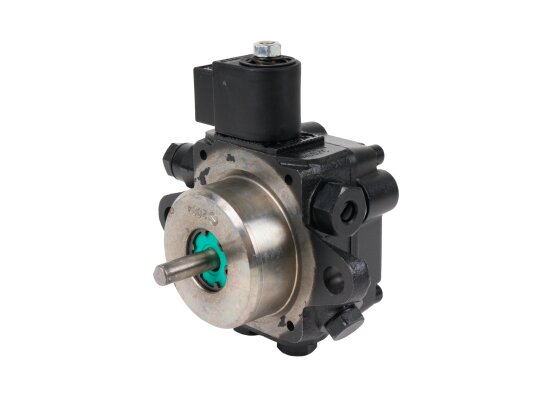

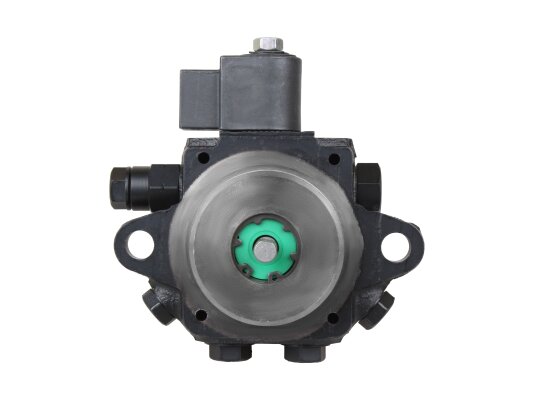

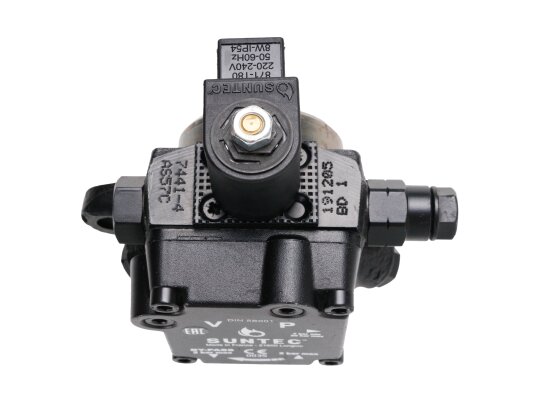

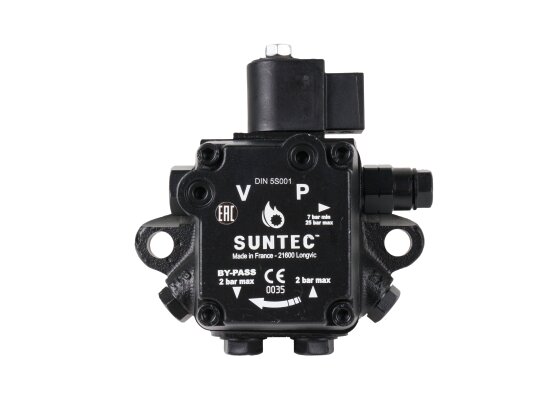

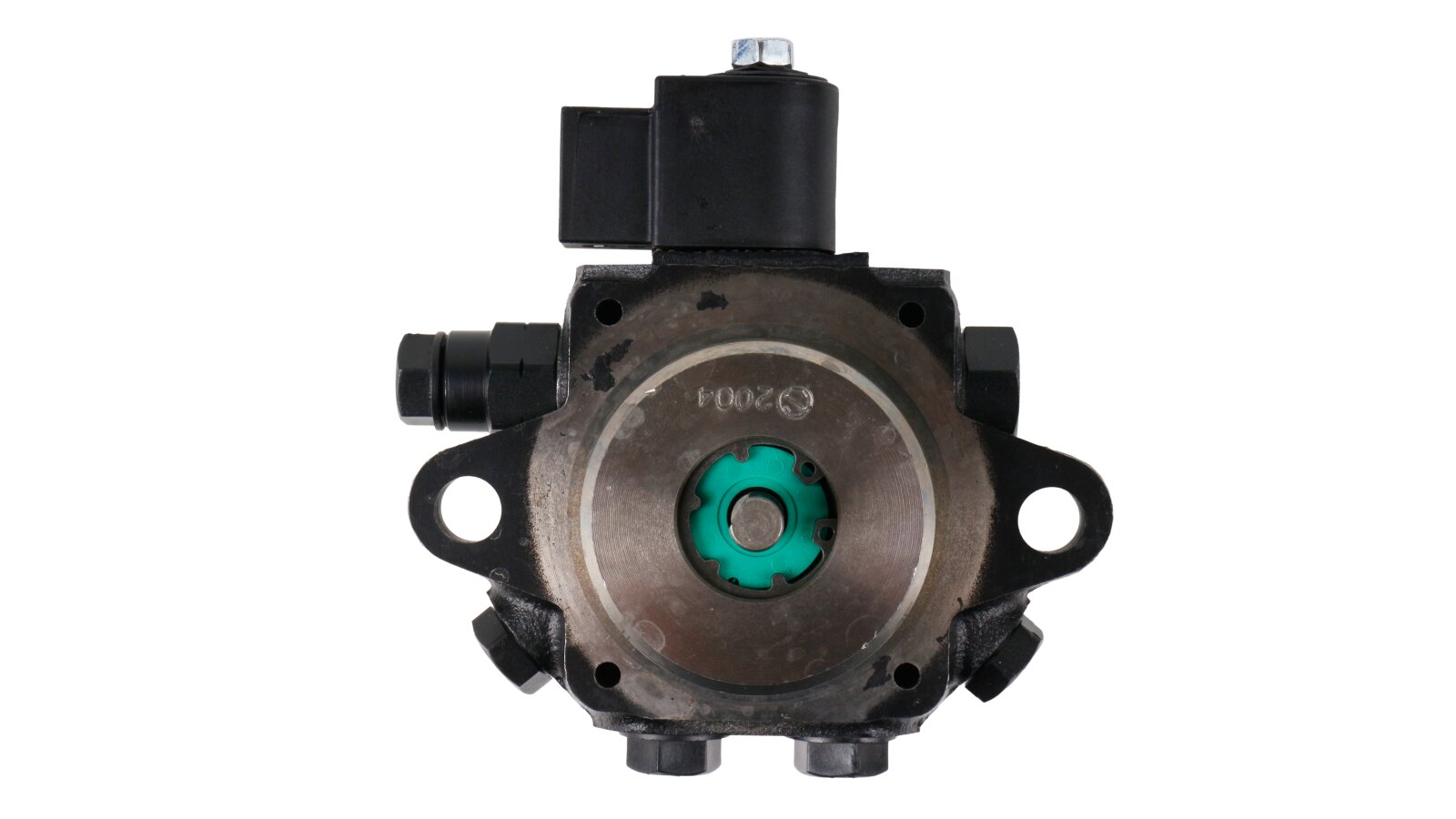

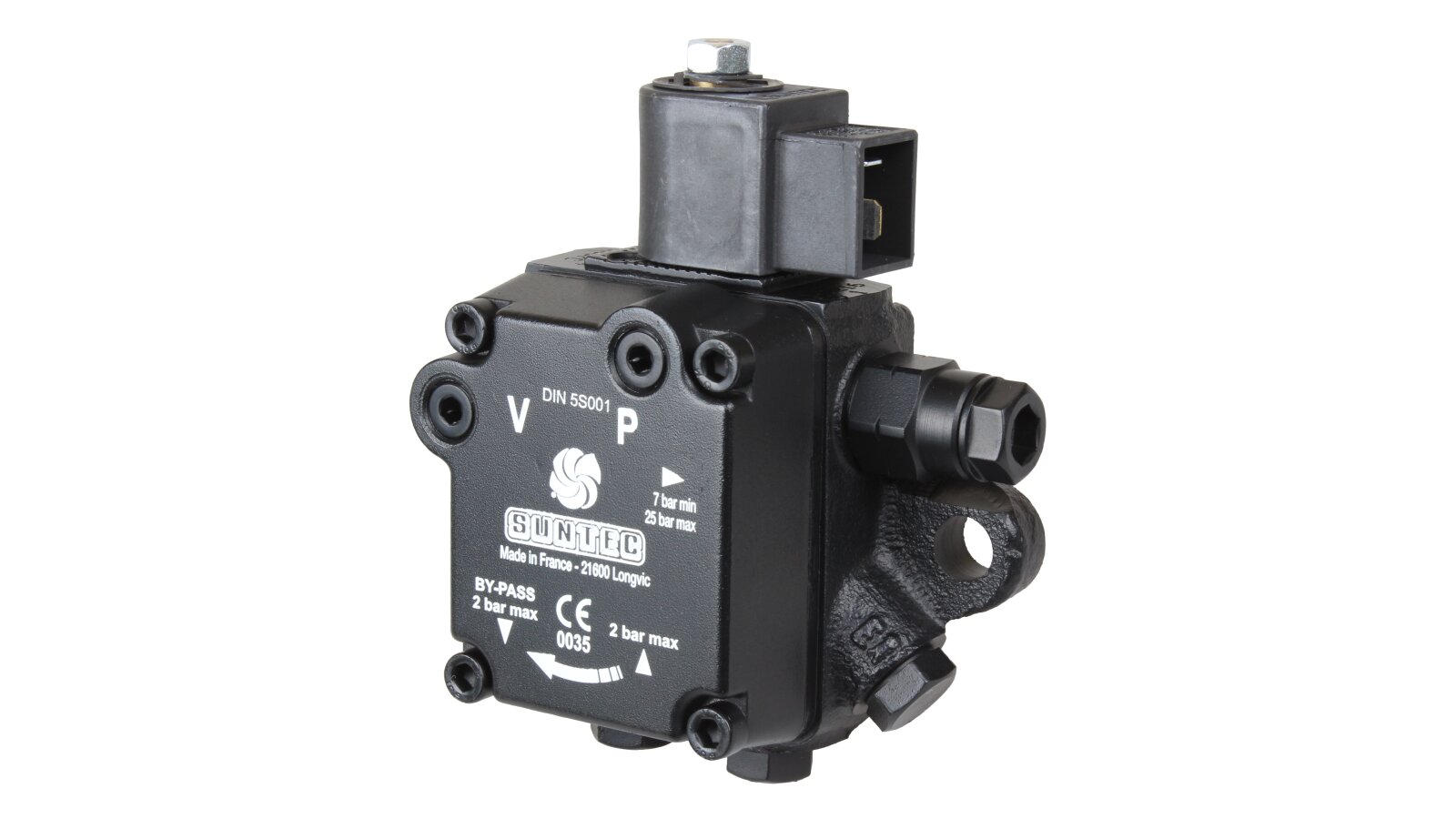

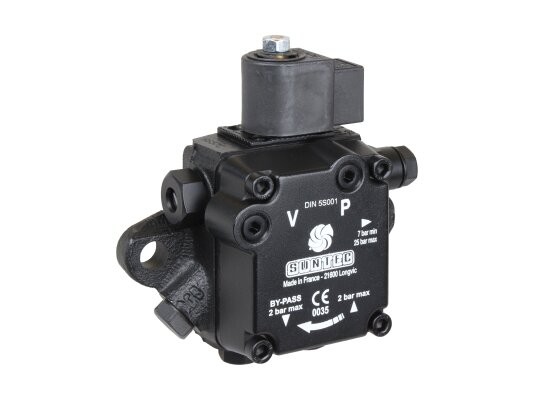

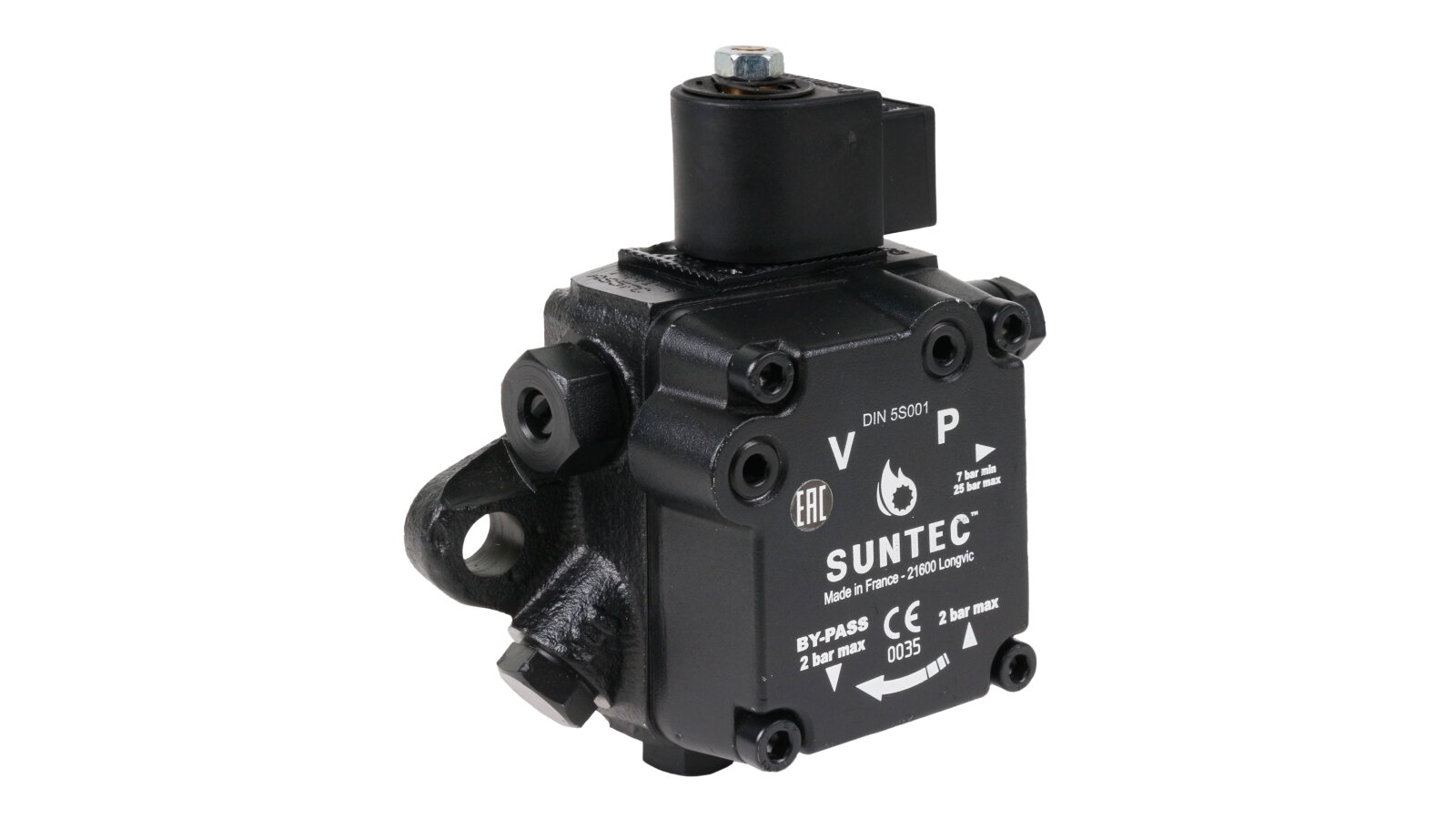

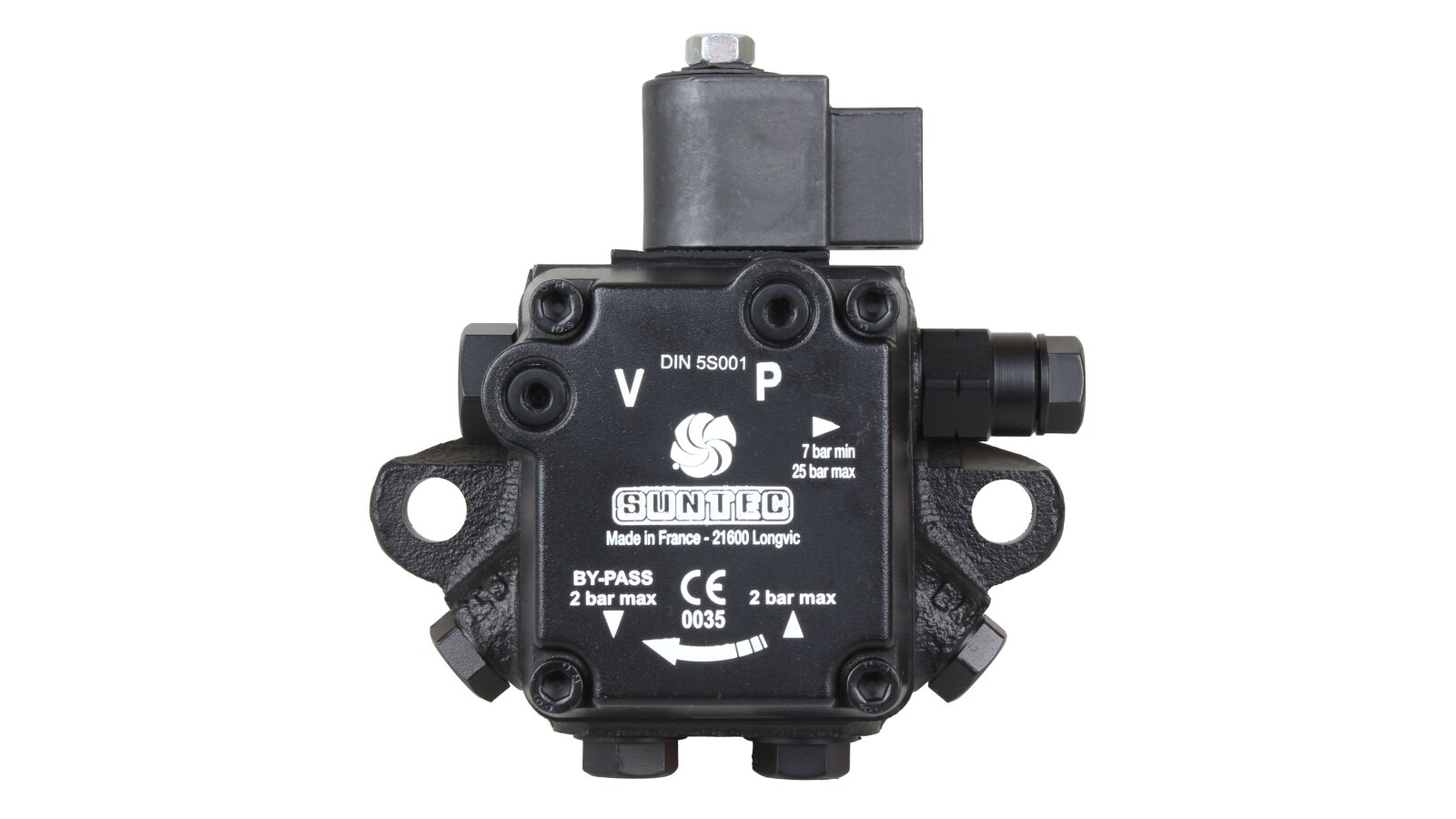

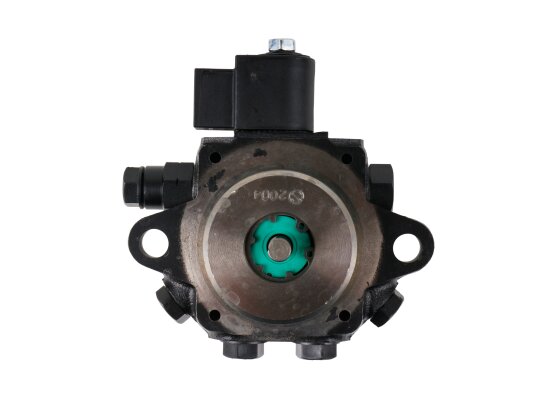

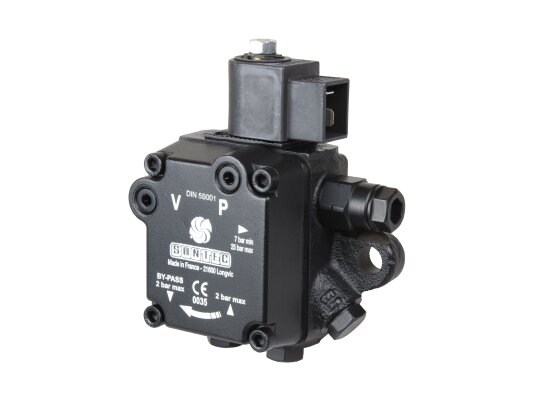

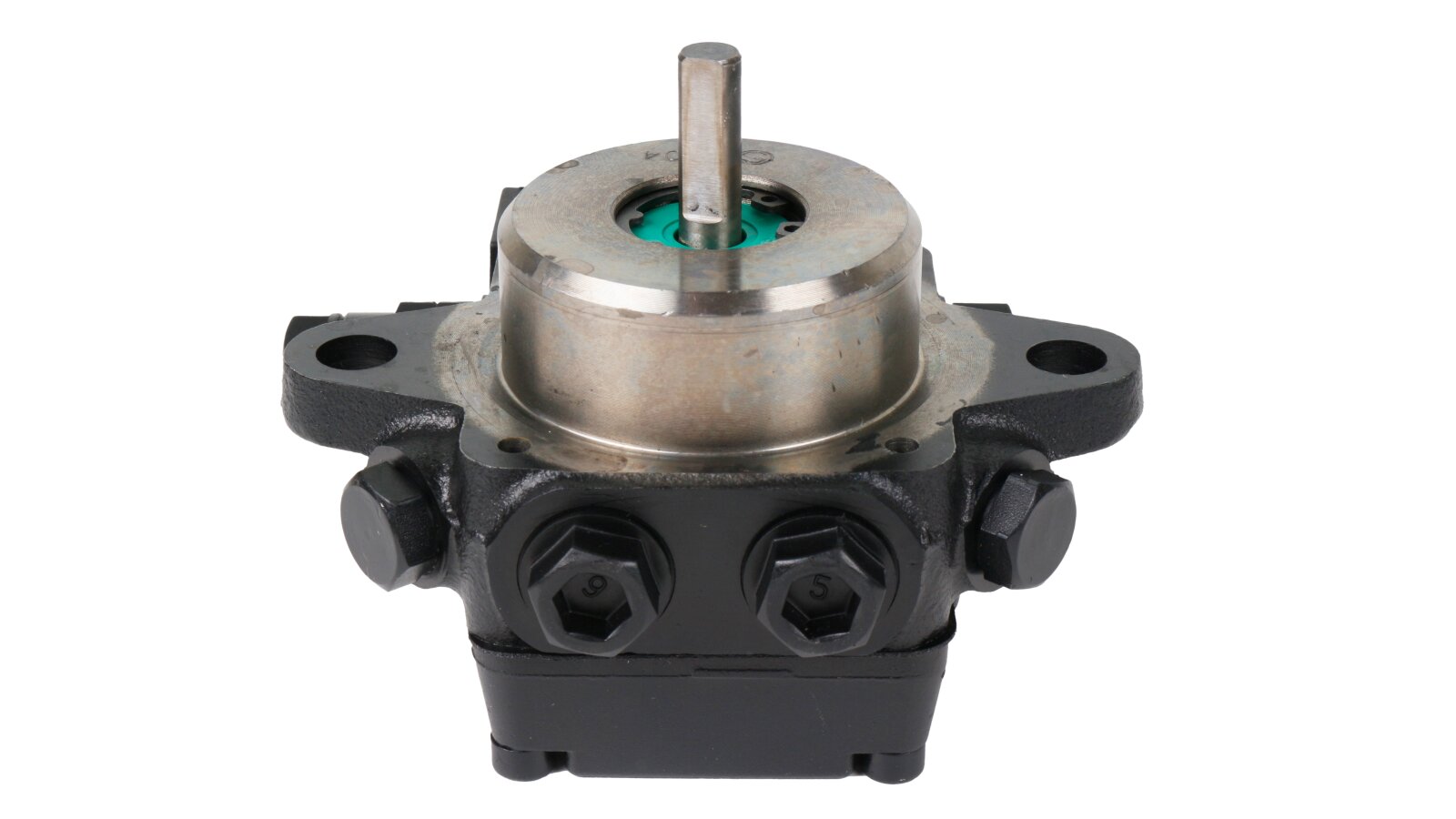

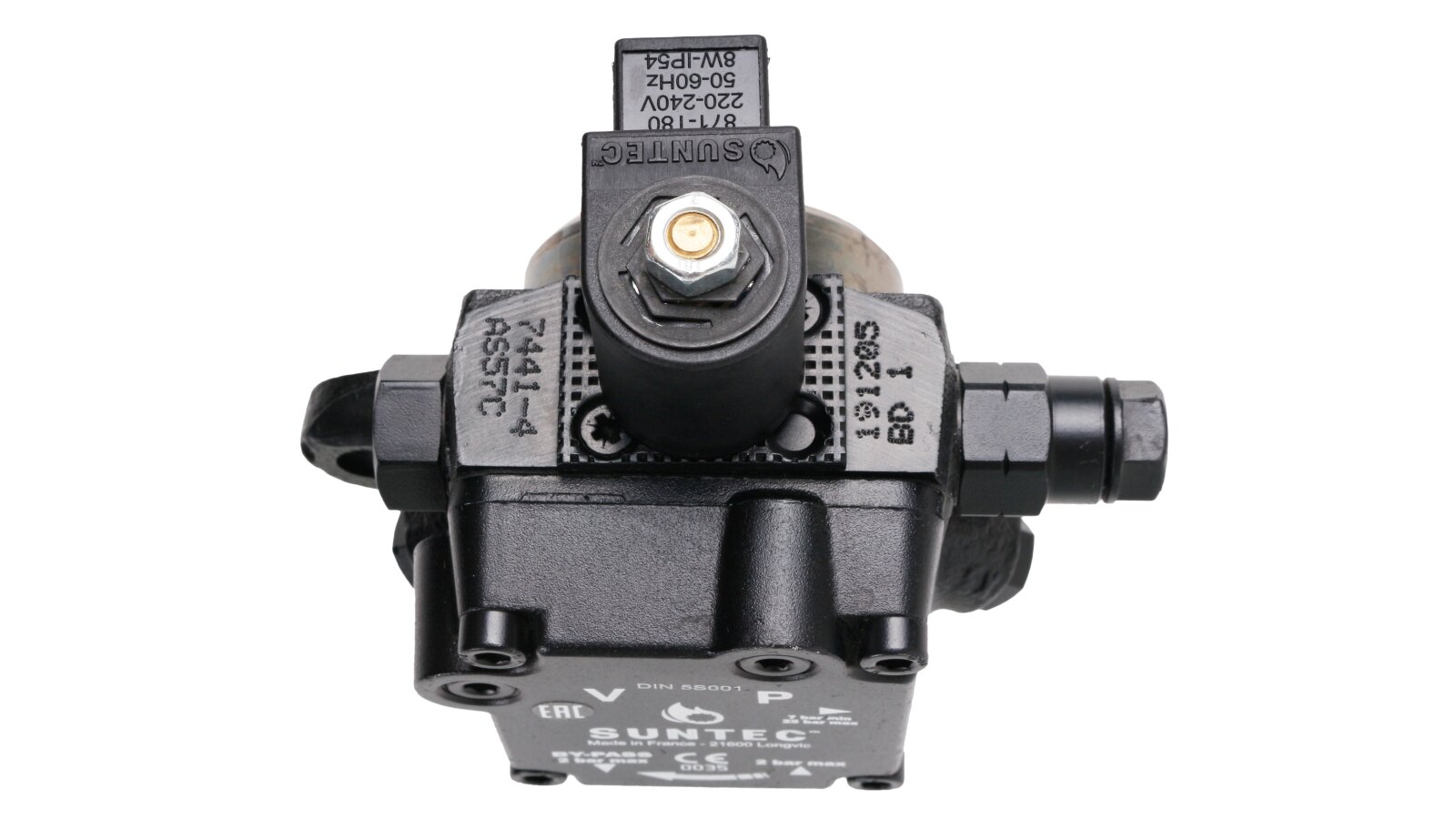

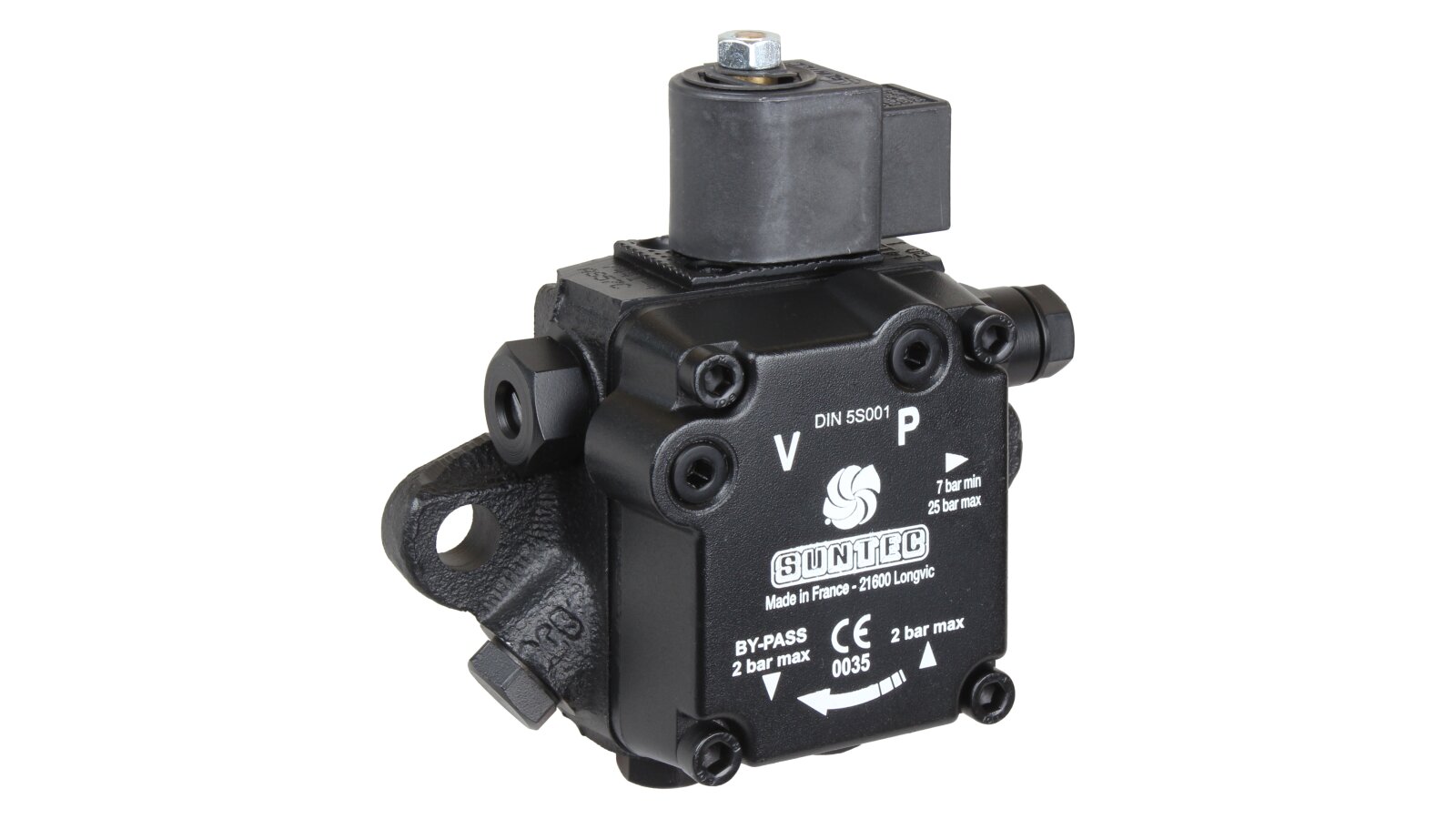

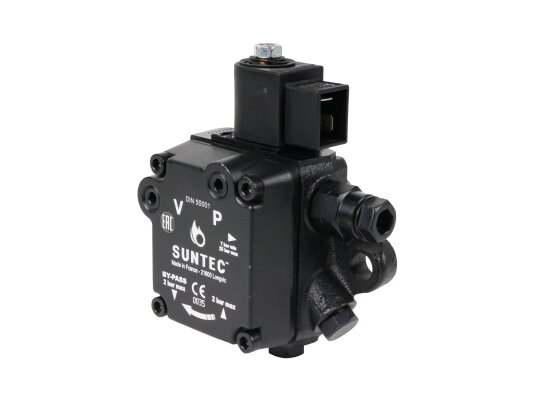

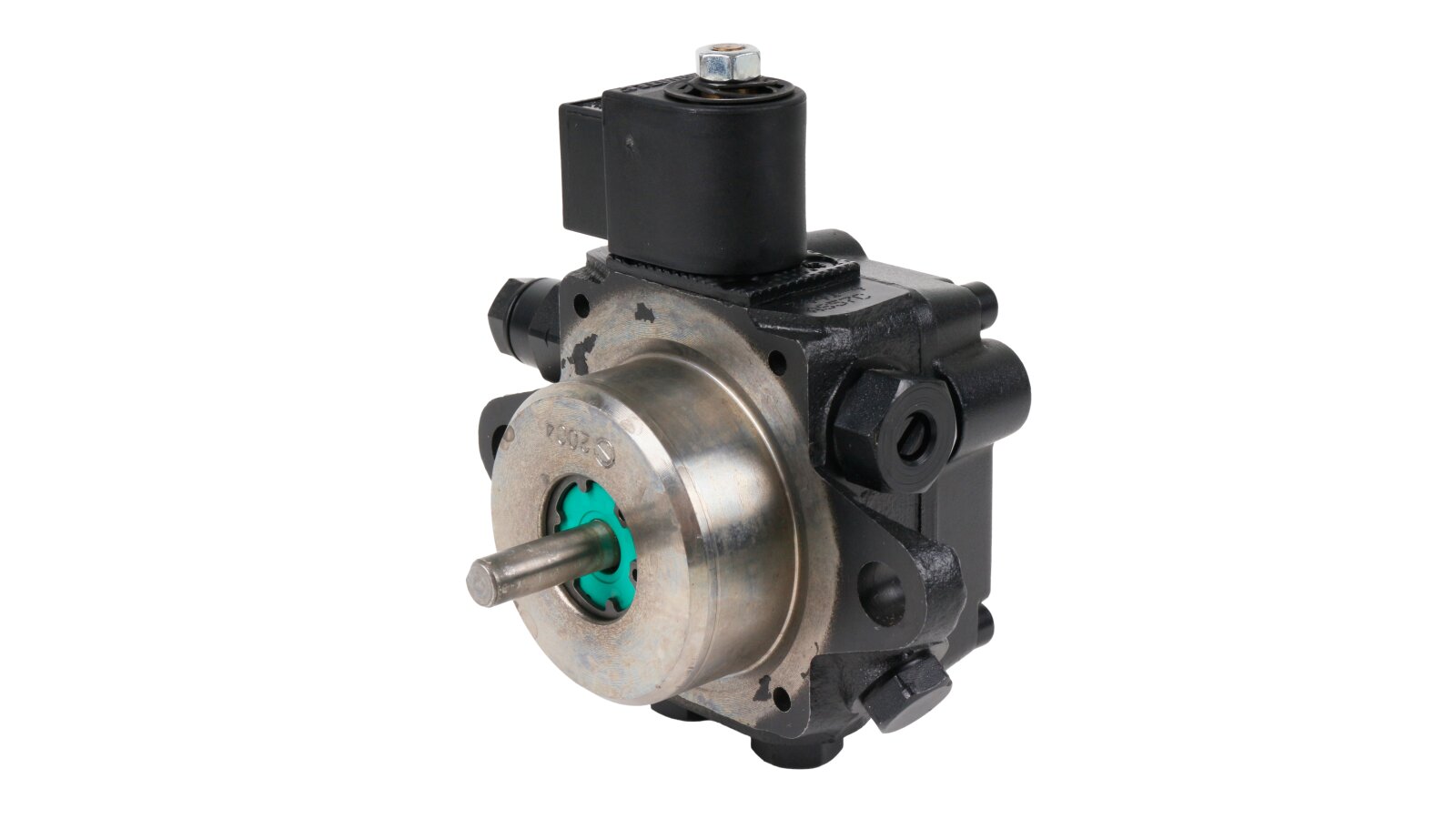

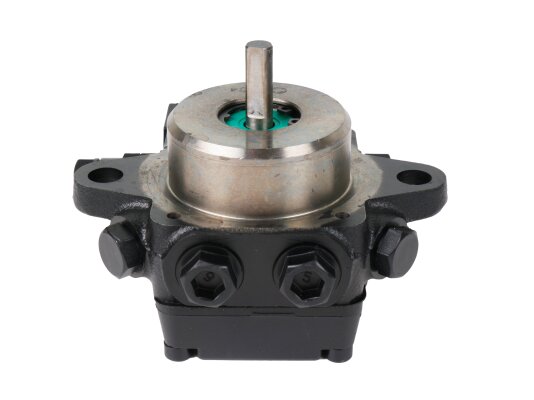

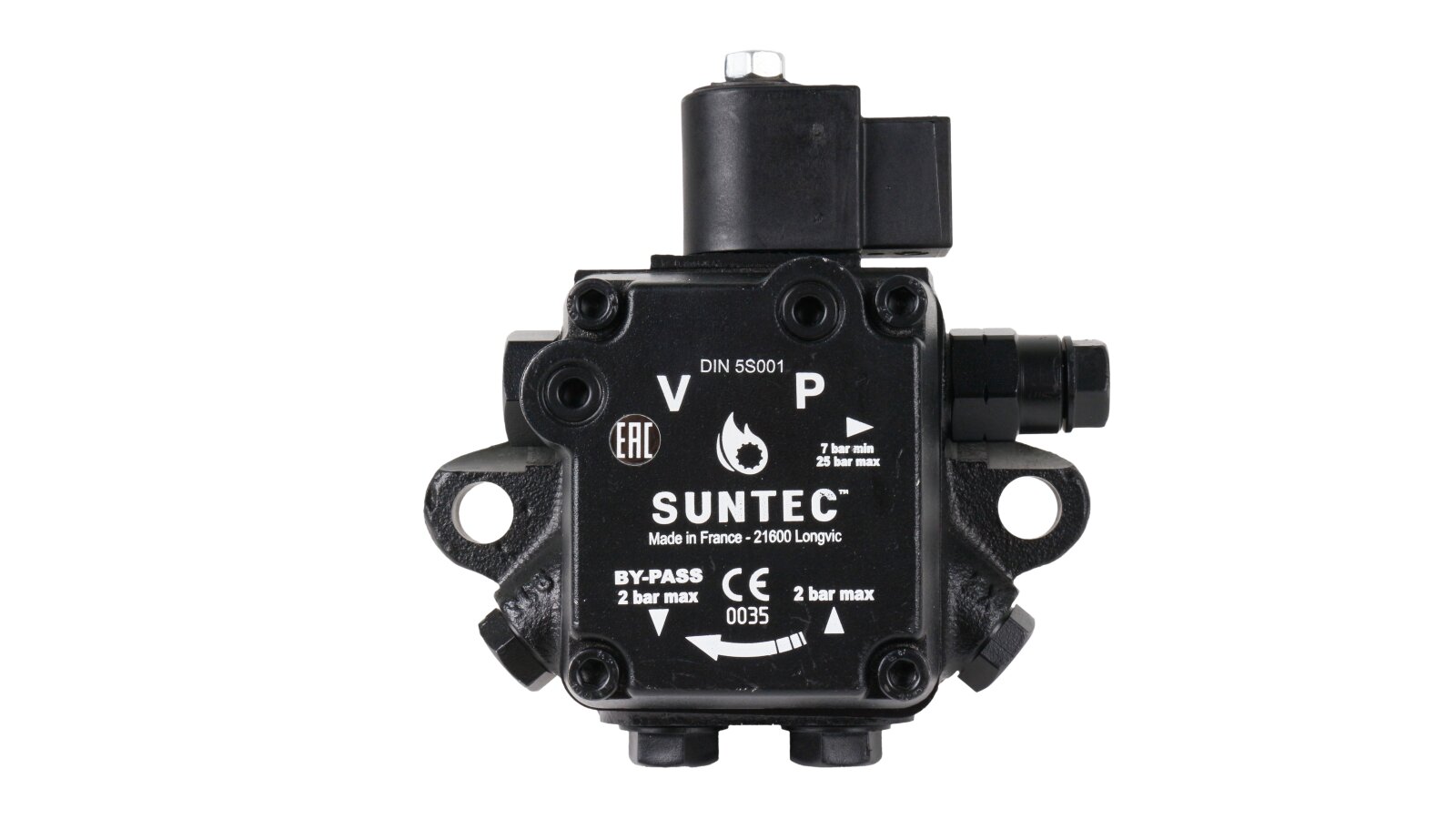

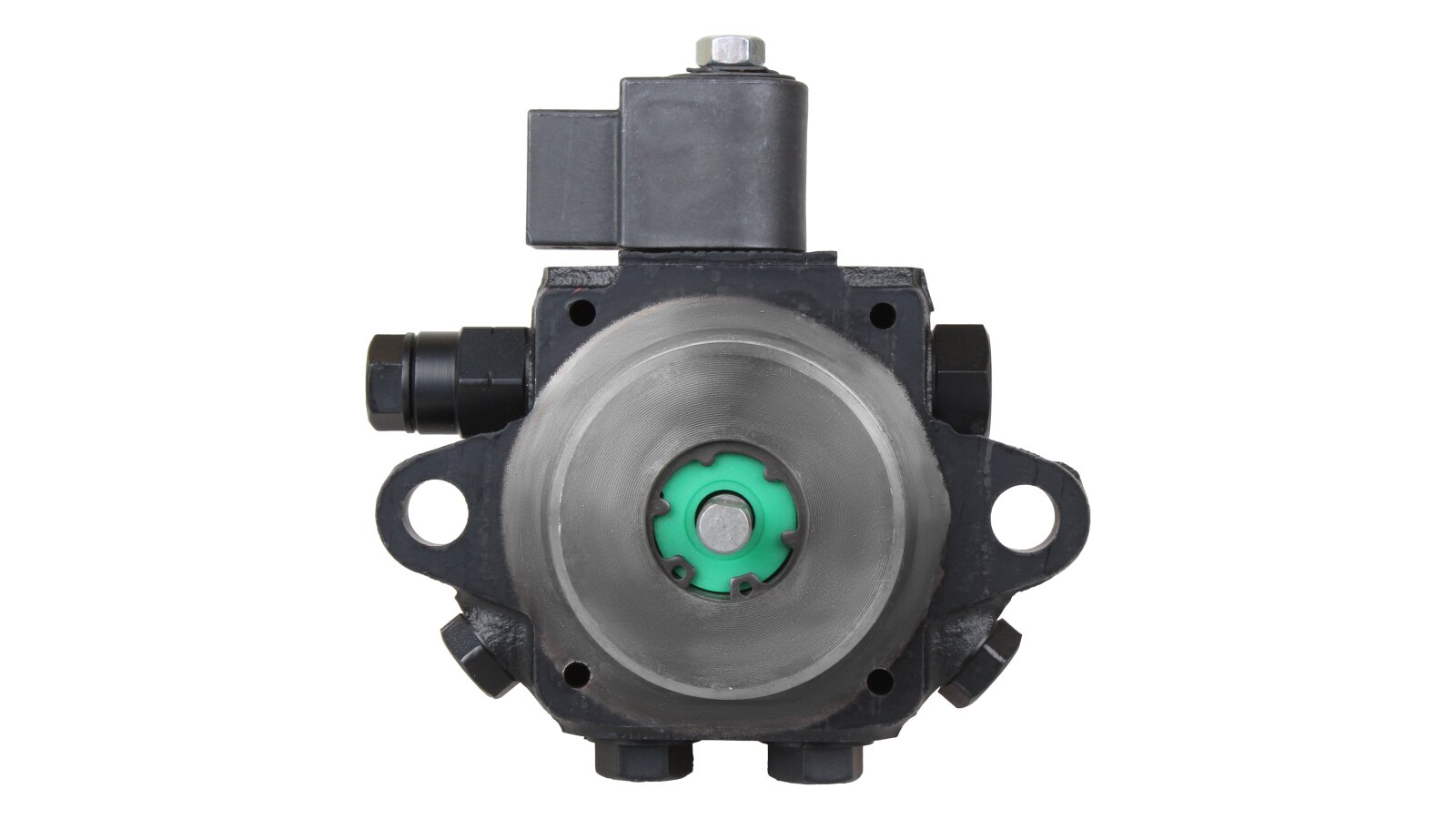

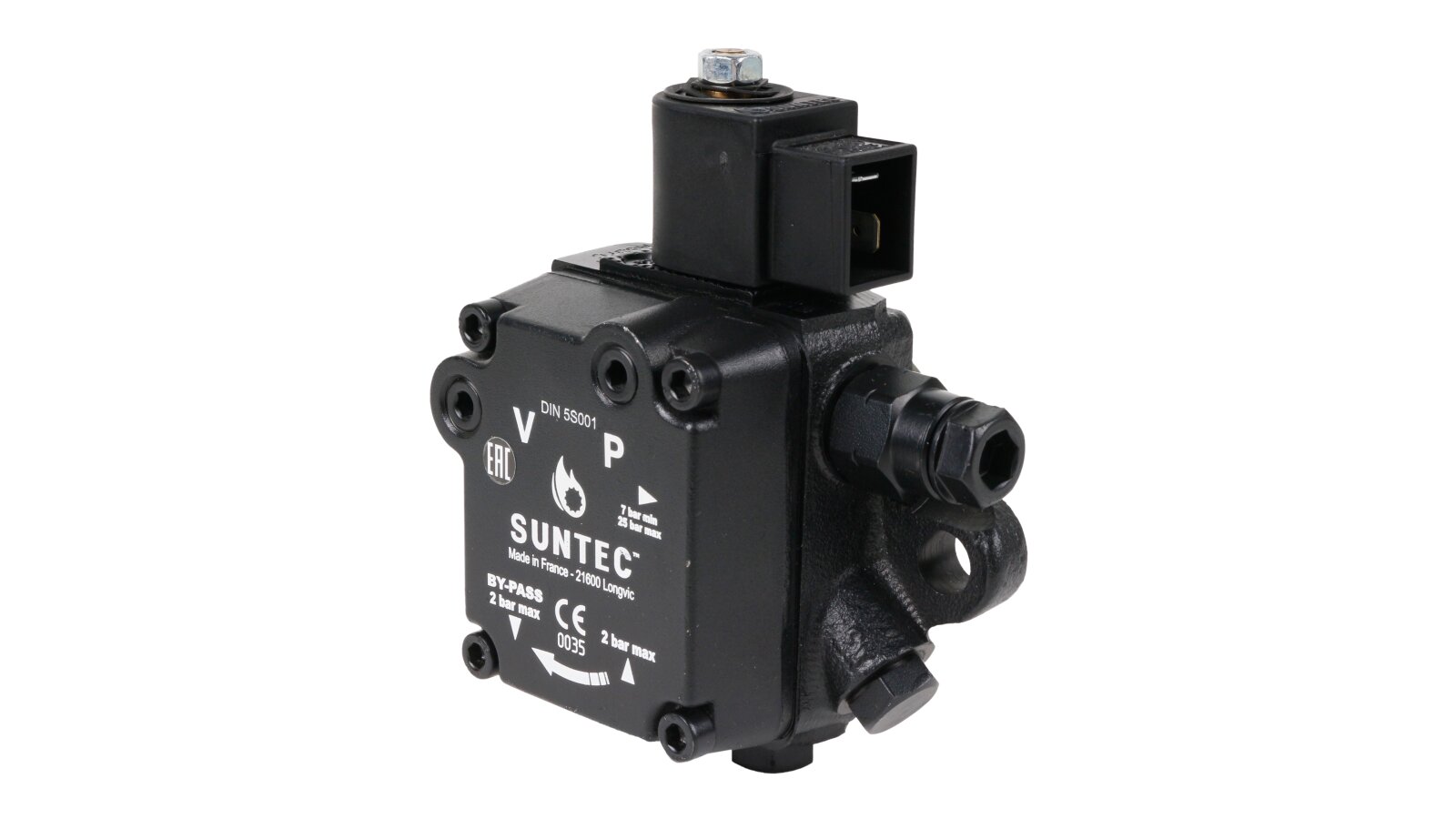

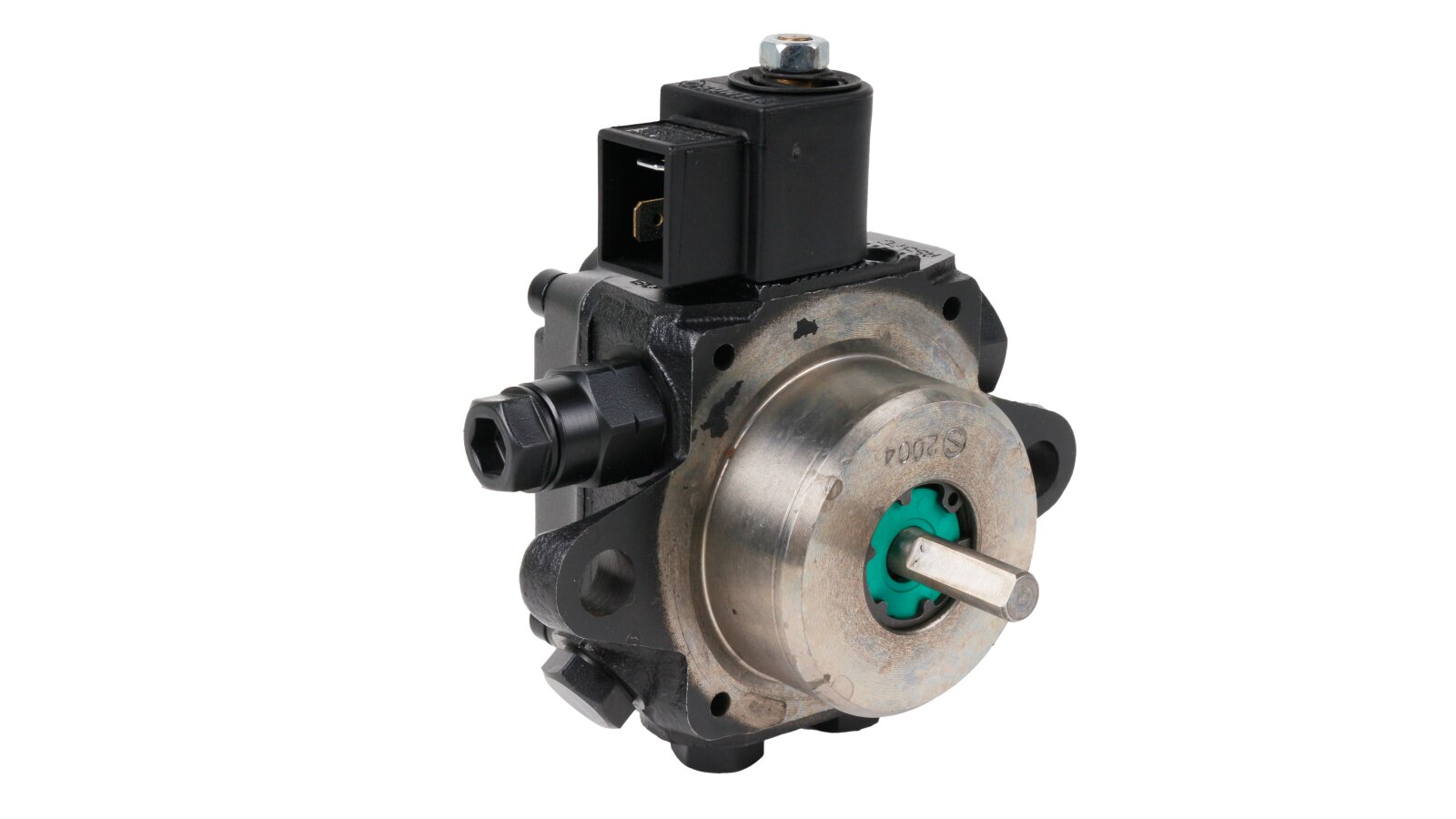

Burner Pump Suntec AS 57 C 7441 4P 0700

Suntec
AED 1,525
  1. Oil Burner Pumps

Description

Liquid fuel gear pump AS 57 C 7441 4P 0700 with a capacity of 56 l/h is designed to pump fuel from the fuel tank to the burner nozzles under pressure from 7 to 14 bar. The control elements are a slide (regulating) and electromagnetic (cut-off) valves. The feed outlet for this model is located on the left side of the housing. The shaft, driven by an external electric motor, rotates counterclockwise.

The official supplier of reliable equipment from a European manufacturer, ANKAS, offers to buy a Suntec pump at an affordable price. Our managers are always ready to answer your questions and select the best model for you.

Design features

  • The actuator of the pump is a gear mechanism with two mutually engaged gears and a wheel with internal teeth. Their synchronous counterclockwise movement creates a vacuum in the inlet pipe, which causes diesel fuel to flow from the tank into the working cavity, and then under pressure to the injector.

  • The required supply pressure can be set by tightening the adjusting screw of the slide valve. The spring-loaded piston releases some of the fuel back into the tank or back onto the gears. To stop the supply without stopping the drive, a "normally open" bypass solenoid valve is provided.

  • A dismountable filter is installed at the inlet to protect the internal cavity of the device from mechanical wear. Its cylindrical mesh insert with a cell size of 150 μm traps the smallest debris and rust. To prevent clogging of the fuel injectors, it is recommended to install a fine filter after the pump further along the working fluid.

Advantages of the model:

  • supply of diesel fuel under the required pressure in the range from 7 to 14 atm;

  • simple pressure adjustment without the need to stop;

  • nominal capacity of the unit up to 56 l/h with average viscosity of fuel;

  • reliable flange connection with a landing size of 54 mm;

  • a serviceable pre-filter is installed at the inlet.

Fuel equipment of the French company Suntec is a standard of quality and durability, recognized throughout the world. Manufacturing, processing and final finishing of pump parts for burners AS 57 C 7441 4P 0700 is carried out on high-precision factory equipment of the European level. The use of elastic and heat-resistant composite materials in the design eliminates fuel leakage and loss of power during intensive use in various temperature conditions.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 56 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 56 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
