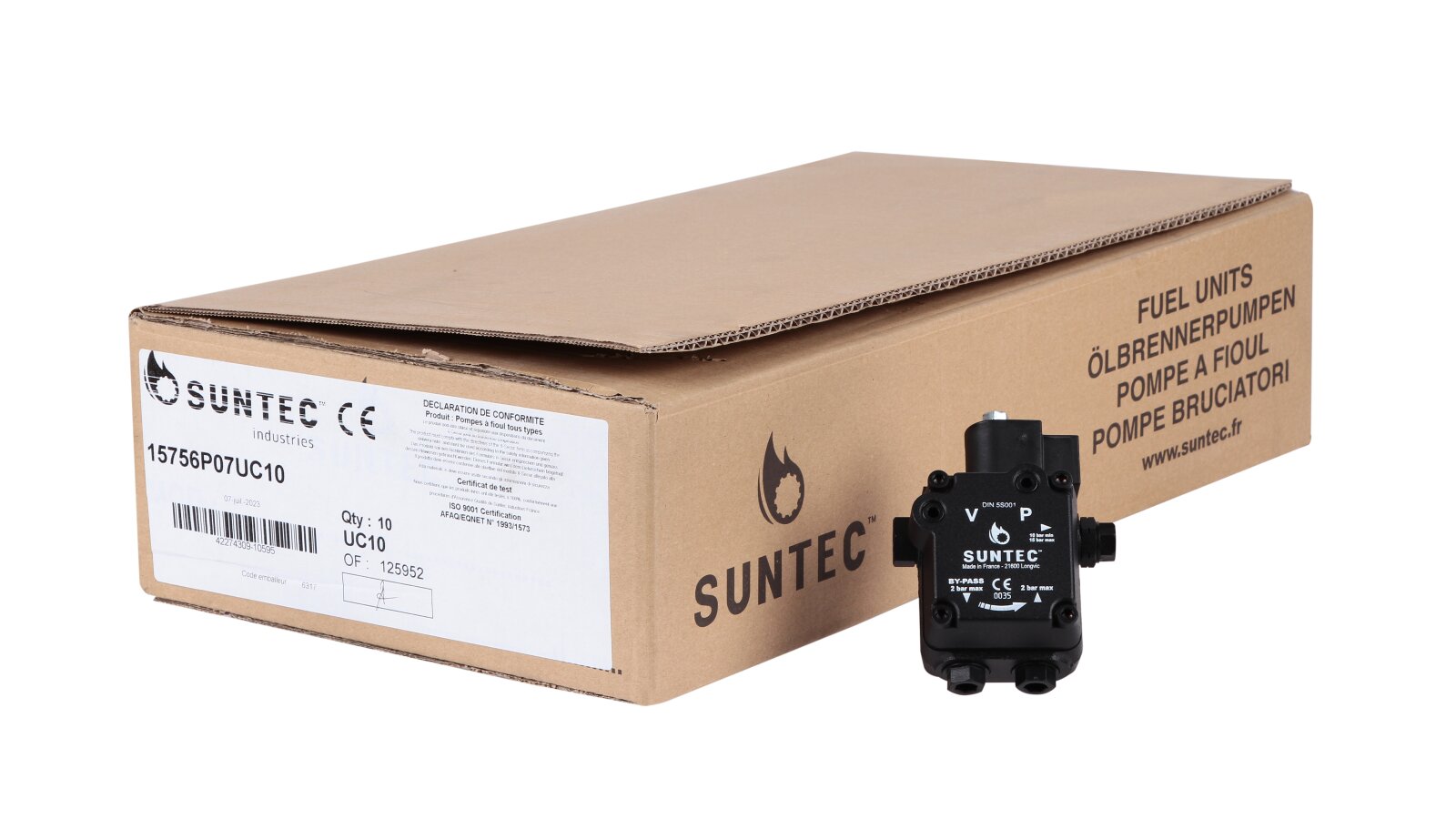

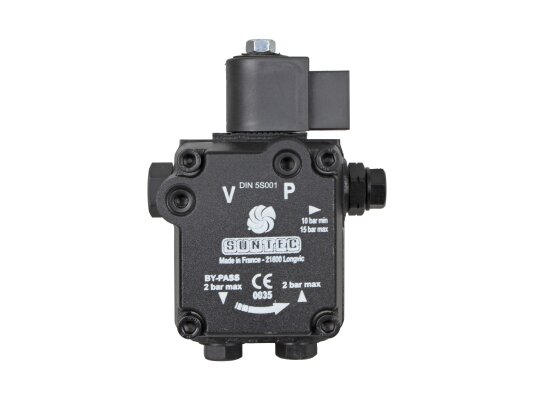

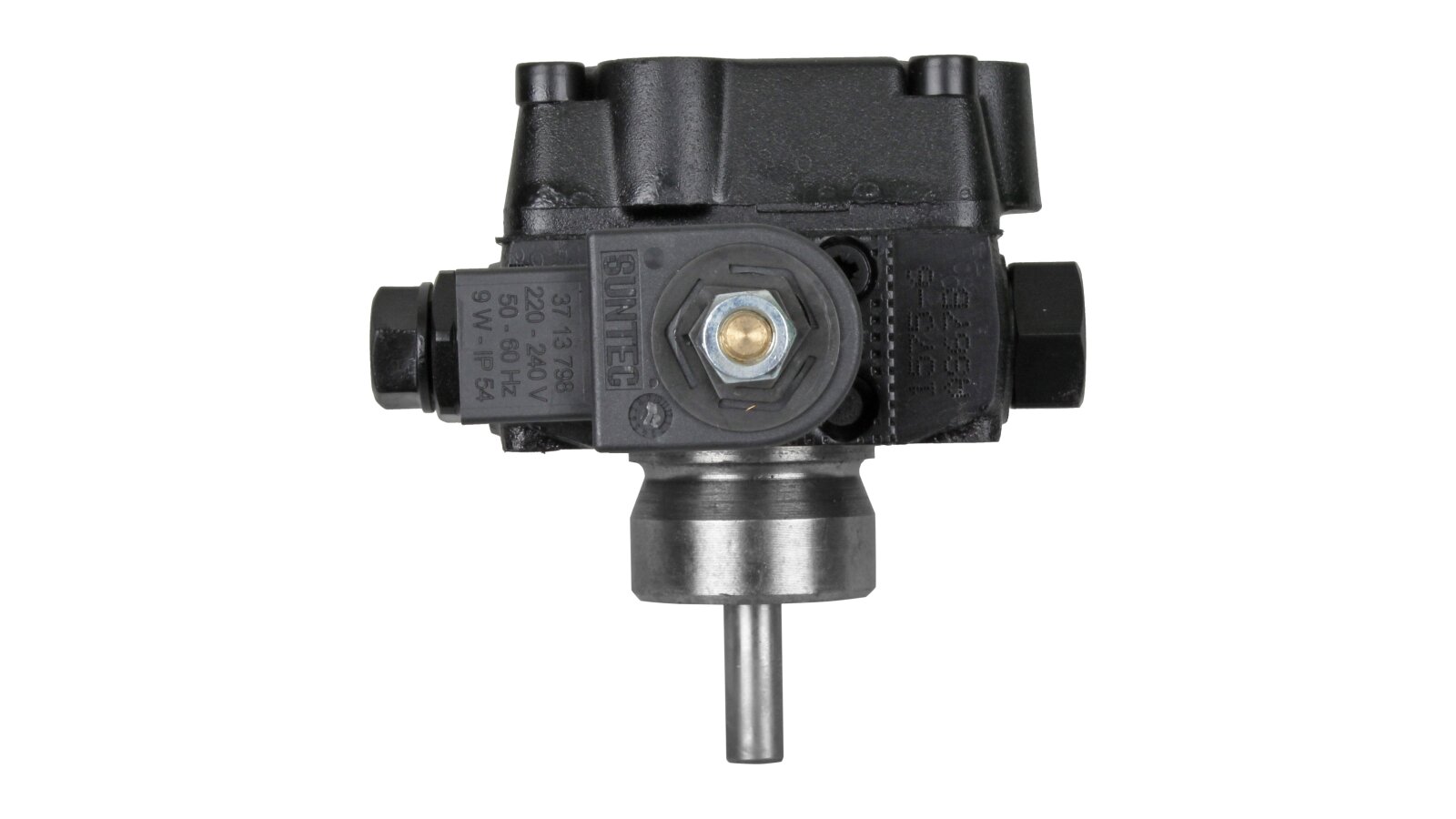

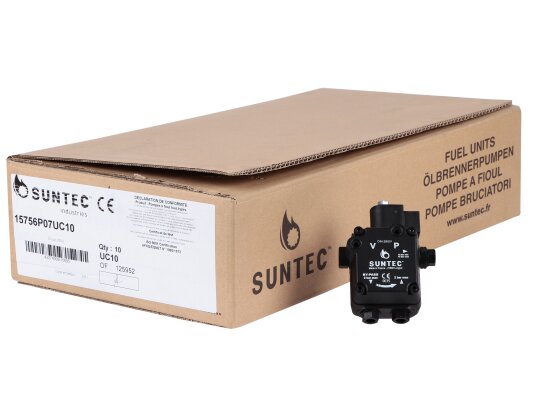

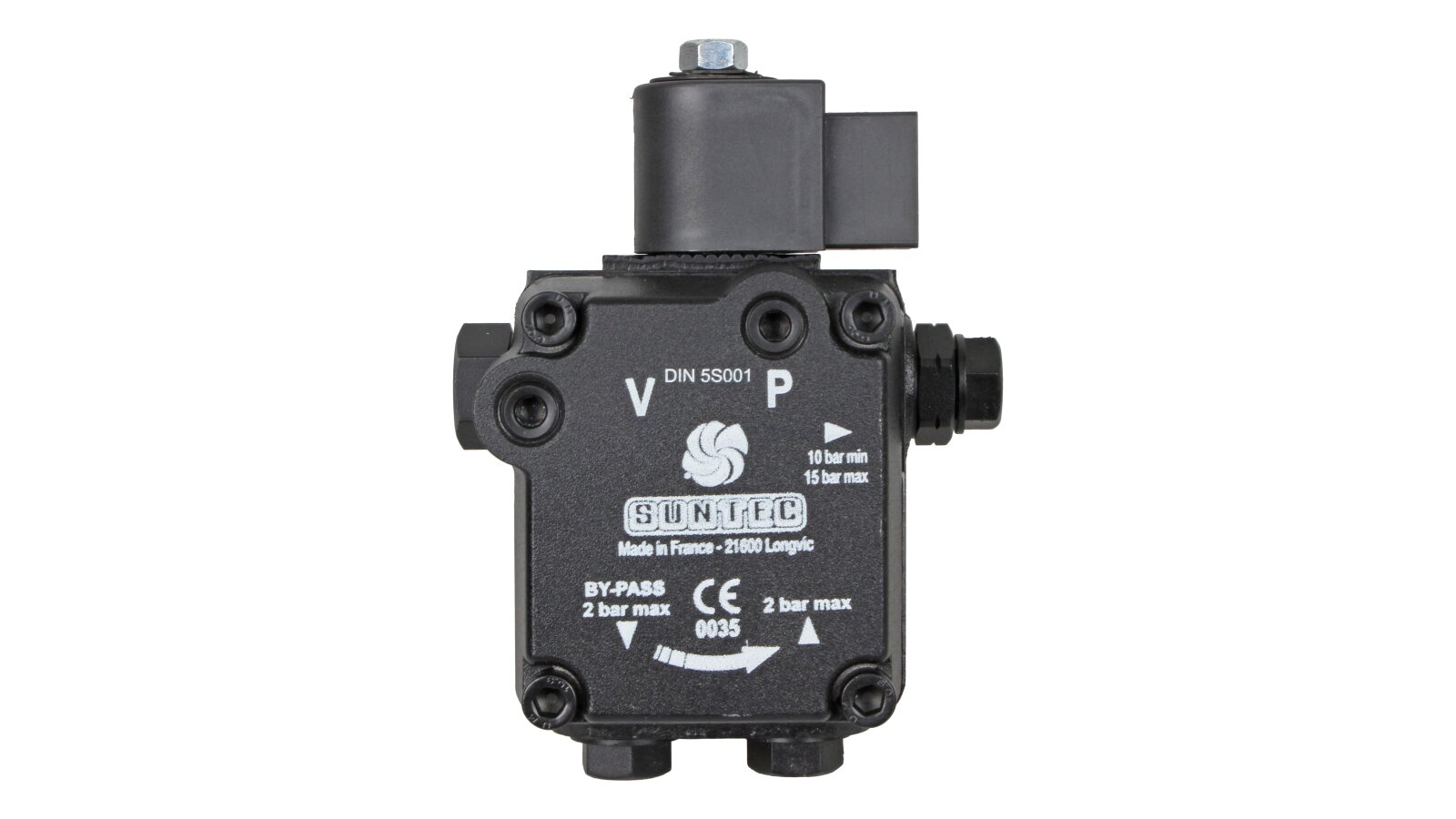

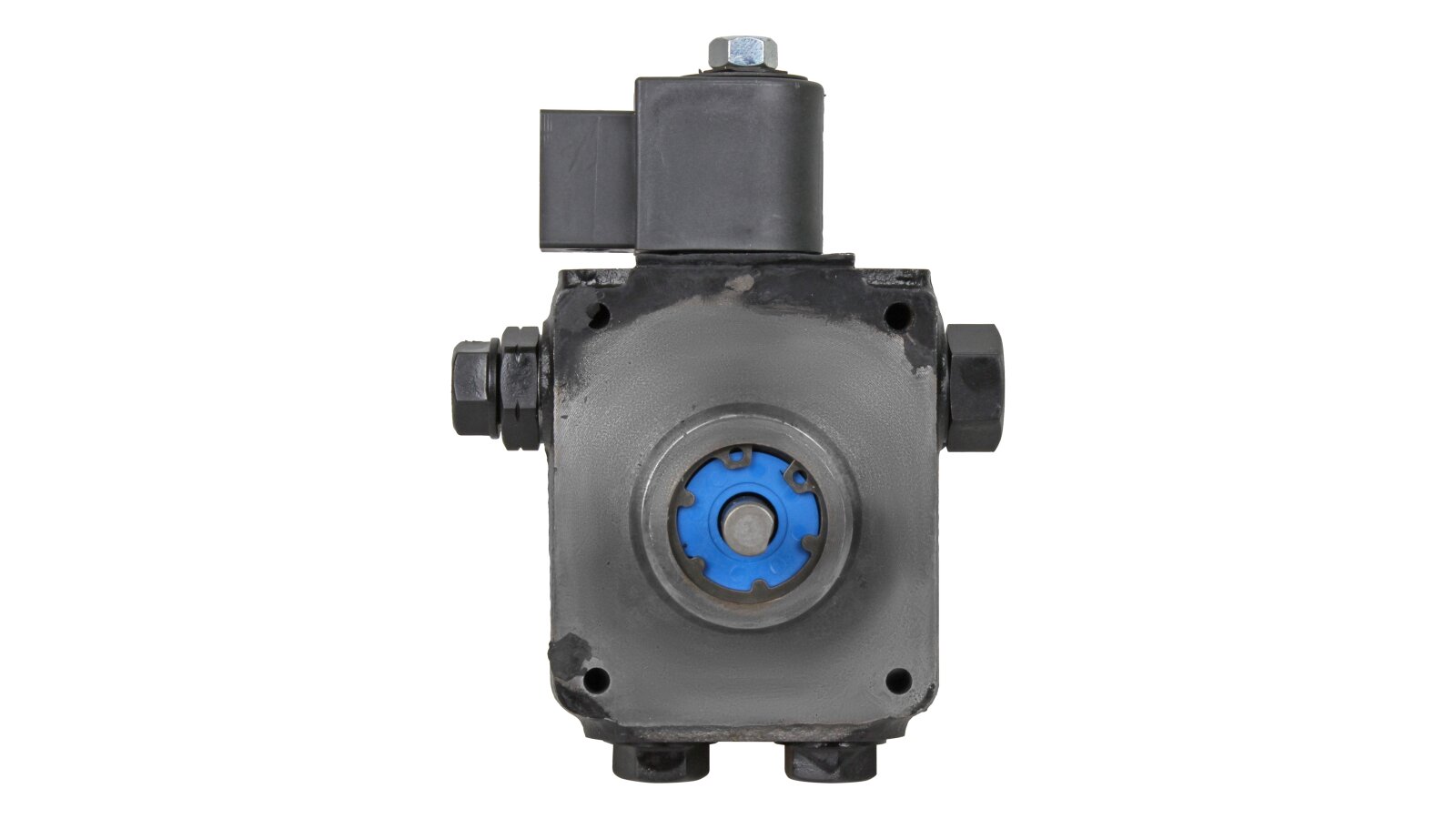

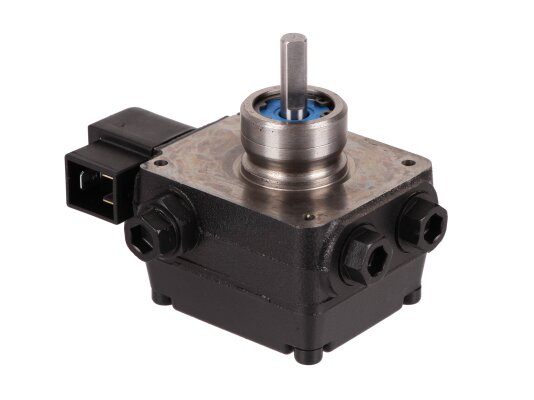

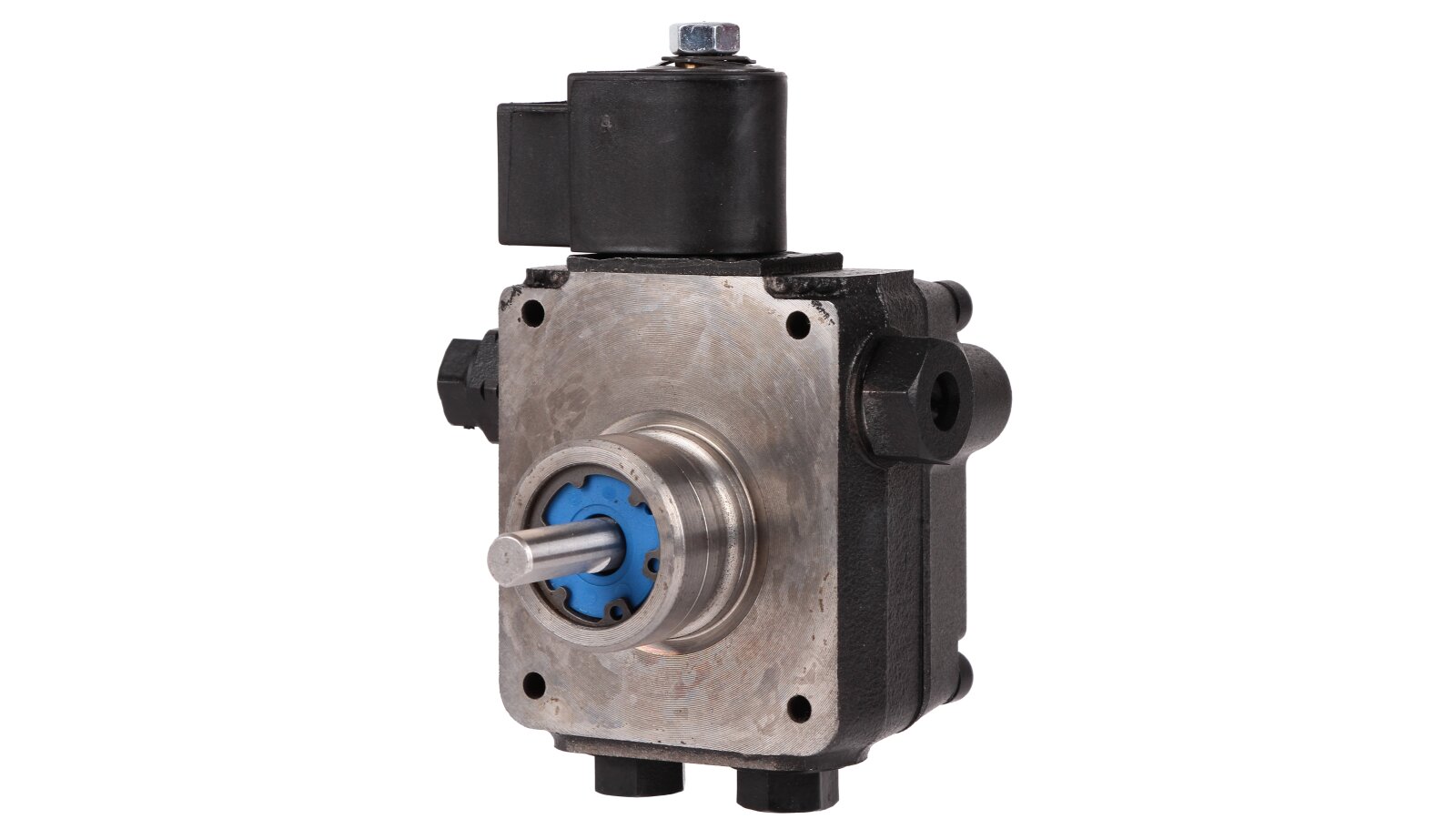

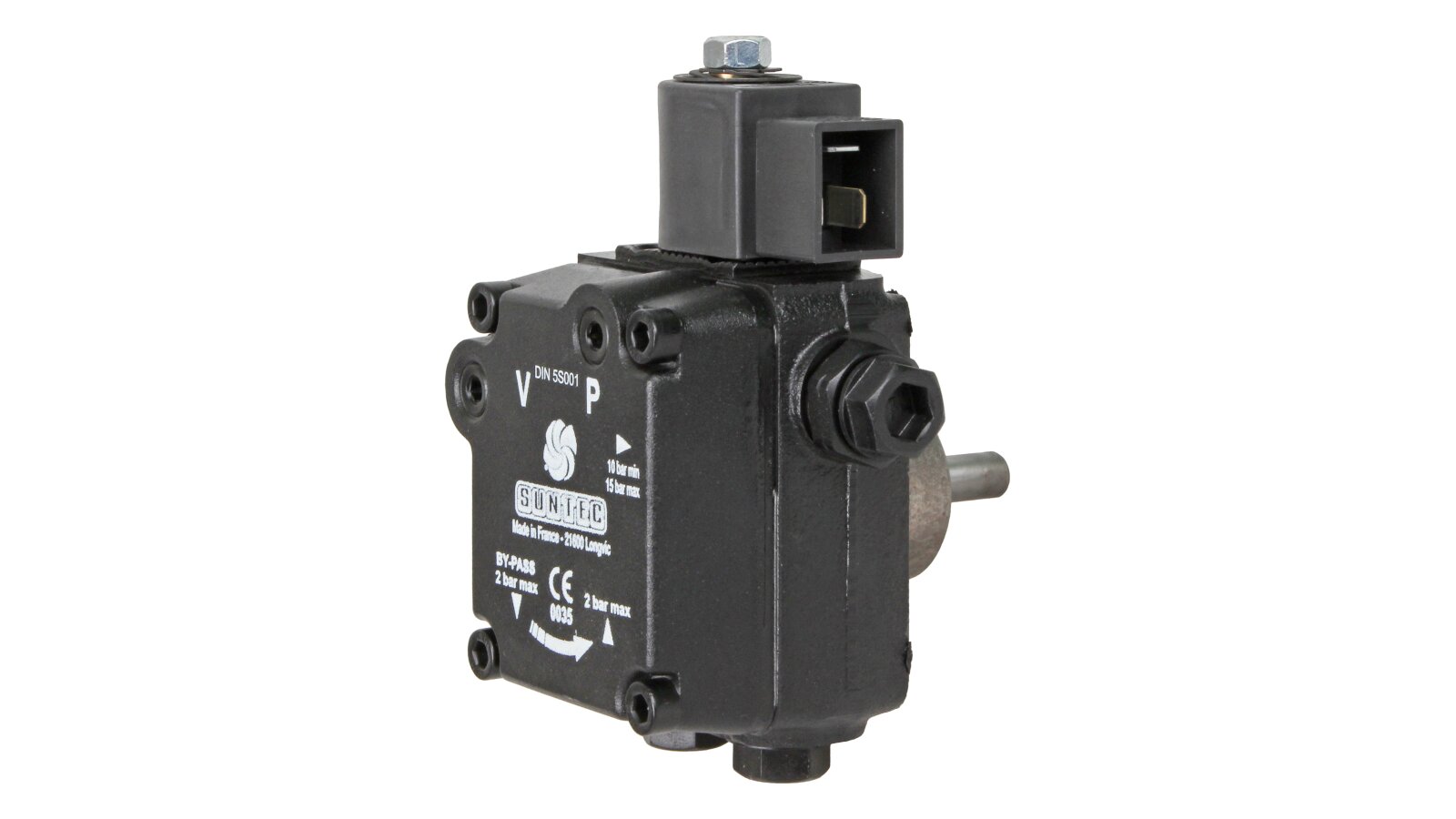

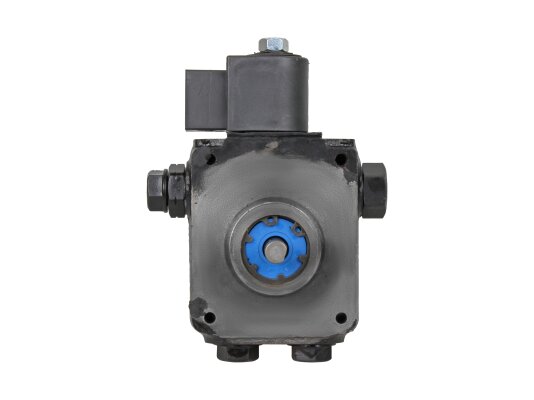

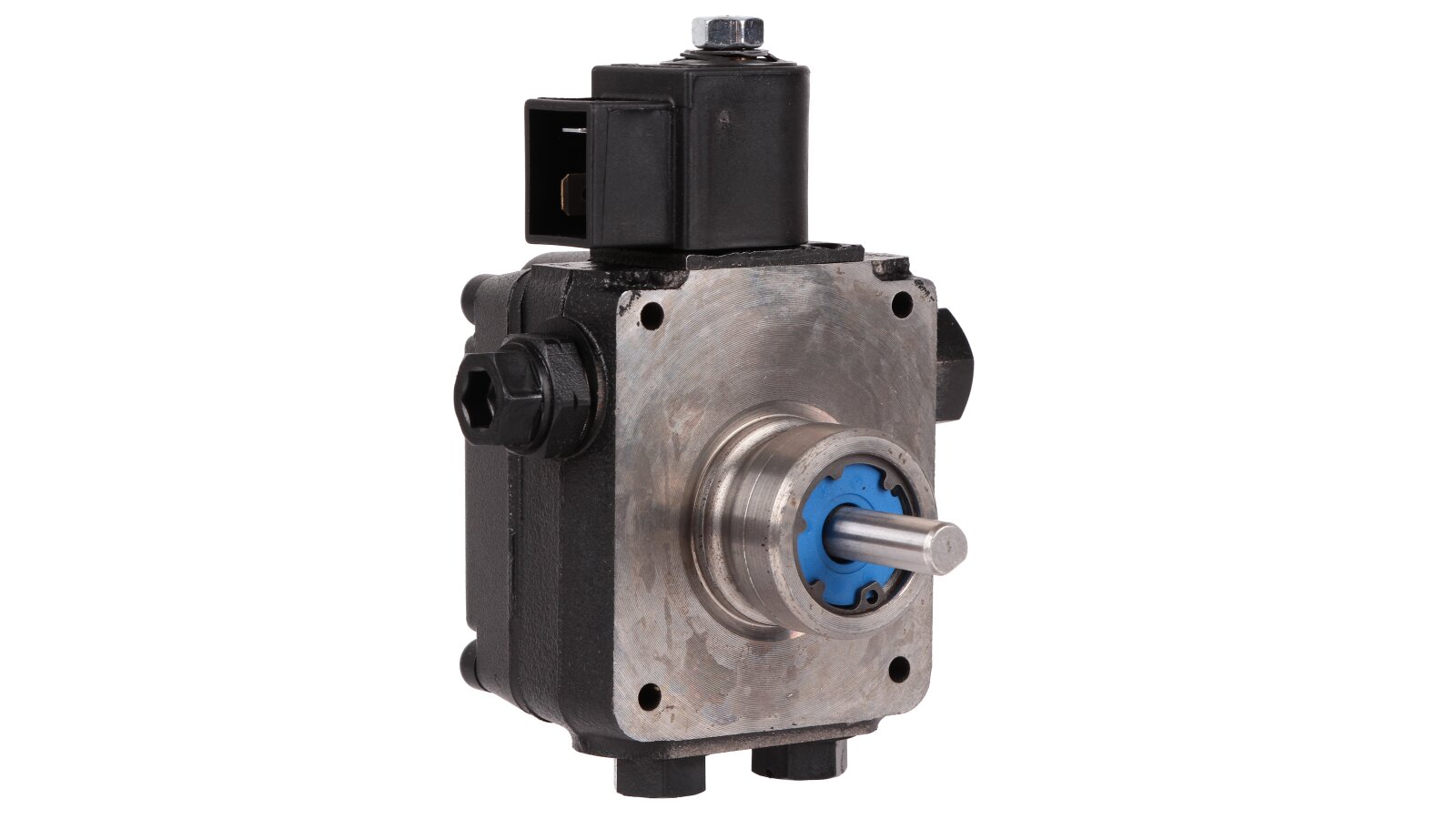

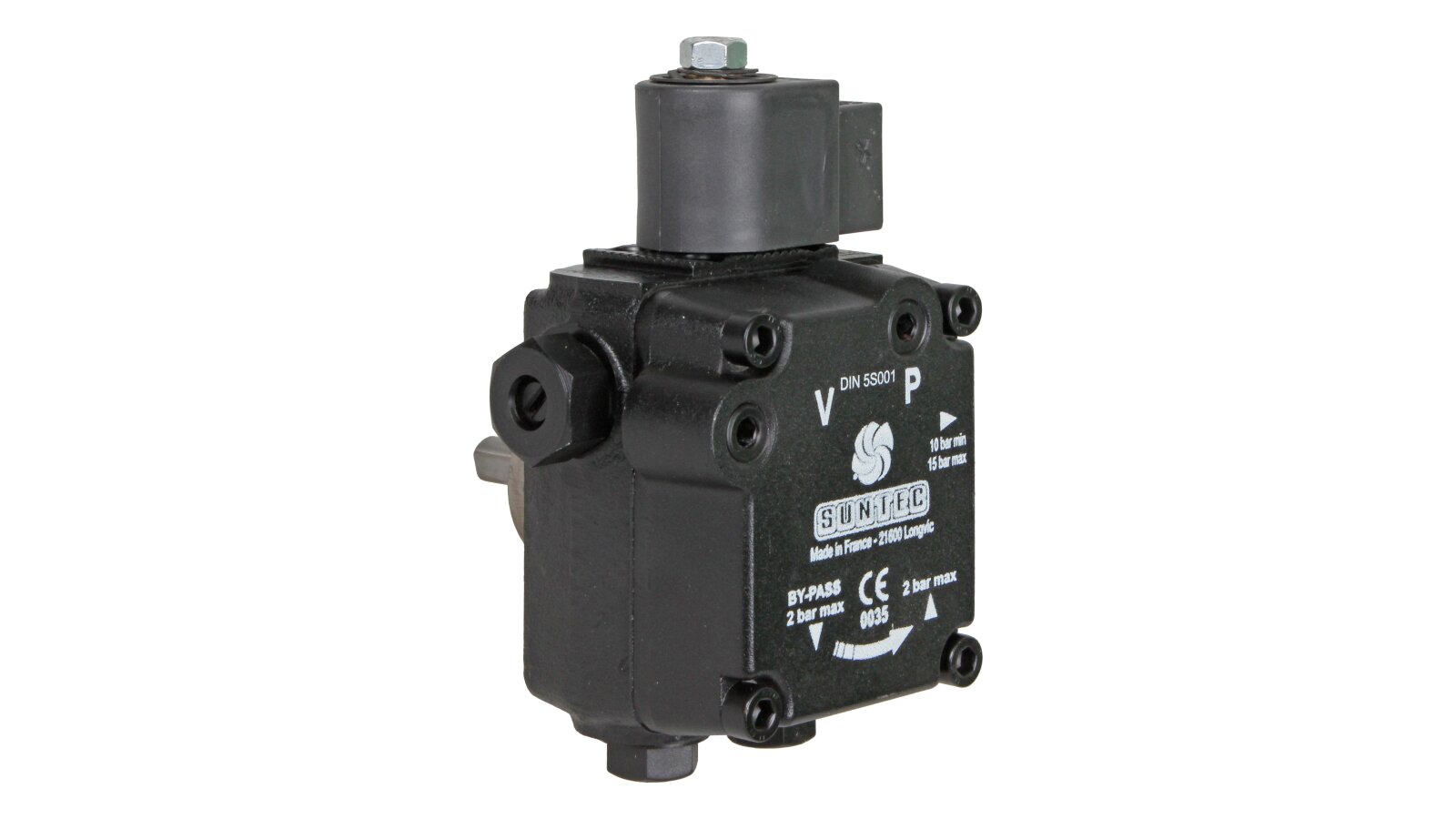

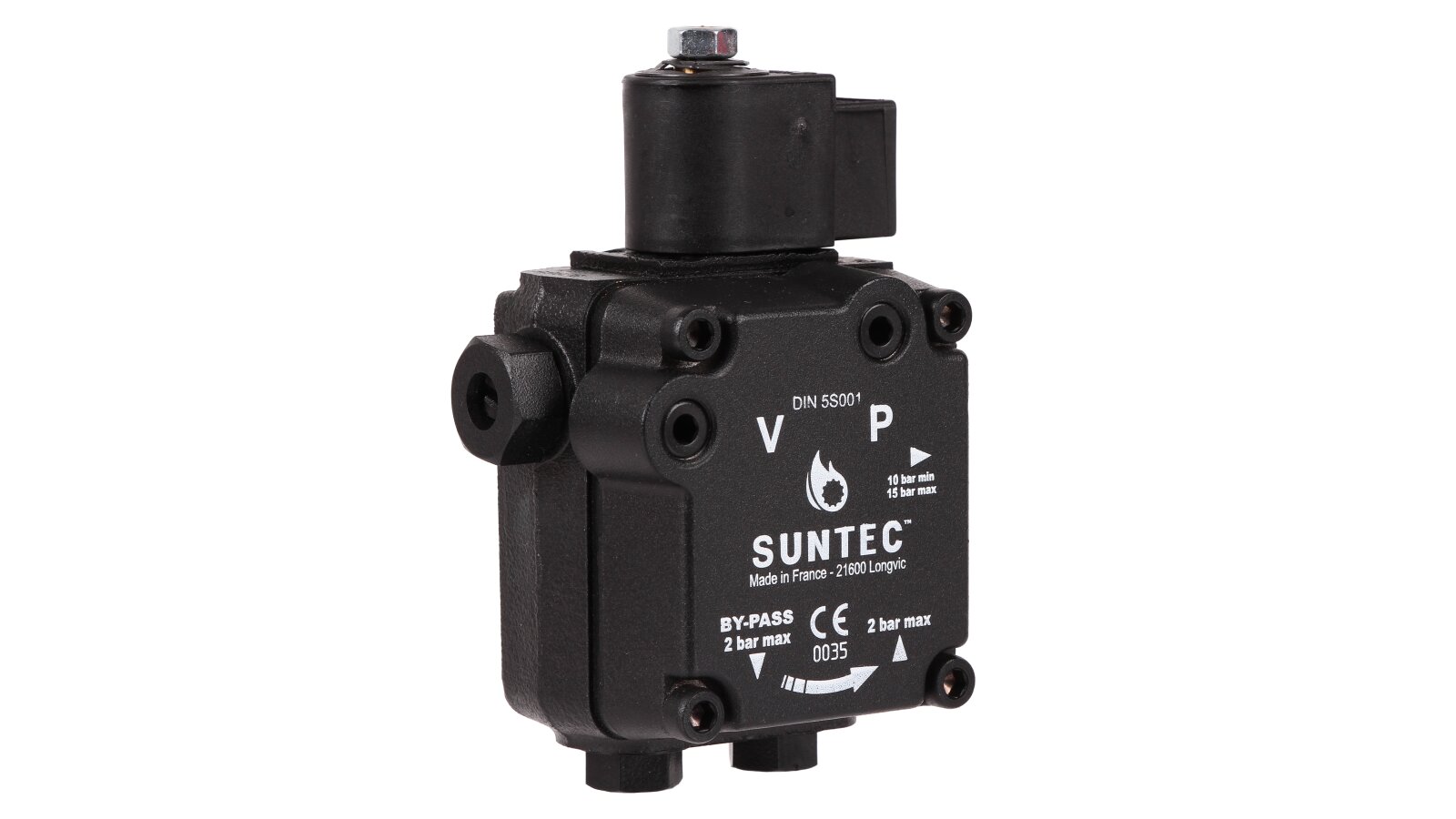

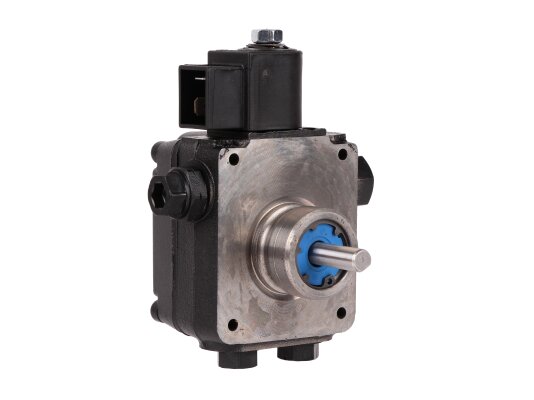

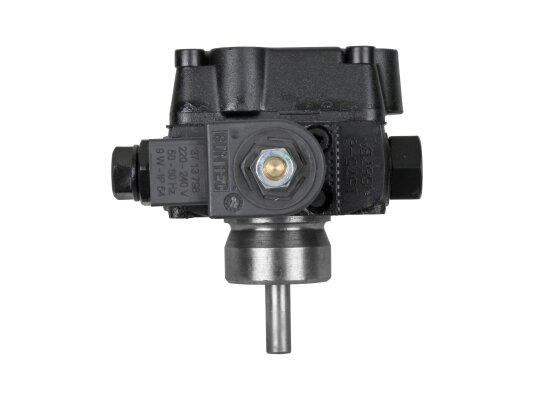

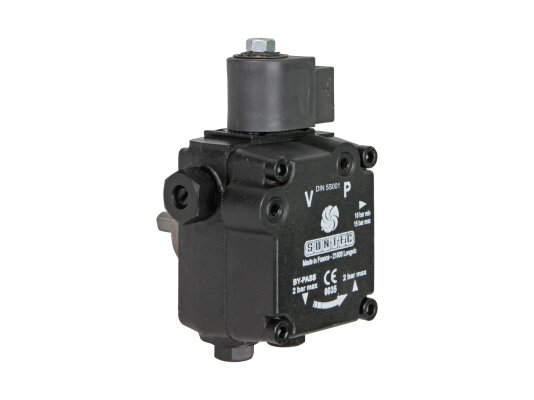

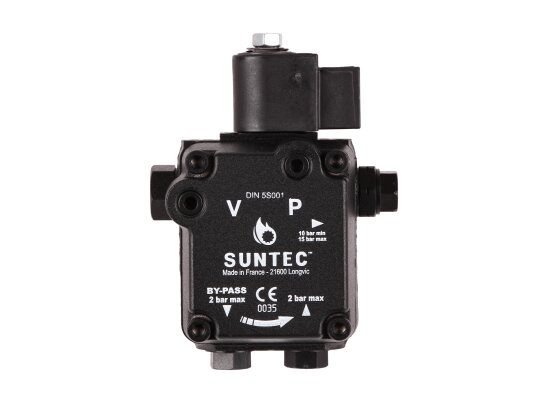

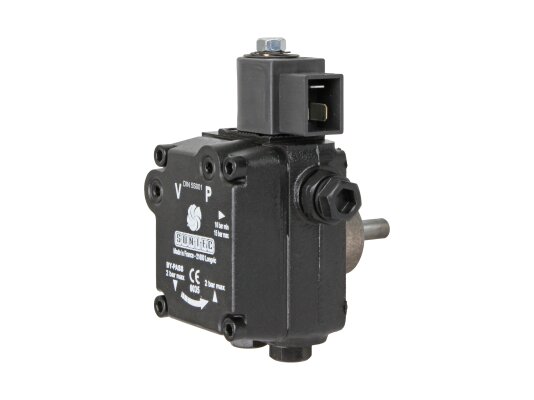

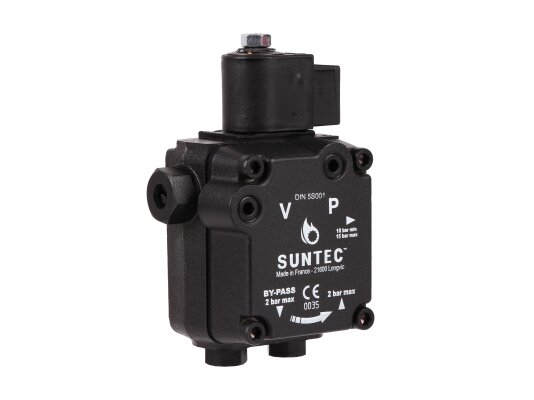

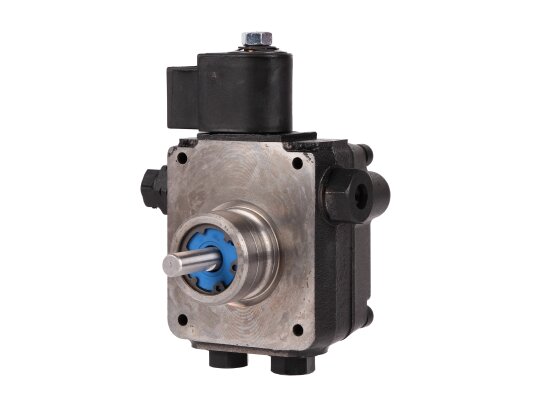

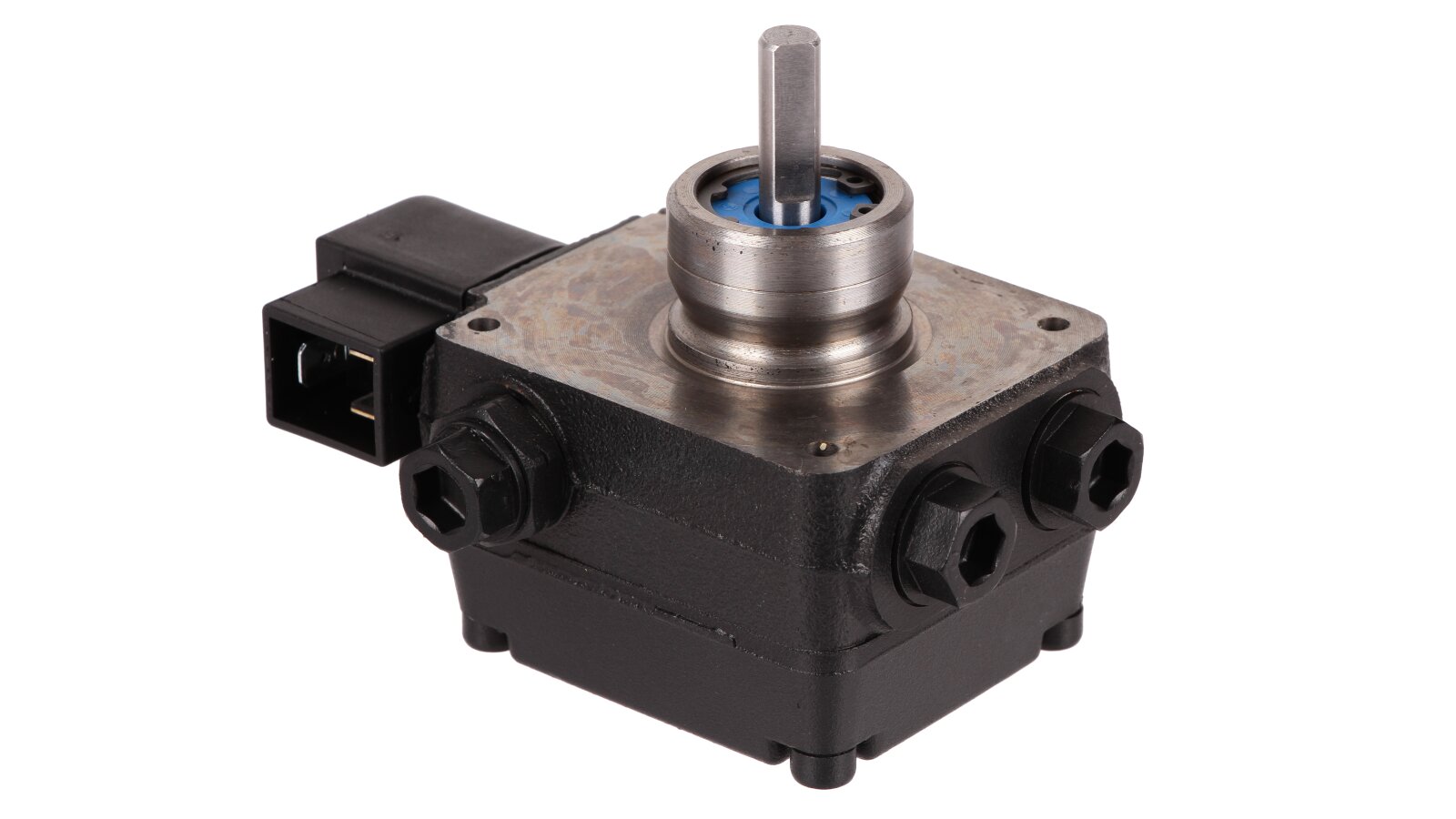

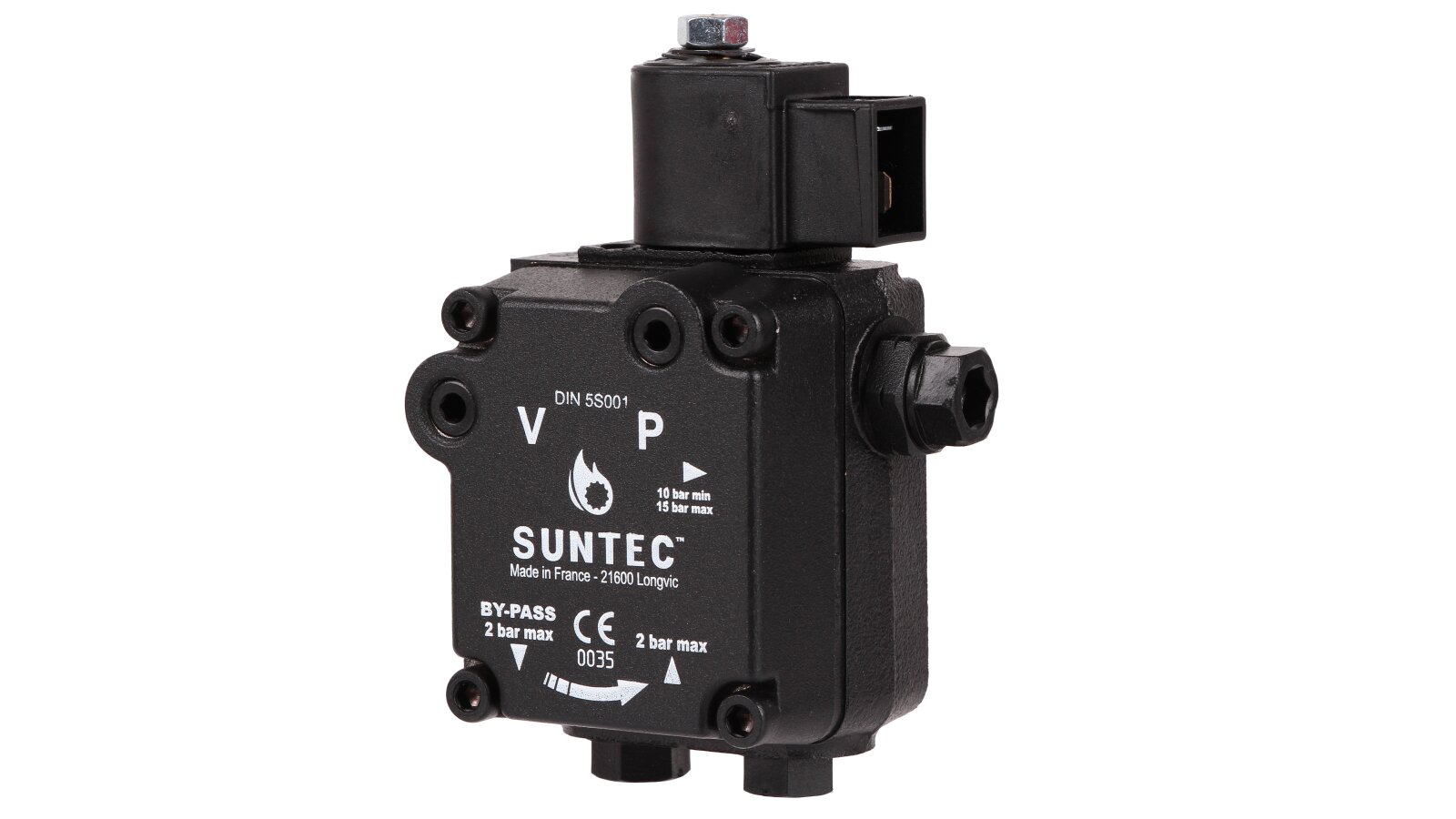

Burner Pump Suntec AS 67 B 1575 6P 0700

Suntec

AED 1,025

Oil Burner Pumps
Products code: 1209

Description

The AS 67 B 1575 6P 0700 gear-type diesel burner fuel pump has a high performance of up to 80 l/h and an optimal pressure level on the feed line of 1 to 1.5 MPa. The unit is presented by the French Suntec concern, known for its high-quality and reliable developments in the global industrial equipment market. All representatives of the AS series are equipped with a “normally open” type electromagnetic solenoid with a locking function, as well as a slide valve that maintains the manually set pressure.

On the ANKAS company website, you can not only buy a Suntec pump for a diesel burner at a bargain price, but also get professional advice on choosing the best equipment. Leave your contact phone number in the feedback form and we will contact you in the next few hours.

Design features

  • The main working part of the device is a gear mechanism driven by an external burner electric motor. The gear, rigidly fixed on the shaft, transmits torque to the internal gear wheel.

  • The high rotation speed of the mechanism creates a negative pressure area in the suction pipe, which leads to the movement of the working fluid from the tank to the gear pair, and then further to the injectors.

  • The control valve in the upper part of the housing limits the pressure on the injector by redirecting the fuel to the return line. The EM valve allows you to switch the unit to idle mode, as well as instantly relieve the discharge pressure regardless of the rotation speed of the electric drive. It is controlled by the controller from the diesel burner unit.

Advantages of the model:

  • the highest performance in the line;

  • built-in adjustable slide valve and shut-off electromagnetic valve;

  • the feed pressure can reach 15 bar;

  • a mesh filter is provided for pre-cleaning the fuel from debris and dirt;

  • unified sleeve mount with a landing diameter of 32 mm;

  • works with diesel fuel of various kinematic viscosity - from 2 to 12 cSt;

  • you can connect a pressure gauge and vacuum gauge to ports with standard cylindrical thread.

This fuel pump is perfect for installation on most Lamborghini, Baltur, Elco, Weishaupt burners, etc. with a capacity of up to 1000 kW. It has a large margin of safety and can work without stopping for a long time.

The housing with IP54 protection rating does not allow water and dust to get on the working parts. The indisputable advantage of AS 67 B 1575 6P 0700 is its maintainability. After the expiration of the service life, worn parts, gaskets and seals can be replaced with new ones.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 80 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 10 barTorque: 0.12 N·mNozzle pressure range: from 10 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
