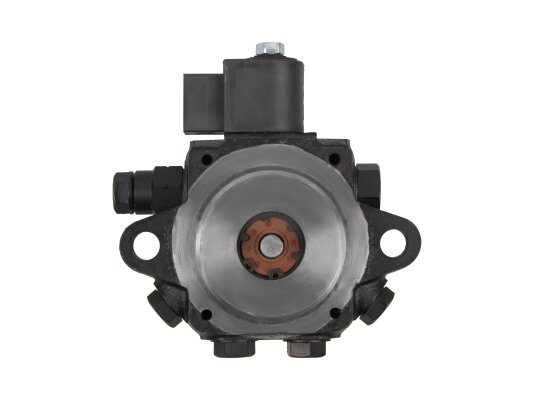

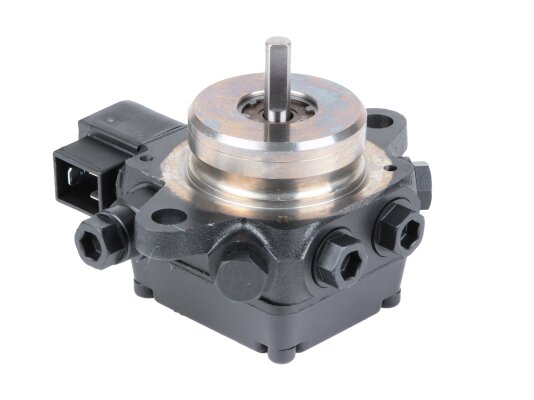

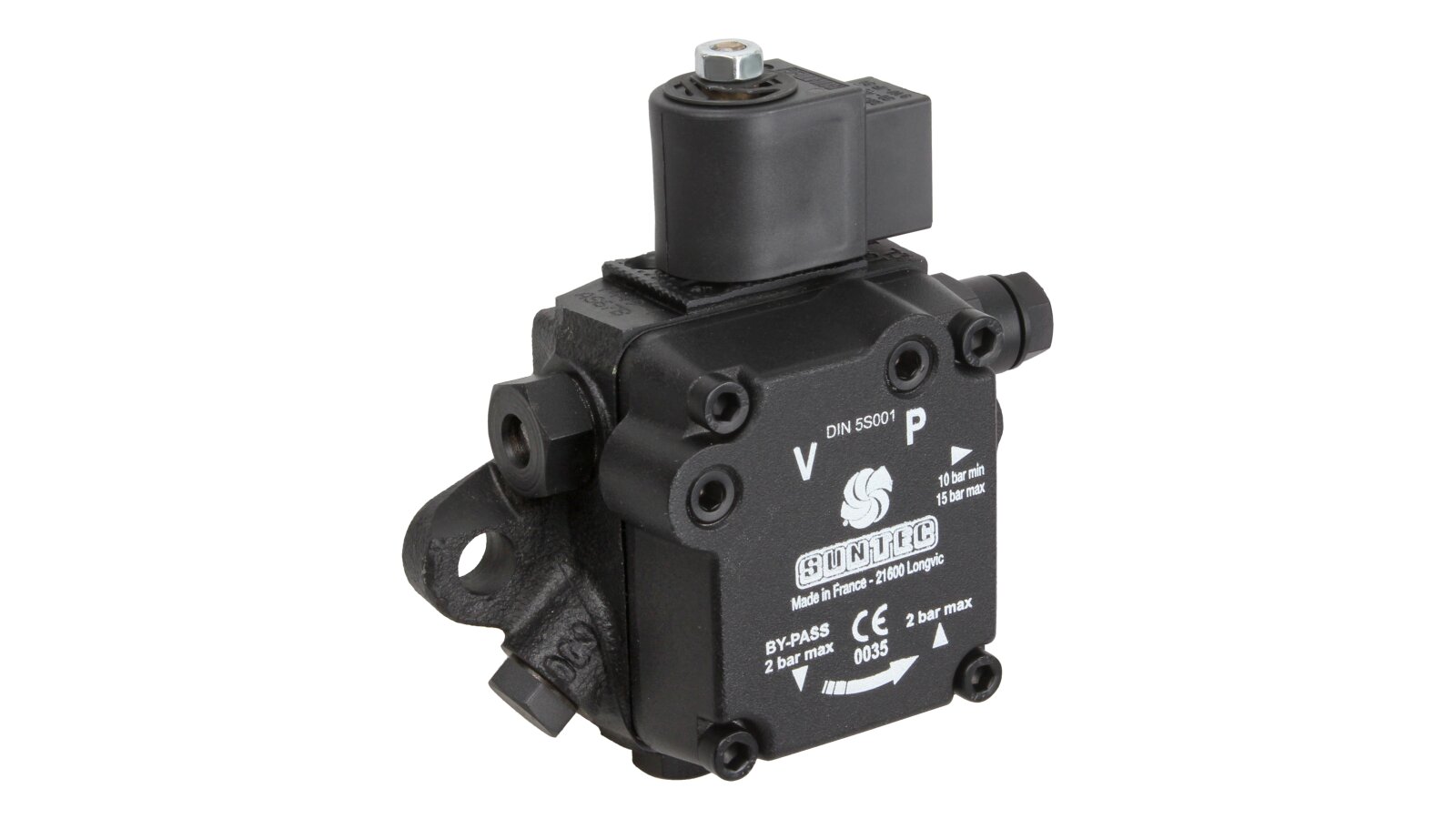

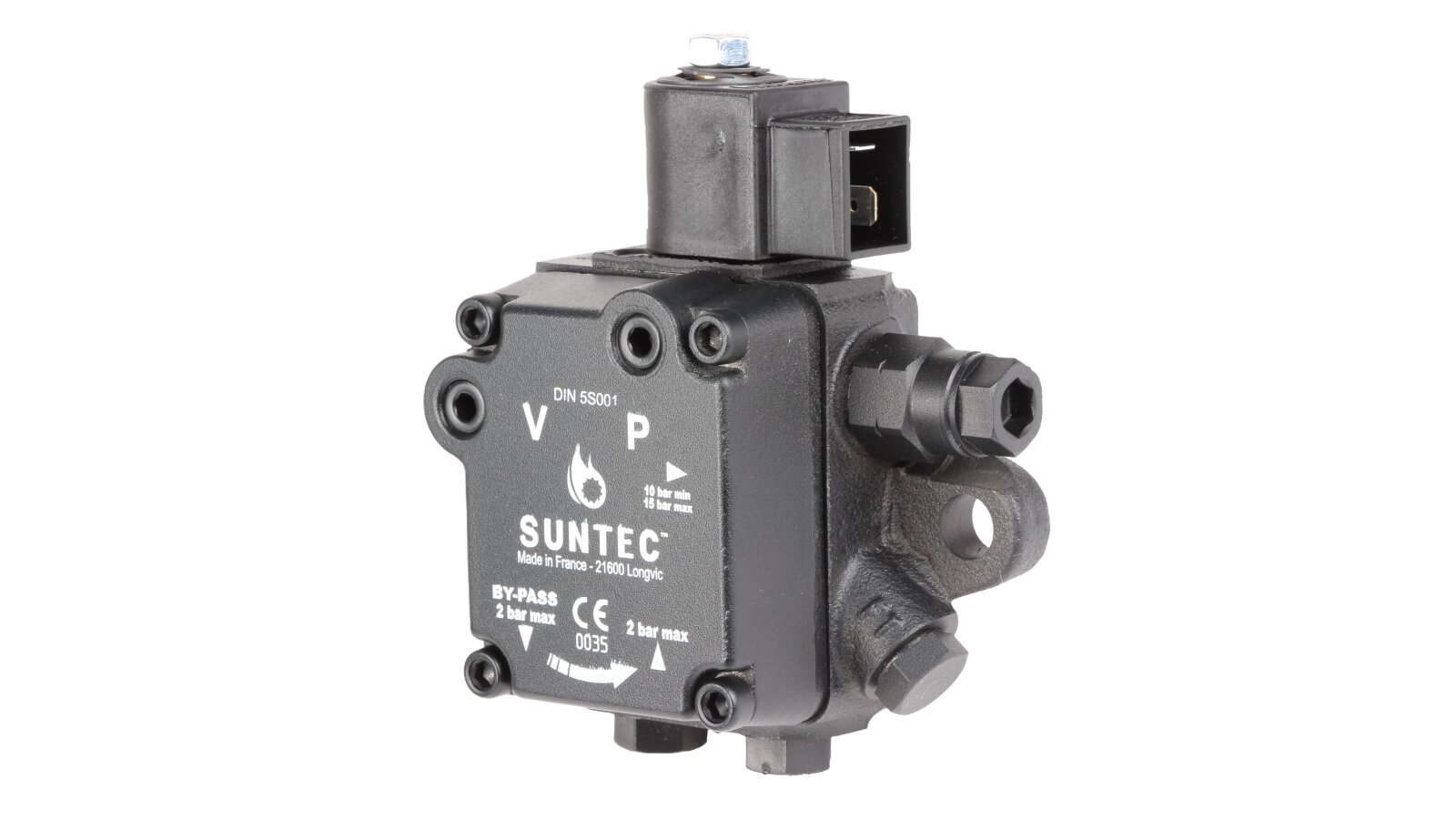

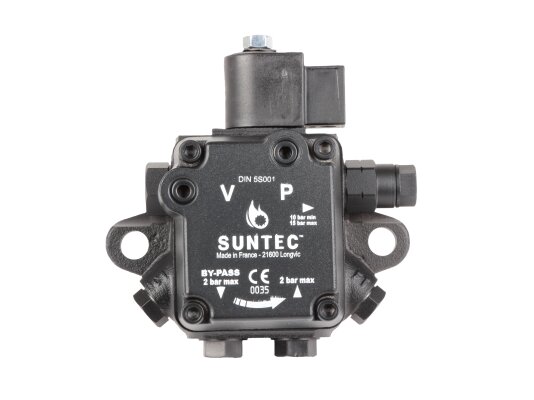

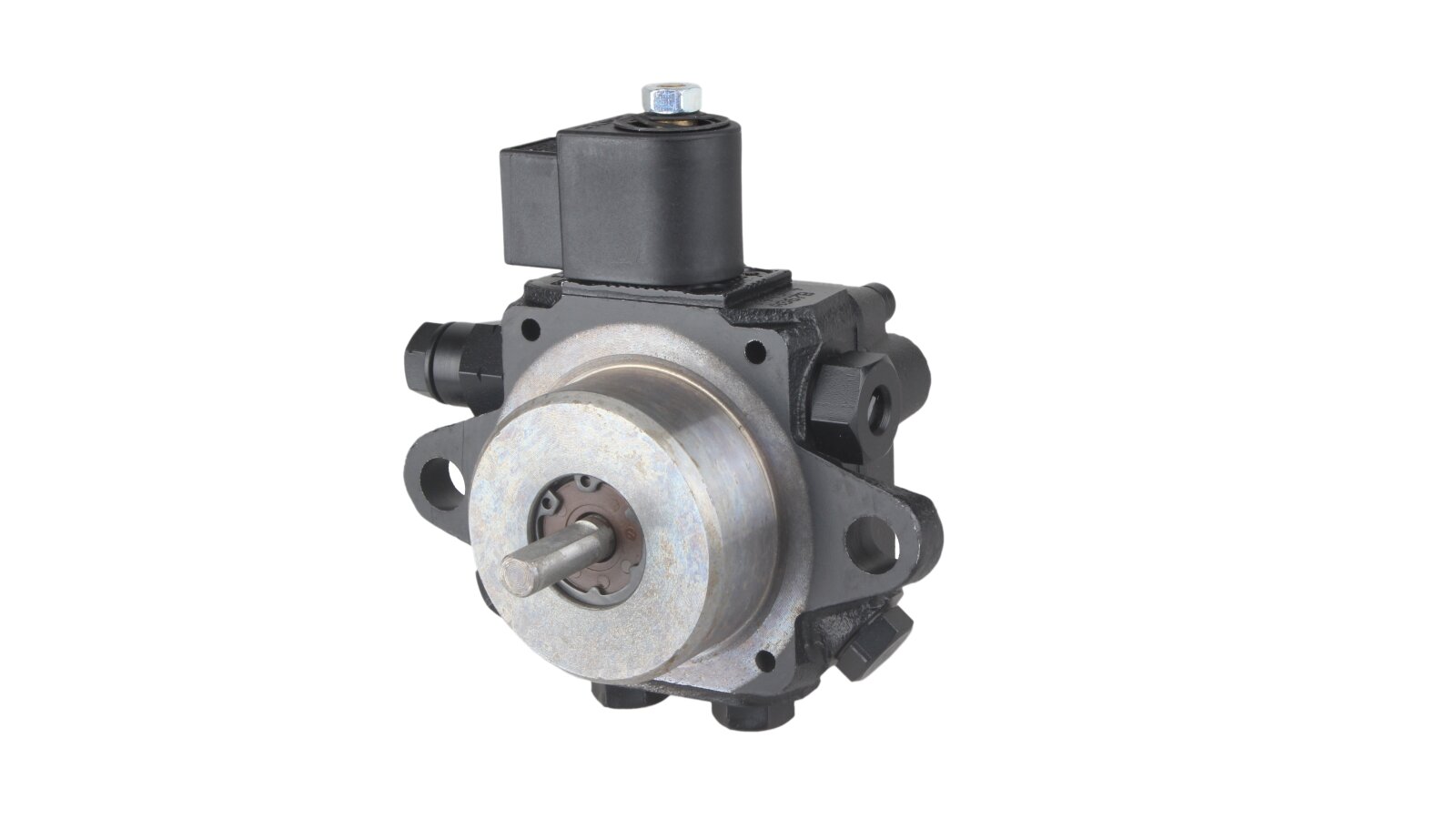

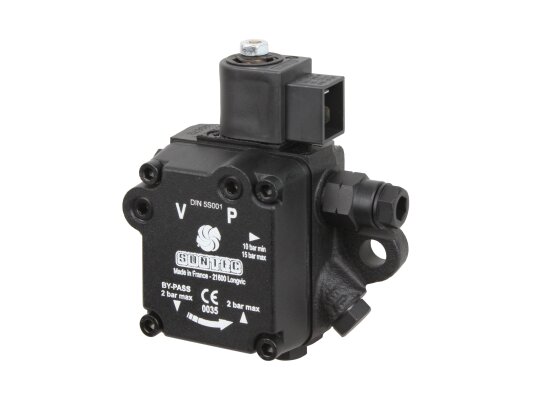

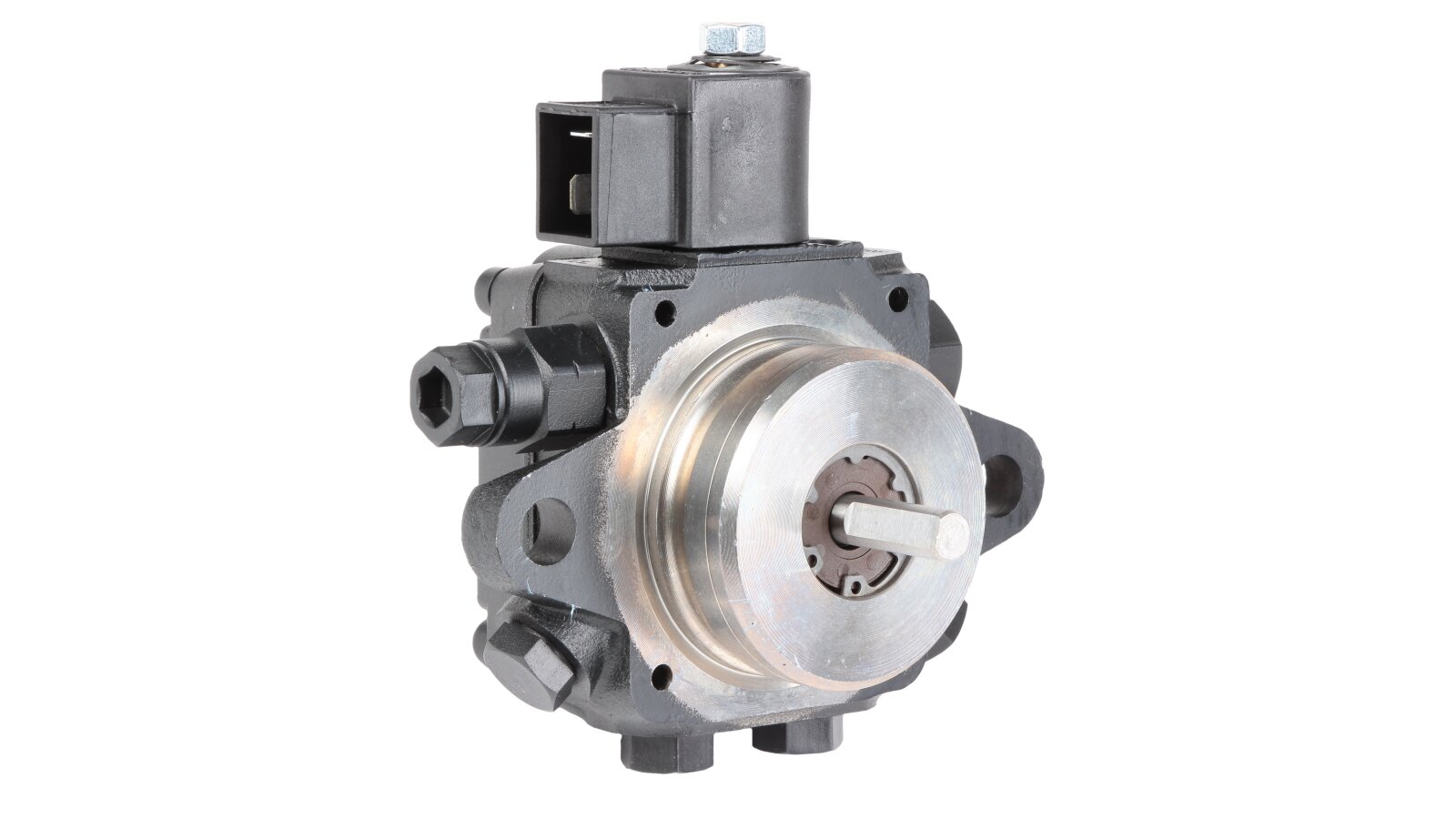

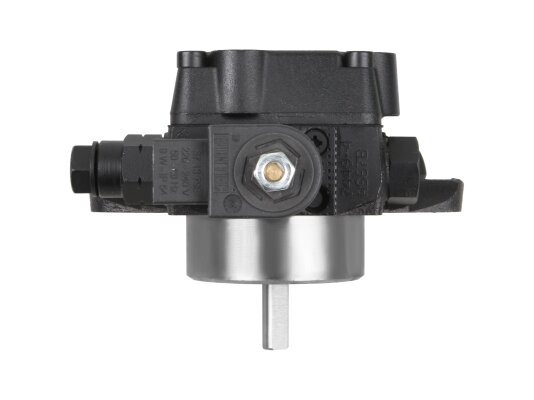

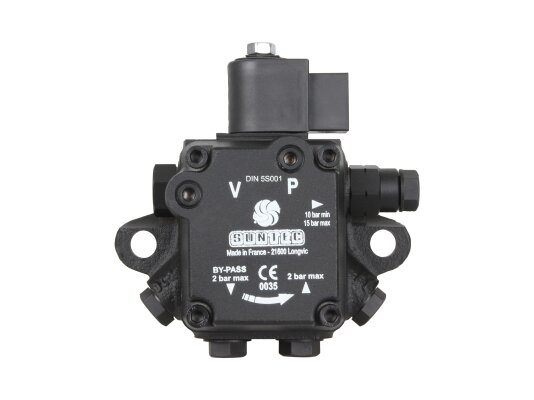

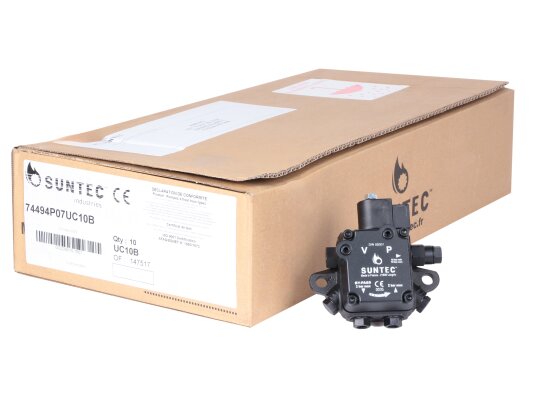

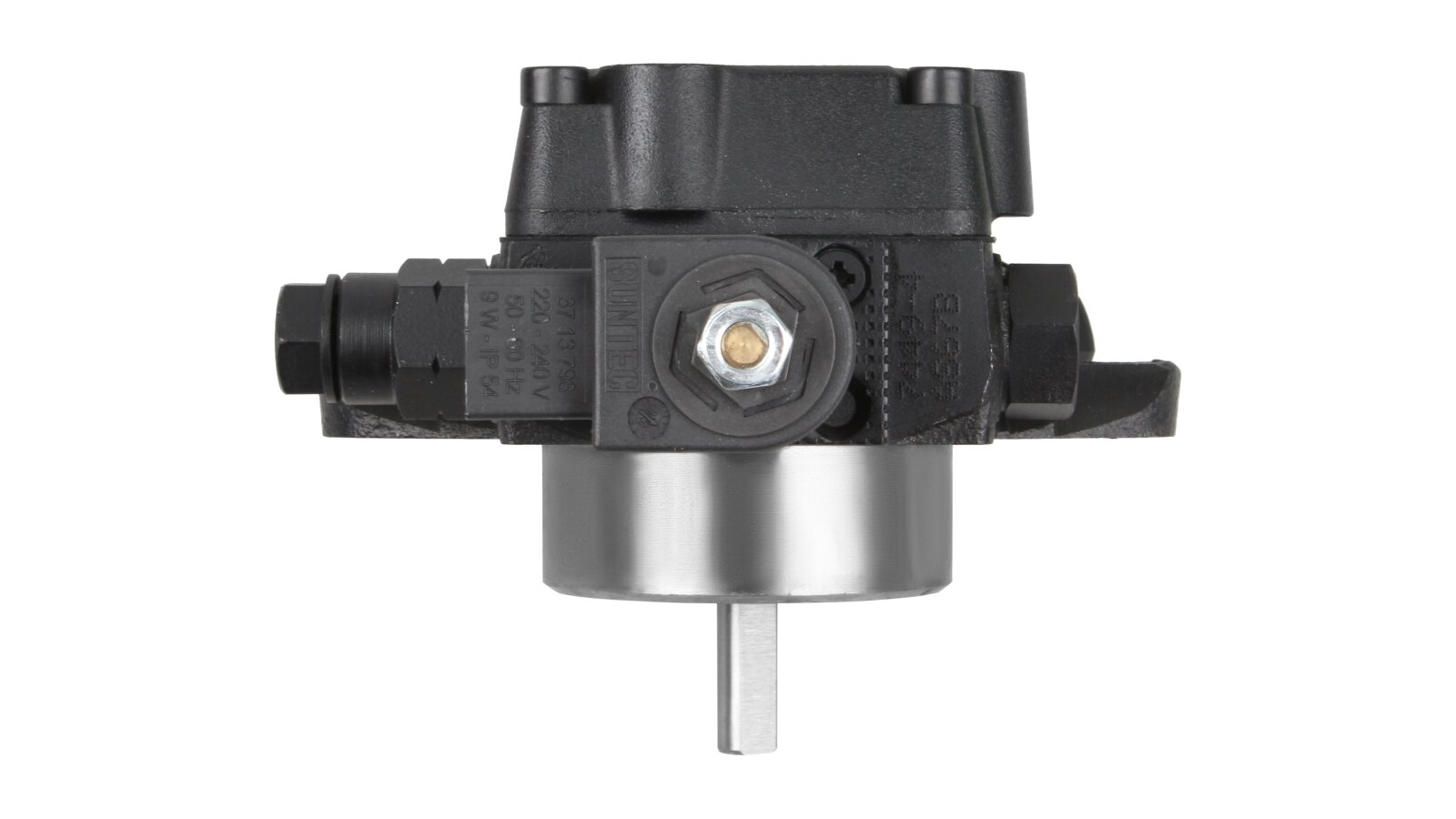

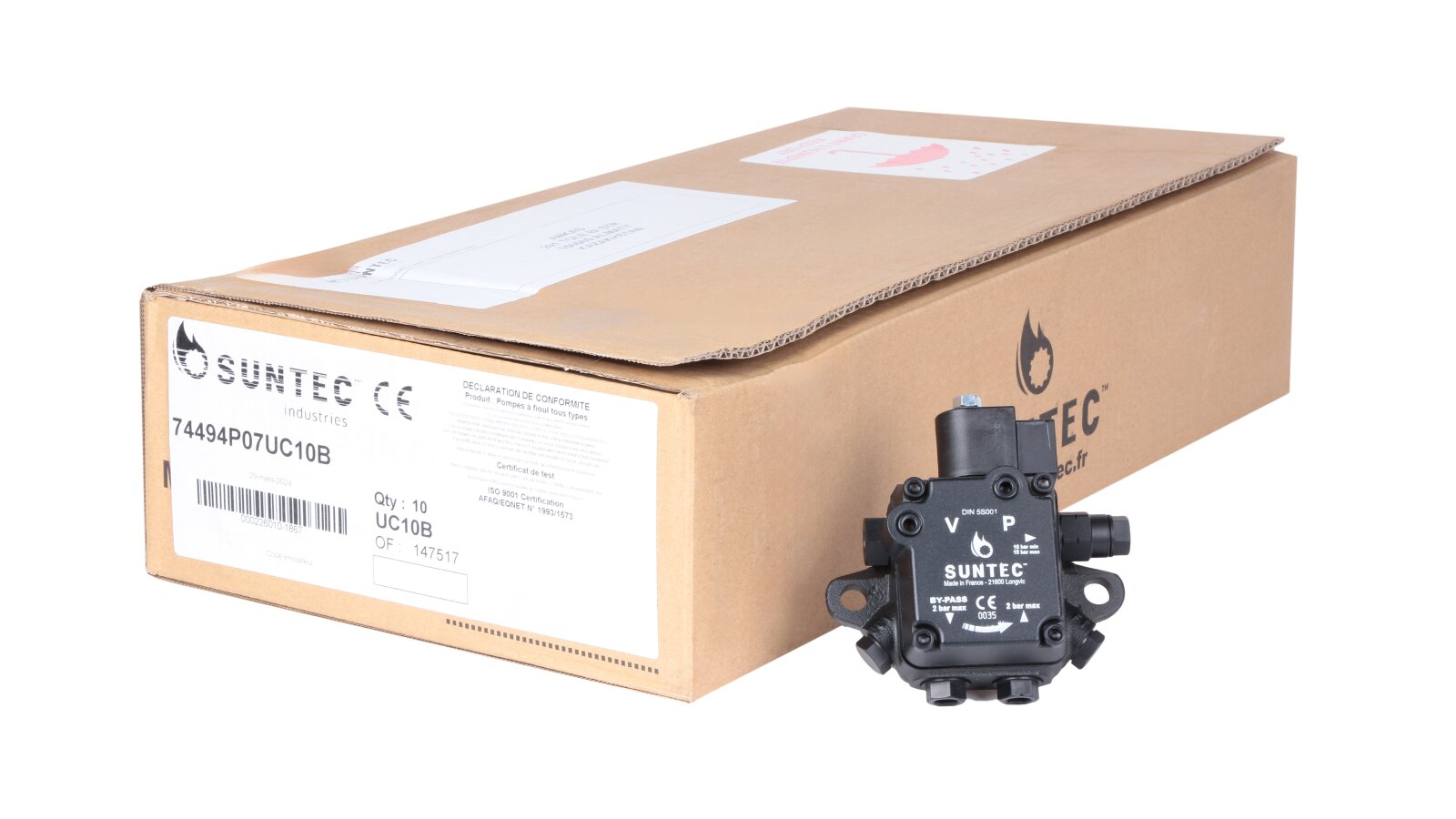

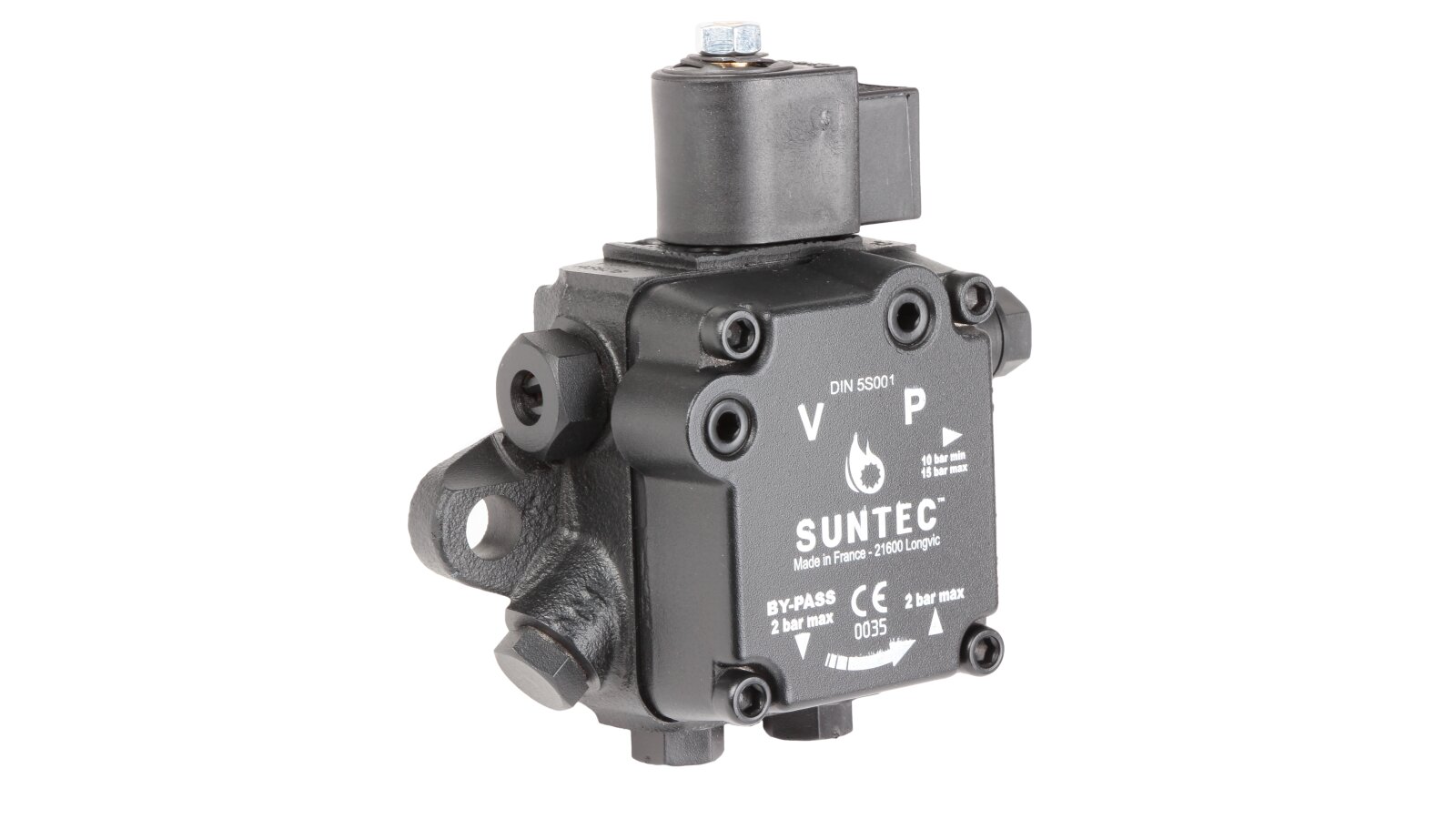

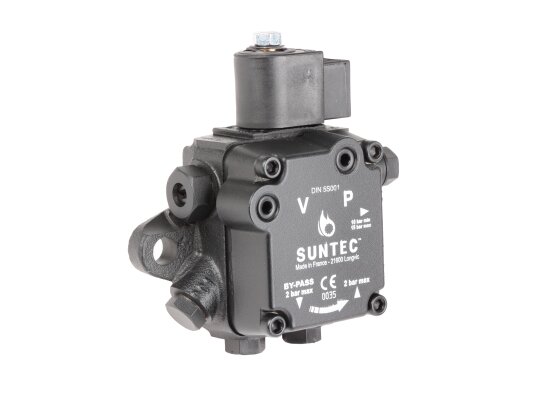

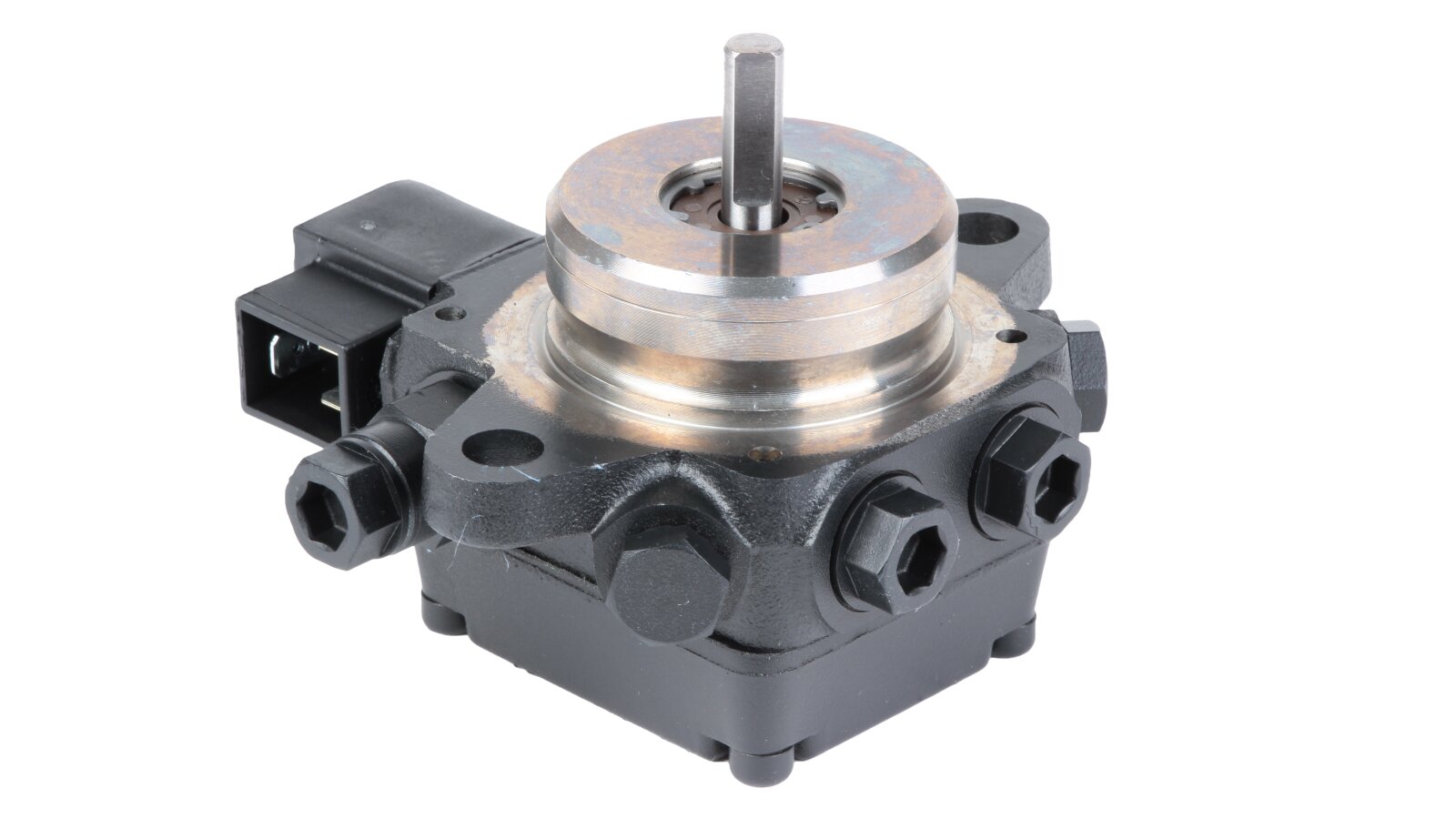

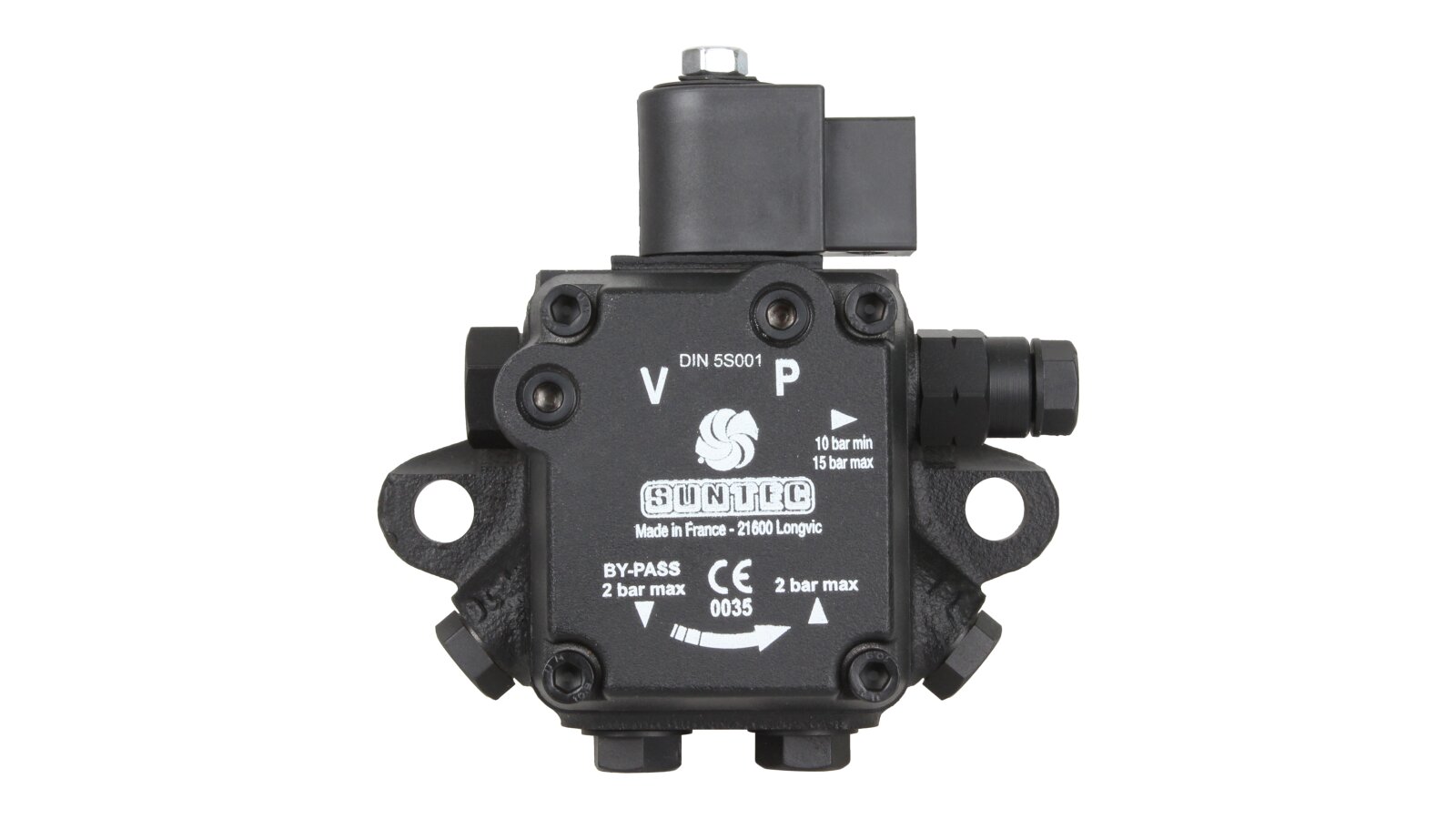

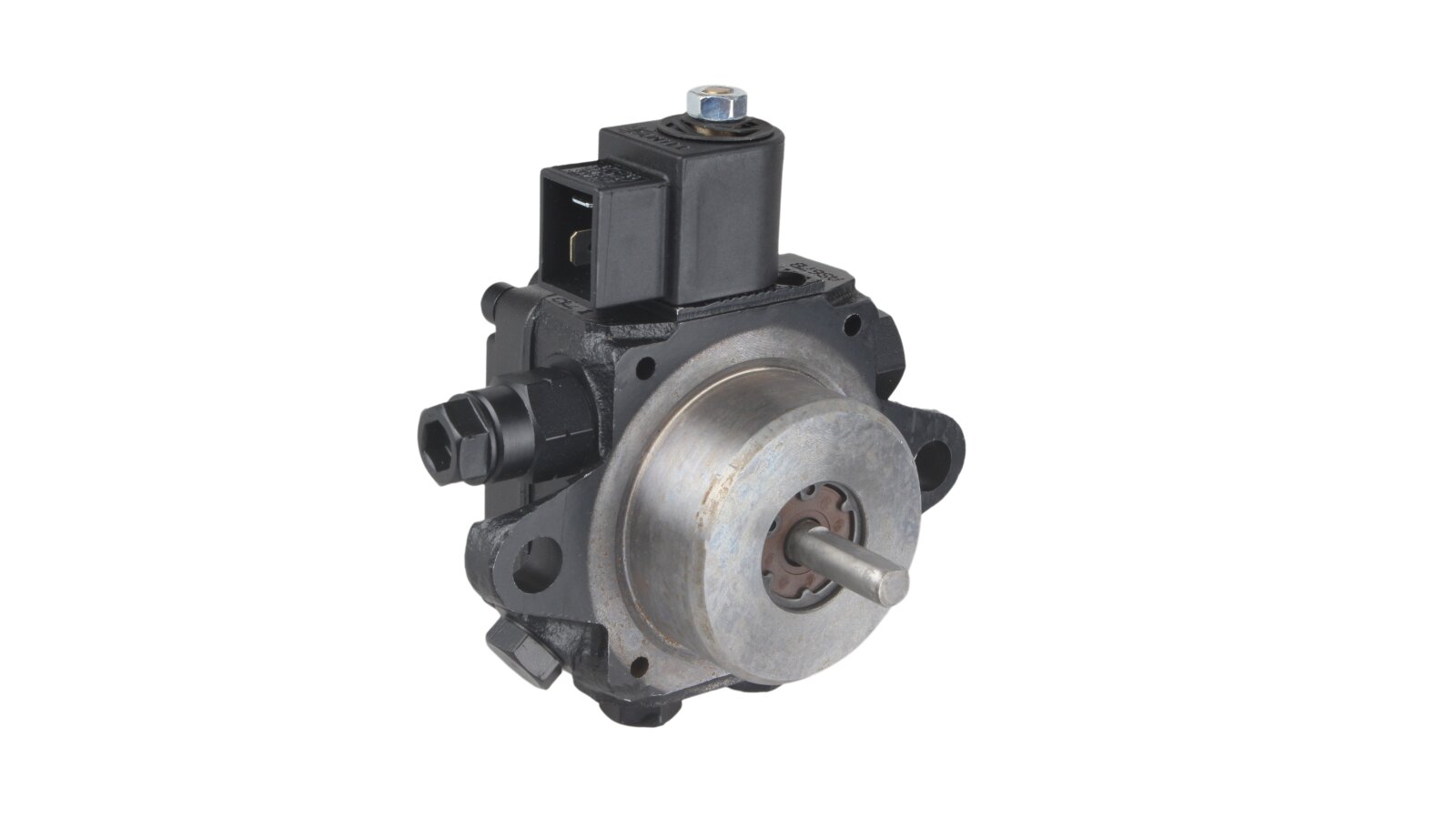

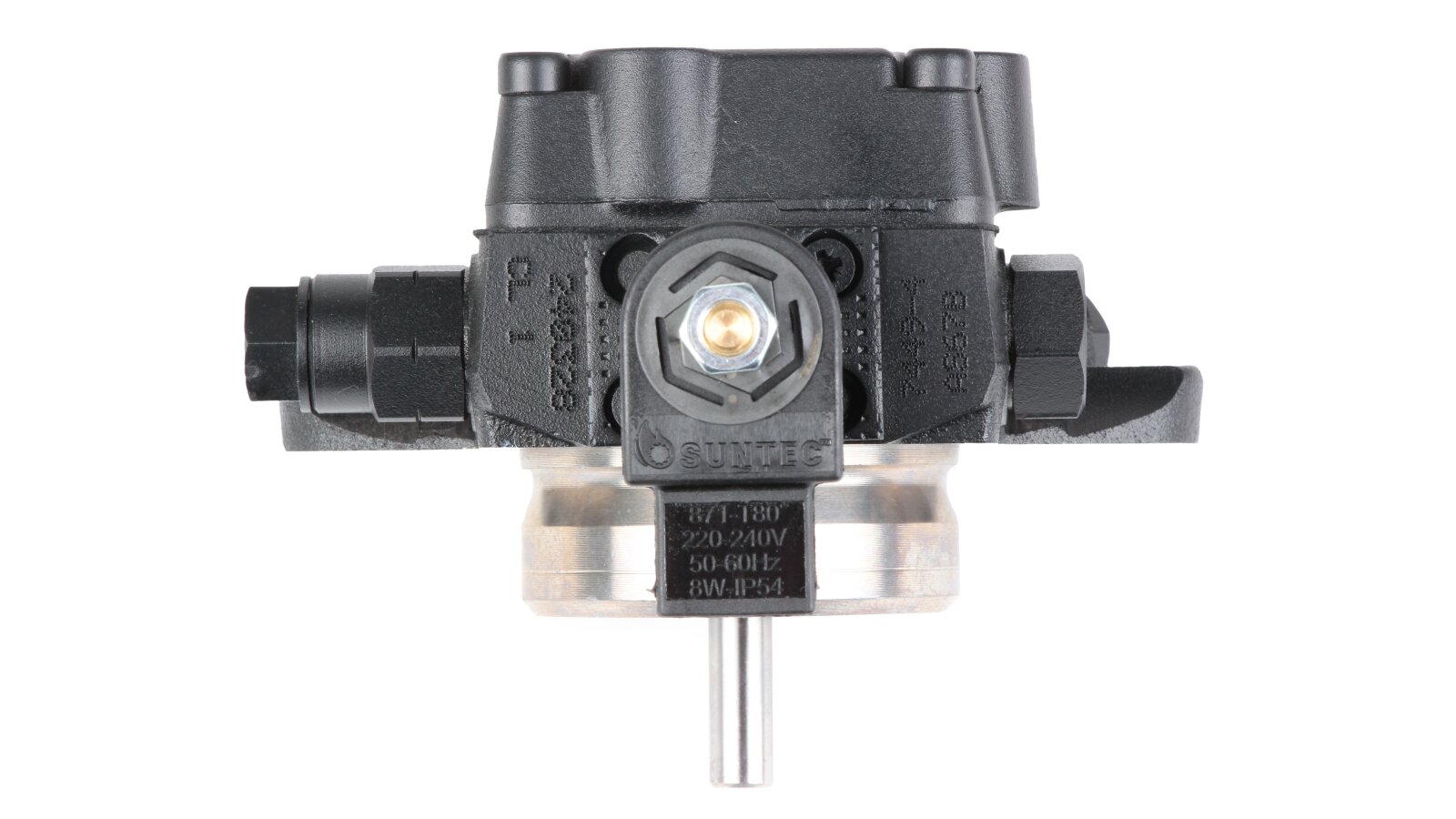

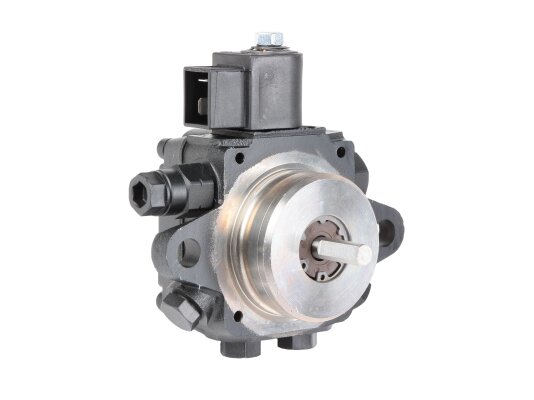

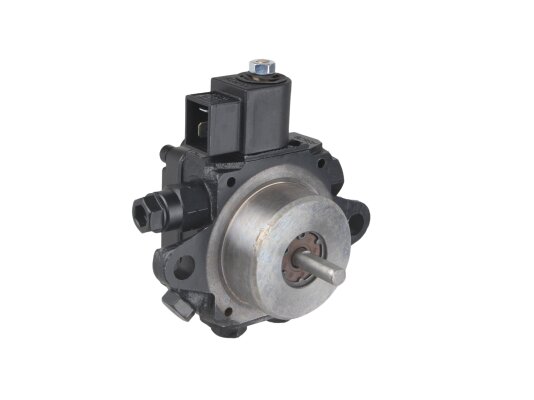

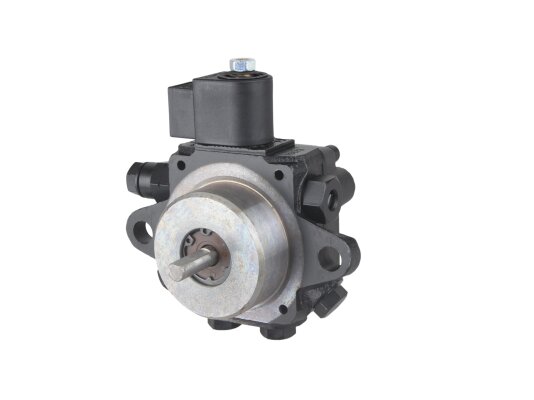

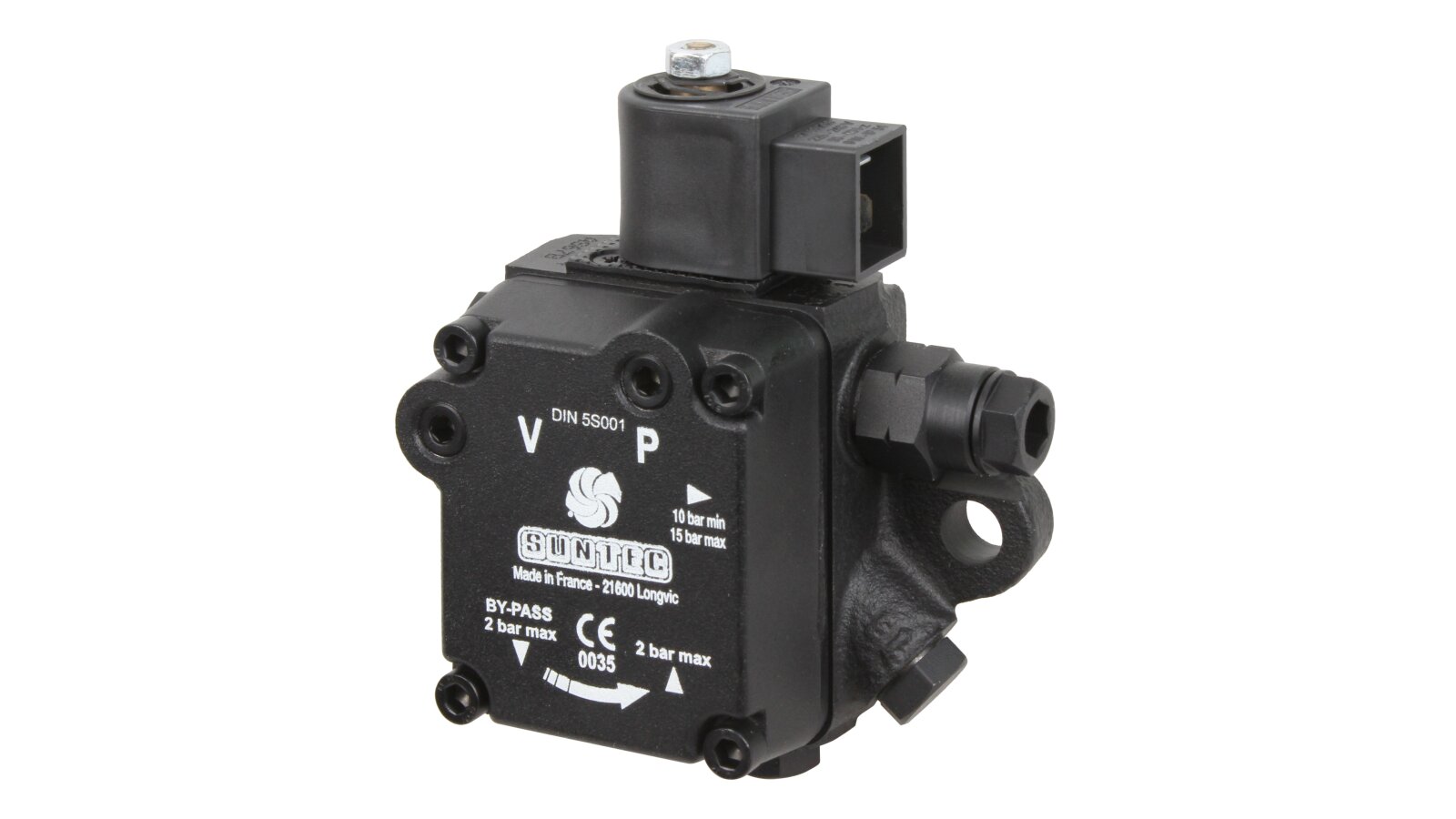

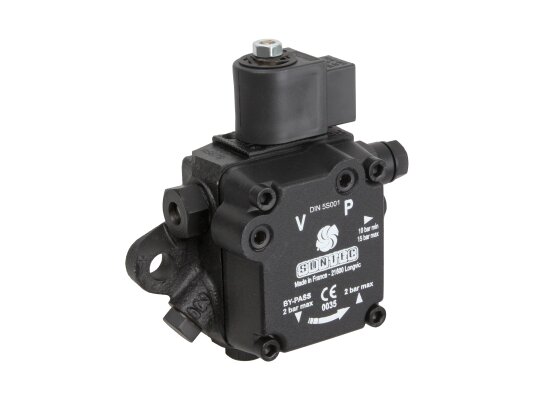

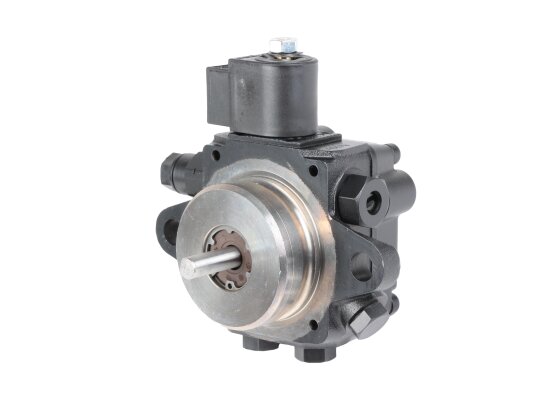

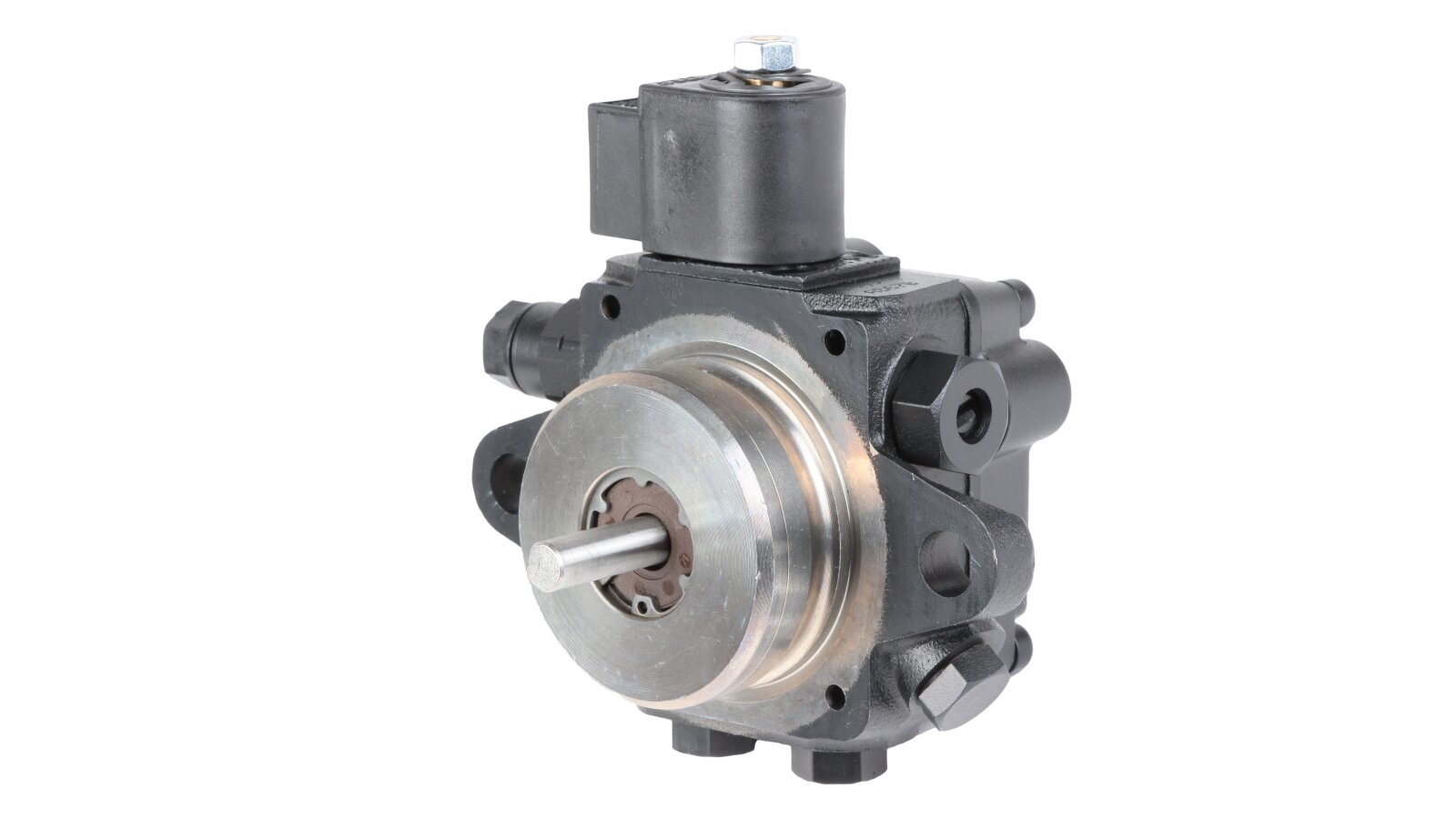

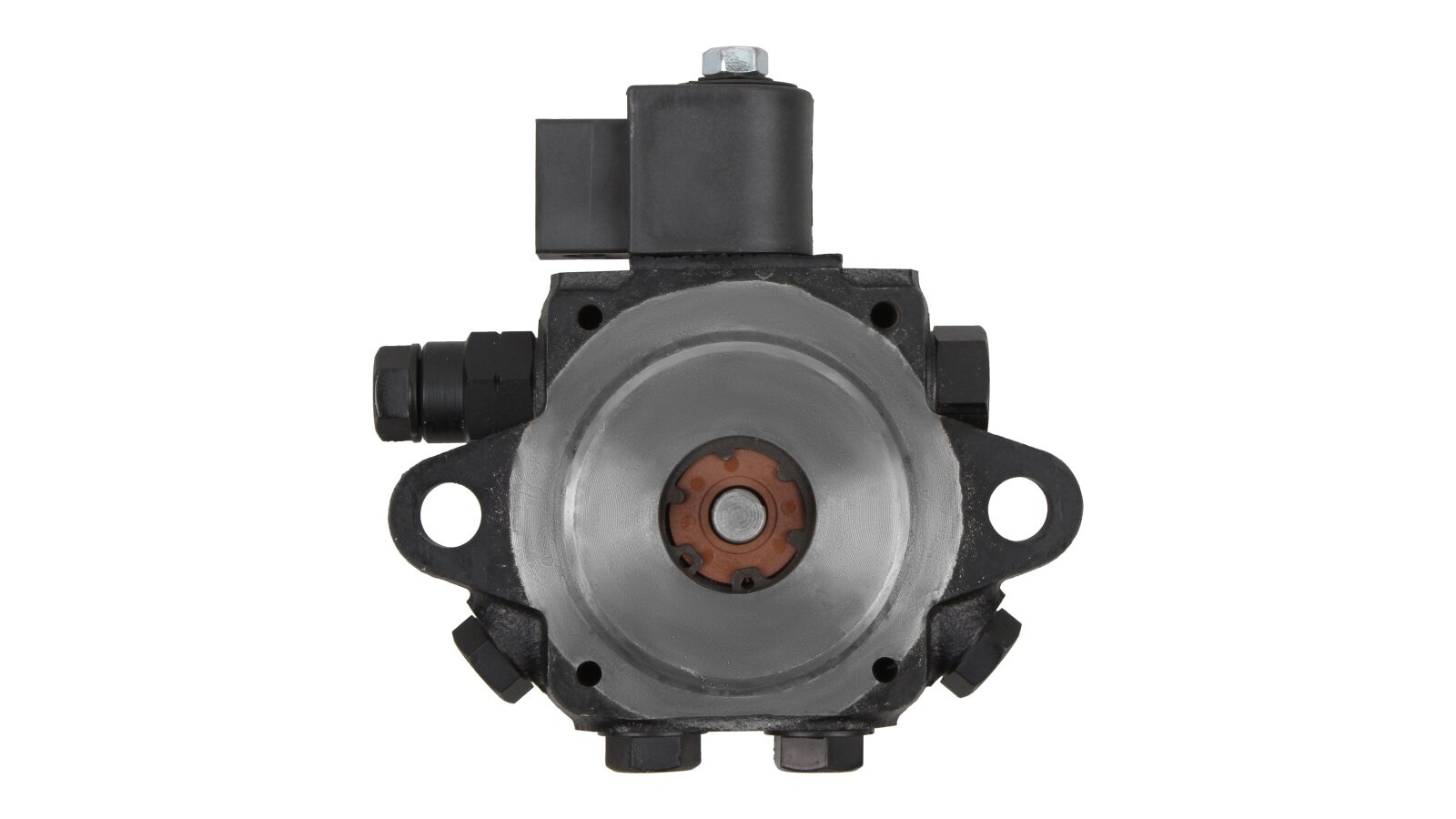

Burner Pump Suntec AS 67 B 7449 4P 0700

Suntec

Alternative Part Number

P112

400010114900

AED 950

Oil Burner Pumps
Products code: 1208

Description

The AS 67 B 7449 4P 0700 gear fuel pump for burners, developed by the French company Suntec, is a high-performance representative of the AS series. The model is additionally equipped with a bypass channel locking electromagnetic valve and an adjusting slide valve. The unit is connected to the burner using a reinforced mating flange with a landing diameter of 54 mm. The outlet to the nozzle is located on the left side of the body - this should also be taken into account before you decide to buy a Suntec pump. To select the optimal model for your heating burner, ask the experienced managers of the ANKAS company.

Design Features

  • The single-stage AS 67 B 7449 4P 0700 unit operates due to the rotation of a pair of gears and a toothed wheel. The torque is taken from the pump shaft, connected to an external drive - an electric motor.

  • The sucked fuel passes through a cylindrical fine mesh filter that traps rust and small debris. Then it is pushed out by the teeth into the high-pressure zone and enters the pressure line of the injectors.

  • The spool (adjusting) valve serves to maintain the set pressure of the working medium. The adjustment is carried out by tightening the screw on the device body. The electromagnetic valve with a locking function allows you to stop the supply without stopping the electric drive. It also accelerates the closing of the spool, instantly draining the fuel from the pump chamber into the return line.

Advantages of the model:

  • the highest productivity in the series - up to 80 l / h with medium viscosity fuel;

  • the device is supplemented with two valves - a spool and an electromagnetic one;

  • setting the pressure on the injector within 10-15 bar;

  • all outputs and ports comply with the European standard: G⅛ "and G¼";

  • the ability to install in 1-pipe and 2-pipe fuel line systems;

  • works with winter and summer grades of diesel fuel.

Model of diesel burner pump AS 67 B 7449 4P 0700 is manufactured at the European plant Suntec according to modern technology using the latest metal processing methods. Reducing tolerances has reduced energy costs, increased productivity and durability of the unit. All products undergo thorough checks for defects and running-in, after which they are sent for sale.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 80 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 10 barTorque: 0.12 N·mNozzle pressure range: from 10 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
