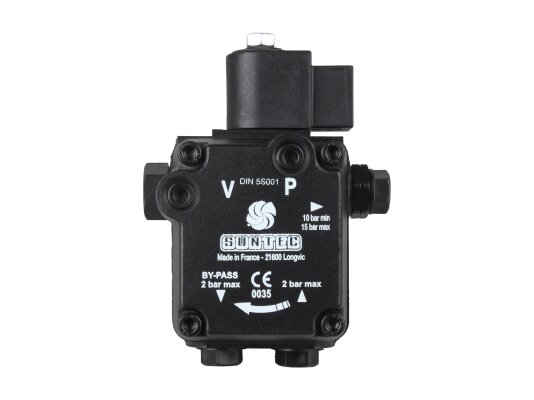

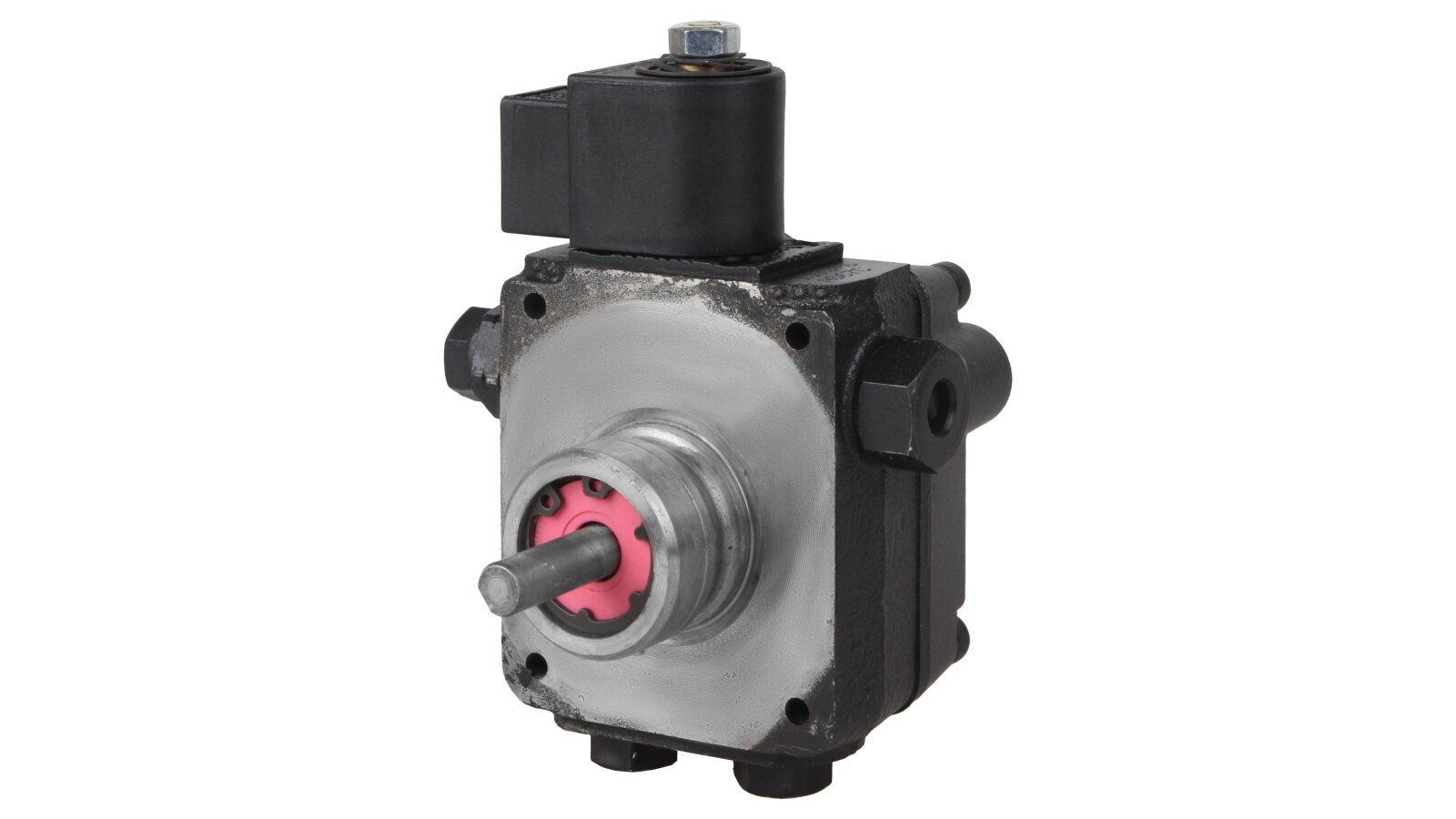

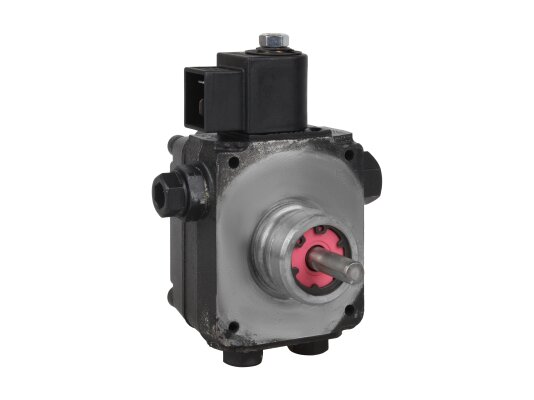

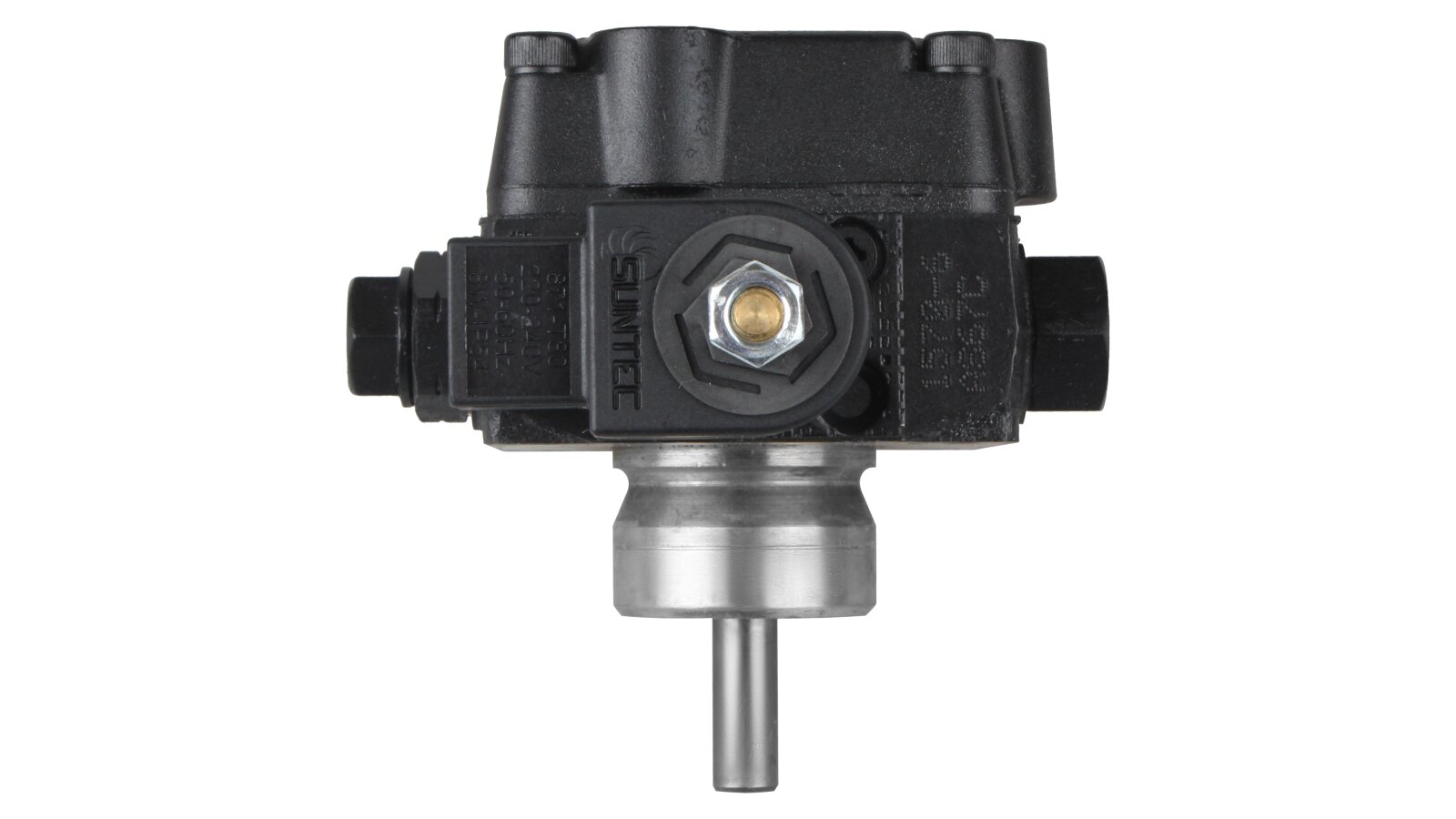

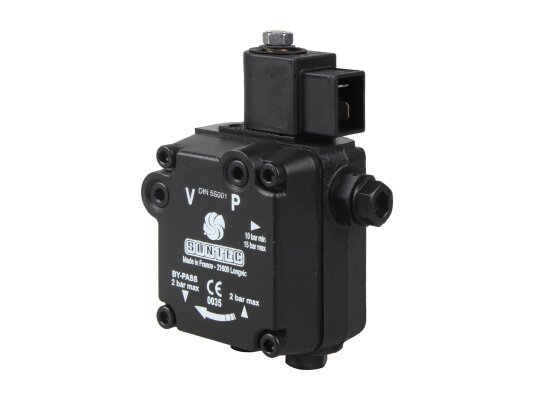

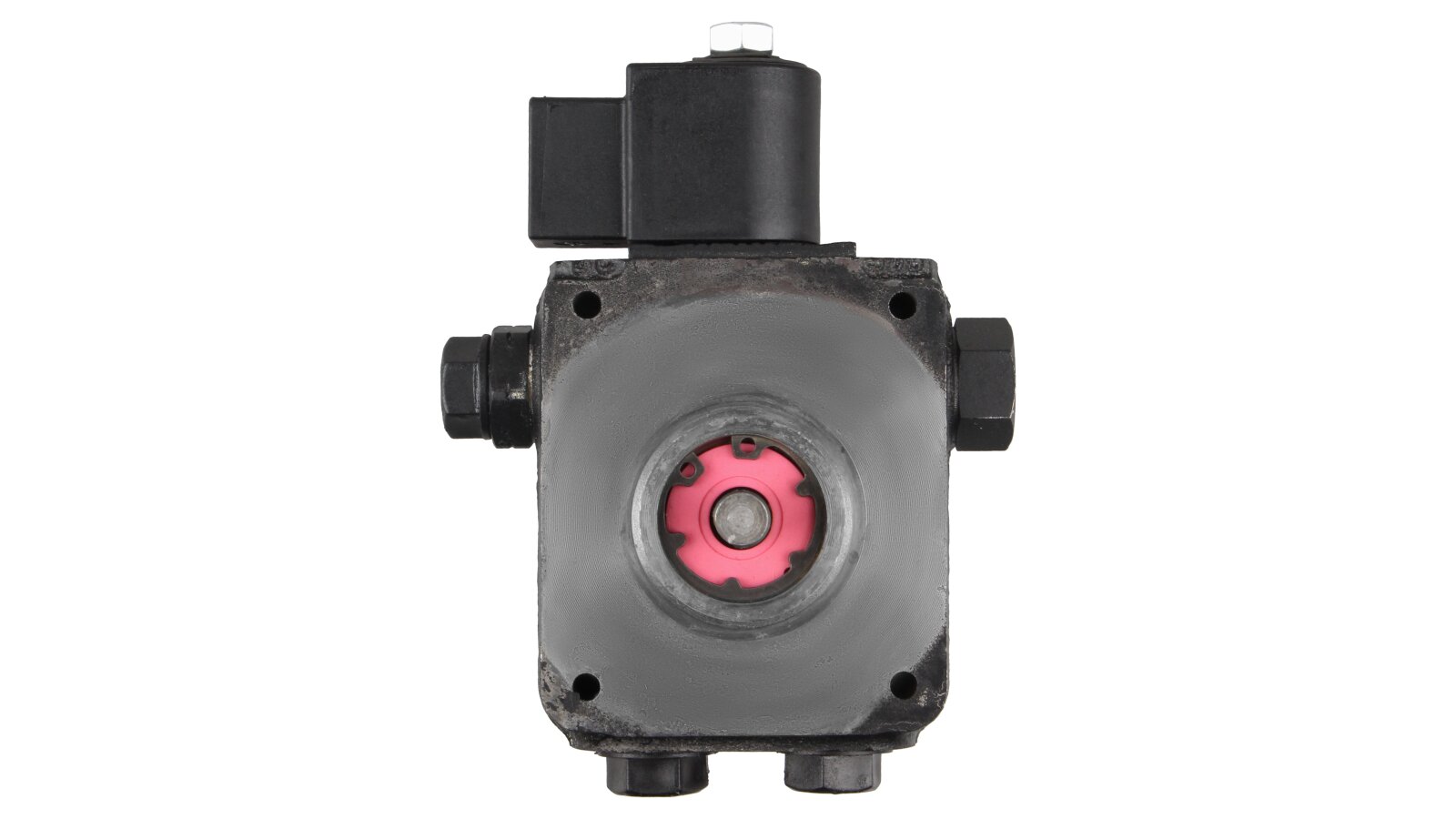

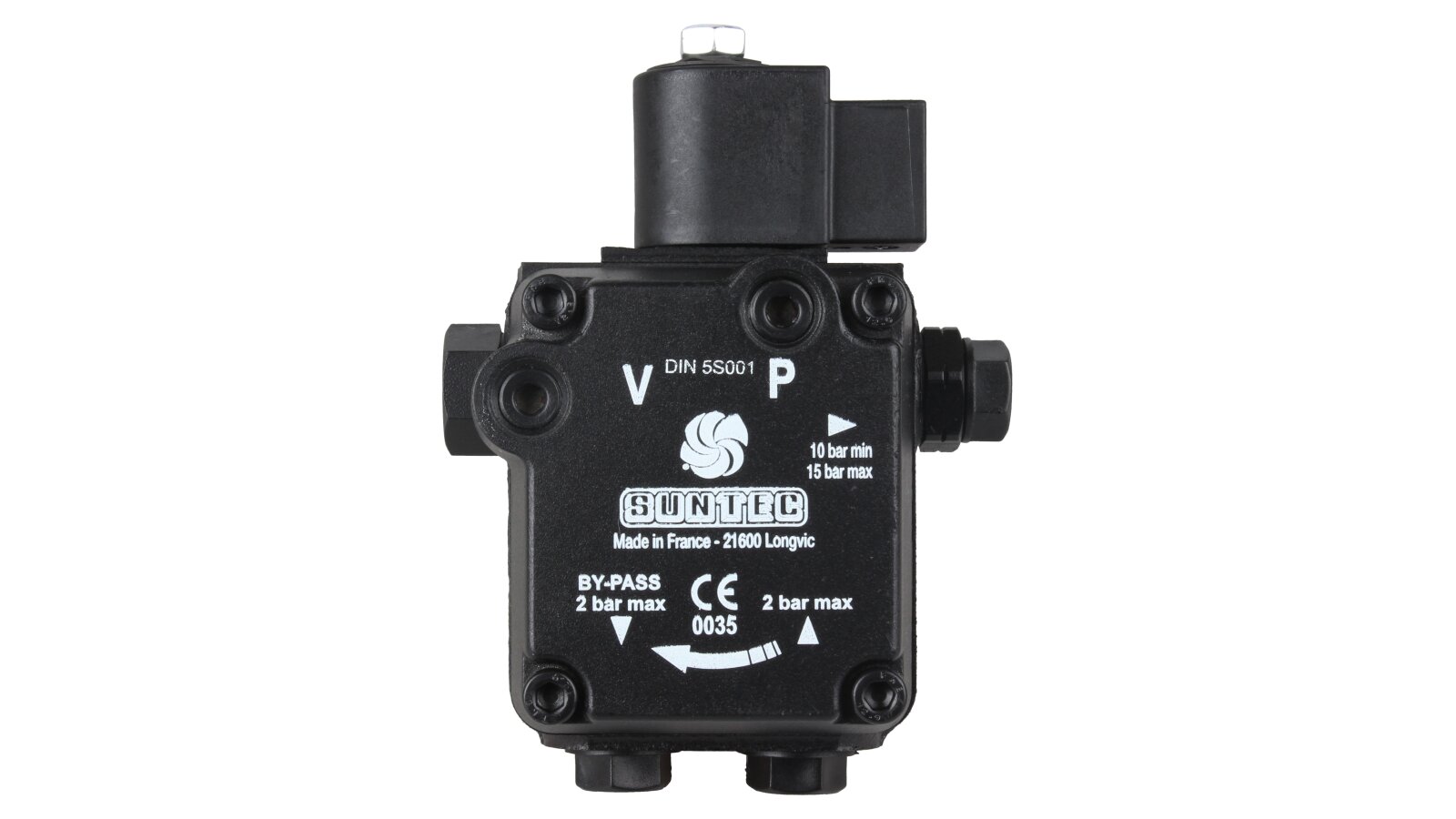

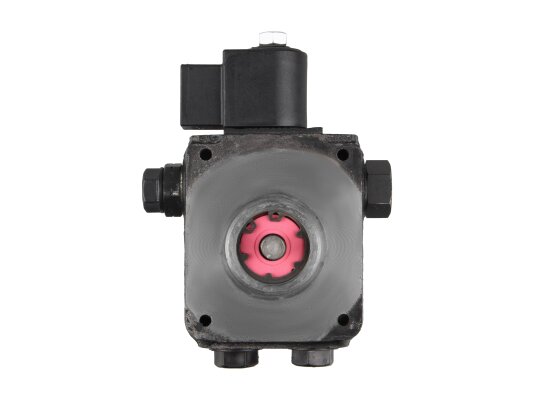

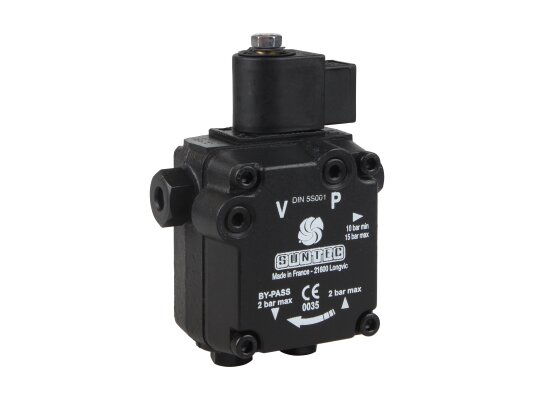

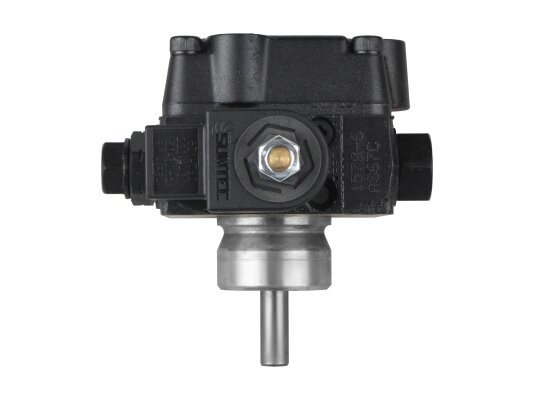

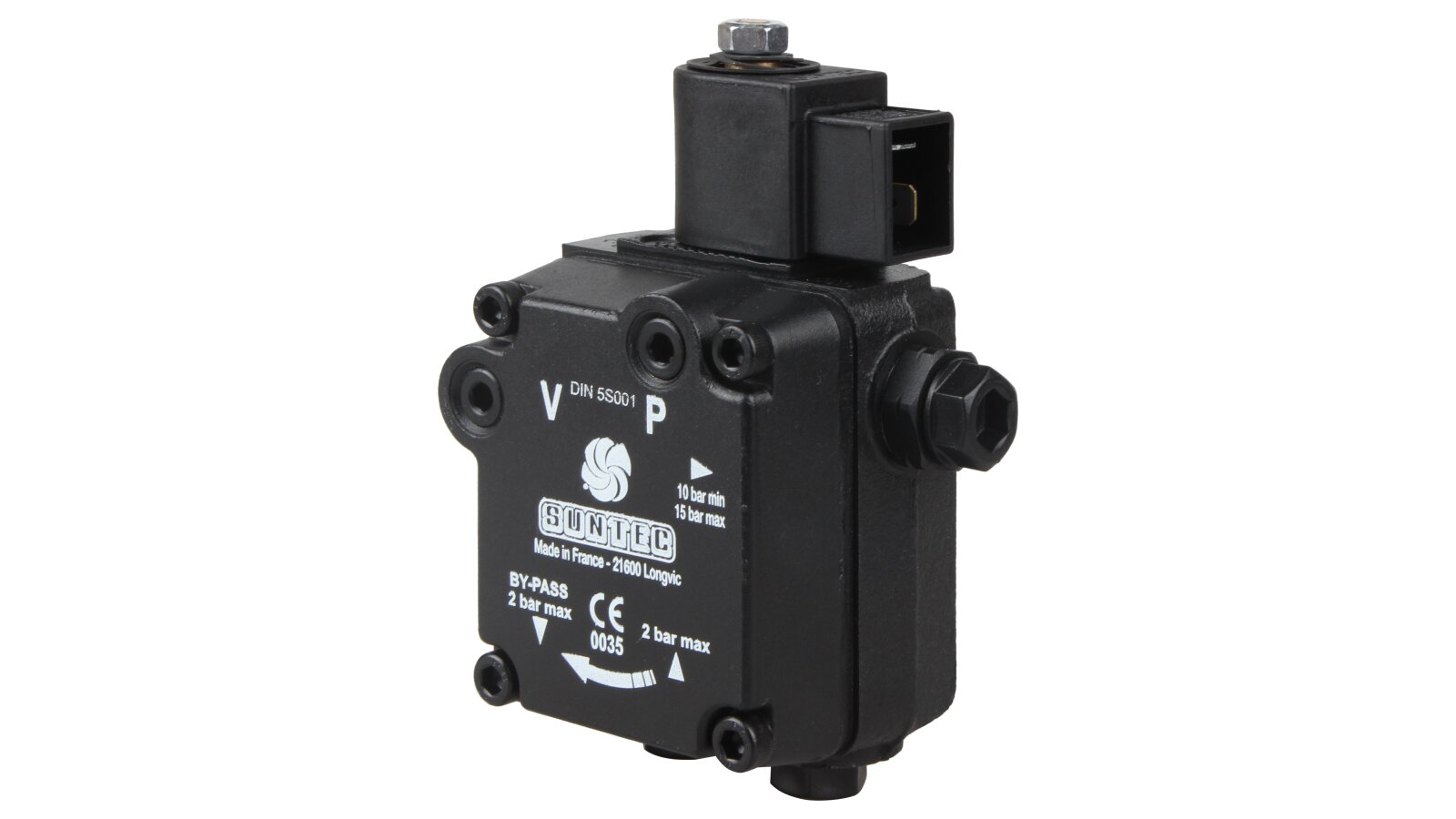

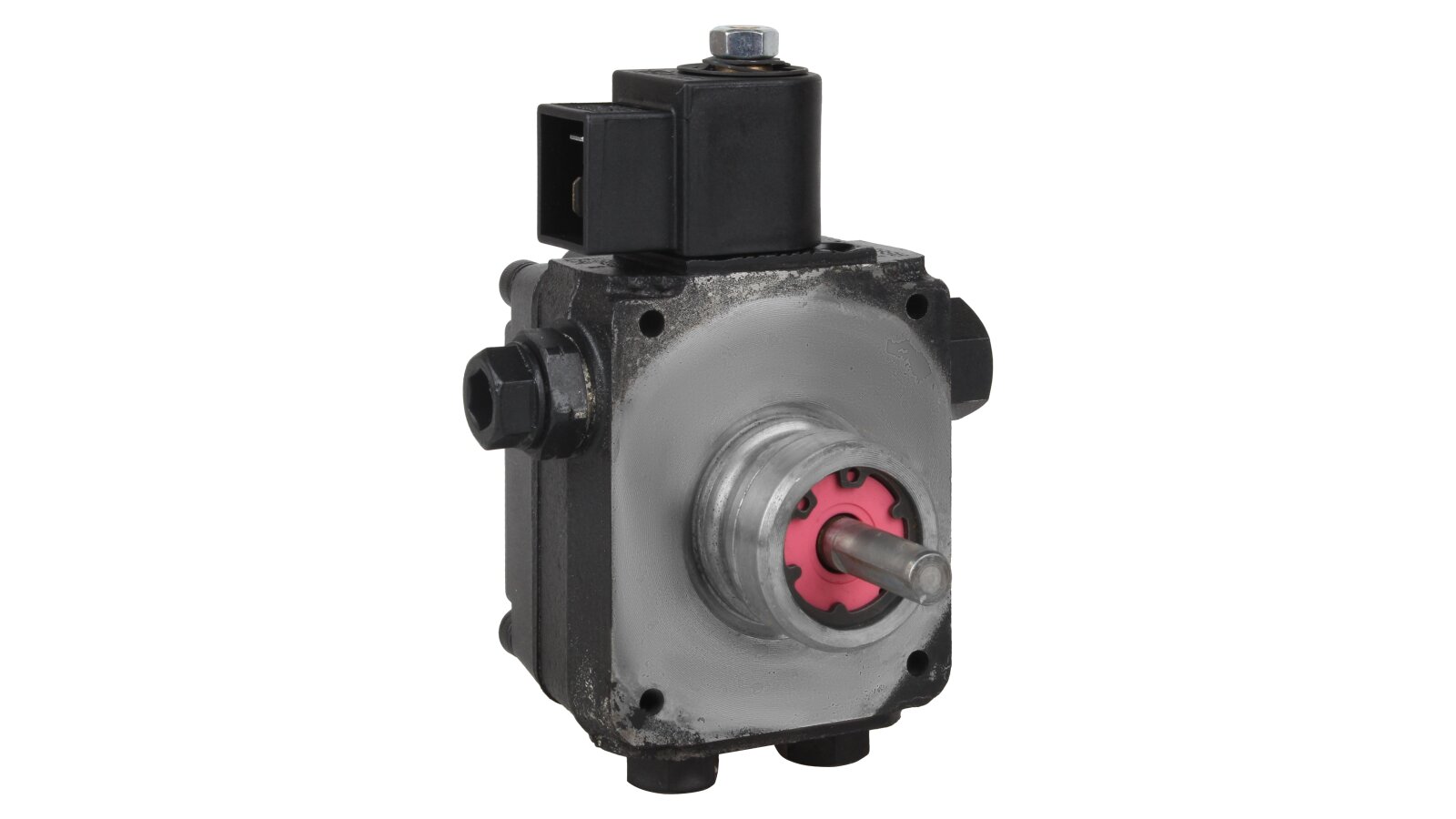

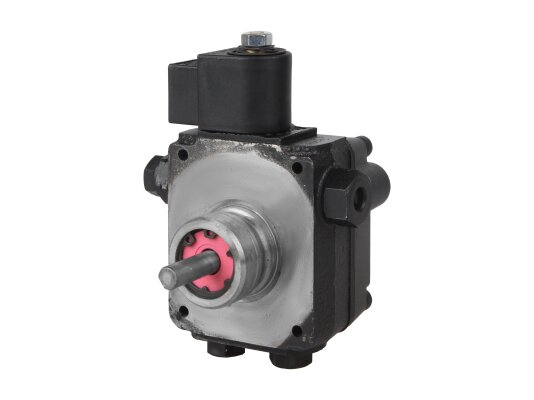

Burner Pump Suntec AS 67 C 1570 6P 0700

Suntec
AED 1,025
  1. Oil Burner Pumps

Description

The single-stage liquid fuel pump AS 67 C 1570 6P 0700 is presented by the leader in the development of industrial equipment — the European company Suntec. The device is used to pump diesel fuel to the burner nozzles under pressure from 1 to 1.5 MPa. The unit is a high-performance representative of the AS model range, which includes pumps with an electromagnetic shut-off valve and a spool valve for pressure regulation. The device can pump diesel fuel with low and high kinematic viscosity with a temperature from 0 to +60 ° C.

You can buy a Suntec pump in the online store of the company "ANKAS", which is the official dealer of the manufacturer. We offer high-quality equipment for domestic and industrial use at an affordable price.

Design features

  • The work of moving diesel fuel and pumping it to the nozzles is performed by a gear mechanism. A gear is pressed onto the shaft of the unit, rotated by an external electric drive, which sets the toothed wheel in motion. The inlet and outlet channels are separated by a half-moon-shaped recess.

  • The counter-clockwise rotating gear pair develops high speeds (up to 3600 rpm), at which the fuel pressure can reach 15 bar.

  • The spool valve sets the maximum pressure value on the injector line. It is adjusted by tightening the adjusting screw with the device running. The EM valve of the "normally open" type serves to accelerate the locking of the spool valve and transfer the device to idle mode.

The main advantages of the model:

  • can pump up to 80 liters of diesel fuel per hour;

  • equipped with an electromagnetic valve and a spool pressure reducing valve;

  • the spool valve can be adjusted to supply with a pressure in the range from 10 to 15 bar;

  • a cylindrical serviceable filter with a mesh for retaining rust and sand is provided;

  • internal elements are protected by a waterproof housing from external influences according to the IP54 standard;

  • unified according to EN 225 fastening to the burner by a sleeve method with a diameter of 32 mm.

Fuel pump for burners AS 67 C 1570 6P 0700 is a good choice for those who do not want to regularly repair heating equipment and replace components. A high degree of reliability and protection against clogging is achieved by using new technologies for processing workpieces with ultra-precise lapping of moving parts of the mechanism. This model also has increased productivity in comparison with other representatives of the series.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 80 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 10 barTorque: 0.12 N·mNozzle pressure range: from 10 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 1 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
