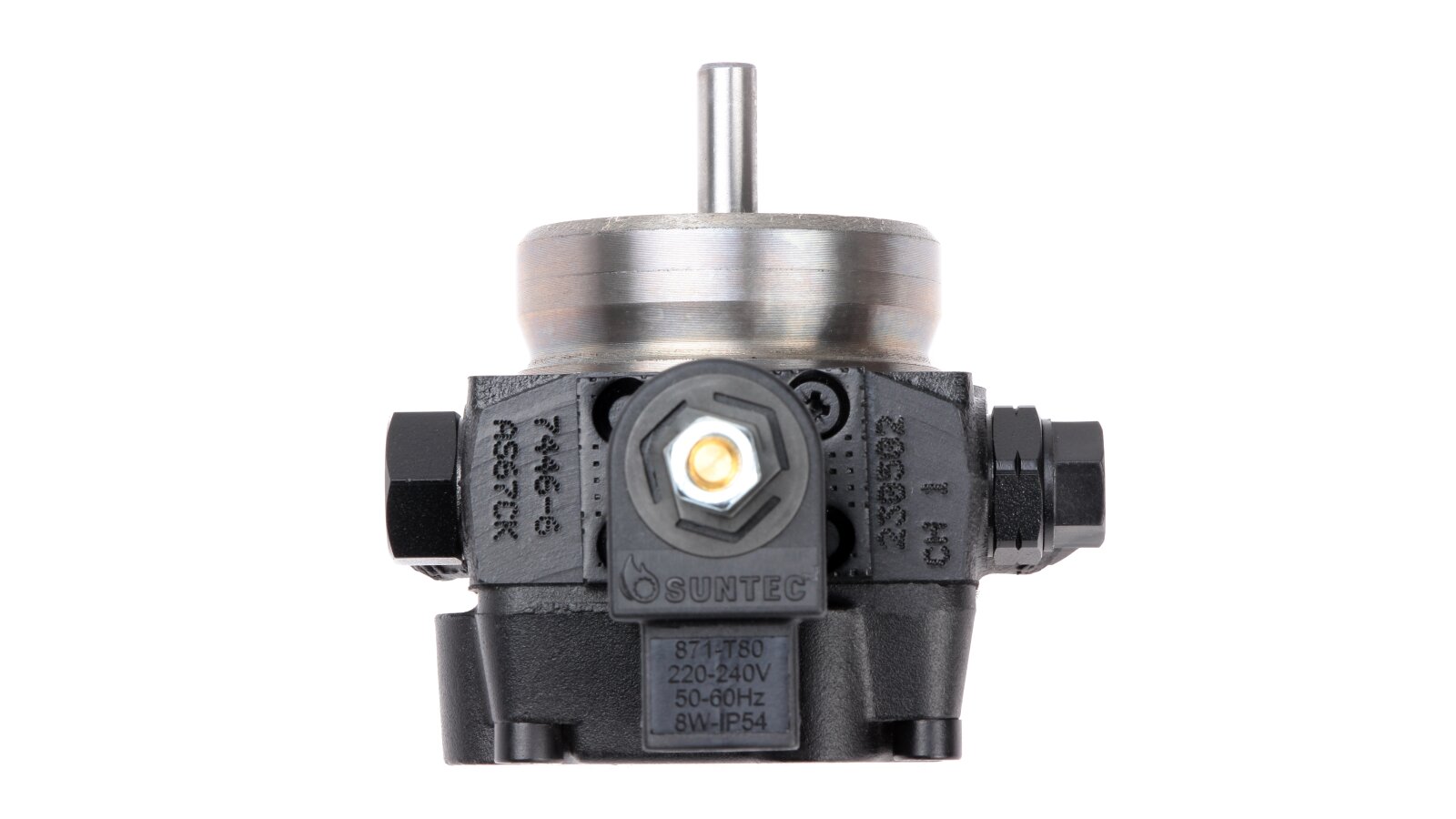

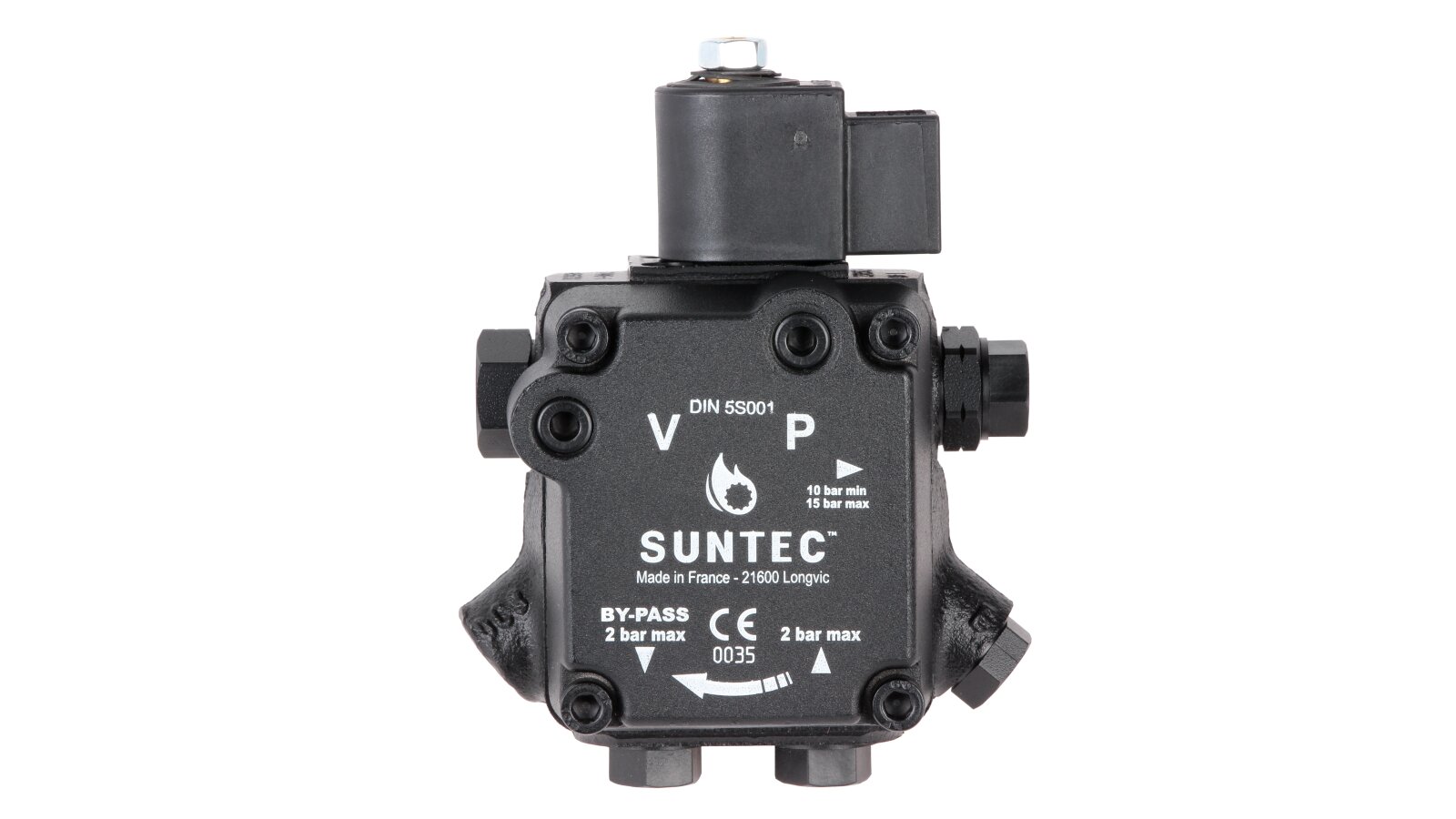

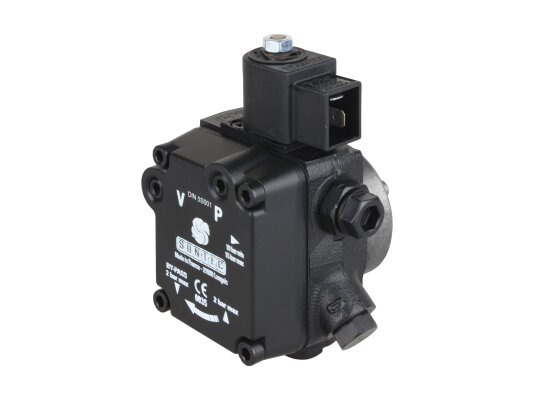

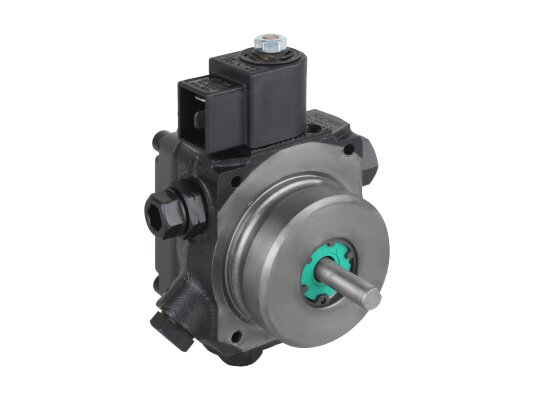

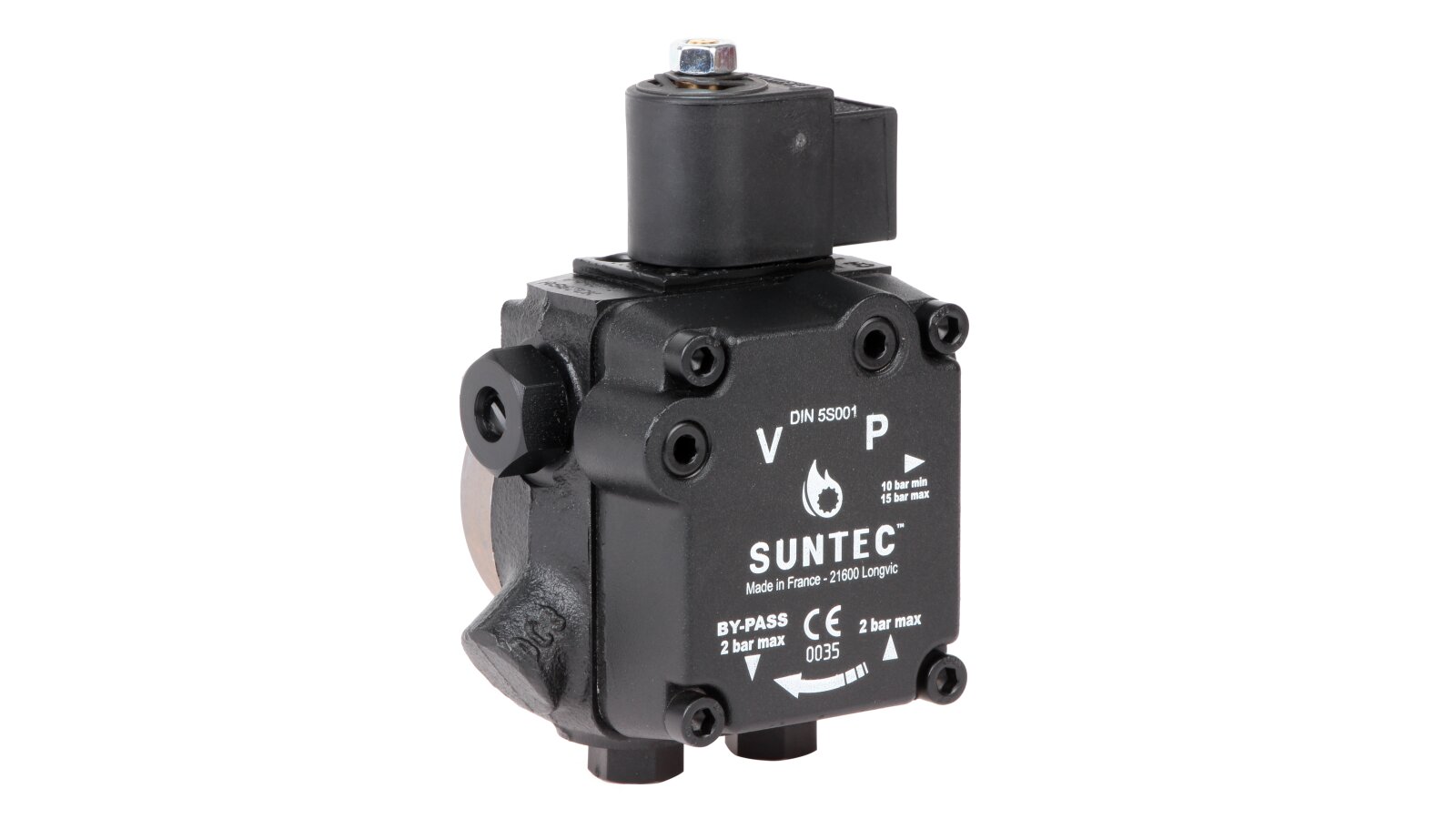

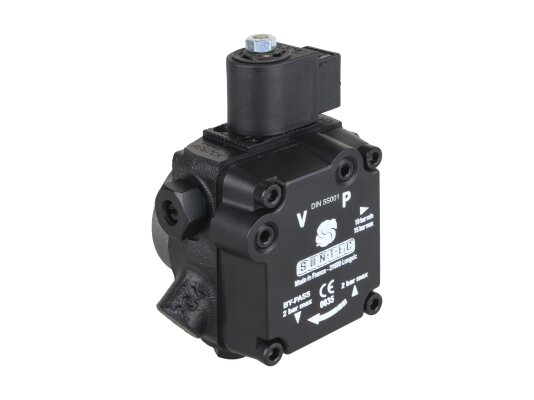

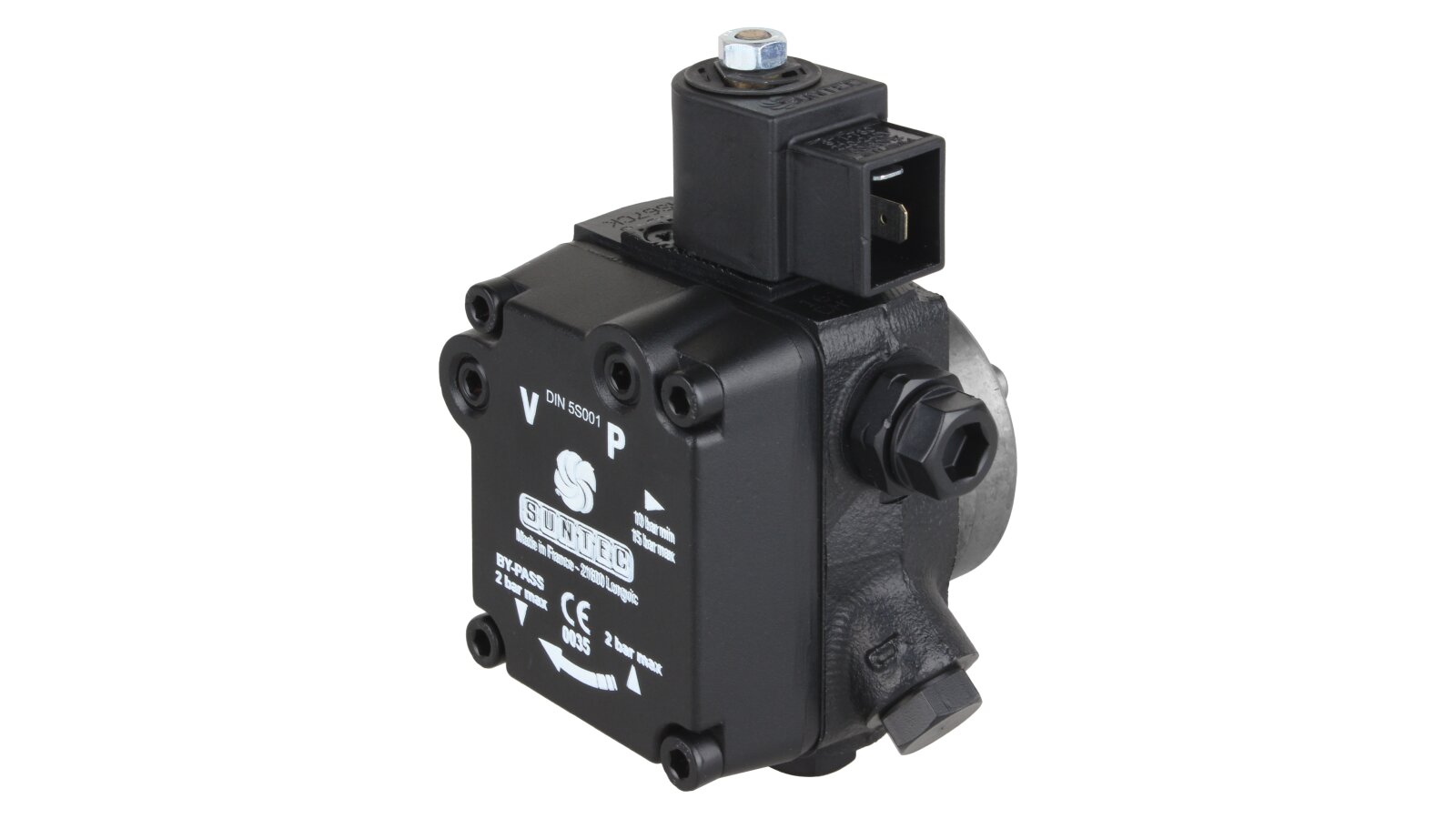

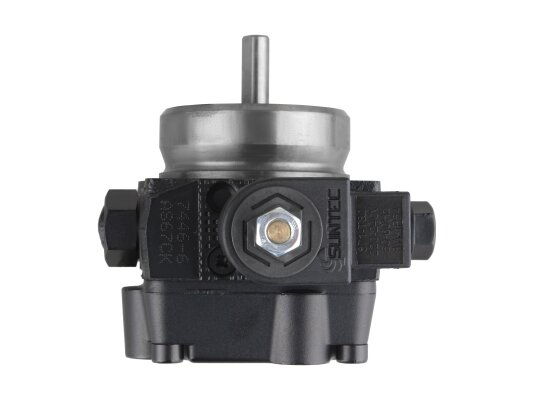

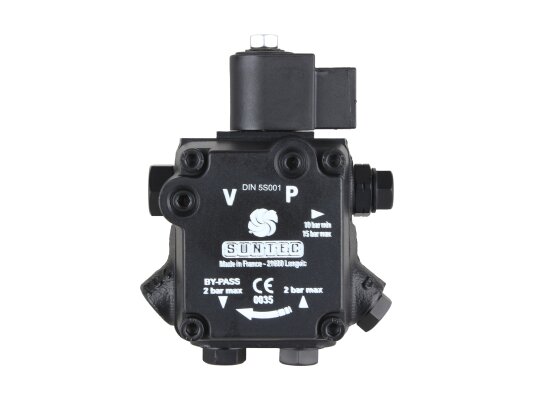

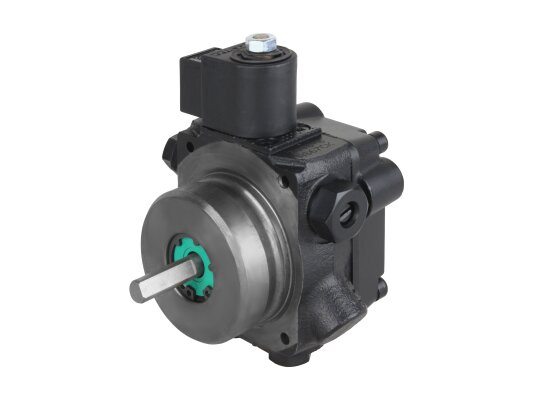

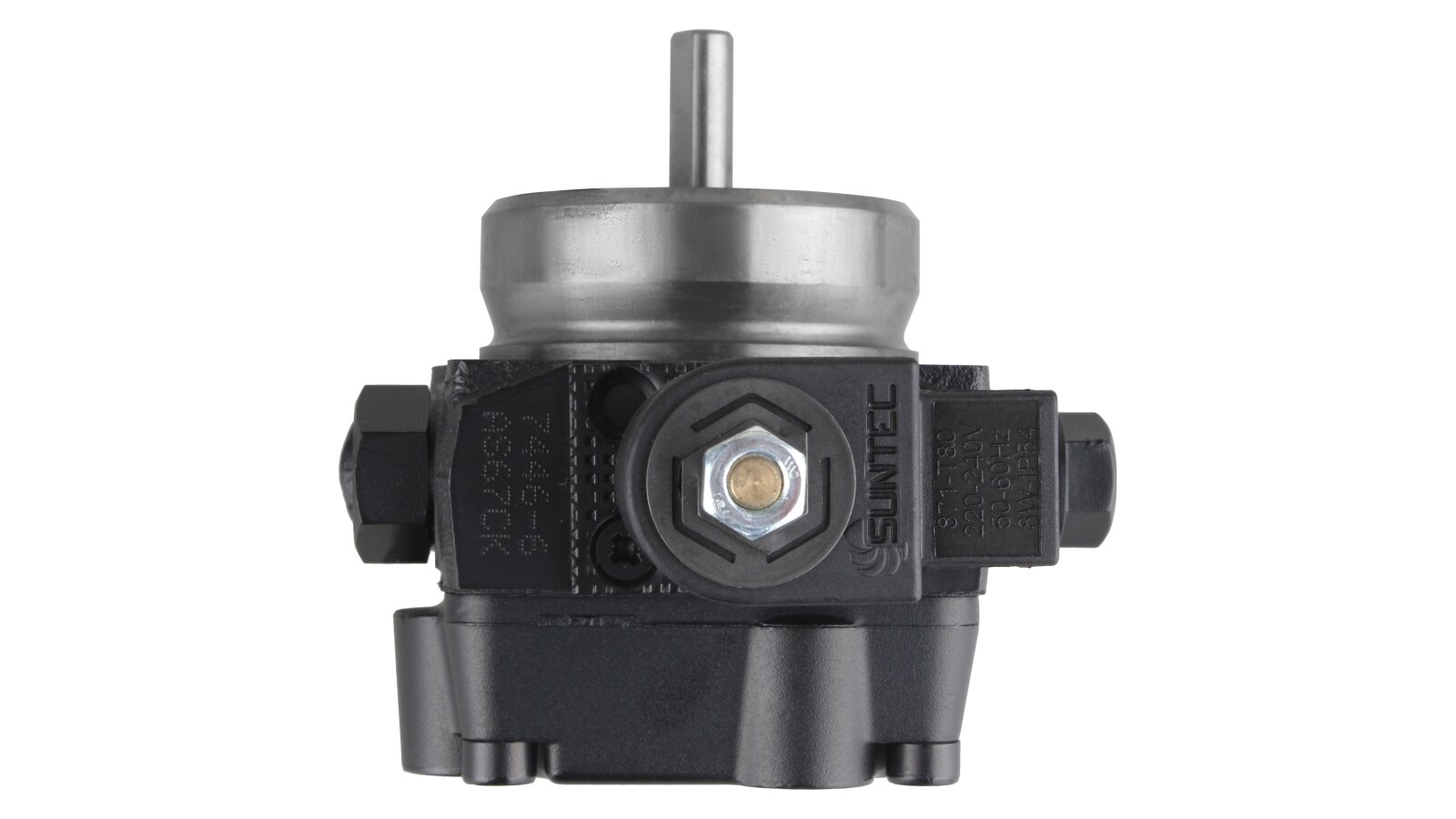

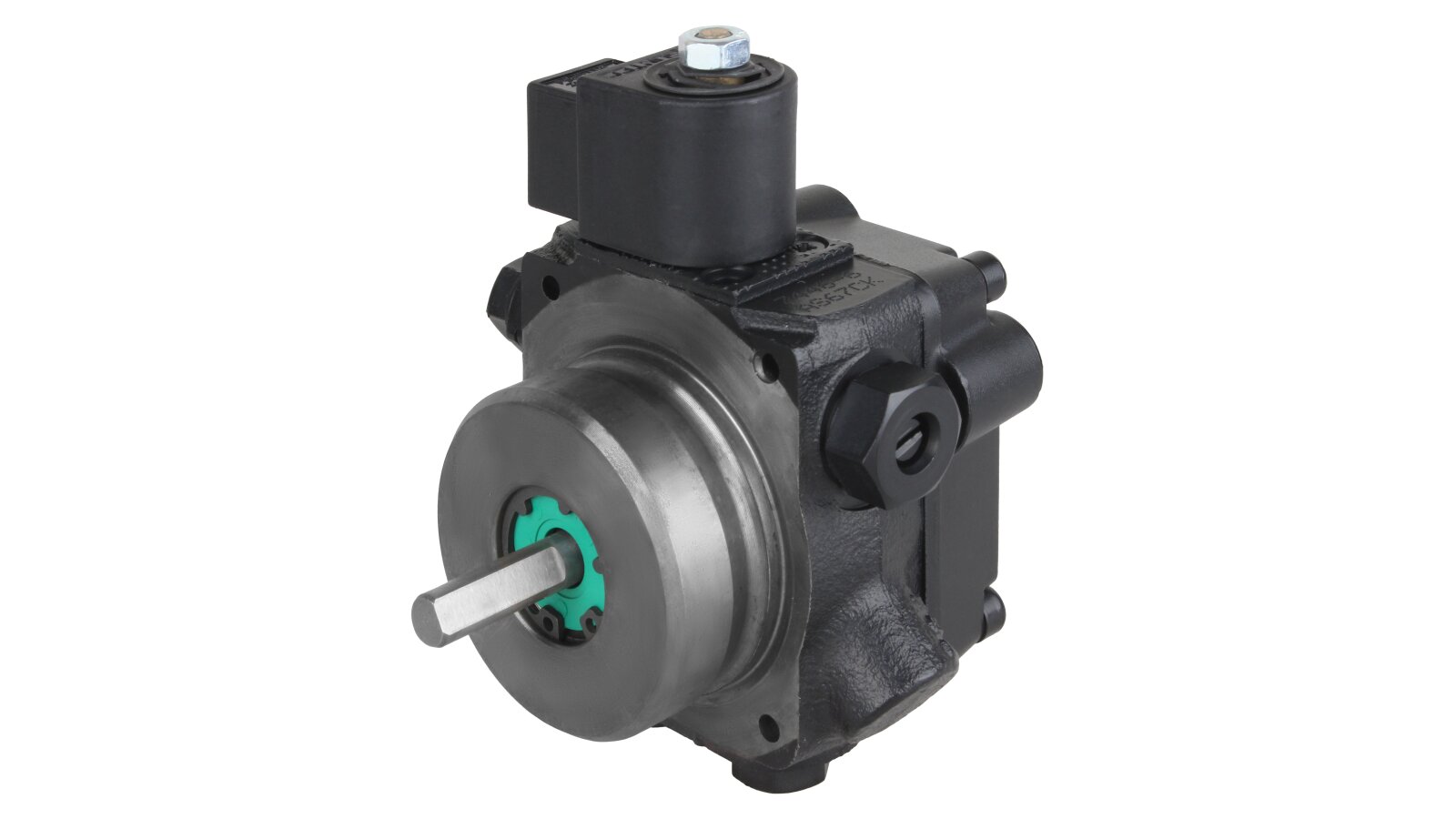

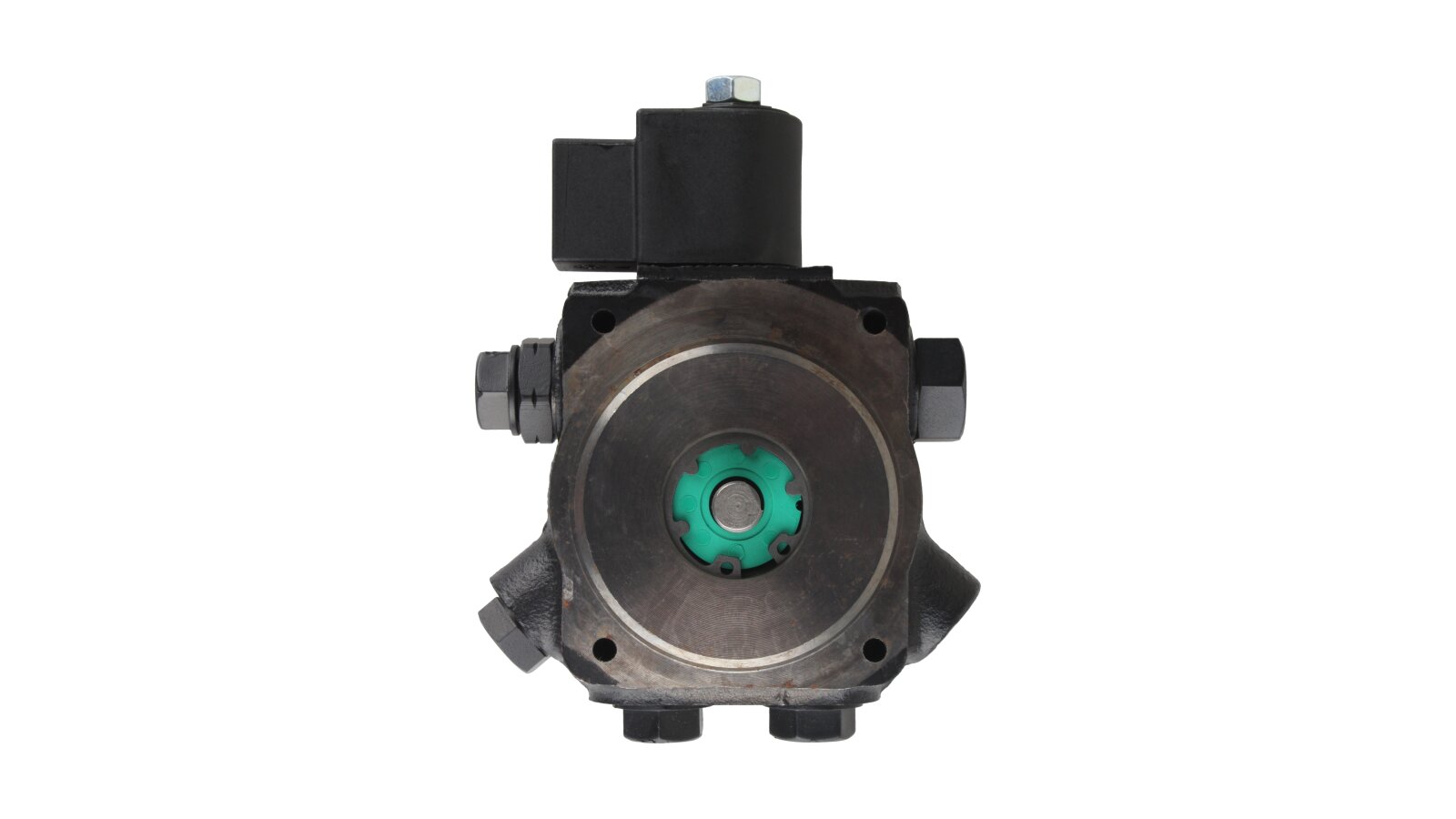

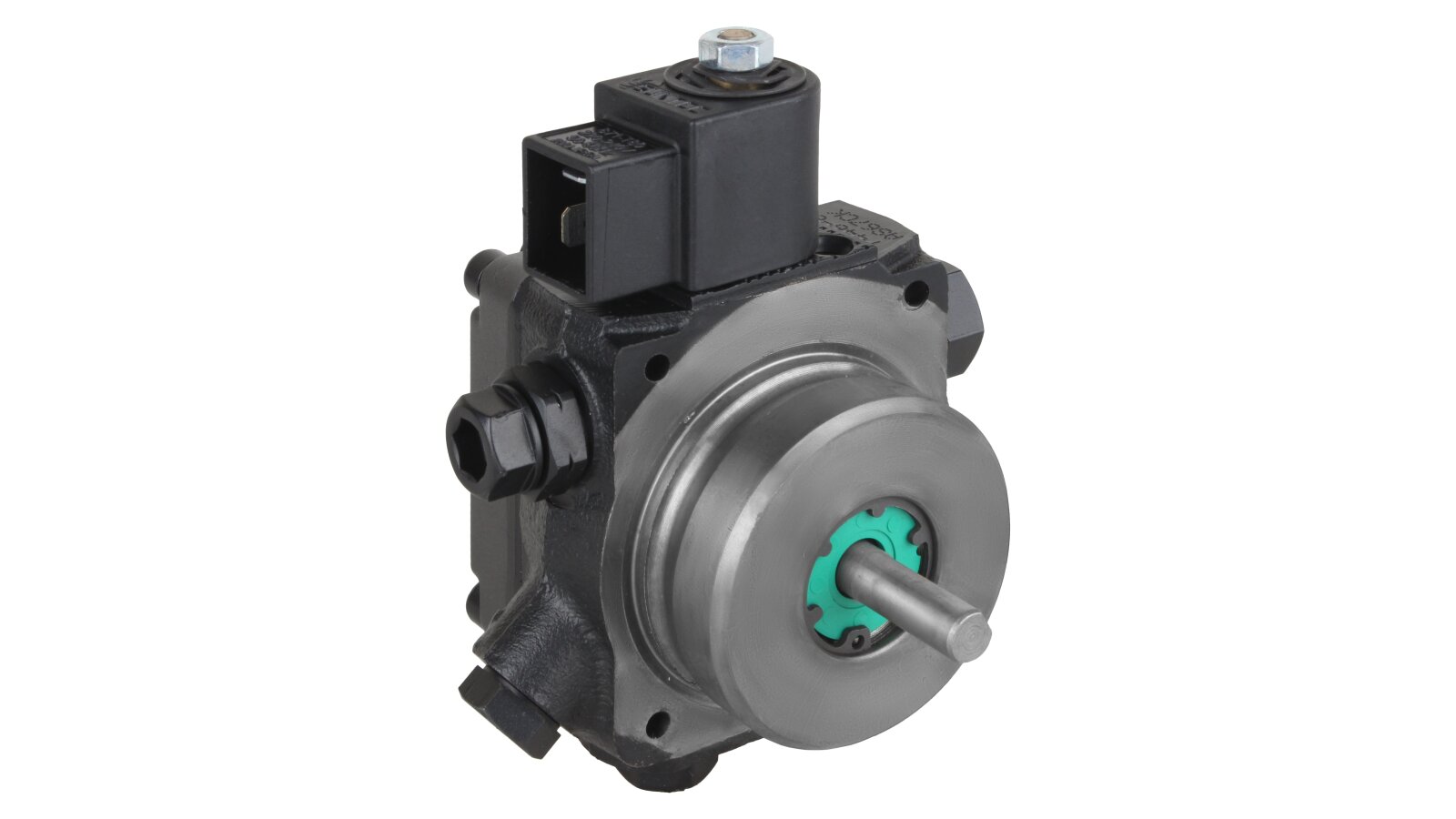

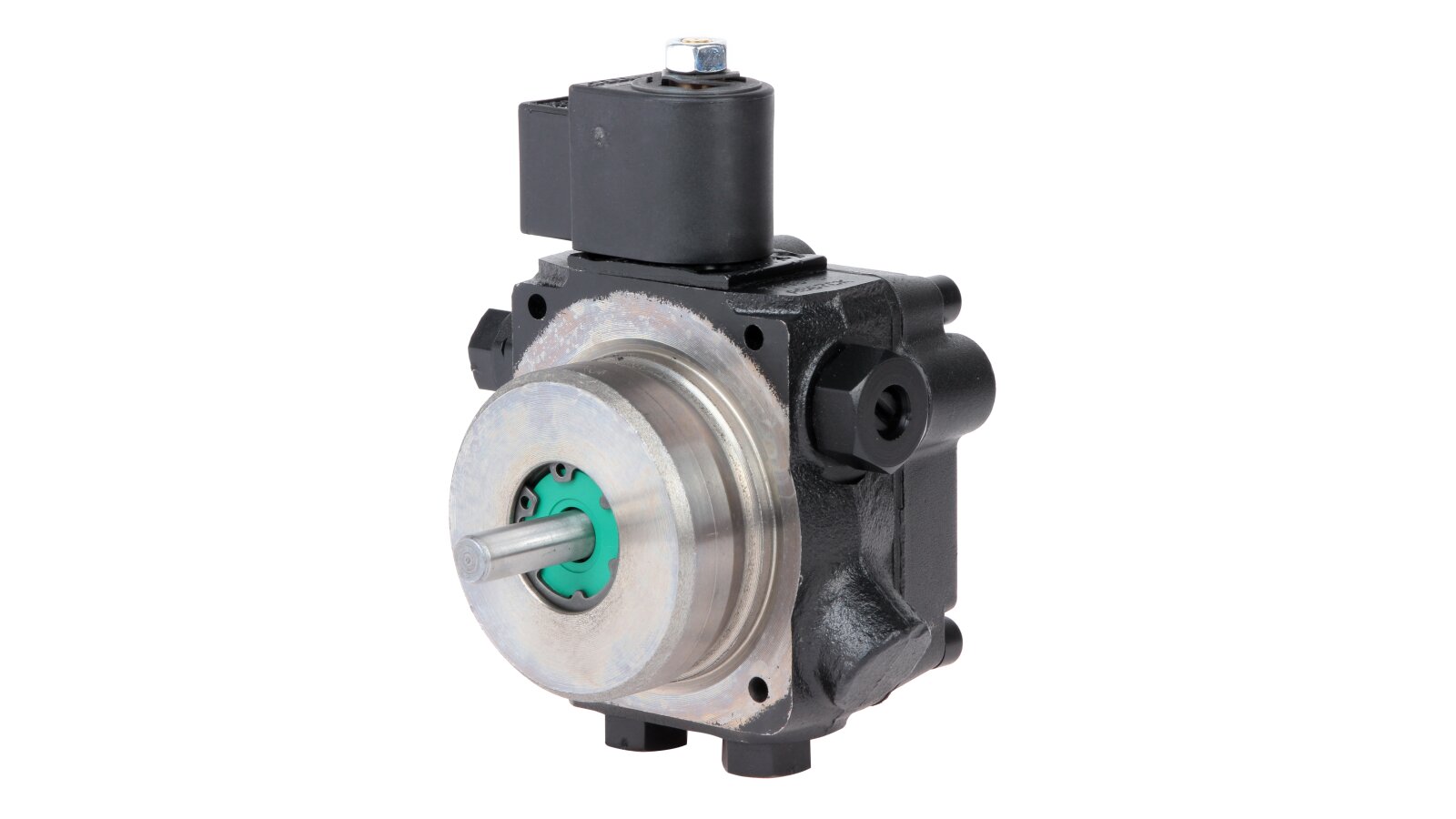

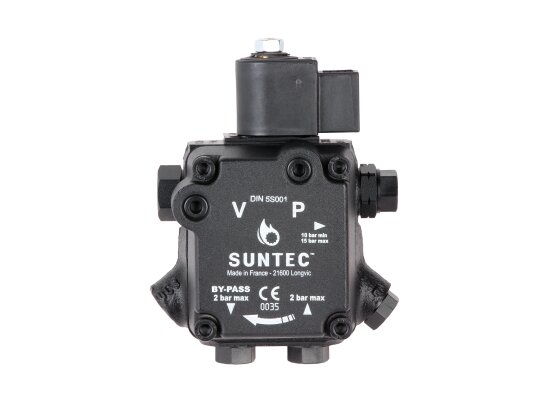

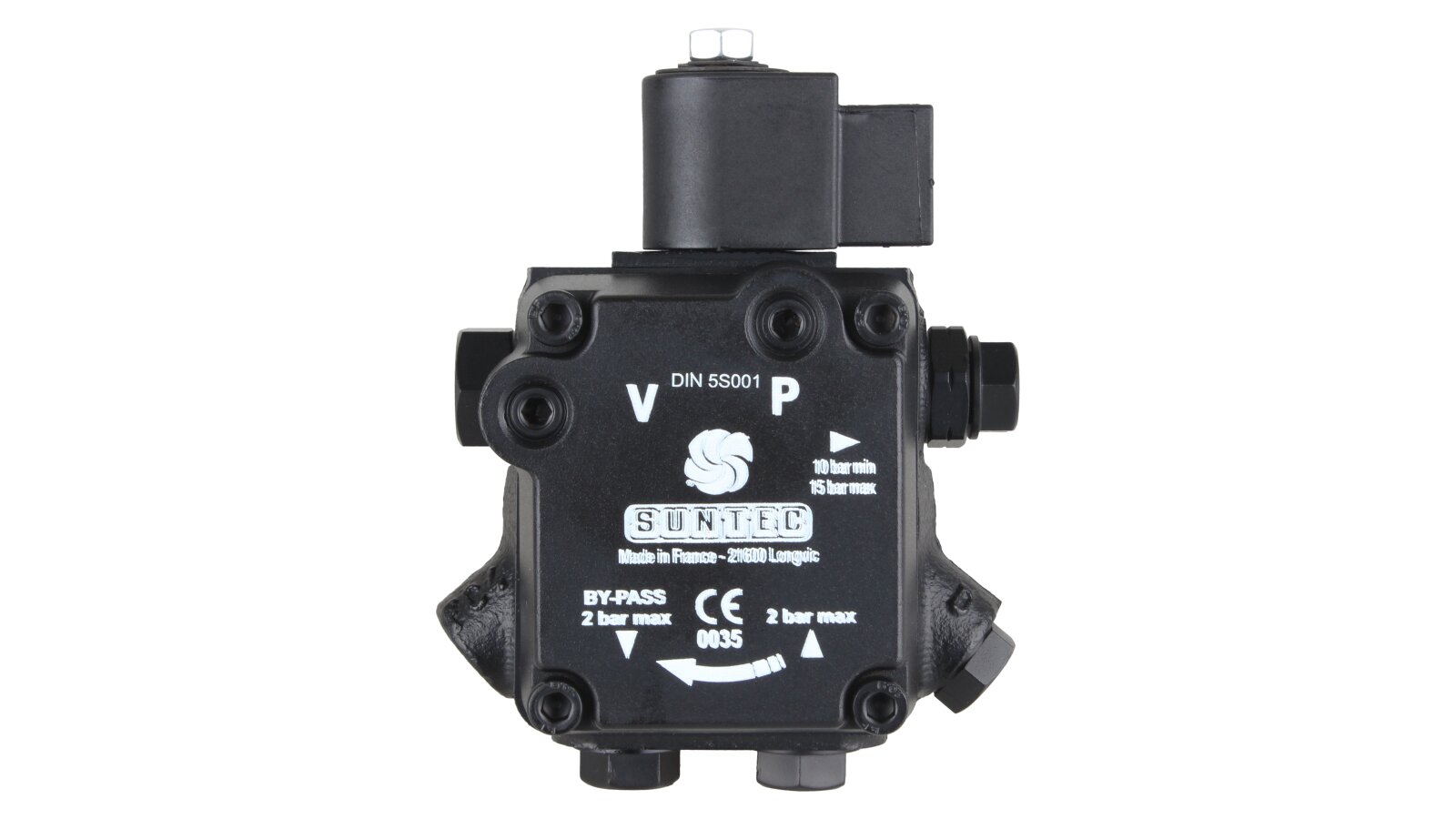

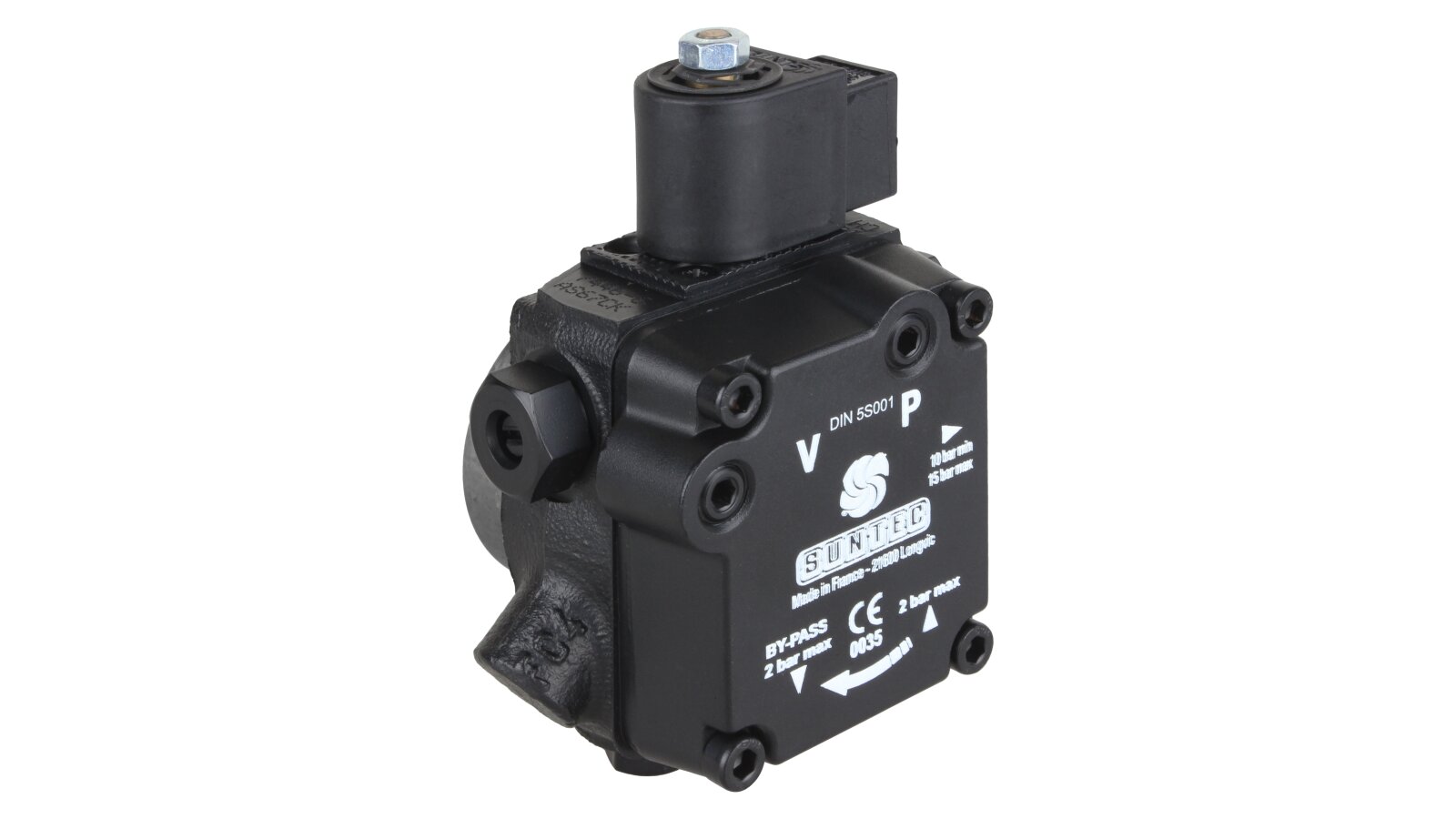

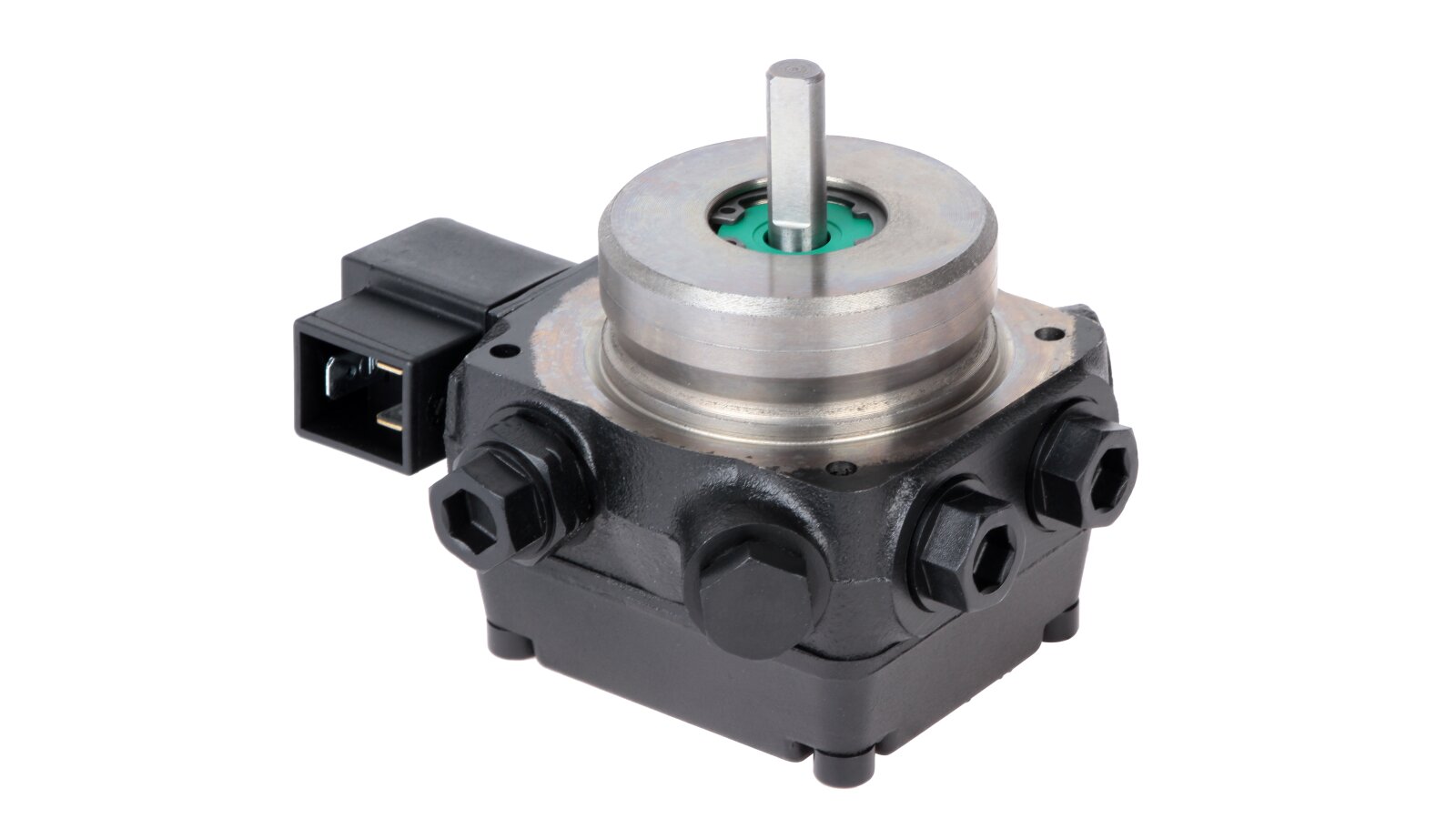

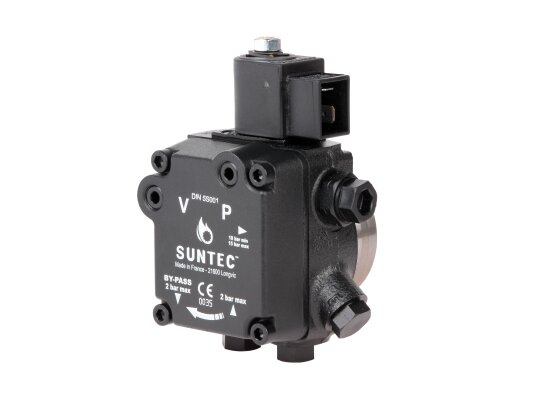

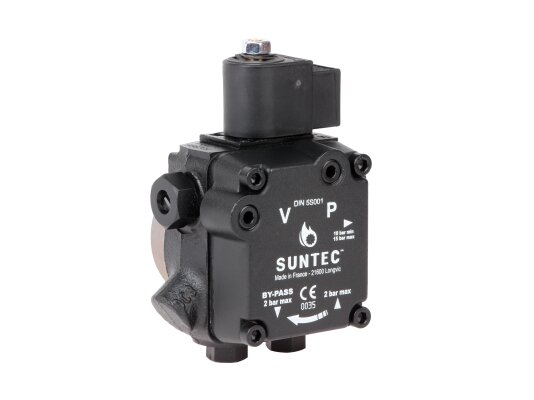

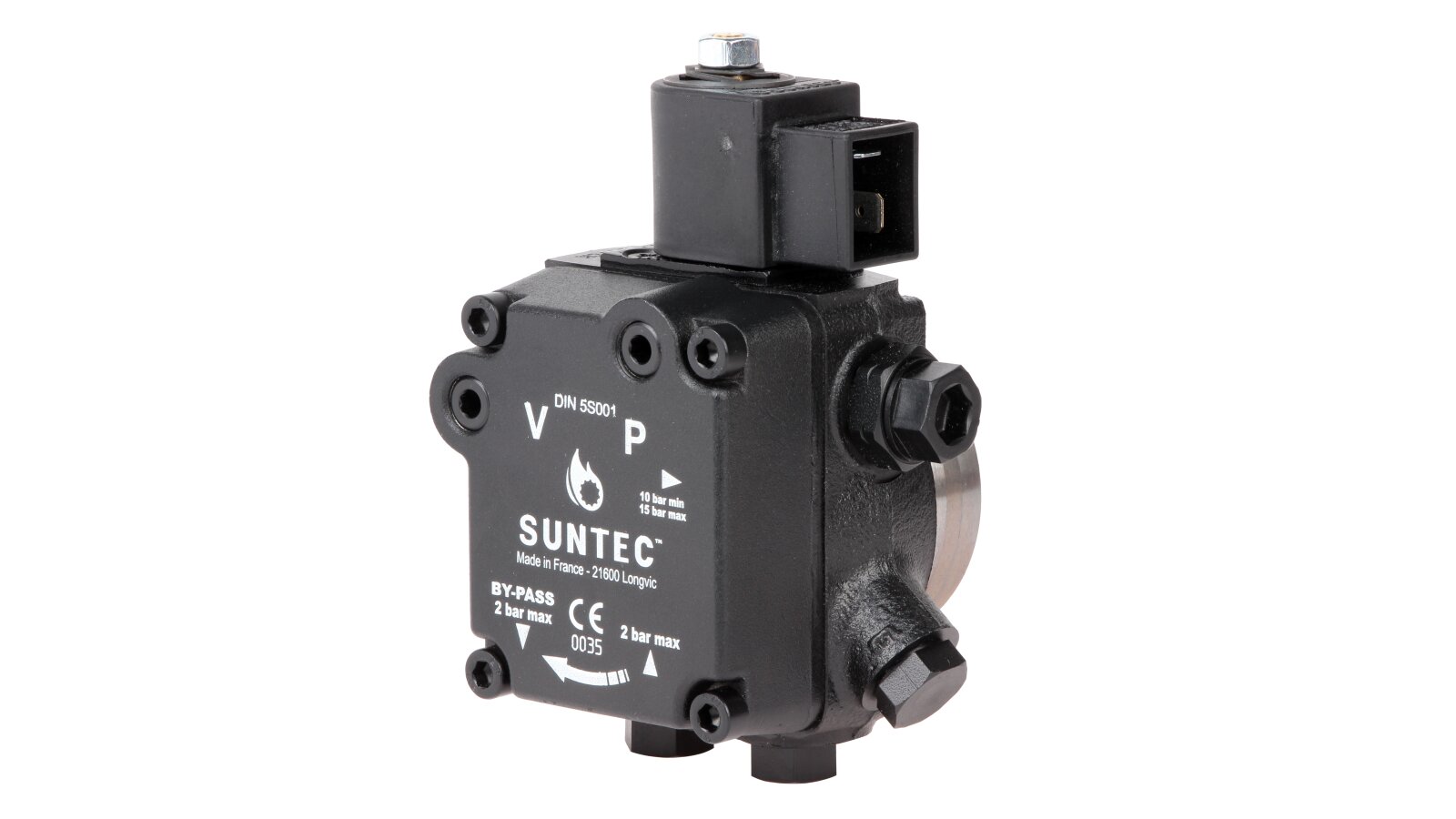

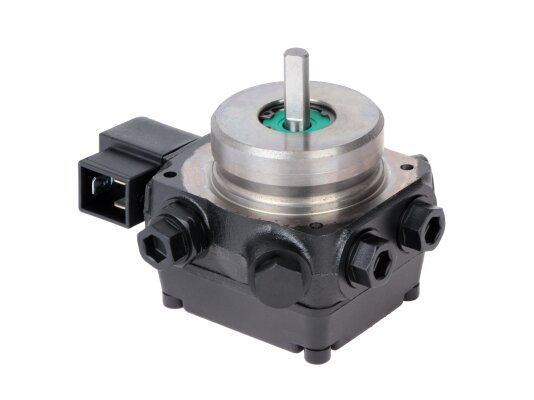

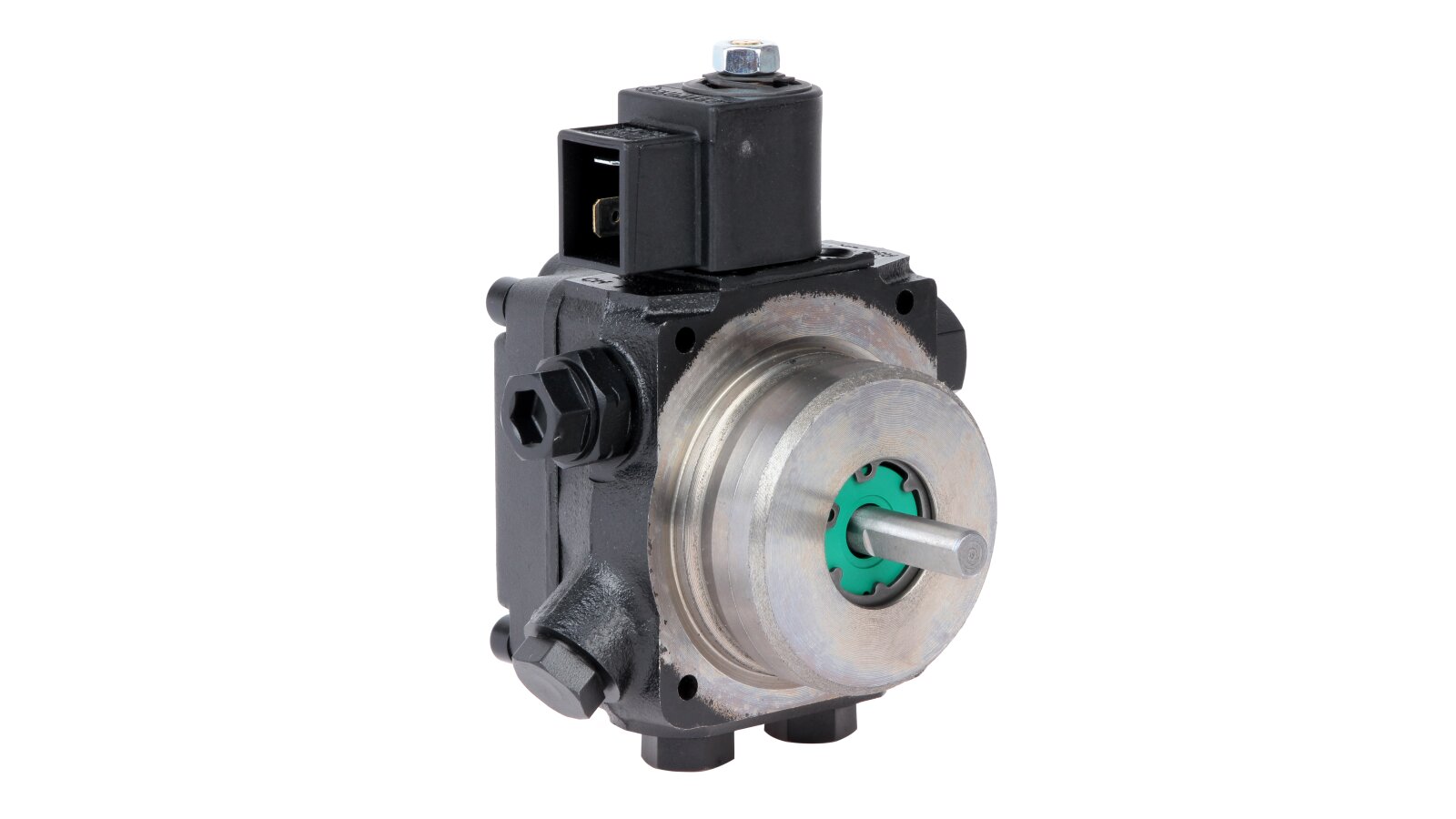

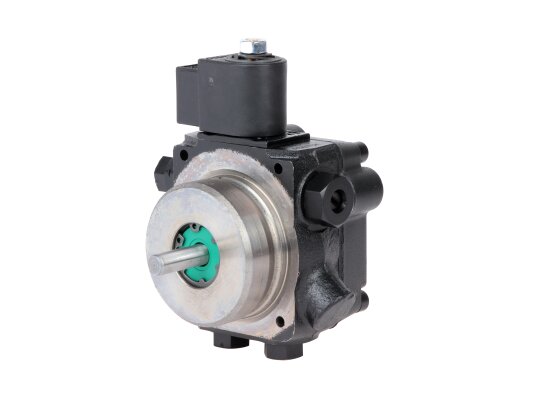

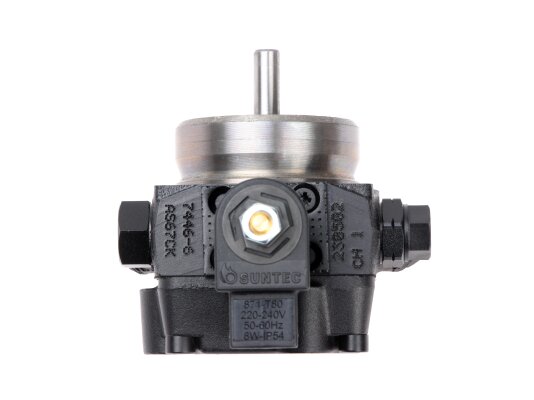

Burner Pump Suntec AS 67 C K 7446 6P 0700

Suntec
AED 1,025
  1. Oil Burner Pumps

Description

Suntec liquid fuel pumps model AS 67 C K 7446 6P 0700 are manufactured by the French leader in the development of fuel equipment. They are designed to pump diesel fuel and kerosene to injectors under high pressure within 10-15 atm. The fact that the devices belong to the AS series implies the presence of an electromagnetic valve with a shut-off function and a reducing spool valve for smooth manual pressure adjustment. This high-performance model is designed to work in burners with a capacity of up to 1000 kW from manufacturers such as Elco, Lamborghini, Baltur, Weishaupt.

To buy a Suntec pump at a bargain price, leave a request on the website of the company "ANKAS". We are suppliers of reliable equipment for home and industry directly from the warehouse of the European manufacturer.

Design Features

  • The main work of pumping fuel is assigned to a gear mechanism with a counterclockwise rotating gear pair. Its main links are a gear pressed onto a shaft and a gear wheel with an internal crown. The vacuum in the suction pipe caused by their mutual movement forces the liquid to move from the tank to the working cavity, and then to the nozzle.

  • A detachable filter for preliminary cleaning of fuel from rust, sand and other debris is installed at the inlet in front of the mechanism. It requires regular cleaning with a soft brush and rinsing from dirt.

  • The slide valve sets the maximum pressure by tightening the spring with a screw. When the threshold is exceeded, excess fuel is drained into the tank or returned to the feed again.

Advantages of the model:

  • high nominal performance - up to 80 l / h;

  • can pump both diesel fuel and low-viscosity kerosene;

  • shut-off EM valve is used to switch to idle mode;

  • reliable flange connection with reinforced lugs;

  • works in single- and double-pipe configurations of connection to the fuel system;

  • it is possible to connect control and measuring devices (pressure gauge and vacuum gauge) to standard ports according to ISO 228/1.

Fuel equipment from the French company Suntec is in demand all over the world due to its reliability and durability. The pump for diesel burner AS 67 C K 7446 6P 0700 is made using a special precision technology, due to which the gap between the body and the teeth is minimal. This allows pumping rare types of fuel in consistency - kerosene and diesel fuel. High-quality metals and composites used in the manufacturing process of the units significantly extend the service life of Suntec products.

Characteristics

Strainer: Open area: 6 cm²Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 80 l/h2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 61 l/hPump series: AS: pressure regulation and bypass solenoid valveSolenoid valve voltage: 220-240 or 110-120 or 24 VStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulating and cut-offOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 61 l/hInstallation method: flange ∅ 54 mmTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 1 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 10 to 15 barFactory pressure setting: 10 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54Type of pumped liquid: kerosene, diesel
