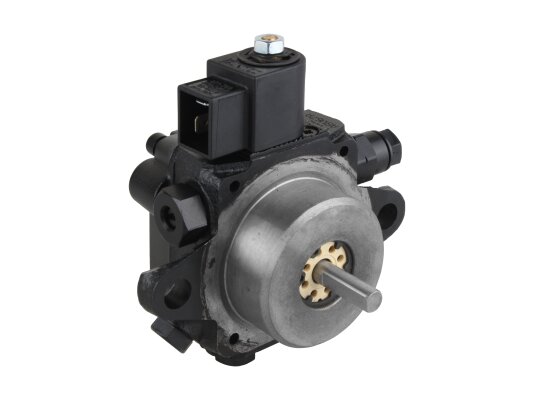

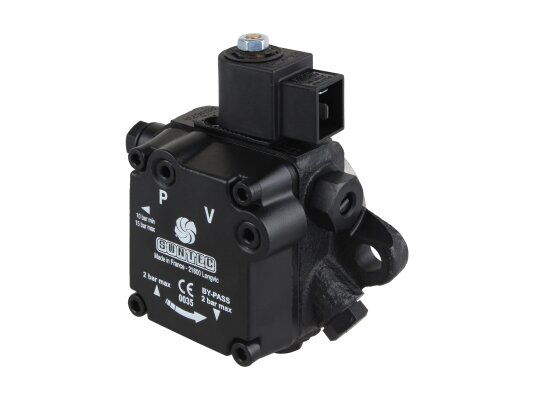

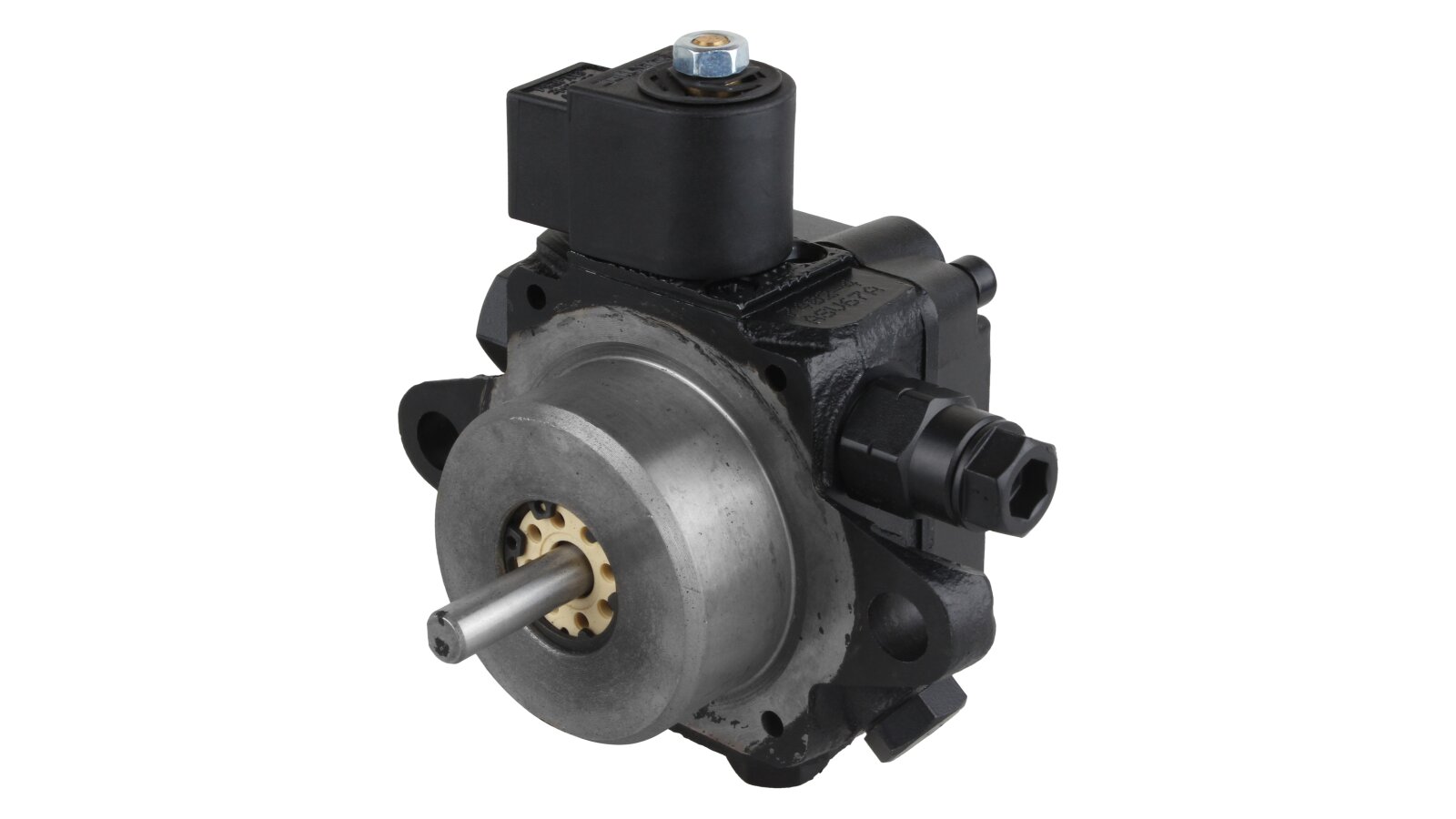

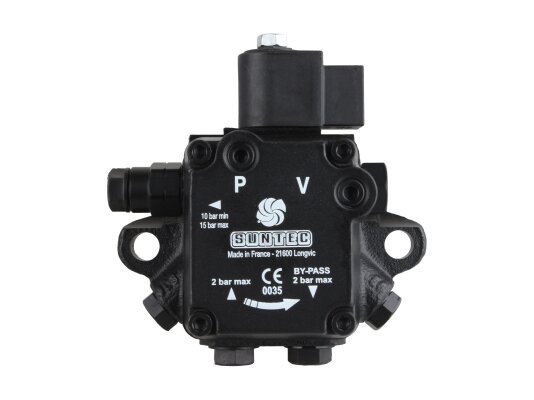

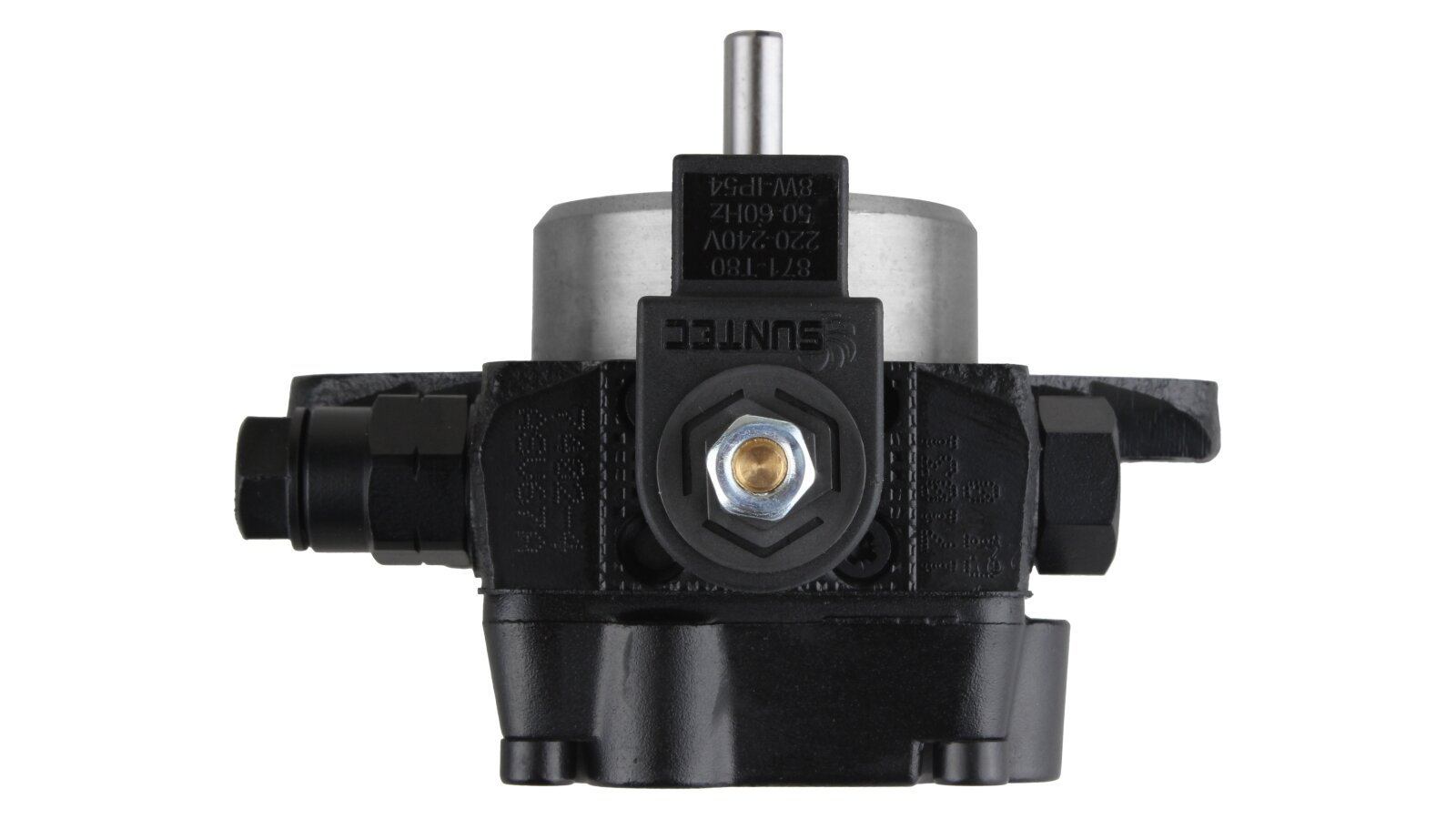

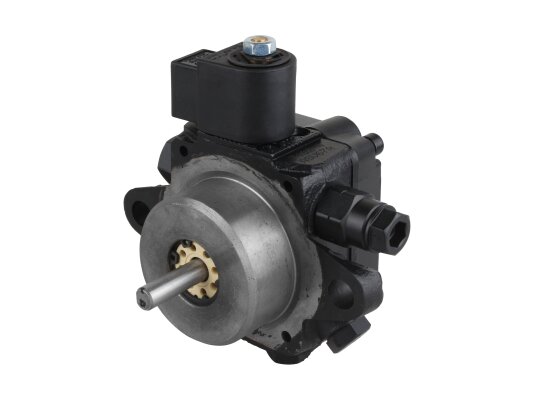

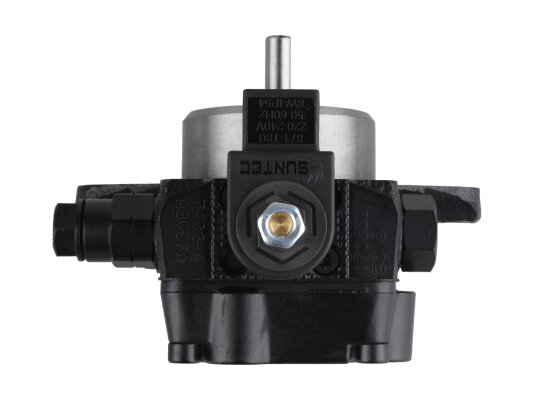

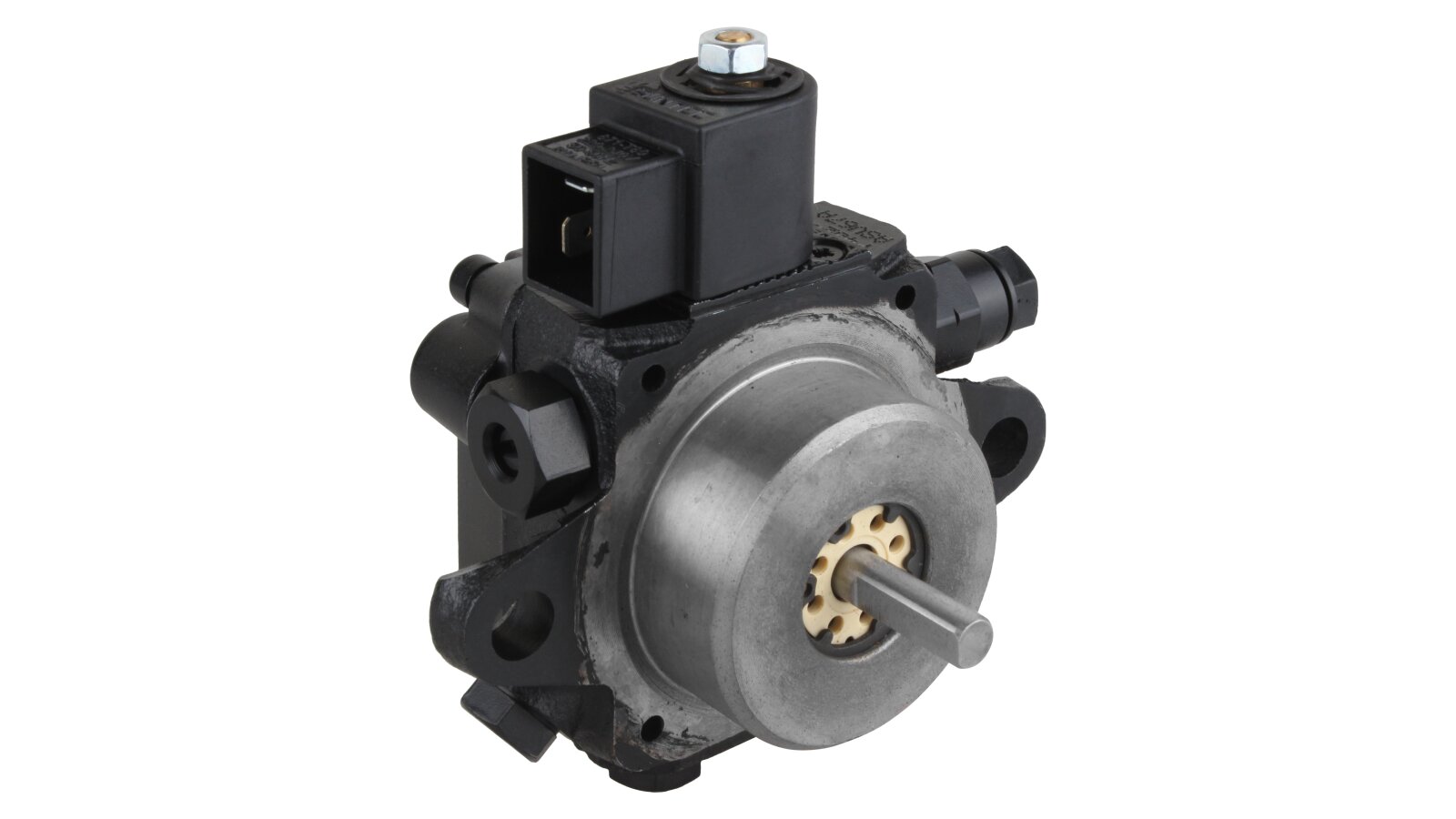

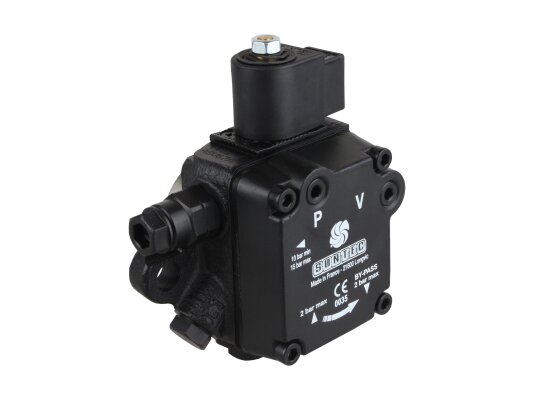

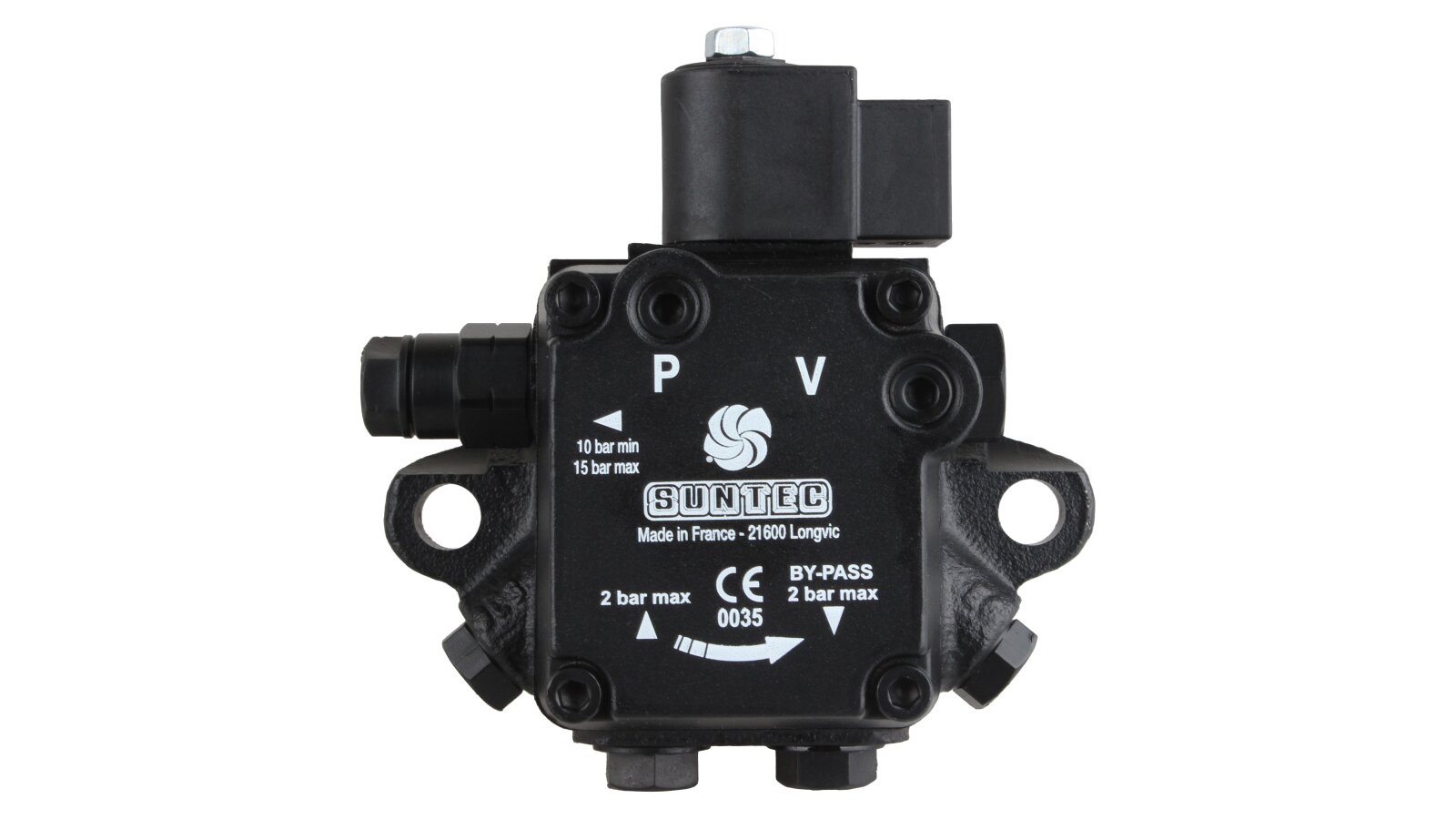

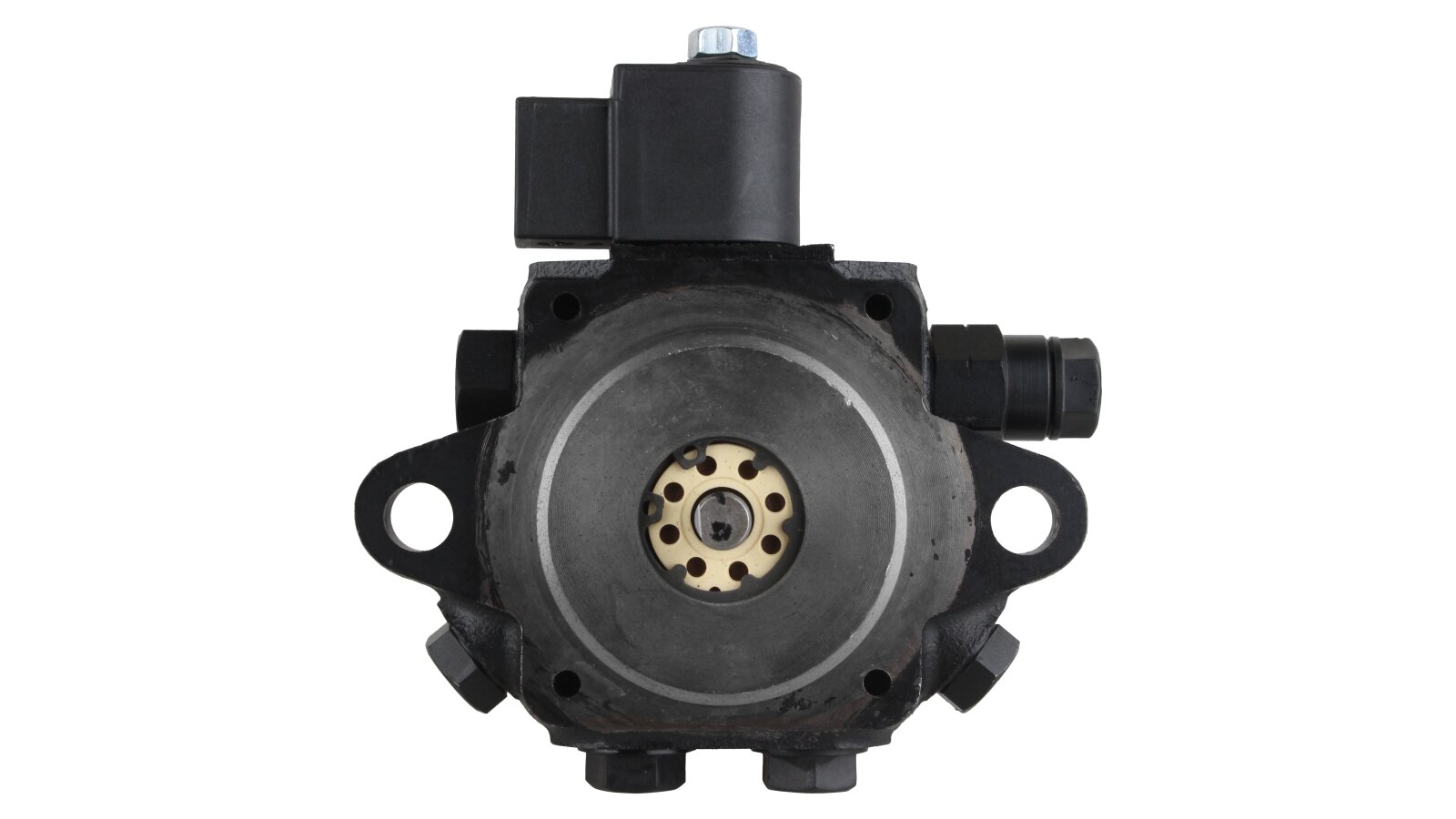

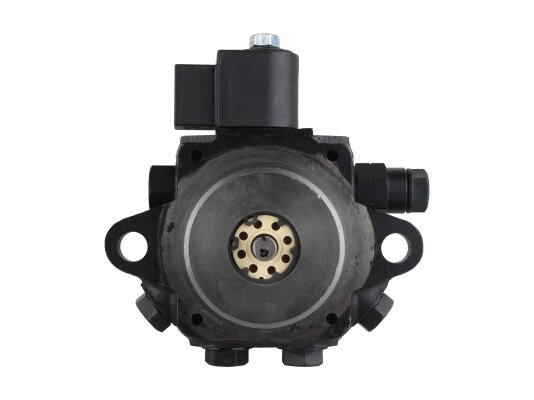

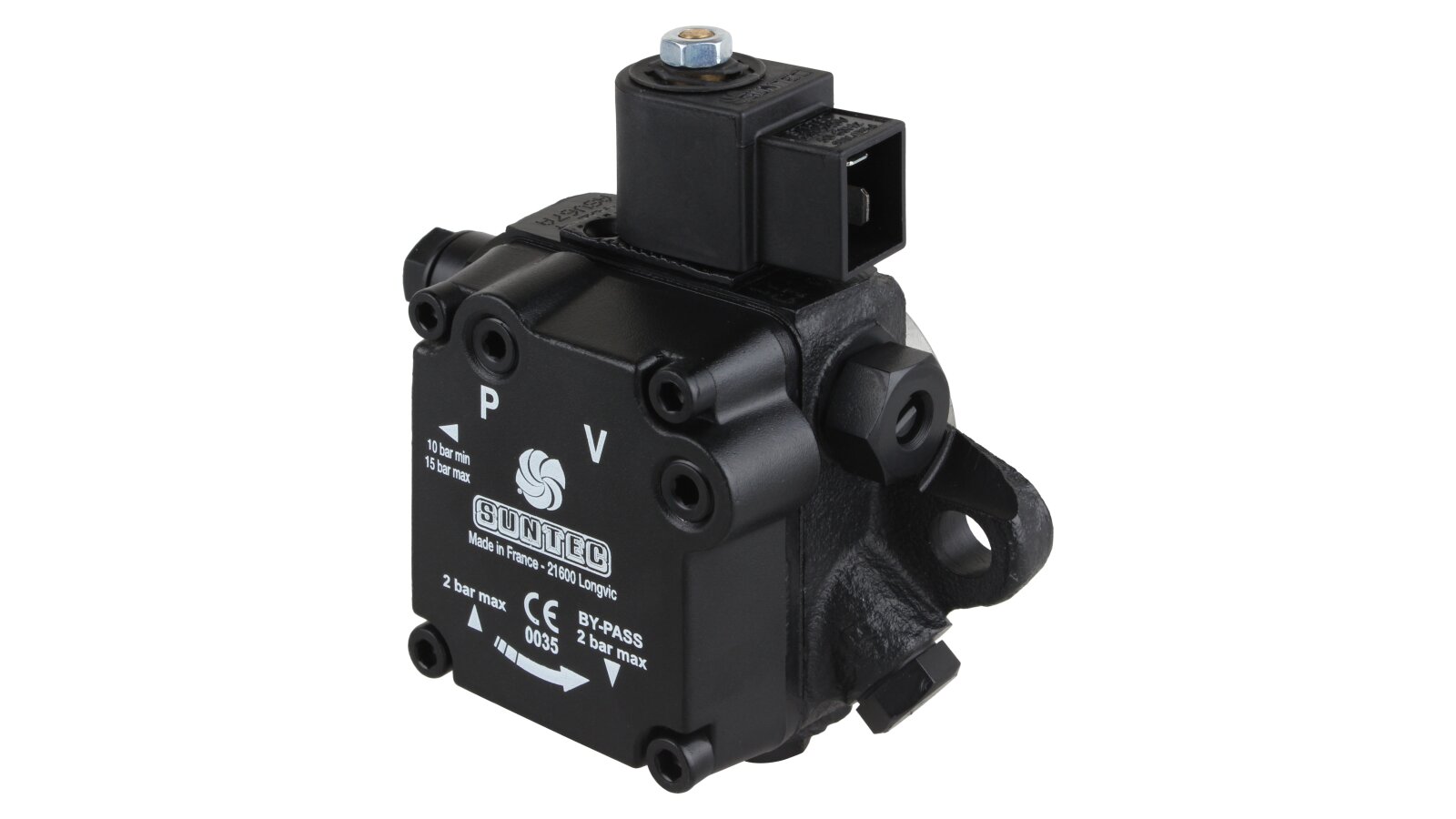

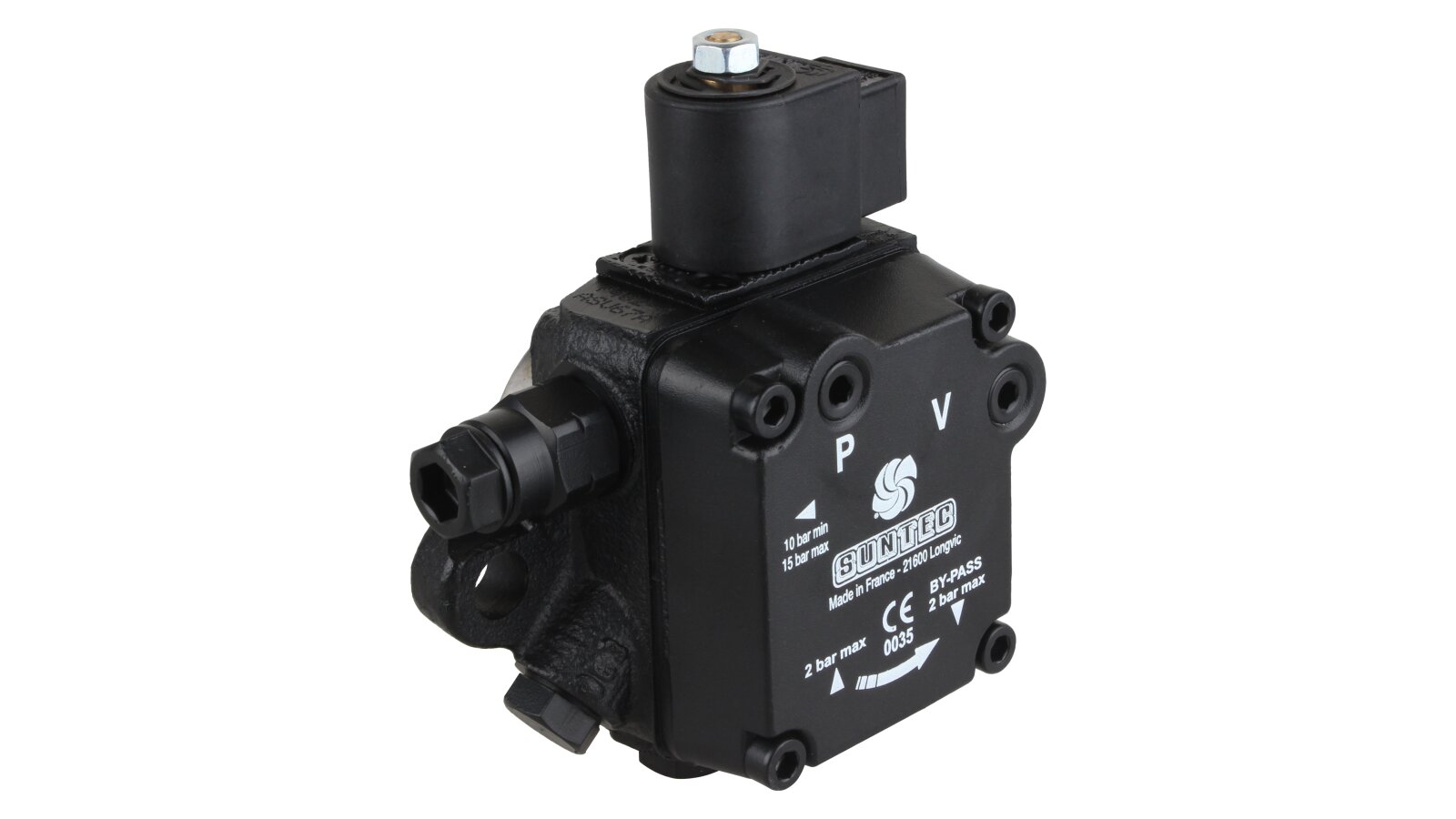

Burner Pump Suntec AS V 67 A 7402 4P 0700

Suntec

AED 700

Oil Burner Pumps
Products code: 10005

Description

The AS V 67 A 7402 4P 0700 gear pump is used to supply diesel fuel and biodiesel to burners with a capacity of 10-1000 kW. Due to the standard installation method, it is suitable for completing heating equipment from most manufacturers, including Lamborghini, Baltur, Weishaupt, Elco. The model is part of the AS series with a built-in electromagnetic valve that regulates pressure and performs a shut-off function.

Features

The pump has a right-hand outlet to the nozzle line. The shaft rotates clockwise. It is characterized by high productivity - 80 l / h at a feed pressure of 11 bar and a viscosity of 5 cSt.

The design uses special shaft seals made of Viton. Thanks to this design, the pump is universal - it pumps not only diesel fuel, but also biodiesel.

From the factory, the unit is supplied with a pressure setting of 10 atmospheres. The pressure can be changed within 10-15 bar by turning the adjusting screw to the right/left. It is necessary to use a pressure gauge to prevent damage to the device.

The "normally open" solenoid valve closes the return line when in operation. When inactive, the bypass channel is open. The fuel that does not pass through the nozzle returns to the tank in a two-pipe system, and is sent to the suction line in a one-pipe system. In this case, for installations with one pipe, you should first remove the bypass plug and replace it with a steel one.

The advantages of the model are:

  • pumping diesel fuel and biodiesel;

  • built-in EM with a shut-off function;

  • standard connection (EN 225), supported by almost all manufacturers of heating burners;

  • serviceable coarse filter to protect the working mechanism from breakdowns;

  • dust and moisture protection of the housing, class IP54;

  • openings for pipelines and ports for connecting instrumentation according to ISO 228/1.

On the ANKAS website you can buy diesel pumps for burners AS V 67 A 7402 4P 0700 at an affordable price. Suntec equipment, thanks to the high quality of each part and careful fitting, will serve for many years without interruption.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 80 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 80 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightMaximum pressure of the solenoid valve: 25 barTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 10 to 15 barFactory pressure setting: 10 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDegree of protection: IP54
