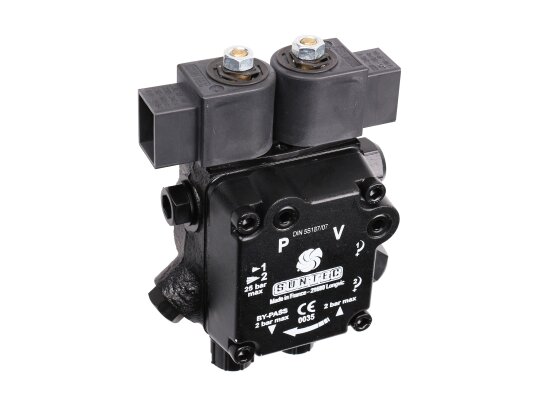

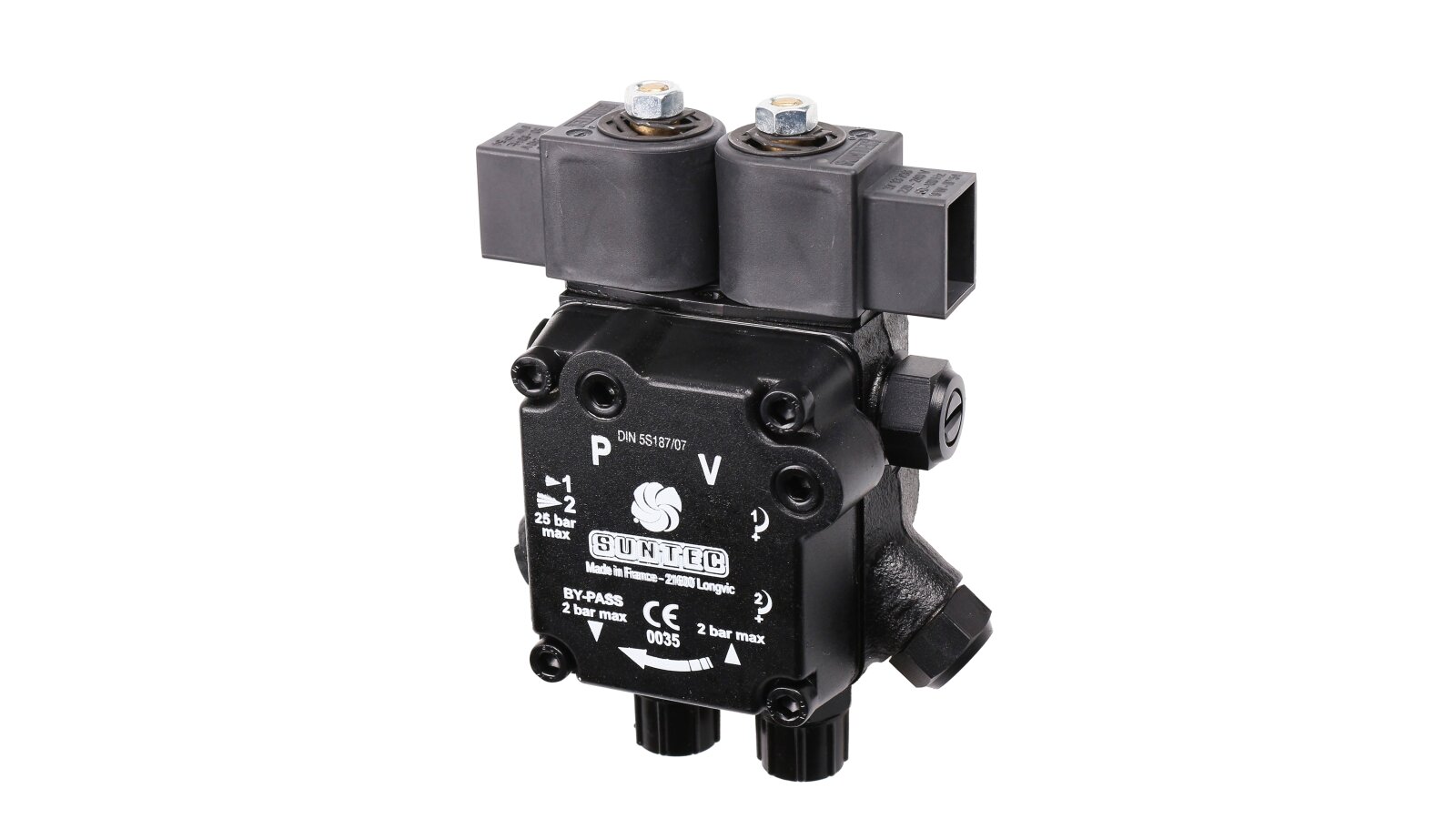

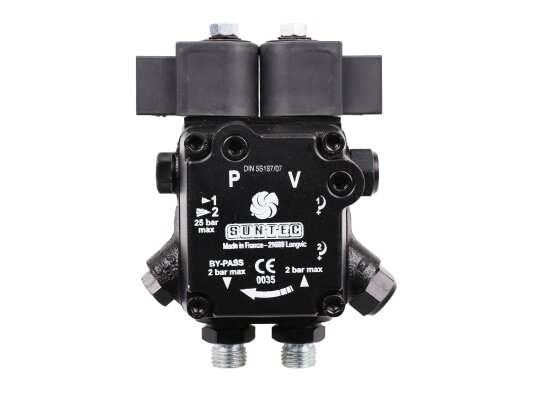

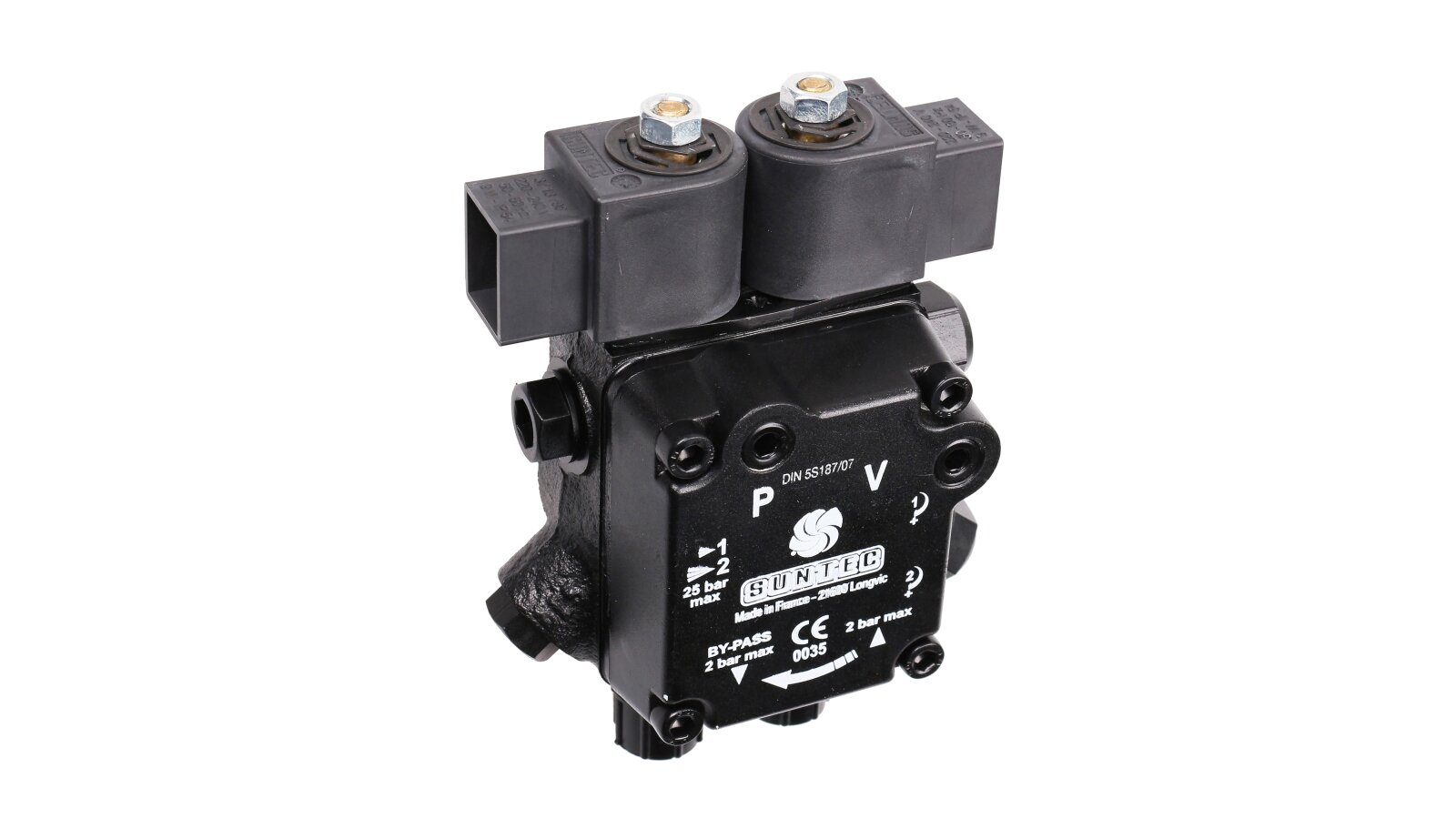

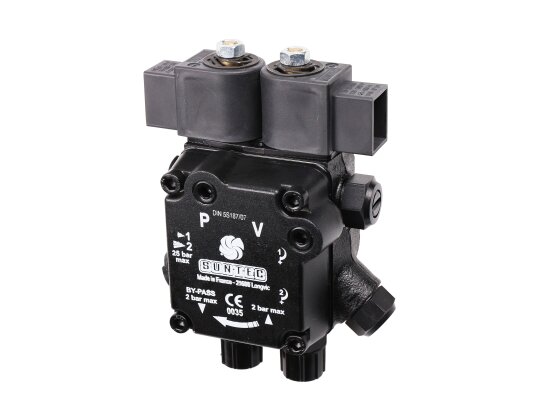

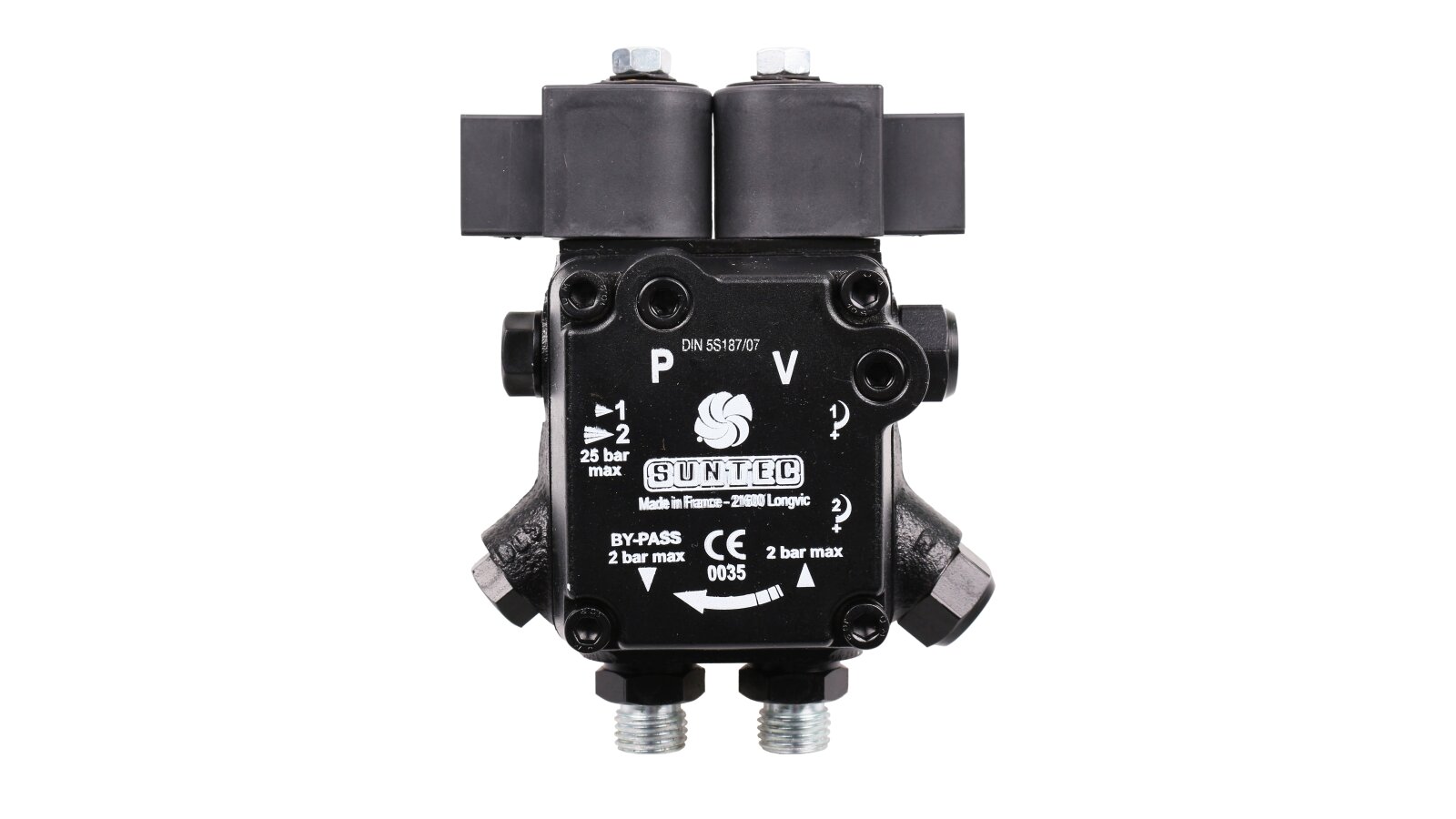

Burner Pump Suntec AT2 65 A 9577 4P 0700

Suntec

Alternative Part Number

De Dietrich

97955053

AED 2,000

Oil Burner Pumps
Products code: 1381

Description

The gear pump from the French concern Suntec AT2 65 A 9577 4P 0700 for pumping diesel fuel is a representative of the AT2 series with two modes of delivery to the injector. It belongs to the devices of medium productivity - up to 87 l / h at the second stage. The compact unit is equipped with a shut-off electromagnetic valve that disconnects the discharge cavity from the injector, which is connected to the right side of the housing. On the website of the company "ANKAS" you can buy a fuel pump for a diesel burner at an affordable price.

Design features

The pump is connected to the drive shaft of the electric drive, which transmits rotation to the gear mechanism, by a sleeve method with a landing diameter of 32 mm. The gear pair, creating negative pressure in the fuel line, sucks the working fluid out of the tank. Then it is directed to the injector and to the first stage spool (low pressure mode).

To turn on the second stage (high pressure mode), the bypass EM valve closes the channel and directs the flow to the high pressure spool. The shut-off valve is designed to operate regardless of the drive shaft speed.

An additional pipeline can be connected to the pump to drain diesel fuel that has not passed to the injector line into the tank.

Advantages of the model:

  • relatively high productivity - up to 87 l / h;

  • operates in one of two pumping modes with a pressure from 8 to 25 atm;

  • an outlet with a G ¼ "thread is provided for draining fuel and releasing air from the system;

  • the presence of ports for connecting instrumentation devices - a pressure gauge and a vacuum gauge - with a standard cylindrical thread according to ISO 228/1 G ⅛ ";

  • a durable and sealed housing with an IP54 electrical protection rating protects the mechanism from water splashes, mechanical particles and dust;

  • a built-in mesh filter with a cell size of 150 microns in the suction line.

Suntec pumps are manufactured using modern technology using many years of experience of specialists in the field of mechanics and hydrodynamics. Calibrated channels, special layout, minimal tolerances - all this has a positive effect on the durability and efficiency of the device with minimal energy costs. Before going on sale, each product is adjusted and tested at the manufacturer, which guarantees its quality and trouble-free operation.

Characteristics

Strainer: Open area: 6 cm²Installation method: sleeve ∅ 32 mmSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 64 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 87 l/hMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.14 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
