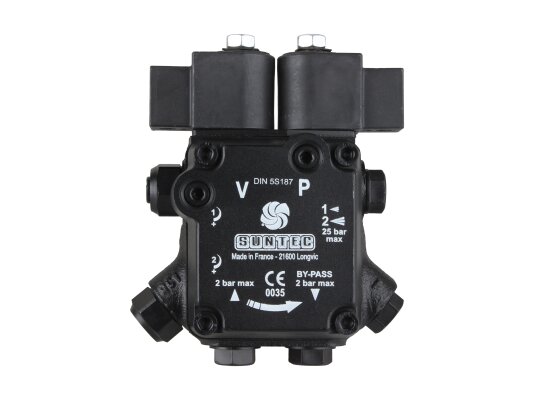

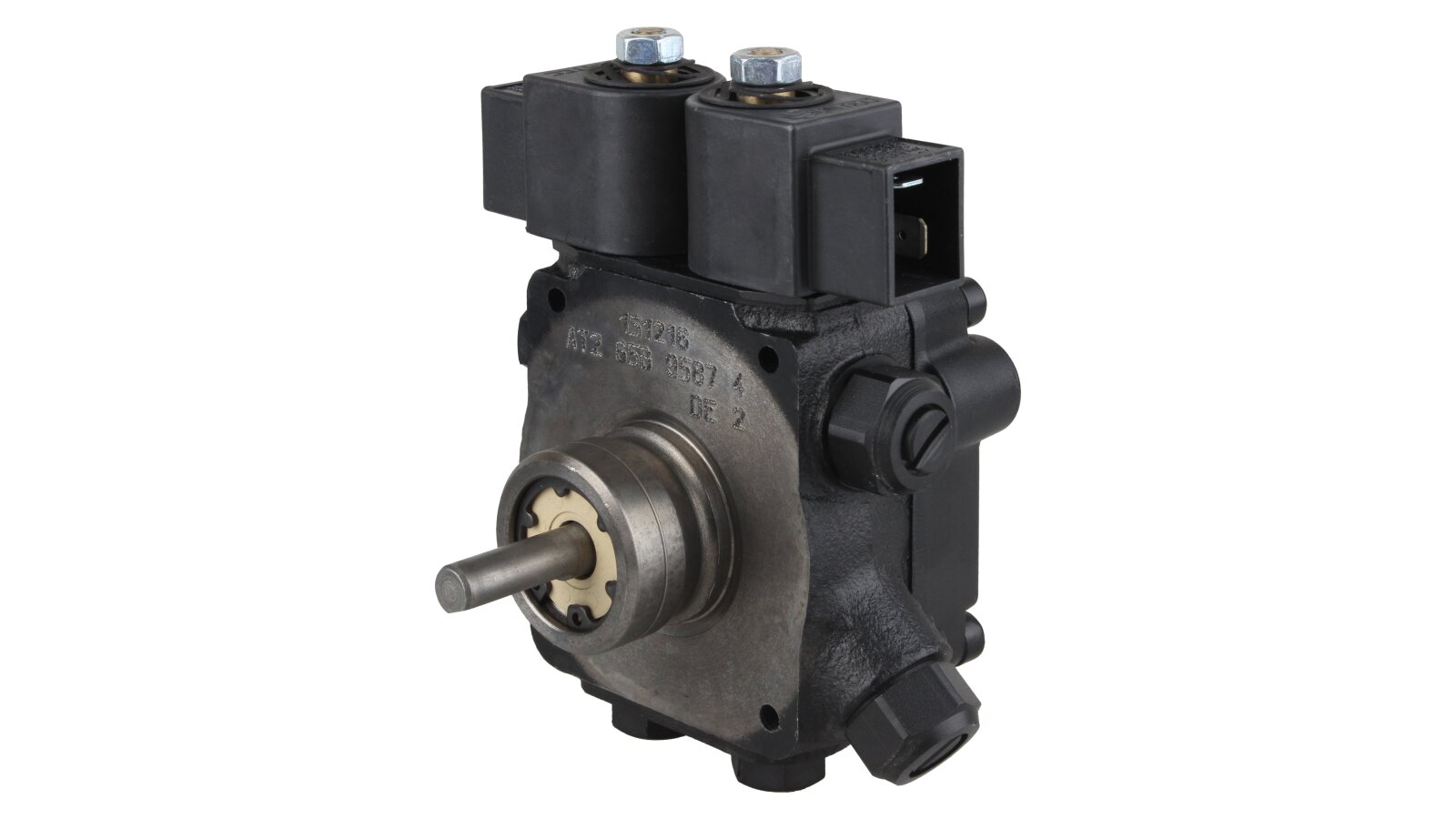

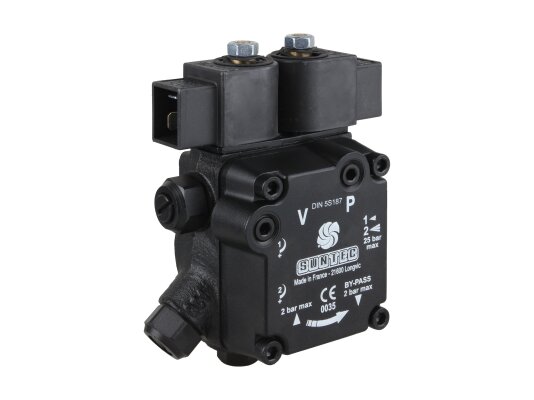

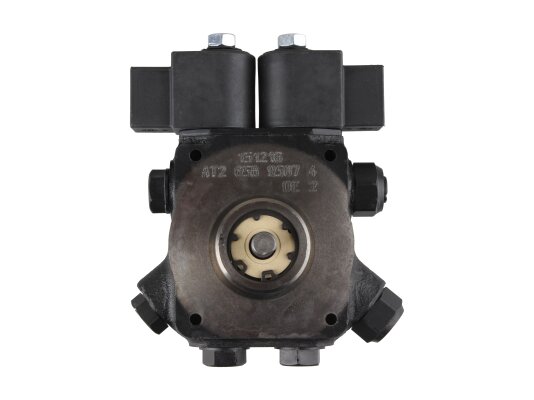

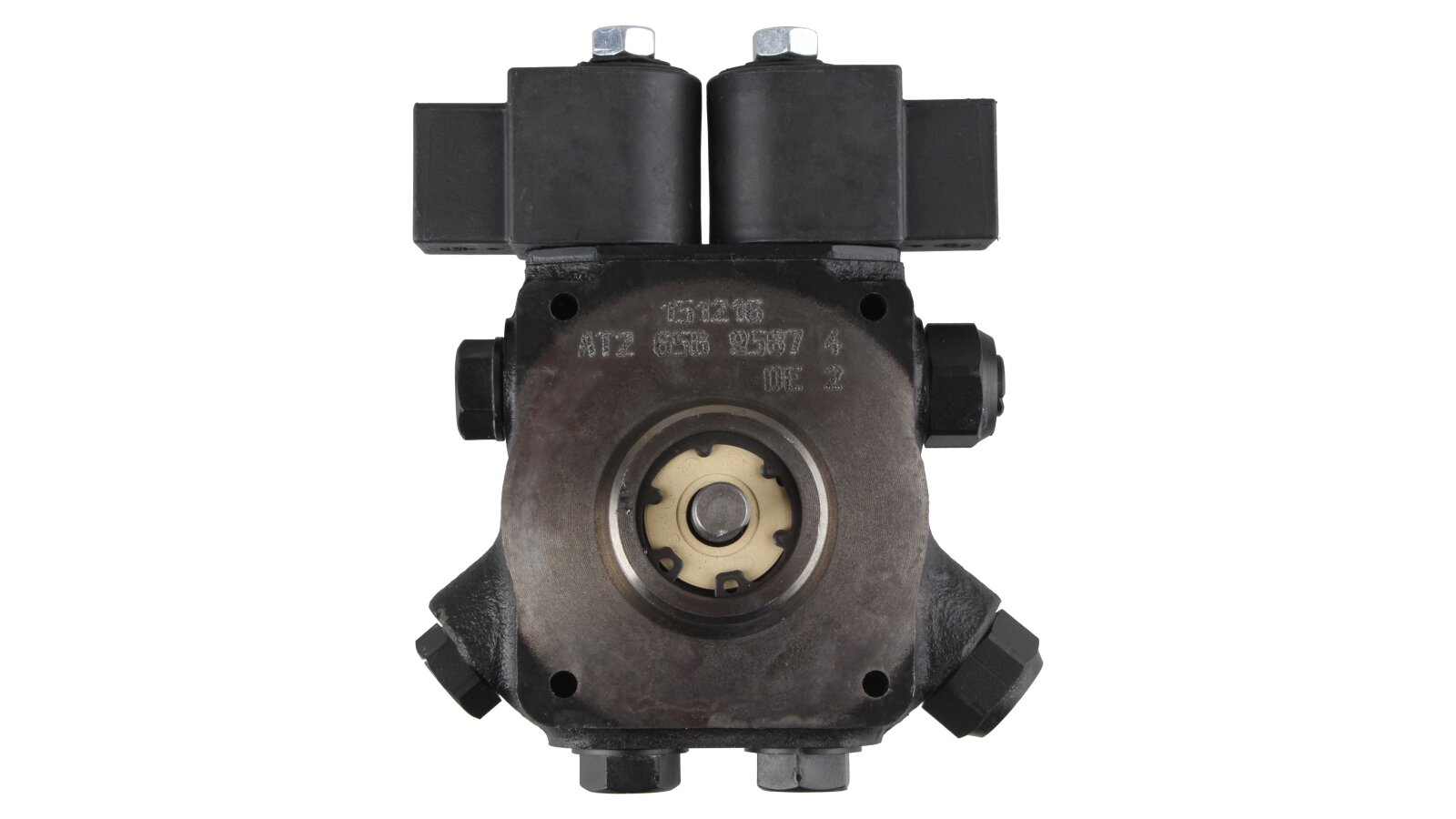

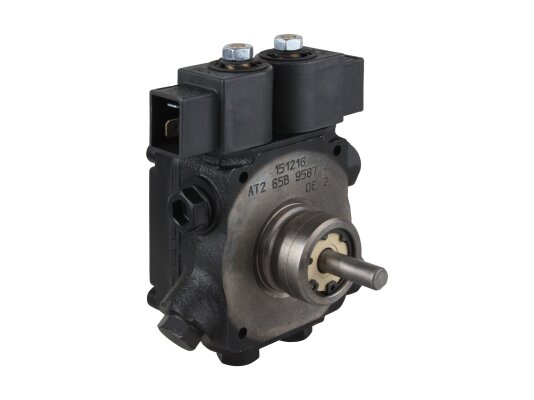

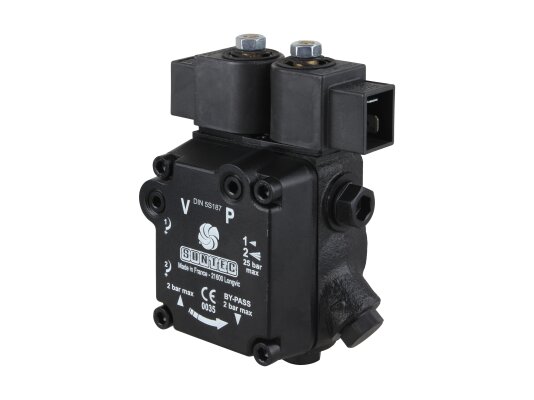

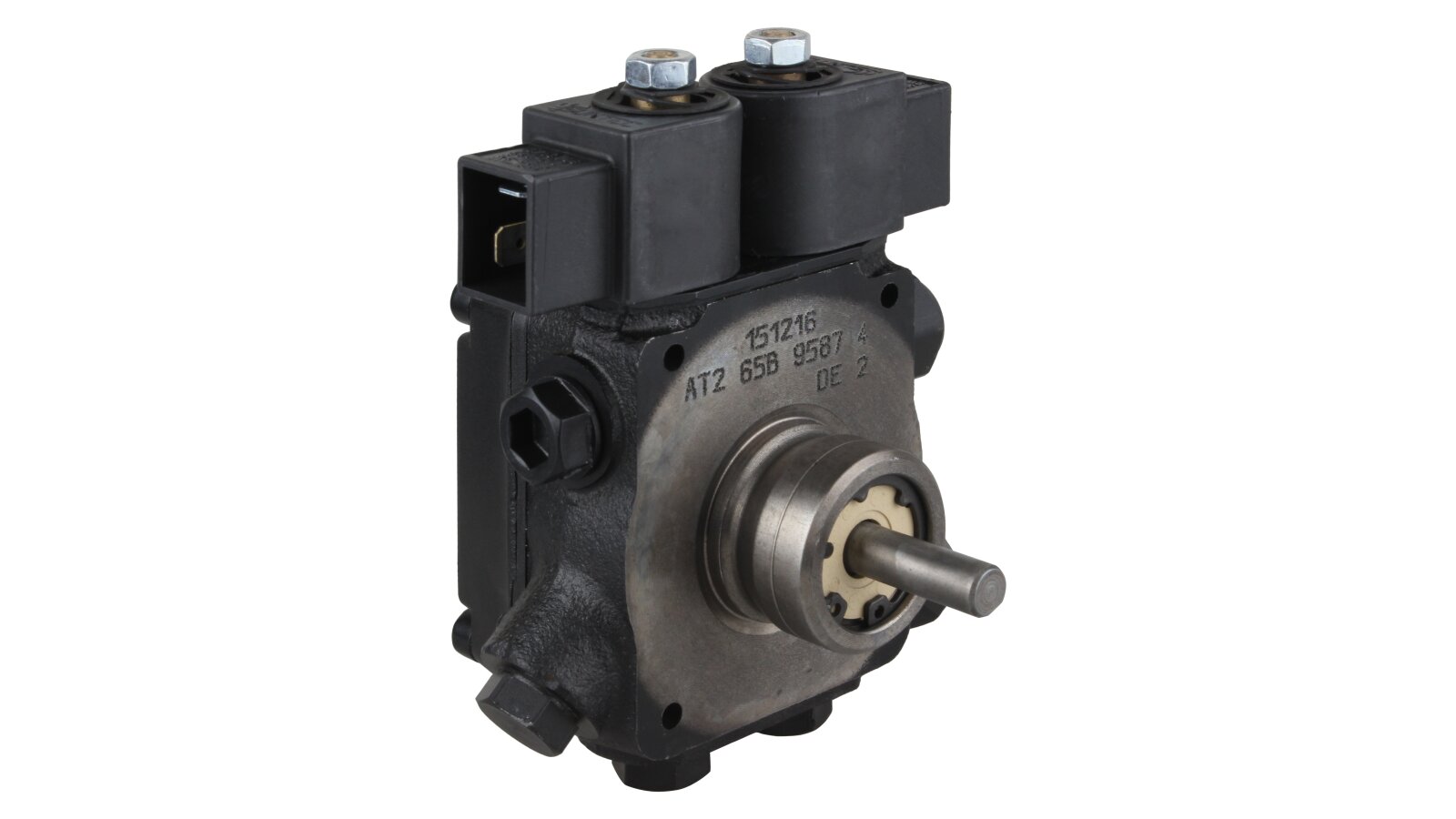

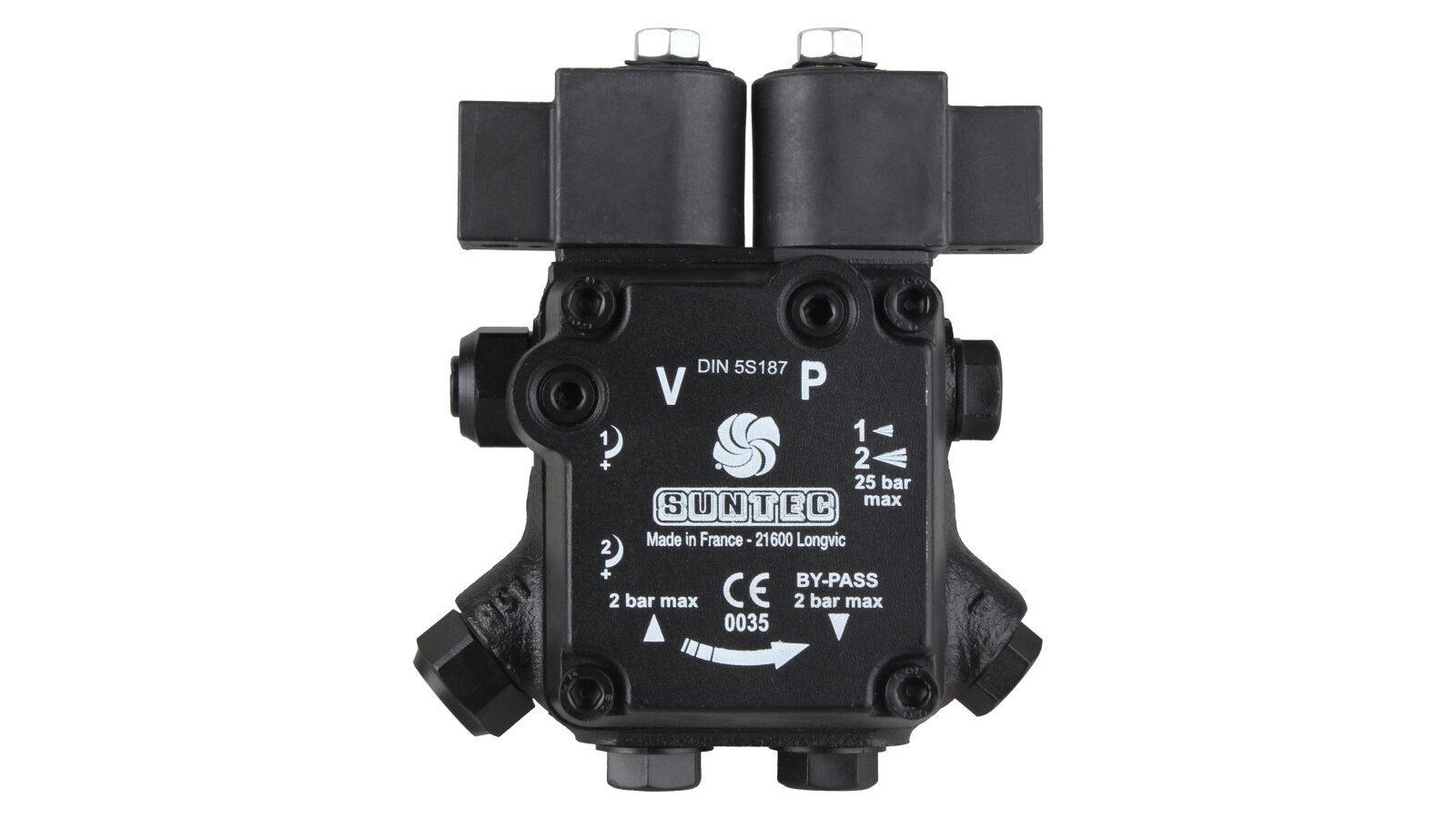

Burner Pump Suntec AT2 65 B 9587 4P 0700

Suntec

AED 2,475

Oil Burner Pumps
Products code: 6851

Description

The Suntec AT2 65 B 9587 4P 0700 pump pumps fuel to the injector at a rate of 87 l/h with a viscosity of 5 cSt and a pressure of 11 bar. It operates in two pressure modes, switching between which is carried out by an electromagnetic bypass valve. The second EM valve performs the function of cutting off the flow. The pump is used to equip diesel burners.

Features

  • The pump is equipped with a dust- and moisture-proof housing that meets the IP54 standard. The location of the outlet to the fuel supply line is on the left side.

  • The gears are responsible for moving diesel fuel from the tank to the injector line. The fuel first passes through a built-in mesh filter and regulating (spool) valves.

  • The mesh removes abrasive inclusions from the fuel, the size of which is more than 150 microns, which contributes to the long service life of the equipment, prevents early wear and tear and breakage.

  • The pressure is regulated in a wide range, 8-25 bar, for each mode separately. At the factory, the pump is set to 9 and 22 bar (low and high pressure mode). The settings can be changed without turning off the engine.

  • Switching between the first and second stages is carried out by a bypass electromagnetic valve. The shut-off EM valve is characterized by fast response, is located in the injector line.

  • In the basic version, the pump is ready for installation in a system with a return line. If you use the pump for a single-pipe design, then instead of a bypass plug, you should install a blind one, blocking the fuel drain. Depending on the connection diagram, unclaimed fuel returns to the tank or to the gears.

Advantages:

  • high performance;

  • shut-off and bypass electromagnetic valves;

  • dust- and moisture-proof design (IP54 class);

  • standard fit;

  • 2-stage power control mode;

  • standard ports for measuring devices;

  • built-in filter to protect the gear mechanism;

  • installation in systems of various configurations.

The Suntec AT2 65 B 9587 4P 0700 pump is factory tested and complies with European safety and quality standards.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 108 l/hInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 87 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lStrainer: Open area: 20 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.14 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
