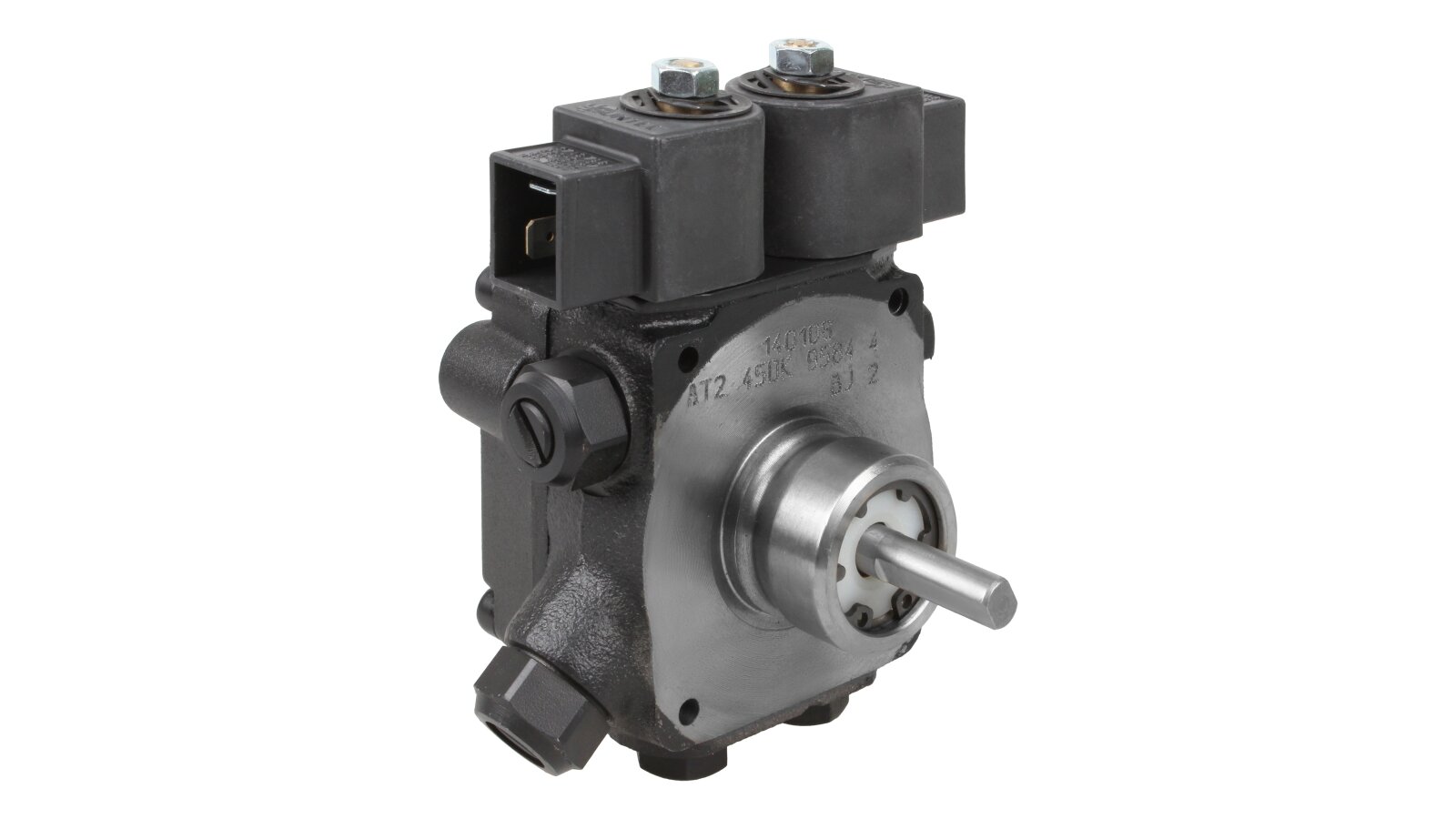

Burner Pump Suntec AT2 65 D K 9582 4P 0700

Suntec

AED 3,200

Oil Burner Pumps
Products code: 55505

Description

The Suntec AT2 65 D K 9582 4P 0700 burner pump is used in two-stage liquid fuel burners to supply fuel under a given pressure. Thanks to a special shaft seal, it can safely pump not only diesel fuel, but also kerosene. For operation in two modes, two control valves and two electromagnetic valves are provided, one of which is located in the nozzle line and has a locking function, the second is used to switch between modes (low / high pressure).

Features and important parameters:

  • pumping light fuel: diesel fuel and kerosene;

  • permissible viscosity of the working medium: 1-12 cSt;

  • wear-resistant design for industrial burners;

  • two pressure modes and one nozzle line;

  • pressure regulating valves (one for each stage) and electromagnetic valves;

  • flow rate - 85 l / h (11 bar / 5 cSt);

  • for single-pipe and dual-pipe connection;

  • shaft seal material – Viton for safe operation with kerosene;

  • pressure: 8-25 bar (8-15 and 12-25 bar), preset to 9 and 22 bar;

  • permissible fuel temperatures: 0...+60 °C;

  • sleeve fit ∅ 32 mm;

  • built-in filter at the fuel inlet to the pump, hole size 150 μm;

  • dust and moisture protection level IP 54 according to EN60529 when using SUNTEC cable;

  • threaded holes and ports for connection to pipes, connection of devices;

  • automatic air bleed in dual-pipe systems;

  • inlet/outlet pressure – up to 2 bar.

The Suntec AT2 burner pump can be built into single-pipe and dual-pipe configuration systems. A bypass plug is installed in the return line opening for a 2-pipe connection or a steel plug with a washer for a one-pipe wiring scheme.

Characteristics

Strainer: Open area: 6 cm²Maximum pressure of the solenoid valve: 25 barDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lInstallation method: sleeve ∅ 32 mmStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 85 l/hMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: two cavitiesDegree of protection: IP54Type of pumped liquid: kerosene, diesel
