Description

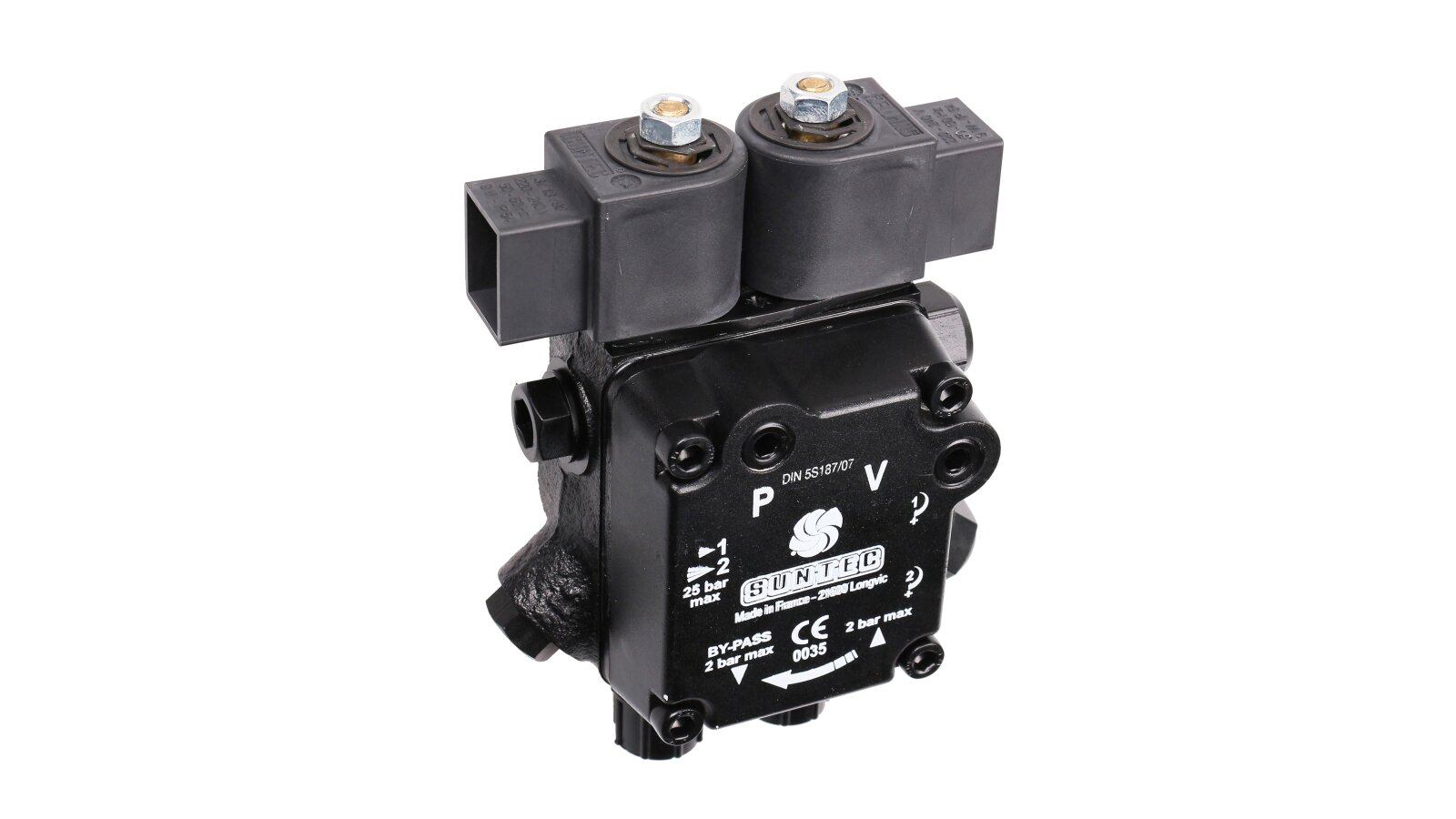

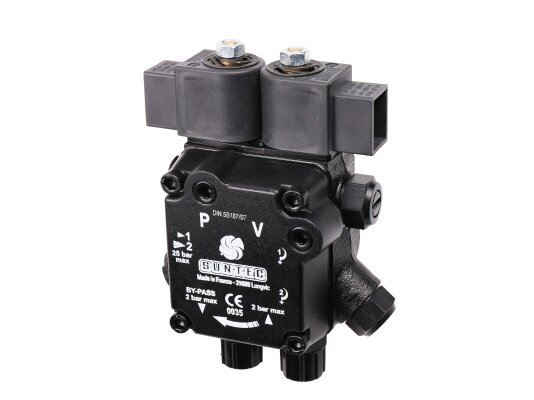

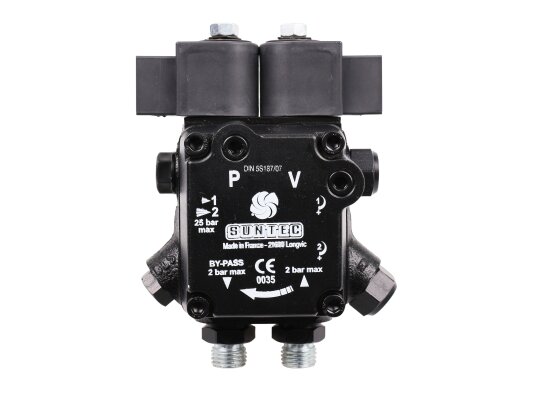

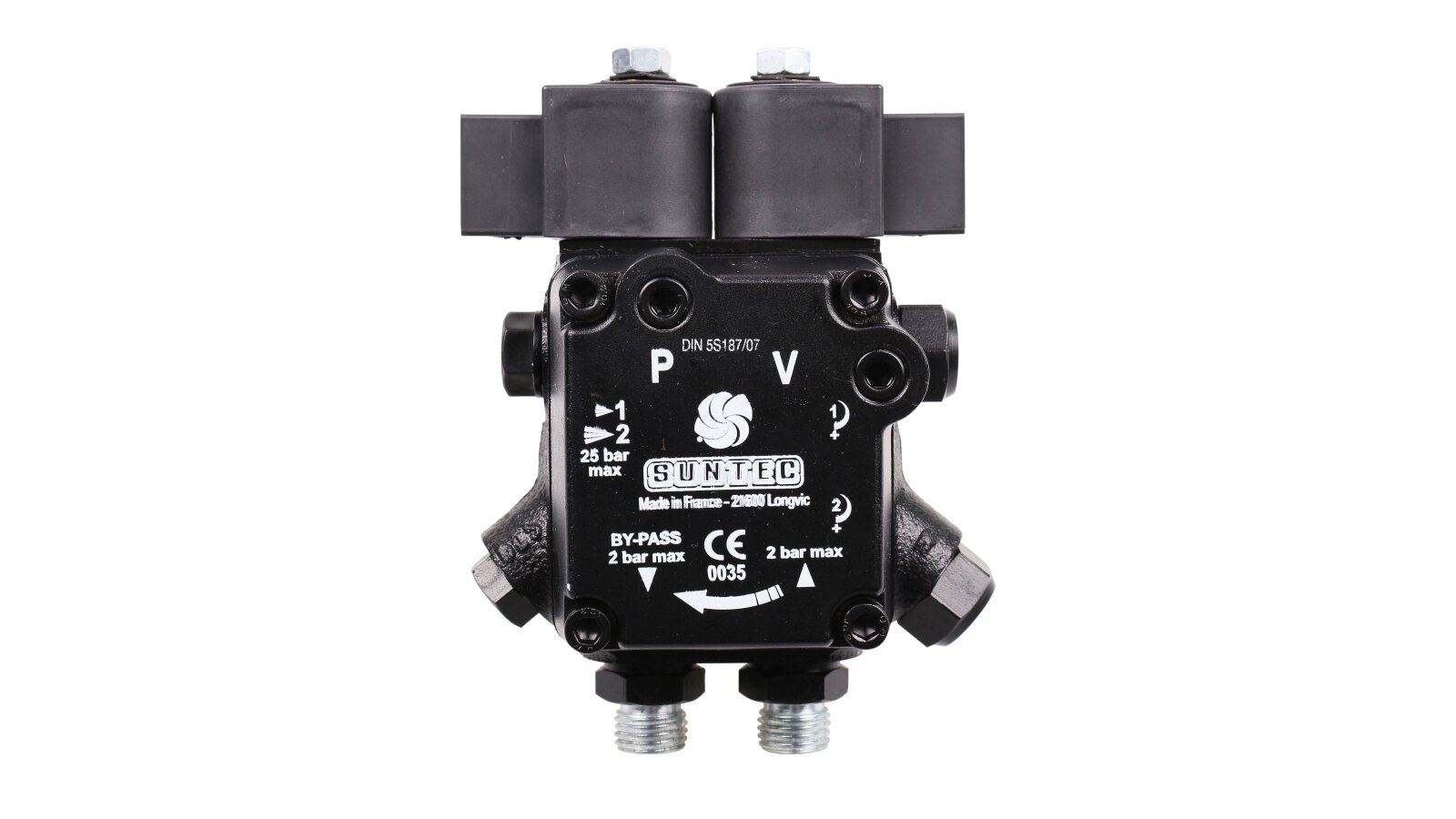

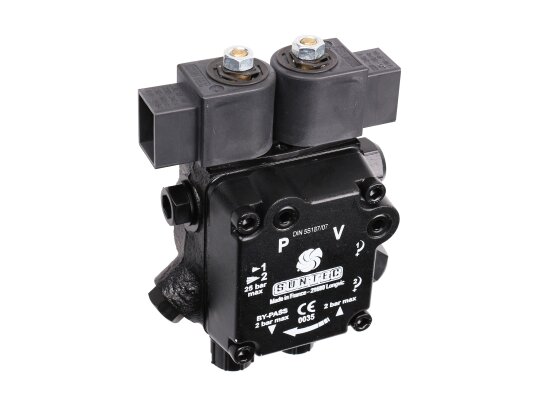

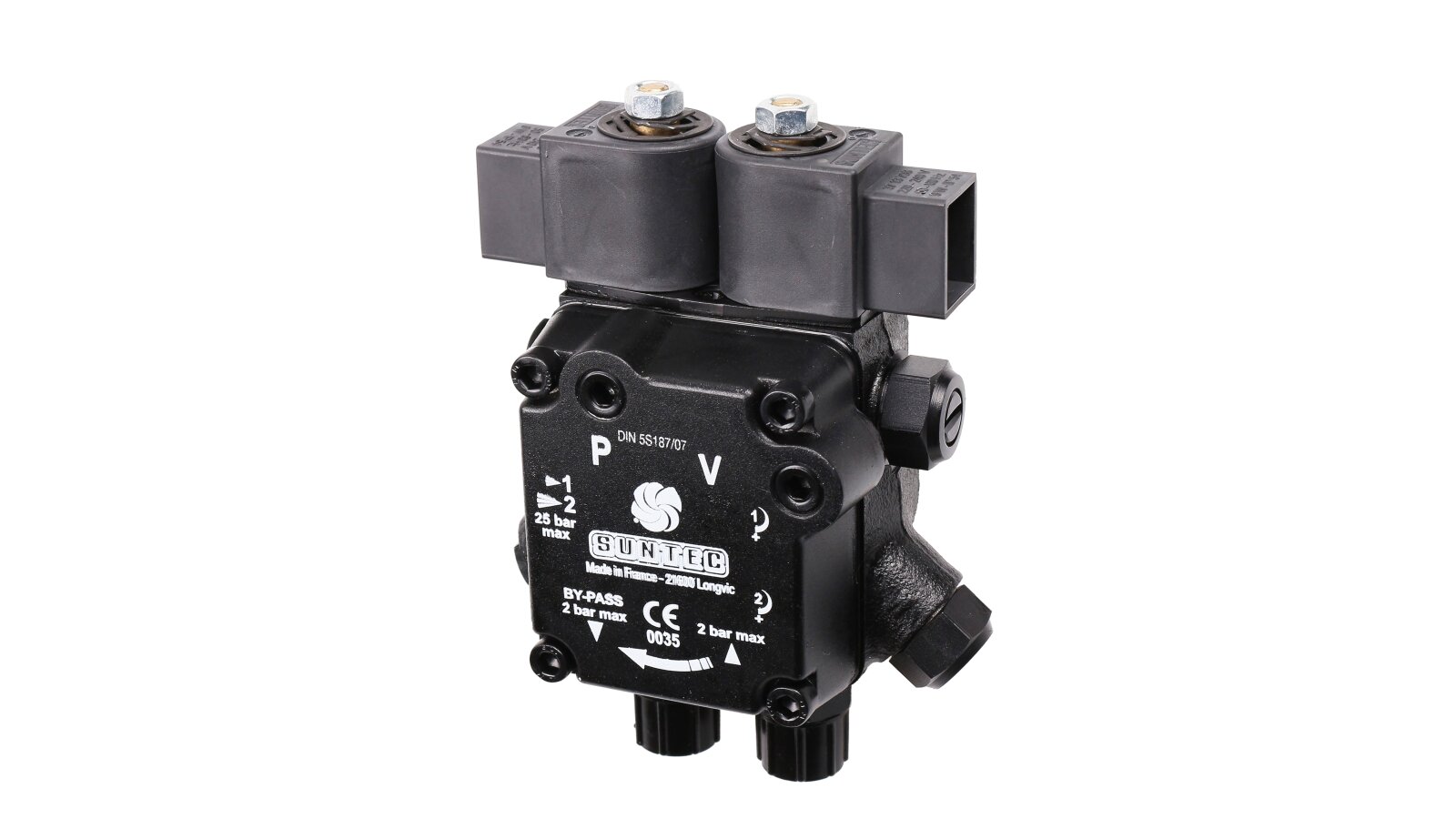

The gear liquid fuel pump with two delivery modes AT2 75 C 9583 4P 0700 belongs to a number of models of the AT series with high performance. The main difference from the basic modifications is the presence of electromagnetic and spool valves built into the body, with the help of which the control and change of the parameters of the fuel pressure supplied to the injector line is carried out.
The online store of the company "ANKAS" presents reliable equipment for heating systems from European manufacturers at an affordable price. To buy a burner fuel pump, just fill out a short form on the website or call the specified phone numbers.
Design features
A classic mechanism consisting of a toothed pair of gears rotating counterclockwise is responsible for moving fuel from the tank to the spool valves. In order not to damage the system elements and prevent their premature wear, the working fluid is pre-cleaned using a mesh filter. Periodically, it is necessary to remove it and wash the working area from accumulated debris. Thanks to the 150 µm cell size, the filter is able to capture even the smallest specks of dirt, sand and rust.
The tightening of the adjusting bolts on the slide valves determines the degree of pressure of the pumped liquid. The switched-on pumping mode corresponds to the position of the bypass electromagnetic valve. The second such valve is a shut-off valve and blocks the flow of fuel to the injector.
Main advantages:
operates in two pumping modes, where each of them can be flexibly adjusted as needed;
efficient operation with low energy consumption;
standard sizes of all pipeline outlets and ports for instrumentation according to ISO 228/1;
adjustable pressure range from 8 to 25 atm;
large open area of the mesh filter - 20 cm².
French liquid fuel pumps Suntec are modern solutions for the assembly of heating equipment, unified for such well-known brands of burners as Weishaupt, Elco, Baltur, Lamborghini. All products have high efficiency due to reduced friction of moving parts and minimal gaps between the teeth and the body. The use of expensive alloys and electrical components in production automates the pumping process, reduces wear and increases the overall performance of the pumps.
