Description

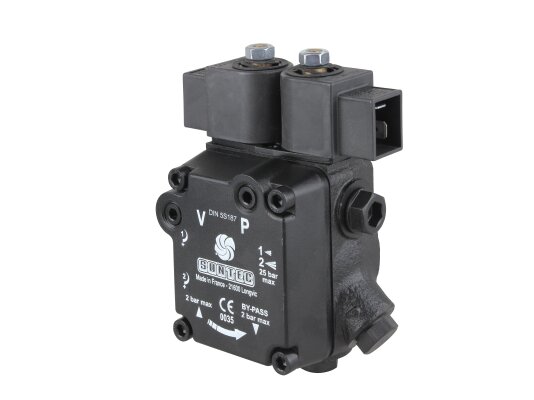

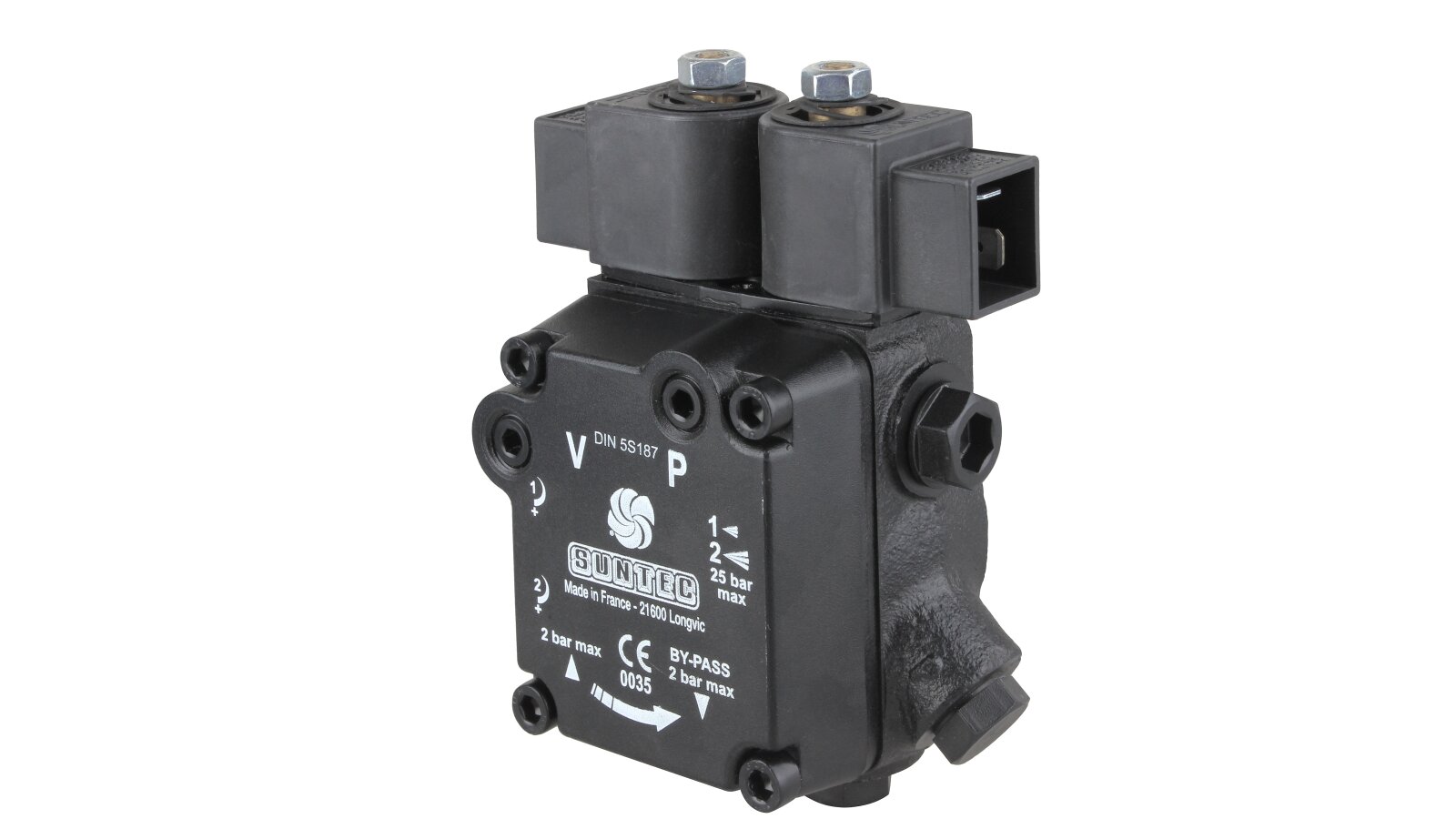

Modification of the pump for the Suntec AT series burner of the standard model without a complete cable with the ability to work with a biofuel mixture containing 30% methyl esters of fatty acids.
Characteristics
Performance at 11 bar pressure and 5 cSt viscosity: 108 l/hDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 87 l/hPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lStrainer: Open area: 20 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.14 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: diesel / biodiesel fuel blend B30Degree of protection: IP54
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
