Burner Pump Suntec AT3 65 D 9568 4P 0700

Suntec

AED 1,550

Oil Burner Pumps
Products code: 6859

Description

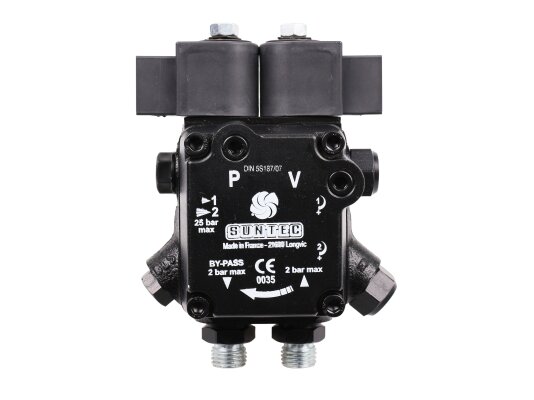

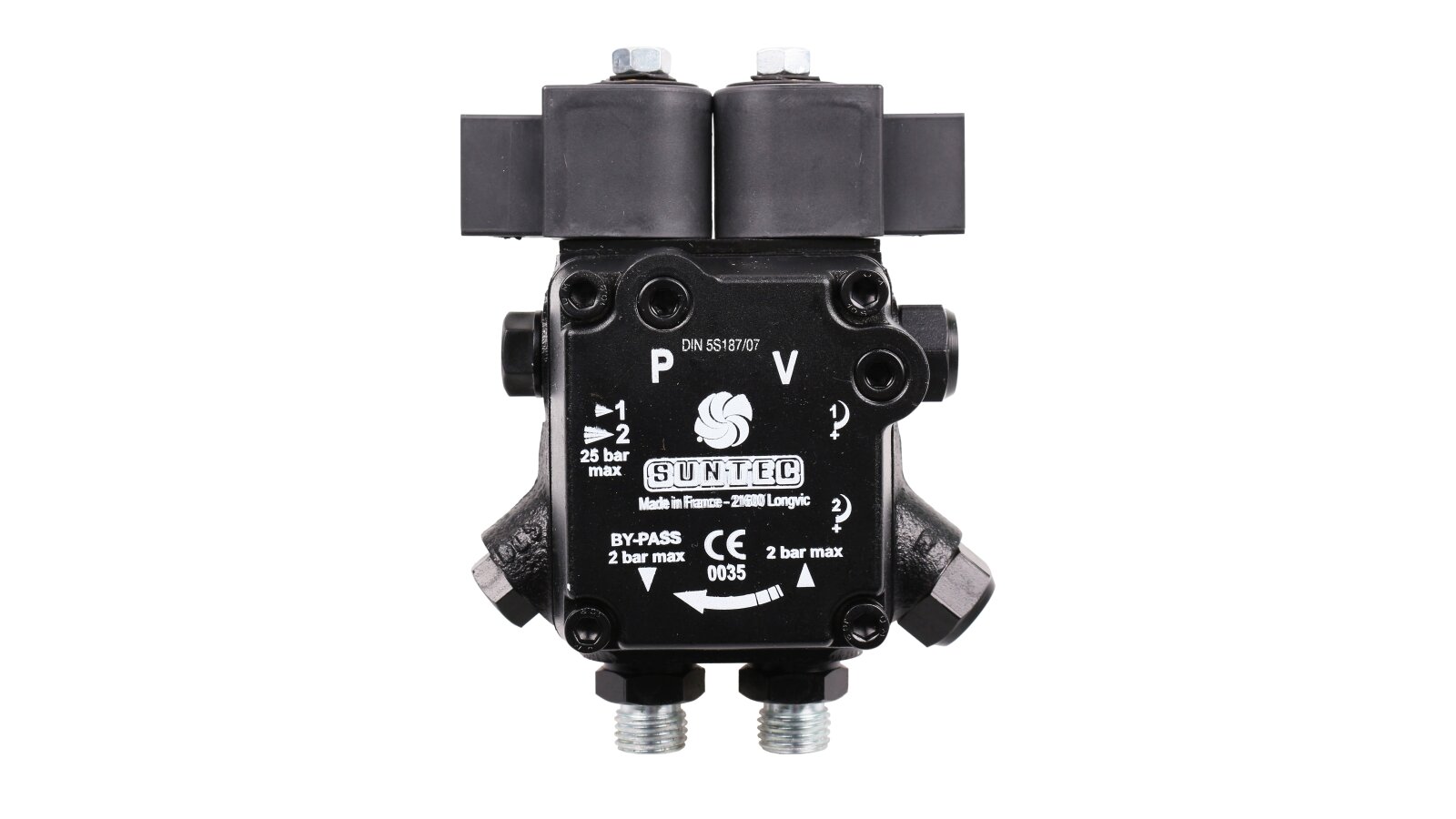

The Suntec AT3 65 D 9568 4P 0700 pump is used in diesel burners. It pumps fuel in 2 pressure modes, switching between which is provided by a bypass electromagnetic valve. The second EM valve performs the function of shutting off the flow and is characterized by rapid response. A special feature of this model is a special output for measuring pressure in high-pressure mode and dumping in low-pressure mode.

Design and features

  • The pump is equipped with a reliable housing with high-quality insulation from dust and moisture (electrical protection class IP54). The outlet pipe to the nozzle is located on the right.

  • A gear pair moves fuel from the tank to the nozzle line through a shut-off electromagnetic valve. The placement of the EM valve in the nozzle line ensures instantaneous response. To regulate the pressure, the pump is equipped with two slide valves (one for the 1st stage, the second for the 2nd stage).

  • The fuel first passes through a mesh filter located at the fuel inlet. The mesh retains all abrasive particles larger than 150 microns, which contributes to a long service life of the pump and minimizes wear.

  • The pressure is regulated in a wide range, 8-25 bar, for each mode separately. Factory setting: 9 and 22 bar.

  • Switching between low and high pressure modes is carried out by a "normally open" bypass solenoid valve.

  • The pump is supplied from the factory ready for installation in a system with a return line. To create a single-pipe design, the bypass plug should be removed and a steel plug with a washer should be installed instead.

  • Installation is carried out using a sleeve connection, which complies with the European standard EN 225. This mounting option is used in burners from most manufacturers, which makes the pump universal.

Advantages:

  • 2-stage power control;

  • shut-off and bypass solenoid valves;

  • high level of dust and moisture protection (IP54 class);

  • standard mounting (EN 225);

  • ports for connecting measuring instruments;

  • integrated mesh filter for protection of gear pair;

  • installation in one-pipe and two-pipe systems.

You can learn more about the Suntec AT3 65 D 9568 4P 0700 pump from our specialists.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 68 l/hInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 53 l/hPump series: AT3: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barTorque: 0.1 N·mNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
