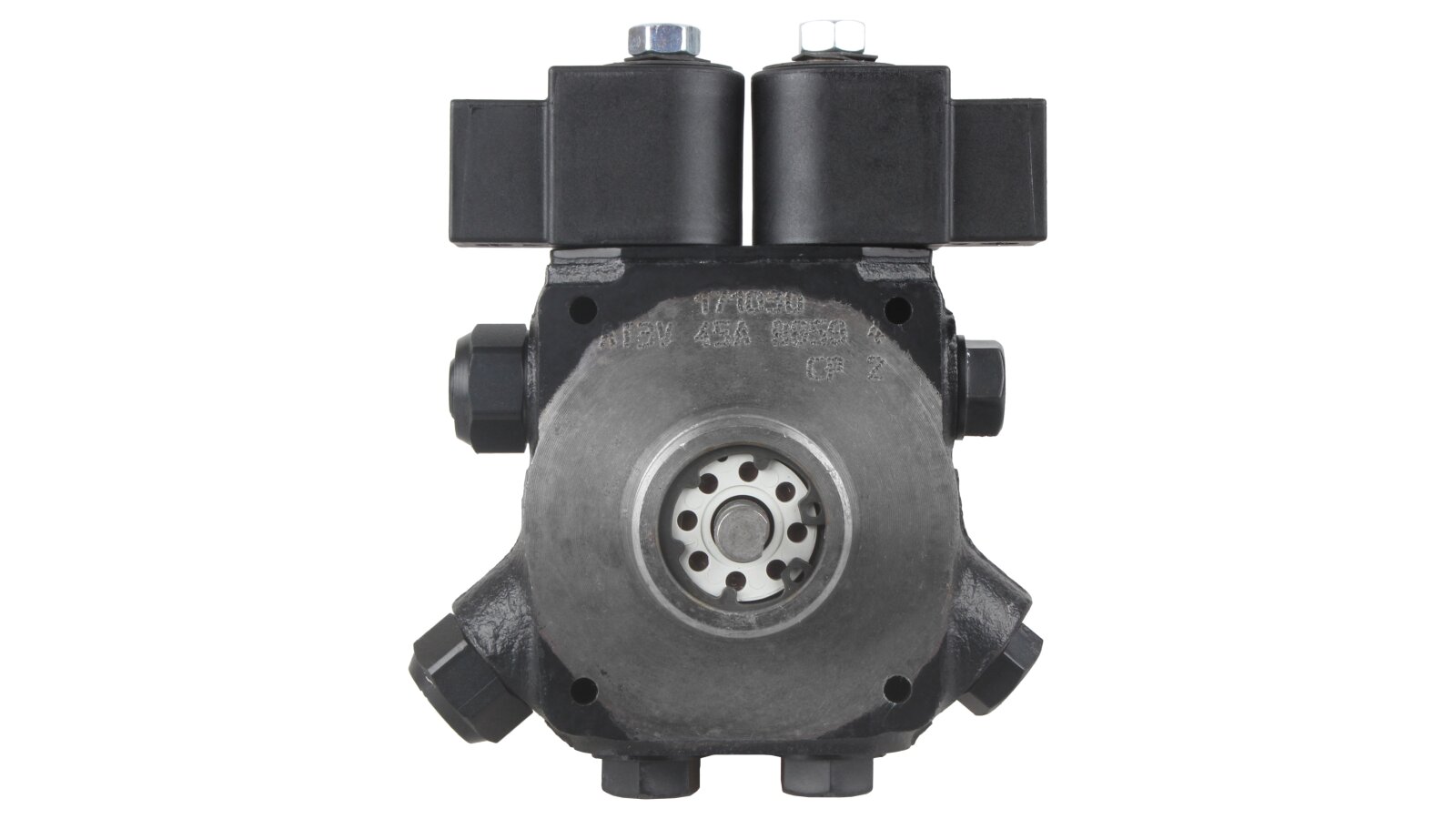

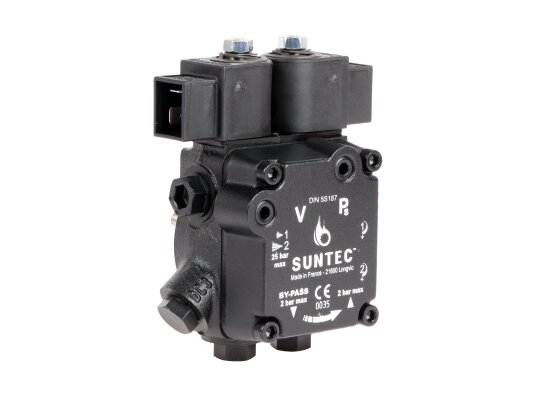

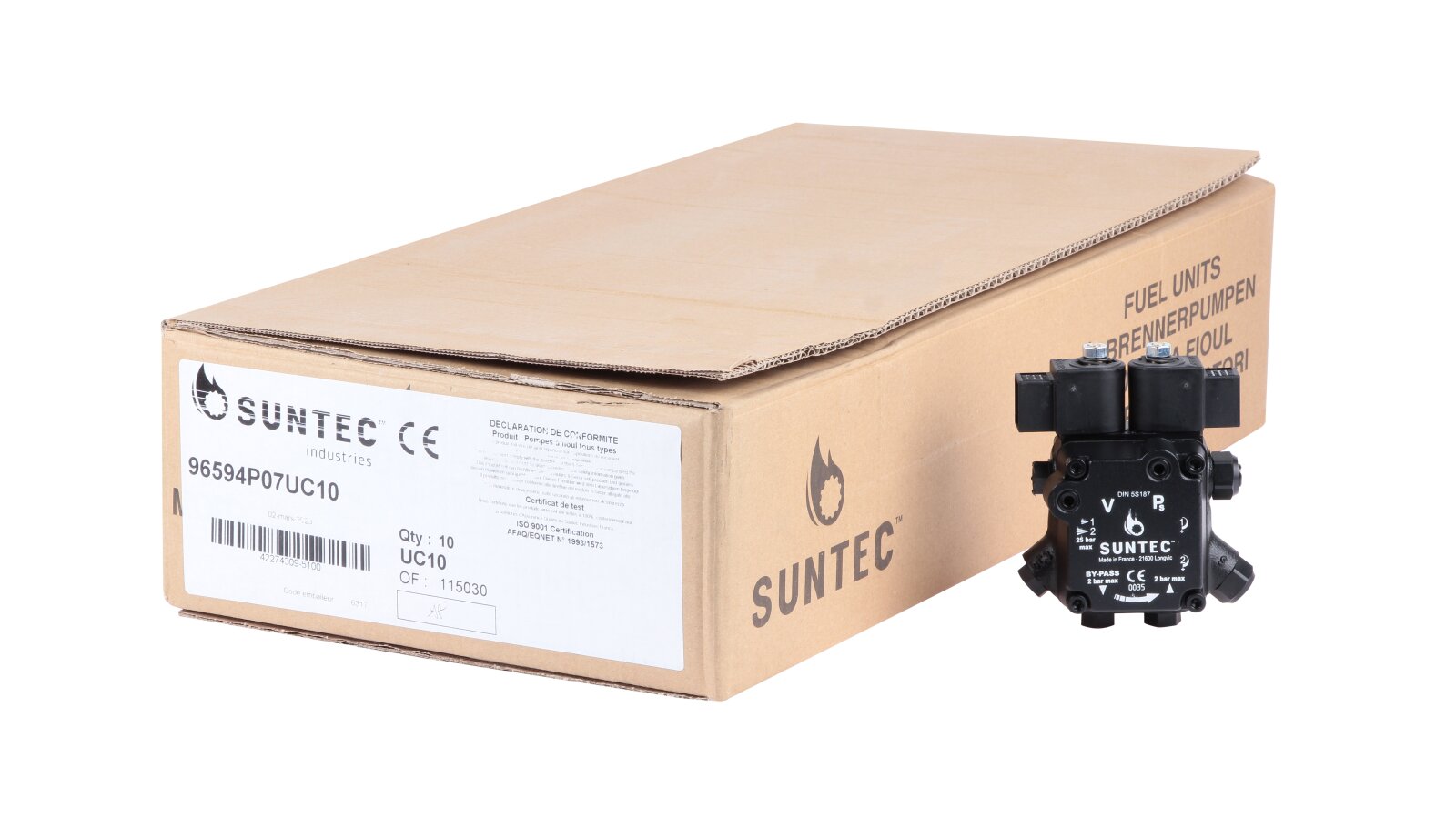

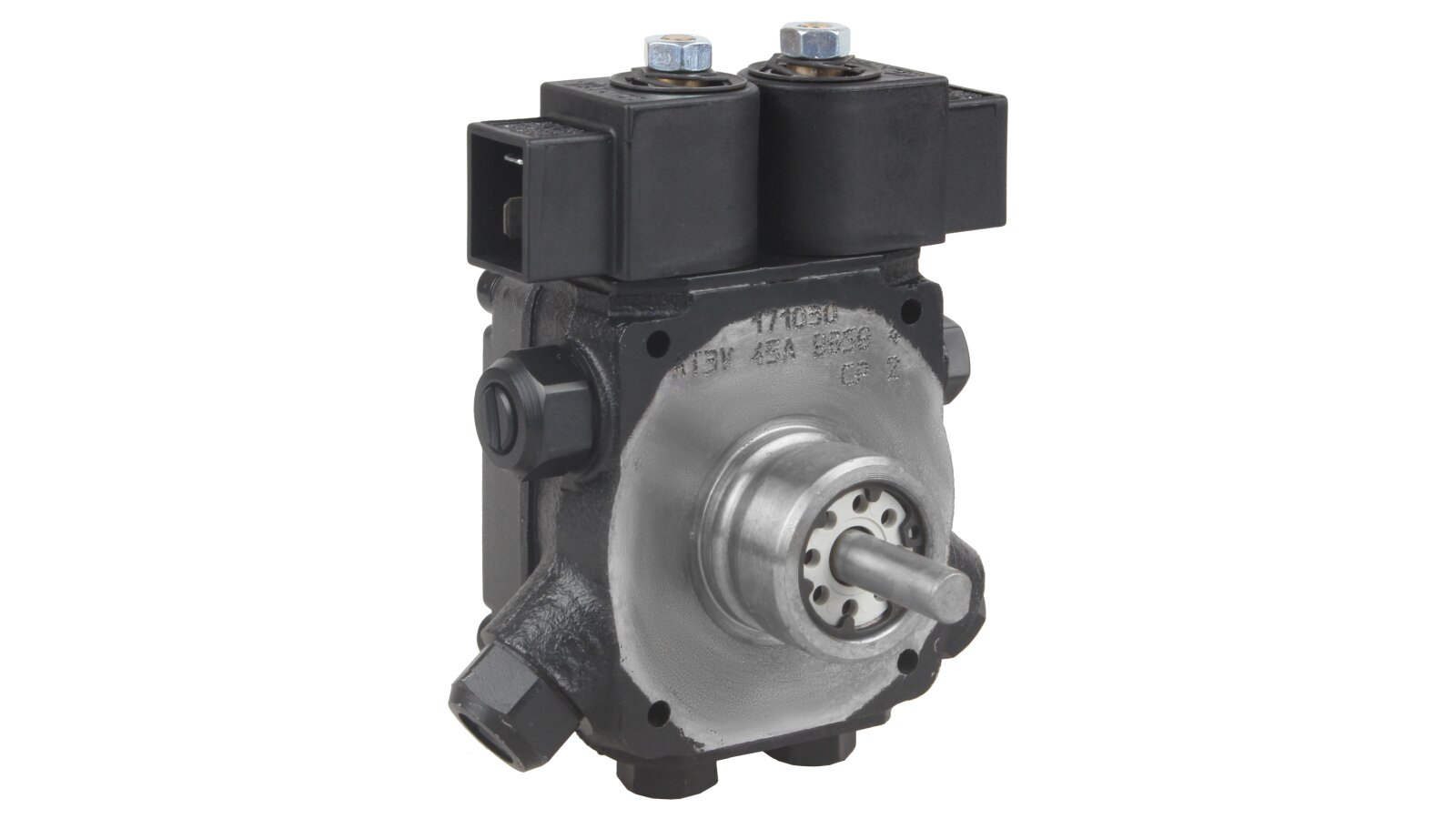

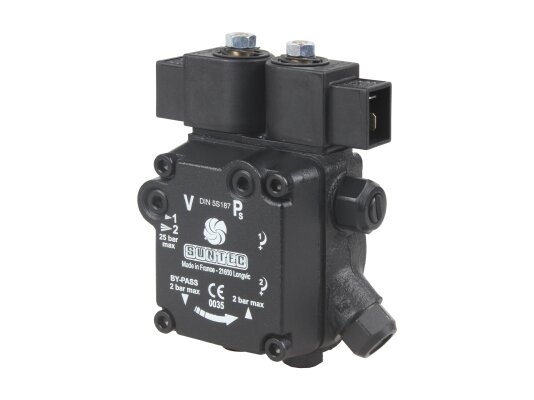

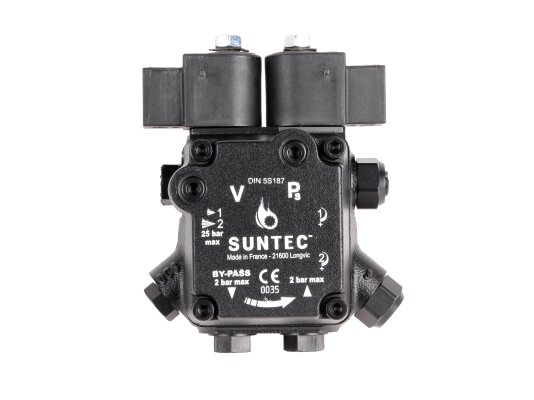

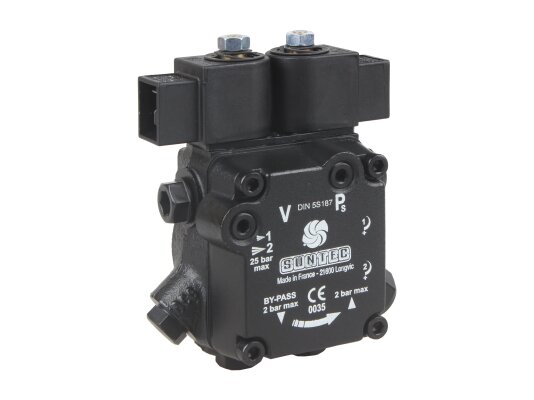

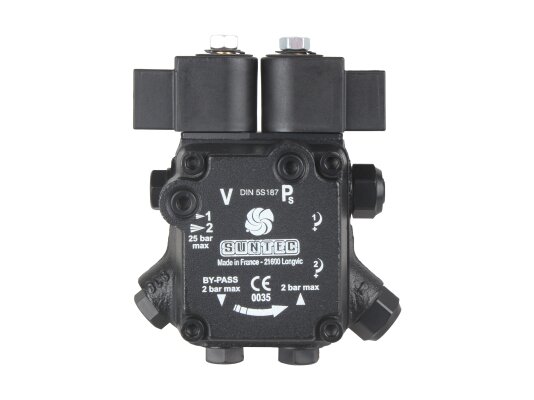

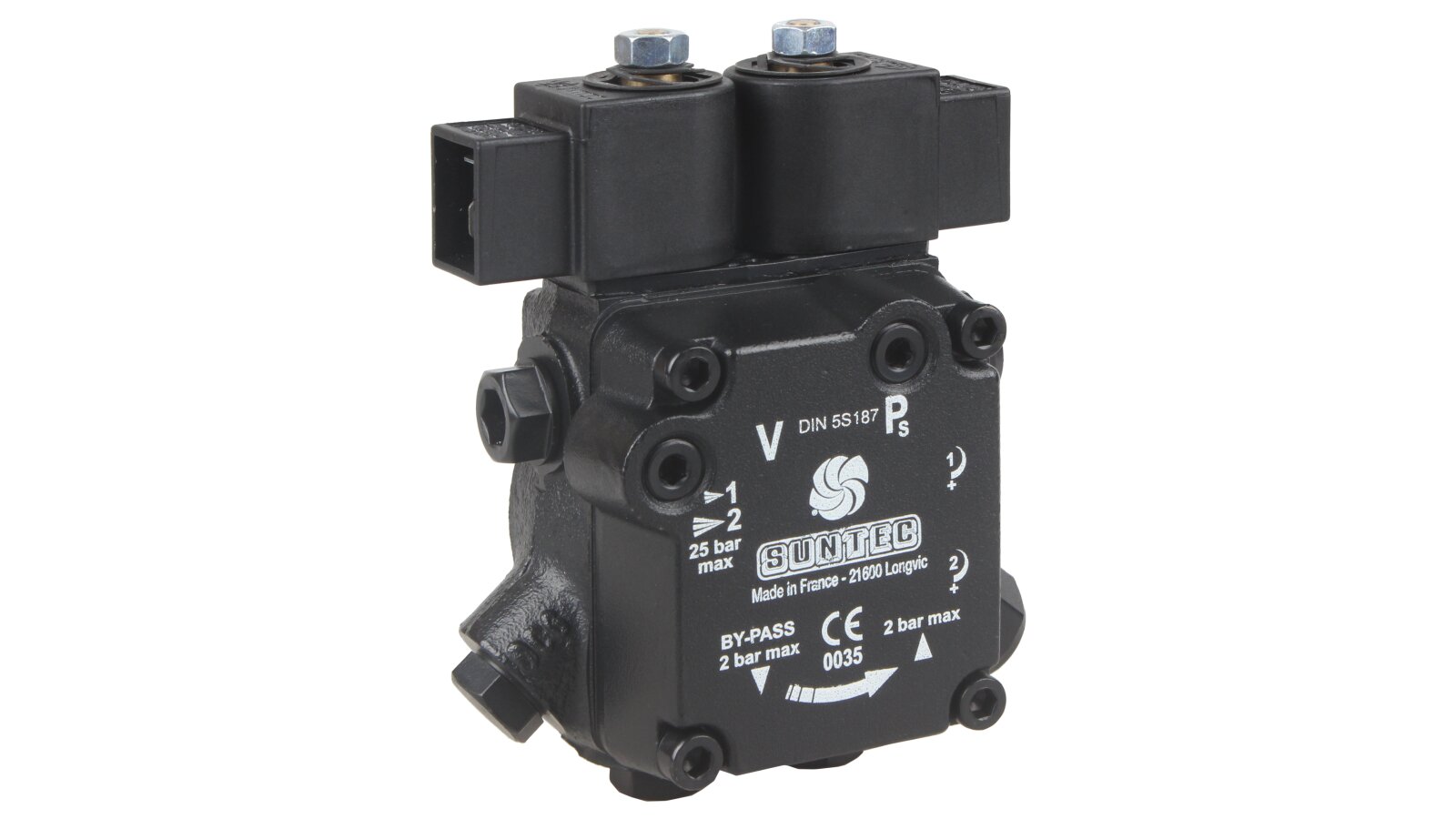

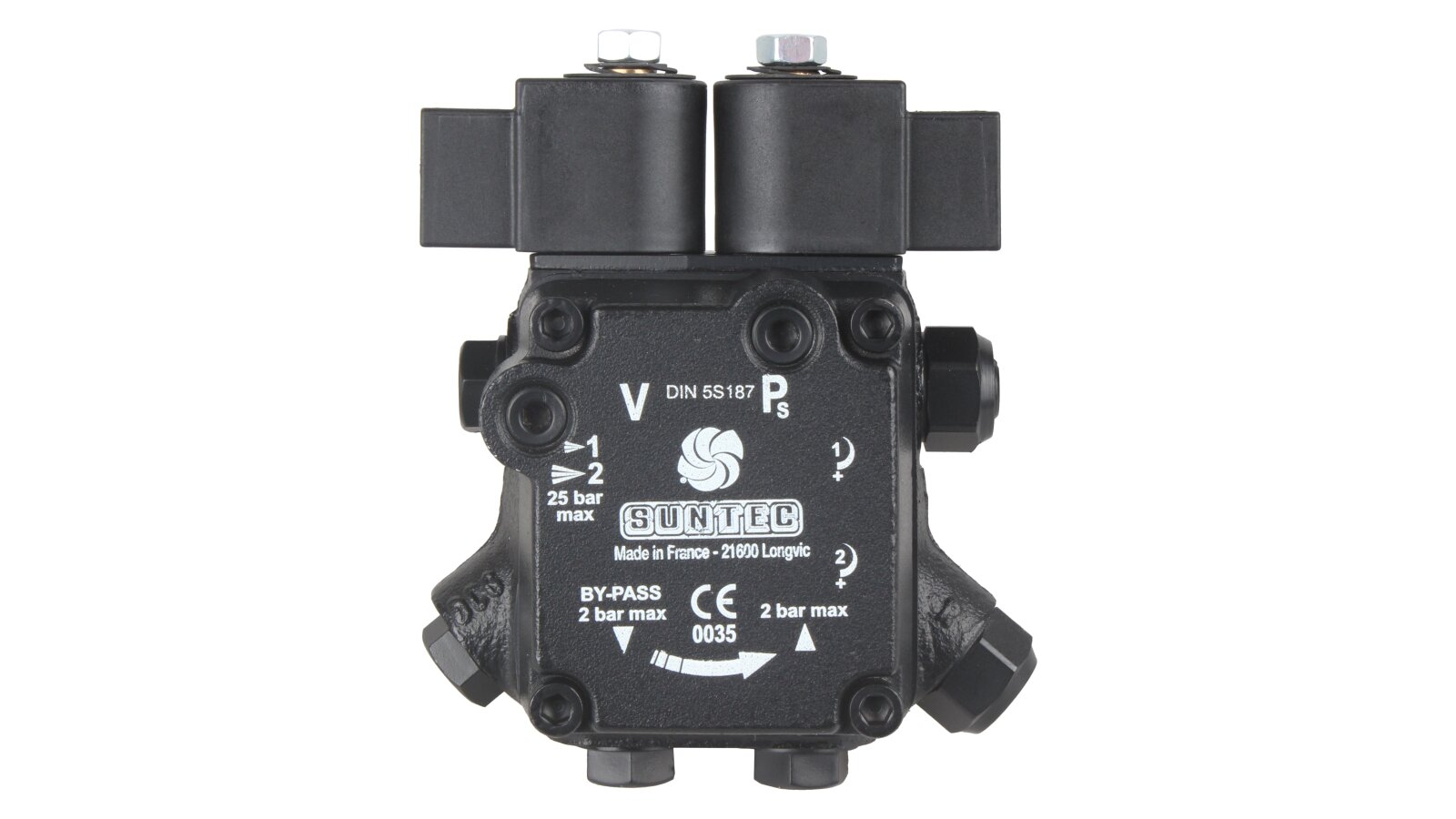

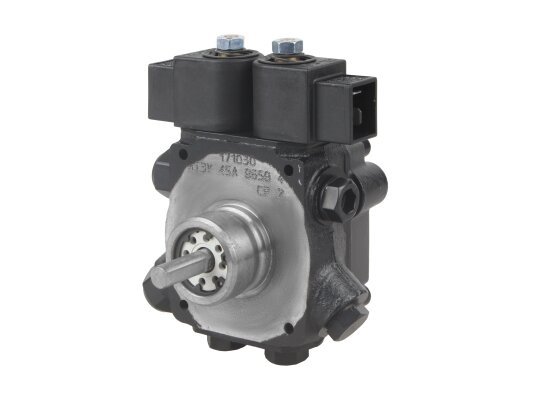

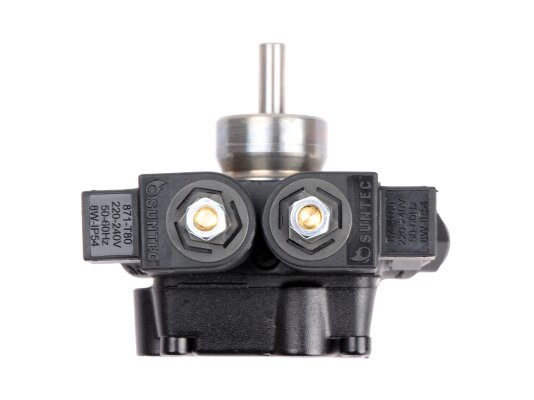

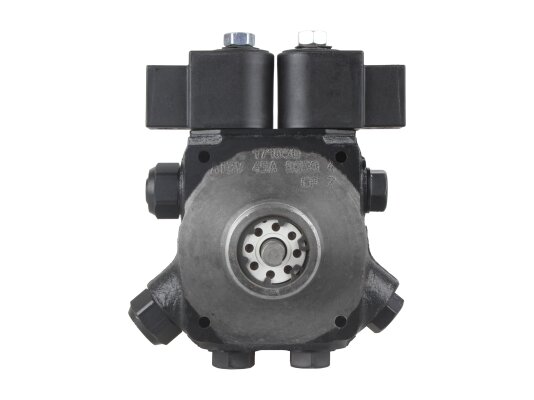

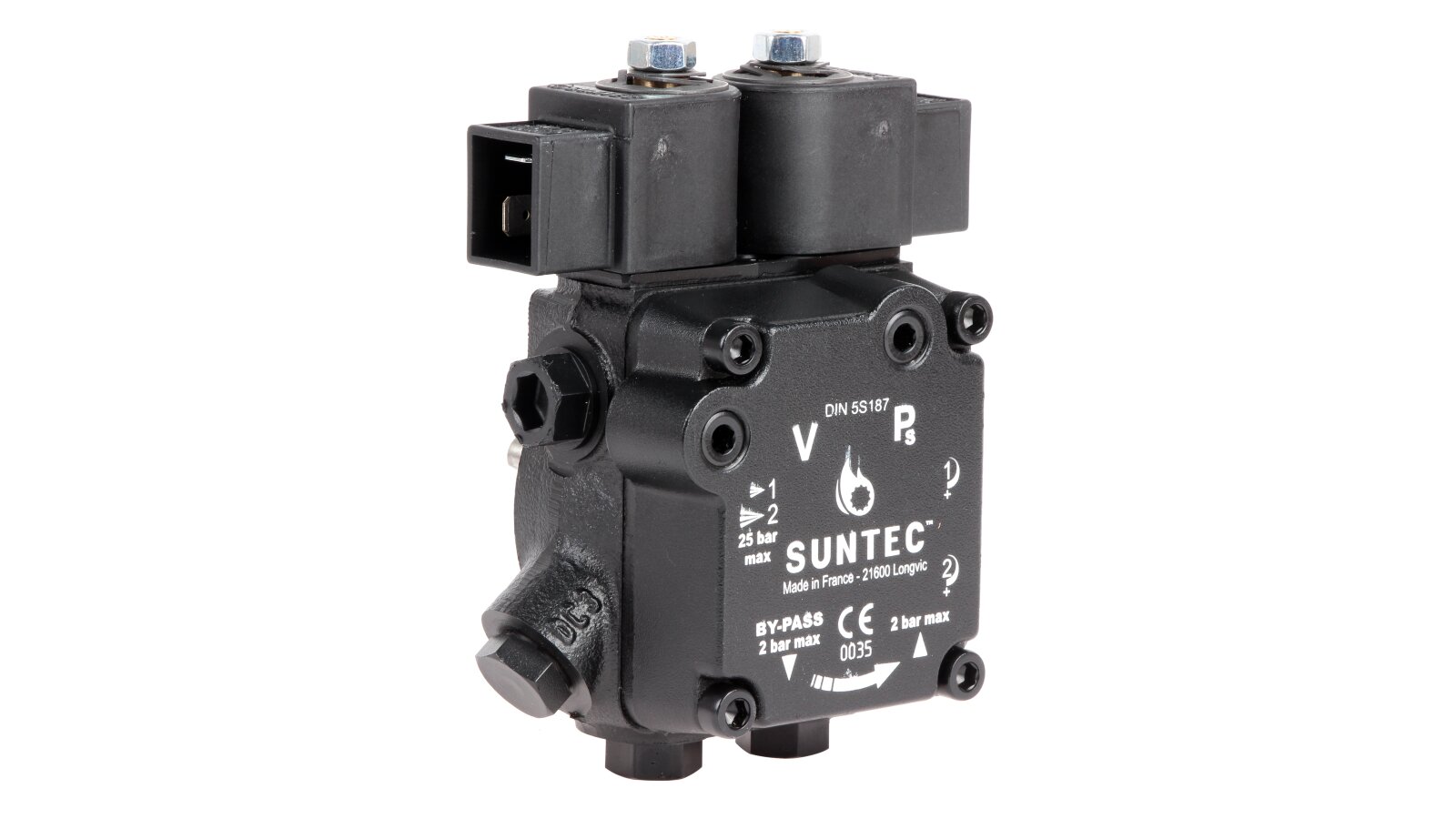

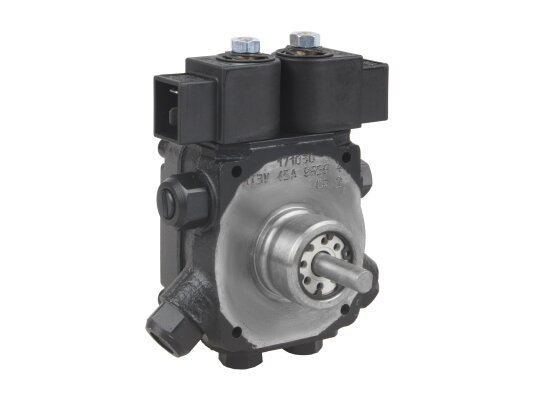

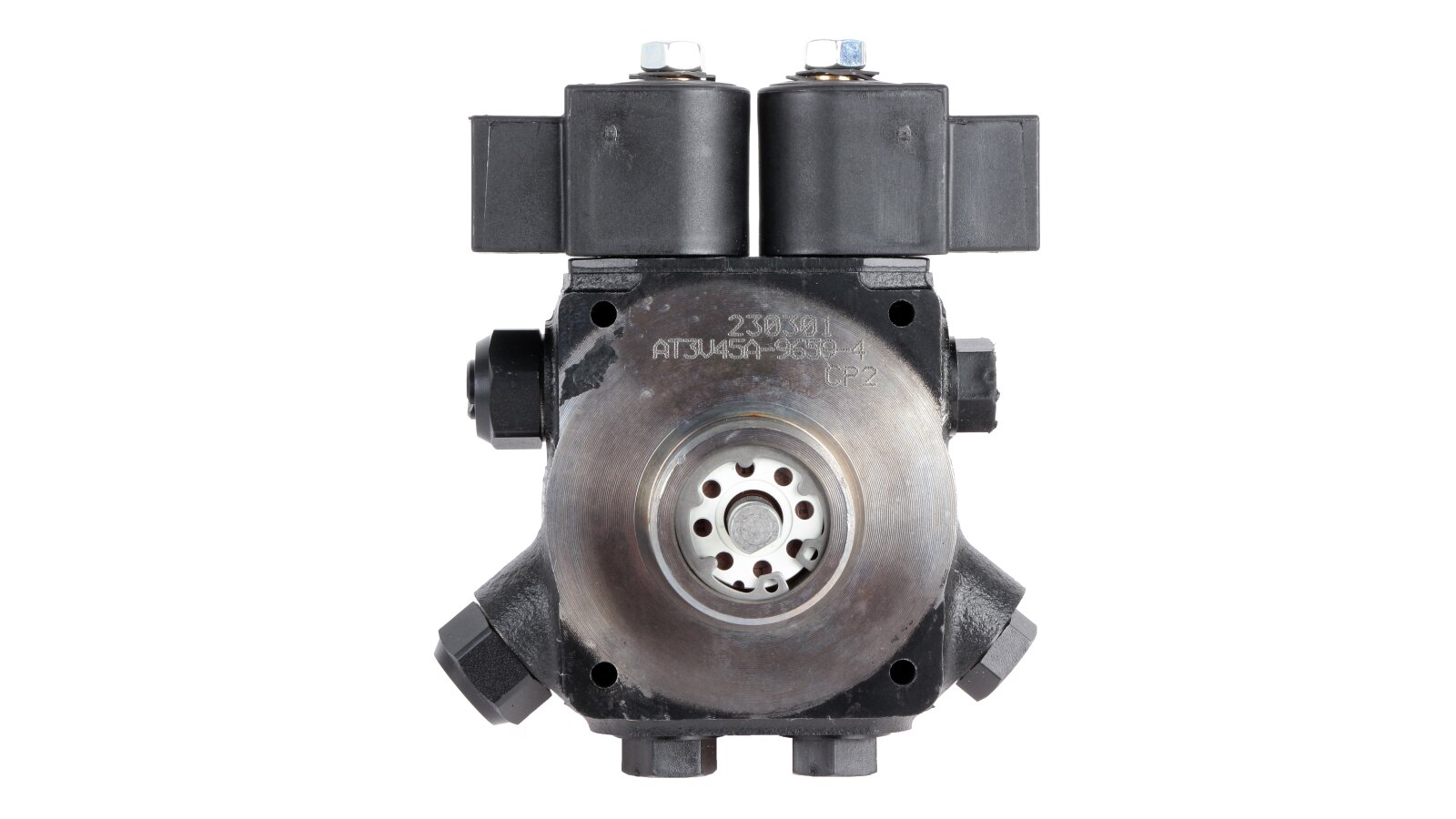

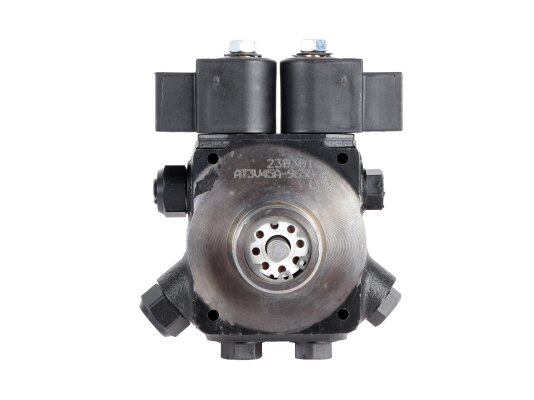

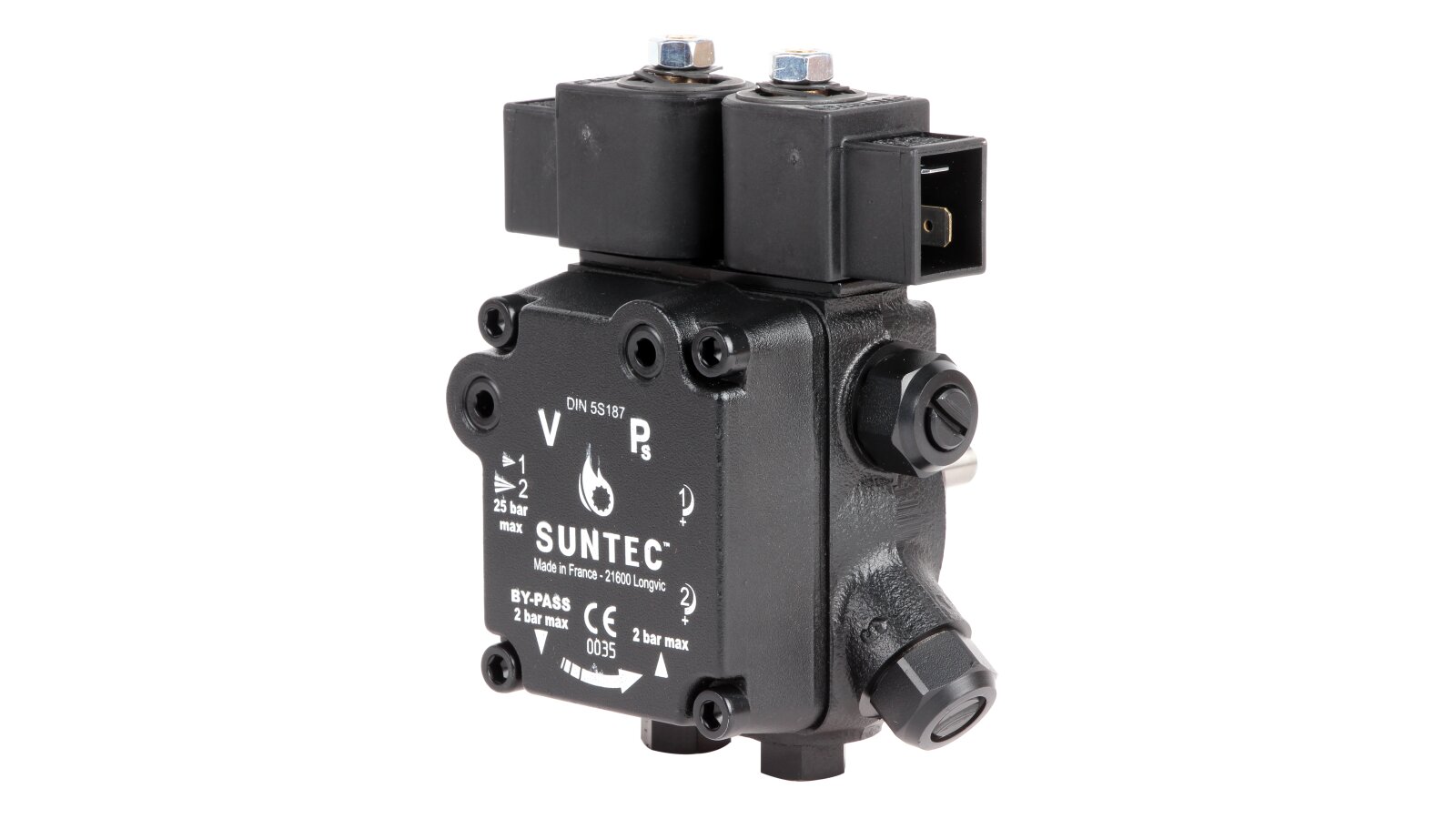

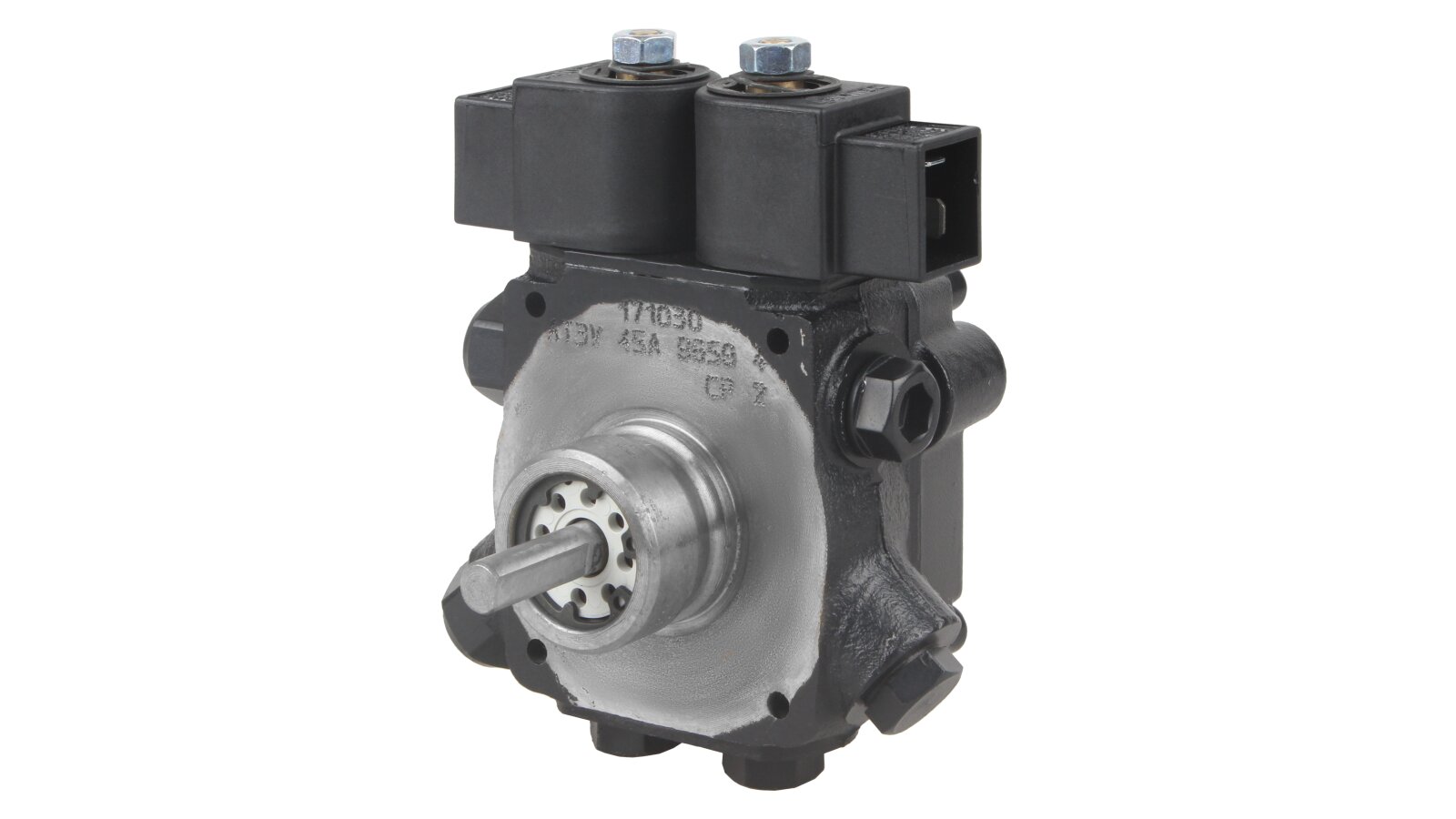

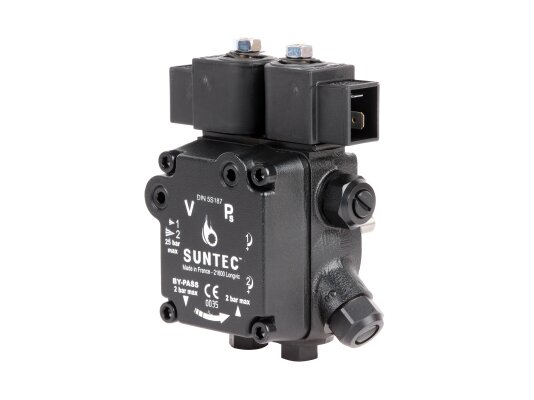

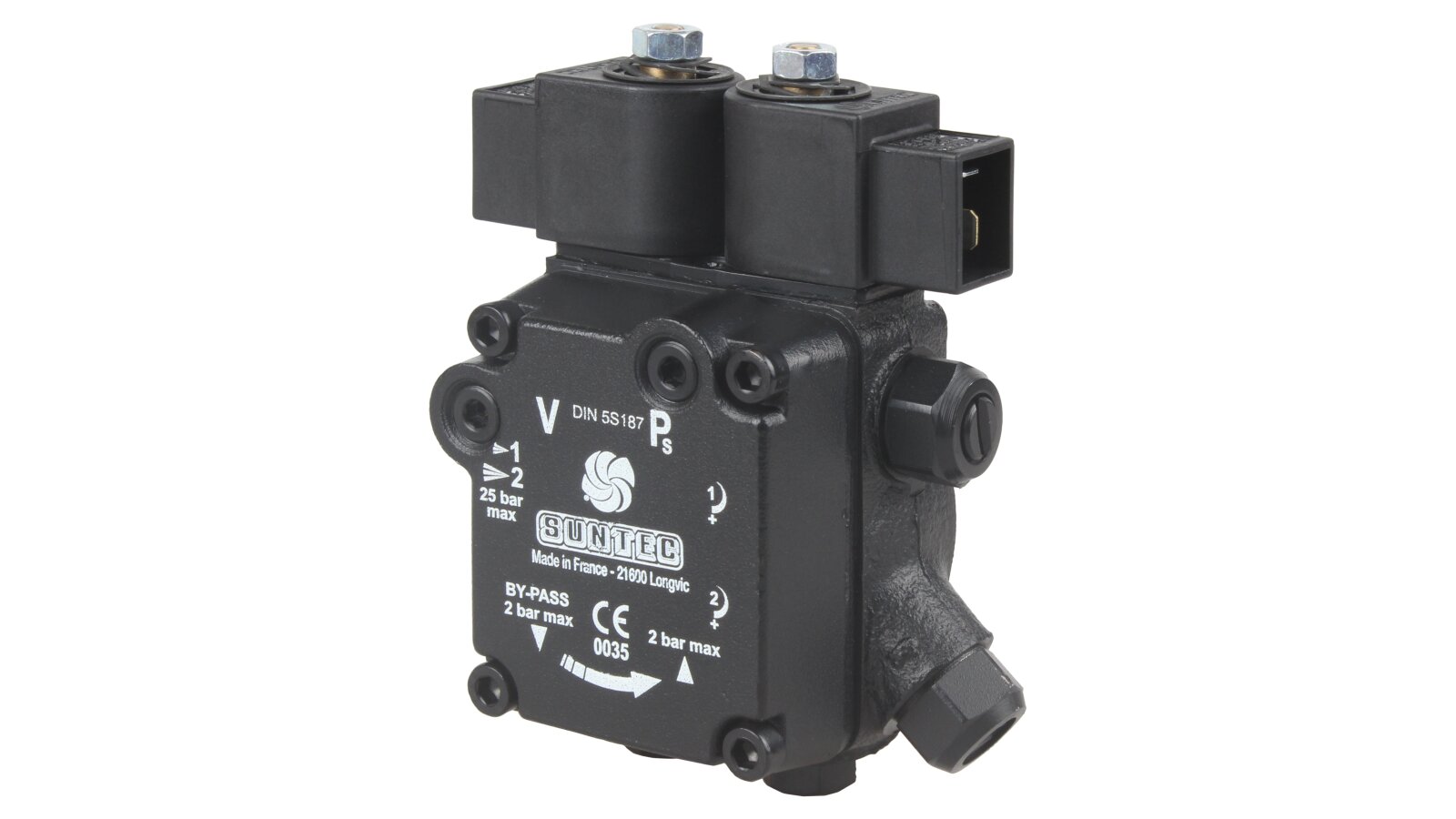

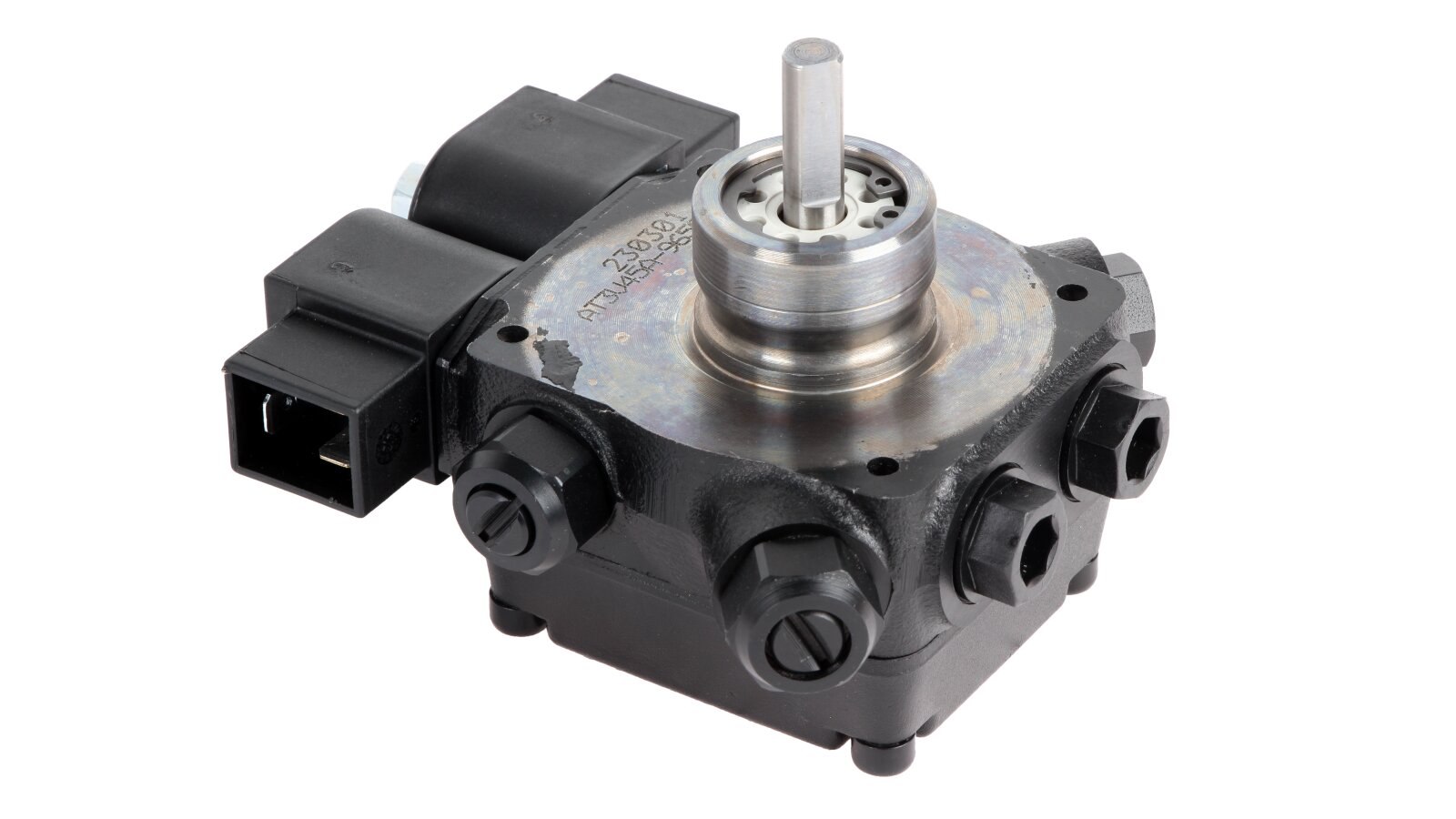

Burner Pump Suntec AT3 V 45 A 9659 4P 0700

Suntec

Alternative Part Number

Baltur

23233

AED 1,200

Oil Burner Pumps
Products code: 1382

Description

Among the presented AT3 line of dual-mode pumps from the French company Suntec, the AT3 V 45 A 9659 4P 0700 model stands out. The device is designed to pump both regular diesel fuel and biodiesel fuel with a higher density. The unit's capacity is 46 l/h, and given the low requirements for the power of the electric drive and the minimum power consumption, this is a completely acceptable figure. You can buy a diesel burner pump at a bargain price in the online store of the ANKAS company in 1 click. Payment for the order is possible both in cash and by bank transfer.

Design features

A high-speed gear pair is responsible for pumping fuel from the tank to the injector line. The central gear is rigidly mounted on the shaft and is the leading one. The driven wheel has an internal arrangement of teeth and rotates around a gear with a half-moon-shaped groove.

A cylindrical filter with a working area of ​​6 cm² installed on the suction line traps microscopic debris, rust and sand, preventing clogging of channels and valves. A drain pipe leading back to the diesel fuel tank can be used to automatically release air from the system.

In addition to the bypass switching electromagnetic valve, there is a shut-off valve on the supply line that shuts off the supply of diesel fuel when triggered.

Model advantages:

  • favorable performance/energy consumption ratio;

  • each of the two pressure modes can be manually adjusted depending on the requirements and technical conditions;

  • support for a two-pipe connection configuration;

  • port and outlet threads comply with the European standard ISO 228/1;

  • presence of a serviceable removable filter;

  • protection of internal elements from external influences using an IP54 casing;

  • small dimensions and weight - 1.3 kg.

The presented fuel pump from the world-famous company "Santek" is used to complete heating burners that burn not only diesel fuel, but also environmentally friendly fuel - biodiesel. To develop and create a device of this level, a team of engineers and specialists working on modern programmable metalworking machines is needed. Only after careful inspection and testing on stands, the product goes on sale.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Pump series: AT3: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31 l/hInstallation method: sleeve ∅ 32 mmStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 46 l/hMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
