Burner Pump Suntec AT3 V 45 A 9660 4P 0700

Suntec

AED 1,425

Oil Burner Pumps
Products code: 2096

Description

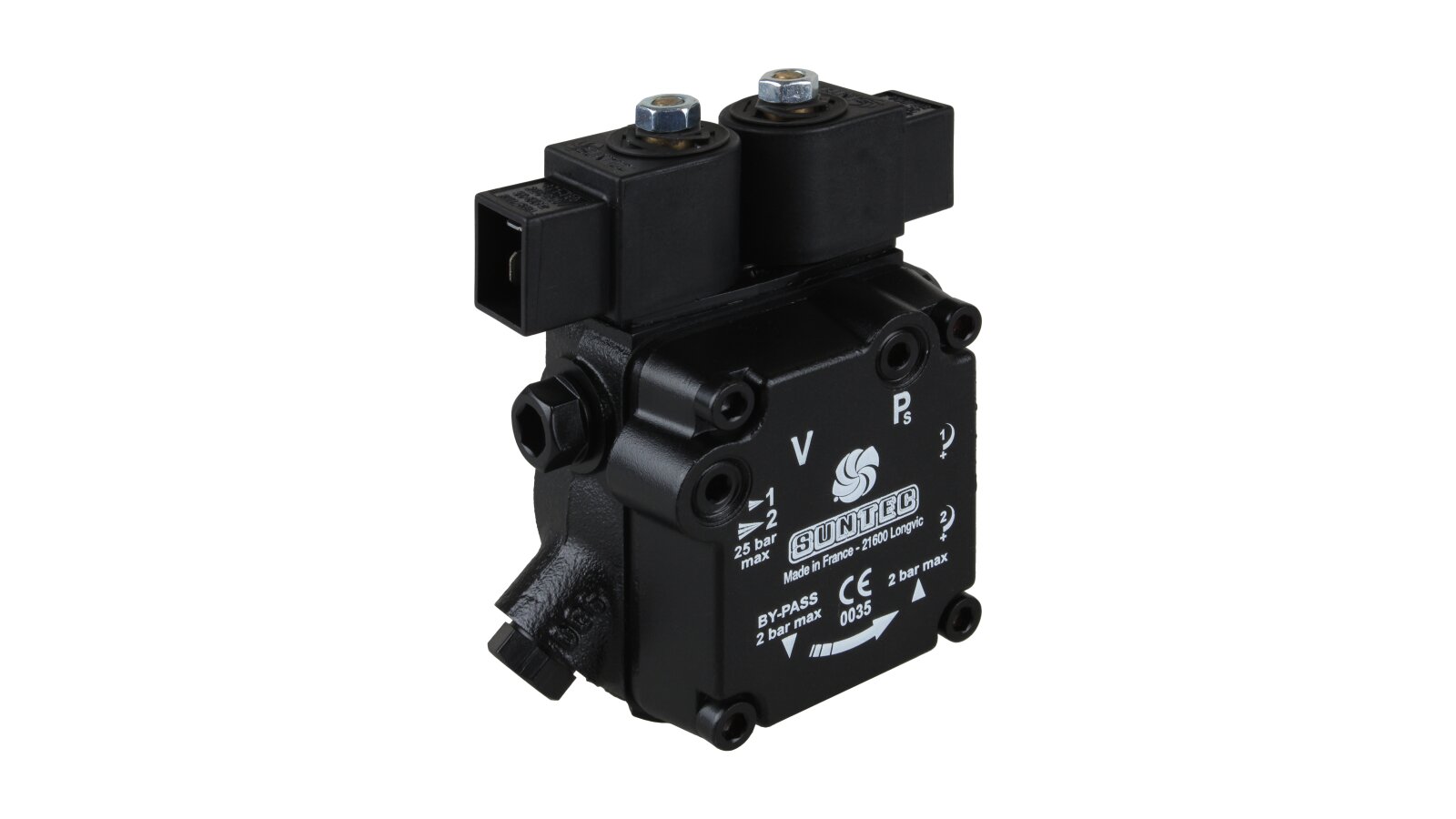

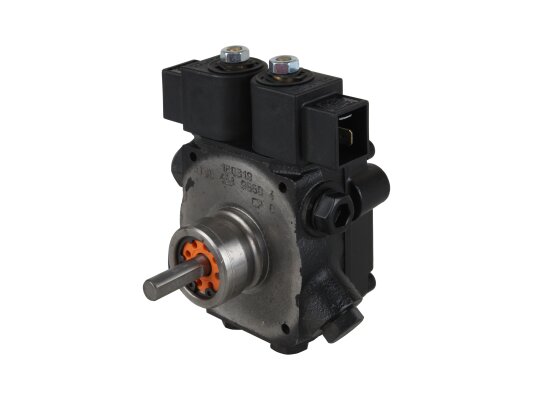

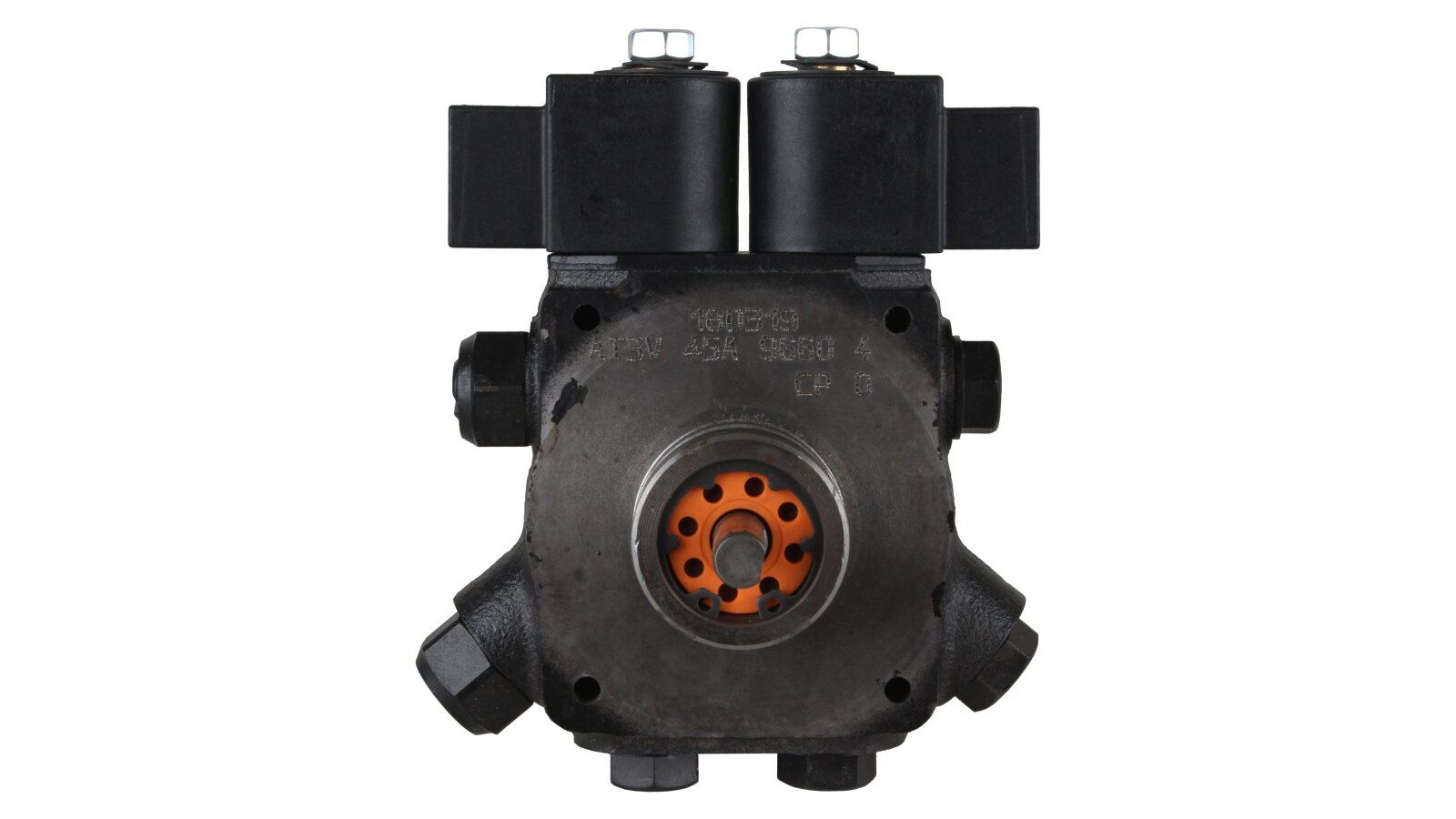

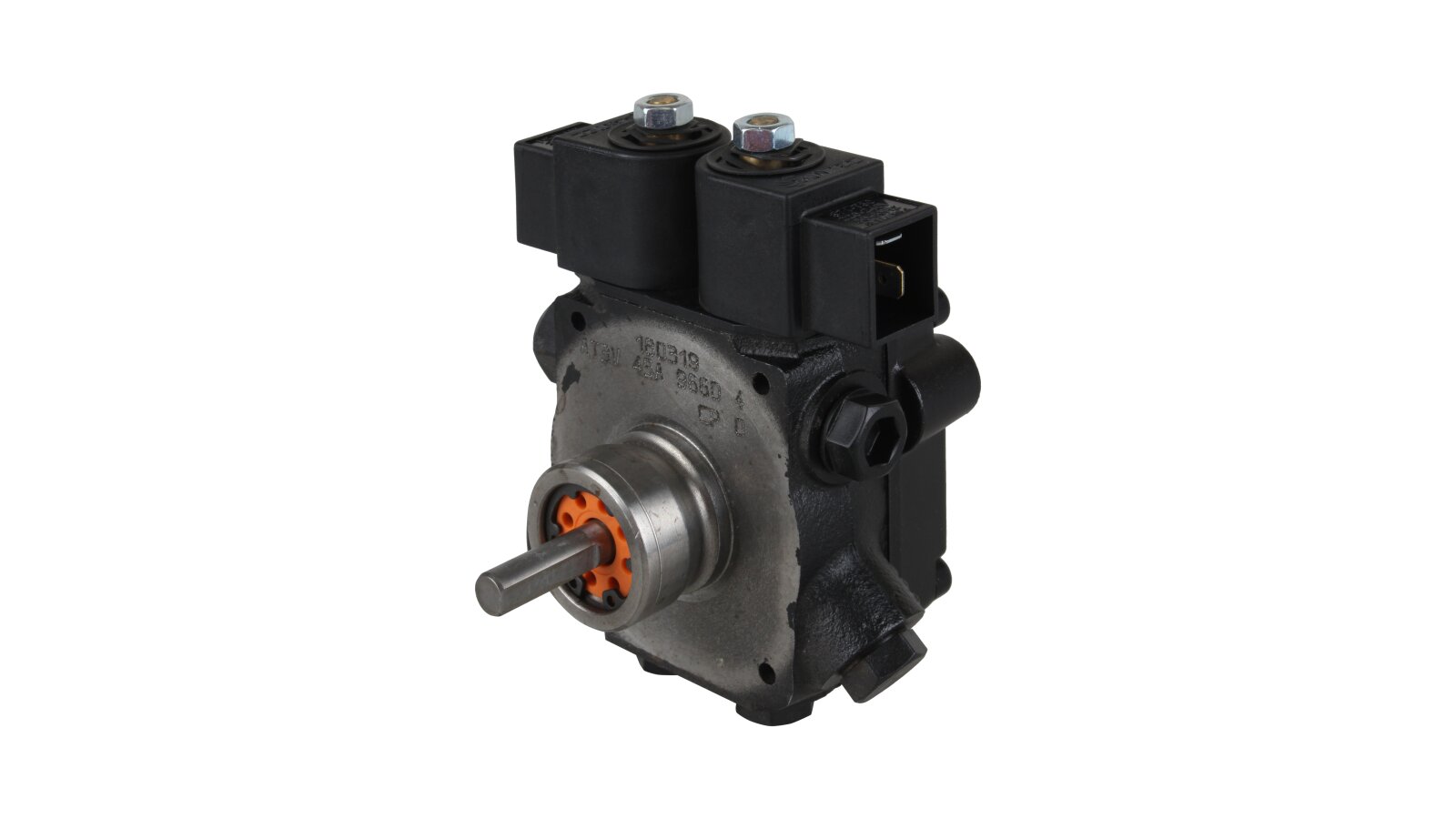

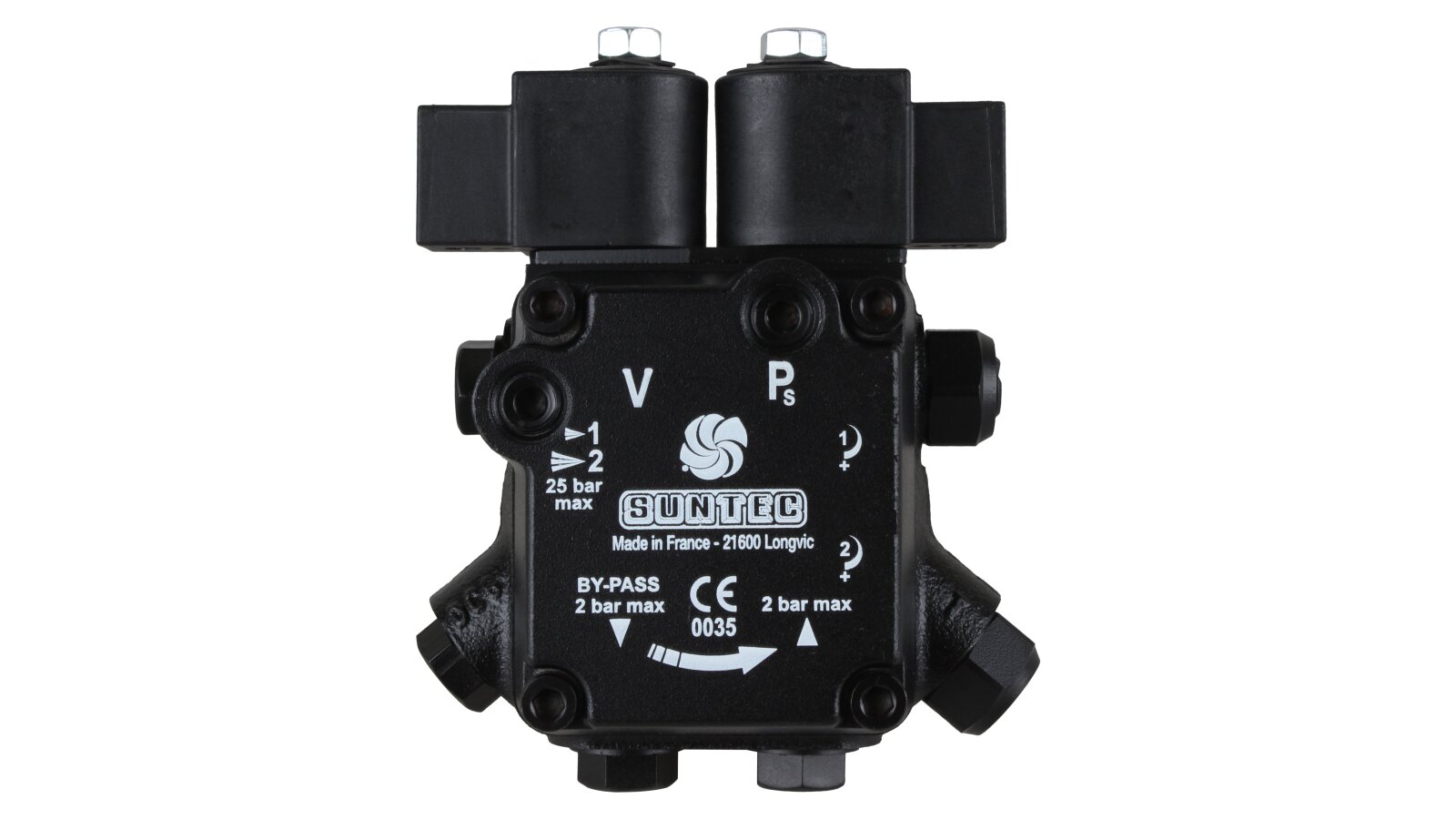

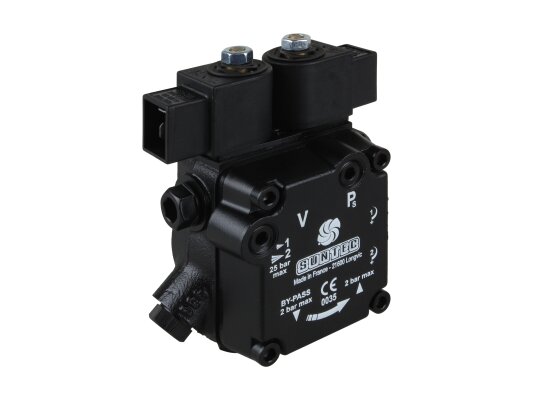

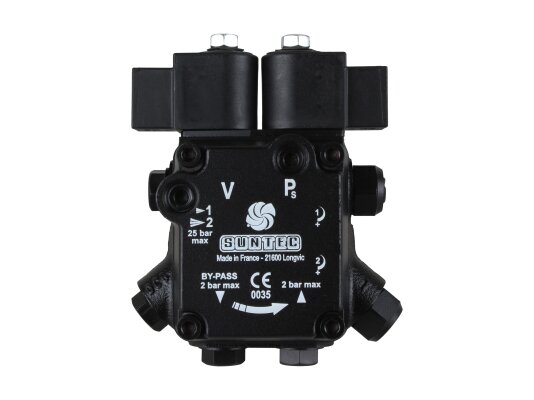

The fuel pump for the AT3 V 45 A 9660 4P 0700 burner operates in two pressure modes with adjustable parameters, equipped with 2 electromagnetic valves with a locking function. The design provides a special port on the cover for taking pressure readings in the nozzle only in high pressure mode.

Features, purpose

  • This model stands out for its purpose: it pumps both conventional diesel fuel and biodiesel. For this, a special shaft seal made of Viton is used.

  • A pair of gears is responsible for pumping the working fluid from the tank to the nozzle, one of which is the leading one, mounted on the drive shaft, rotating clockwise. The driven wheel has an internal arrangement of teeth, moves around the central gear.

  • A coarse filter is installed in the suction part, which restrains the ingress of abrasive impurities of 150 microns in size into the working element, which can lead to equipment failure. The pressure for efficient operation of the burner is regulated by means of spool valves, one for each mode: within 8-15 atmospheres for the first stage and 12-25 atm. for the second.

  • Switching between low and high pressure is performed by a "normally open" EM bypass valve. In addition, a shut-off valve is installed on the nozzle line, interrupting the fuel supply.

  • The pump is installed in a 2-pipe system by default. When used in a single-pipe design, the return line must be shut off, for which the bypass plug is removed with an Allen key and a steel plug with a washer is installed instead.

  • The pump capacity is 46 l/h at a pressure of 11 bar and a viscosity of the pumped medium of 5 cSt. The outlet to the nozzle is on the right (marked "A").

Advantages of the model:

  • excellent performance / energy consumption ratio;

  • the ability to adjust each pressure mode taking into account operating conditions and the requirements of the burner manufacturer;

  • threaded outlets comply with ISO 228/1;

  • pumping diesel fuel and biodiesel;

  • support for 2-pipe connection configuration;

  • protection of valves and gear pair from sand, debris and other contaminants.

On the ANKAS website you can buy a liquid fuel pump AT3 V 45 A 9660 4P 0700 from Suntec and other components for burners at the best price. All products have undergone thorough inspection and testing.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 46 l/hType of pumped liquid: diesel, biodiesel fuel blend B10Operating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AT3: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lPerformance for stage 2 at 11 bar and 5 cSt viscosity: 31 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 25 barFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54
