Description

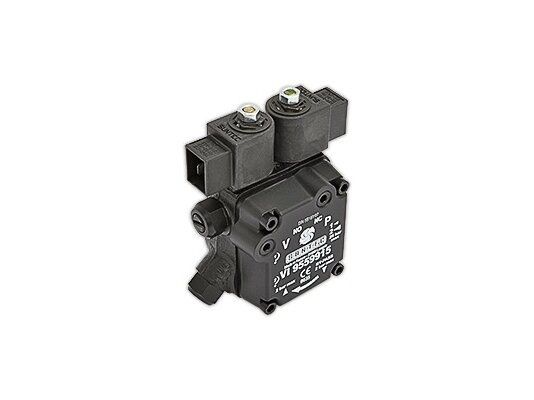

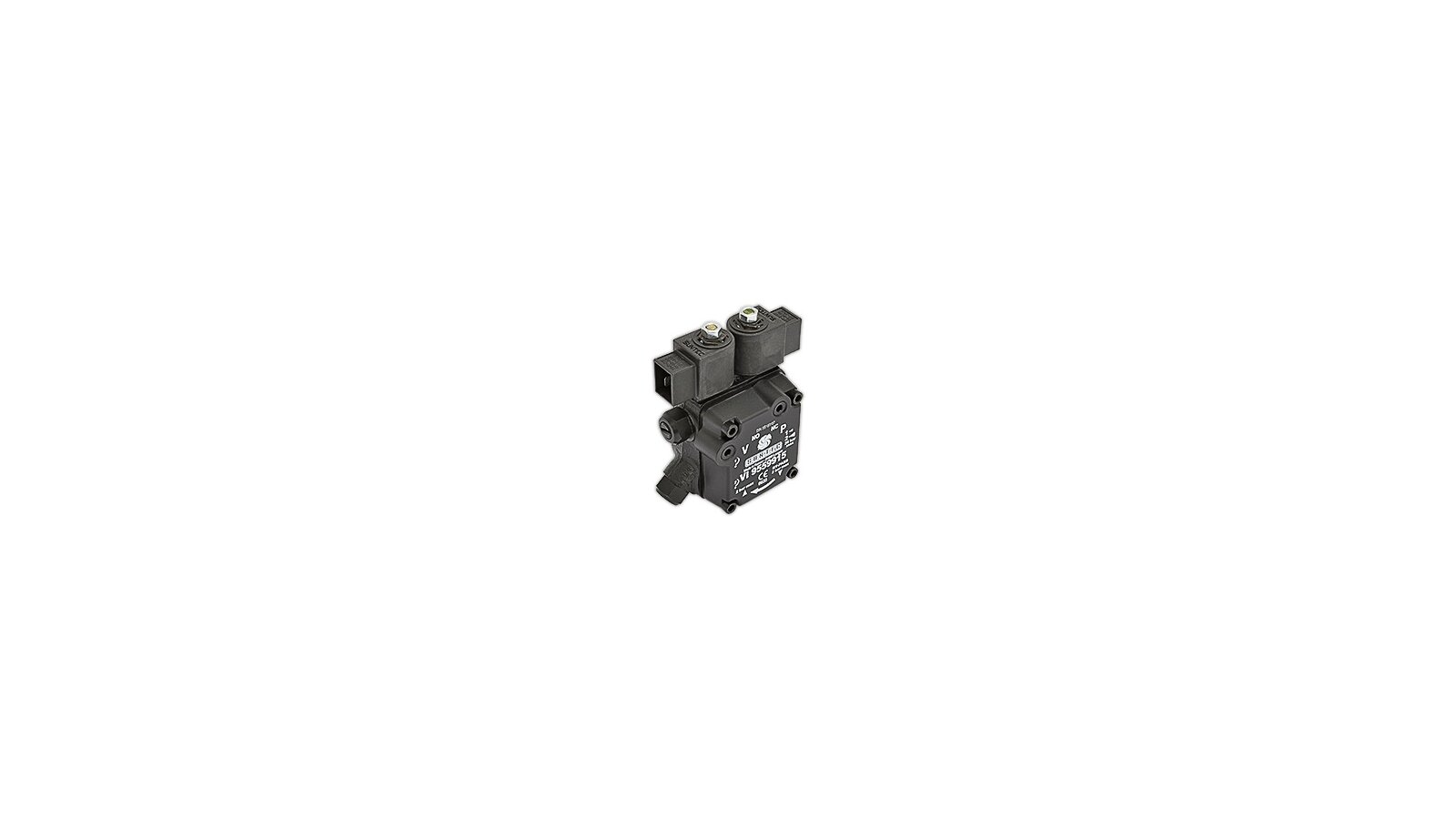

The Suntec ATE2 45 C 9350 6P 0500 pump operates in two pressure modes. Equipped with a shut-off electromagnetic valve with a locking function. It is used for pumping liquid fuel.
Features
The pump design is made taking into account intensive use and long service life. The housing prevents dust and moisture from entering the device. The nozzle connection pipe is on the left.
Before entering the gear pair, the fuel is cleaned of foreign impurities of 150 microns in size, which maintains the integrity of the working parts and extends the service life of the equipment.
The electromagnetic valve is located in the nozzle line, which facilitates quick response.
The pump is suitable for equipping one-pipe and two-pipe systems. For a two-pipe system, the bypass plug is installed in the return line, for a one-pipe system, it is removed with a hex key, and a steel plug with a washer is inserted instead. The installation is carried out using a sleeve connection, which complies with the European standard EN 225. This type of fastening is used in burners of most manufacturers, which makes the pump universal.
Advantages:
two-stage control mode;
universal fit;
shut-off EM valve with a locking function;
coarse mesh filter;
high level of protection against dust and moisture;
installation in one- and two-pipe systems;
ports for connecting measuring equipment;
stable operation, long service life.
We offer to buy the Suntec ATE2 45 C 9350 6P 0500 pump and other components for assembling a boiler unit on the ANKAS website. You can get help in selecting equipment from our consultants.
